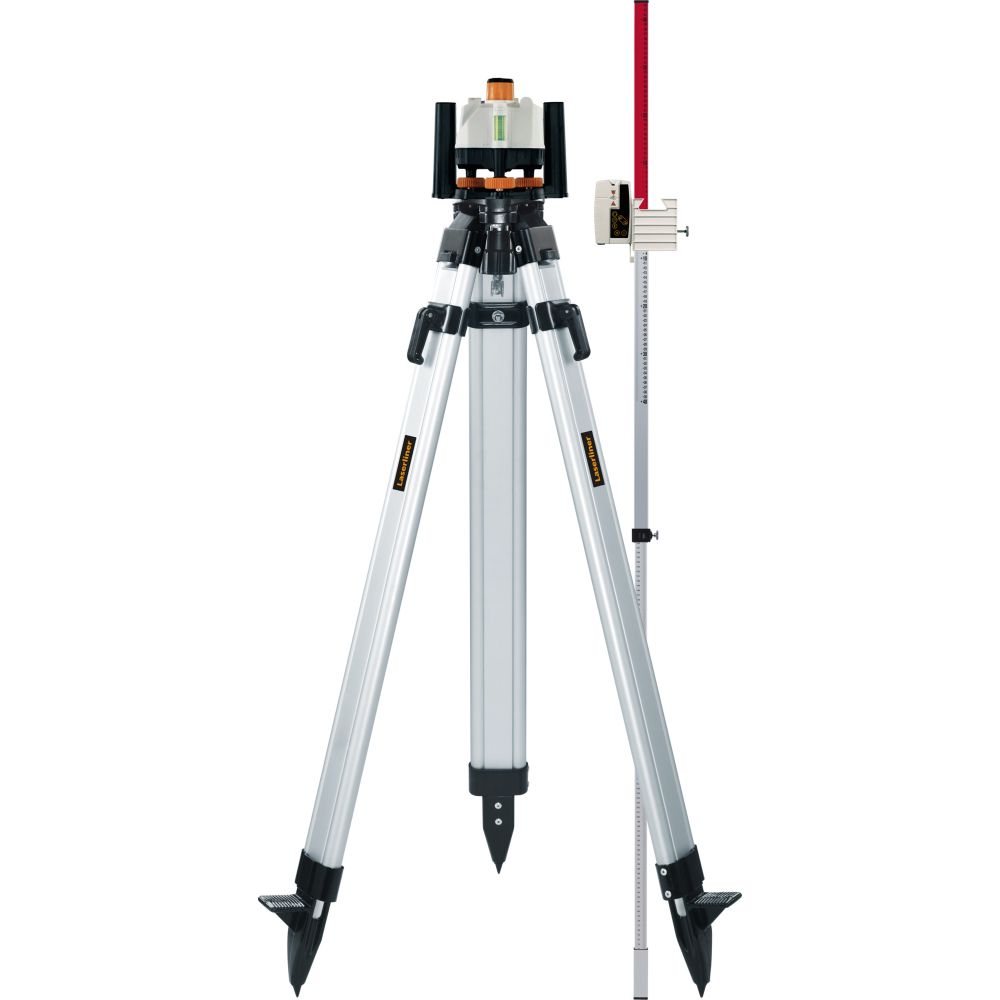

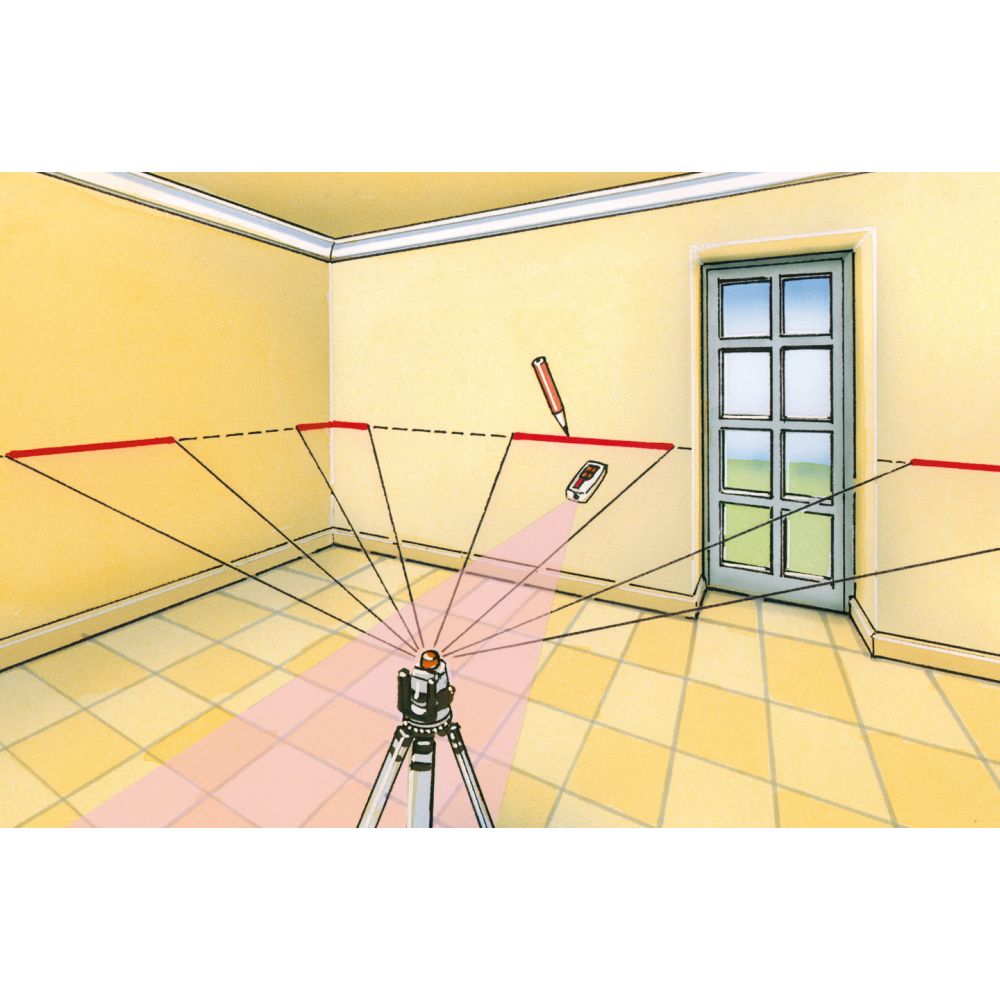

Description: This manual rotary laser with receiver, stand and levelling staff allows precise horizontal alignment and plumbing. The device can be set to spot, scan, rotary and hand receiver mode. In spot mode, the position can easily be determined remotely. Optimum visibility can be set using the adjustable rotation speed. A light-intensive line in a range of widths and positions can be set using the scan mode. When used in handheld receiver mode, the consistently high speed ensures perfect reception quality. The combination of a Flexi levelling staff and the attachable hand receiver is perfect for ground level measurements and determining height differences without having to complete a calculation. The light and robust stand ensures the laser is securely located.

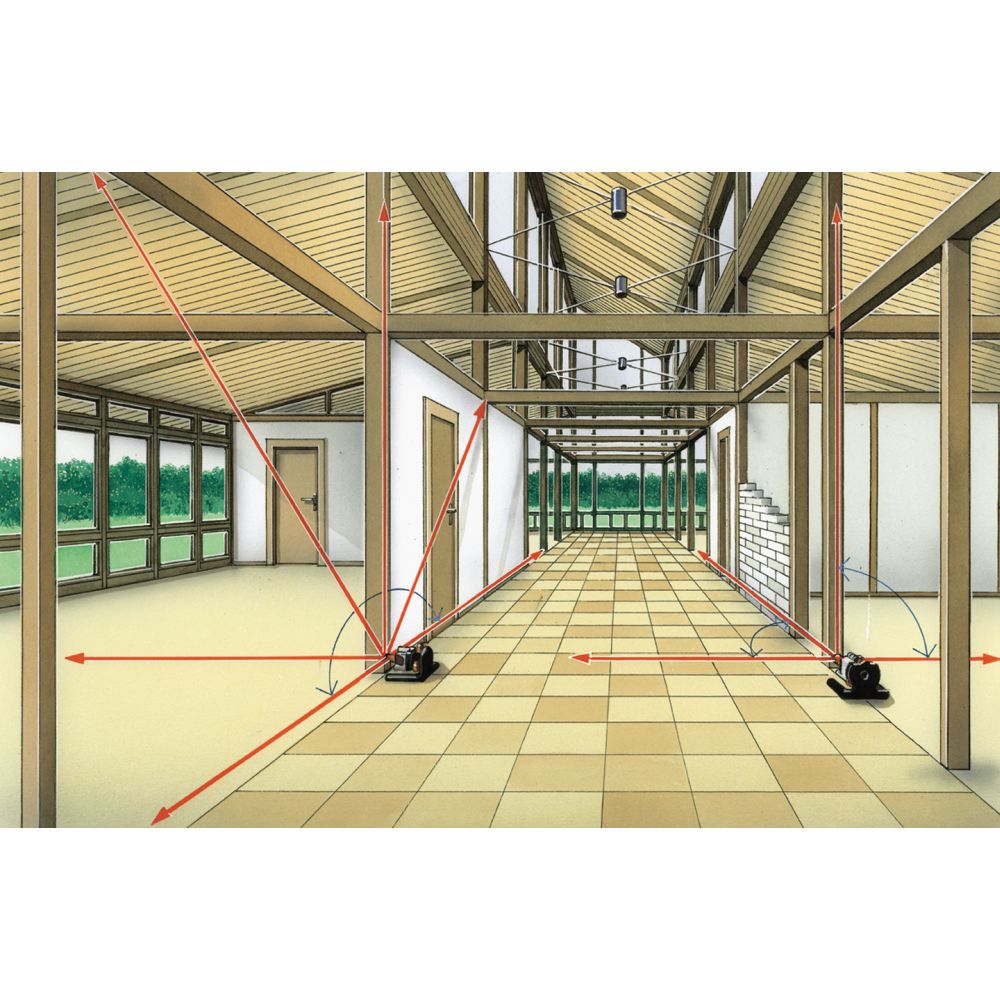

Horizontal/vertical levelling | ✅ |

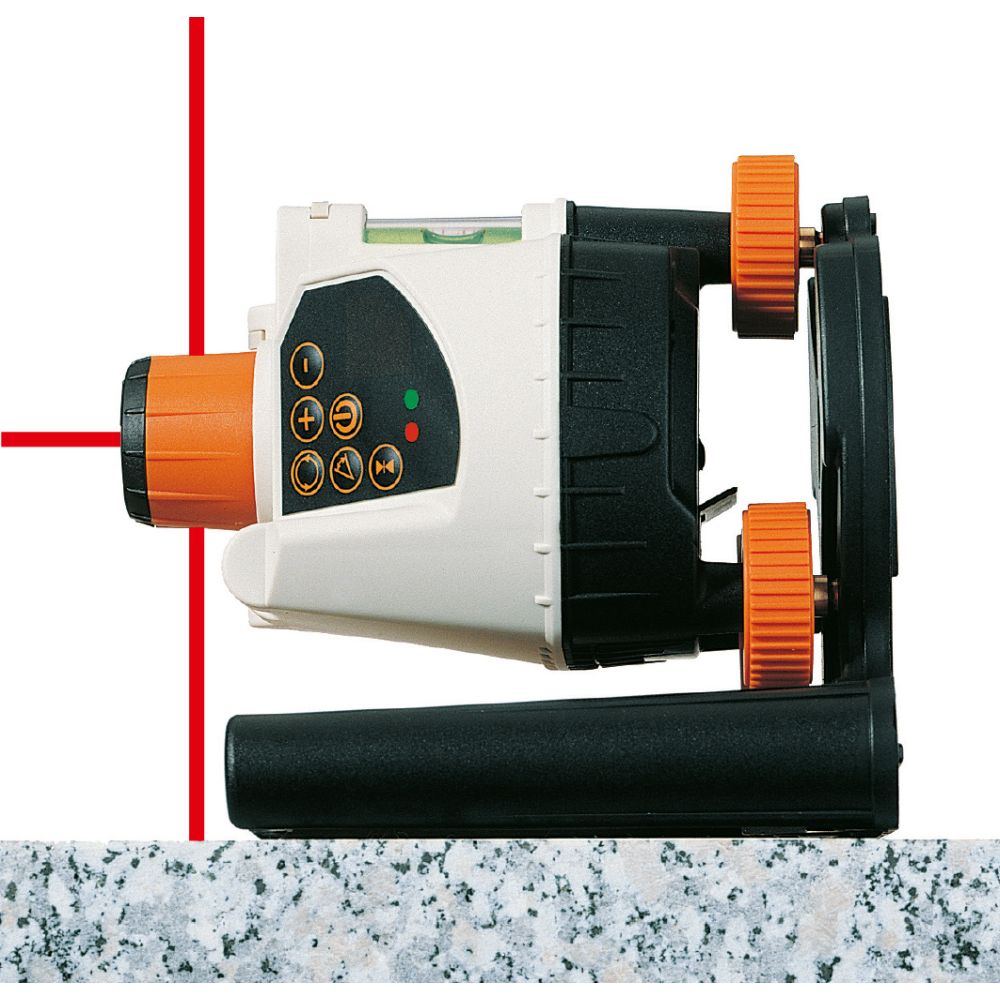

Plumb laser up (90° reference beam) | ✅ |
Spot mode | ✅ |
Scan mode | ✅ |
Hand receiver mode | ✅ |
Accuracy | ± 0.2 mm / m |
Levelling | manual |
Laser Wavelength | 635 nm |
Laser Class | 2 / < 1 mW (EN 60825-1:2014/AC:2017) |
Protection Class | IP 4X |
Power Supply | 4 x 1.5V LR6 (AA) |
Operating Time | approx. 40 hours |
Operating Conditions | 0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull) |
Storage Conditions | -10°C … 70°C, Luftfeuchtigkeit max. 80% rH |
Dimensions (W x H x D) | 175 mm x 150 mm x 135 mm |
Weight | 678 g (inkl. Batterien) |

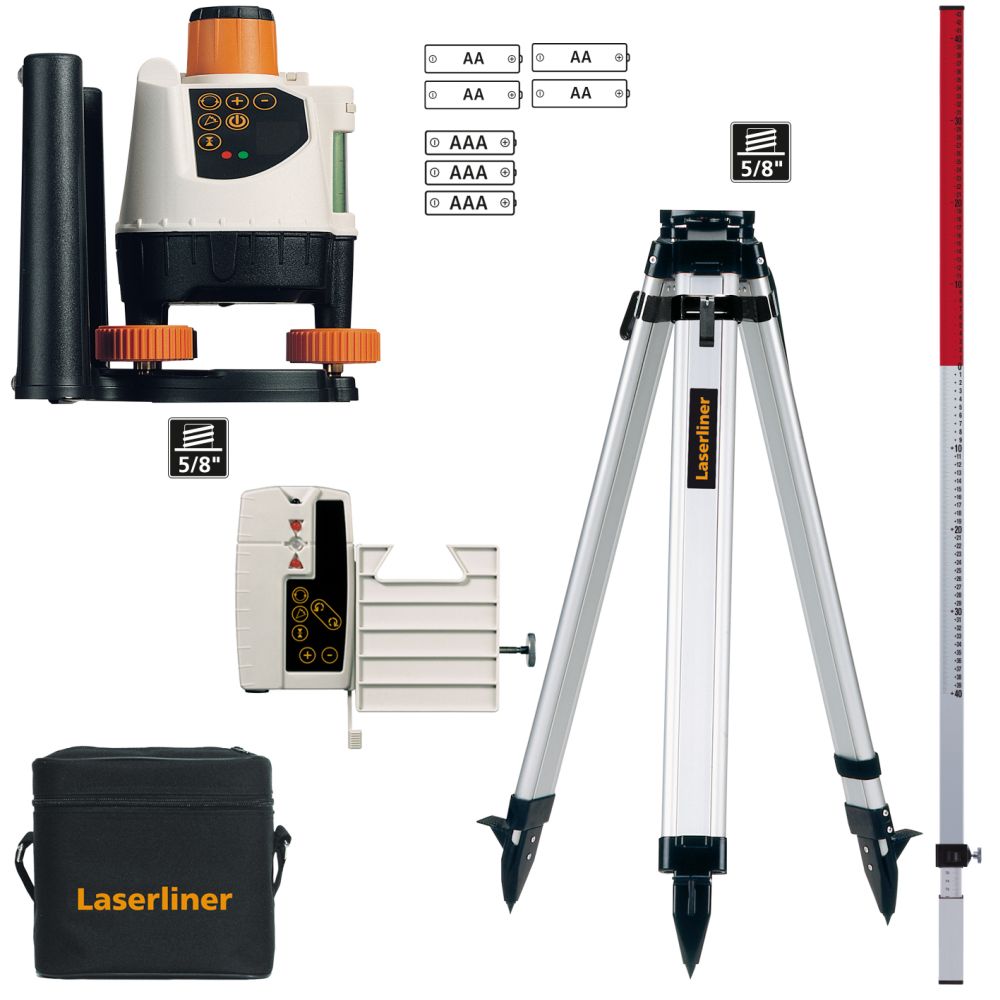

Scope of delivery:
Accessories (optional):
VarioStand L 300 cm(Art.No.: 080.24A) - tripod
Crank Tripod P 175 cm(Art.No.: 080.26) - crank tripod
Crank Tripod 260 cm(Art.No.: 080.35) - Crank tripod
Crank Tripod 300 cm(Art.No.: 080.39) - Crank tripod
SensoLite 110 Set(Art.No.: 028.65) - Laser receiver
SensoLite 310 Set(Art.No.: 028.71) - Laser receiver
SensoLite 410 Set(Art.No.: 028.75) - Laser receiver for rotary lasers
SensoMaster M350(Art.No.: 028.85) - Laser receiver
Wall Mount Pro(Art.No.: 080.71) - Wall bracket
Angle Bracket 5/8â€(Art.No.: 080.75) - Angle plate for rotary lasers
Telescopic Levelling Staff LT 4 m(Art.No.: 080.42) - Levelling staff
Telescopic Levelling Staff LT 5 m(Art.No.: 080.43) - Levelling staff
LaserSight red(Art.No.: 020.70A) - laser enhancement glasses
Documentation:
Titel:
Rotary laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
OrangeLine
Art.No.: 026.04.00A, GTIN (EAN): 4021563665181
