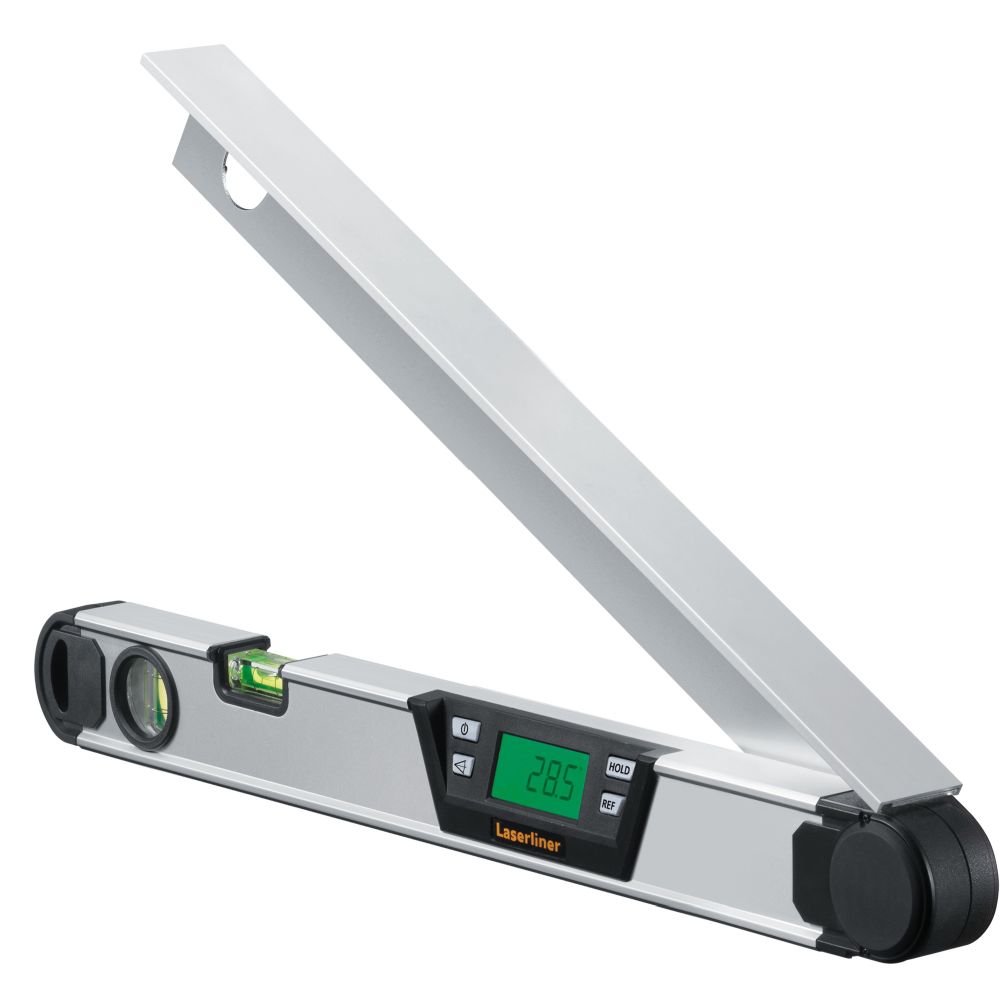

ArcoMaster 60

Digital electronic angle measuring device with display

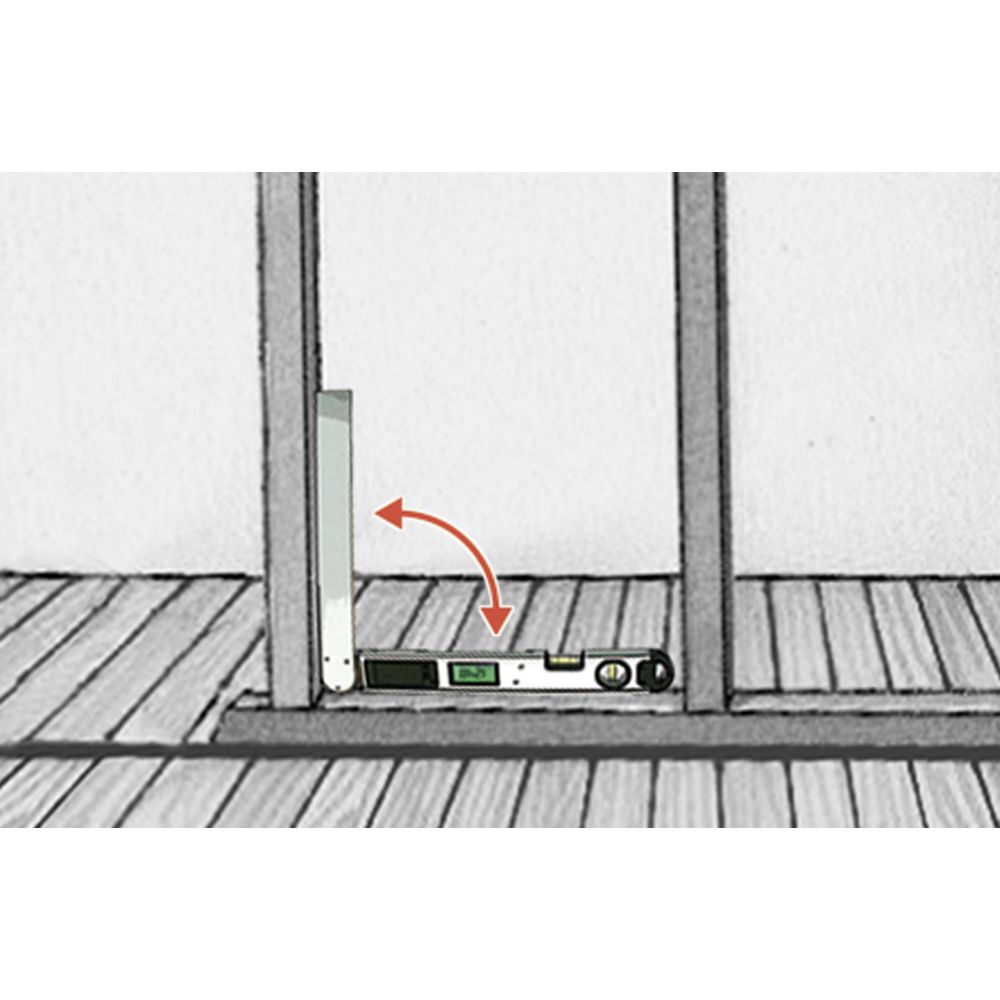

Description: Internal and external angles can be precisely determined with the digital electronic angle measuring device, for example, when measuring roof angles or fitting furniture or windows. An illuminated display on both the front and rear shows the measured value in large digits and displays them appropriately when taking overhead measurements. Extensible bevel for use in difficult to reach locations. The hold function allows the display to be read later when used in inaccessible locations.

  • Precise measurement of internal or external angles
  • Perfect for measuring roof angles and fitting furniture or windows
  • Hinged bevel extensible in both directions for measuring angles in difficult to reach locations

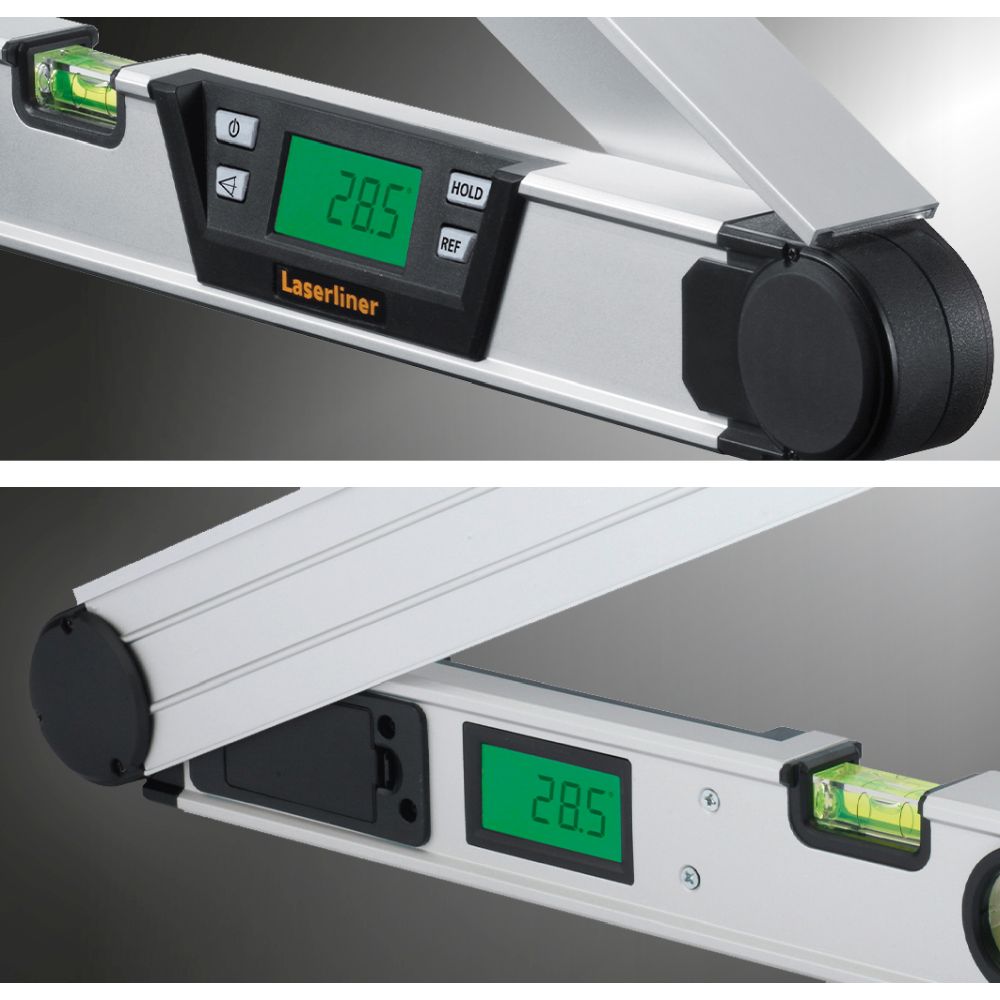

  • Illuminated LCD display on front and rear allows work from either side

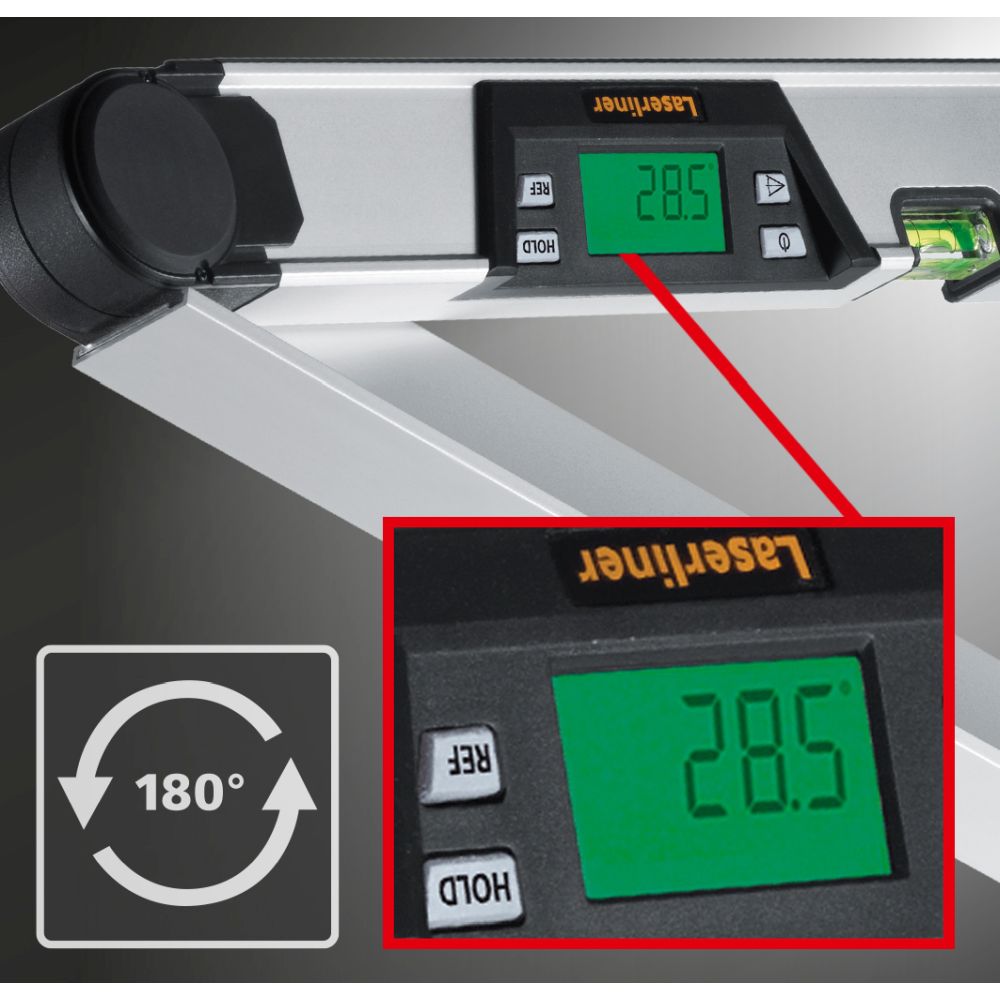

  • Convenient overhead measurement: both displays can be flipped at the touch of a button

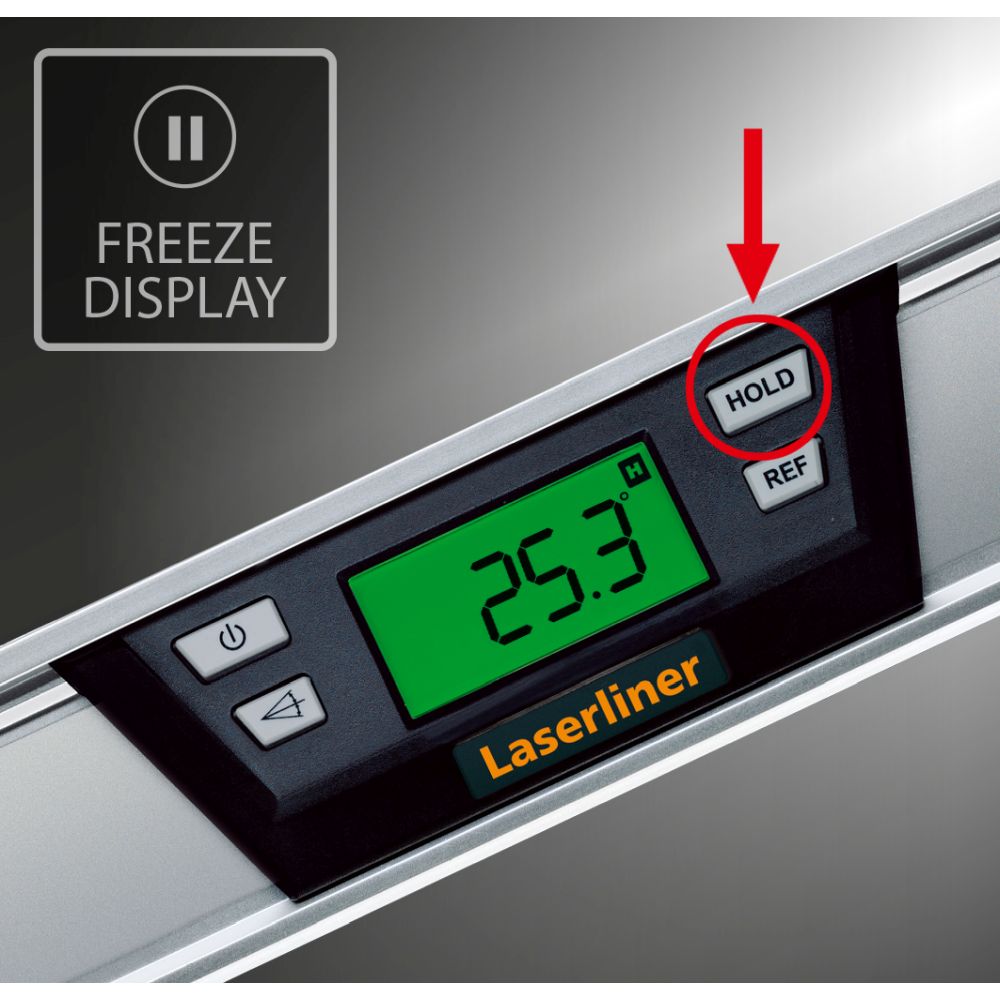

  • Highly reliable measuring due to display hold function in inaccessible locations
  • Angle bisection displayed at the touch of a button, perfect for mitre cuts
  • Auto shut-off function

  • Angle display
    Internal and external angle
    Angle bisector
    Hold/storage
    Vial Accuracy± 0.25 mm / m
    Accuracy Angle Measurement± 0,2°
    Measurement Range Angle Measurement0 … 220°
    Resolution Angle Measurement0,1°
    Display Accuracy1 decimal place
    Power Supply2 x 1.5V LR6 (AA)
    Operating Timeapprox. 8 hours
    Operating Conditions0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
    Storage Conditions-10°C … 60°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend
    Dimensions (W x H x D)40 mm x 57 mm x 600 mm
    Weight1050 g (inkl. Batterien)

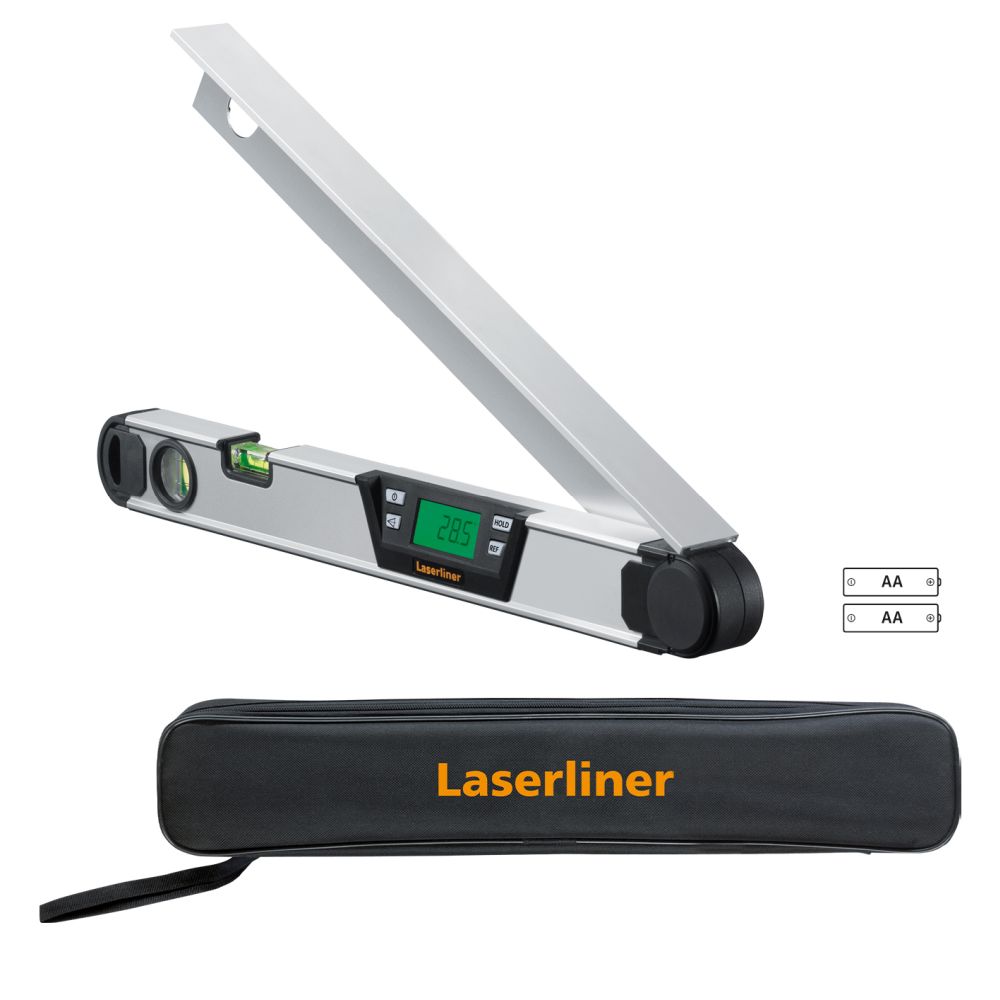

    Scope of delivery:
  • ArcoMaster 60
  • batteries
  • softbag


  • Documentation:

    Titel:
    Digital angle measuring device

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 075.131A, GTIN (EAN): 4021563666683
