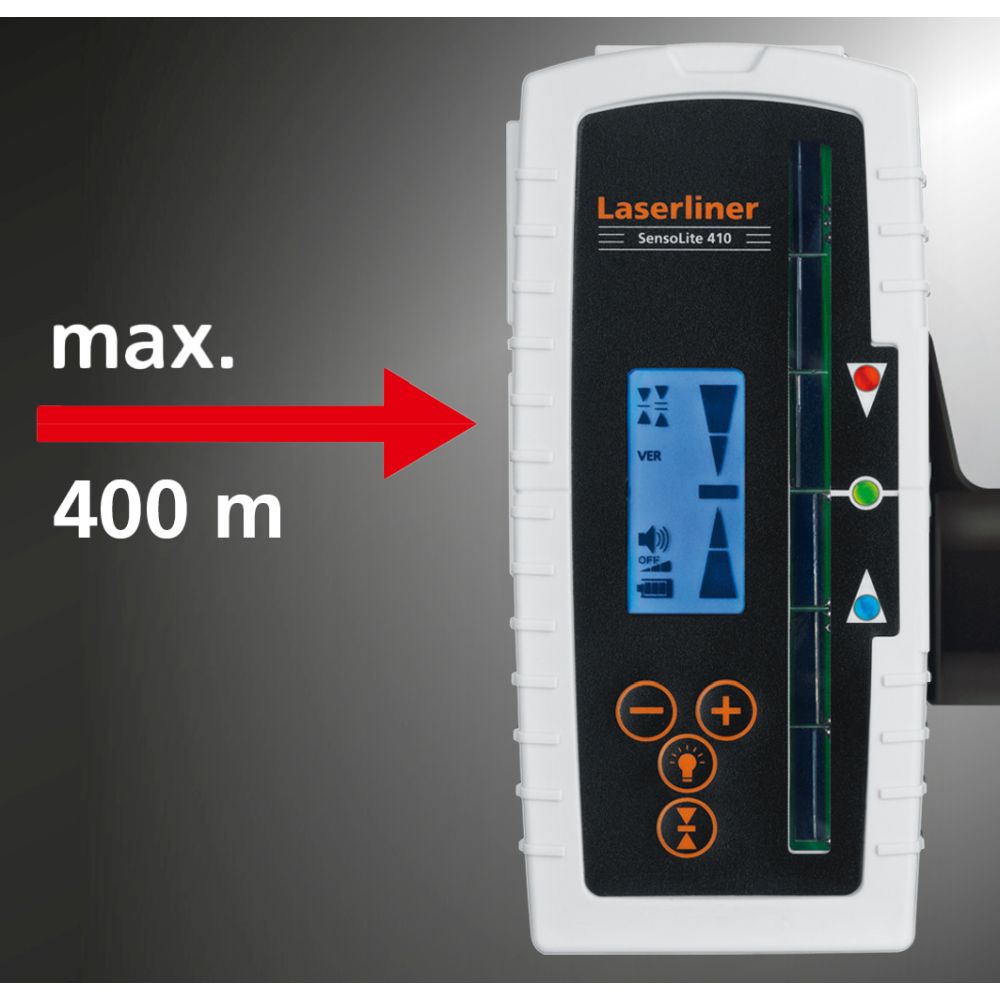

Description: This two-axis inclination laser is perfect for precise alignment of horizontal and vertical surfaces. The device has a digital slope adjustment and a manual slope mode for precise setting of gradients. Partitions are easily plumb-lined and aligned thanks to an additional reference beam. The laser is completely automatically aligned by electronic positioning motors. The device has spot, scan, rotary and hand-held receiver modes. To increase measuring accuracy, the device automatically powers off in the event of external influences. All functions can be controlled remotely from all sides up to a distance of 40 metres. The receiver has a reception range of 400 metres. LC displays on the front and rear of the device, bright, three-colour LED signals, and acoustic signals indicate the height of the laser beam.

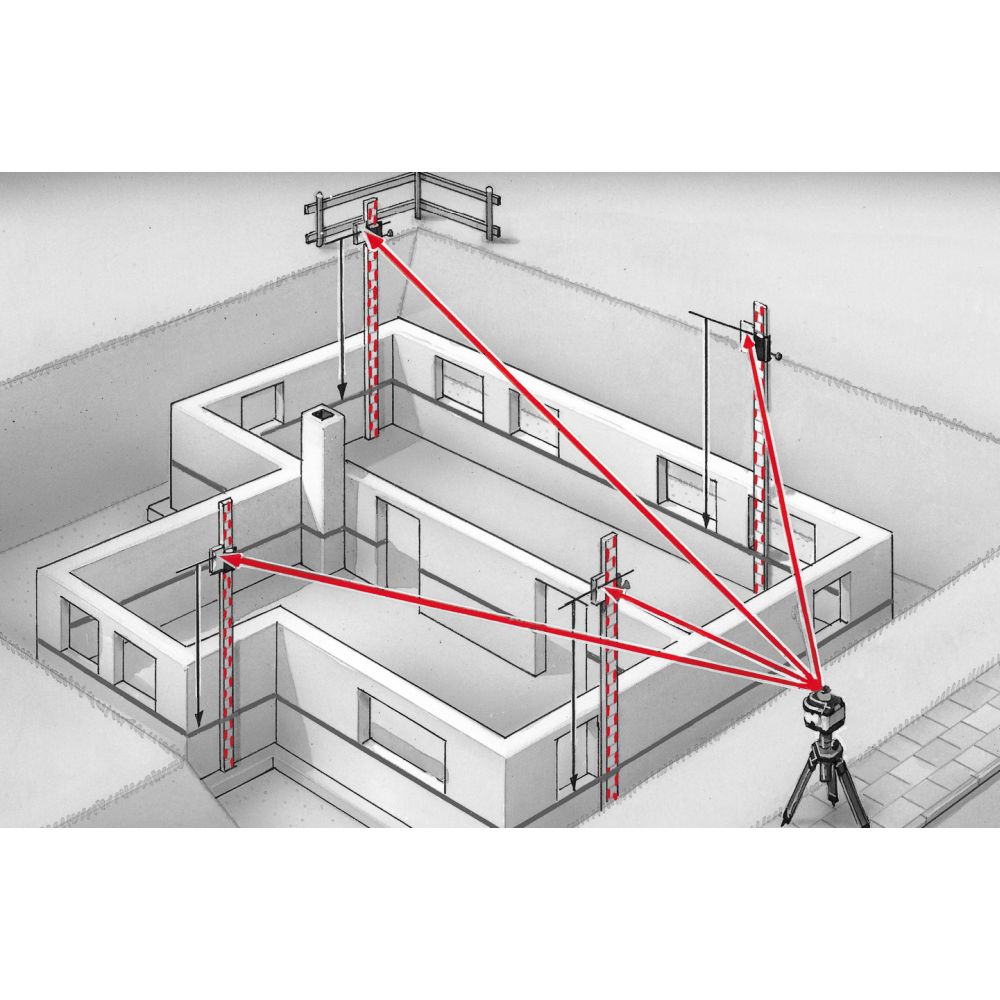

Exact horizontal and vertical alignment of objects

Digital inclination adjustment: The horizontal plane can be inclined in the X- and Y-axis

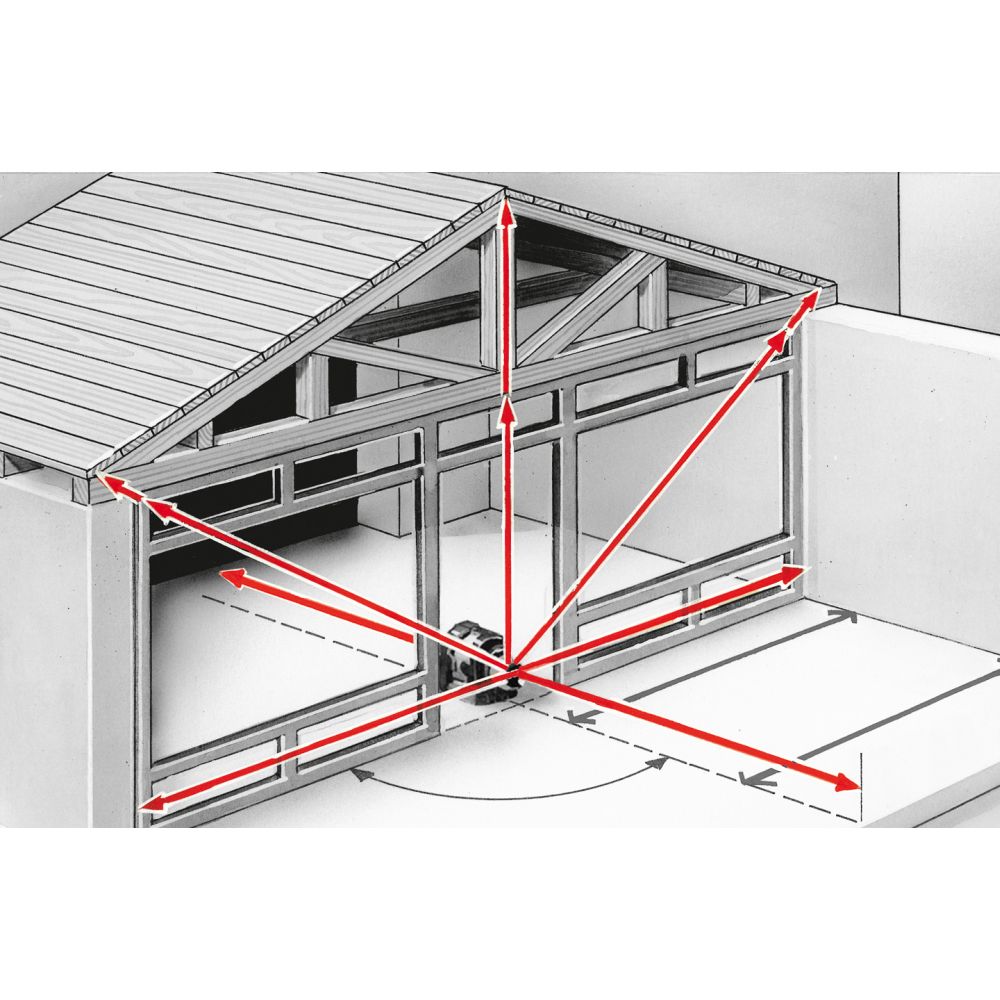

The 90° reference beam is provided to plumb and align partition walls

Time-saving fully automatic alignment by means of automatic sensor

Laser modes: spot, scan, rotary and hand receiver mode

Large illuminated LC display

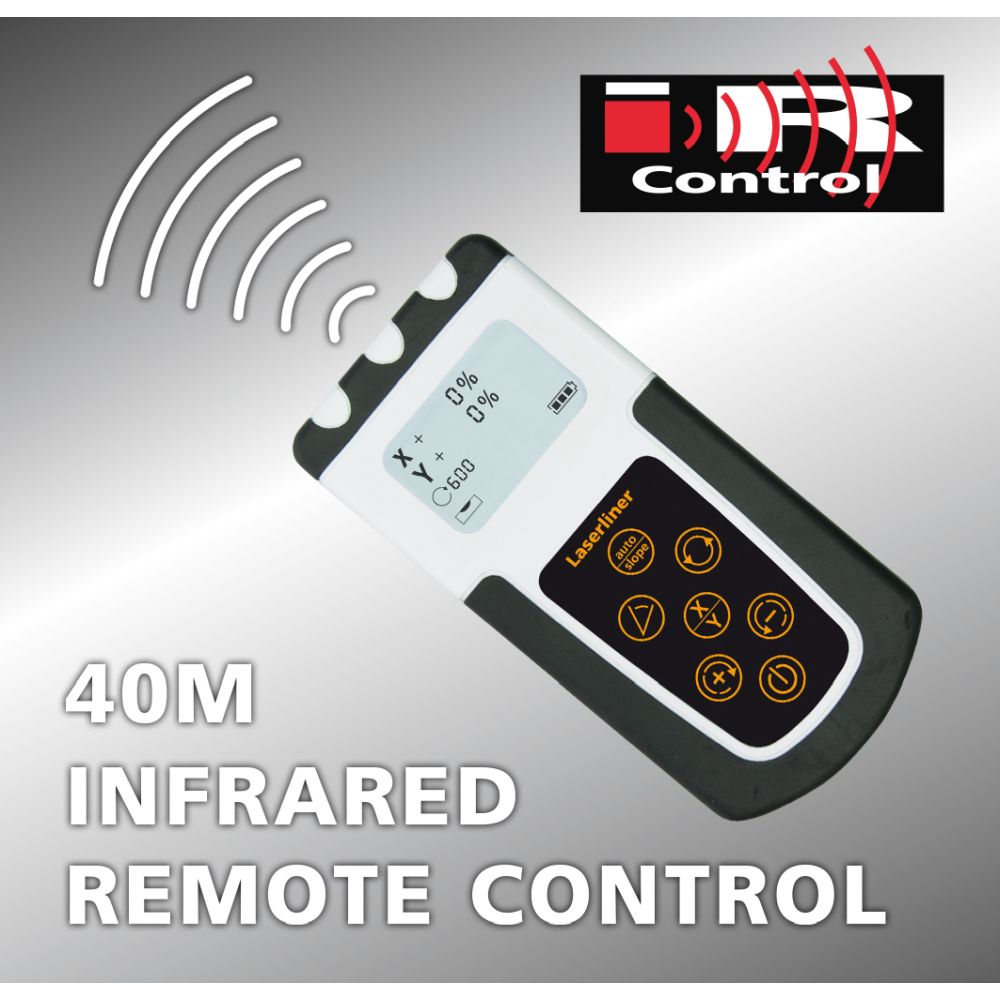

All functions can be controlled with the remote control up to a max. distance of 40 m

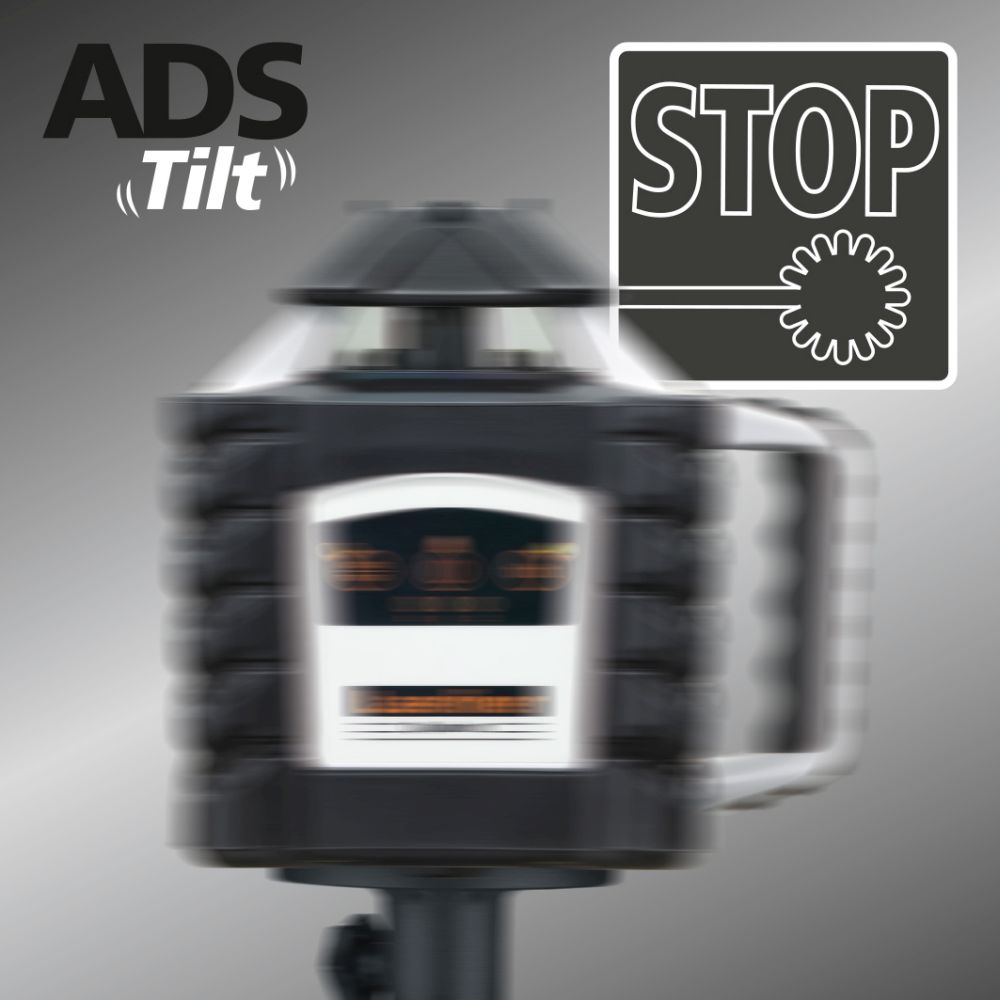

Reliable measurement through automatic power off with ADS tilt

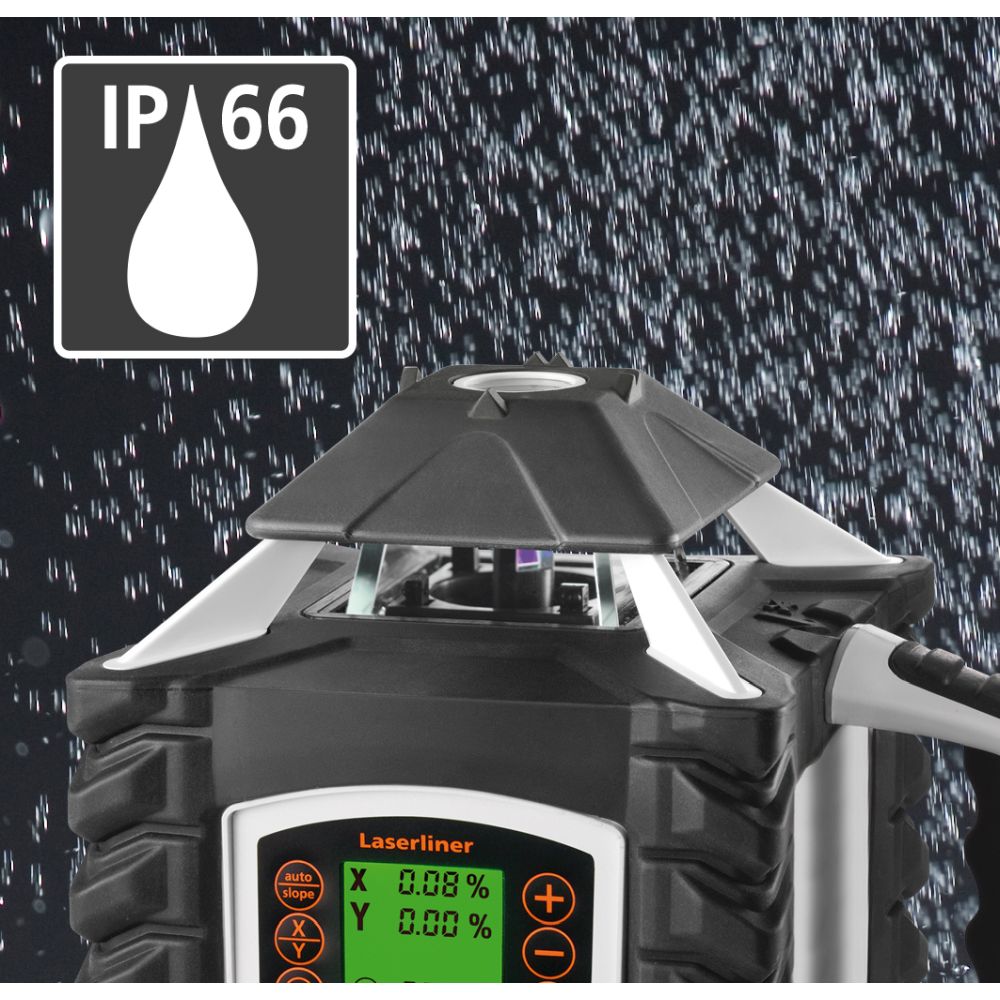

Robust waterproof housing

Transport LOCK: The device is protected by a special motor brake during transport

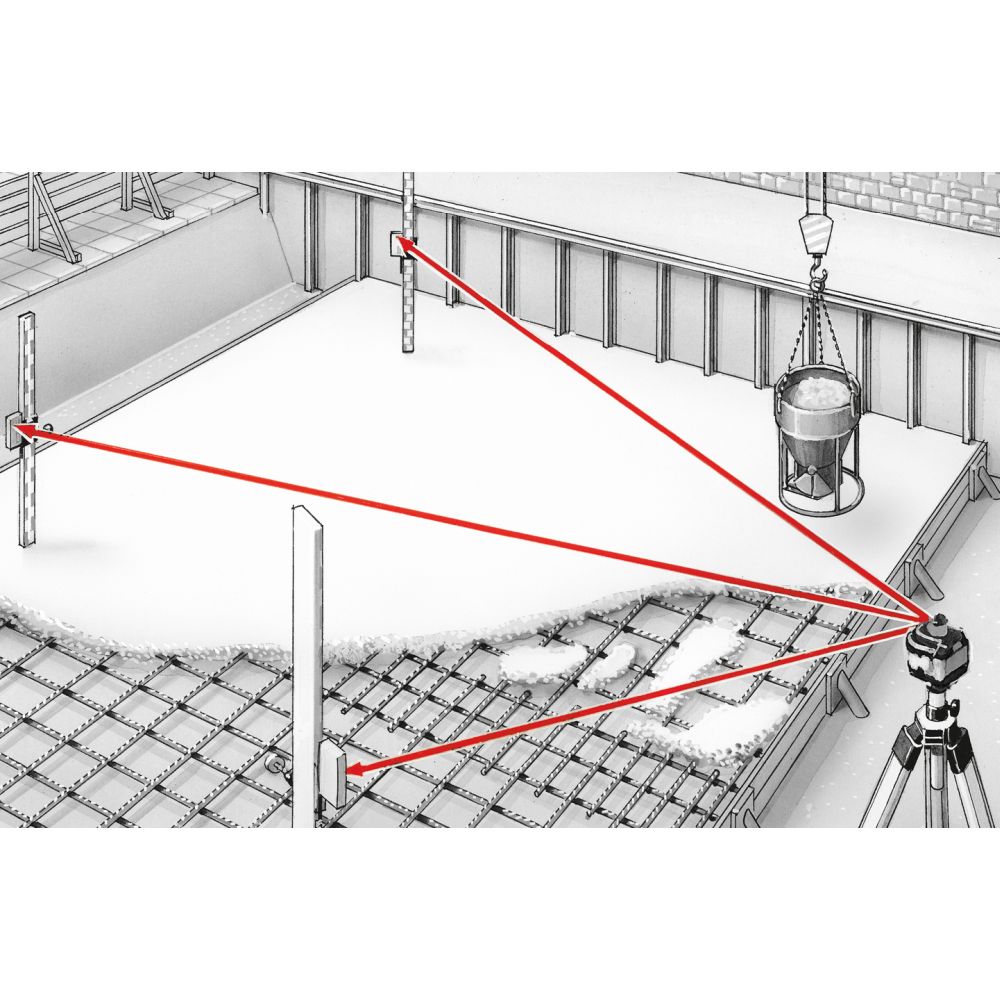

Long range, ideal for excavation work

LED multi-coloured indicators

Easy-to-read LC displays on front and back

Head- and side magnets

Switchable, extremely loud Piezo buzzer sound

Versus function: receiver monitors the laser's reference height

Horizontal/vertical levelling	✅
Hand receiver mode	✅
Scan mode	✅
Spot mode	✅
Motorised slope function	✅
Manual slope function	✅
Slope display	✅
Precision sensor levelling	✅
Battery and mains operation	✅
Anti-Drift-System (ADS)	✅
Battery operation	✅

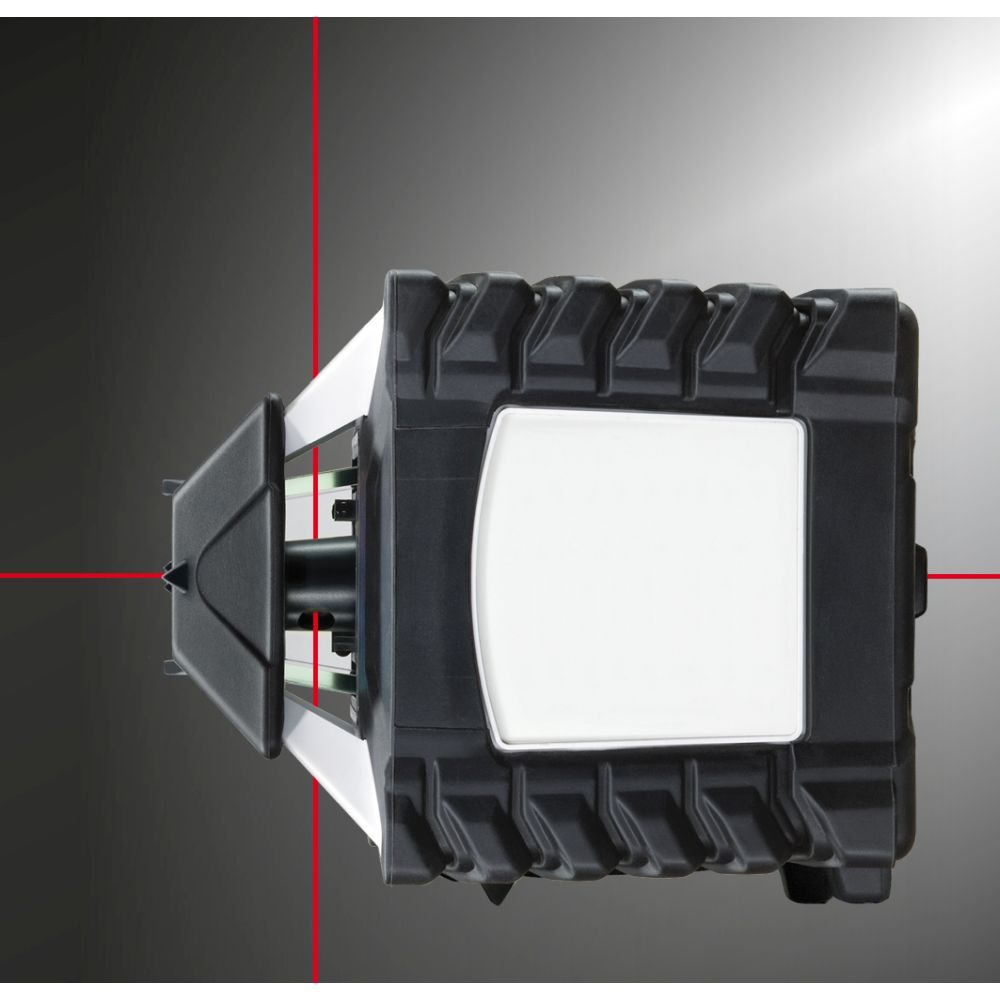

Plumb laser up (90° reference beam)	✅
Plumb laser down	✅
Tilt warning function	✅
Self-Levelling Range	± 6°
Accuracy	± 0.075 mm / m
Levelling	automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength	635 nm
Laser Class	2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Modes	Hand receiver mode Spot mode Rotary mode Scan mode
Protection Class	IP 66
Power Supply	4 x 1.2V HR14 (C) NiMH 4 x 1.5V LR14 (C)
Operating Time	Rechargeable battery: approx. 35 hours / Batteries: approx. 50 hours
Battery Recharging Time	approx. 7 hours
Operating Conditions	-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions	-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)	215 mm x 205 mm x 165 mm
Weight	2600 g (inkl. Akkupack)

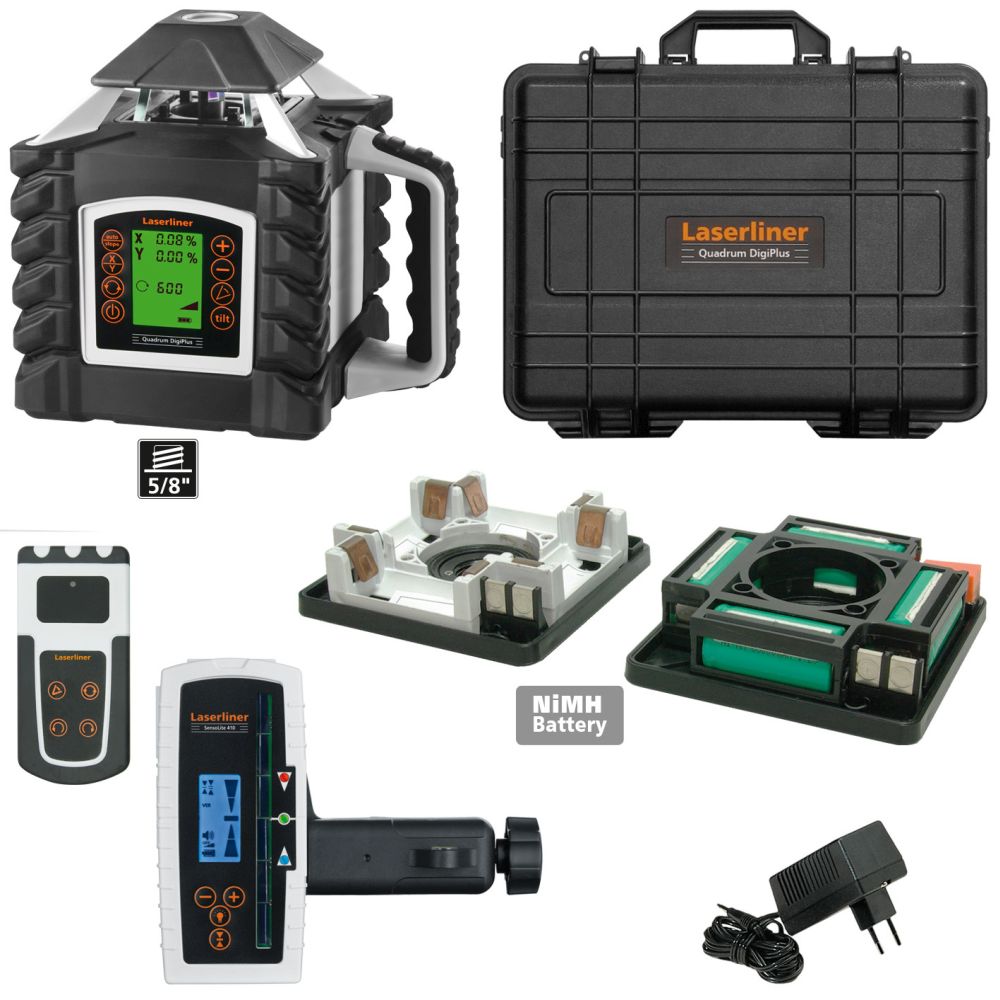

Scope of delivery:

Quadrum DigiPlus

SensoLite 410

universal mount

remote control

rechargeable battery

battery compartment

power supply / battery charger

batteries

carrying case

Documentation:

Instructions
Instructions part 2
Instructions part 3
