Description: The Quadrum 410 S is a fully automatic rotary laser for the exact alignment of horizontals and verticals. Thanks to the extra long receiver unit, the laser reception range is extremely large, with a radius of 400 metres. The functions can easily be controlled with the remote control up to a max. distance of 40 metres. In the event of external influences, an automatic power off is triggered. The robust crank tripod with 5/8” threaded adapter has an extremely long crank stroke (70 cm) which can be adjusted and locked without any play and is adjustable over a wide range. Other product features include stable steel feet and steel chains. The Flexi Levelling Staff Plus, suitable for floor height measurements, completes the set.

Time-saving fully automatic alignment by means of automatic sensor

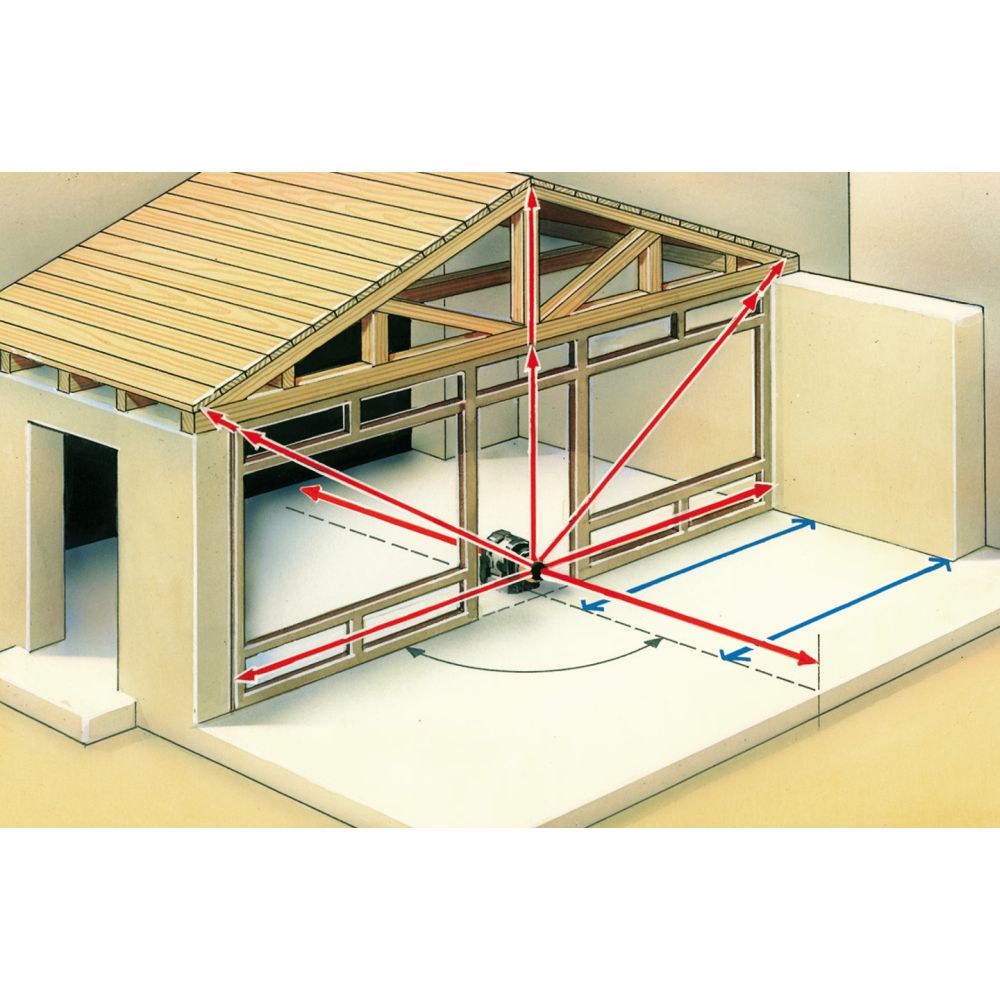

The 90° reference beam is provided to plumb and align partition walls

Large reception area for a wide range of applications

Reliable measurement through automatic power off with ADS tilt

Transport LOCK: The device is protected by a special motor brake during transport

Robust waterproof housing

Remote operation controls all functions from all sides up to max. 40 m

Switchable, extremely loud Piezo buzzer sound

Easy-to-read LC displays on front and back

Head- and side magnets

Versus function: receiver monitors the laser's reference height

An extremely long crank stroke allows a large adjustment range

Crank stroke can be fixed and can be set without play

Strong steel feet

Steel chains

Measurement stick ideal for measuring floor heights

Horizontal/vertical levelling	✅
Hand receiver mode	✅
Scan mode	✅
Spot mode	✅
Motorised slope function	✅
Manual slope function	✅
Precision sensor levelling	✅
Battery and mains operation	✅
Anti-Drift-System (ADS)	✅
Battery operation	✅
Plumb laser up (90° reference beam)	✅
Plumb laser down	✅
Tilt warning function	✅
Self-Levelling Range	± 5°
Accuracy	±0.1 mm/m
Levelling	automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength	635 nm
Laser Class	2 / < 1 mW
Laser Modes	Hand receiver mode Spot mode Rotary mode Scan mode
Laser Reception Range	max. 400 m
Protection Class	IP 66
Power Supply	4 x 1.2V HR14 (C) NiMH 4 x 1.5V LR14 (C)
Operating Time	Rechargeable battery: approx. 35 hours / Batteries: approx. 50 hours
Battery Recharging Time	approx. 7 hours
Operating Conditions	-10°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage Conditions	-10°C … 70°C, max. humidity 80% rH
Dimensions (W x H x D)	215 mm x 205 mm x 165 mm
Weight	2600 g (incl. battery pack)

Scope of delivery:

Quadrum

SensoLite 410

crank tripod P 260 cm

universal mount

Flexi levelling staff plus

remote control

rechargeable battery

battery compartment

power supply / battery charger

batteries

carrying case

Accessories (optional):

•
  SensoLite 310 Set
  (Art.No.: 028.71) - Laser receiver


•
  SensoLite 110 Set
  (Art.No.: 028.65) - Laser receiver


•
  SensoMaster M350 Set
  (Art.No.: 028.85) - Laser receiver


•
  VarioStand L 300 cm
  (Art.No.: 080.24A) - tripod


•
  Crank Tripod P 175 cm
  (Art.No.: 080.26) - crank tripod


•
  Crank Tripod 300 cm
  (Art.No.: 080.39) - Crank tripod


•
  Telescopic Levelling Staff LT 4 m
  (Art.No.: 080.42) - Levelling staff


•
  Telescopic Levelling Staff LT 5 m
  (Art.No.: 080.43) - Levelling staff


•
  Angle Bracket 5/8”
  (Art.No.: 080.75) - Angle plate for rotary lasers


•
  Wall Mount Pro
  (Art.No.: 080.71) - Wall bracket


•
  LaserSight red
  (Art.No.: 020.70A) - laser enhancement glasses


•
  Teleskop-Nivellierlatte 4m
  (Art.No.: 052.205.02) - Levelling Staff

Documentation:

Instructions not available.
