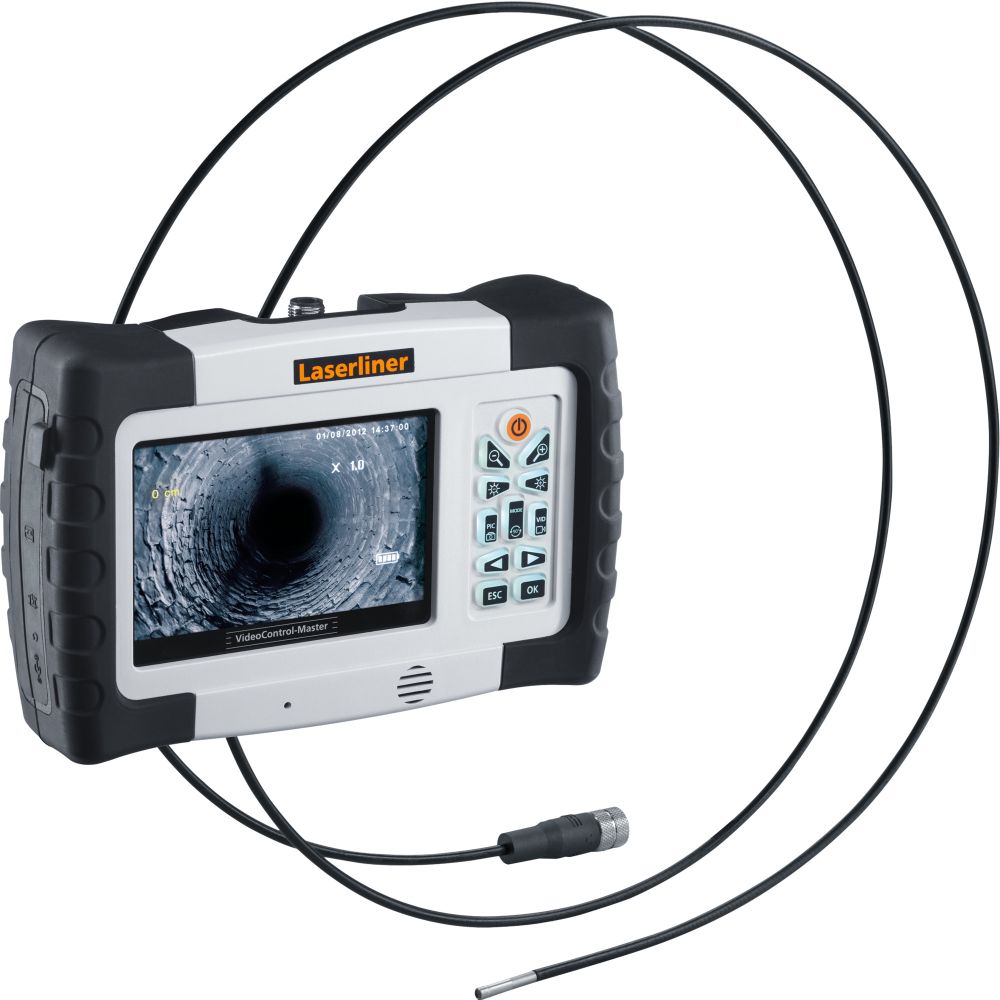

Description: The professional video inspection system, consisting of VideoControl-Master and FlexiCamera, is suitable for the visual inspection of hard-to-reach places. The versatile base unit has a large, high-resolution colour display, allowing for detailed image analysis. An integrated image and video recording function with snapshot option is used for documentation during an ongoing recording. The zoom function allows the magnification range to be adjusted. The image can be manually rotated in 90° increments and is always available to the user in a suitable position. The current image can be compared with a reference image. Data can be saved and transferred via the exchangeable SD memory card and the USB 2.0 interface. Thanks to the extremely compact camera head made of stainless steel and the flexible push cable, the FlexiCamera is ideal for inspecting cavities, shafts, masonry or vehicles.

Effective troubleshooting in manufacturing and the construction industry

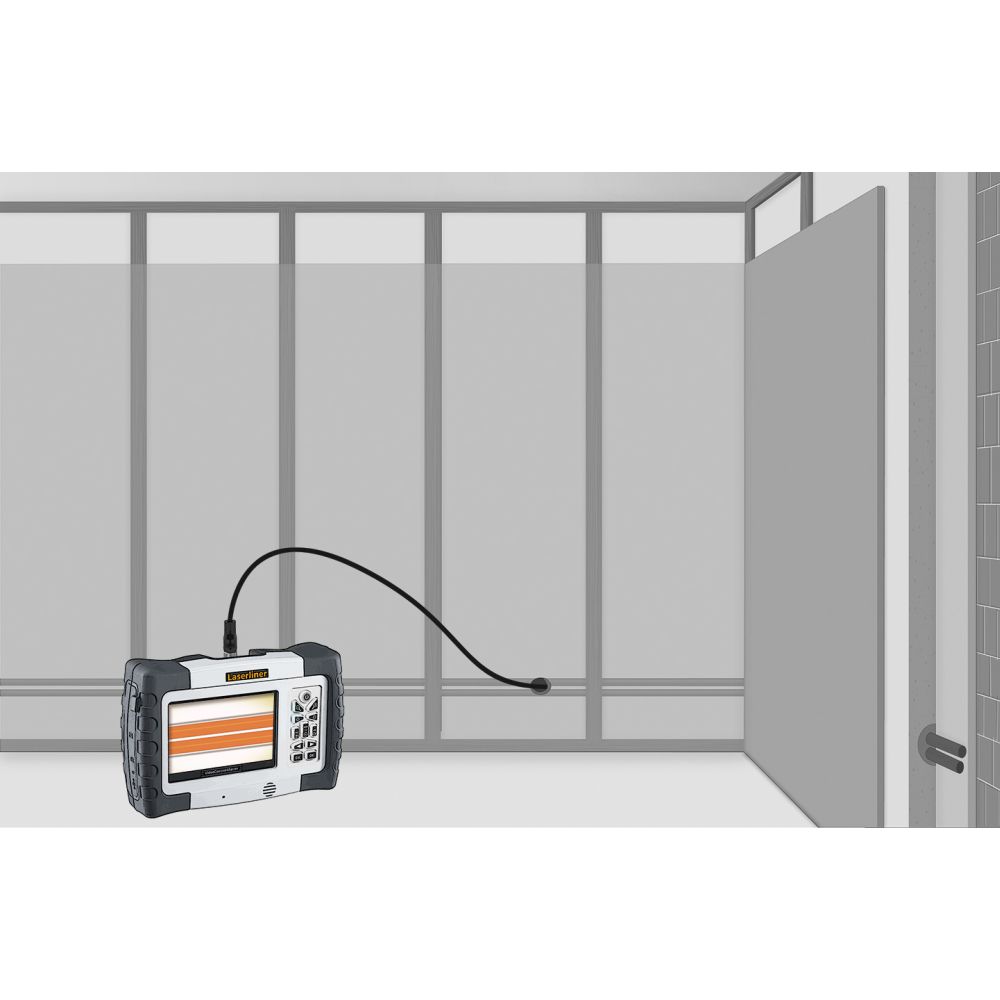

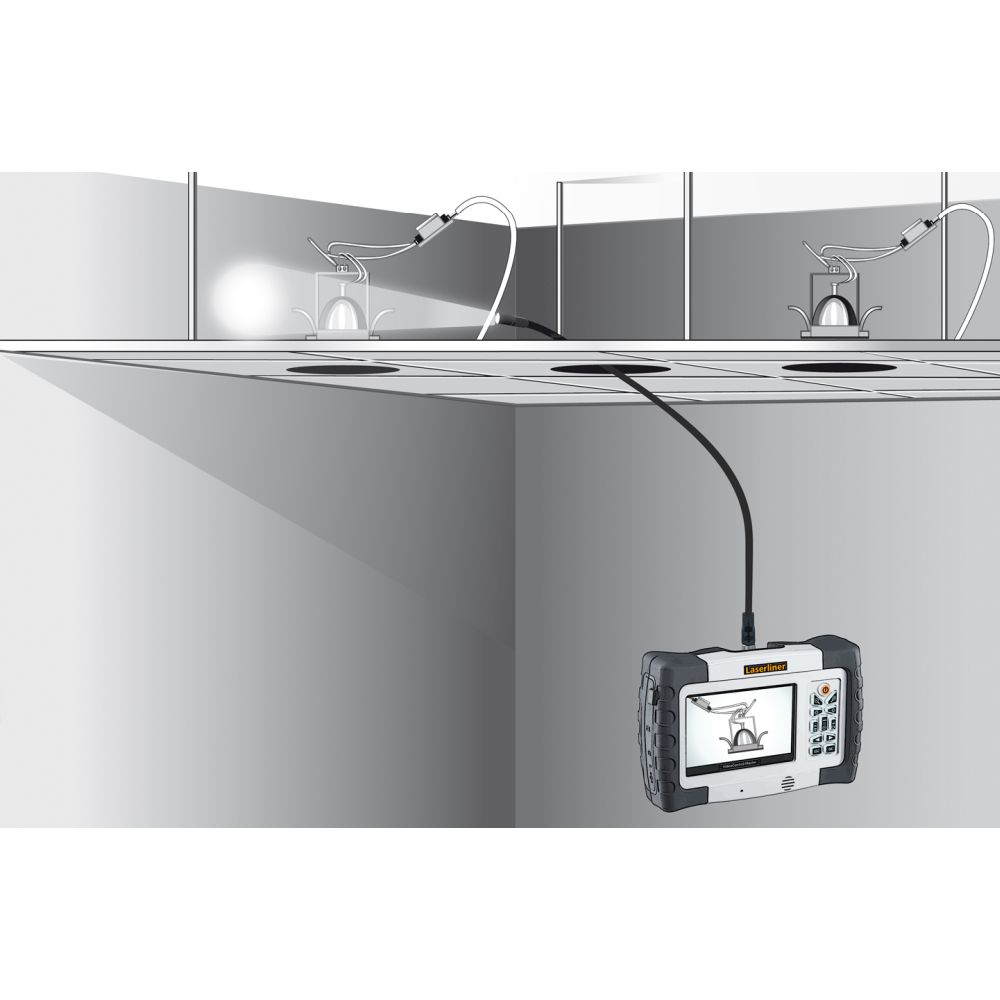

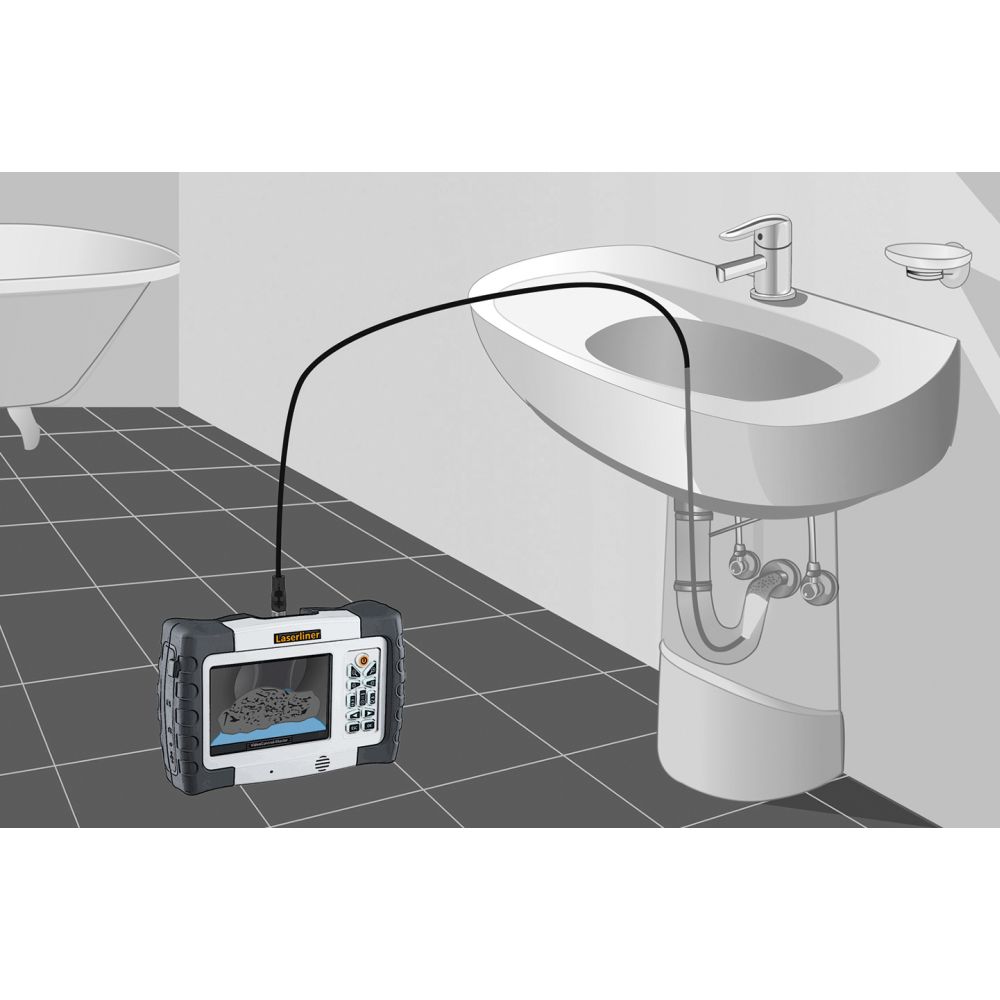

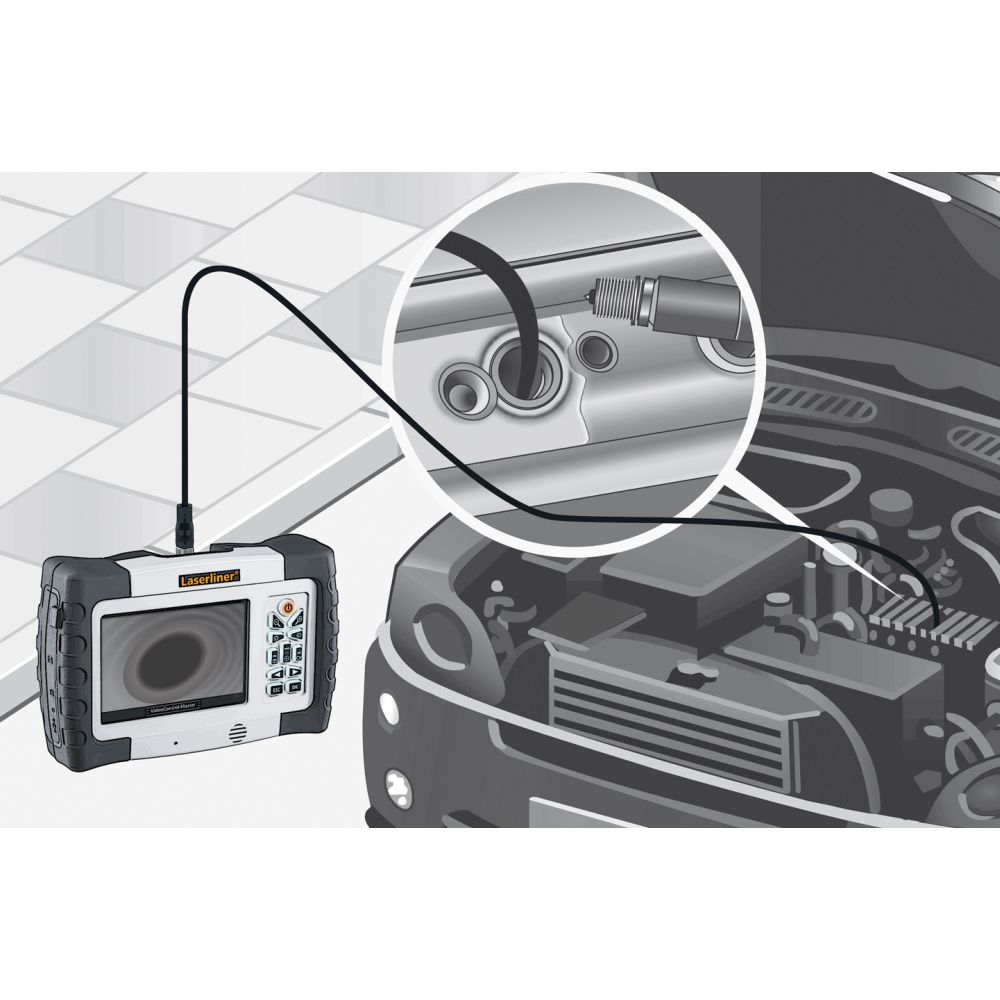

For inspecting highly inaccessible locations such as cavities, shafts, masonry or in vehicles

Easy comparison with reference image

Integrated image and video capture function

Adjustable, high-resolution magnification

Image rotation in 90° increments

Multilingual On-Screen-Display

Exchangeable SD card

USB 2.0 interface

Small camera unit ideal for hard-to-reach places

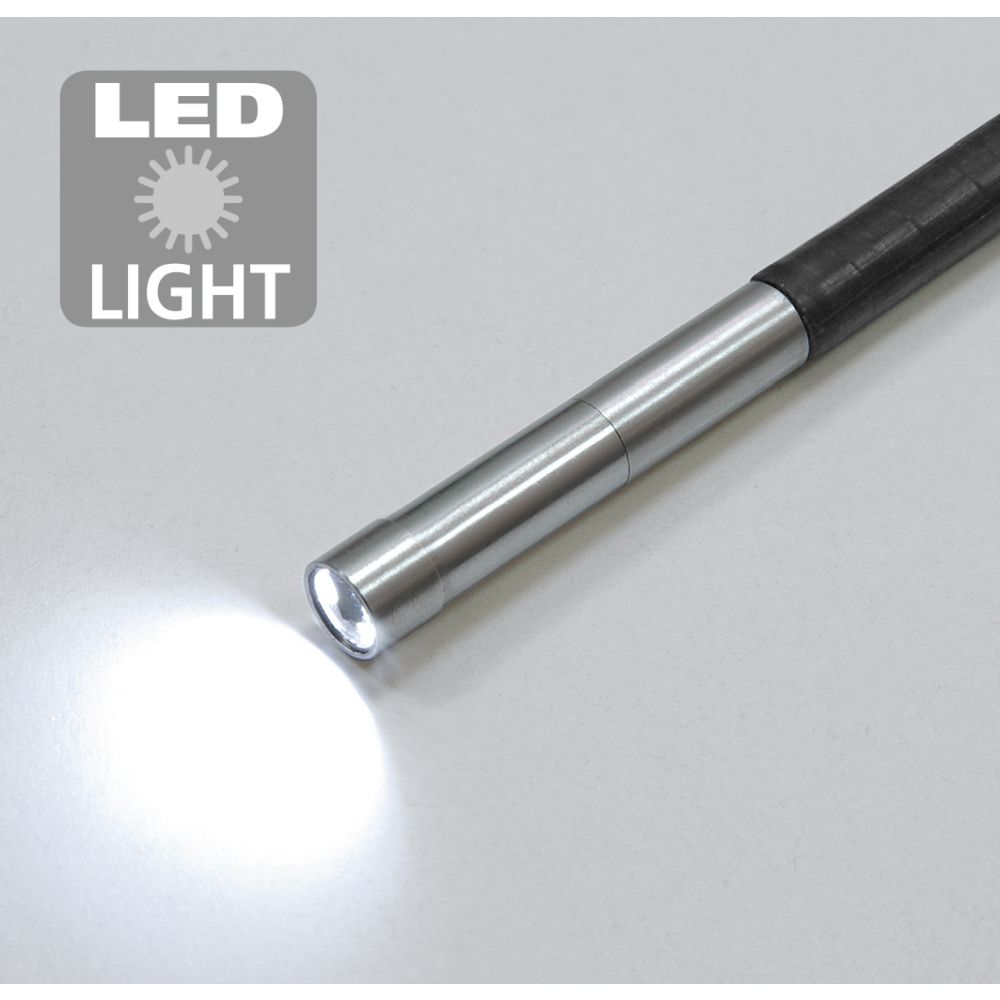

Good object lighting due to 4 high-performance LEDs

Stainless steel camera head

Waterproof camera head and cable

Guide sleeve – for smooth movement on uneven surfaces

Reduces sticking and contamination of the camera head.

Live display	✅
Image/video recording	✅
Image/video playback	✅
Object illumination	✅
Digital zoom	✅
Time stamp	✅
Image alignment	✅
External image/video output	✅
Data transfer	✅
Diameter Camera Head	4 mm
Camera Resolution	640 x 480 pixels
Field of View (FOV)	56°
Depth of Focus (DOF)	1.5 … 5 cm

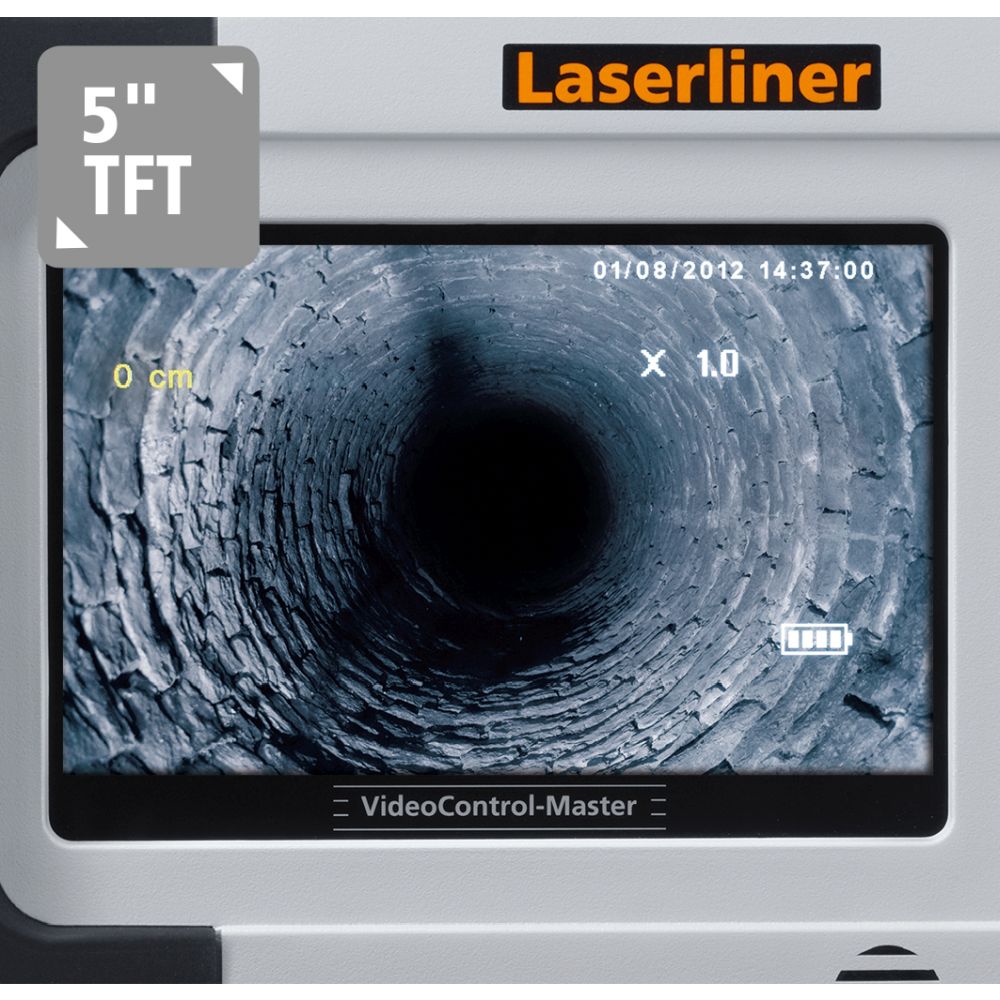

Screen Type	5,0" TFT display
Display Resolution	640 x 480 pixels
Image Format	JPEG
Length of Probe	2 m
Illumination	10 brightness levels
Digital Zoom	2x digital zoom in 20% increments
Memory	Supports up to max. 16 GB SDHC card
Port	USB 2.0
Ports	Micro USB Power supply 5V / DC TV-Out port, PAL or NTSC
Power Supply	USB type C 5V / 2A Li-ion battery pack 3.7V / 3.5Ah / 12.95Wh
Dimensions (W x H x D)	200 mm x 130 mm x 60 mm
Weight	860 g (without accessories)

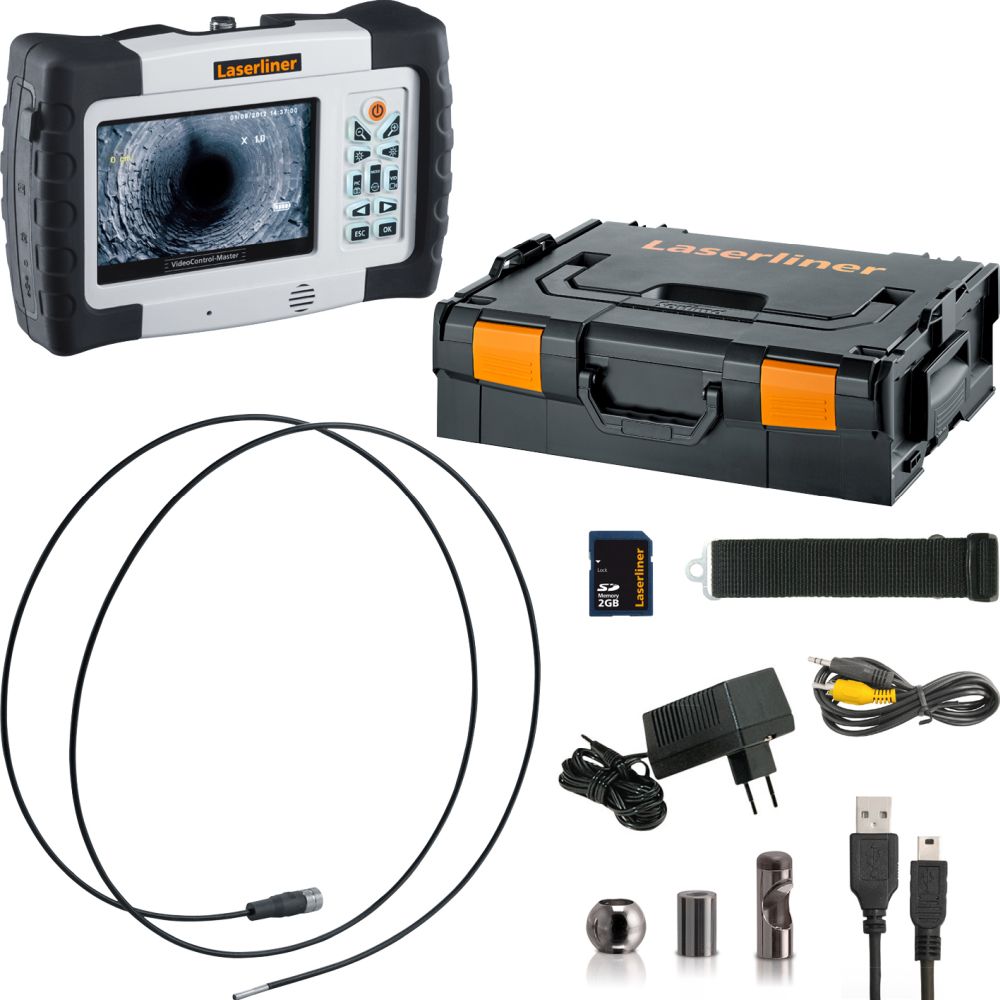

Scope of delivery:

VideoControl-Master

FlexiCamera

USB cable

2 GB SD card

power supply / battery charger

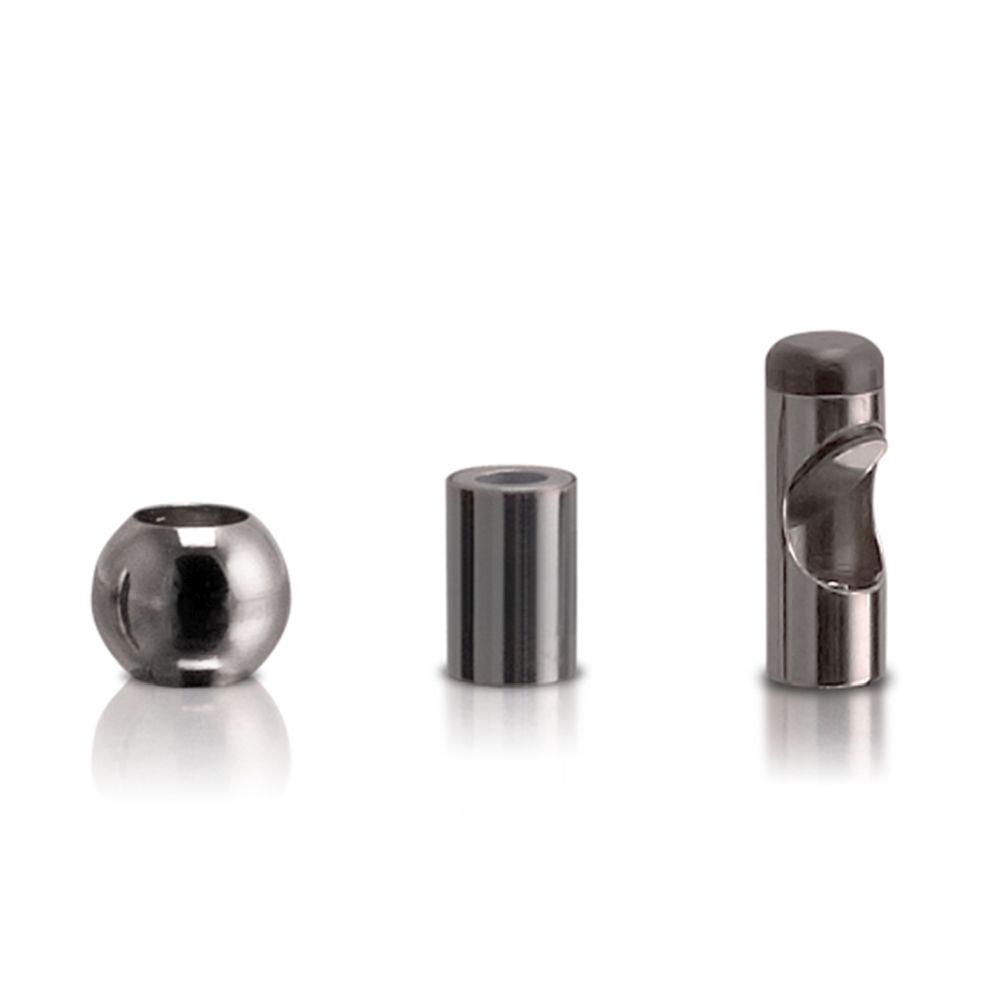

MicroTopGuide

MicroTopMagnet

MicroTop-90°

AV cable

carrying strap

complete in the L-BOXX 136

Documentation:

Instructions not available.
