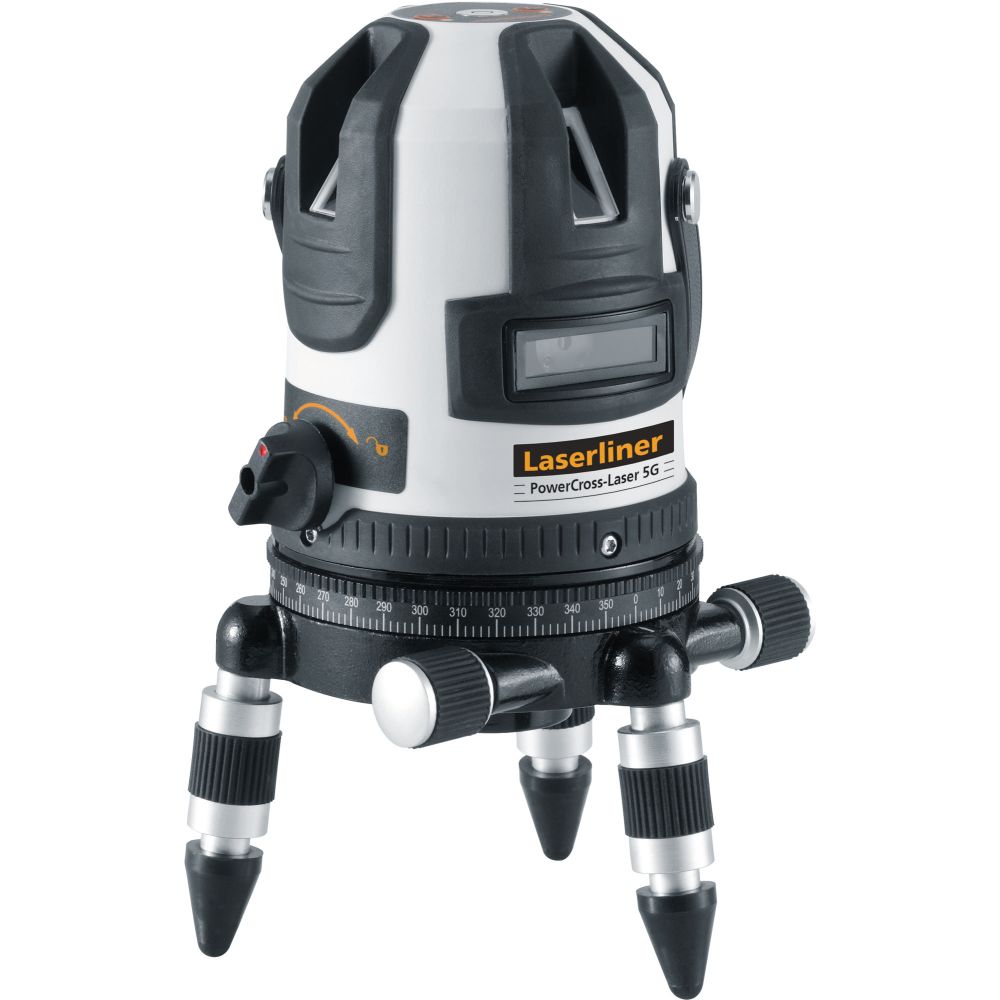

PowerCross-Laser 5G

Robust cross-line laser with 5 ultra bright, green laser lines and plumb function


Description: This robust cross line laser with its five green, individually switchable laser lines, is suitable for precise alignment of horizontal and vertical surfaces and slopes. The four vertical laser lines have a perpendicular alignment with respect to each other. The device has an upper laser cross and an additional lower plumb laser for a precise plumb function. Pre-adjustment is by a vial and height-adjustable feet. The rotatable housing with vernier adjustment mechanism and a horizontal circle allow the laser lines to be precisely positioned. Optical signals warn the user when the unit is outside its levelling range. Together with an optional hand-held receiver, the integrated hand-held receiver mode allows laser lines to be detected over long distances and under unfavourable light conditions. A pendulum restraint provides excellent protection during transportation.

  • Good visibility through green laser technology

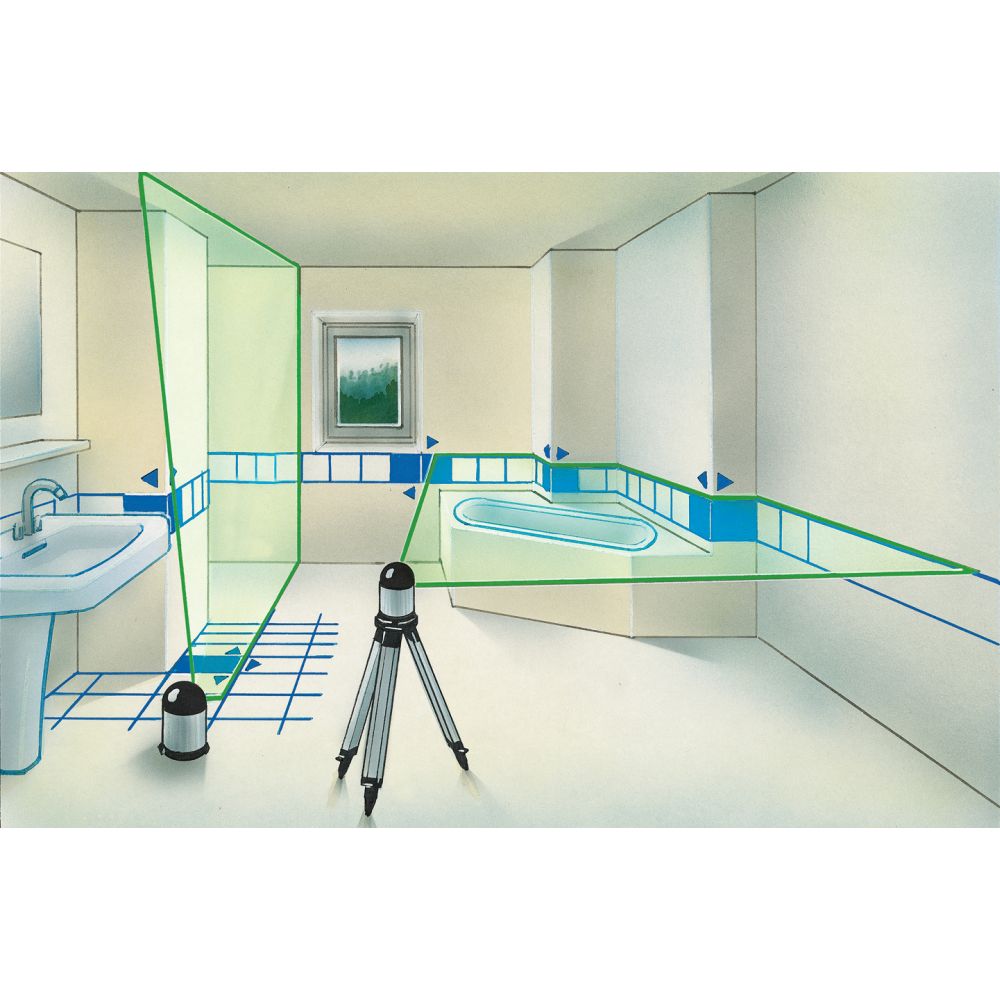

  • Exact horizontal and vertical alignment of objects
  • The four vertical laser lines thus have a perpendicular alignment with respect to each other

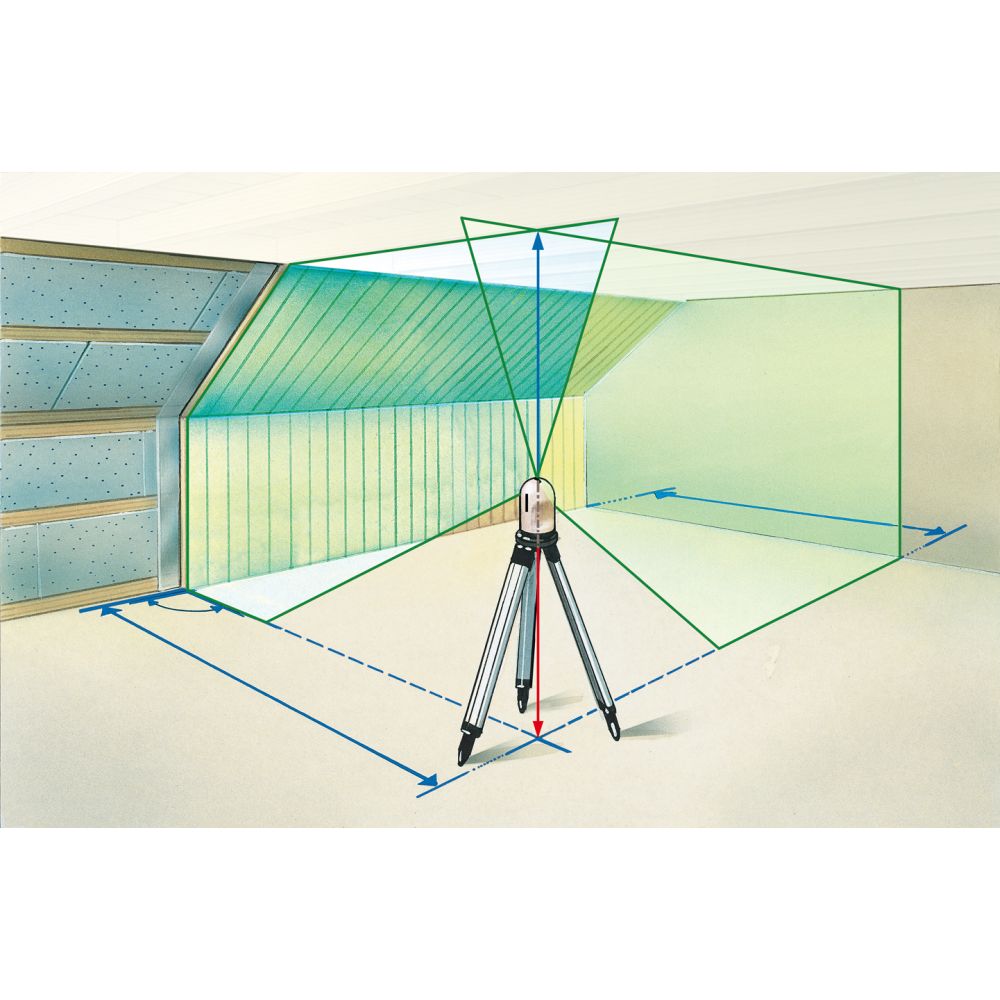

  • Straightforward plumb function using upper laser cross and additional plumb laser
  • Additional slope function for aligning inclines
  • The pivoted housing with a vernier adjustment mechanism and horizontal circle permits exact positioning of laser lines
  • Integrated handheld receiver mode for outdoor applications and long ranges
  • Vial and height-adjustable feet for pre-adjustment
  • Pendulum restraint for safe transport

  • Hand receiver mode
    Horizontal/vertical levelling

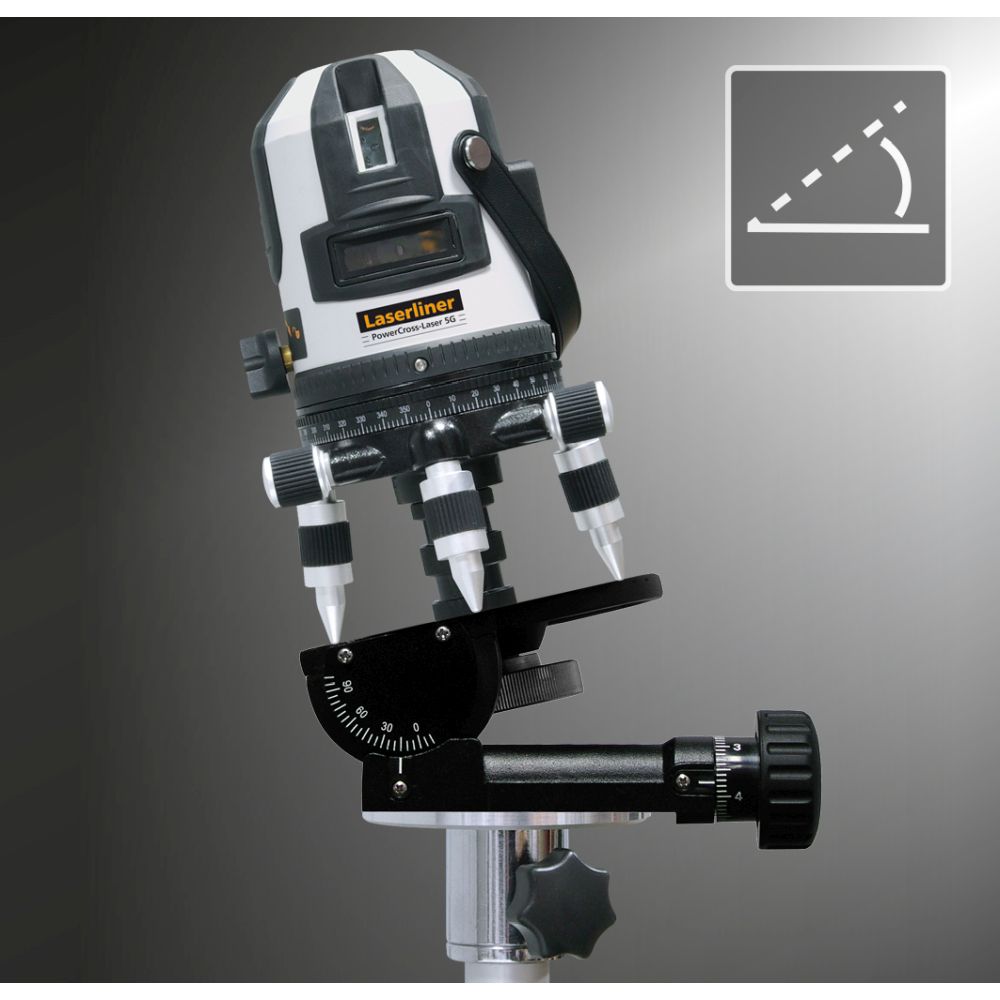

    Manual slope function
    Rotatable housing with vernier adjustment mechanism
    Plumb laser down

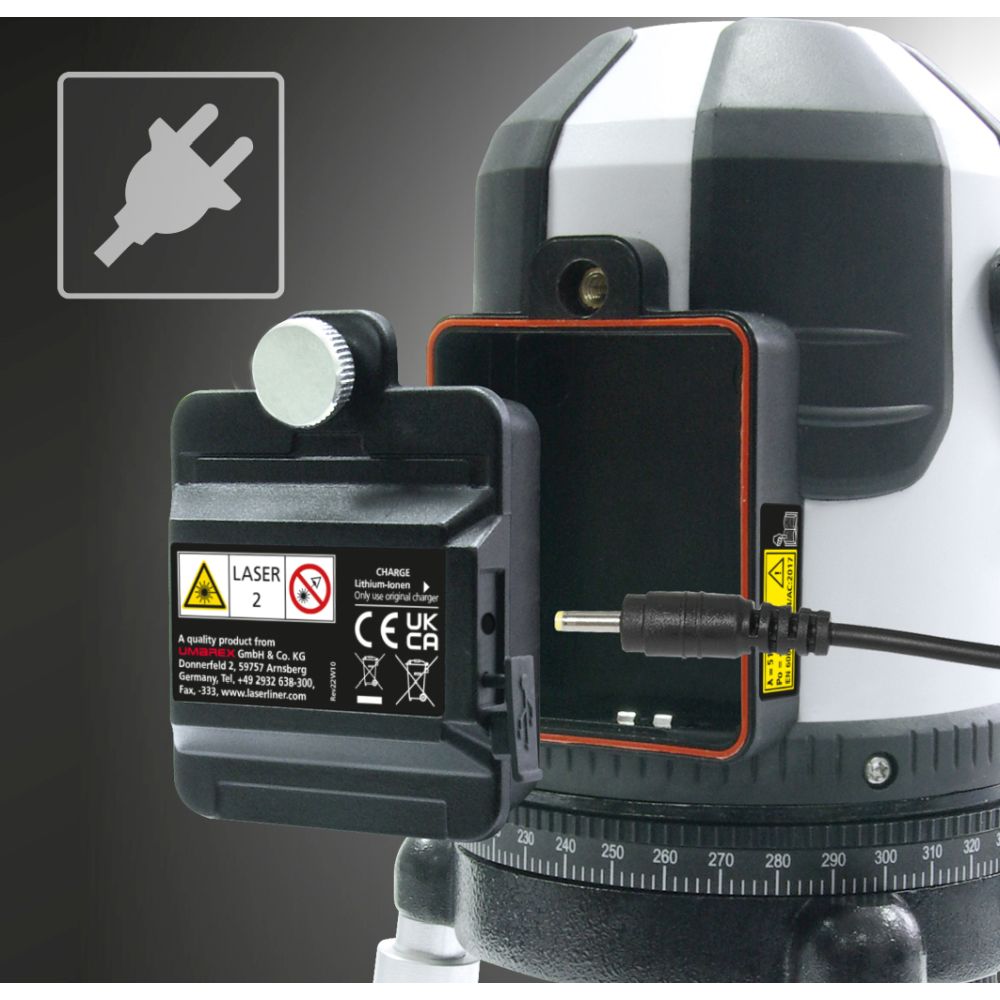

    Replaceable battery system
    Self-Levelling Range± 2°
    Accuracy± 0.15 mm / m

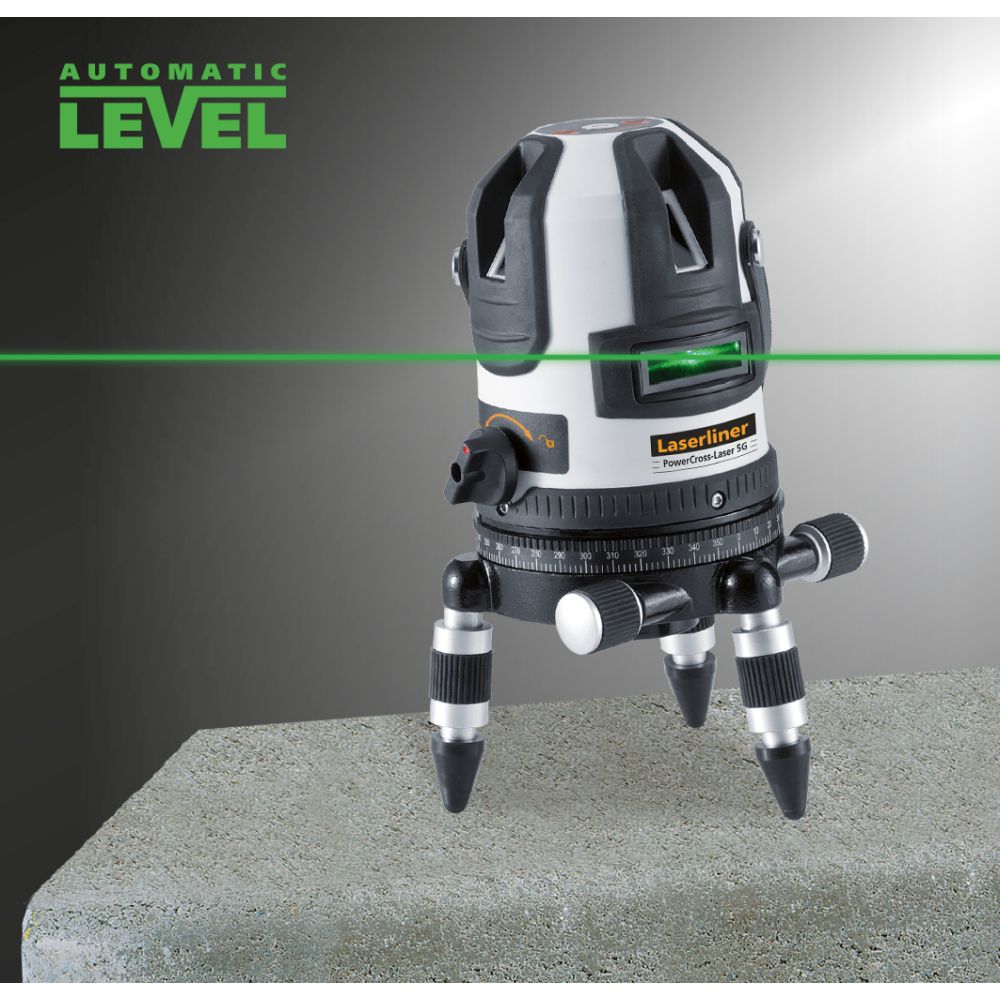

    Levellingautomatic
    Visibility (Typical)*55 m
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Power SupplyLi-ion battery pack 7.4V / 2.6Ah / 19.24Wh
    Operating Timeapprox. 4 hours
    Operating Conditions0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
    Storage Conditions-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
    Dimensions (W x H x D)120 mm x 200 mm x 120 mm
    Weight1400 g (inkl. Akkupack)

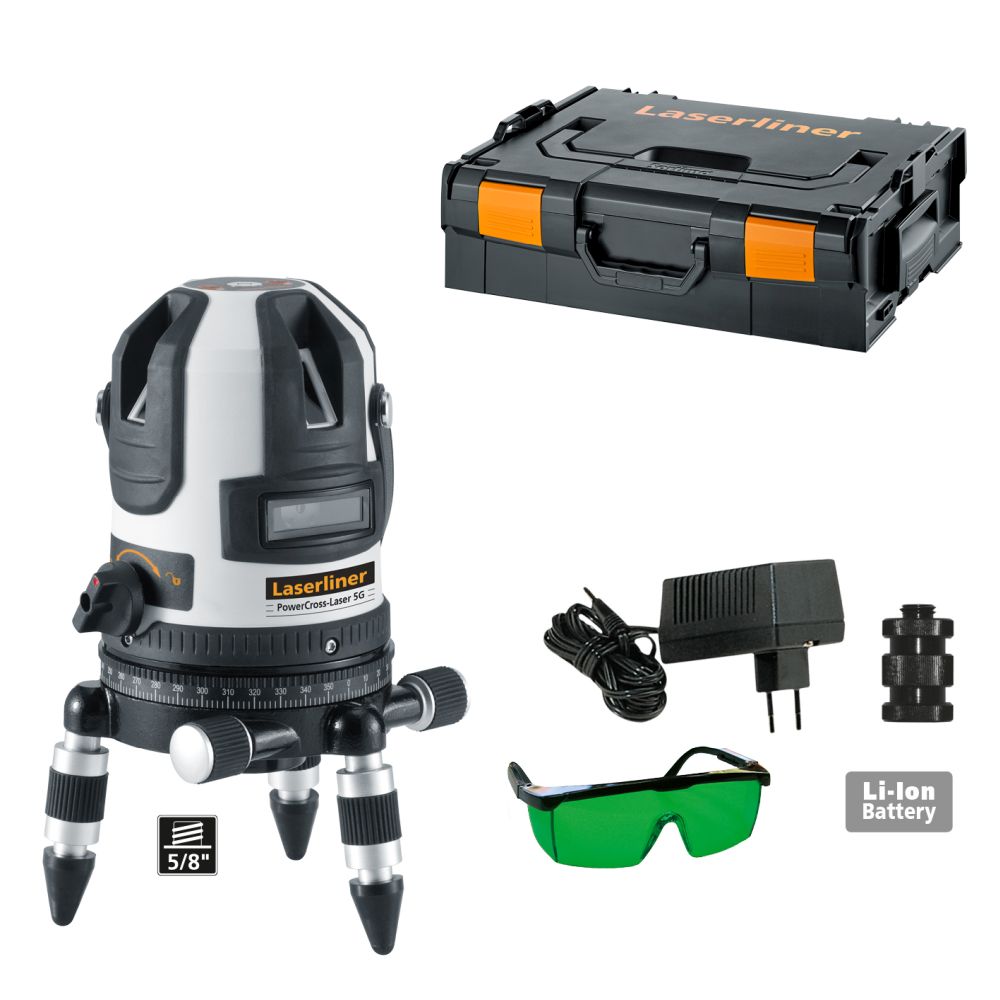

    Scope of delivery:
  • PowerCross-Laser 5G
  • power supply / battery charger
  • tripod adapter for crank tripods
  • rubber caps
  • Li-ion battery
  • complete in the L-BOXX 136


  • Documentation:

    Titel:
    cross-line laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 032.060L, GTIN (EAN): 4021563692736
