Cable and conductor tester with transmitter and receiver for LAN, TV and telephone cables

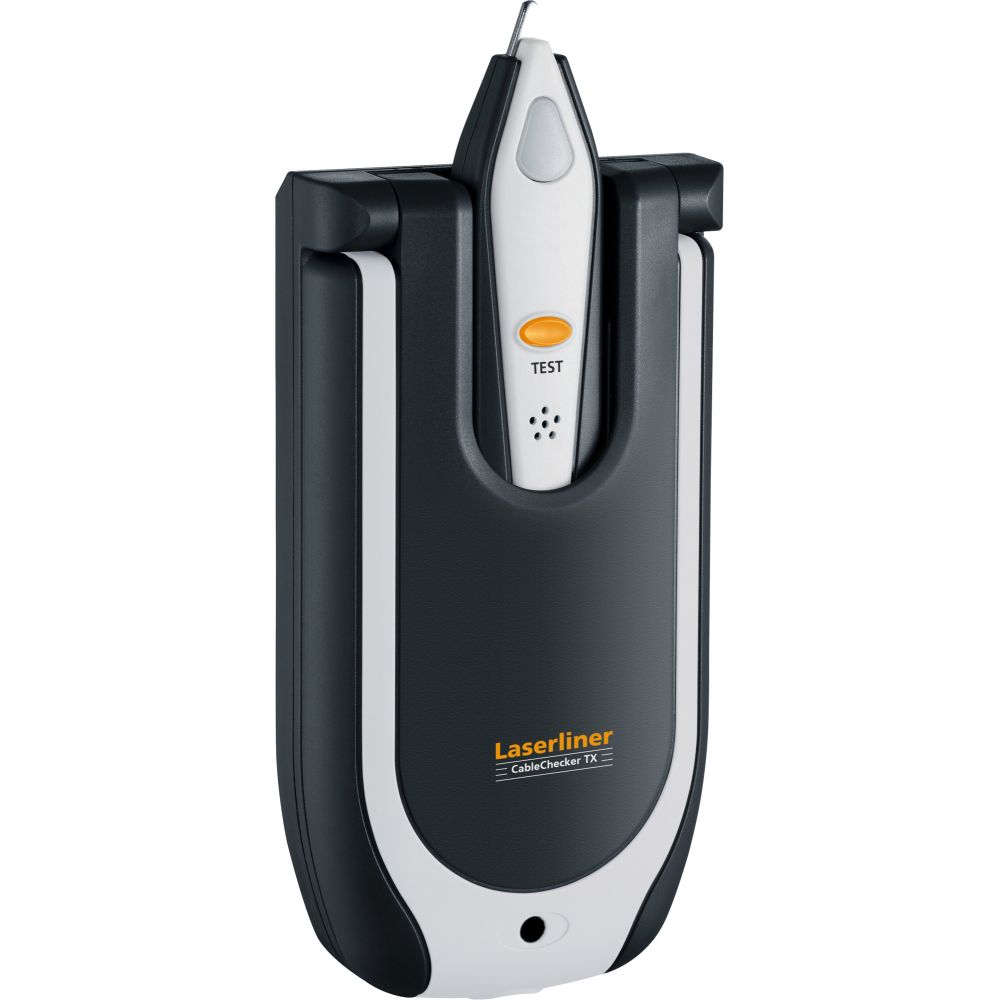

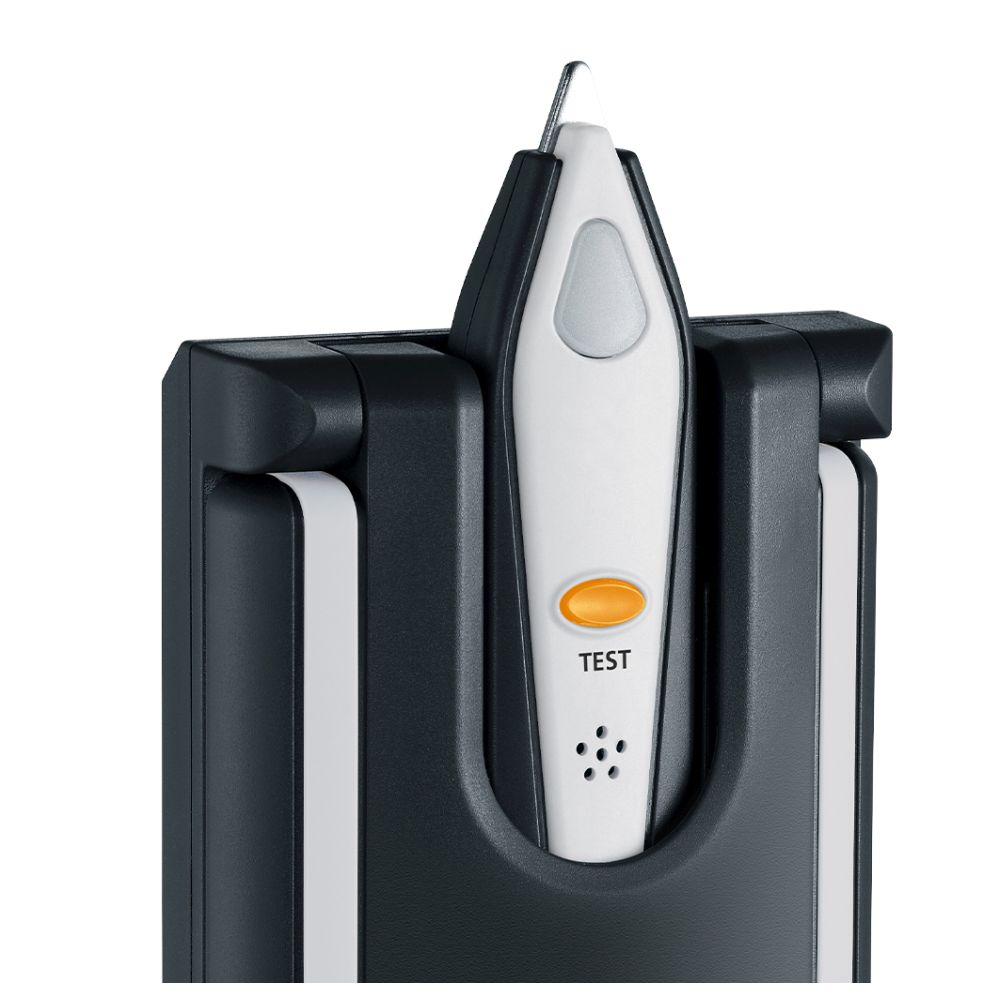

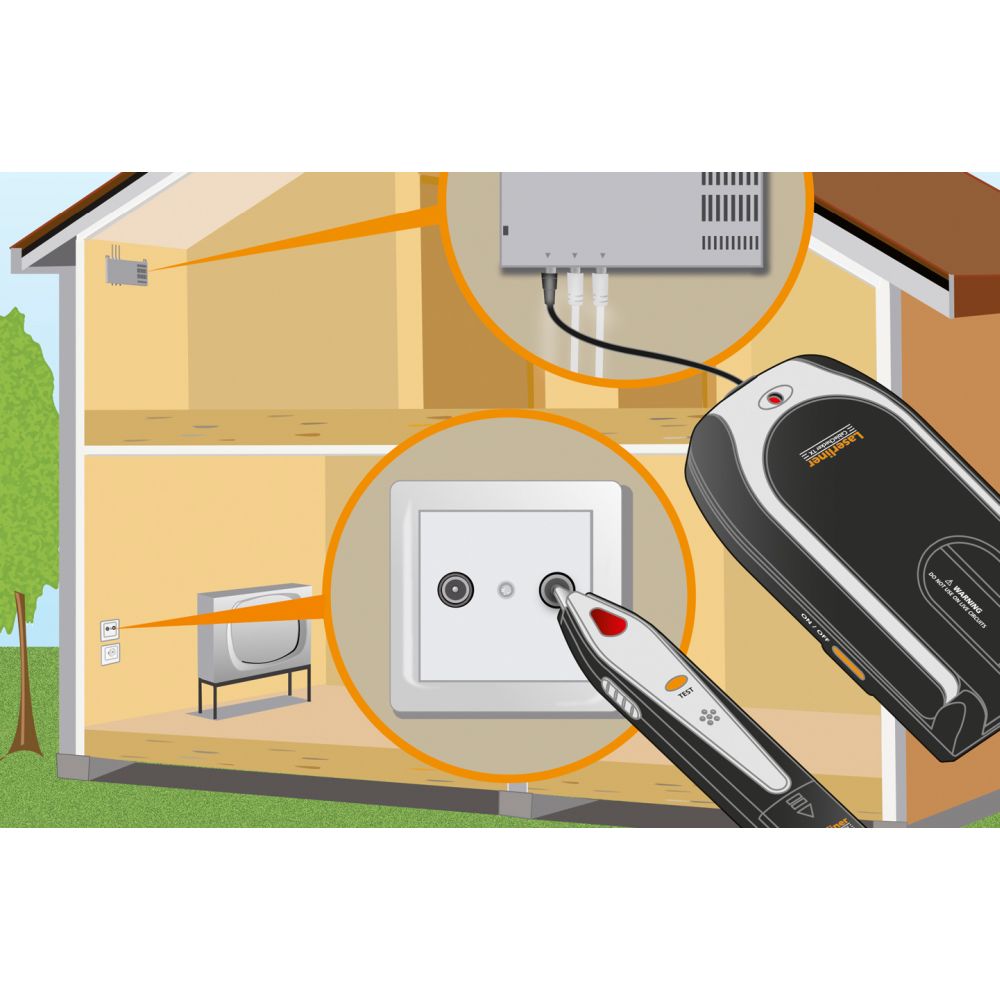

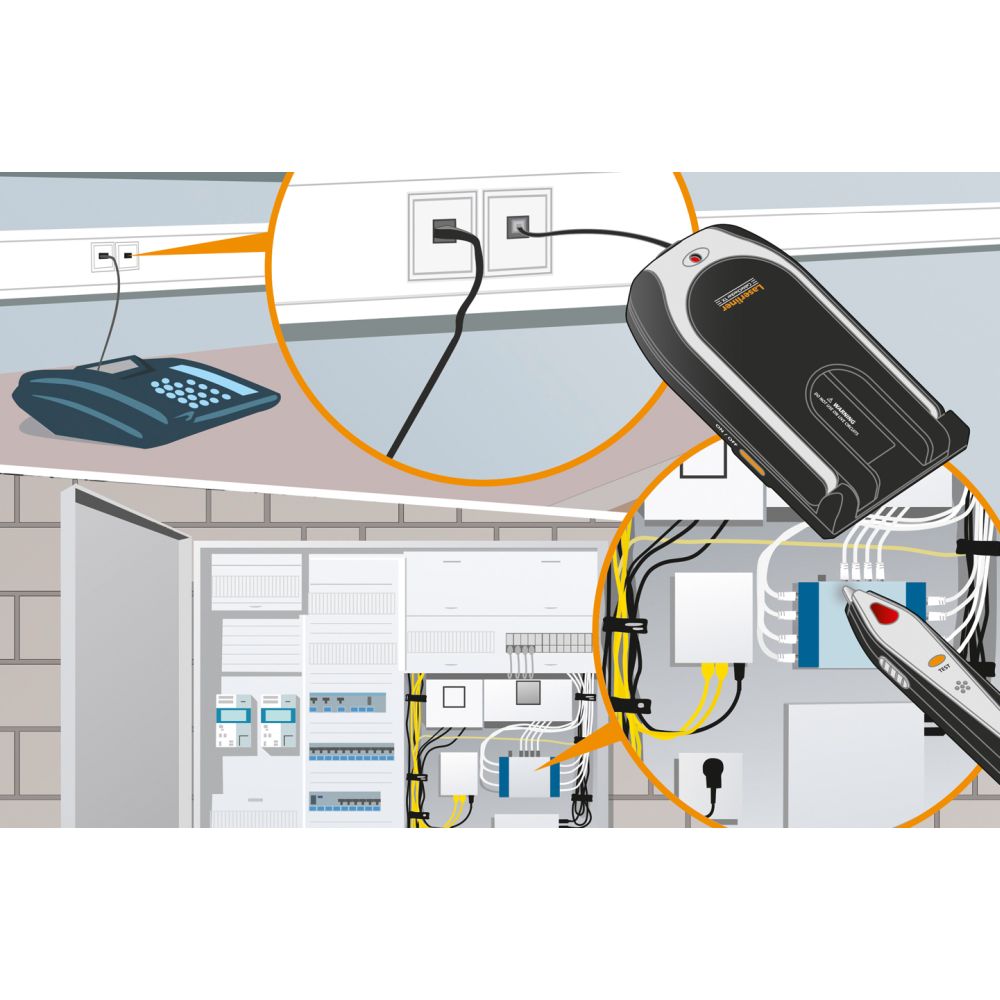

Description: The cable and conductor tester consists of a sender and a receiver and analyses LAN, TV, telephone, audio and other cables in electrical systems. The sender with integral adapter can be used to easily check the most commonly used plug connections (RJ11, RJ45, TV coaxial). The receiver searches for the transmission signal using non-contact technology and issues a loud test signal to identify the relevant cable. The device can be connected to any conductor using the universal test terminals.

  • Reliable cable and conductor testing for off-circuit electrical systems
  • Accurate analysis of LAN, TV, telephone and other cables in electrical systems
  • Easily test the most commonly used plug connections (RJ 11, RJ 45; coaxial TV) using transmitters with integral adapters
  • Universal test terminals for connecting to any conductor

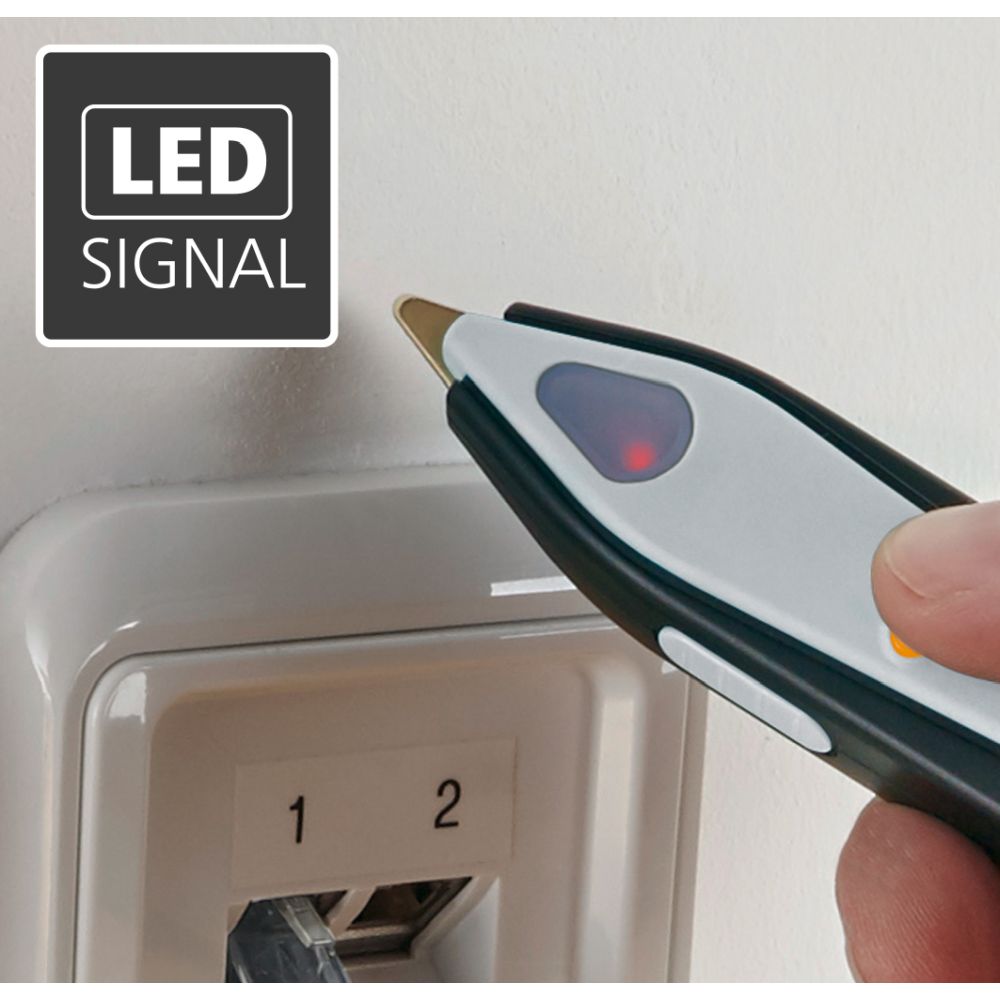

  • Non-contact tracing of the transmission signal by the receiver
  • Clear test signals for identifying the selected cables

  • Attribute083.065A CableChecker
    TitleCable and conductor tester
    Acoustic tracing of the transmission signal
    Line tracer
    Continuity test with audible signal
    Cable/TV/RJ45/RJ11 test
    Measured variableRegistration of a transmission signal using the transmitter/receiver principle
    Output signal8 Vss (peak-to-peak)
    max. 10 mA (Transmitter)
    max. 30 mA (Receiver)
    Line / voltage locationScan mode: 0 … 5 cm
    max. testing length: 100 m
    Power sourceRECV: 4 x 1.5V LR44 (AG13) / TX: 2 x 1.5V LR03 (AAA)
    Temperature (working conditions)-10°C … 40°C

    Scope of delivery:
  • transmitter CableChecker TX
  • receiver RECV
  • adapter (TV-coax, RJ 45, RJ 11)
  • test terminals
  • batteries

  • Documentation:

    Product information sheet not available.

    Cable and conductor tester

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):

    Art.No.: 083.065A, GTIN (EAN): 4021563694471
