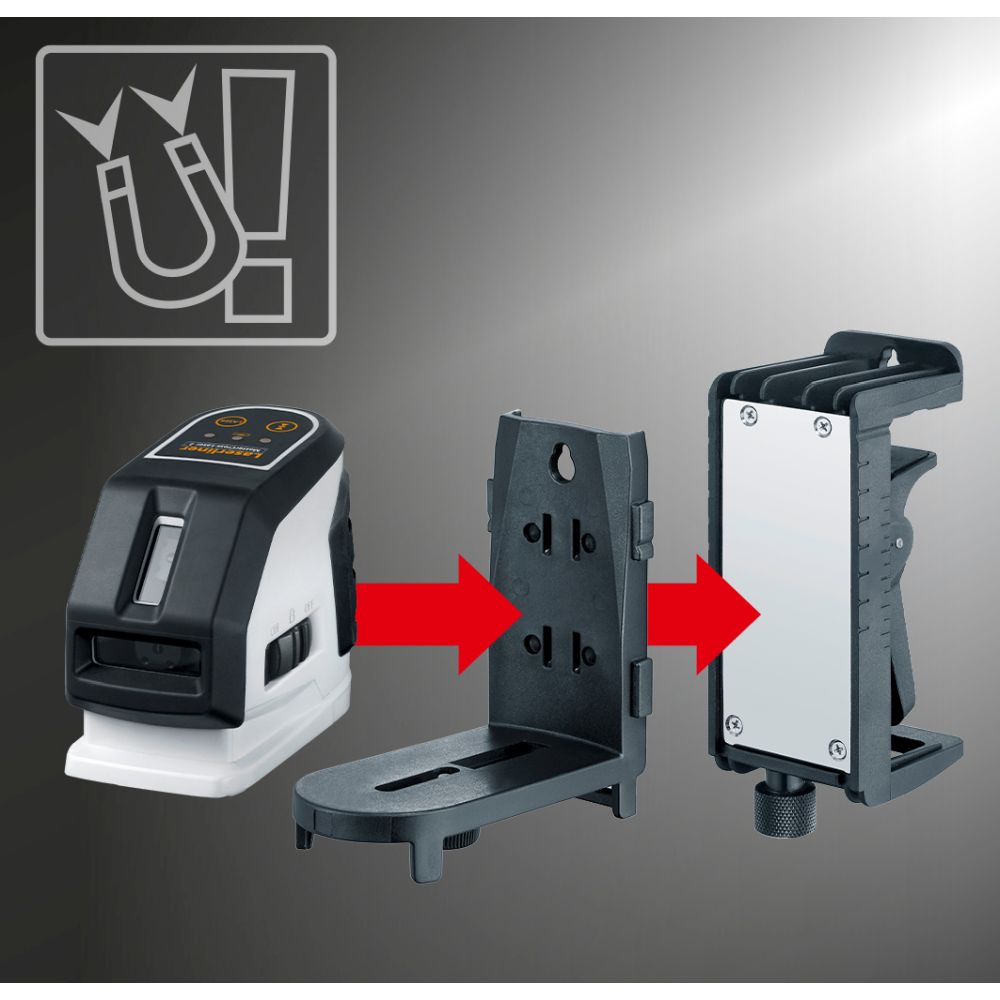

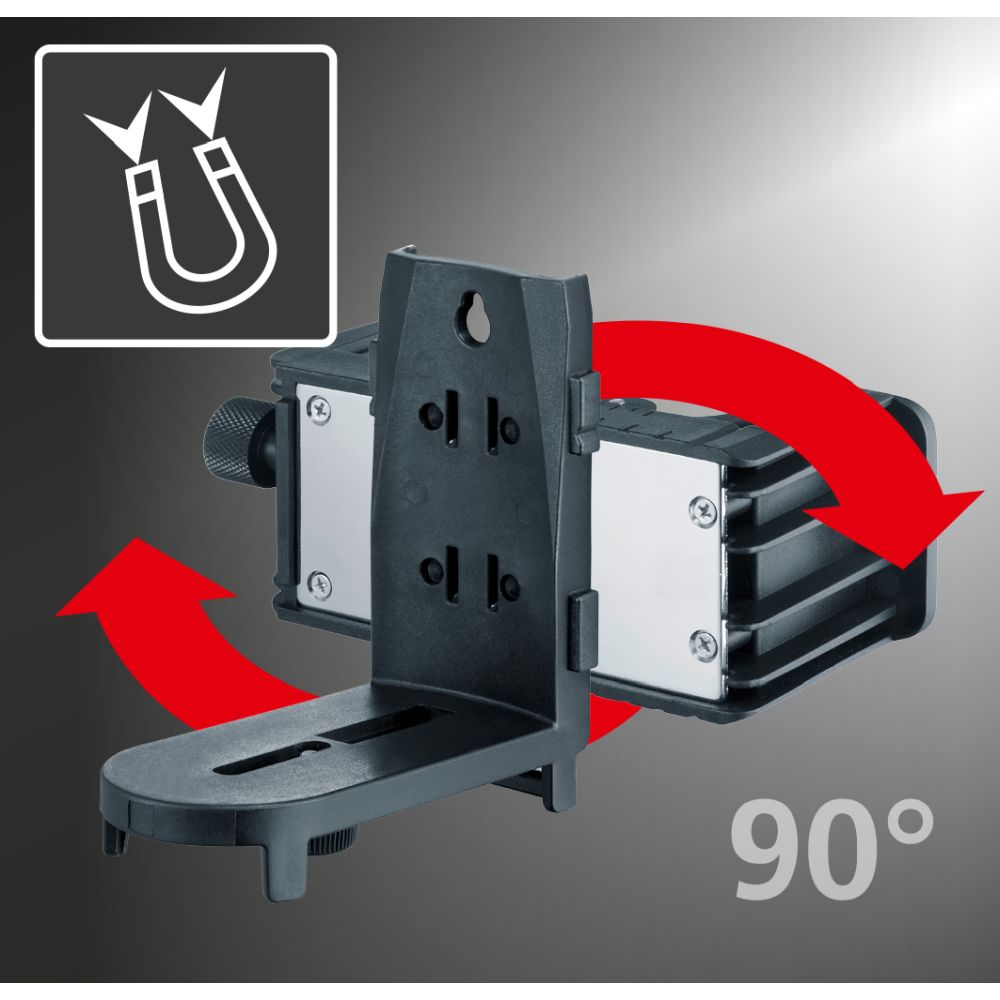

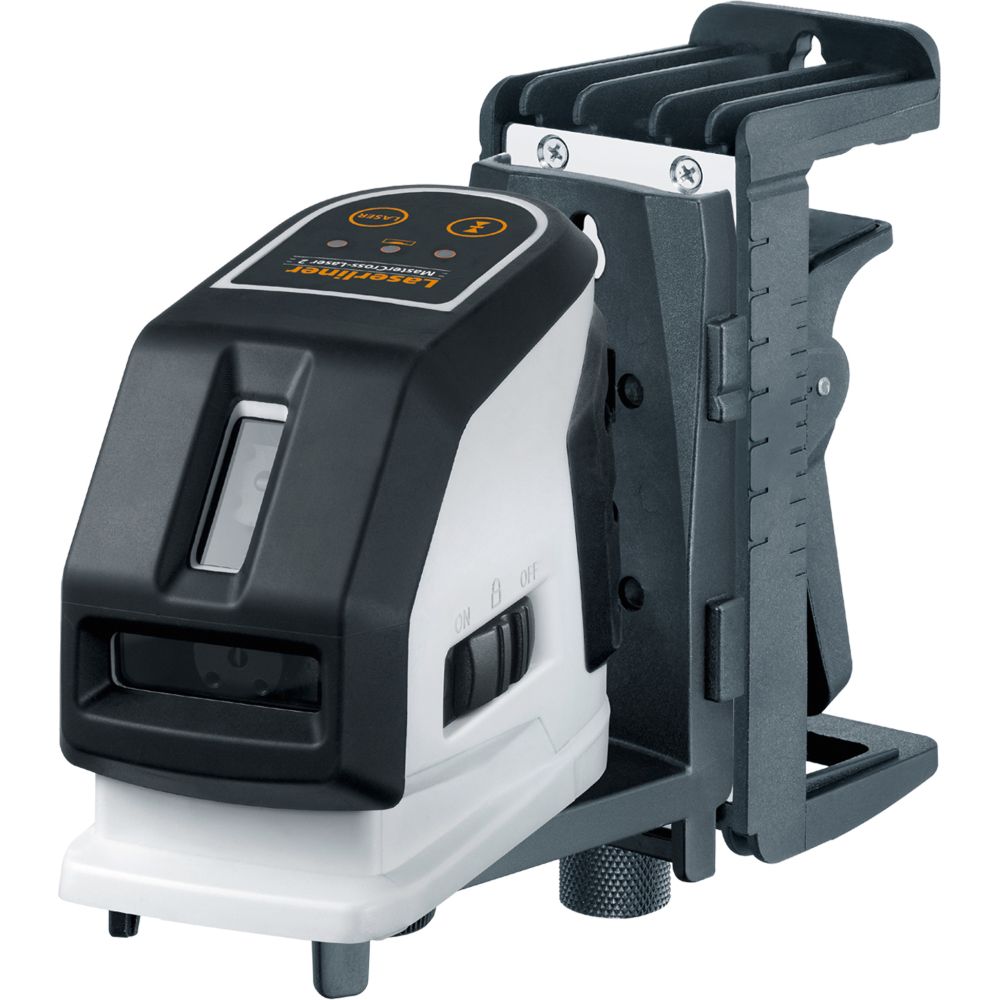

Description: The cross line-laser produces two clearly visible laser lines which can be individually switched. The tool is suitable for aligning horizontals, verticals and slopes. The magnetic clamp and wall bracket allows it to be used in many different scenarios. The integrated hand-held receiver mode and optional laser receiver are ideal for outdoor applications.
| Hand receiver mode | ✅ |
| Horizontal/vertical levelling | ✅ |
| Manual slope function | ✅ |
| Battery operation | ✅ |
| Self-Levelling Range | ± 3° |
| Accuracy | ± 0.2 mm / m |
| Levelling | automatic |
| Visibility (Typical)* | 20 m |
| Laser Wavelength | 635 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Power Supply | 4 x 1.5V LR6 (AA) |
| Operating Time | approx. 4 hours |
| Operating Conditions | 0°C … 50°C, Luftfeuchtigkeit max. 85% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull) |
| Storage Conditions | -10°C … 70°C, Luftfeuchtigkeit max. 85% rH |
| Dimensions (W x H x D) | 66 mm x 100 mm x 125 mm |
| Weight | 570 g (inkl. Batterien) |

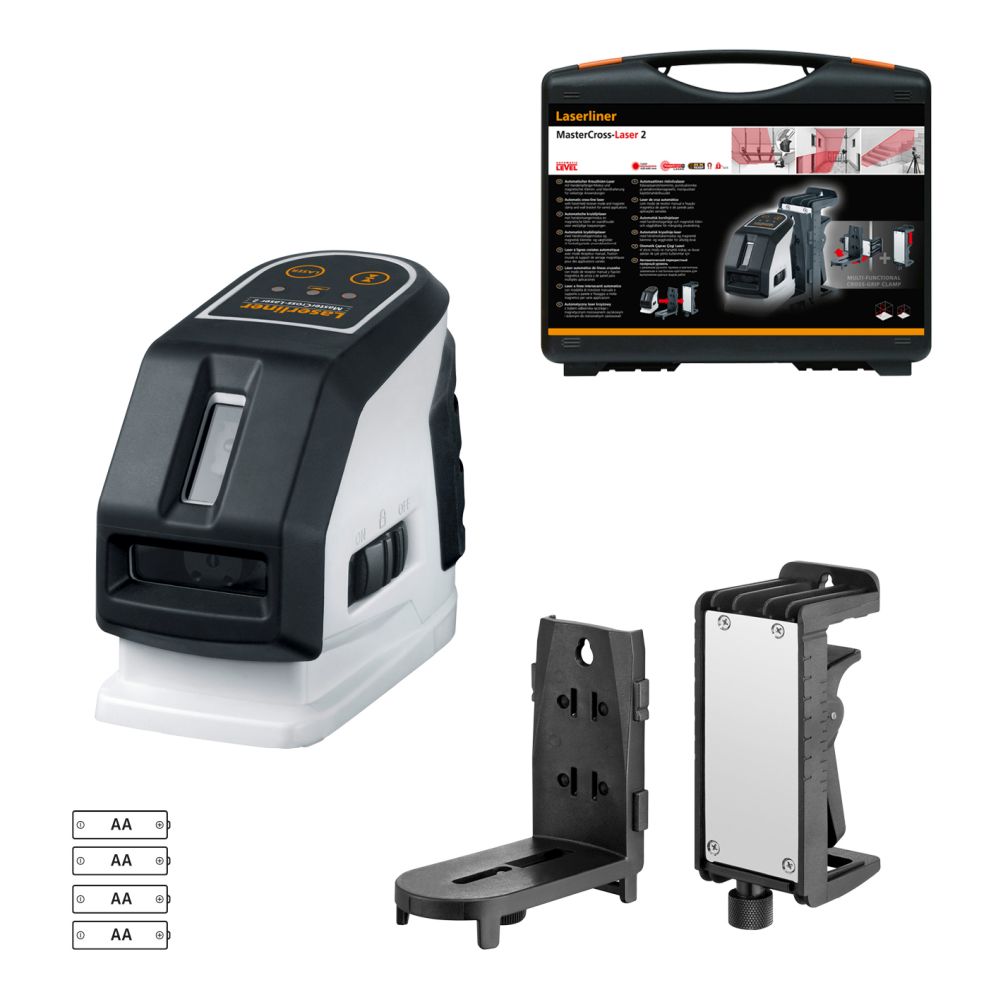

Scope of delivery:
Accessories (optional):
RangeXtender 30(Art.No.: 033.25A) - Laser receiver
RangeXtender 40(Art.No.: 033.40A) - laser receiver
VarioStand L 300 cm(Art.No.: 080.24A) - tripod
Lightweight Tripod 165 cm(Art.No.: 080.02) - tripod
LaserSight red(Art.No.: 020.70A) - laser enhancement glasses
Documentation:
Product information sheetTitel:
cross-line laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 031.350A, GTIN (EAN): 4021563695324
