Description: This rotary laser is perfect for precise alignment of horizontal and vertical surfaces. The device has a digital slope adjustment and a manual slope mode for precise setting of gradients. Partitions are easily plumb-lined and aligned thanks to an additional reference beam. The laser is completely automatically aligned by electronic positioning motors. The device has spot, scan, rotary and hand-held receiver modes. To increase measuring accuracy, the device automatically powers off in the event of external influences. All functions can be controlled remotely from all sides up to a distance of 40 metres. The receiver has a reception range of 400 metres. LC displays on the front and rear of the device, bright, three-colour LED signals, and acoustic signals indicate the height of the laser beam. The robust crank tripod with 5/8” threaded adapter has an extremely long crank stroke (70 cm) which can be adjusted and locked without any play and is adjustable over a wide range. Other product features include stable steel feet and steel chains. The easy-to-read levelling staff completes the set. It features a robust aluminium profile and can be used in extremely demanding conditions. It has a maximum height of 5 metres and a minimum height of 1.22 metres.

Exact horizontal and vertical alignment of objects

Digital inclination adjustment: The horizontal plane can be inclined in the X- and Y-axis

The 90° reference beam is provided to plumb and align partition walls

Time-saving fully automatic alignment by means of automatic sensor

Laser modes: spot, scan, rotary and hand receiver mode

Large illuminated LC display

All functions can be controlled with the remote control up to a max. distance of 40 m

Reliable measurement through automatic power off with ADS tilt

Robust waterproof housing

Transport LOCK: The device is protected by a special motor brake during transport

Long range, ideal for excavation work

LED multicolour indicators

Easy-to-read LC displays on front and back

Head- and side magnets

Switchable, extremely loud Piezo buzzer sound

Versus function: receiver monitors the laser's reference height

An extremely long crank stroke allows a large adjustment range

Crank stroke can be fixed and can be set without play

Easy to read and highly stable levelling staff

Horizontal/vertical levelling	✅
Hand receiver mode	✅
Scan mode	✅
Spot mode	✅
Motorised slope function	✅
Manual slope function	✅
Slope display	✅
Precision sensor levelling	✅
Battery and mains operation	✅
Anti-Drift-System (ADS)	✅
Battery operation	✅
Plumb laser up (90° reference beam)	✅
Plumb laser down	✅
Tilt warning function	✅
Self-Levelling Range	± 6°
Accuracy	±0.075 mm/m
Levelling	automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength	635 nm
Laser Class	2 / < 1 mW
Laser Modes	Hand receiver mode Spot mode Rotary mode Scan mode
Laser Reception Range	max. 350 m
Protection Class	IP 66
Power Supply	4 x 1.2V HR14 (C) NiMH 4 x 1.5V LR14 (C)
Operating Time	Rechargeable battery: approx. 35 hours / Batteries: approx. 50 hours
Battery Recharging Time	approx. 7 hours
Operating Conditions	-10°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage Conditions	-10°C … 70°C, max. humidity 80% rH
Dimensions (W x H x D)	215 mm x 165 mm
Weight	2600 g (incl. battery pack)

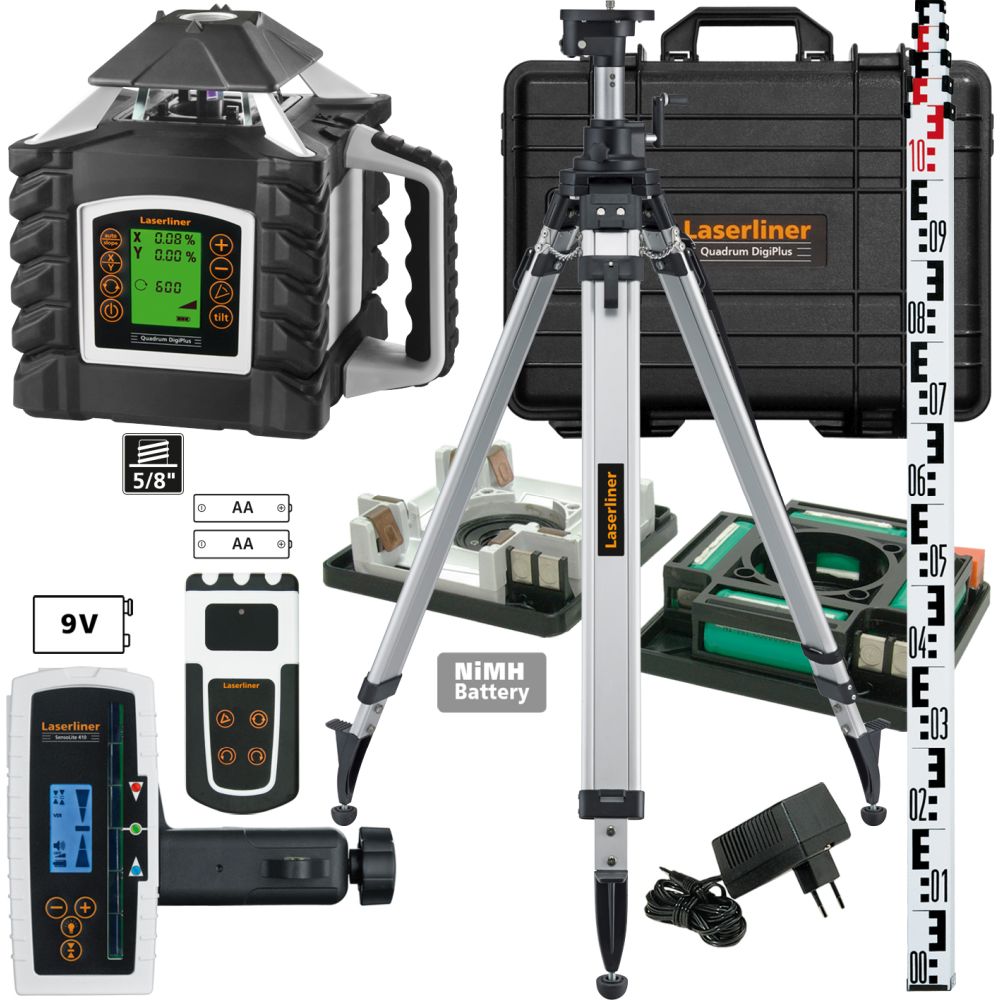

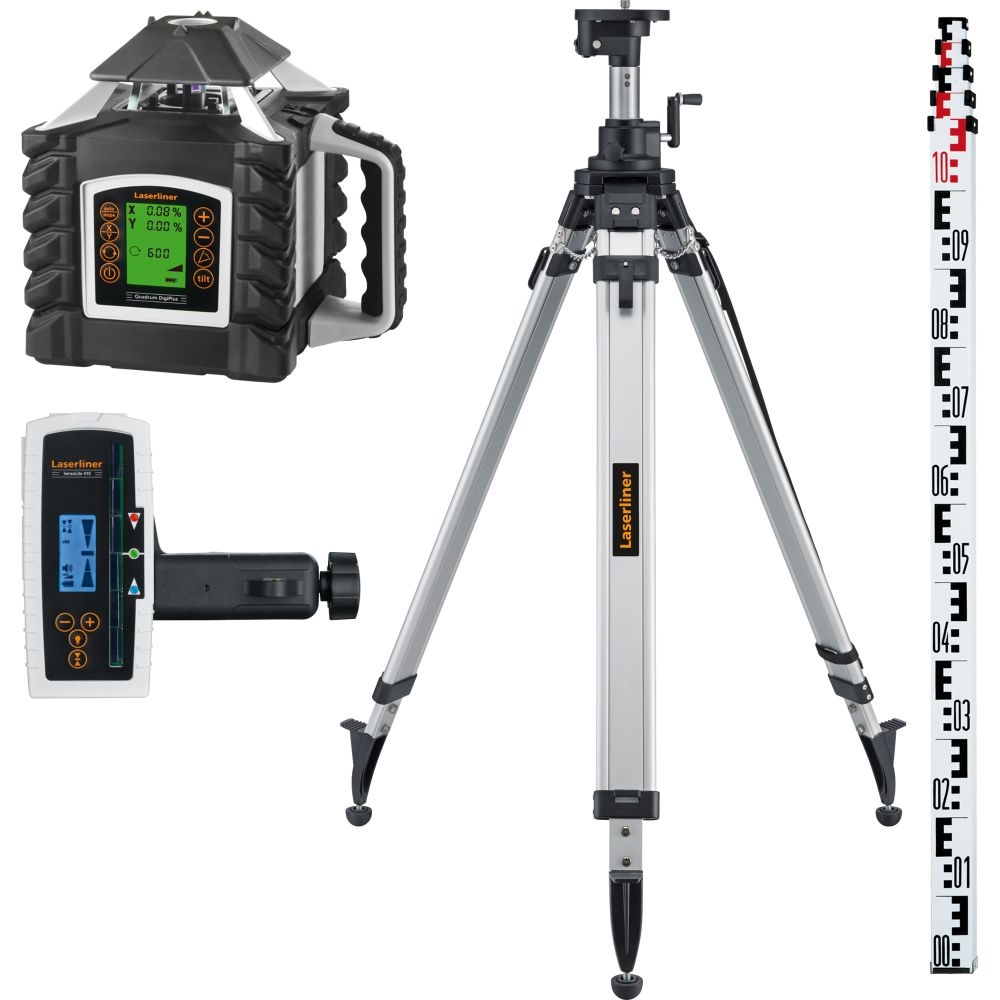

Scope of delivery:

Quadrum DigiPlus

SensoLite 410

crank tripod P 260 cm

universal mount

telescopic levelling staff LT 5 m

remote control

rechargeable battery

battery compartment

power supply / battery charger

batteries

carrying case

Accessories (optional):

•
  SensoLite 310 Set
  (Art.No.: 028.71) - Laser receiver


•
  SensoMaster M350 Set
  (Art.No.: 028.85) - Laser receiver


•
  SensoLite 110 Set
  (Art.No.: 028.65) - Laser receiver


•
  VarioStand L 300 cm
  (Art.No.: 080.24A) - tripod


•
  Crank Tripod P 175 cm
  (Art.No.: 080.26) - crank tripod


•
  Crank Tripod 300 cm
  (Art.No.: 080.39) - Crank tripod


•
  Telescopic Levelling Staff LT 4 m
  (Art.No.: 080.42) - Levelling staff


•
  Flexi Levelling Staff red
  (Art.No.: 080.50) - Levelling staff


•
  Angle Bracket 5/8”
  (Art.No.: 080.75) - Angle plate for rotary lasers


•
  Wall Mount Pro
  (Art.No.: 080.71) - Wall bracket


•
  LaserSight red
  (Art.No.: 020.70A) - laser enhancement glasses

Documentation:

Instructions not available.
