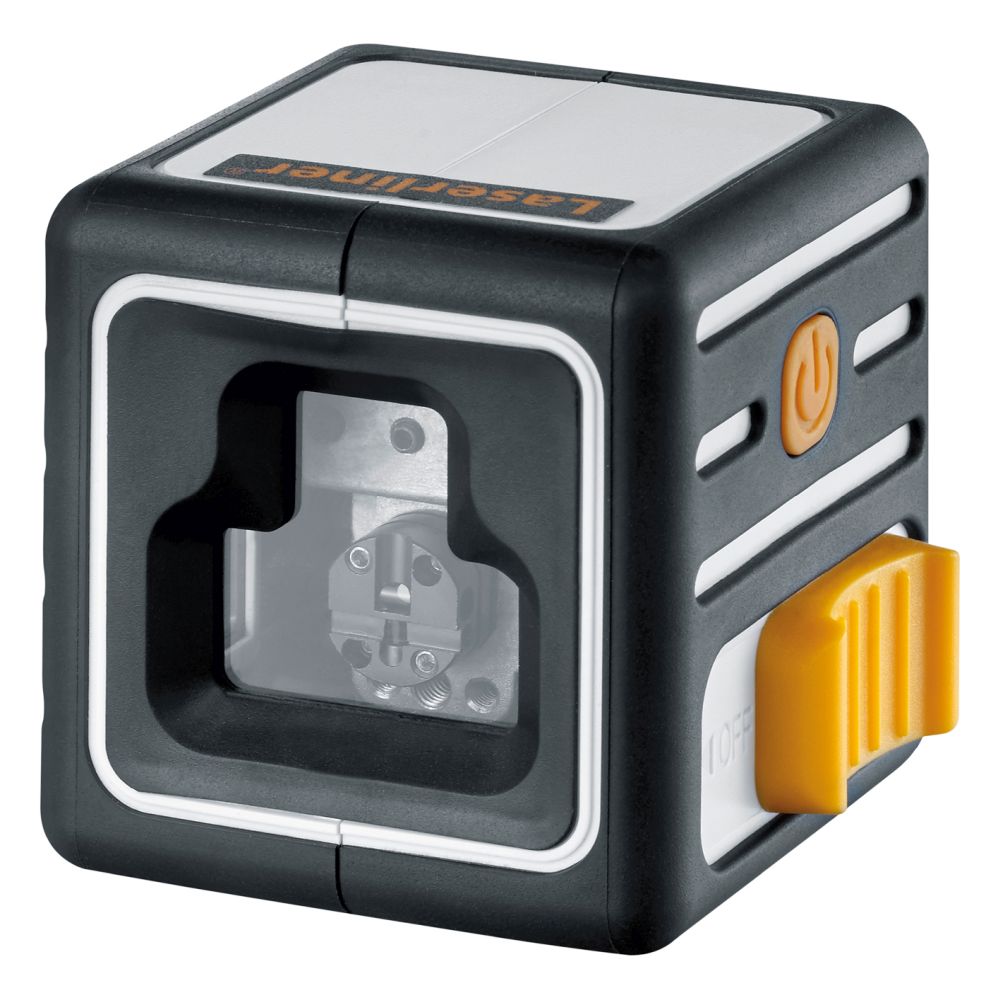

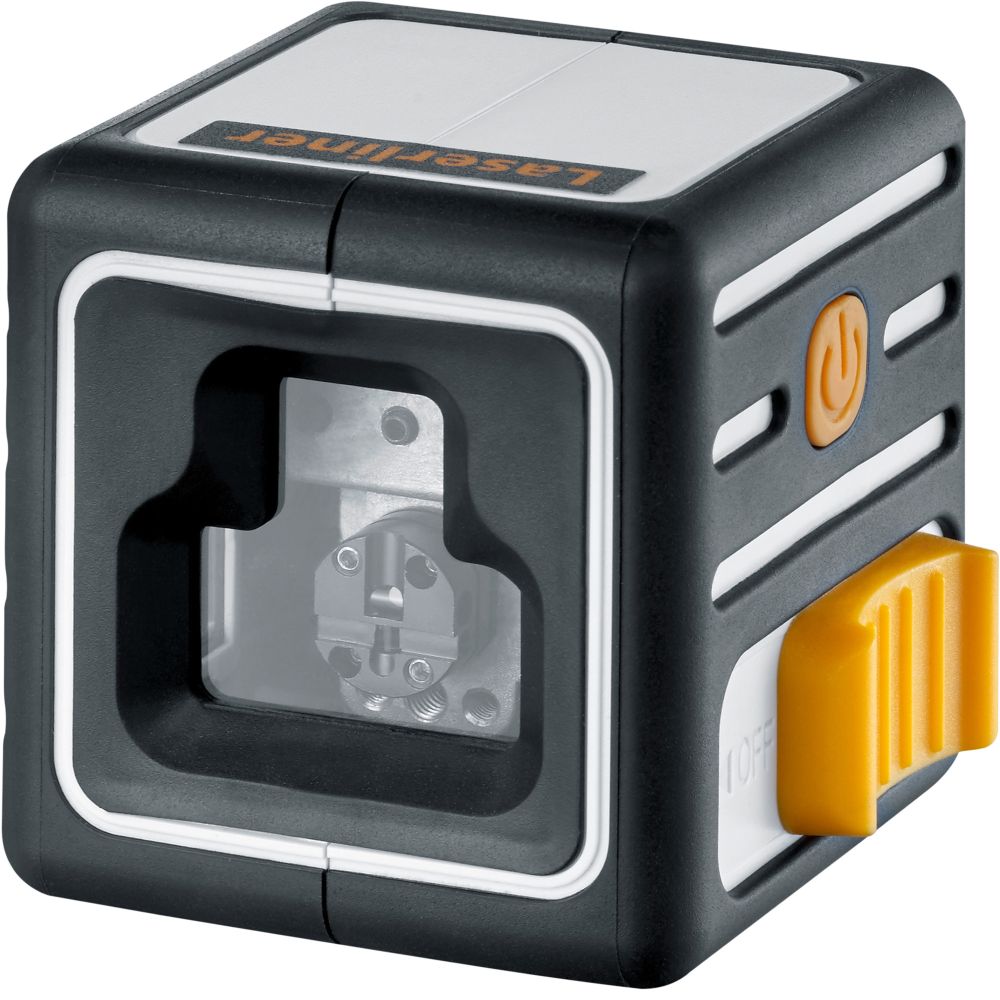

CompactCube-Laser 3

Automatic cross-line laser with lateral 90° laser


Description: This automatic cross-line laser with PowerBright technology projects three bright, individually selectable laser lines. The two vertical lines are aligned perpendicular to each other. The device is perfect for aligning tiles, wall studding, windows or doors. The additional slope function allows angles to be precisely levelled. Optical signals indicate when the device is outside its self-levelling range. A pendulum restraint provides excellent protection during transportation. The small, compact design fits perfectly in any tool box and the ergonomic housing makes the device easy to use.

  • Three clearly visible laser lines, ideal for aligning tiles, wall studding, windows, doors

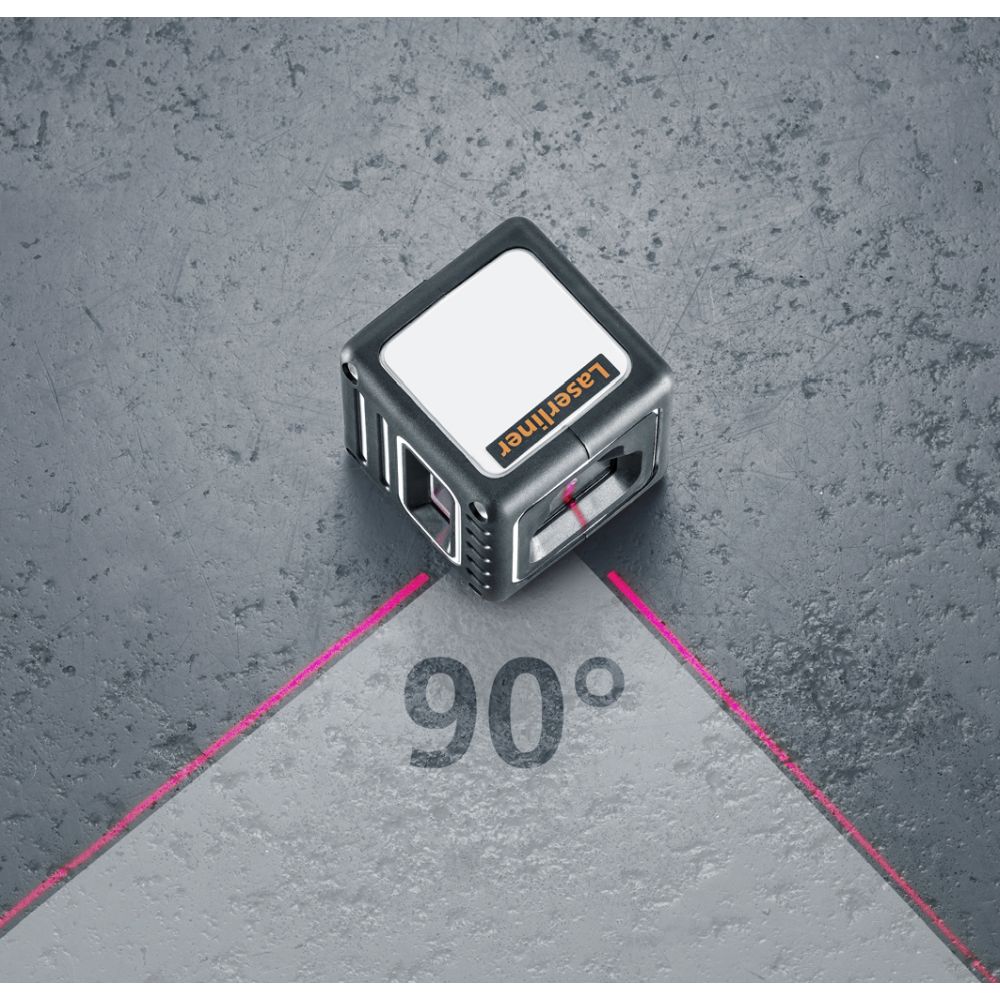

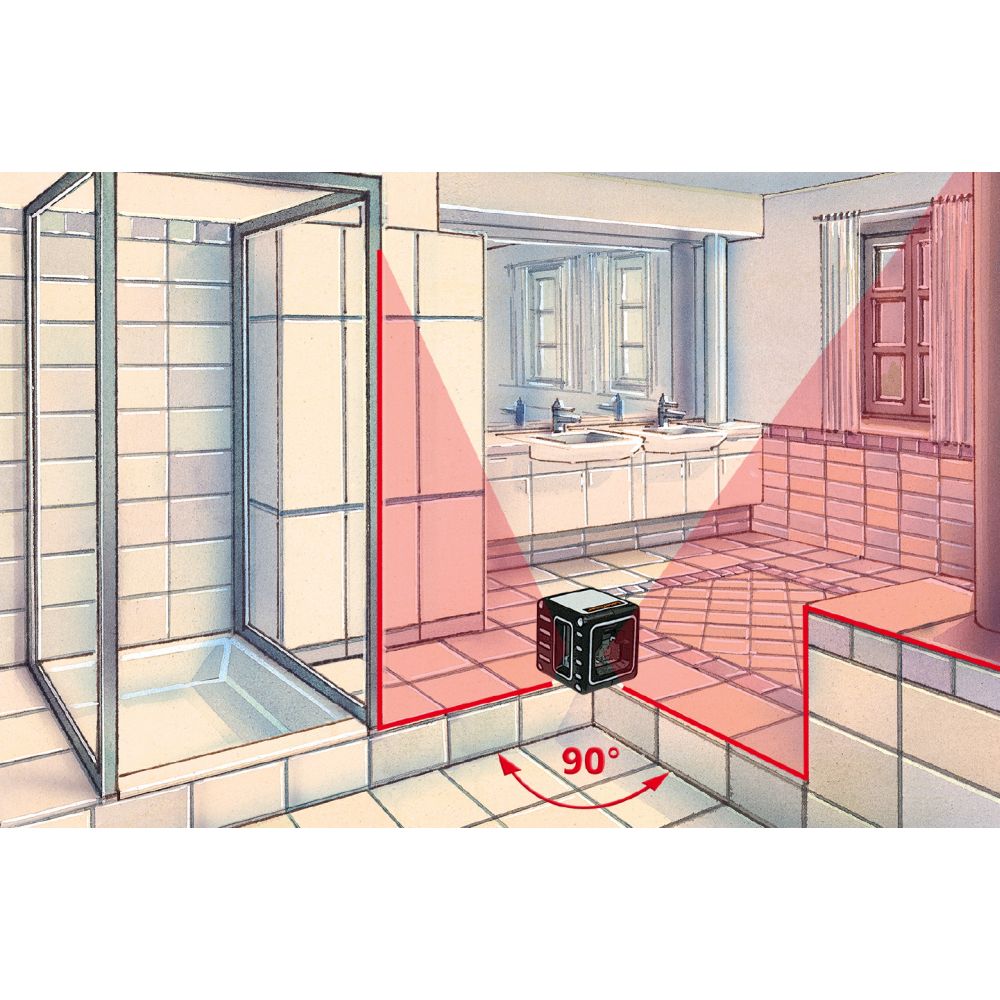

  • The two vertical laser lines are aligned perpendicular to each another
  • Additional slope function
  • Time-saving automatic alignment
  • Device issues warning when leaving the levelling range
  • Pendulum restraint for safe transport
  • Compact design, fits in any toolbox
  • Sturdy, ergonomically designed, rubberised casing

  • Horizontal/vertical levelling
    Manual slope function
    Battery operation
    Self-Levelling Range± 3°
    Accuracy± 0.5 mm / m
    Levellingautomatic
    Laser Wavelength635 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)

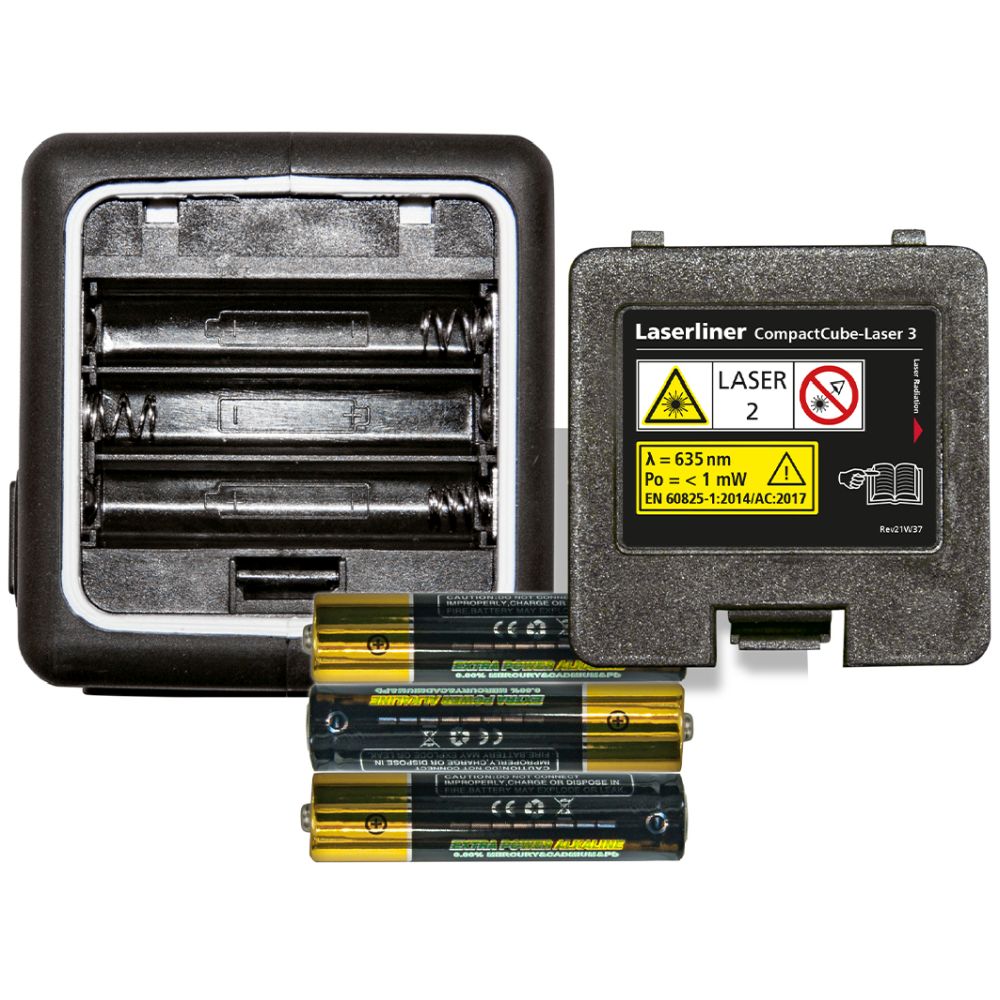

    Power Supply3 x 1.5V LR03 (AAA)
    Operating Timewith laser cross at front: approx. 20 hours / with all laser lines: approx. 9 hours
    Operating Conditions0°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
    Storage Conditions-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
    Dimensions (W x H x D)69 mm x 69 mm x 65 mm
    Weight285 g (inkl. Batterien)

    Scope of delivery:
  • CompactCube-Laser 3
  • batteries


  • Documentation:

    Titel:
    cross-line laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    OrangeLine

    Art.No.: 036.150A, GTIN (EAN): 4021563696710
