CondenseSpot XP

Professional climate/humidity/temperature measuring device for localising thermal bridges and condensation using a Digital Connection interface


Description: The CondenseSpot XP allows the precise measurement of surface, ambient, dew point, contact and wet bulb temperatures as well as relative humidity. In this way, thermal bridges and condensation can be effectively localised and damage to the building structure prevented. It can be used in places that are difficult to reach and in endangered measuring zones. The measured values can be transferred through the Digital Connection interface to a mobile phone and saved using the memory function.

  • Wide range of measurement options: surface, ambient, dew point, contact, wet-bulb temperatures, relative humidity
  • Allows temperature measurement in difficult-to-reach places and in hazardous measuring zones

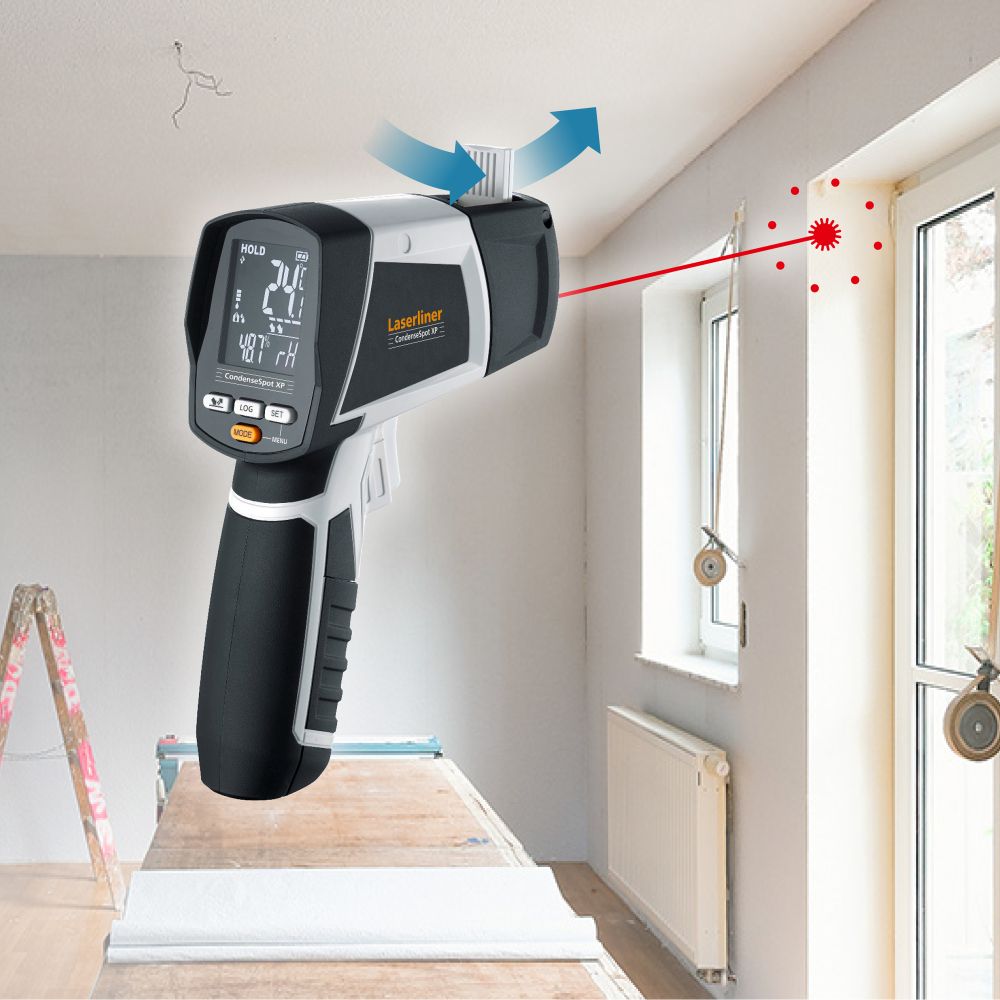

  • Effective localisation of cold bridges and condensation humidity through non-contact temperature measurement

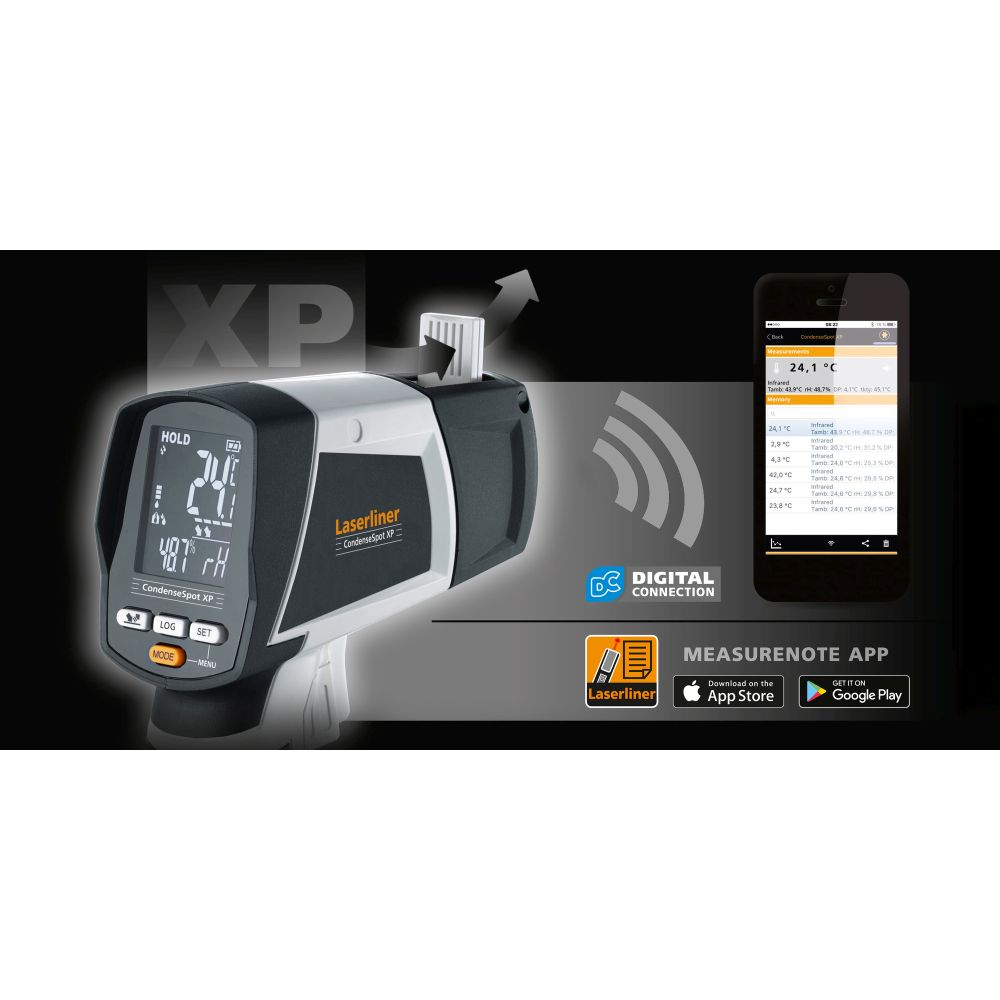

  • Simple transfer of measured data through Digital Connection interface to mobile phone

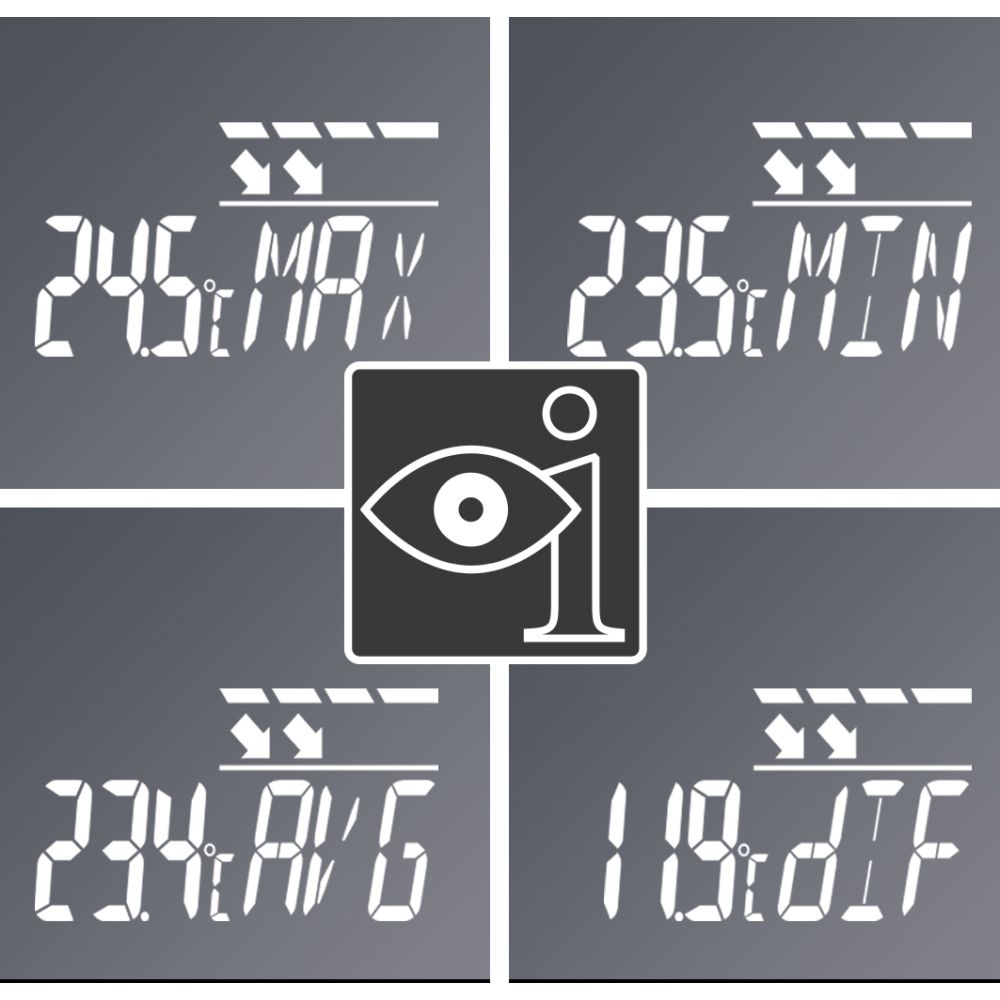

  • Comprehensive information: display of the smallest, largest, average or differential infrared measured values

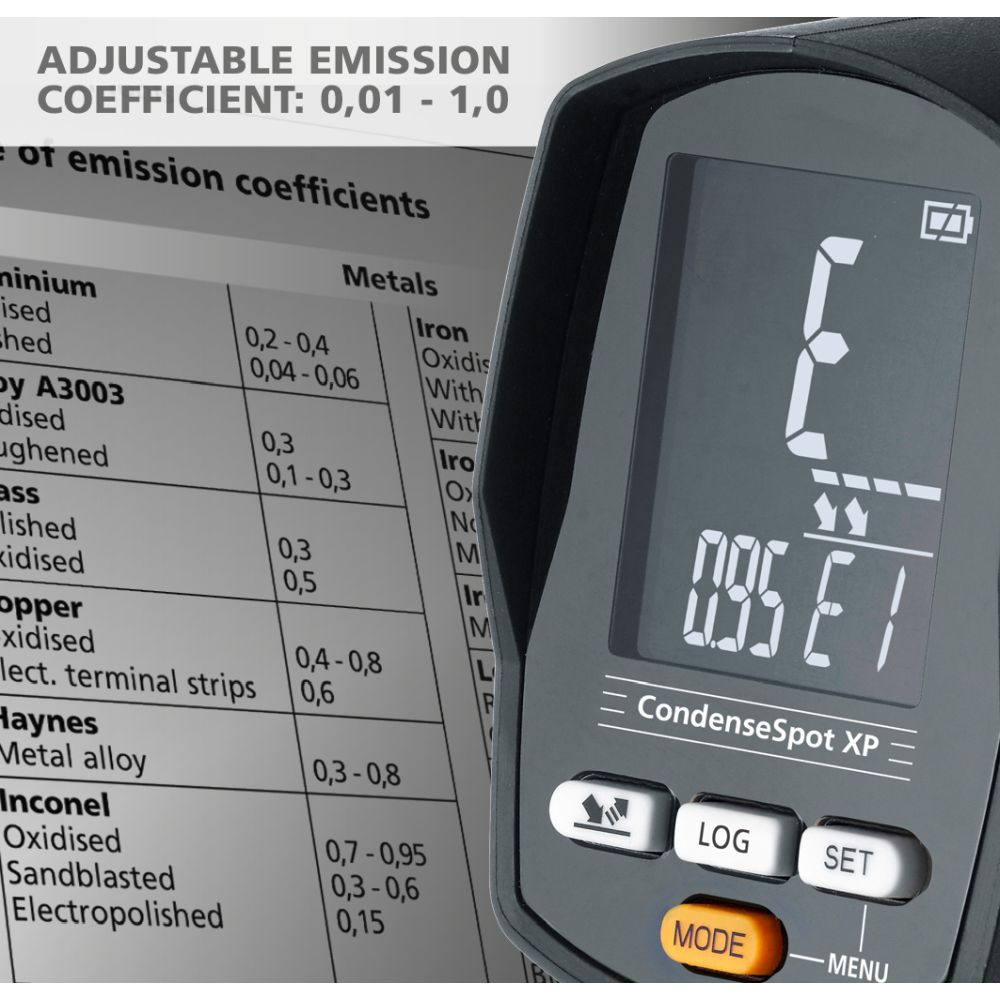

  • Adjustable emission coefficient with practical fast selection function

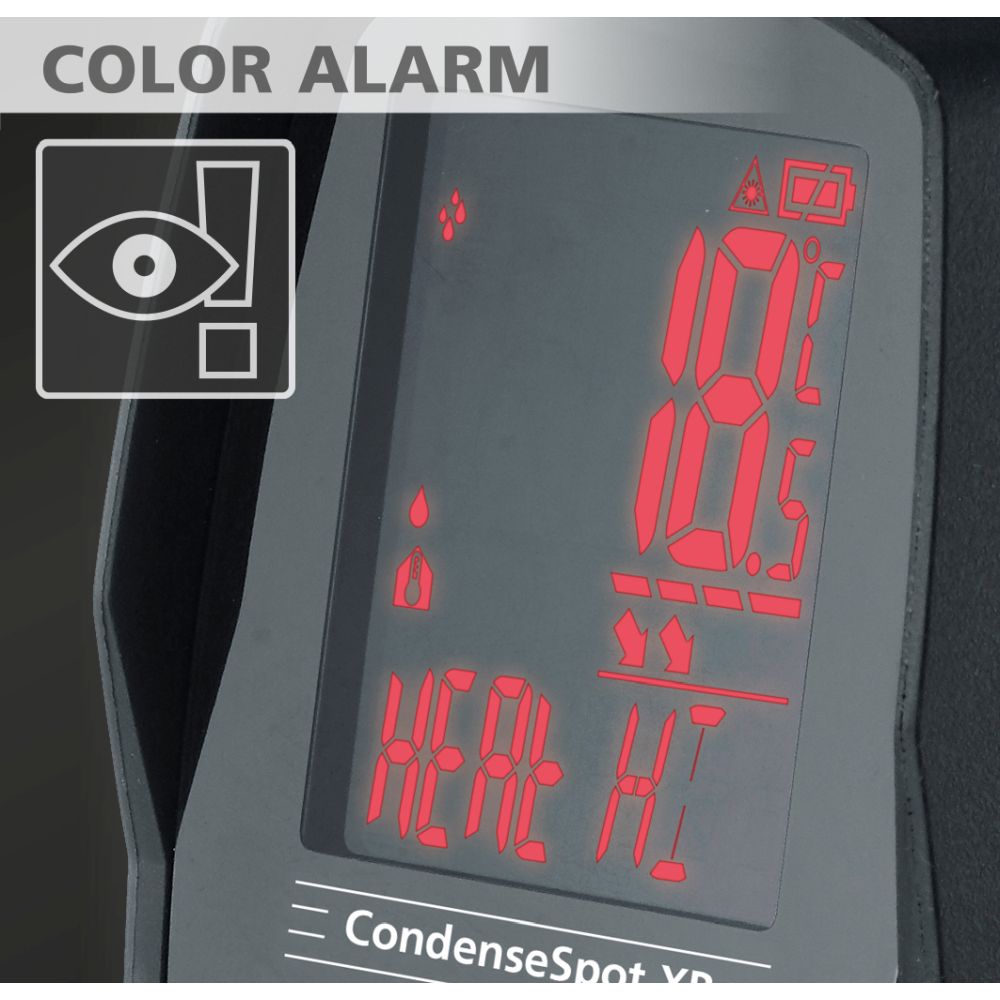

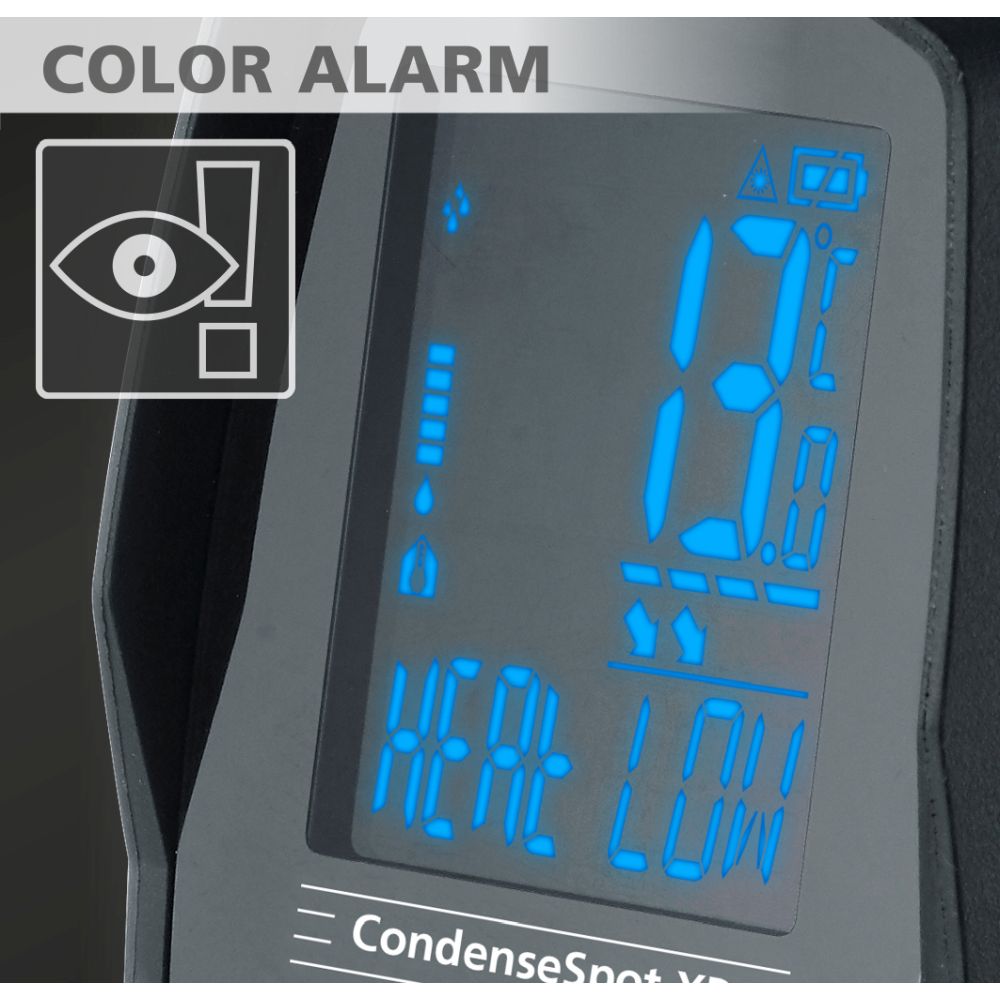

  • Clear cold bridge warning with colour display message
  • Effective saving of measured values through memory function with 50 memory locations
  • Practical, short-term storage of the last measured value by means of data hold function
  • Simultaneous display of different measured values on multi-function display
  • Sturdy, ergonomically designed housing

  • Technical Data082.047A CondenseSpot XP
    TitleClimate/humidity/temperature measuring device
    Auto-hold
    Alarm
    Data transfer
    Continuous measurement
    Adjustable emissions level
    Contact temperature
    Humidity
    Min/Max/Hold/Difference/Mean value
    Surface temperature
    Dew point temperature
    Ambient temperature

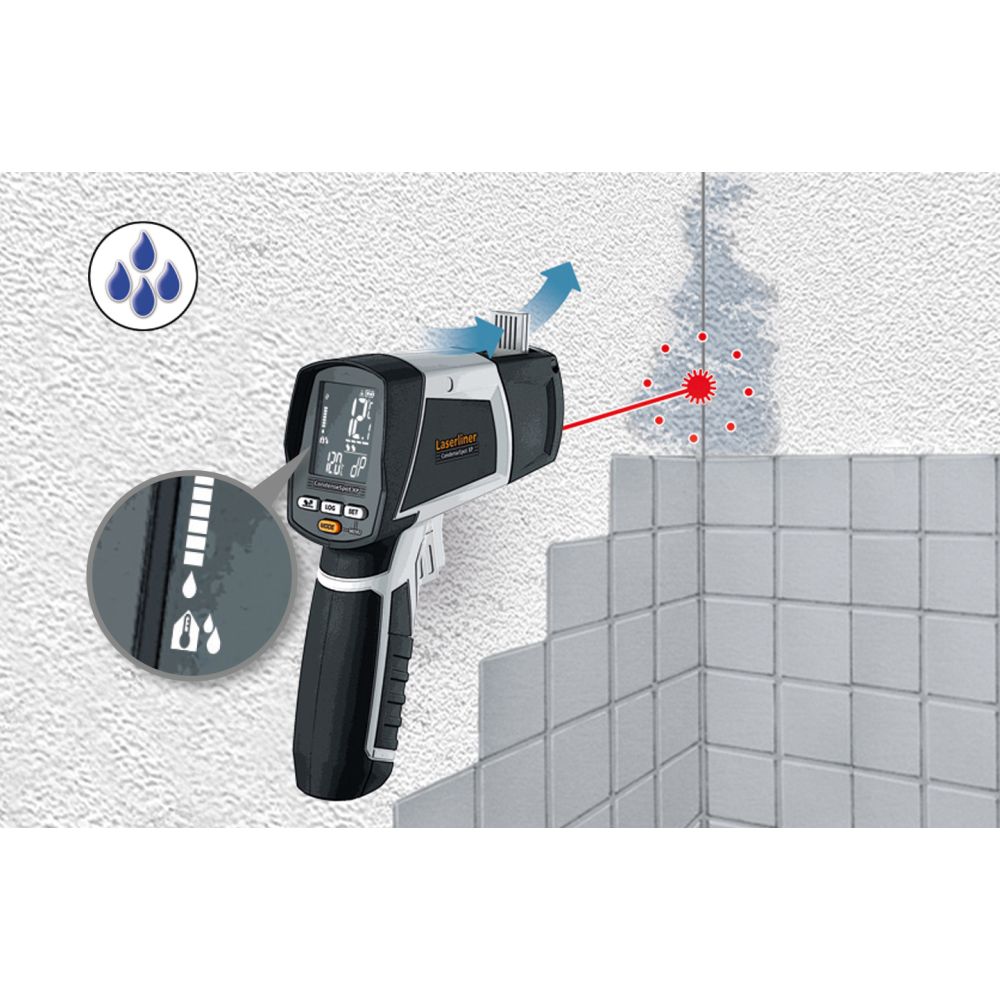

    Wall moisture warning
    Thermal bridge warning
    Laser focusing
    Hold/storage
    Measuring Range Ambient Temperature-20°C … 65°C
    Accuracy Ambient Temperature0°C … 50°C (± 1°C)
    <0°C and >50°C (± 2.5°C)
    Measuring Range Infrared Temperature-40°C … 800°C
    Accuracy Infrared Temperature-40°C … 0°C (± (1°C + 0.1°C/1°C))
    0°C … 33°C (± 1°C)
    >33°C (± 2°C or ± 2%,
    greater value applies)
    Contact Temperature Measuring Range-30°C … 1372°C
    Contact Temperature Accuracy± 1°C or ± 1%,
    greater value applies
    Measuring Range Humidity (Relative)1% … 99%
    Accuracy (Absolute) Humidity (Relative)20% … 80% (± 3%)
    <20% and >80% (± 5%)
    Measured VariableInfrared temperature
    Contact temperature
    Humidity
    Ambient temperature
    Dew point temperature
    Wet-bulb temperature

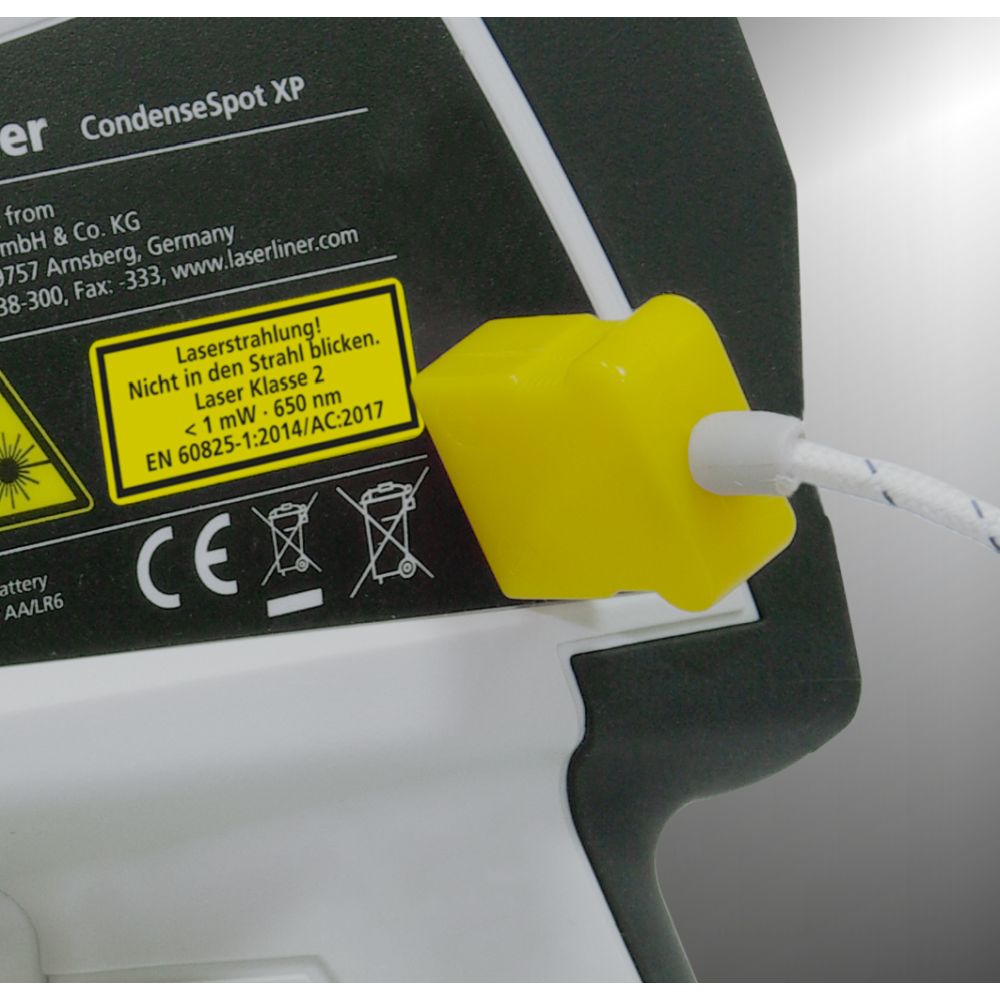

    PortsThermocouple type K

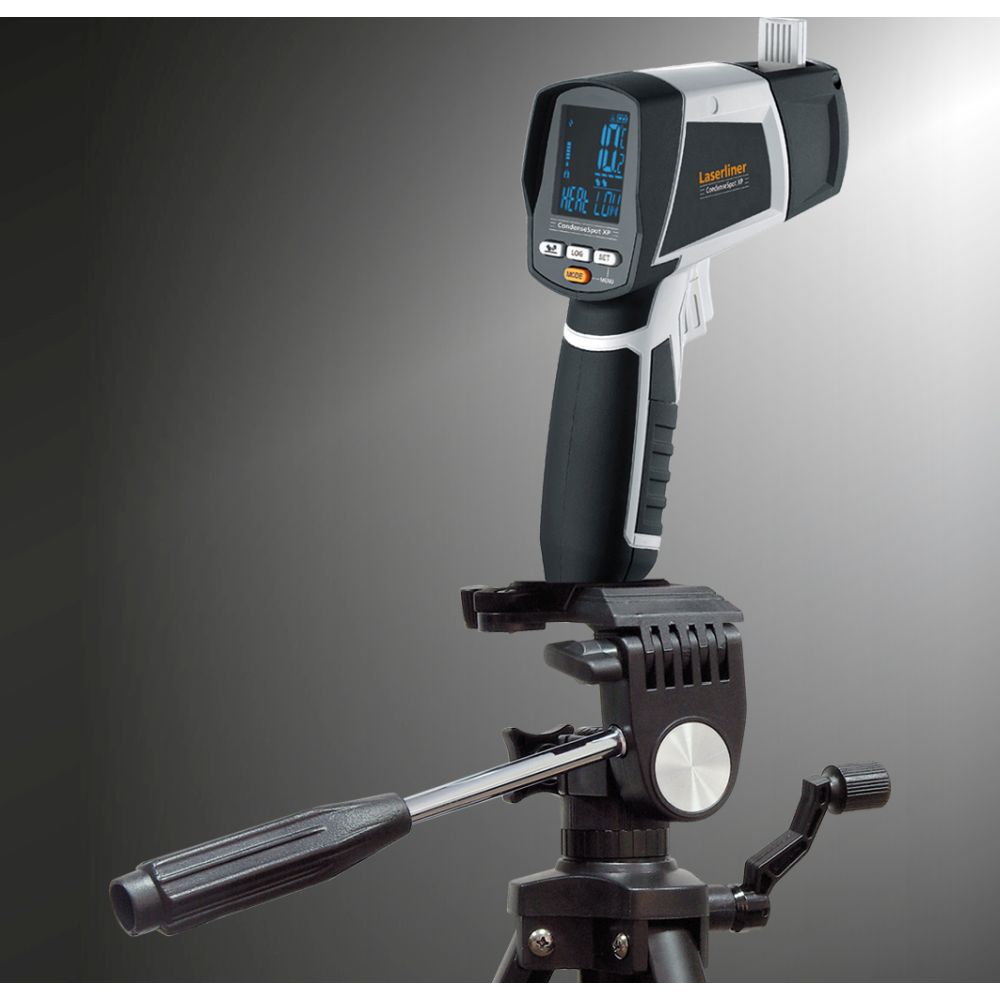

    1/4" tripod thread
    Laser8-point laser circle
    Laser Wavelength650 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Memory50 storage locations
    PortDigital Connection
    Power Supply2 x 1.5V LR6 (AA)
    Operating Timeapprox. 20 hours
    Temperature (Working Conditions)0°C … 50°C

    Scope of delivery:
  • CondenseSpot XP
  • batteries
  • carrying case


  • Documentation:

    Instructions
    Instructions part 2
    Instructions part 3


    Categorie:
    Humidity and moisture measuring devices

    Titel:
    Climate/humidity/temperature measuring device

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 082.047A, GTIN (EAN): 4021563698936
