SmartVision-Laser Set

Green cross-line laser with universal clamping bracket

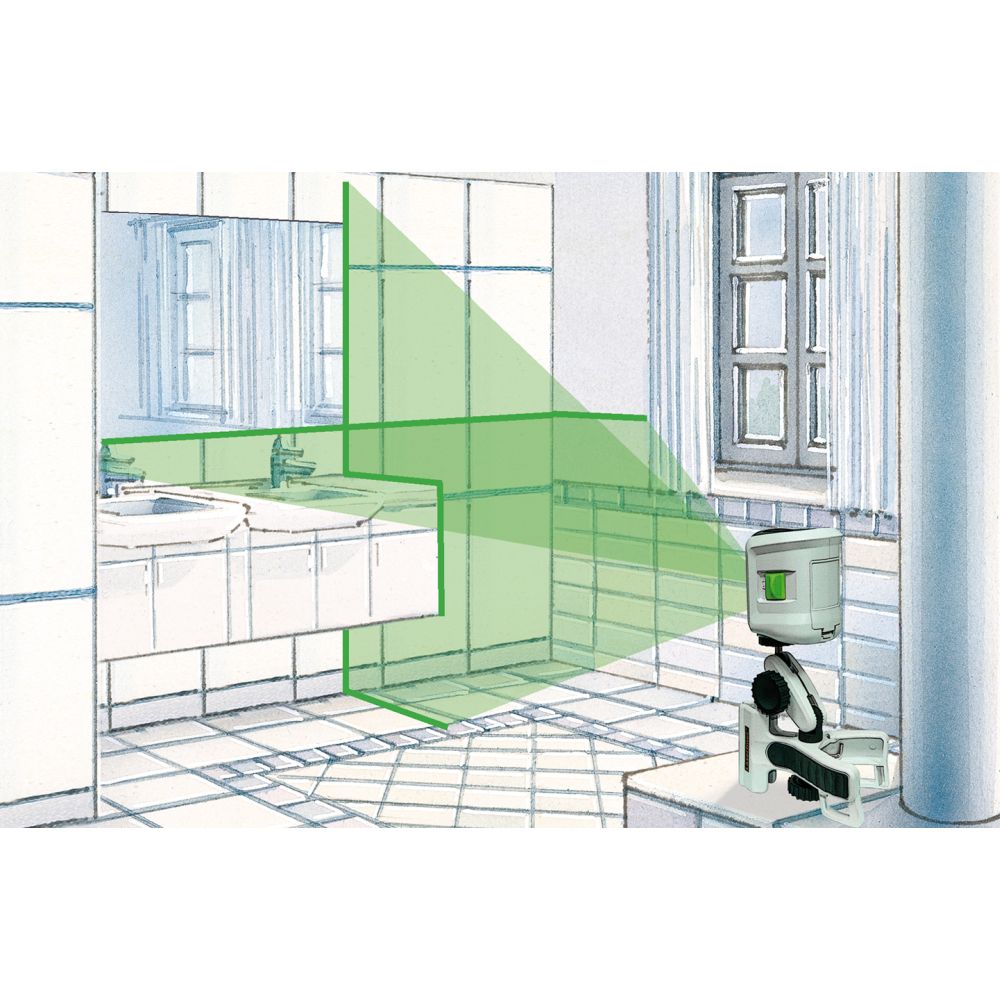

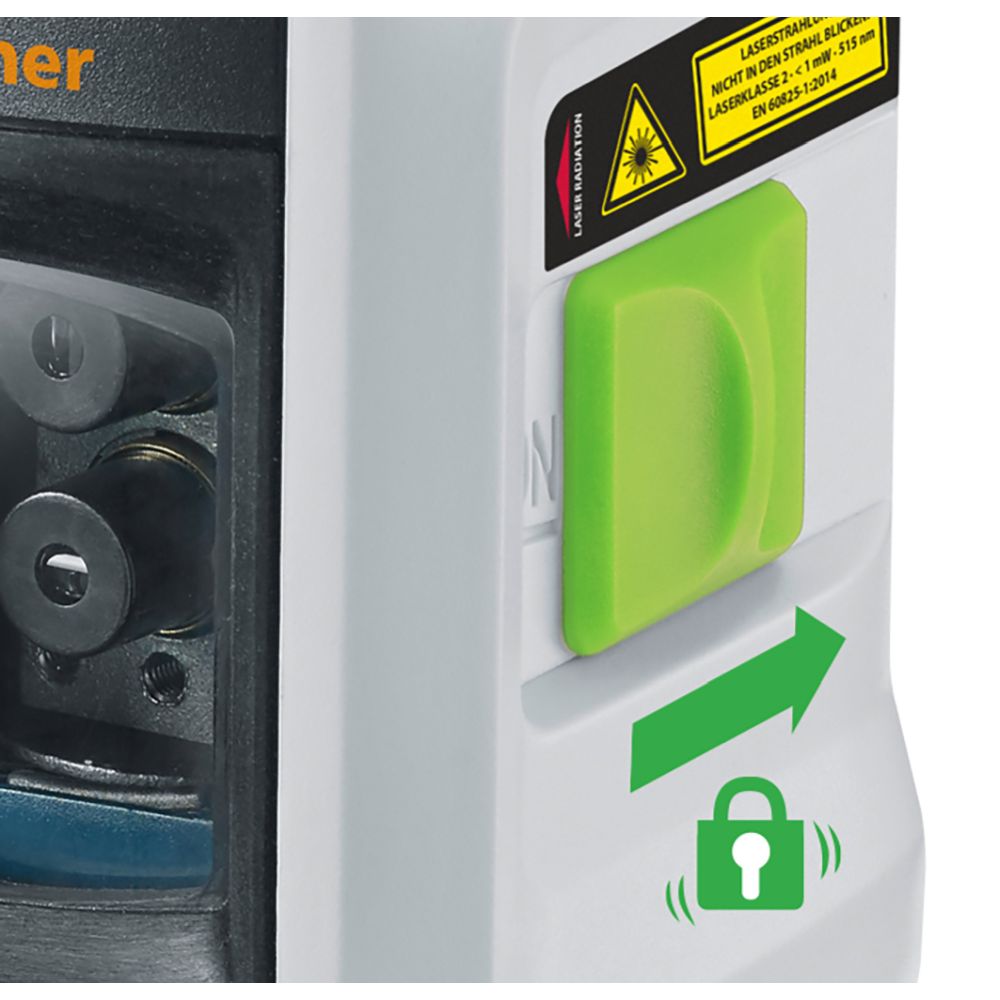

Description: This cross-line laser produces two individually switchable, green laser lines – perfect for precise alignment of horizontal and vertical surfaces and slopes. The green laser technology provides excellent visibility. The device aligns itself automatically to save time and optical signals warn the user when it is outside its levelling range. The laser has a versatile clamping bracket for optimum use indoors and can be attached to surfaces without damaging them. A pendulum restraint provides excellent protection during transportation.

  • Bright laser cross with green laser technology
  • Individually switchable laser lines

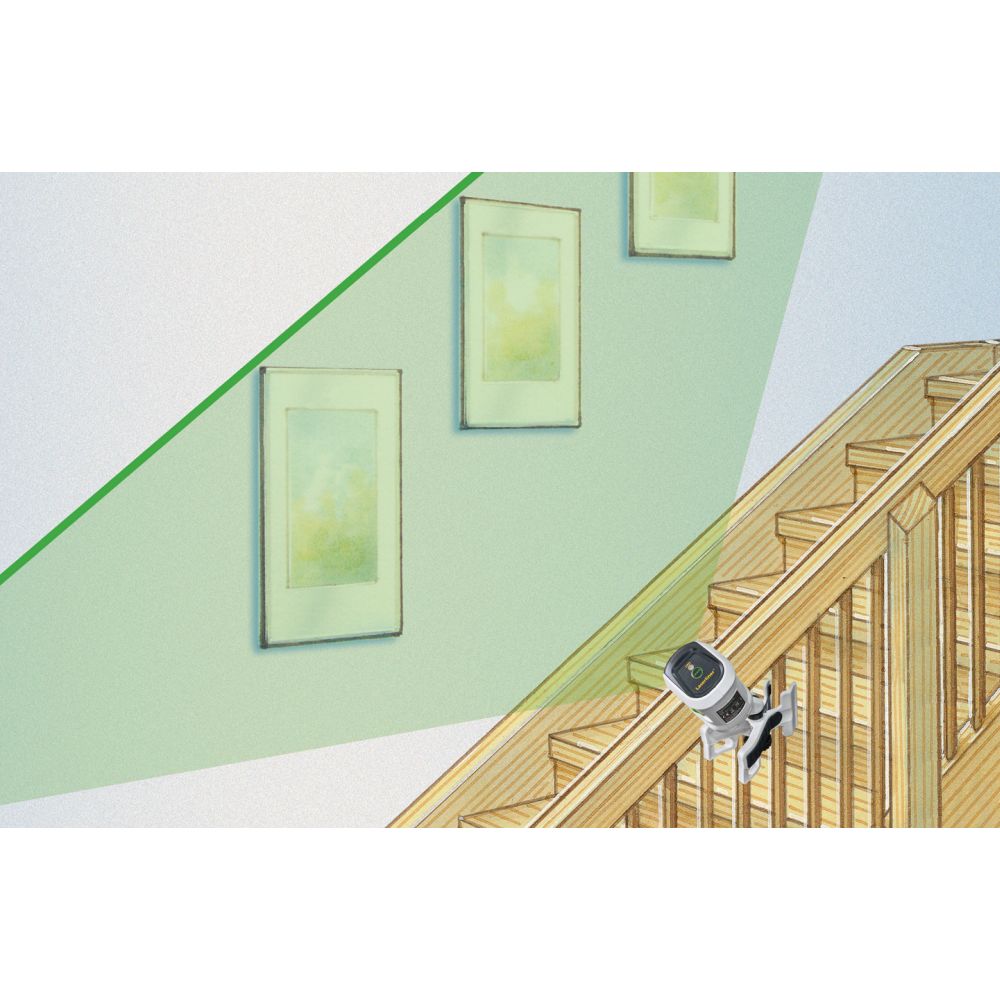

  • Additional slope function for aligning inclines
  • GRX-Ready: integrated handheld receiver mode
  • Out-Of-Level: Is indicated by optical signals when the unit is outside its self-levelling range

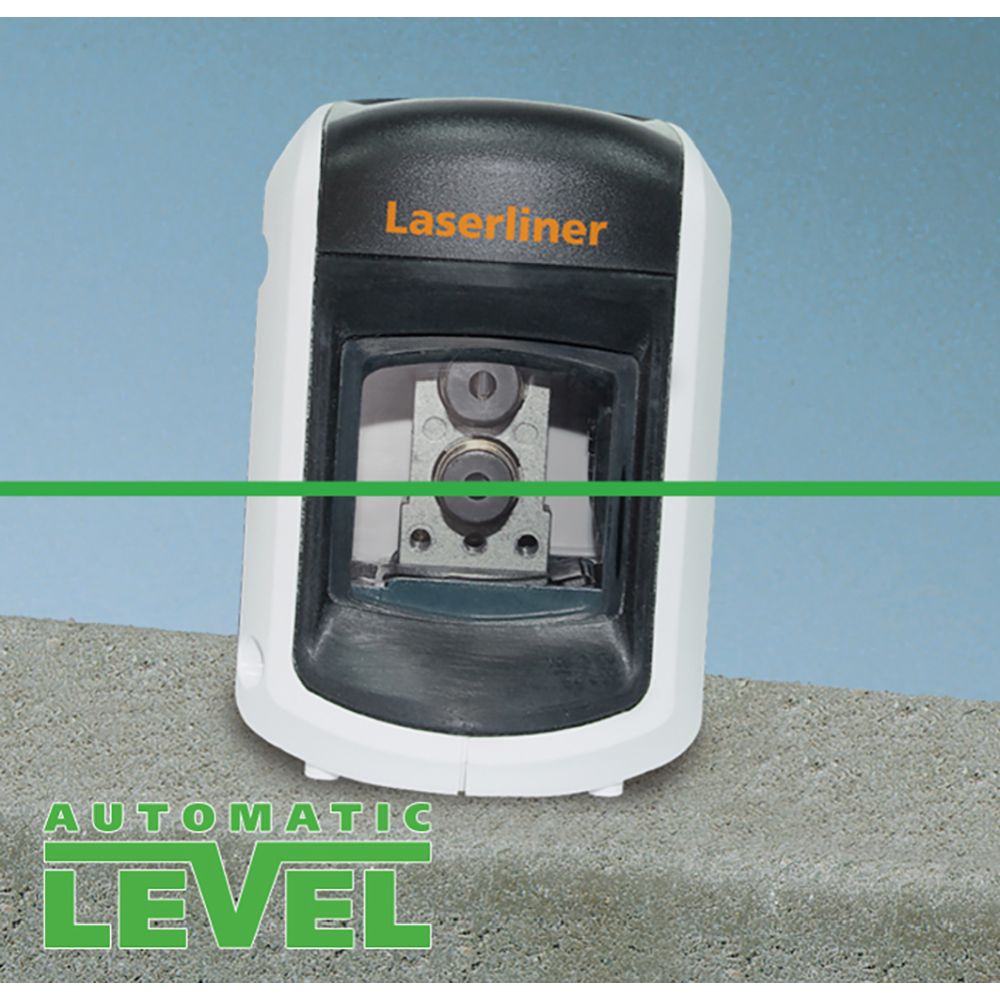

  • Automatic Level: automatic alignment thanks to magnetically damped pendulum system

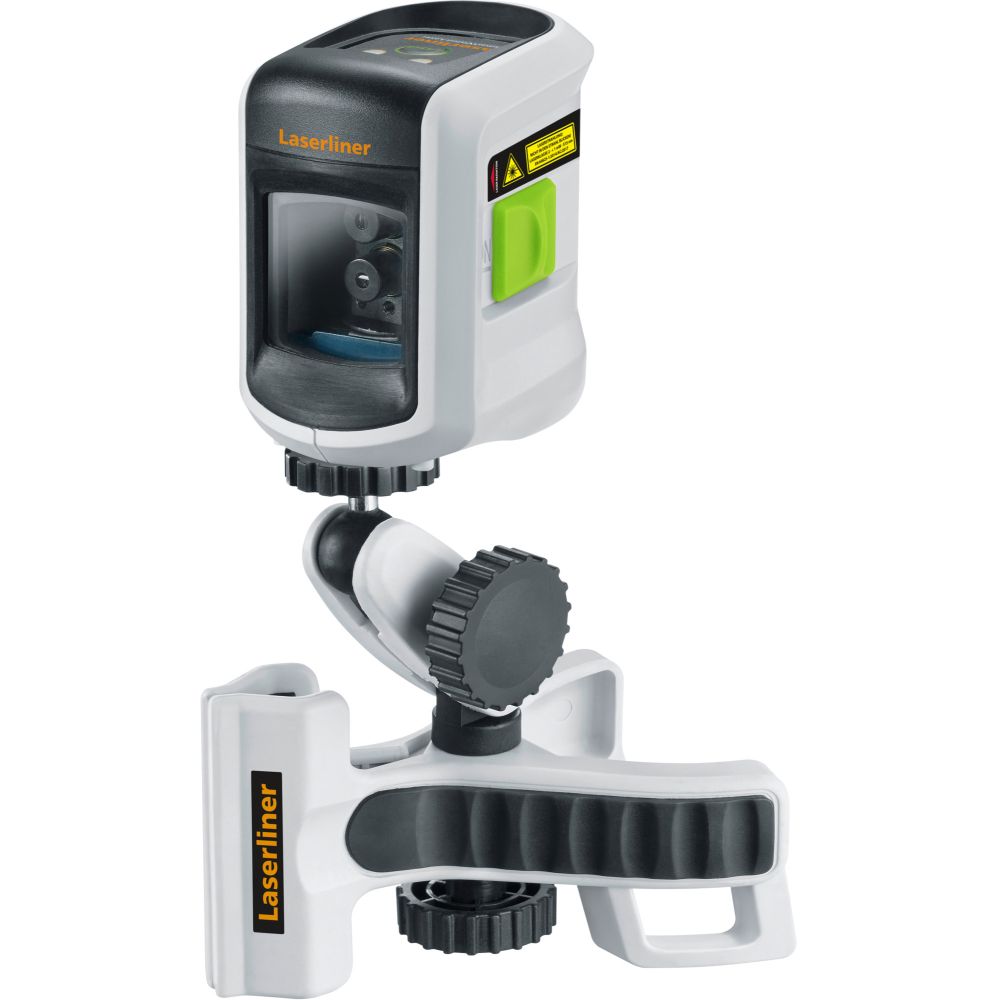

  • Easy-to-adjust clamping bracket
  • Versatile damage-free mounting options
  • With 1/4" thread

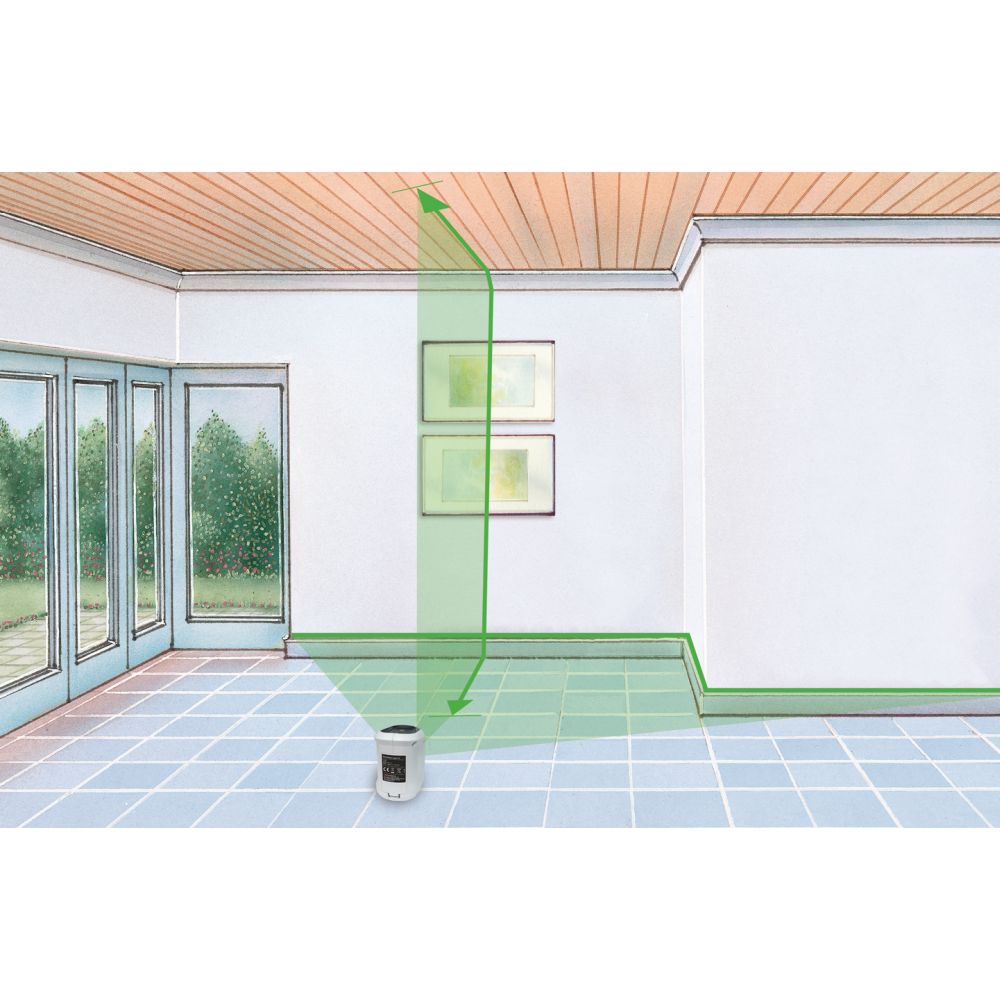

  • Horizontal/vertical levelling
    Manual slope function
    Hand receiver mode
    Battery operation
    Self-Levelling Range± 5°
    Accuracy± 0.5 mm / m
    Levellingautomatic
    Visibility (Typical)*40 m
    Working Range with Hand Receiver(depends on how the technology affects the difference in brightness) 60 m
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Power Supply2 x 1.5V LR6 (AA)
    Operating Timeapprox. 3 hours
    Operating Conditions0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
    Storage Conditions-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
    Dimensions (W x H x D)77 mm x 90 mm x 60 mm
    Weight275 g (inkl. Batterien)
    ** at max. 300 lux

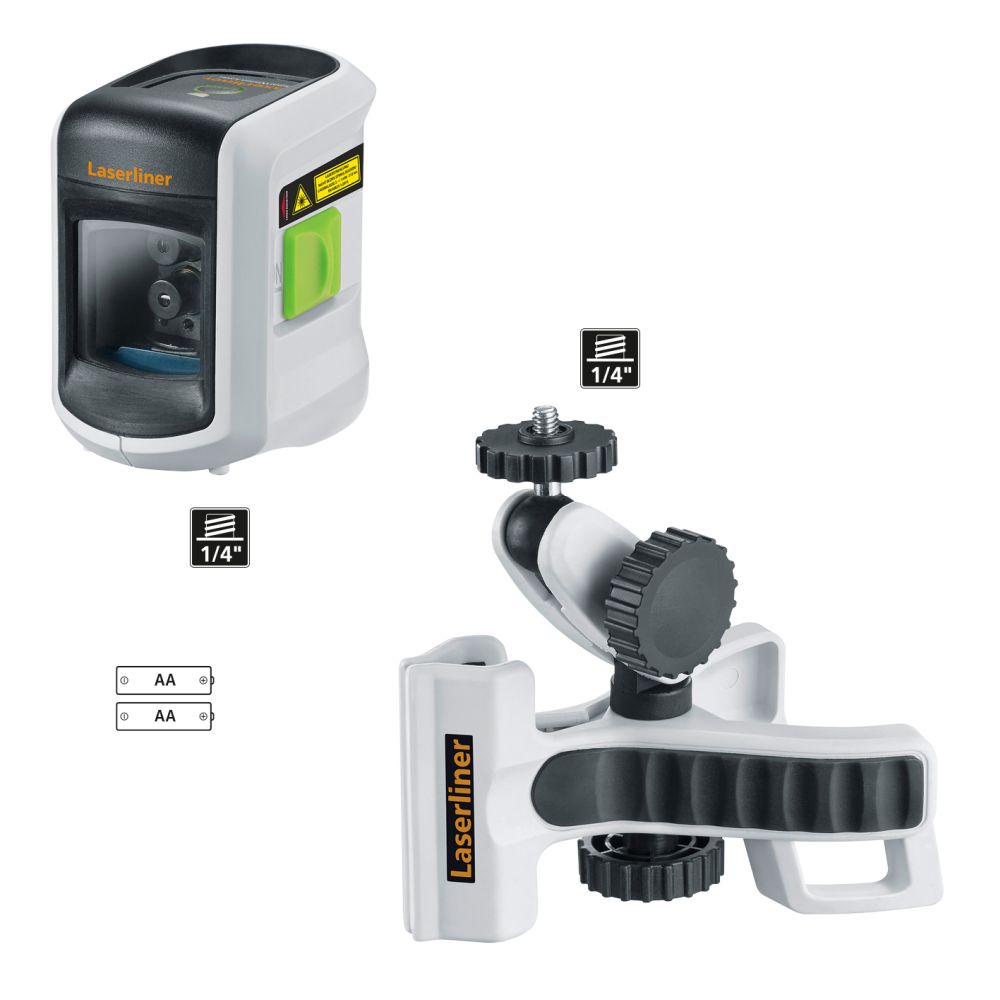

    Scope of delivery:
  • SmartVision-Laser
  • FlexClamp Plus
  • batteries


  • Documentation:

    Titel:
    cross-line laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    OrangeLine

    Art.No.: 081.336A, GTIN (EAN): 4021563698967
