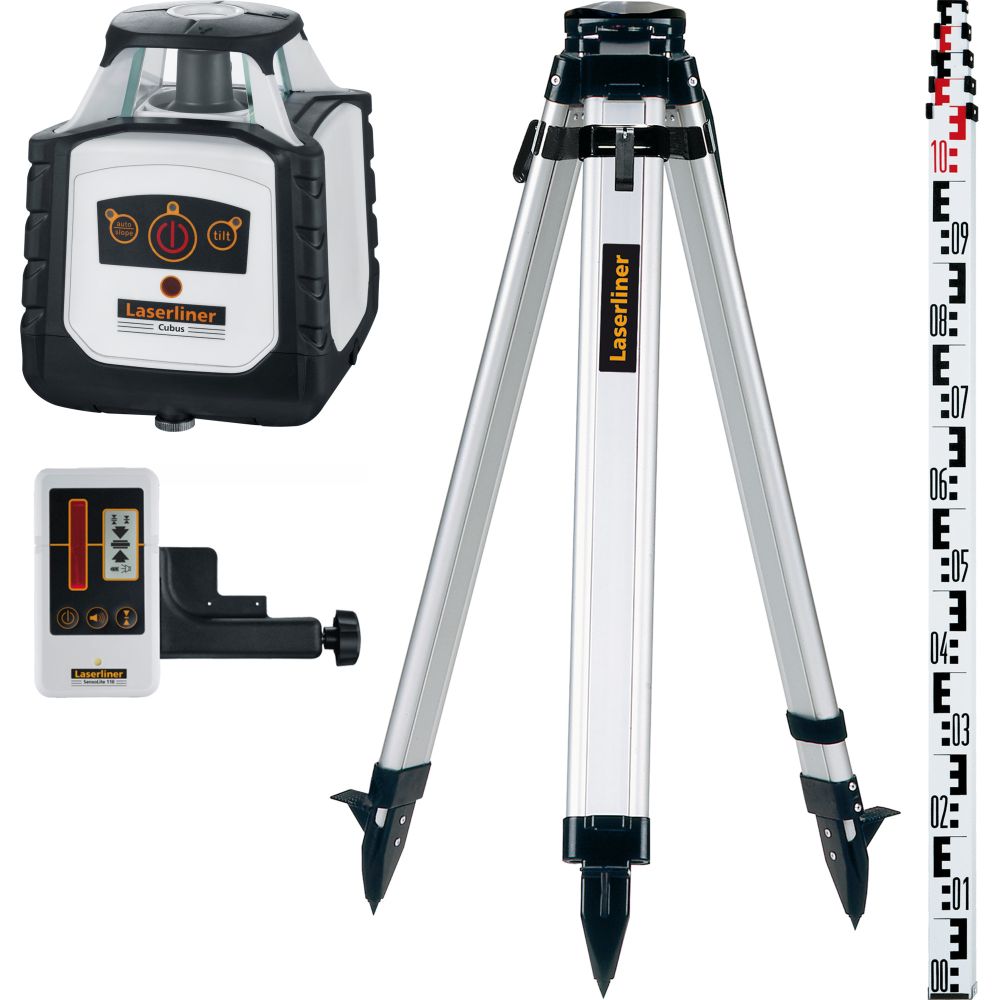

Description: Horizontals, verticals and inclinations can be precisely aligned with this robust and fully automatic rotary laser. All functions can be easily controlled with the remote control up to a maximum distance of 30 metres. Partitions can be aligned with the additional reference beam. The laser receiver can easily be attached to metallic surfaces using the practical magnetic clamps. The lightweight tripod with milled mounting surface has a carrying strap and a hook for attaching a plumb bob. The easy-to-read telescopic levelling staff completes the set. It has a robust aluminium profile and can be used in extremely demanding conditions. It has a maximum height of 5 metres and a minimum height of 1.22 metres.

Exact horizontal alignment

Time-saving fully automatic alignment by means of automatic sensor

Manual alignment of slopes

Extremely simple operation for practical use

The 90° reference beam is provided to plumb and align partition walls

All functions can be controlled with the remote control up to a max. distance of 40 m

Plug-on stand/wall bracket with 5/8“ thread for vertical use

Reliable measurement through automatic power off with ADS tilt

Robust waterproof housing

Transport LOCK: The device is protected by a special motor brake during transport

Laser modes: spot, scan, rotary and hand receiver mode

Remote operation controls all functions from all sides up to max. 40 m

Sensor-Automatic: fully automatic alignment by electronic positioning motors with temperature- stable sensors

ADS-Tilt: auto power off in the event of external influence through ADS (Anti-Drift System)

Work efficiently and charge the battery at the same time

Simple installation of the measuring device with lightweight stand

Strong steel feet

Quick-lock

Easy to read and highly stable levelling staff

Horizontal/vertical levelling	✅
Hand receiver mode	✅
Scan mode	✅
Spot mode	✅
Motorised slope function	✅
Manual slope function	✅
Precision sensor levelling	✅
Battery and mains operation	✅
Anti-Drift-System (ADS)	✅
Tilt warning function	✅
Self-Levelling Range	± 4°
Accuracy	±0.15 mm/m
Levelling	automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength	635 nm
Laser Class	2 / < 1 mW
Laser Modes	Hand receiver mode Spot mode Rotary mode Scan mode
Protection Class	IP 66
Operating Time	approx. 16 hours
Battery Recharging Time	approx. 4 hours
Operating Conditions	-10°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage Conditions	-10°C … 70°C, max. humidity 80% rH
Dimensions (W x H x D)	130 mm x 160 mm x 145 mm
Weight	1300 g (with stand and wall bracket)

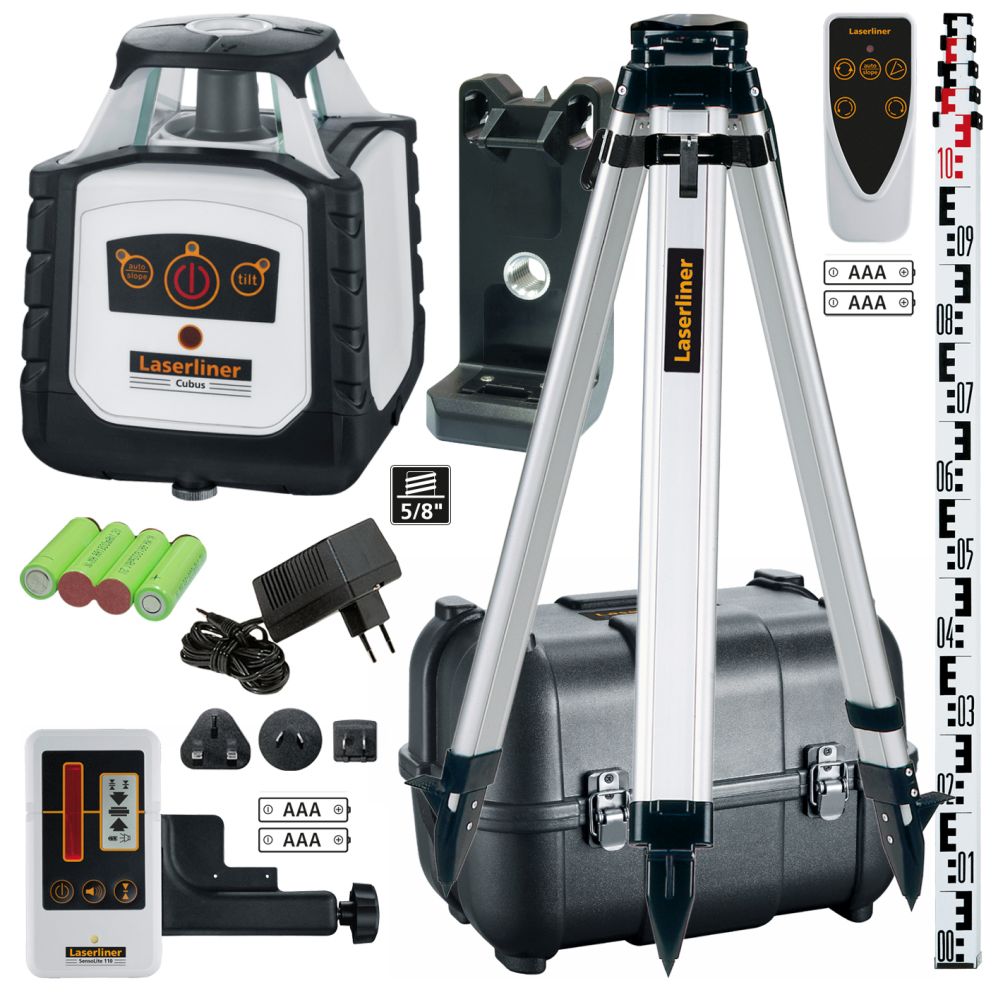

Scope of delivery:

Cubus

SensoLite 110

tripod/wall bracket

Light-weight tripod 165 cm

universal mount

telescopic levelling staff LT 5 m

remote control

rechargeable battery

power supply / battery charger

carrying case

Accessories (optional):

•
  VarioStand L 300 cm
  (Art.No.: 080.24A) - tripod


•
  Crank Tripod P 175 cm
  (Art.No.: 080.26) - crank tripod


•
  Crank Tripod 260 cm
  (Art.No.: 080.35) - Crank tripod


•
  Crank Tripod 300 cm
  (Art.No.: 080.39) - Crank tripod


•
  SensoLite 310 Set
  (Art.No.: 028.71) - Laser receiver


•
  SensoLite 410 Set
  (Art.No.: 028.75) - Laser receiver for rotary lasers


•
  SensoMaster M350 Set
  (Art.No.: 028.85) - Laser receiver


•
  Wall Mount Pro
  (Art.No.: 080.71) - Wall bracket


•
  Angle Bracket 5/8”
  (Art.No.: 080.75) - Angle plate for rotary lasers


•
  Flexi Levelling Staff red
  (Art.No.: 080.50) - Levelling staff


•
  Telescopic Levelling Staff LT 4 m
  (Art.No.: 080.42) - Levelling staff


•
  Telescopic Levelling Staff LT 5 m
  (Art.No.: 080.43) - Levelling staff


•
  LaserSight red
  (Art.No.: 020.70A) - laser enhancement glasses

Documentation:

Instructions not available.
