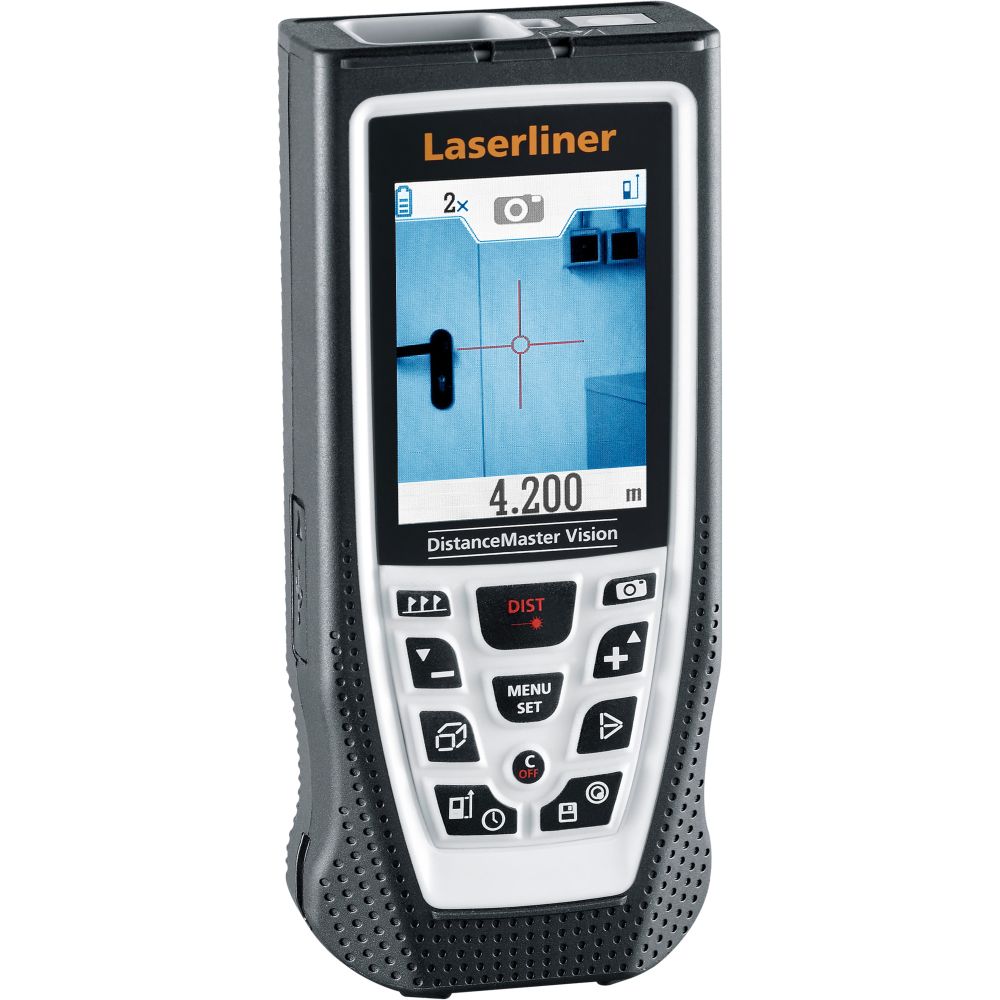

DistanceMaster Vision

Laser distance measurer


Description: An accurate rangefinder for determining lengths, areas and volumes. The application is practical, wall areas with the same height are added automatically and defined measured lengths can be removed with the stake-out function. The measured values are well documented in the internal memory.

  • Simple measurement, addition and subtraction of lengths, areas and volumes

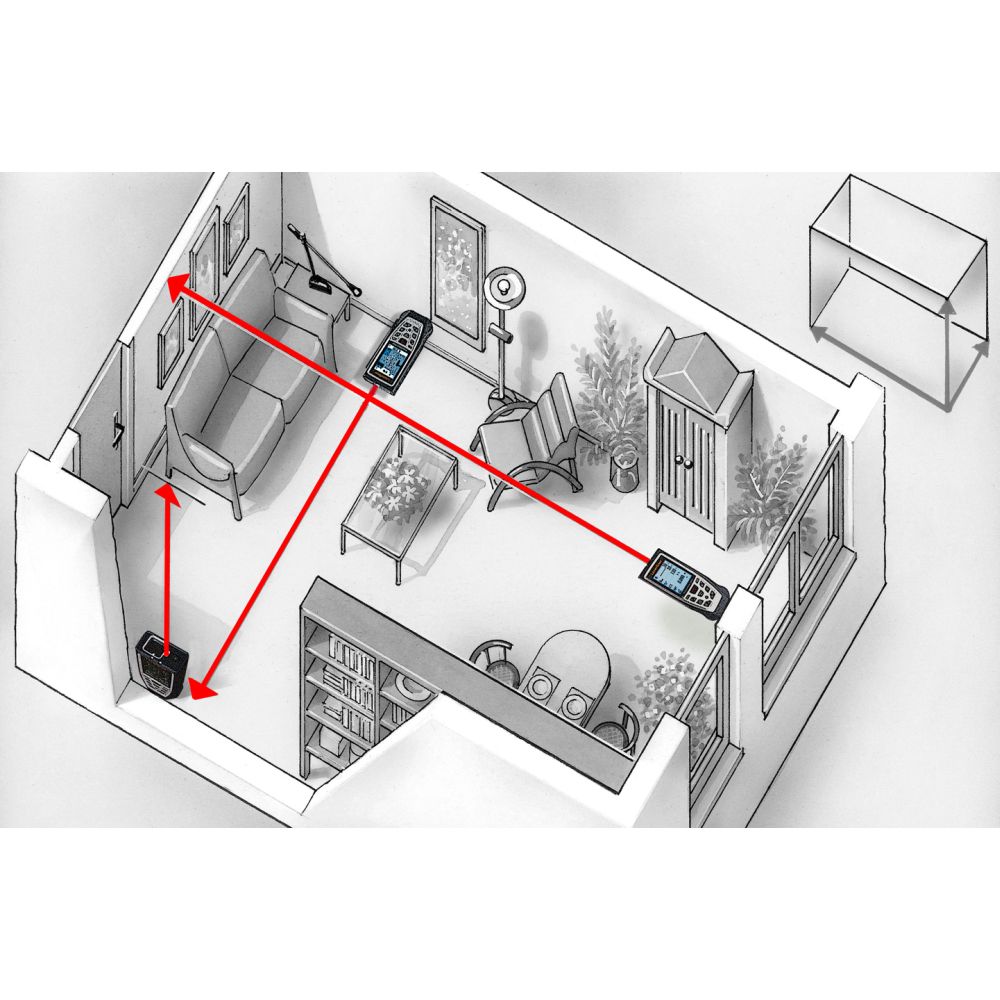

  • Ideal for recording room sizes and calculating material quantities

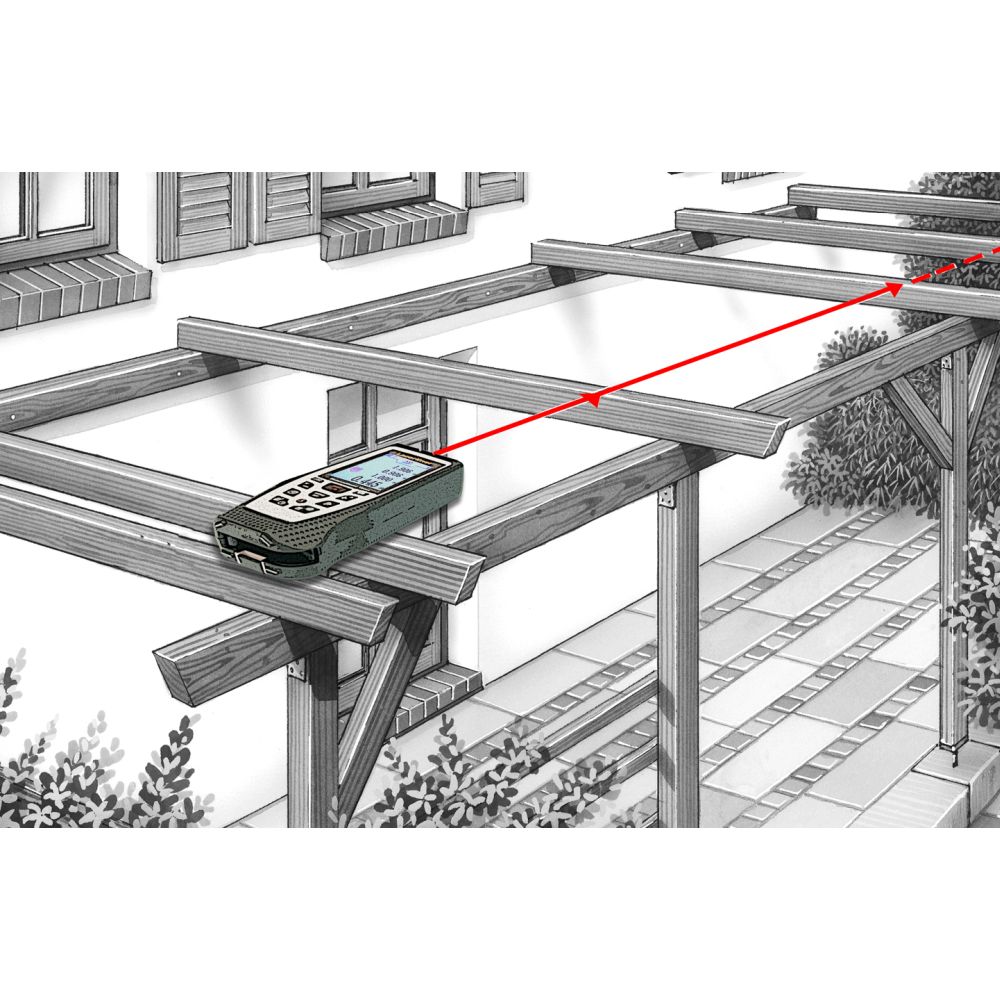

  • Practical determination of diagonals, horizontals and verticals
  • Determination of horizontal and vertical distance with 360° slope sensor
  • Automatic addition of wall areas with the same height
  • Stake-out function allows the removal of defined measured lengths
  • Exact alignment of the measuring instrument through digital spirit level
  • High measuring accuracy
  • Easy-to-read colour LC display

  • Length/area/volume
    Min/Max
    Continuous measurement
    Addition of wall area (decorators’ function)
    Indirect determination of height (Pythagoras)

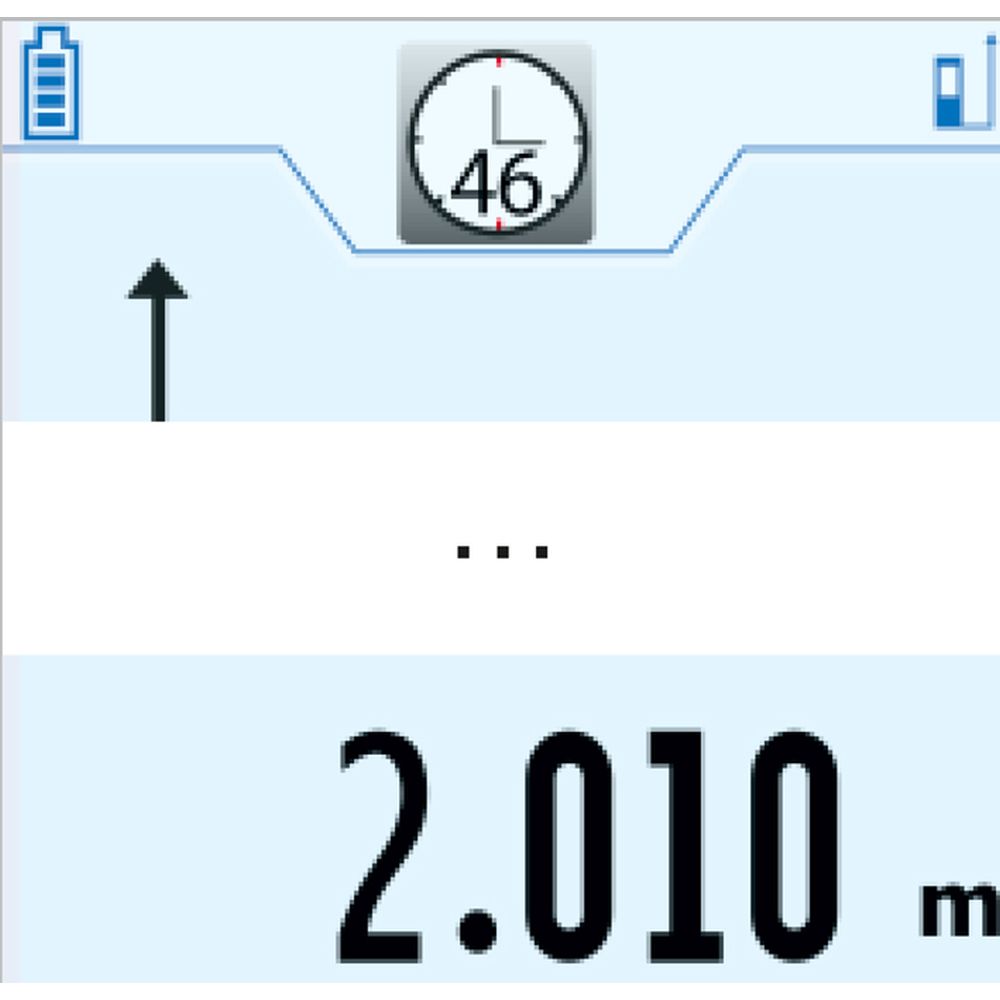

    Slope display

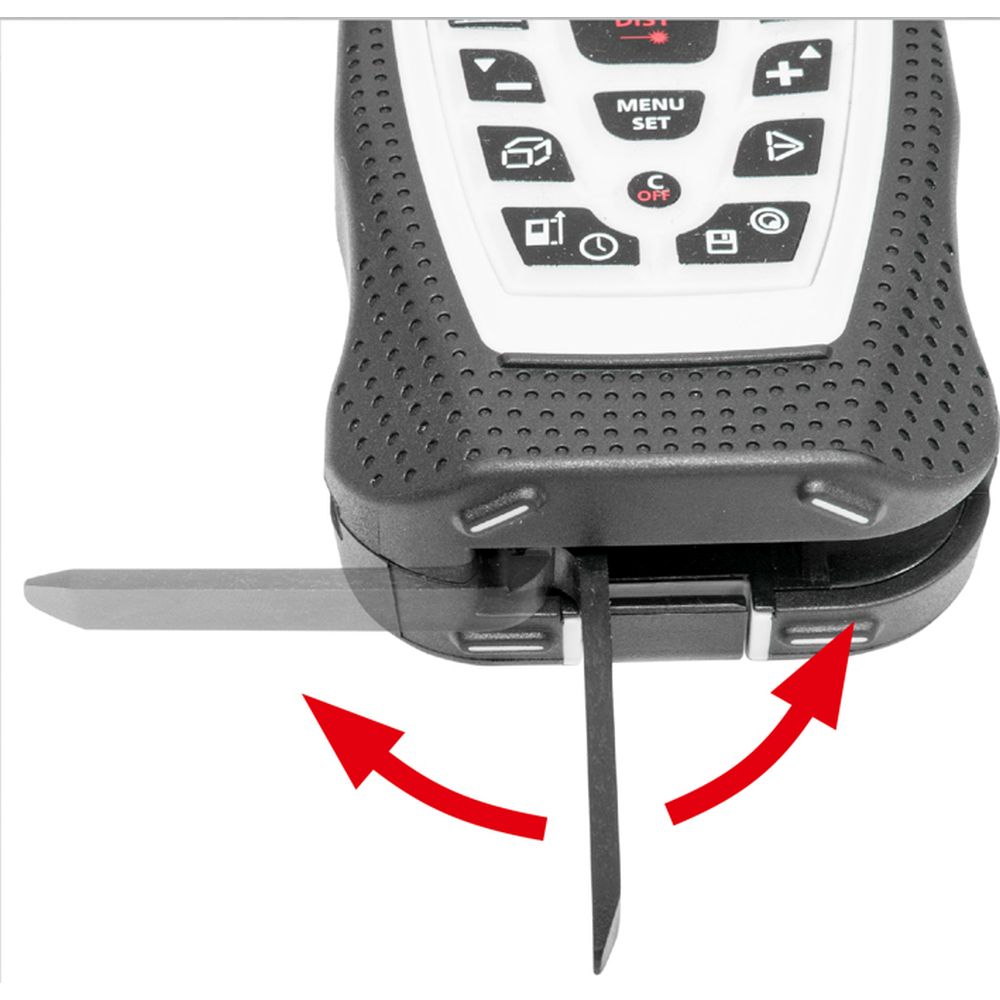

    Selectable housing reference point
    Addition/subtraction

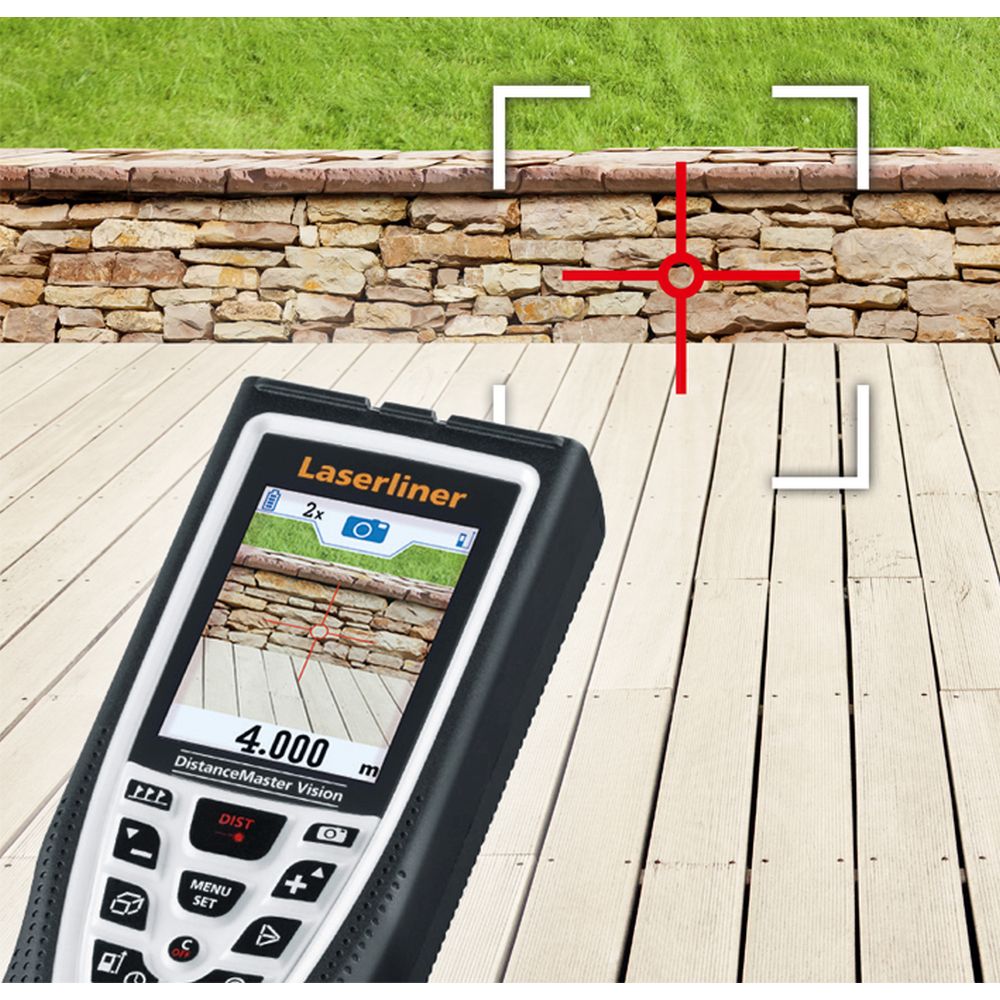

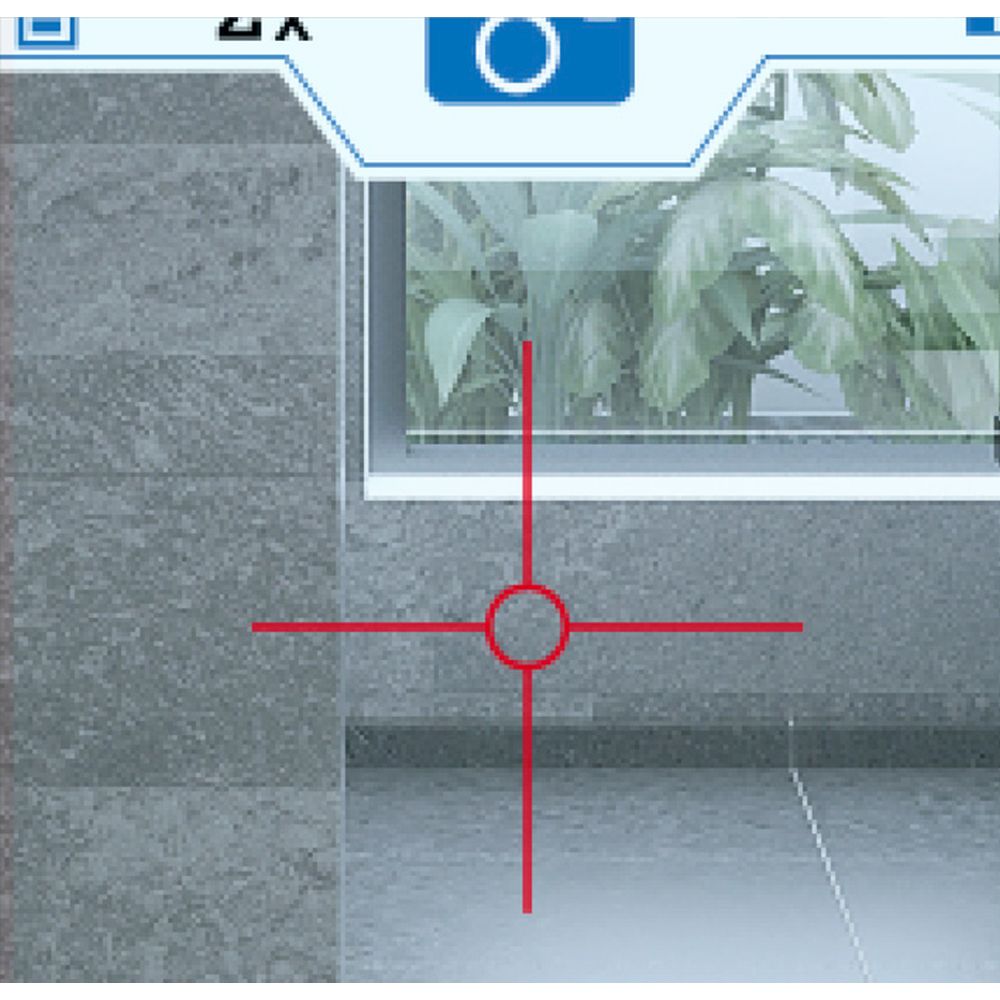

    Camera spotter
    Stake out lengths
    Precision (Typical)*± 2 mm

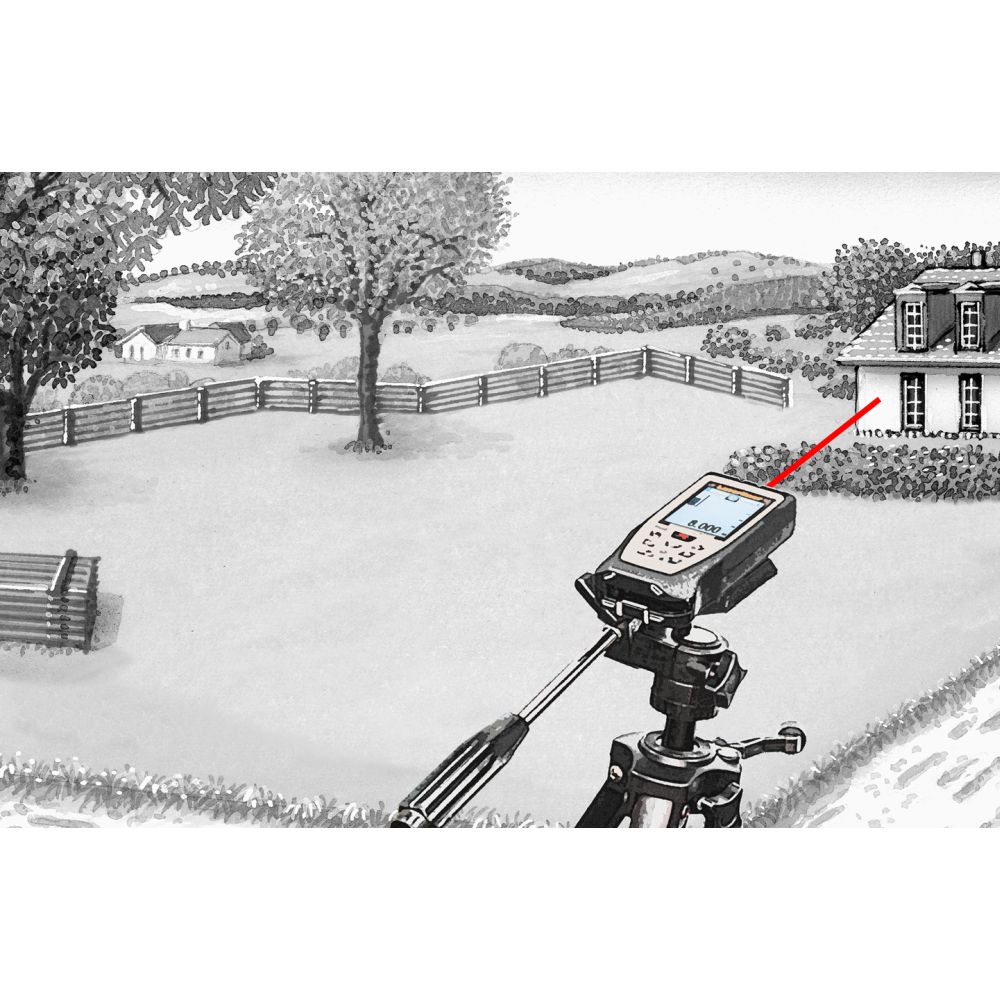

    Measurement Range (Inside)**0,05 m - 80 m
    Measurement Range Angle Measurement± 90°
    Laser Wavelength635 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Memory50 storage locations
    Unitsm
    ft
    _' _''
    inch
    Power Supply3 x 1.2V HR03 (AAA) NiMH
    Operating Conditions0°C … 40°C, Luftfeuchtigkeit max. 20 … 85% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
    Dimensions (W x H x D)58 mm x 135 mm x 30 mm
    Weight210 g (inkl. Batterien)
    * measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces.
    ** at max. 10,000 lux

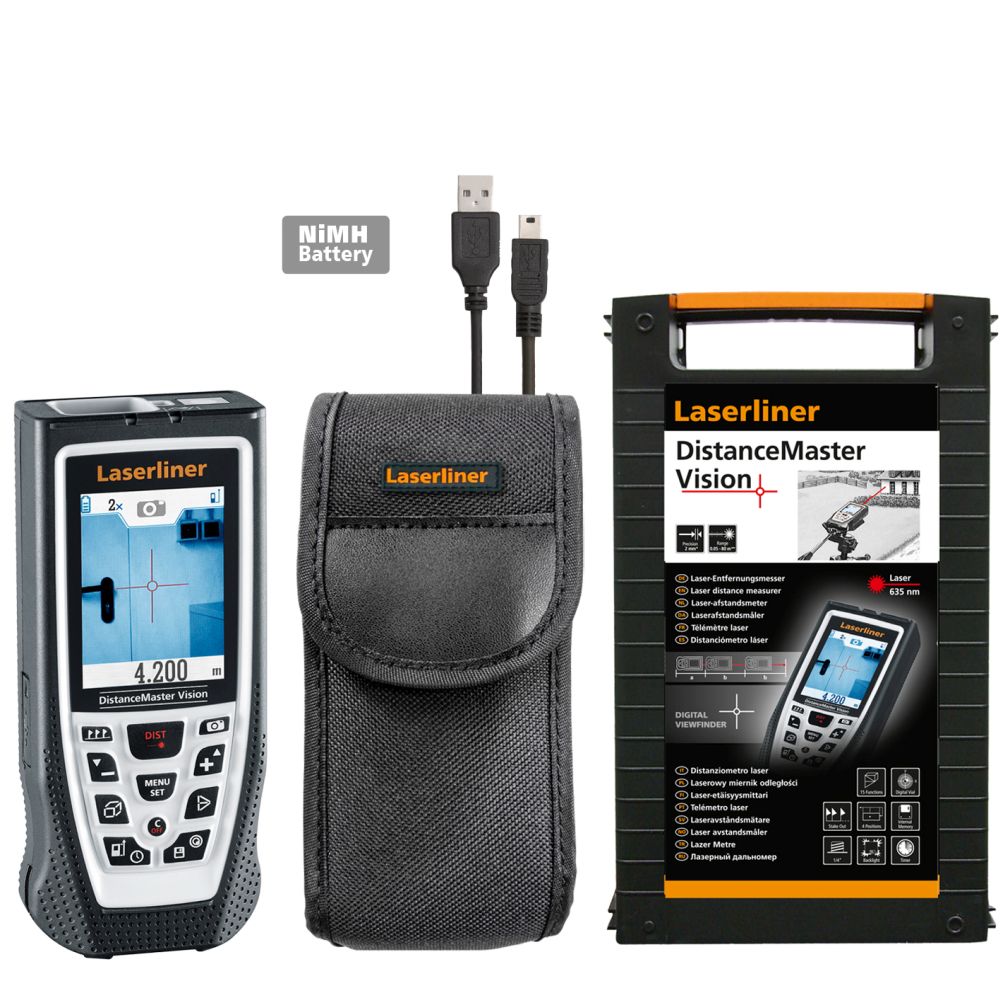

    Scope of delivery:
  • DistanceMaster Vision
  • rechargeable batteries
  • USB charging cable
  • softbag
  • carrying case


  • Documentation:

    Titel:
    Laser rangefinder

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 080.980A, GTIN (EAN): 4021563703661
