SuperPlane-Laser 3G Pro Set 1

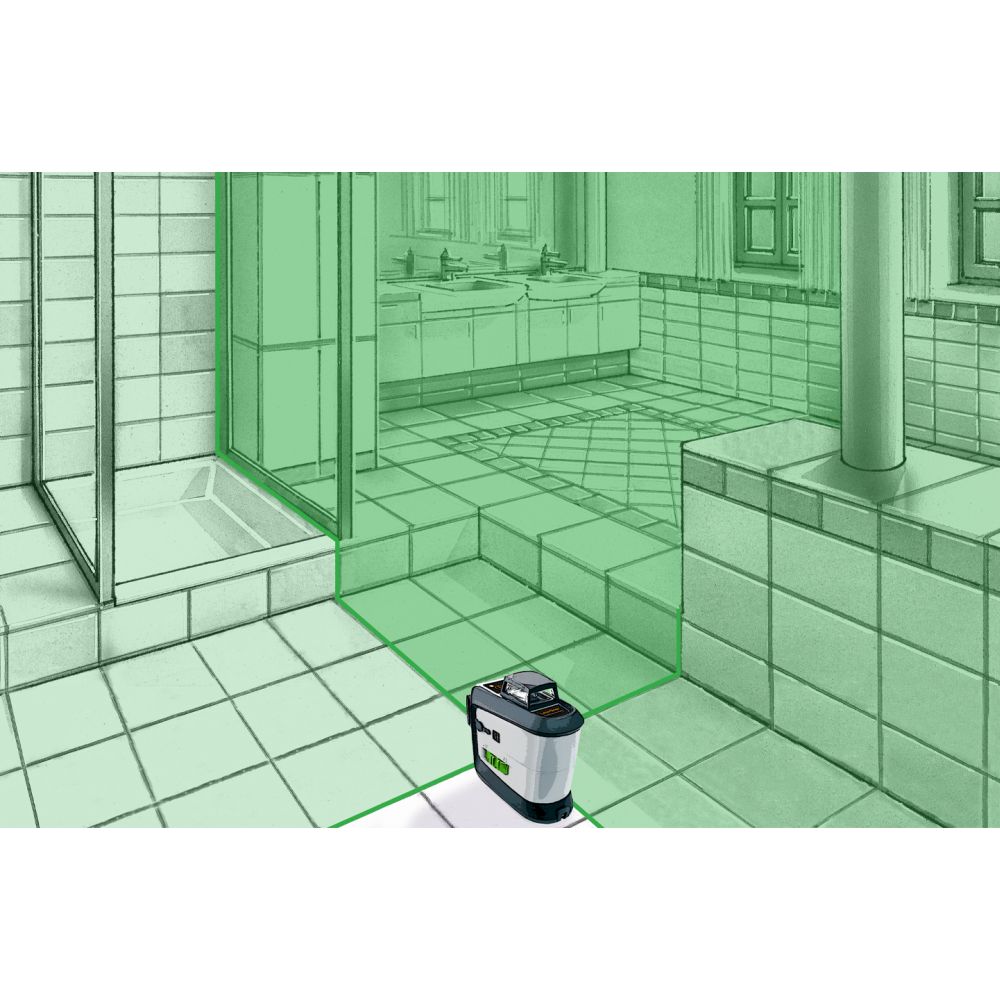

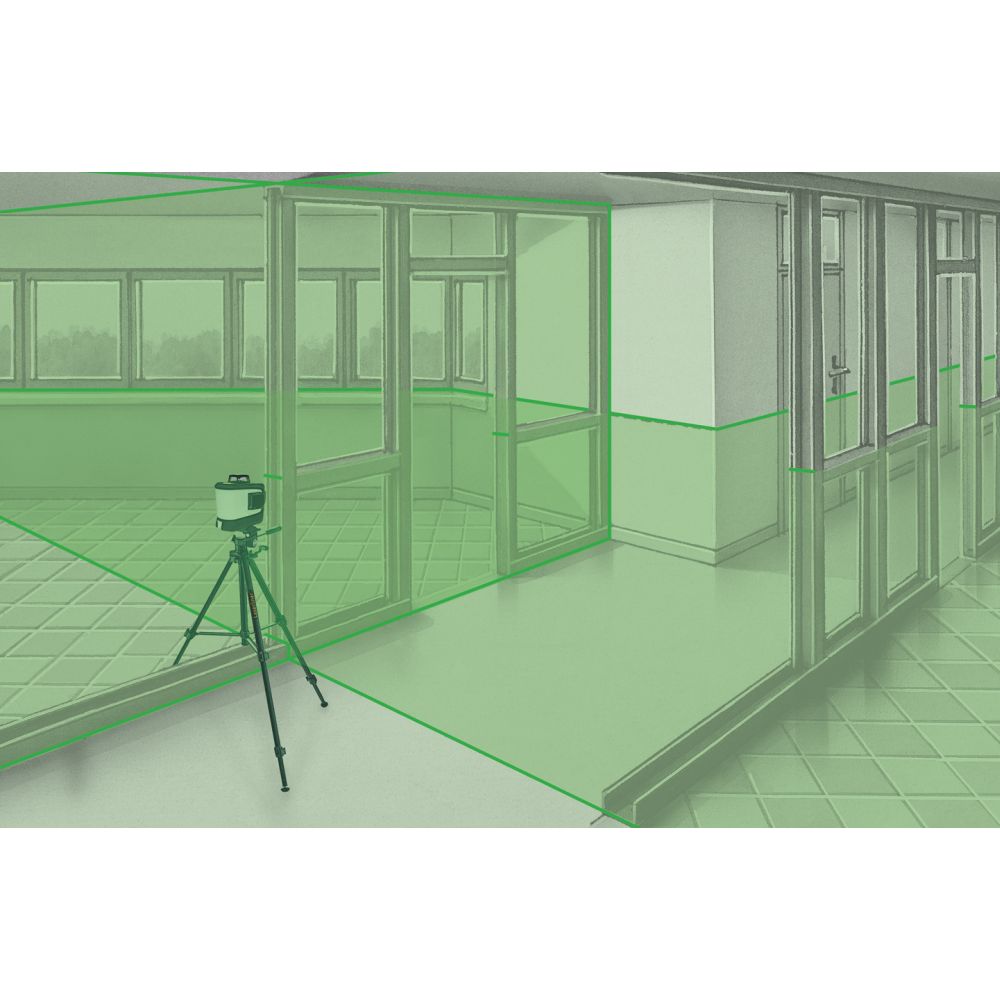

Green three-dimensional laser with a horizontal and two vertical 360° laser circles

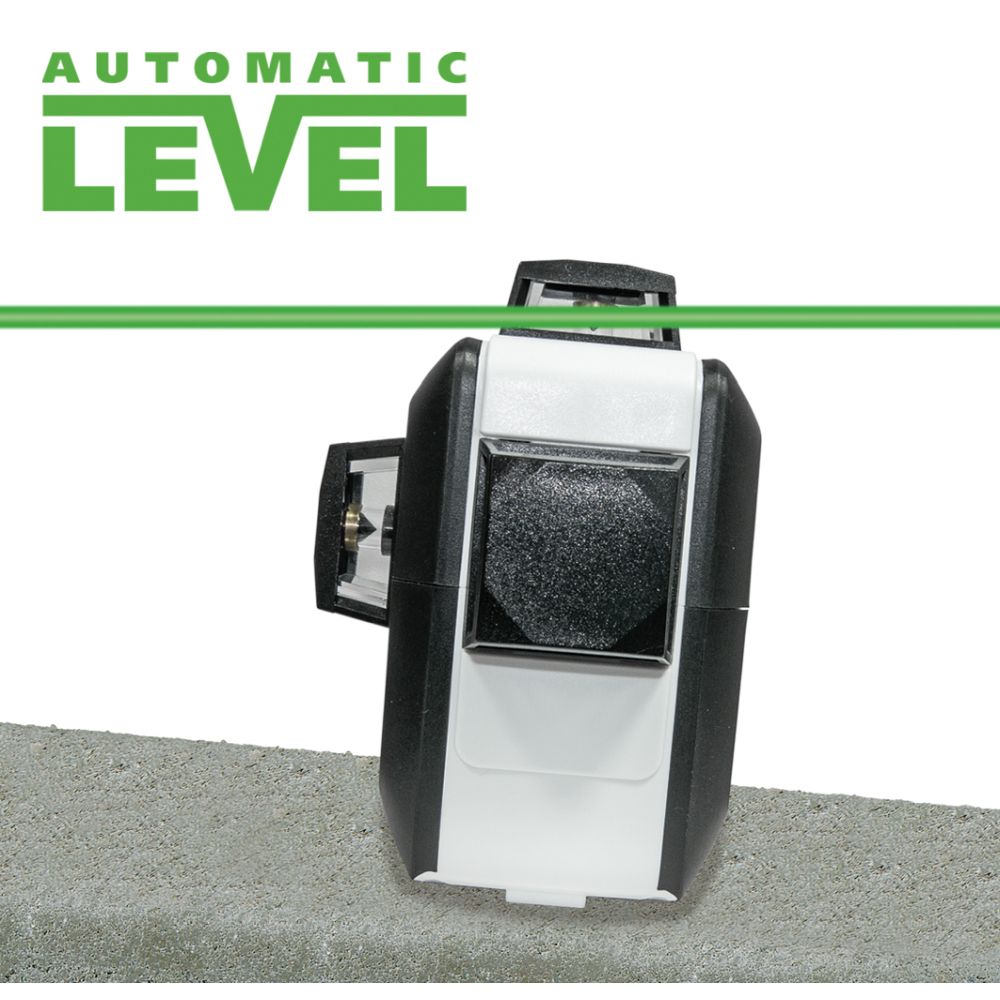

Description: This three-dimensional laser projects one horizontal and two vertical green laser circles for perfect alignment of objects. The magnetically damped pendulum system means the device levels itself automatically. It also provides outstanding visibility due to the green laser technology. Gradients can be set manually using the extra slope function. Optical signals warn the user when the laser is outside the levelling range. The extremely powerful lithium-ion batteries ensure long operating life. Alternatively, the device can run on mains power using the power supply which is also included. The high-quality, compact aluminium tripod has a circular vial for adjustment. Multi-section telescopic tripod legs and a 31.5 cm crank provide an extensive adjustment range. Special rubber/steel tips mean the device can be used on many different surfaces.

  • Exact horizontal and vertical alignment of objects
  • Good visibility through green laser technology
  • Easy alignment of slopes with manual tilt function

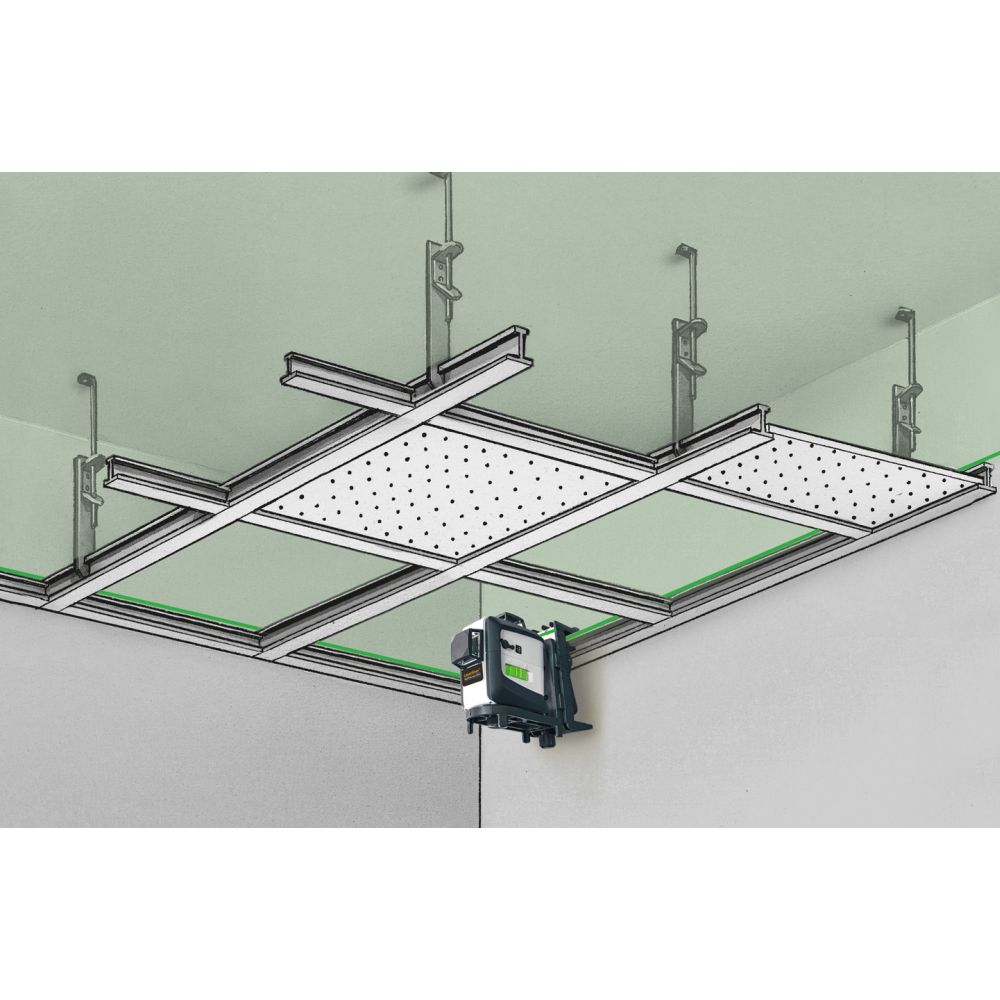

  • Plumb function for synchronous working on floor and ceiling
  • Integrated hand-held receiver mode for outdoor applications

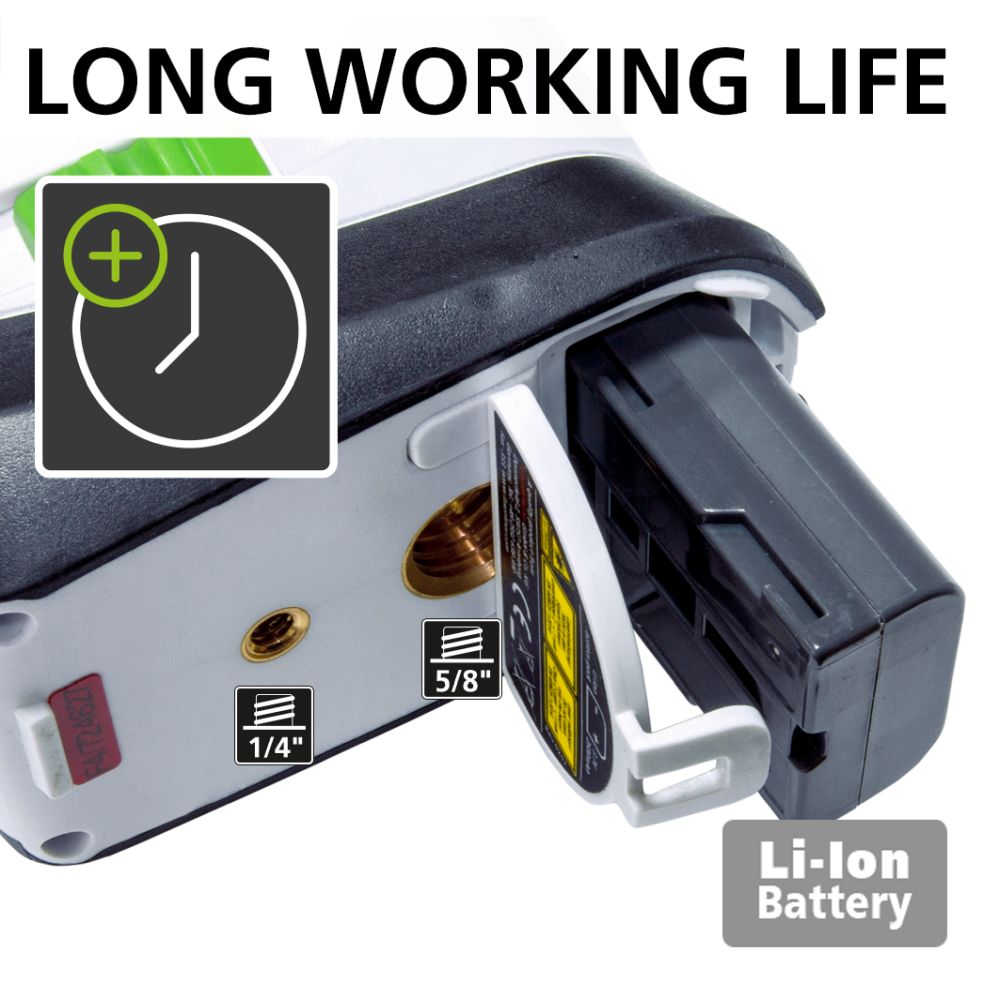

  • Long battery operating time thanks to powerful lithium-ion rechargeable battery
  • Easily adaptable to the ground surface thanks to combined rubber and steel tips
  • Crank height adjustment and telescopic tripod legs
  • Circular level for adjustment

  • Hand receiver mode✅
    Horizontal/vertical levelling✅
    Manual slope function✅
    Replaceable battery system✅
    Battery and mains operation✅
    Self-Levelling Range± 2.5°
    Accuracy±0.2 mm/m
    Levellingautomatic
    Visibility (Typical)*60 m
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW
    Power SupplyLi-ion battery pack 7.4V / 2.6Ah / 19.24Wh
    Power adapter 12V / DC / 2A
    Operating Timewith 3 laser levels: approx. 7 hours
    with 2 laser levels: approx. 10 hours
    with 1 laser level: approx. 20 hours
    Operating Conditions0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
    Storage Conditions-10°C … 70°C, max. humidity 80% rH
    Dimensions (W x H x D)132 mm x 127 mm x 85 mm
    Weight652 g (incl. battery pack)

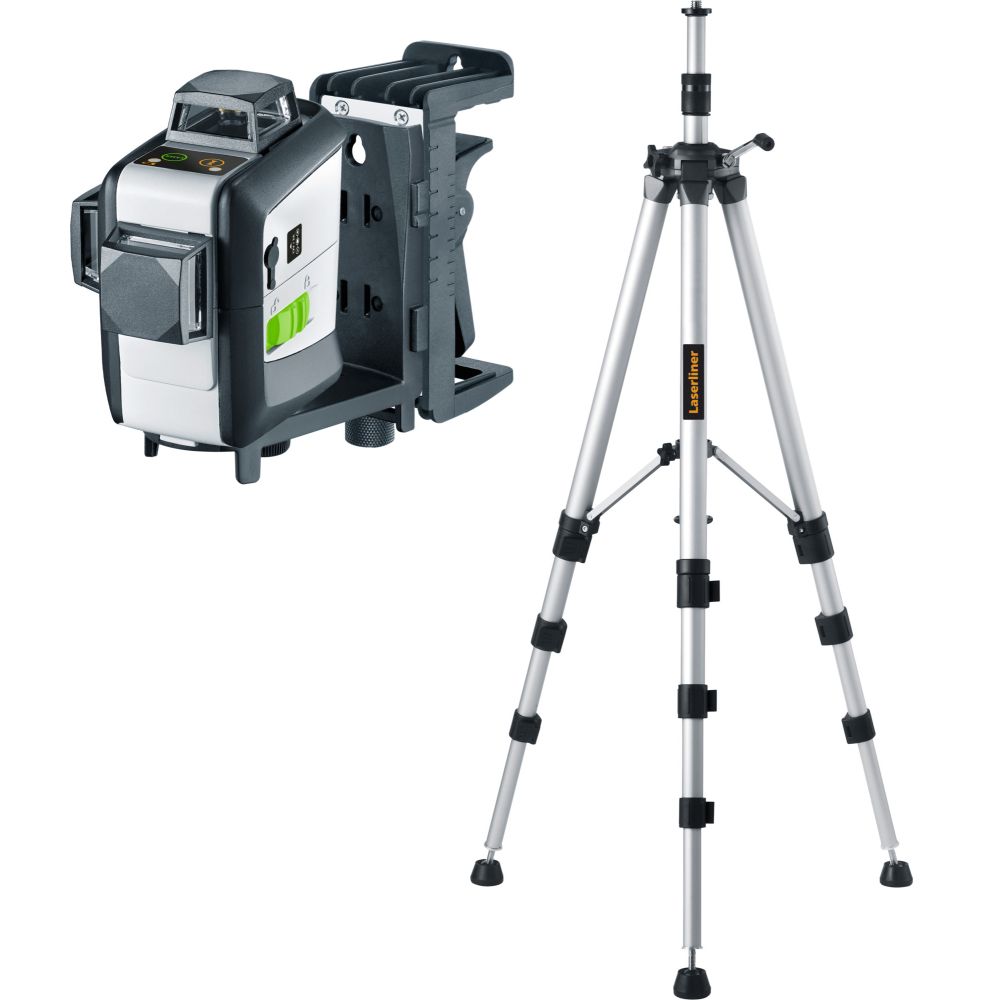

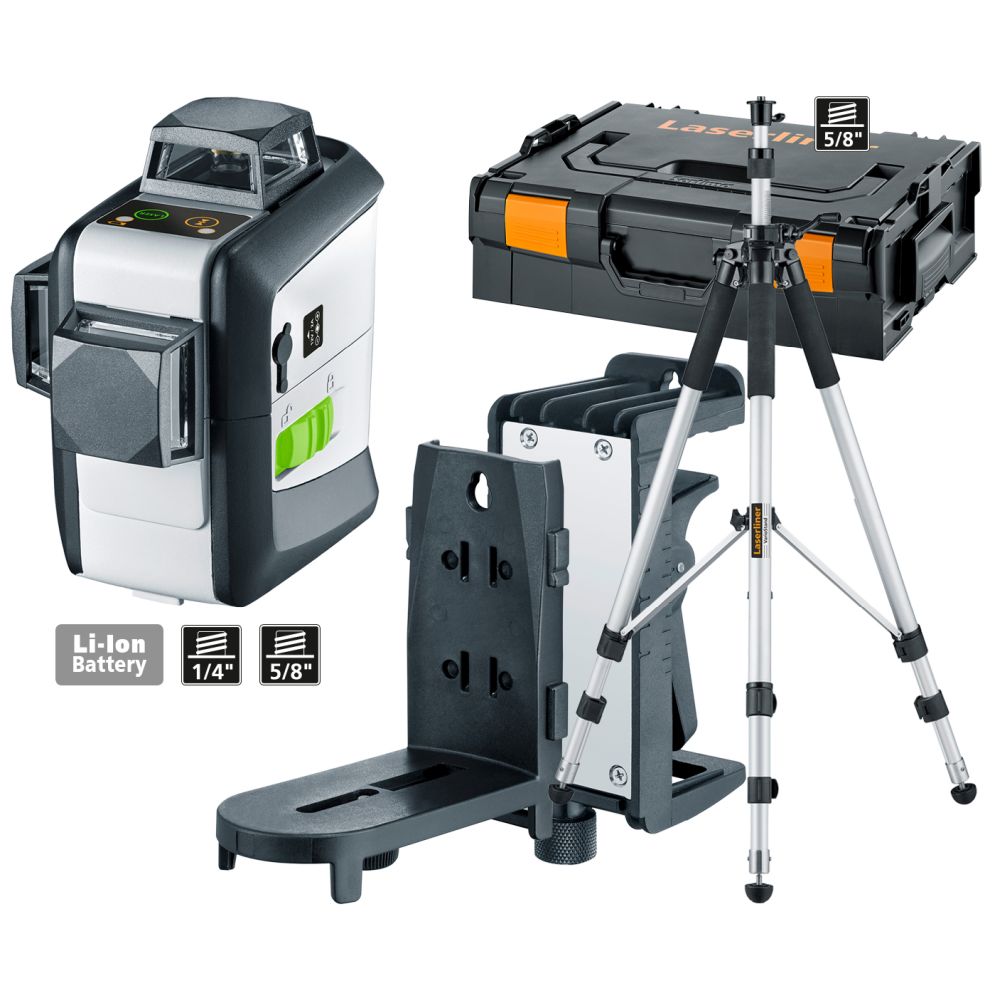

    Scope of delivery:
  • SuperPlane-Laser 3G Pro
  • compact tripod 300 cm

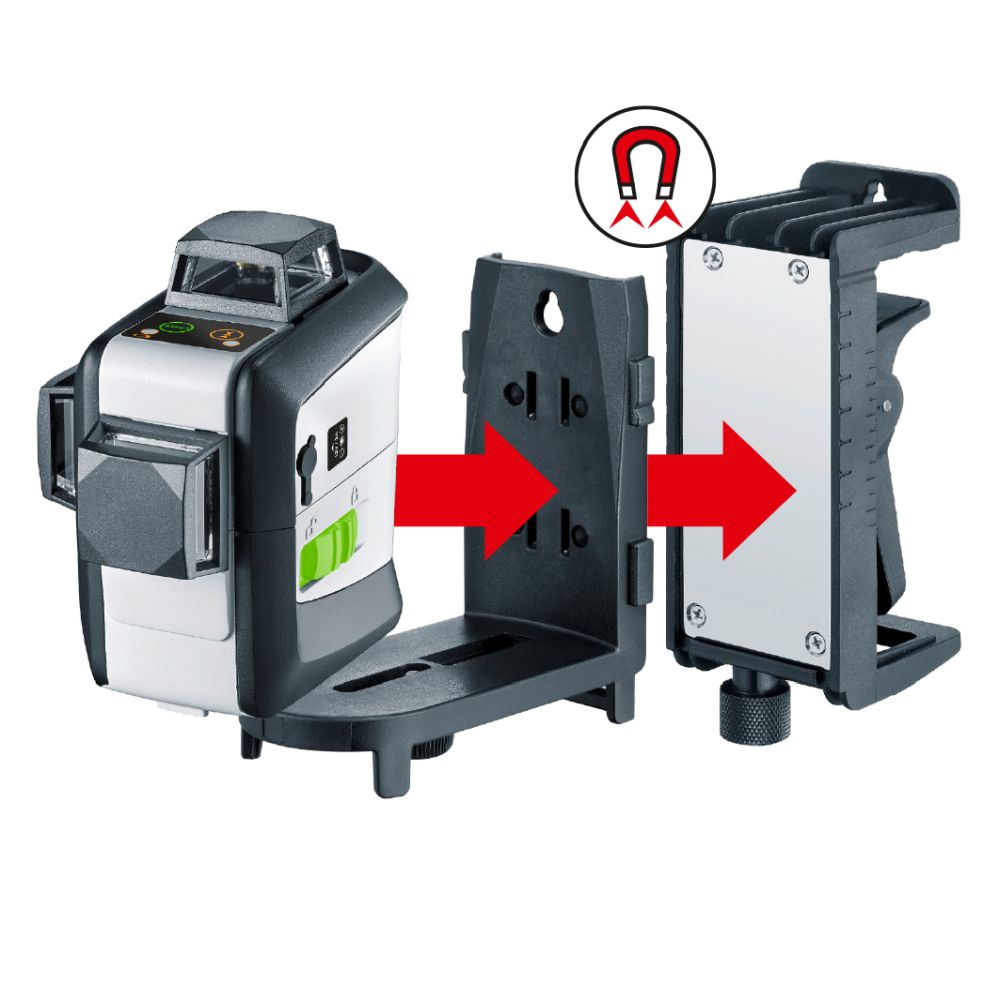

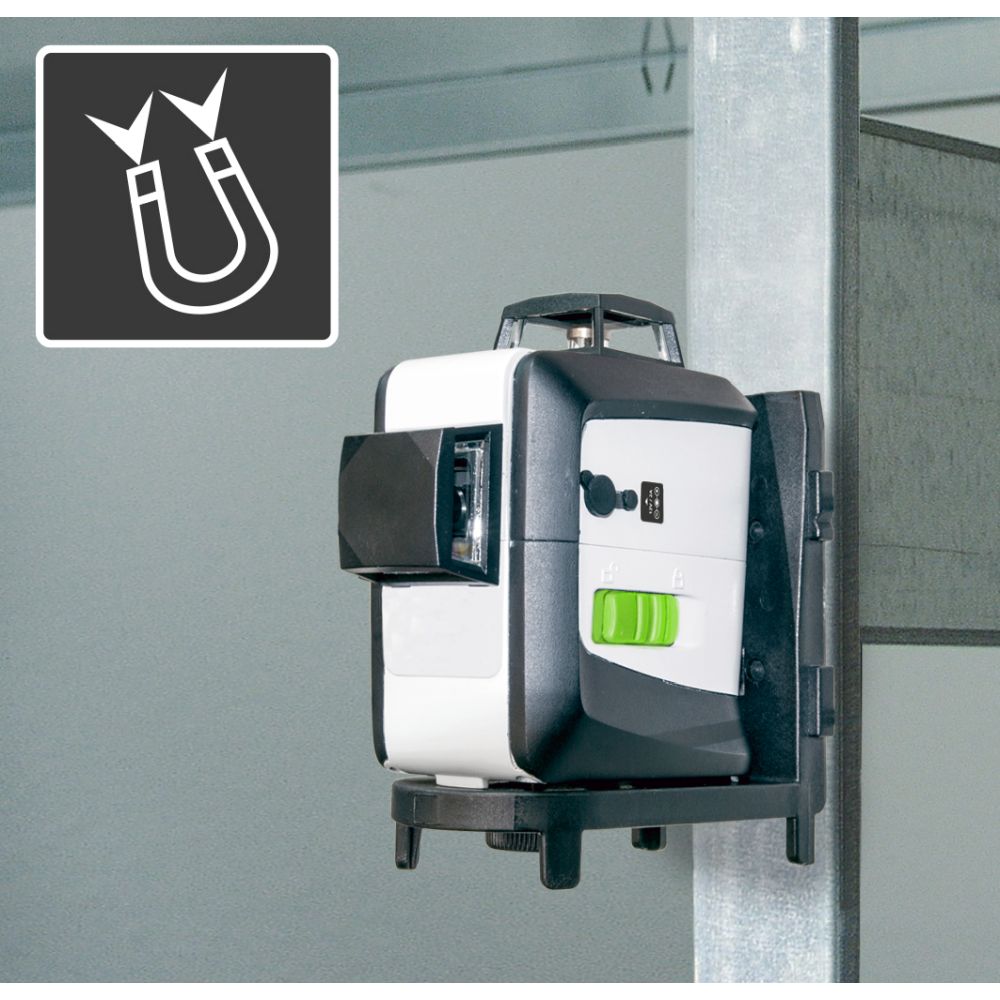

  • CrossGrip
  • Li-ion battery packs with external charger
  • network/charging device incl. international adapter
  • complete in the L-BOXX 136

  • Accessories (optional):

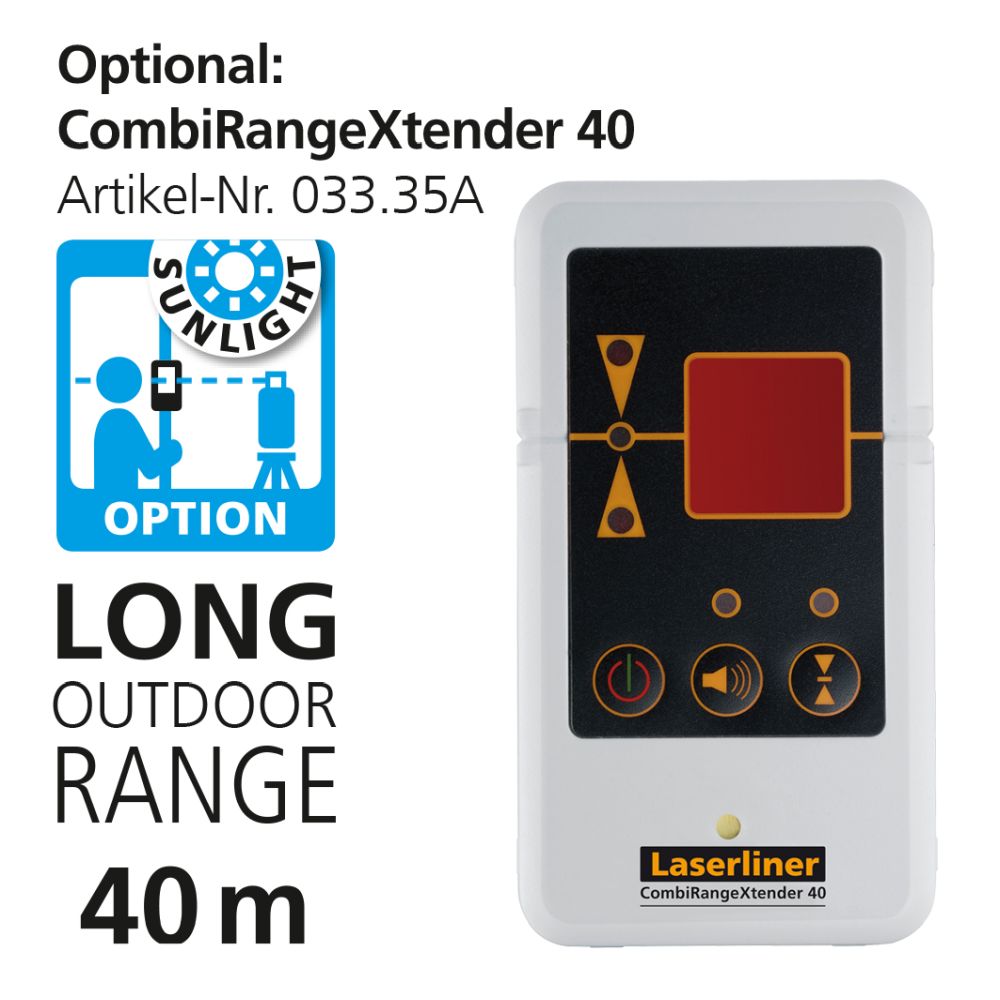

    • CombiRangeXtender 40
      (Art.No.: 033.35A) - laser receiver


    • RangeXtender M 50
      (Art.No.: 033.70A) - Laser receiver


    • Lightweight Tripod 165 cm
      (Art.No.: 080.02) - tripod


    • Crank Tripod P 175 cm
      (Art.No.: 080.26) - crank tripod


    • Crank Tripod 260 cm
      (Art.No.: 080.35) - Crank tripod


    • Crank Tripod 300 cm
      (Art.No.: 080.39) - Crank tripod


    • LaserSight green
      (Art.No.: 020.71A) - Laser enhancement glasses


    • HighCapacityPack m. USB-C Kabel
      (Art.No.: 036.51A) - Powerful battery pack



    Documentation:

    Instructions not available.



    Categorie:

    Titel:
    360° line laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 036.650-1, GTIN (EAN): 4021563703876
