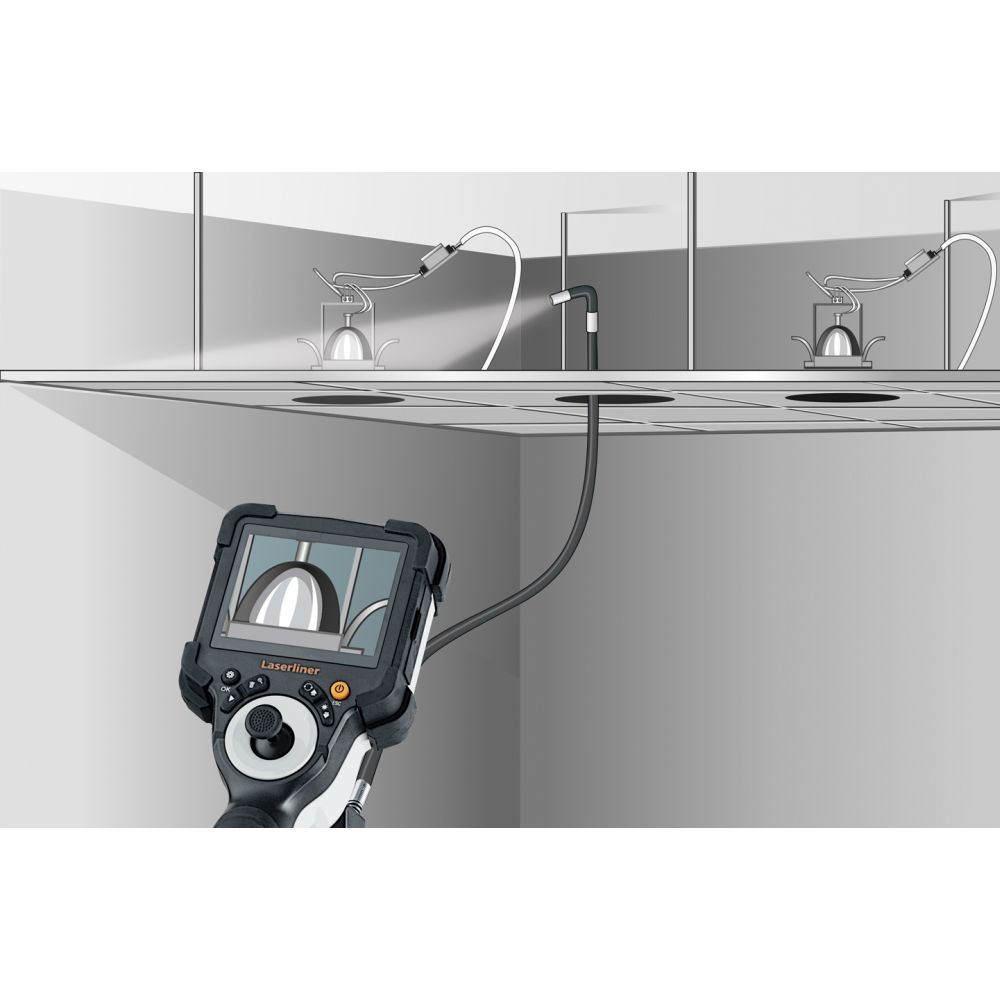

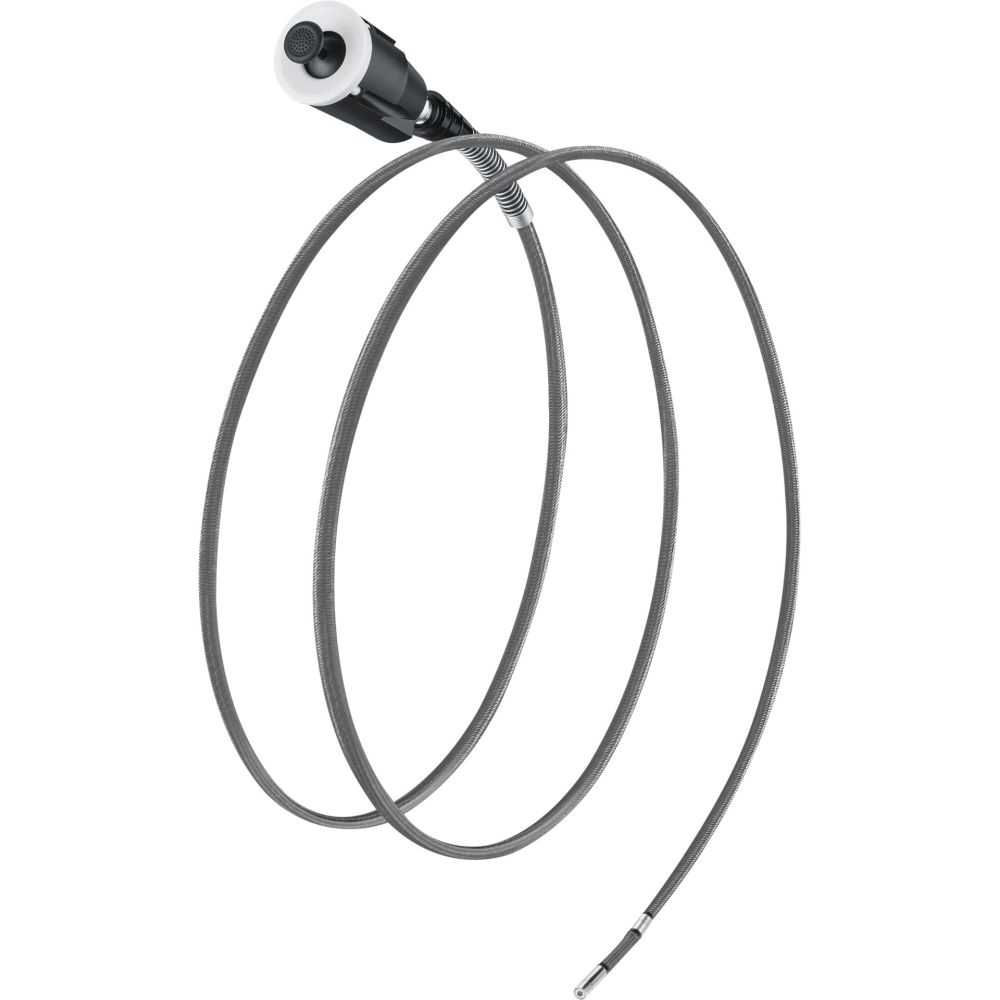

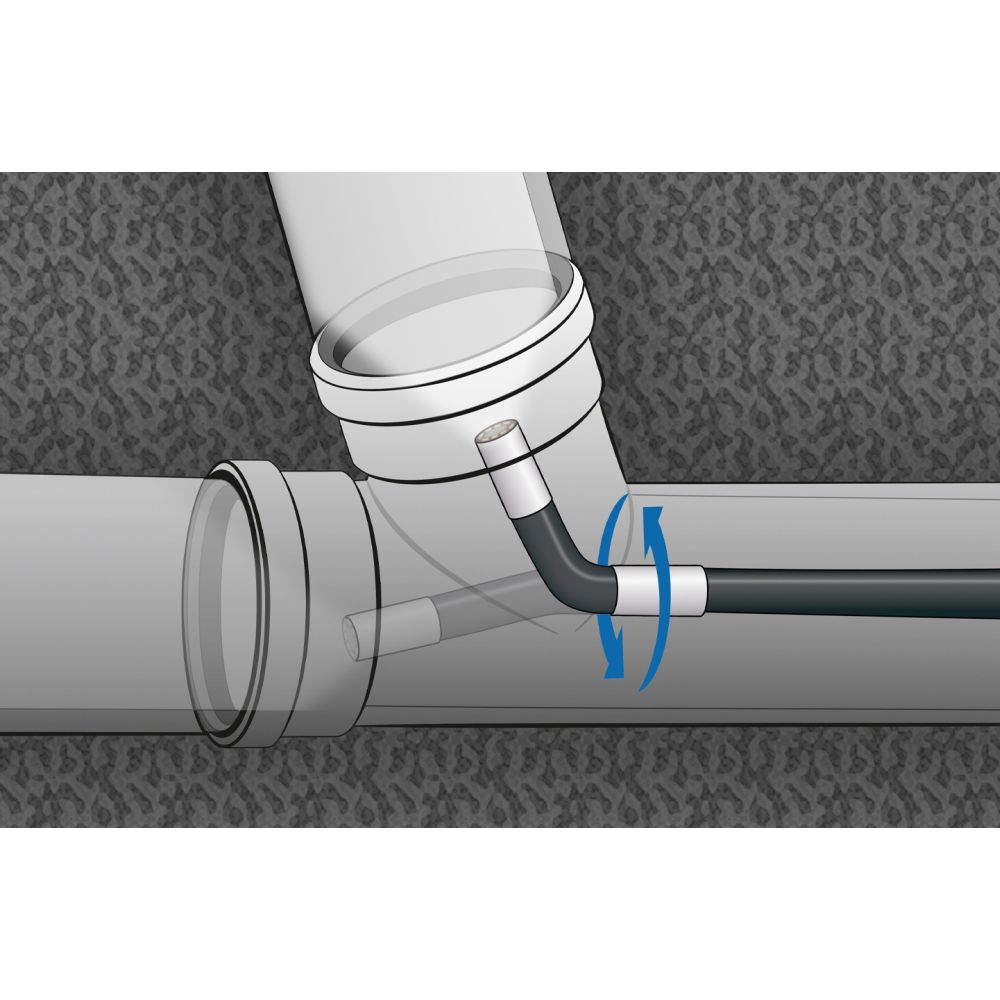

Description: The controllable camera Unit has an individually flexible camera head which can be quickly adjusted to the optimum view using the joystick on the VideoInspector base unit. This allows hard-to-reach places to be investigated which cannot be viewed with fixed camera systems. The small diameter of the camera head enables even very small openings to be inspected. However, it provides very reliable, 360° inspection of, for example, pipe seals and the damage can be precisely located. The camera head and probe are waterproof and resistant to diesel, petrol, motor oil, AdBlue®, ethanol and sea water, making the device extremely versatile. The 8 high-performance LEDs ensure excellent object lighting.
| Controllable camera head | ✅ |
| Object illumination | ✅ |
| Diameter Camera Head | 6 mm |
| Camera Resolution | 1280 x 720 pixels |
| Field of View (FOV) | 78° |

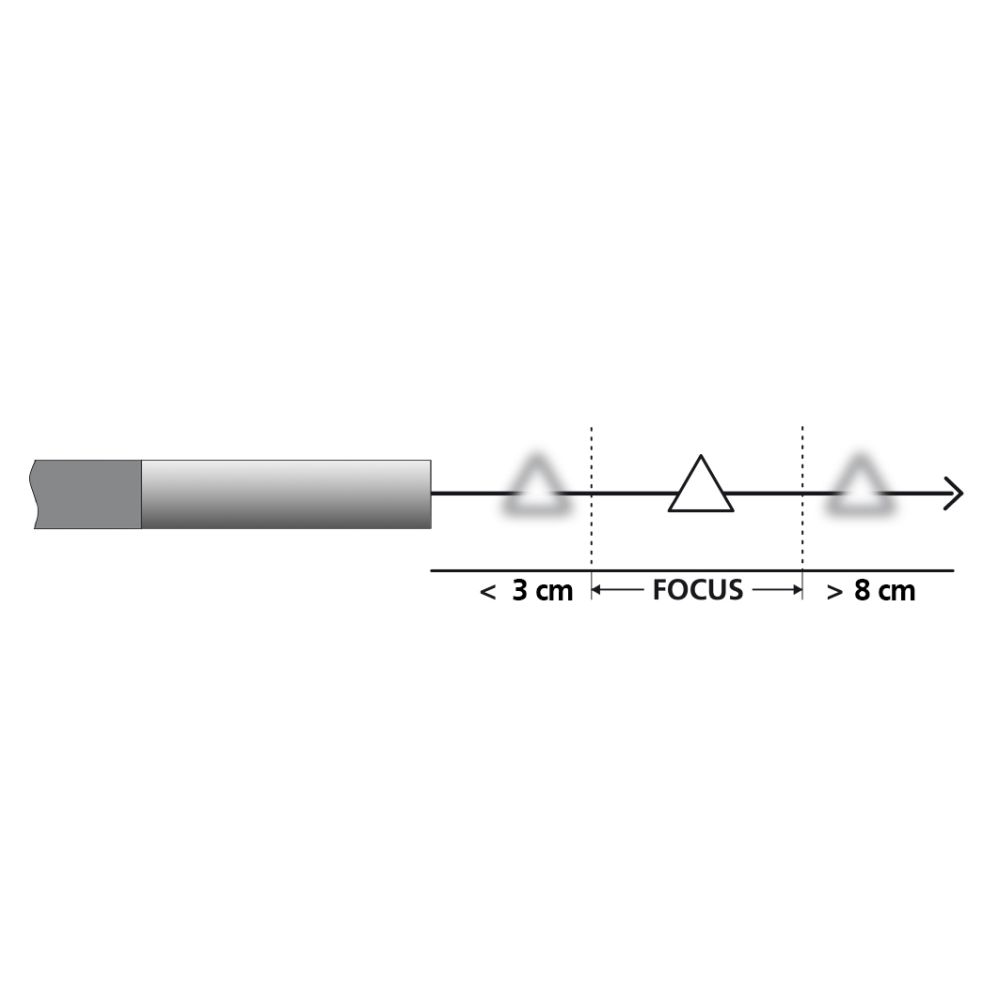

| Depth of Focus (DOF) | 3 … 8 cm |
| Screen Type | # |

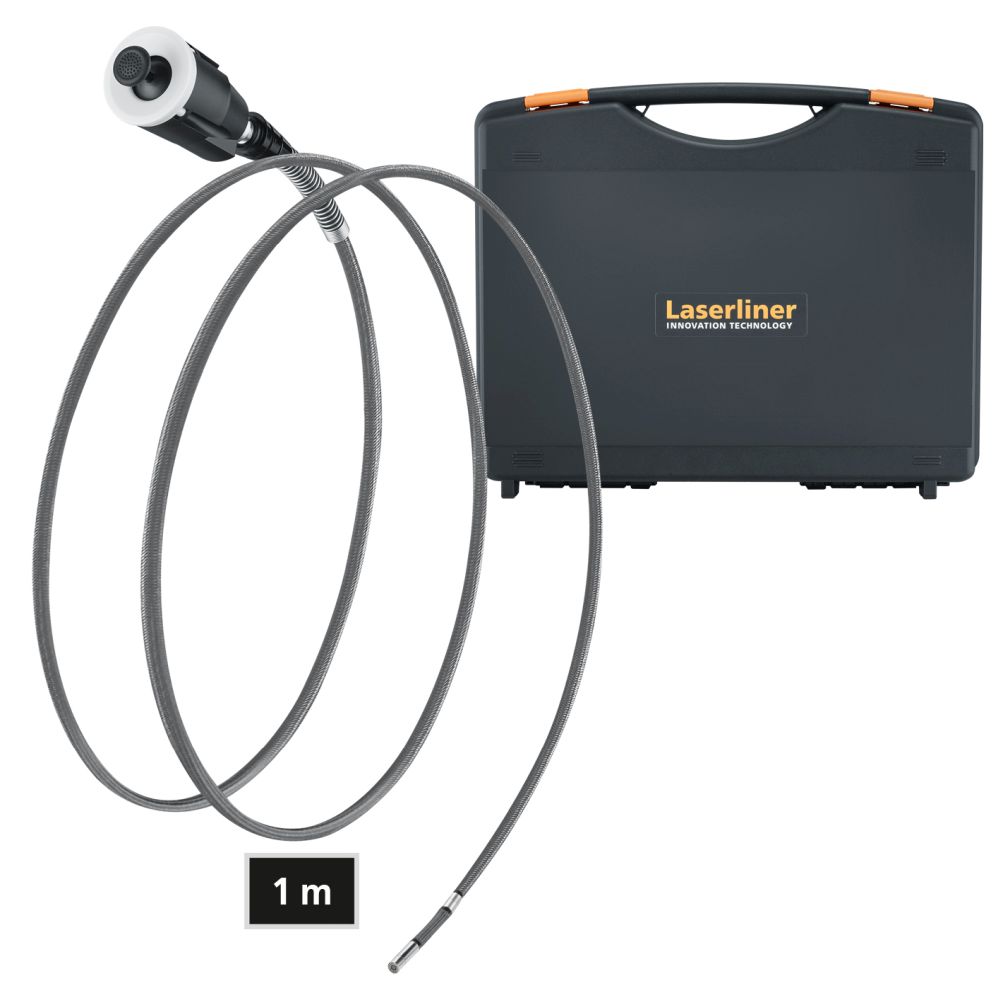

| Length of Probe | 1 m |
| Dimensions (W x H x D) | 1050 mm x 42 mm x 42 mm |
| Weight | 135 g # |
Scope of delivery:
Documentation:
Product information sheetTitel:
Controllable camera unit
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 082.230A, GTIN (EAN): 4021563704705
