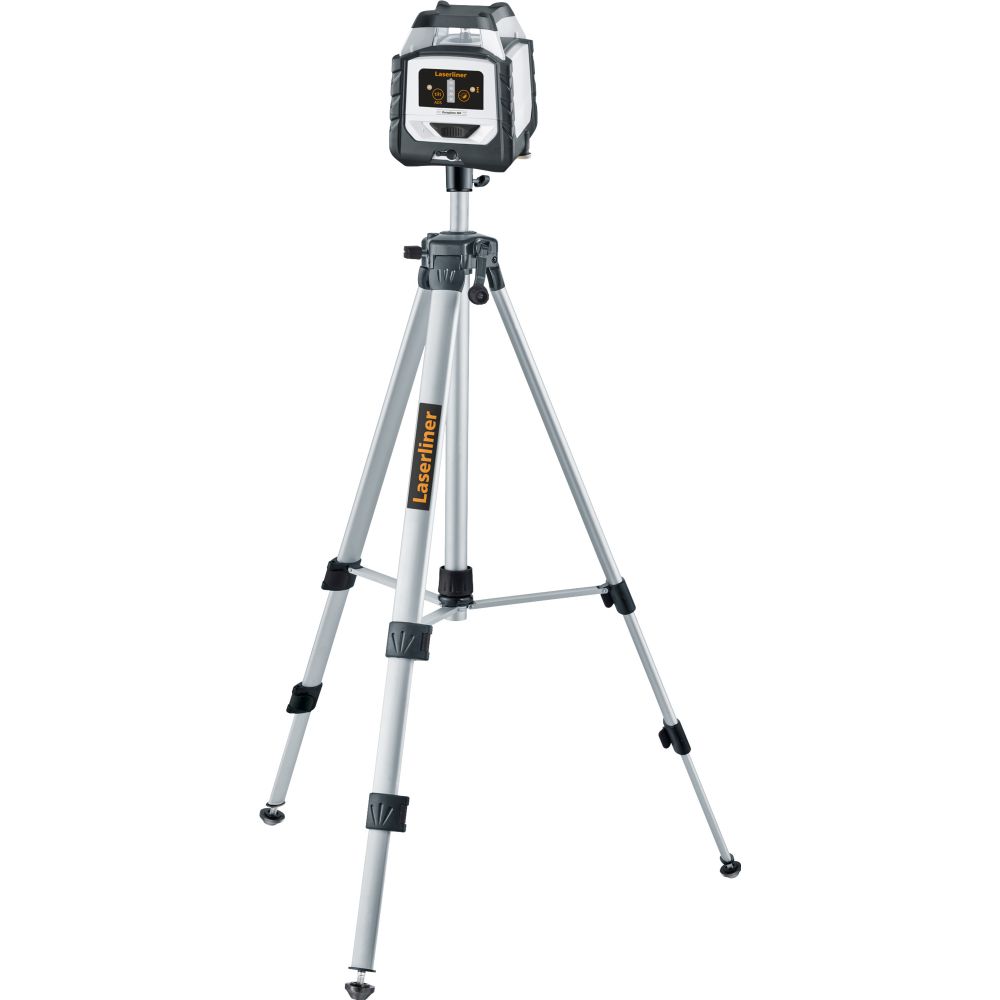

Duraplane 360 Set 175 cm

360°-Hybrid laser with laser receiver, stand and levelling staff


Description: Ideal for the fast, accurate alignment of horizontals and slopes. The device offers an easily visible laser line and high measuring reliability. The application is easy to use thanks to the wide range of mounting options and the easy-to-read levelling staff. The integrated handheld receiver mode allows use at long distances.

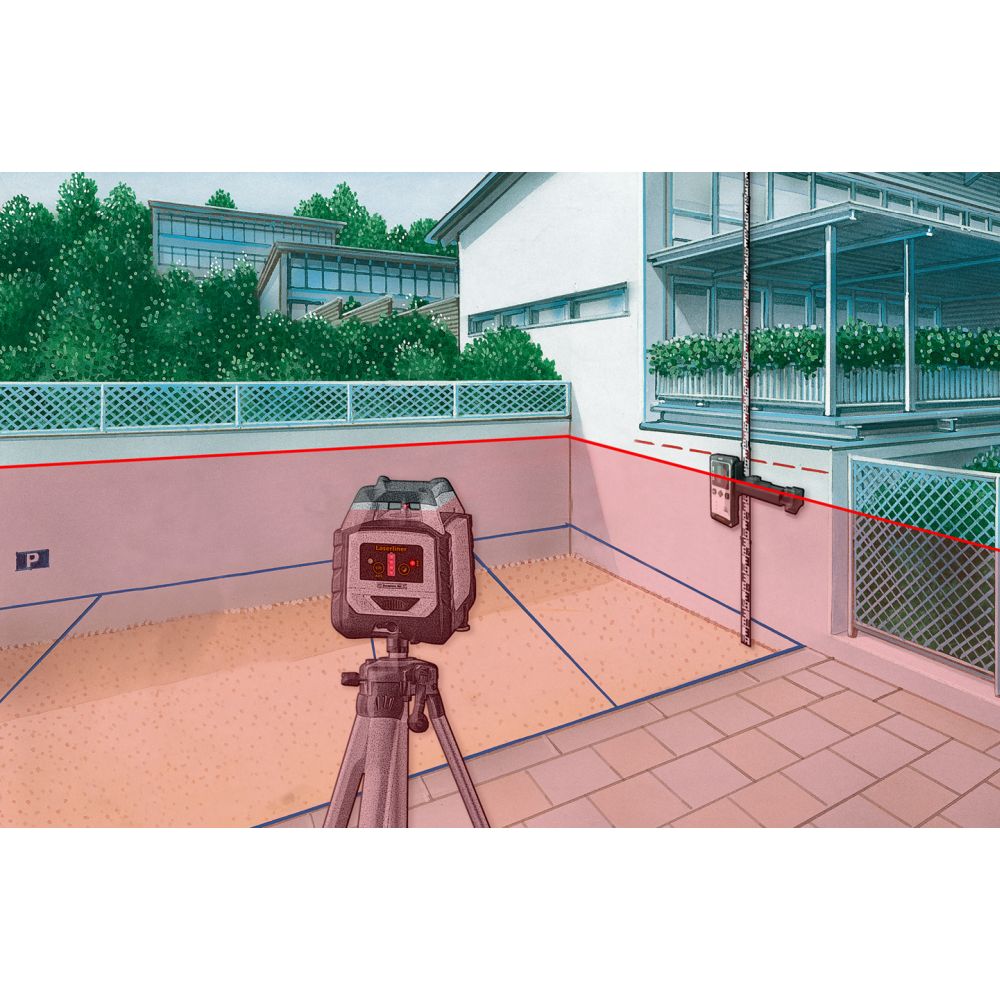

  • Exact horizontal alignment in the whole room

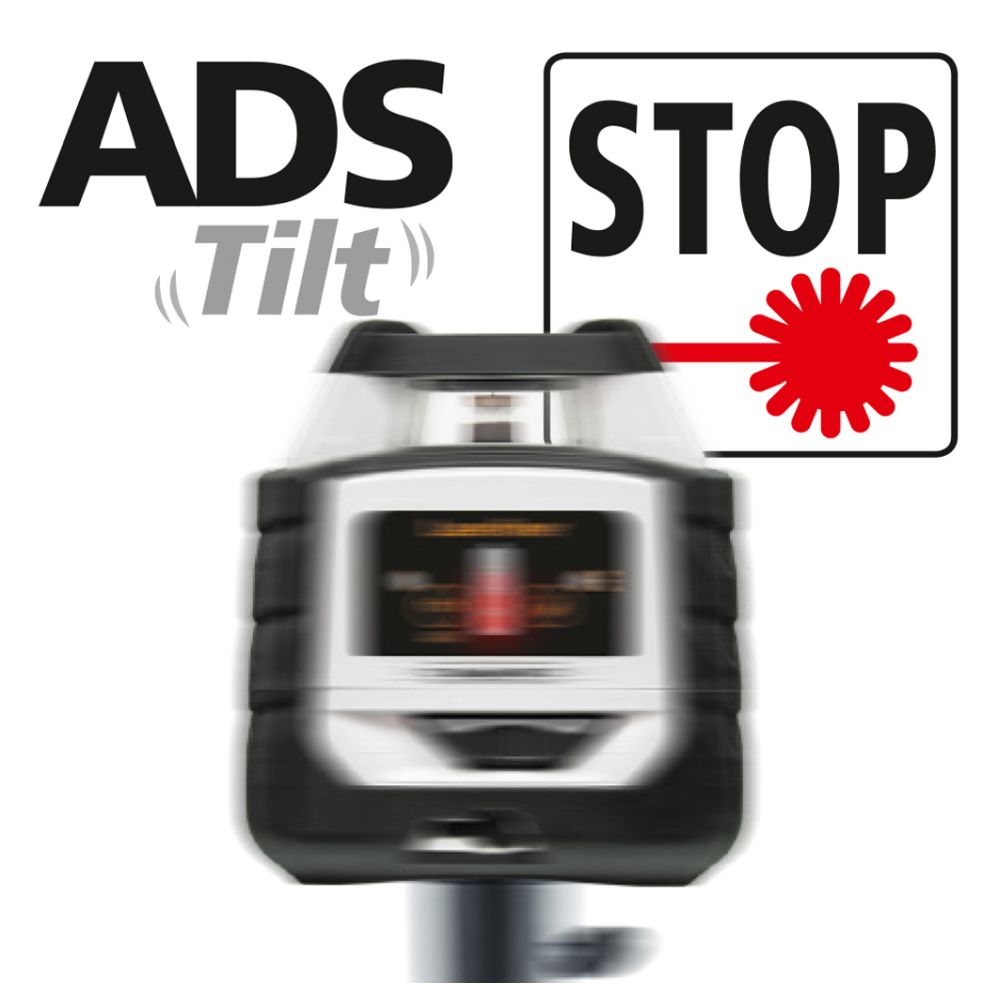

  • Reliable measurement through automatic power off with ADS tilt

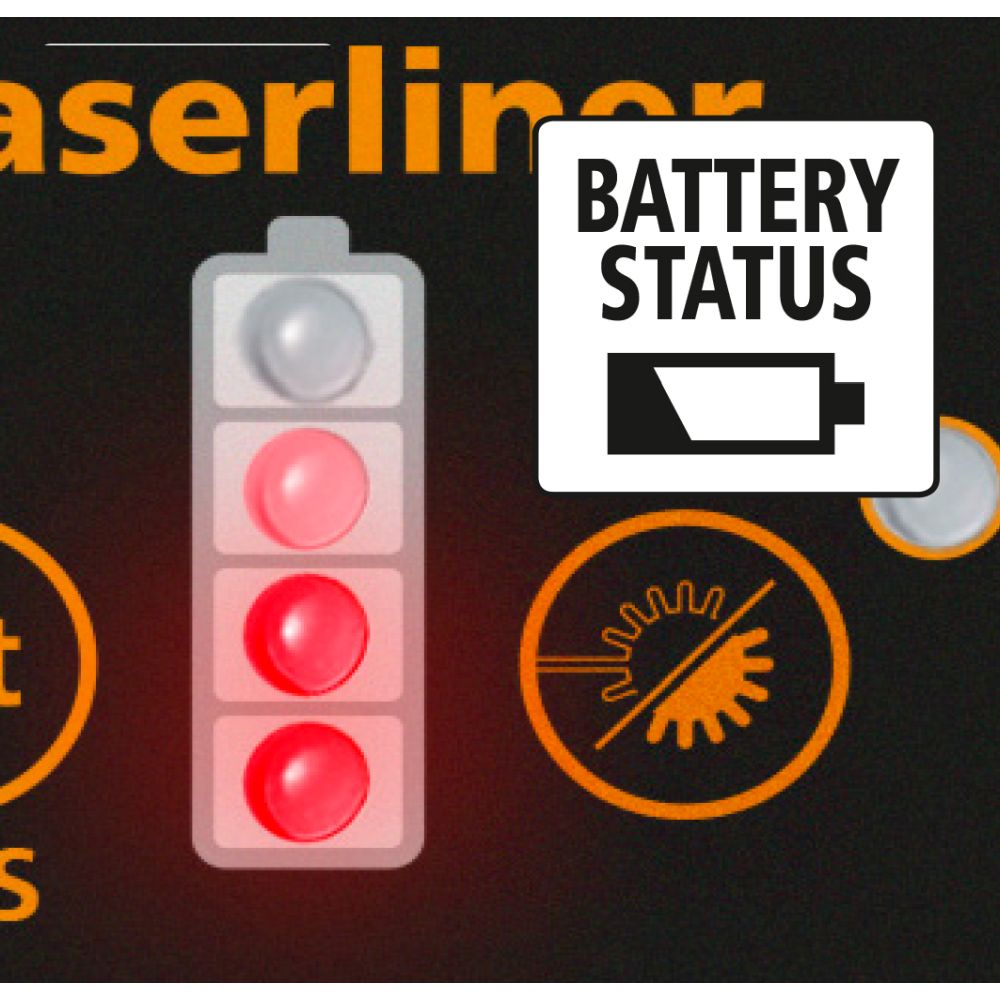

  • Battery status indicator

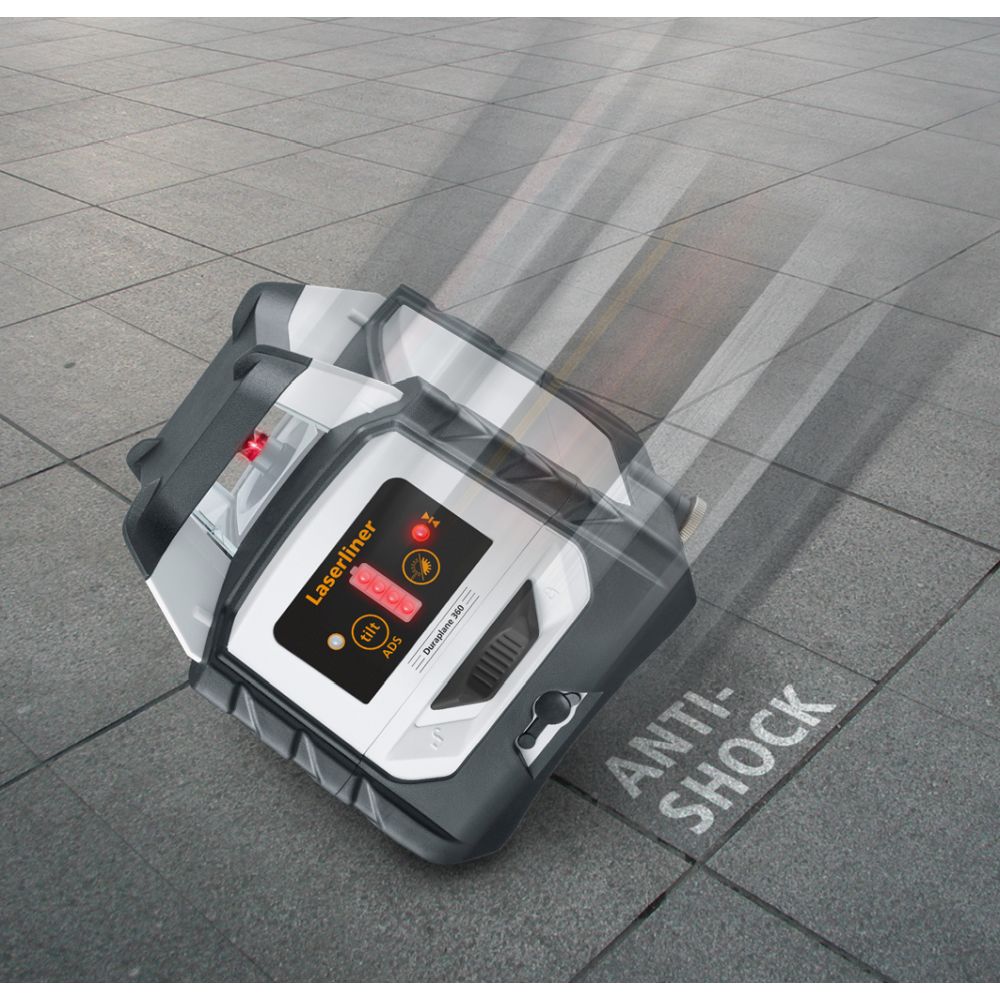

  • Robust, dustproof and waterproof

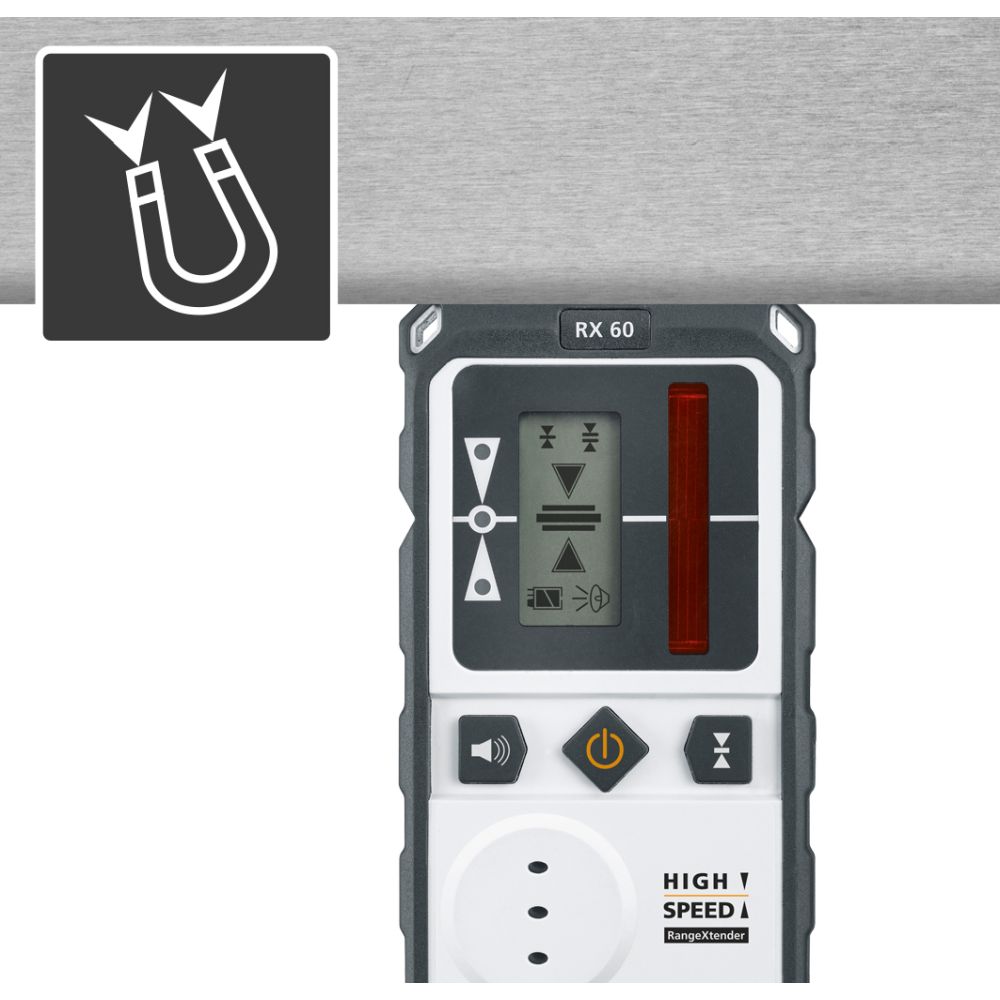

  • Handheld receiver suitable for outdoor applications and for fixing to levelling staffs
  • Fast detection of laser lines by handheld receiver

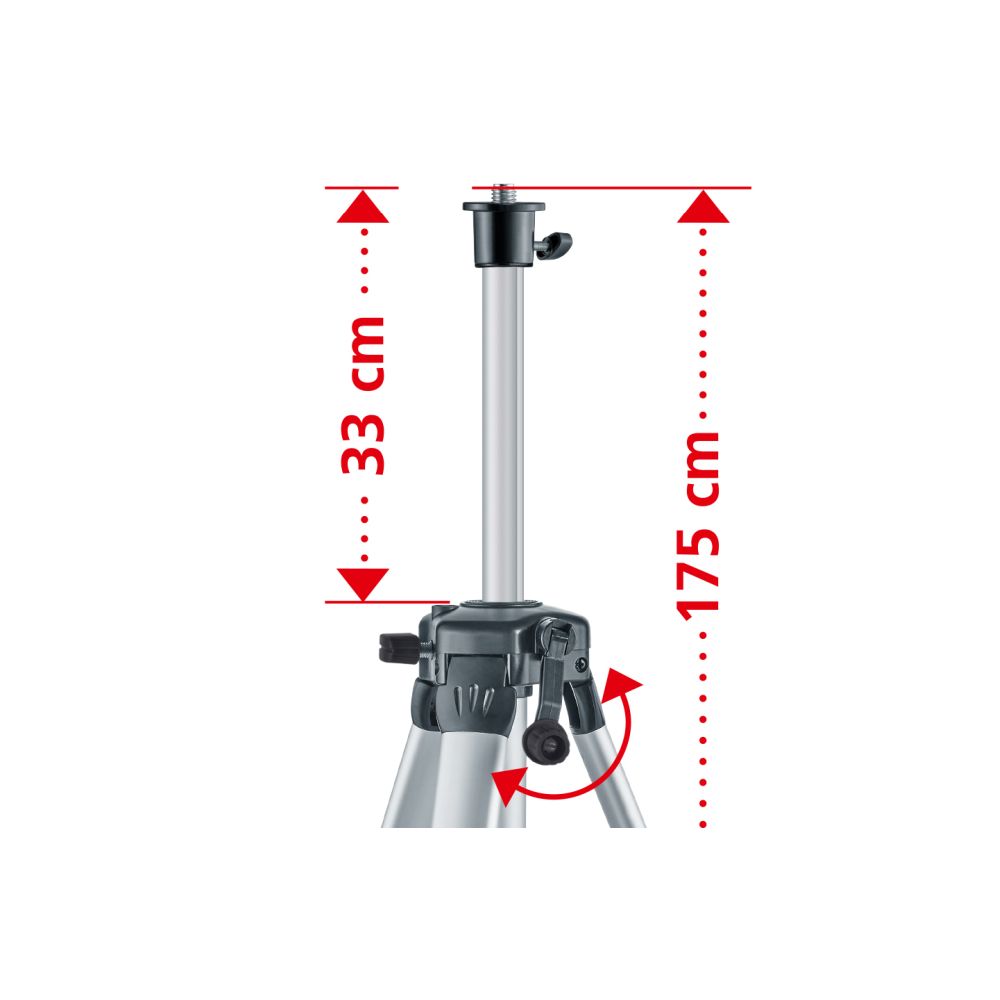

  • Crank tripod of aluminium
  • Easy-to-read, highly stable levelling staffs for use even under extreme conditions

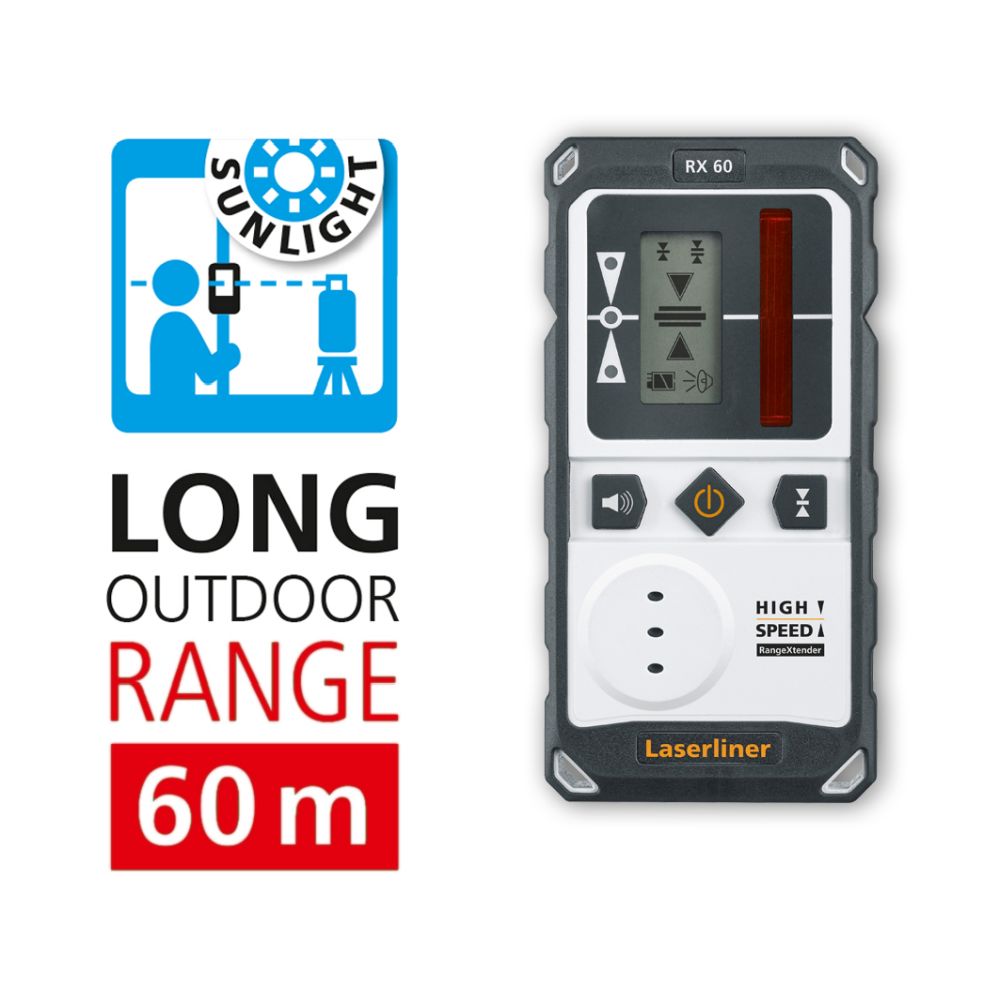

  • Optional receiver for detecting laser lines at a distance of up to 40 metres

  • Hand receiver mode
    Manual slope function

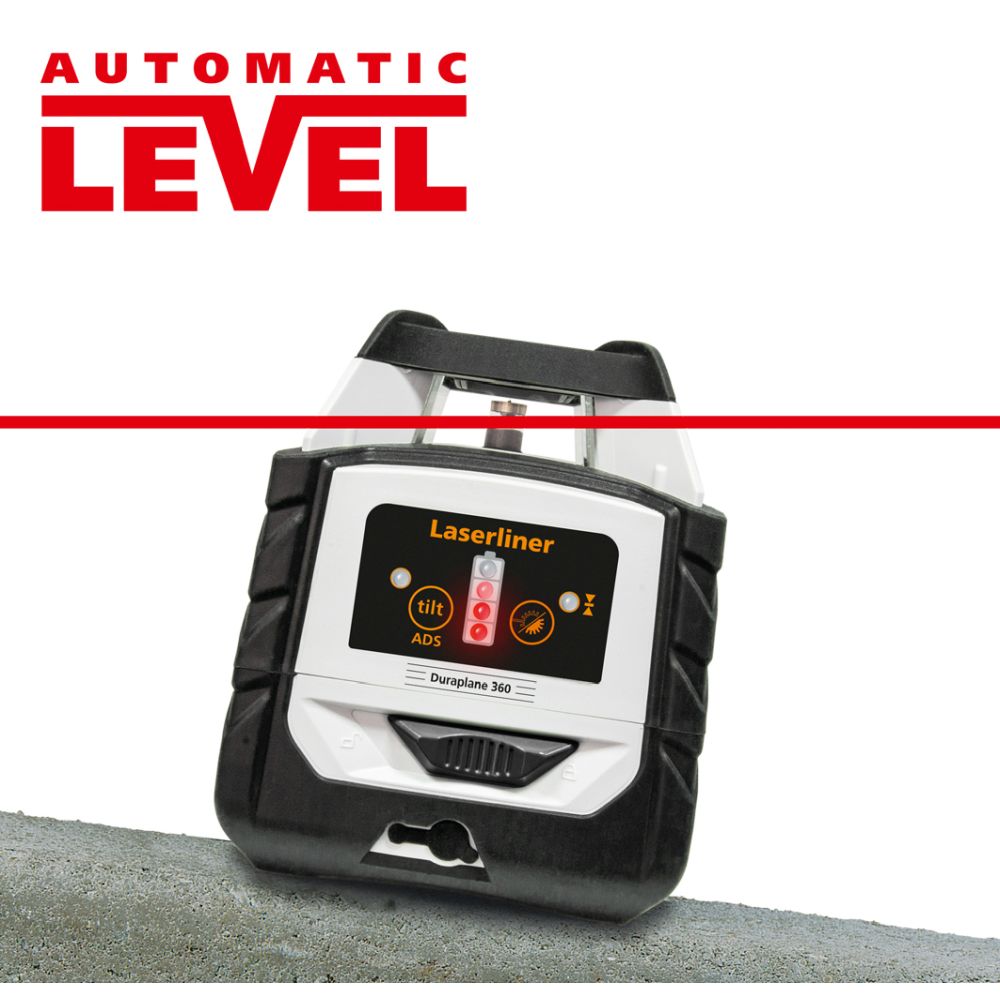

    Automatic horizontal levelling
    Battery and mains operation
    Tilt warning function
    Replaceable battery system
    Self-Levelling Range± 3.5° (horizontal)
    Accuracy± 0.2 mm / m
    Levellinghorizontal automatic
    Laser Wavelength635 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Laser ModesHand receiver mode
    Protection ClassIP 54
    Power SupplyLi-ion battery pack 7.4V / 2.6Ah / 19.24Wh
    Power adapter 12V/DC / 2A
    Operating Timeapprox. 40 hours
    Battery Recharging Timeapprox. 4 hours
    Operating Conditions0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
    Storage Conditions-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
    Dimensions (W x H x D)125 mm x 145 mm x 120 mm
    Weight812 g (inkl. Akkupack / ohne Zubehör)

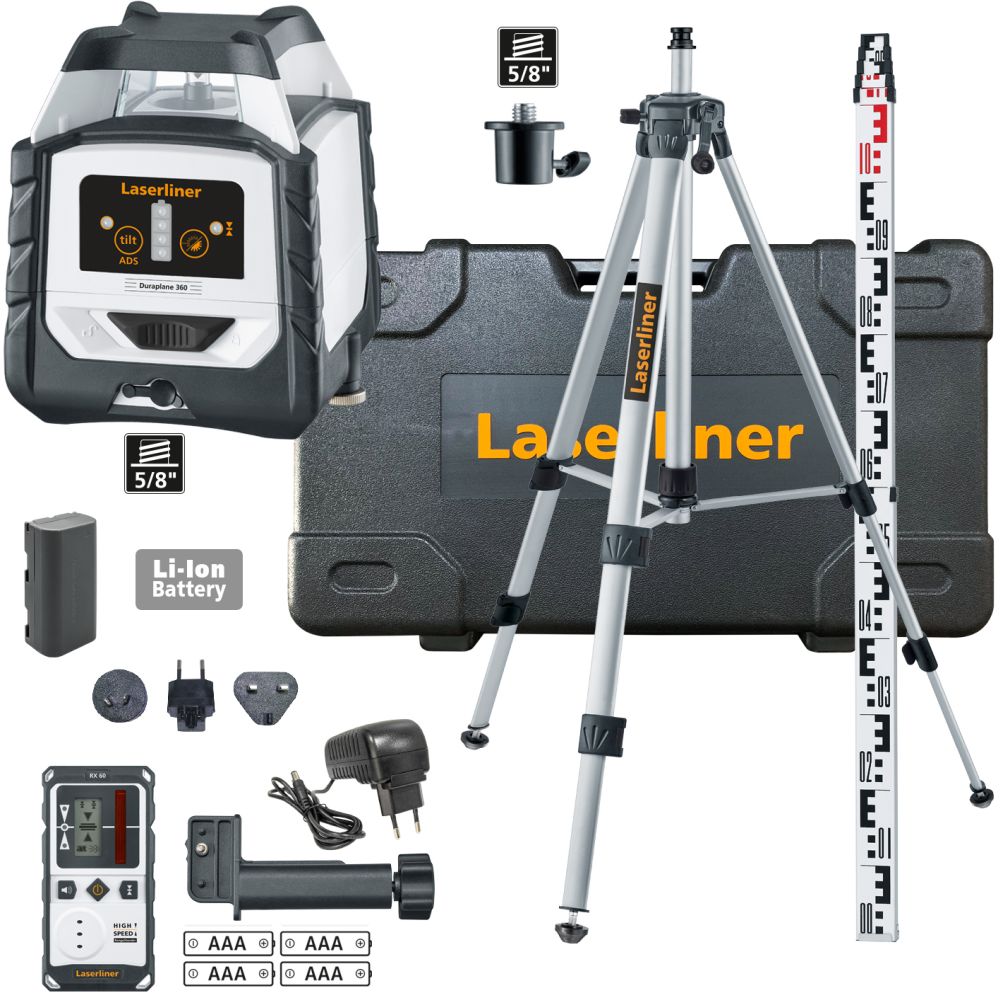

    Scope of delivery:
  • Duraplane 360
  • RangeXtender 60
  • compact tripod 175 cm
  • 3 m telescopic levelling staff
  • 5/8" thread adapter
  • Li-ion battery pack
  • network/charging device incl. international adapter
  • carrying case


  • Documentation:

    Titel:
    360°-hybrid laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    OrangeLine

    Art.No.: 052.500A, GTIN (EAN): 4021563709328
