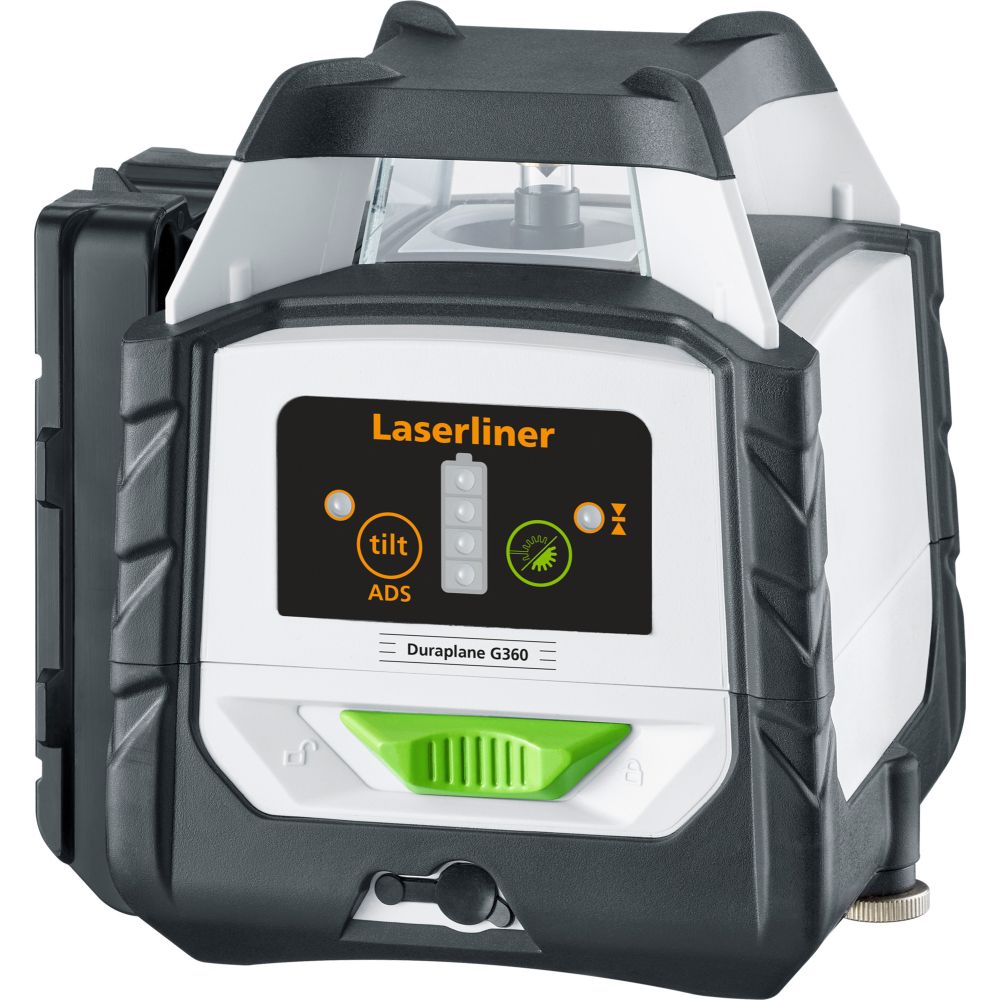

Duraplane G360 RX

Robust, horizontal 360°-hybrid laser with anti-drift system and handheld receiver


Description: The Duraplane G360 RX is ideal for the quick and accurate alignment of horizontals and slopes. Green laser technology provides high visibility, which can even be doubled with the laser booster. It is comfortable to use thanks to the many mounting options of the CrossGrip mounting bracket and the battery status display. With the handheld receiver, the device can also be used outdoors. The Duraplane with the anti-drift system switches off automatically in the event of external influences. The handheld receiver can be easily mounted on levelling staffs.

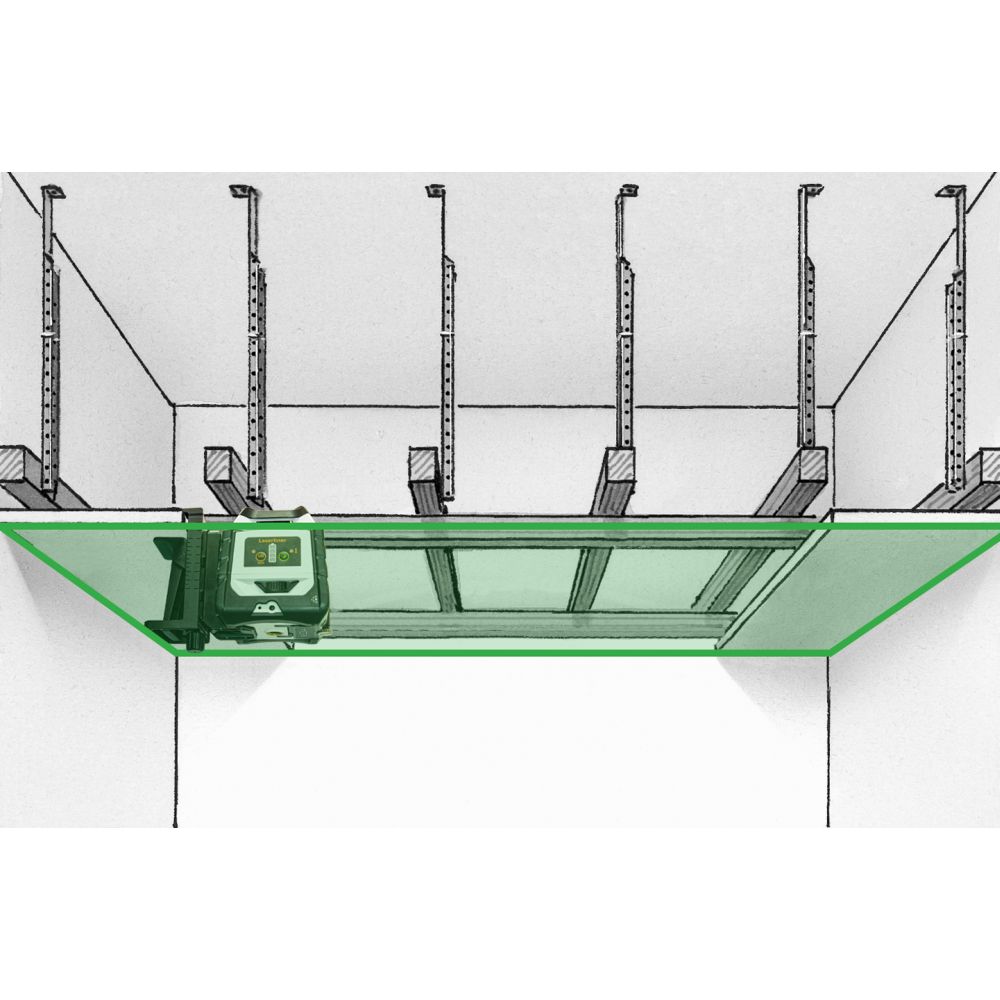

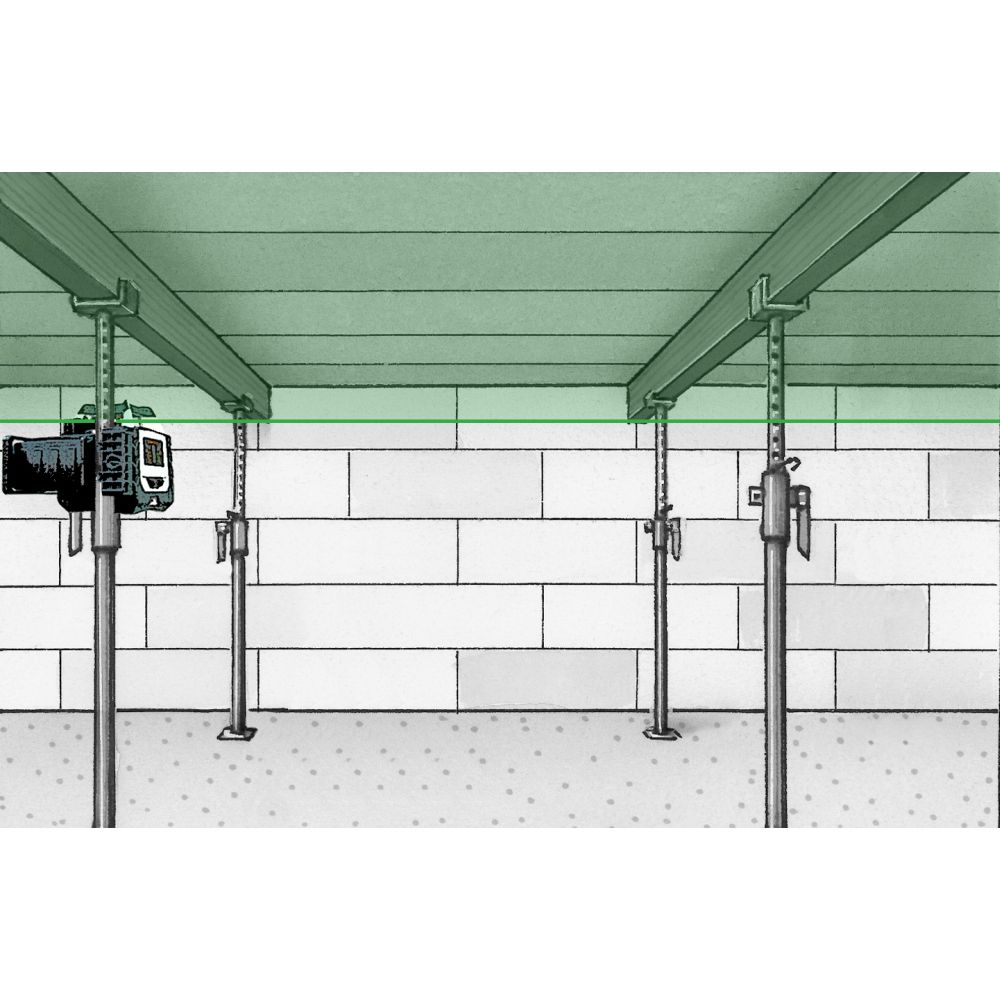

  • Time-saving drawing of horizontal lines in the whole room
  • Exact work through fine and extremely bright laser line

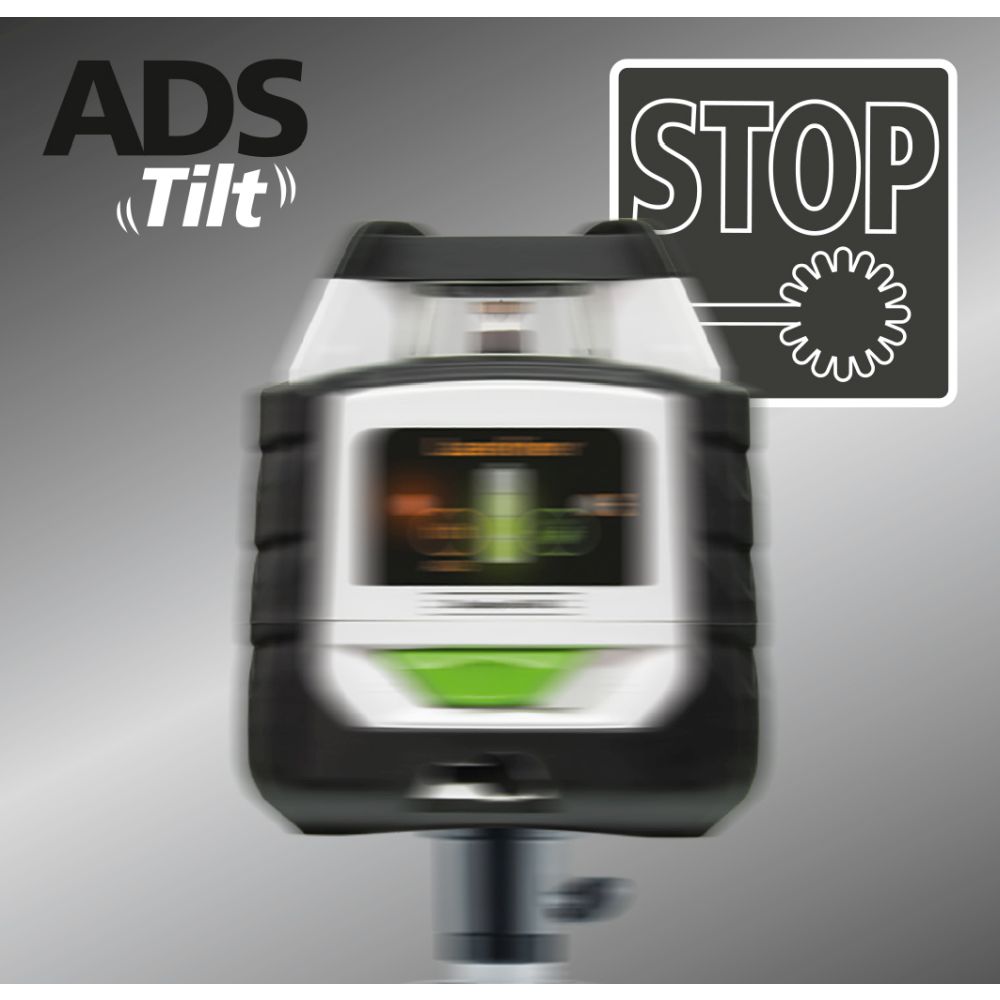

  • Reliable measurement through warning of unwanted position changes

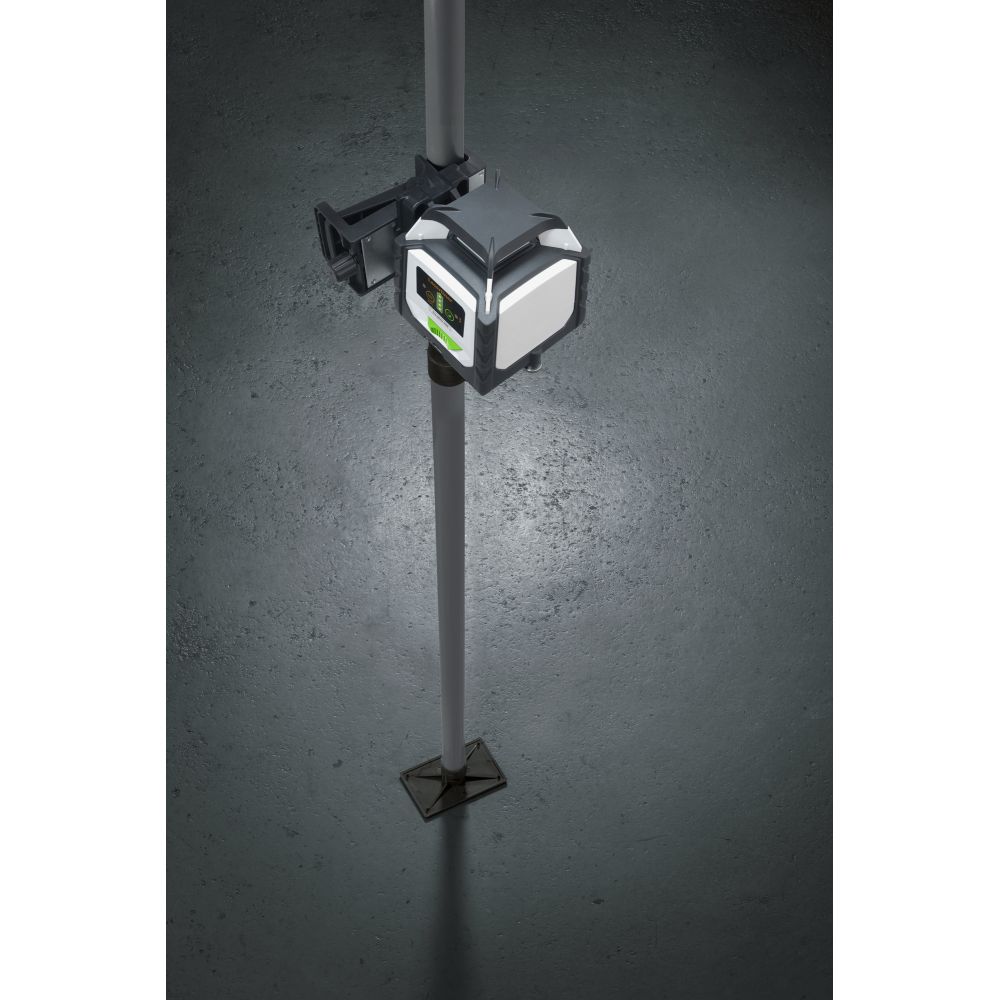

  • Many mounting options thanks to magnets and clamping bracket

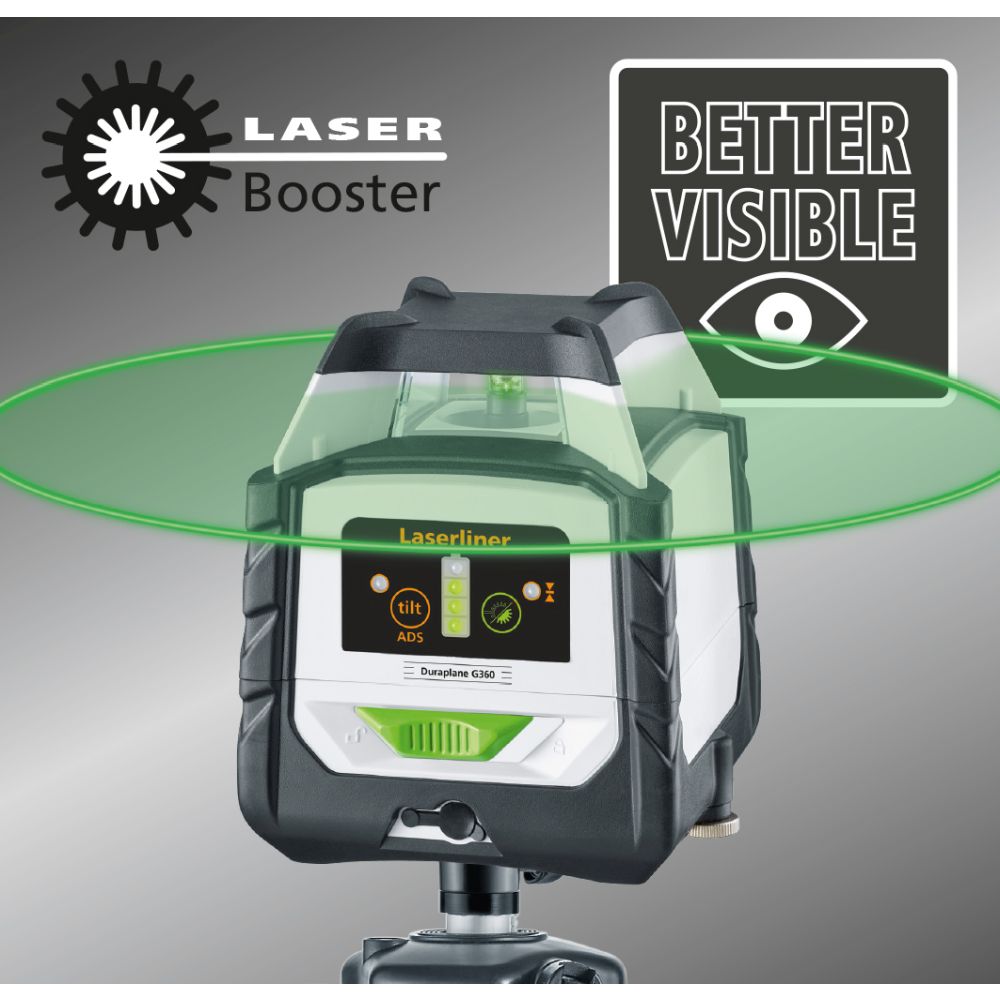

  • Laser booster doubles the visibility of the laser

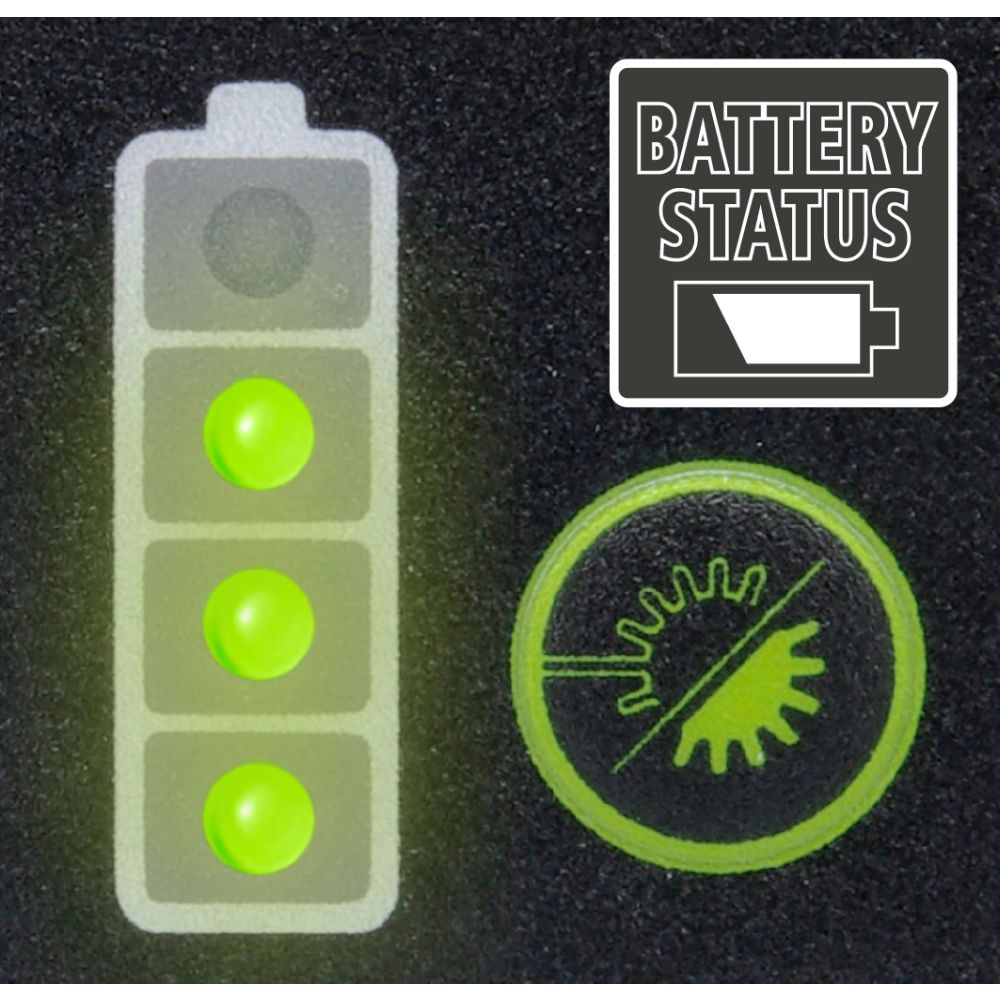

  • Battery status indicator

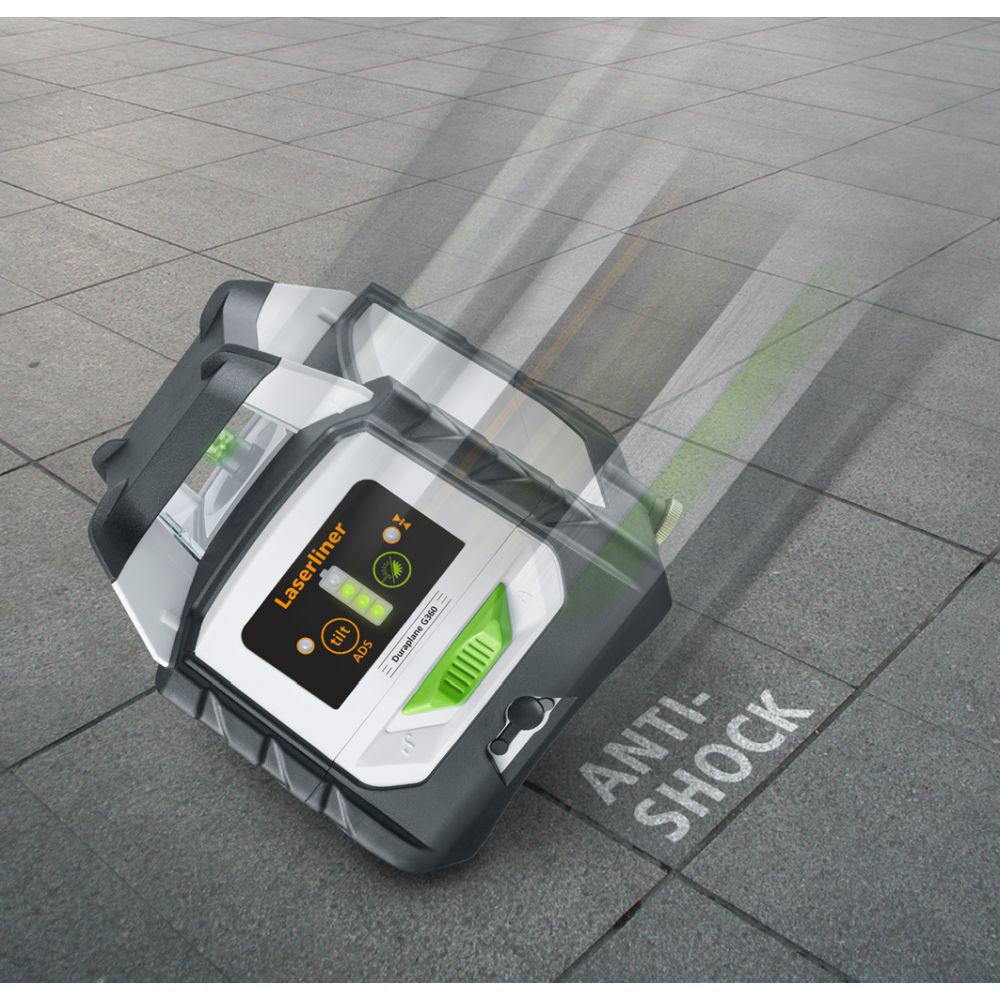

  • Robust, dustproof and waterproof
  • CrossGrip clamp and wall bracket
  • Second battery for long operating time

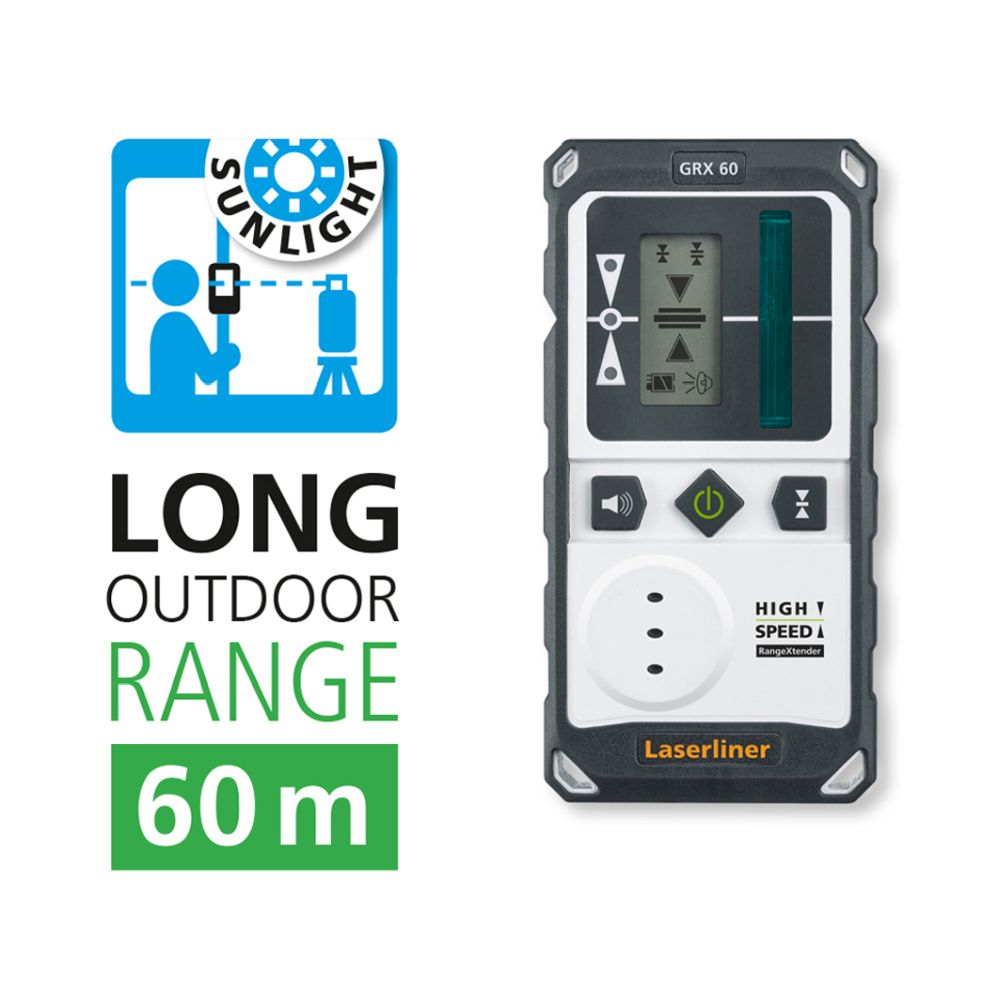

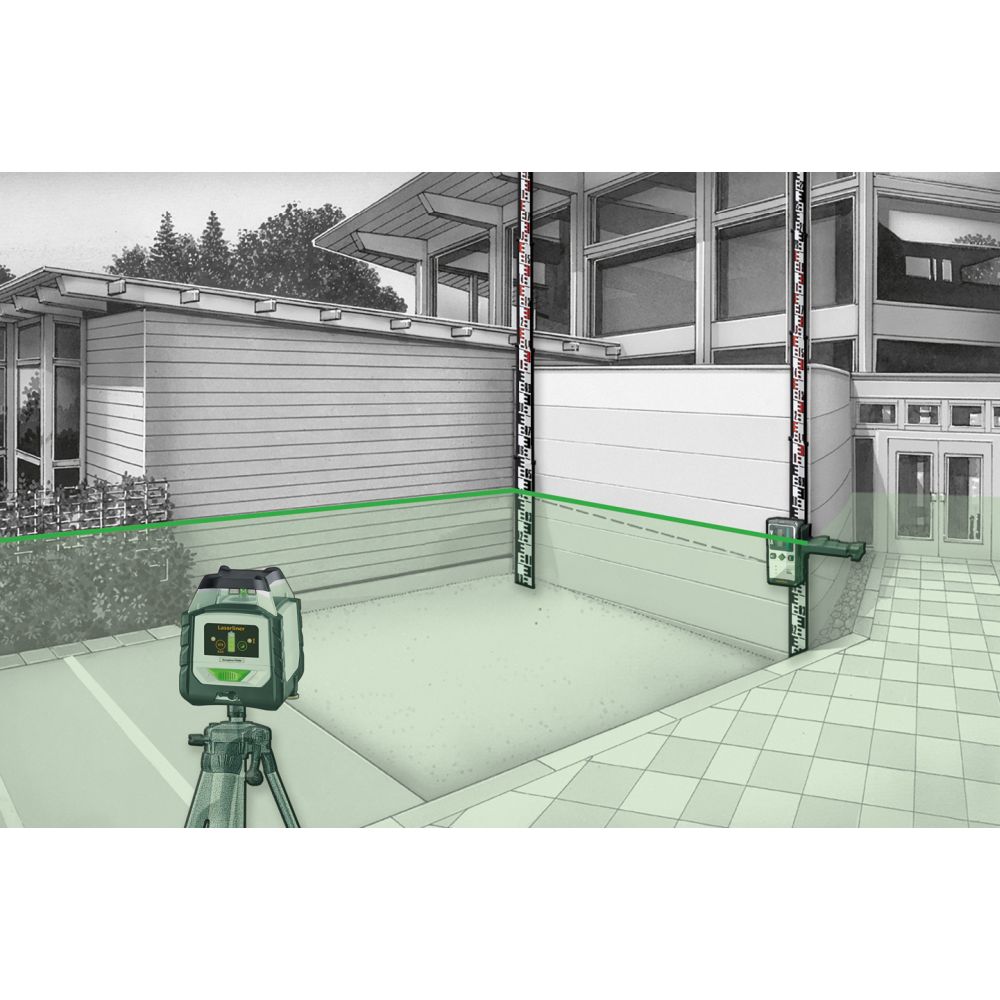

  • Handheld receiver suitable for outdoor applications and for fixing to levelling staffs
  • Fast detection of laser lines by handheld receiver

  • Hand receiver mode
    Manual slope function

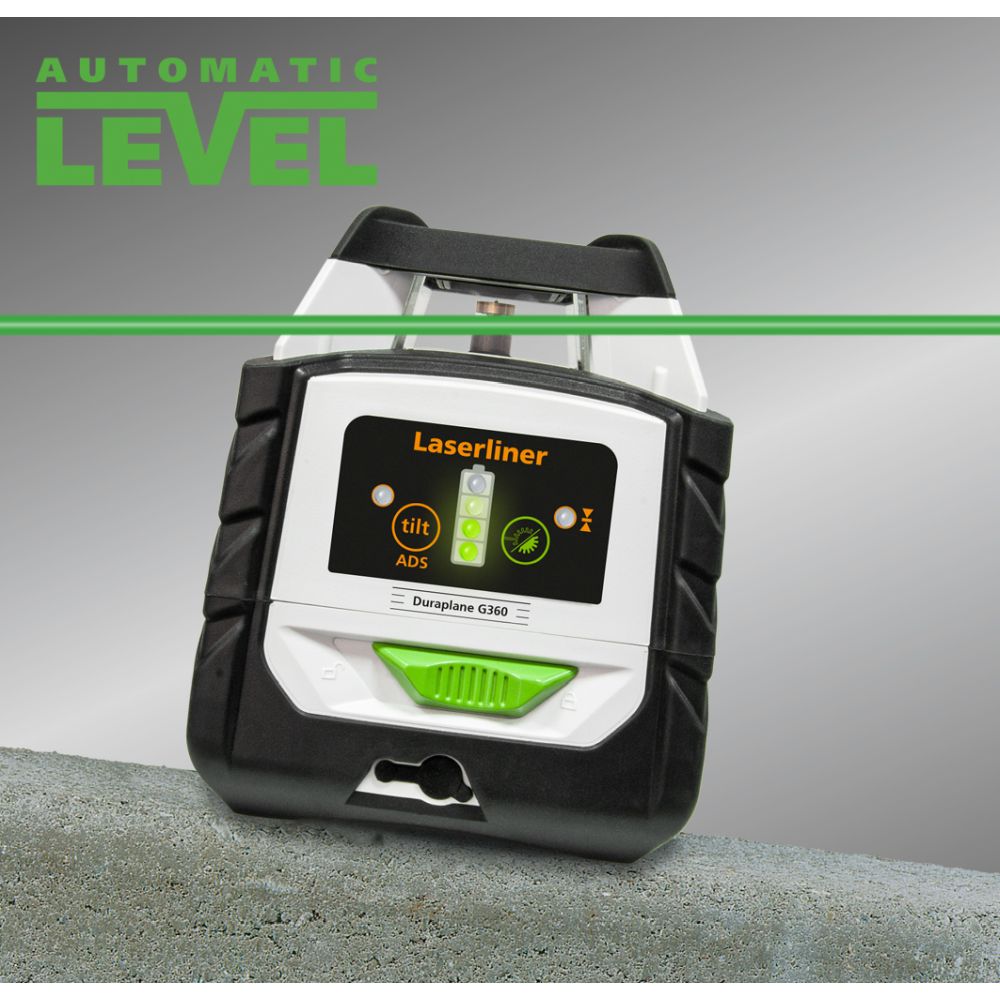

    Automatic horizontal levelling
    Battery and mains operation
    Replaceable battery system
    Tilt warning function
    Self-Levelling Range± 3.5° (horizontal)
    Accuracy± 0.2 mm / m
    Levellinghorizontal automatic
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Laser ModesHand receiver mode
    Protection ClassIP 54
    Power SupplyLi-ion battery pack 7.4V / 2.6Ah / 19.24Wh
    Power adapter 12V/DC / 2A
    Operating Timeapprox. 10 hours
    Battery Recharging Timeapprox. 4 hours
    Operating Conditions0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
    Storage Conditions-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
    Dimensions (W x H x D)125 mm x 145 mm x 120 mm
    Weight812 g (inkl. Akkupack / ohne Zubehör)

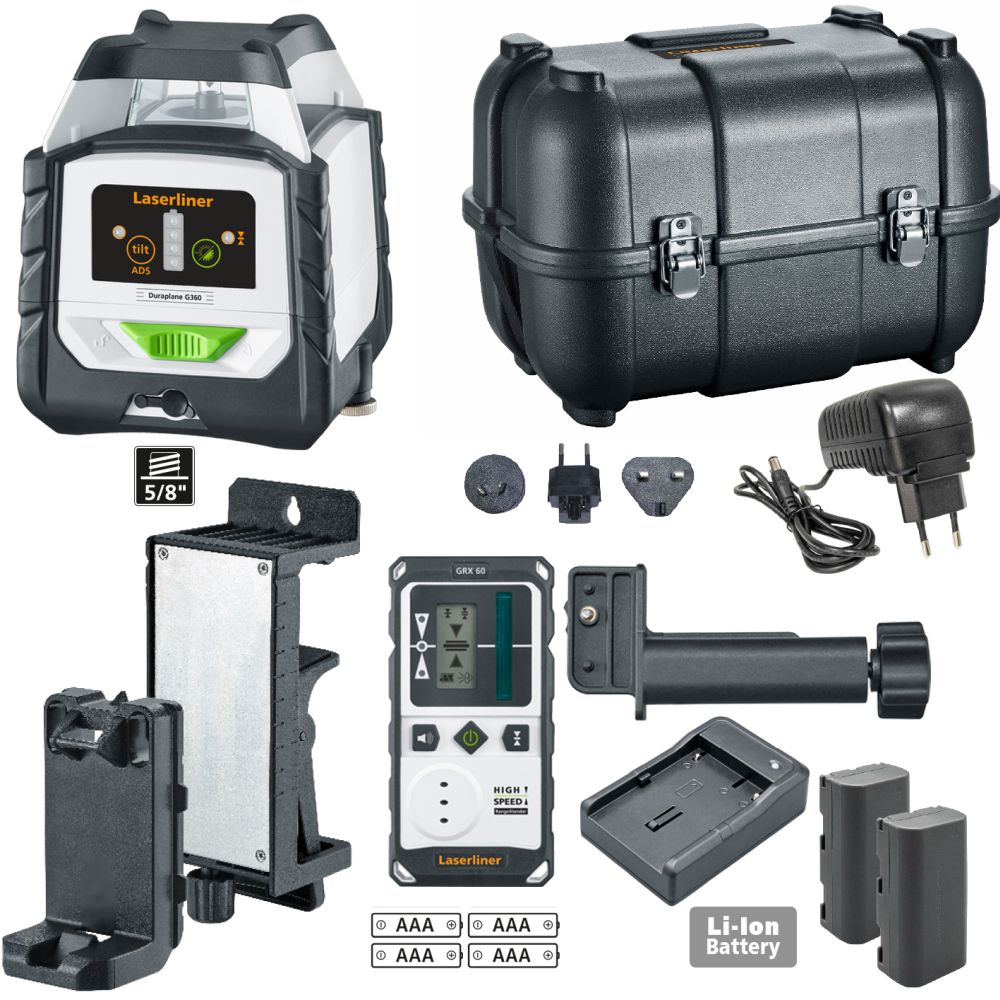

    Scope of delivery:
  • Duraplane G360
  • RangeXtender G 60
  • CrossGrip Snap
  • 2 x Li-ion battery packs with external charger
  • network/charging device incl. international adapter
  • carrying case


  • Documentation:

    Titel:
    360° hybrid laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 052.551A, GTIN (EAN): 4021563712564
