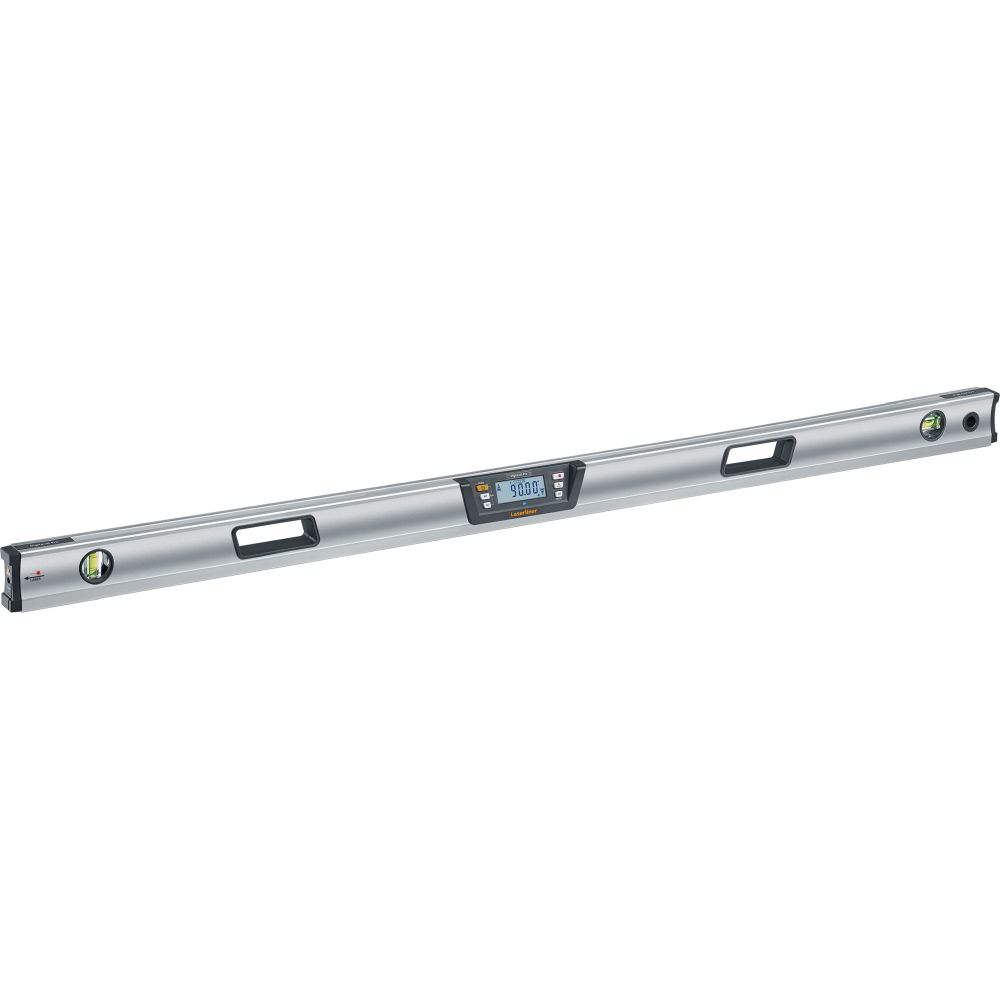

DigiLevel Pro 120

Digital electronic spirit level


Description: The digital spirit level is ideal for the accurate alignment of slopes, has a Digital Connection interface and is splashwater-proof. Operation is very easy thanks to the acoustic guidance function and defined standard gradients for typical applications.

  • Exact alignment of slopes

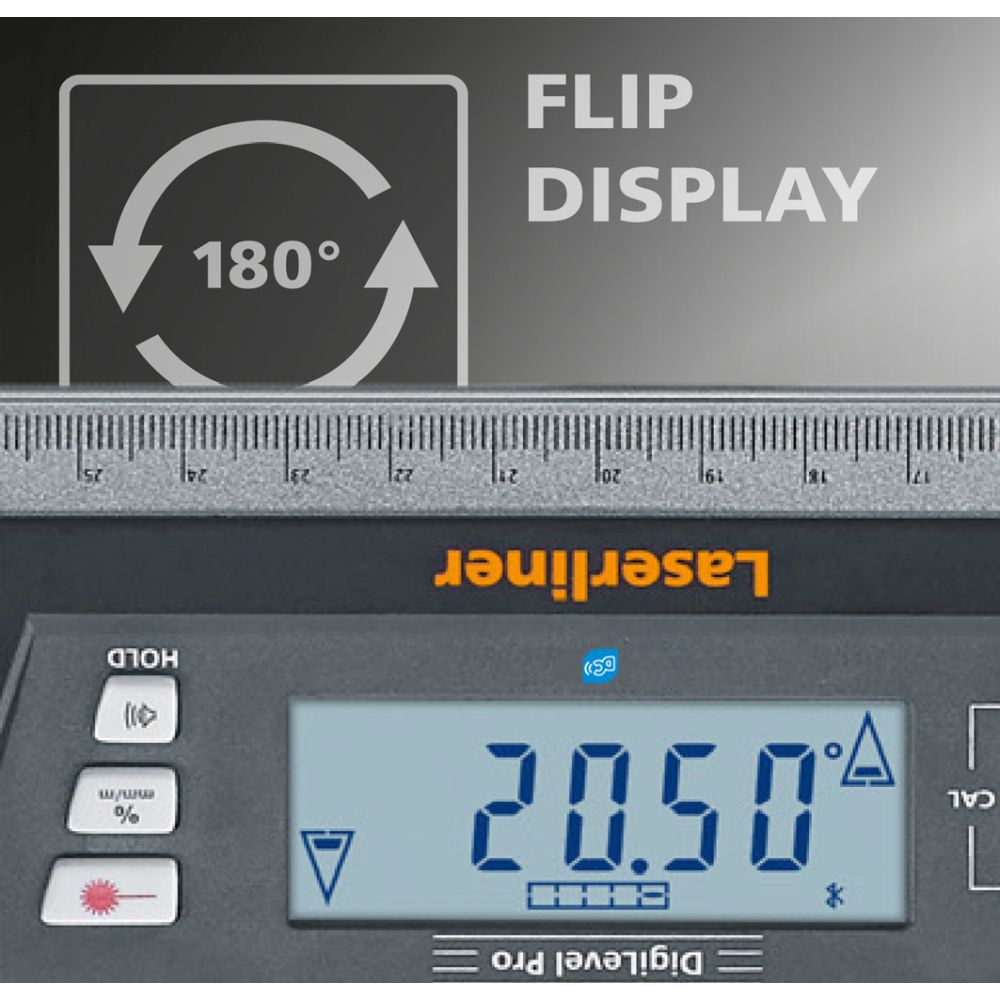

  • Comfortable overhead measurements thanks to flip display
  • Free hands when working on metal constructions thanks to magnetic holder

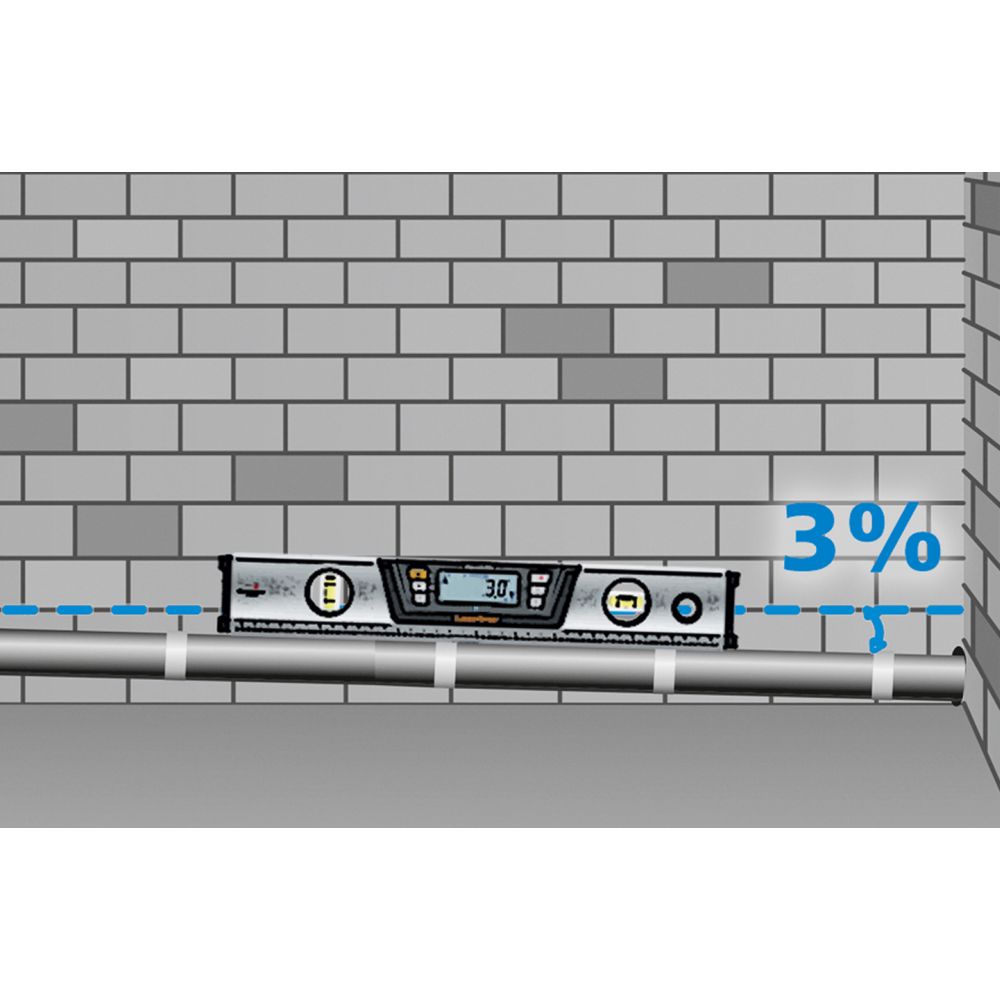

  • Standard gradients for roof pitch, slopes, drain pipes
  • Calibration: permanent accuracy via reverse measurement
  • Acoustic guidance with 3 different signal tones
  • Measurement units can be switched
  • Digital Connection interface for use with MeasureNote app
  • Illuminated display with direction indicator
  • Extremely rigid aluminium profile with milled measuring surfaces
  • Splashproof

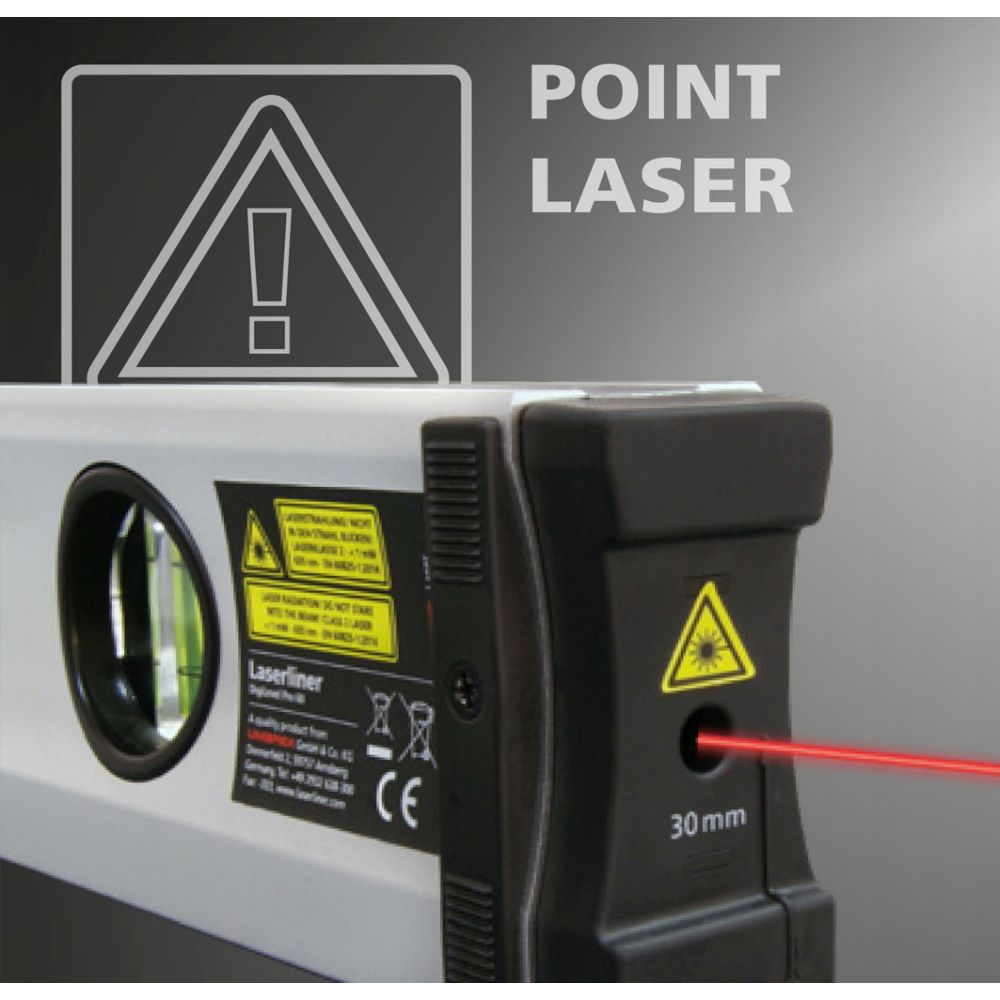

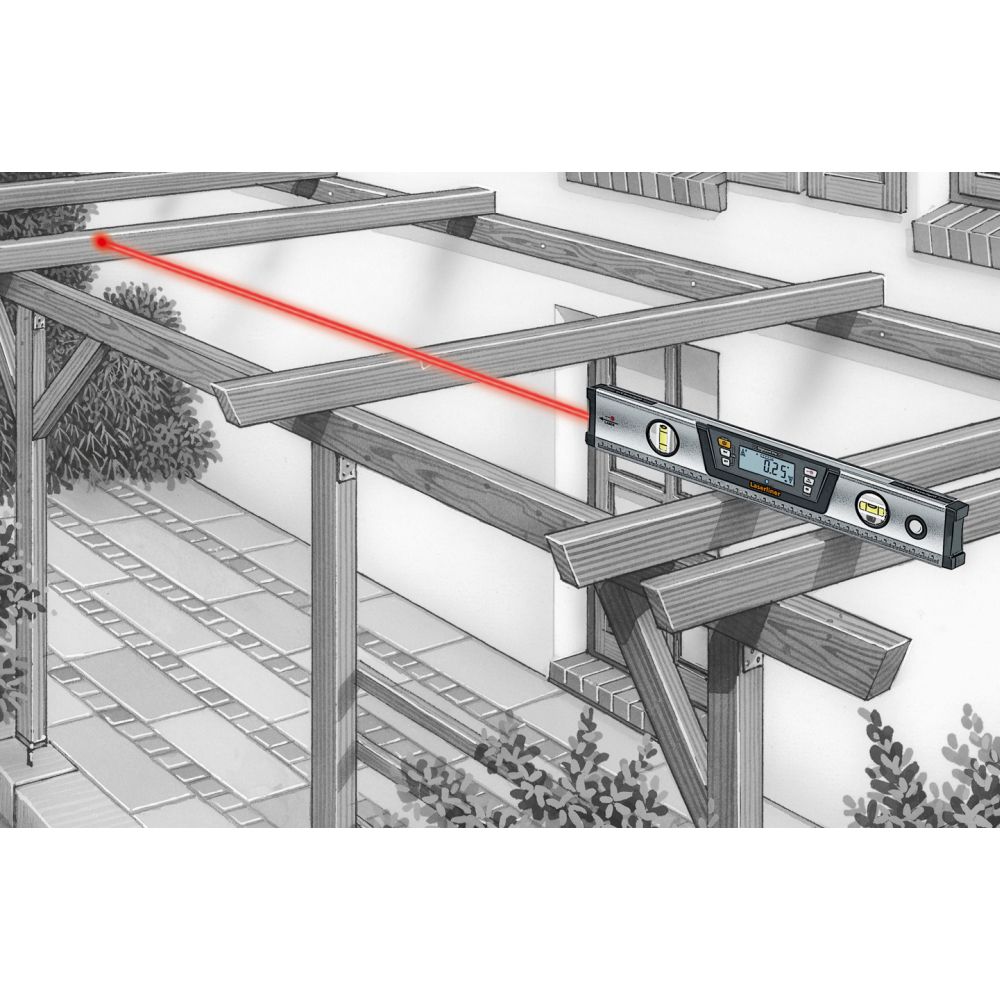

  • Integrated dot laser for optical extension

  • Laser projection

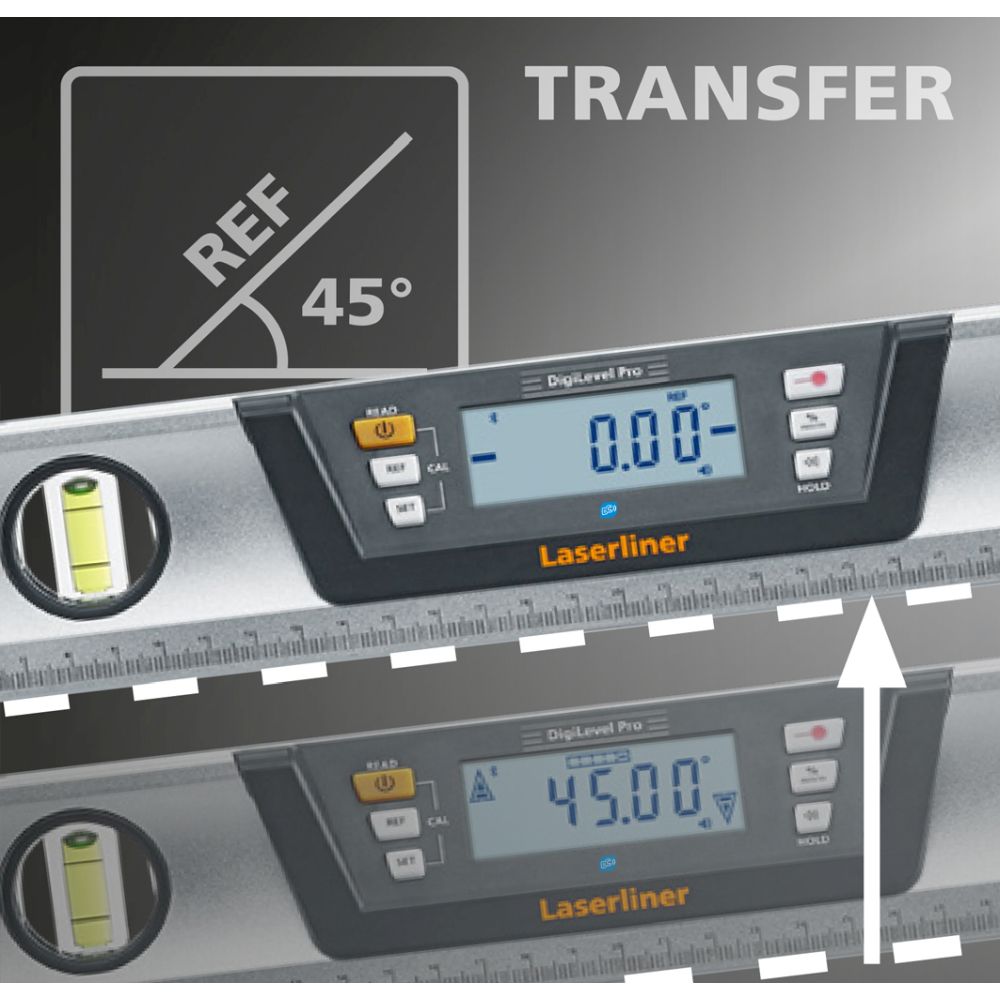

    Slope transfer (ref. mode)
    Data transfer
    Angle display
    Digital 360° slope measurement
    90°/45°/0° signal
    Overhead measurement (flip display)
    Vial Accuracy± 0.5 mm / m
    Electronic Measuring Precision± 0.05° at 0° … 1°
    ± 0.1° at 1° … 89°
    ± 0.05° at 89° … 90°
    Display Accuracy2 decimal places
    Display Accuracy 0° - 1°2 decimal places
    Display Accuracy 1° - 90°2 decimal places
    Laser Wavelength635 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/AC:2017)
    Protection ClassIP 54
    PortDigital Connection
    Power Supply2 x 1.5V LR03 (AAA)
    Operating Timewith laser: approx. 10 hours
    without laser: approx. 55 hours
    Operating Conditions-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
    Storage Conditions-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
    Dimensions (W x H x D)1200 mm x 63 mm x 33 mm x (ohne Zubehör)
    Weight1360 g (ohne Zubehör und Batterien)

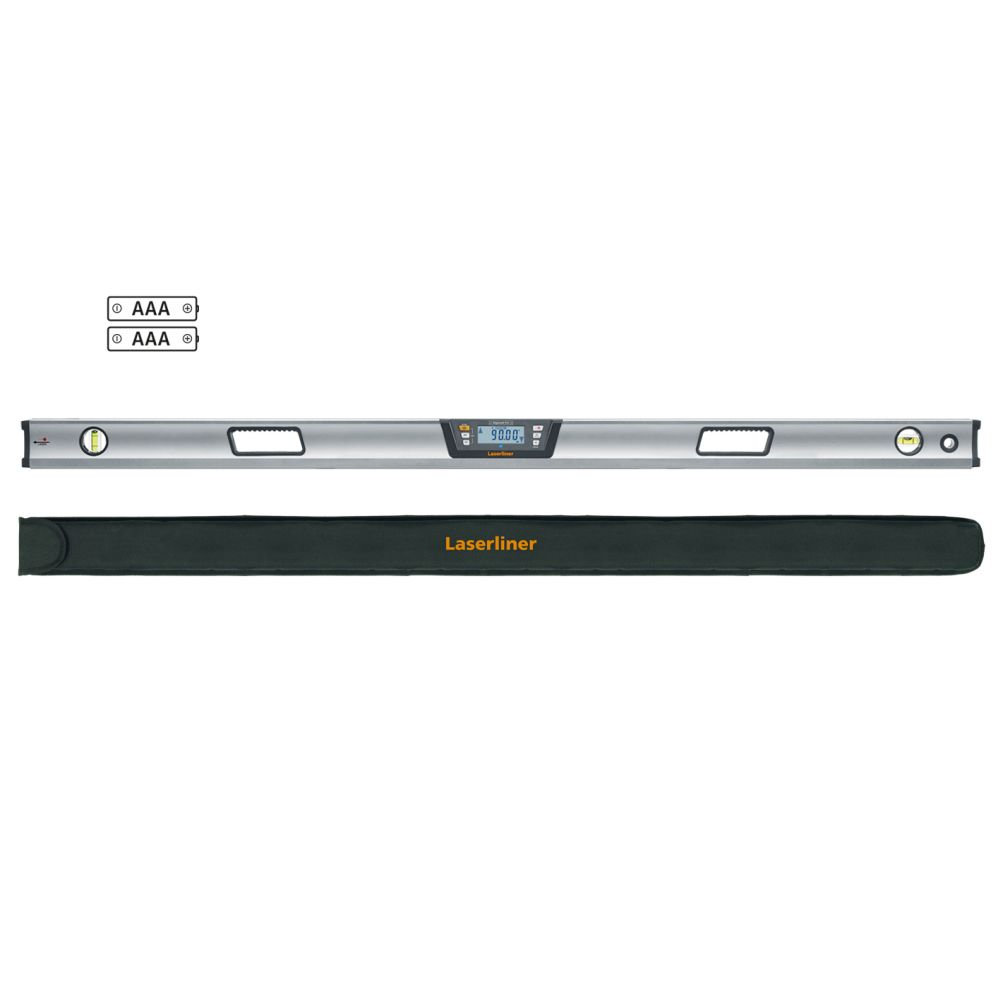

    Scope of delivery:
  • DigiLevel Pro 120
  • batteries
  • softbag


  • Documentation:

    Titel:
    Electronic spirit level

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 081.275A, GTIN (EAN): 4021563712977
