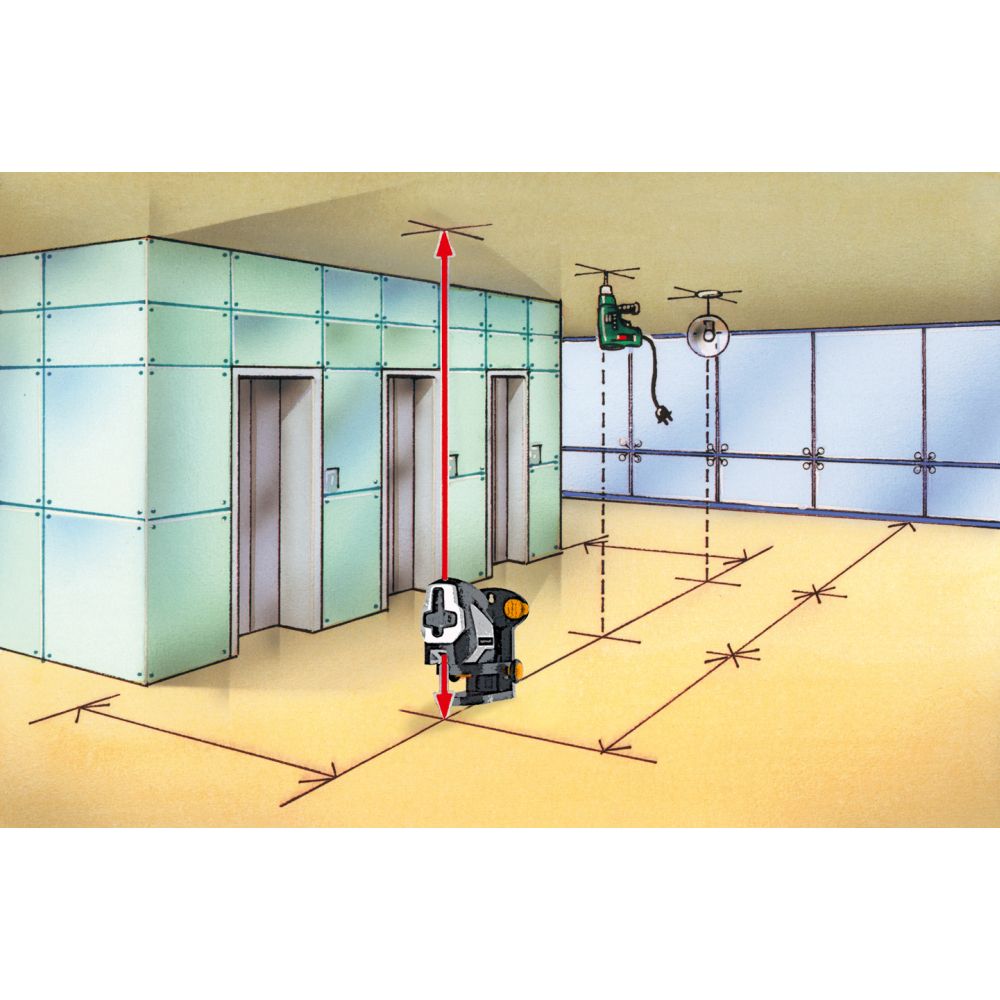

Description: This automatic cross-line laser is ideal for aligning horizontals, verticals and inclines. Additional plumb laser and reference beam for synchronous working on floor and ceiling. Optical signals warn the user when outside the levelling range. With the height-adjustable console, the laser can be fixed on the practical compact tripod, directly on the wall or on metallic surfaces. The pendulum locking is used for safe transport.
| Automatic horizontal levelling | ✅ |
| Battery operation | ✅ |
| Plumb laser down | ✅ |
| Manual slope function | ✅ |
| Self-Levelling Range | ± 4° |
| Accuracy | ±0.5 mm/m |
| Levelling | automatic |
| Visibility (Typical)* | 20 m |
| Working Range with Hand Receiver | (depends on how the technology affects the difference in brightness) 40 m |
| Laser Wavelength | 635 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/AC:2017) |
| Power Supply | 4 x 1.5V LR6 (AA) |
| Operating Time | approx. 25 hours |
| Operating Conditions | 0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level |
| Storage Conditions | -10°C … 70°C, max. humidity 80% rH |
| Dimensions (W x H x D) | 124 mm x 119 mm x 66 mm |
| Weight | 430 g (without accessories and batteries) |

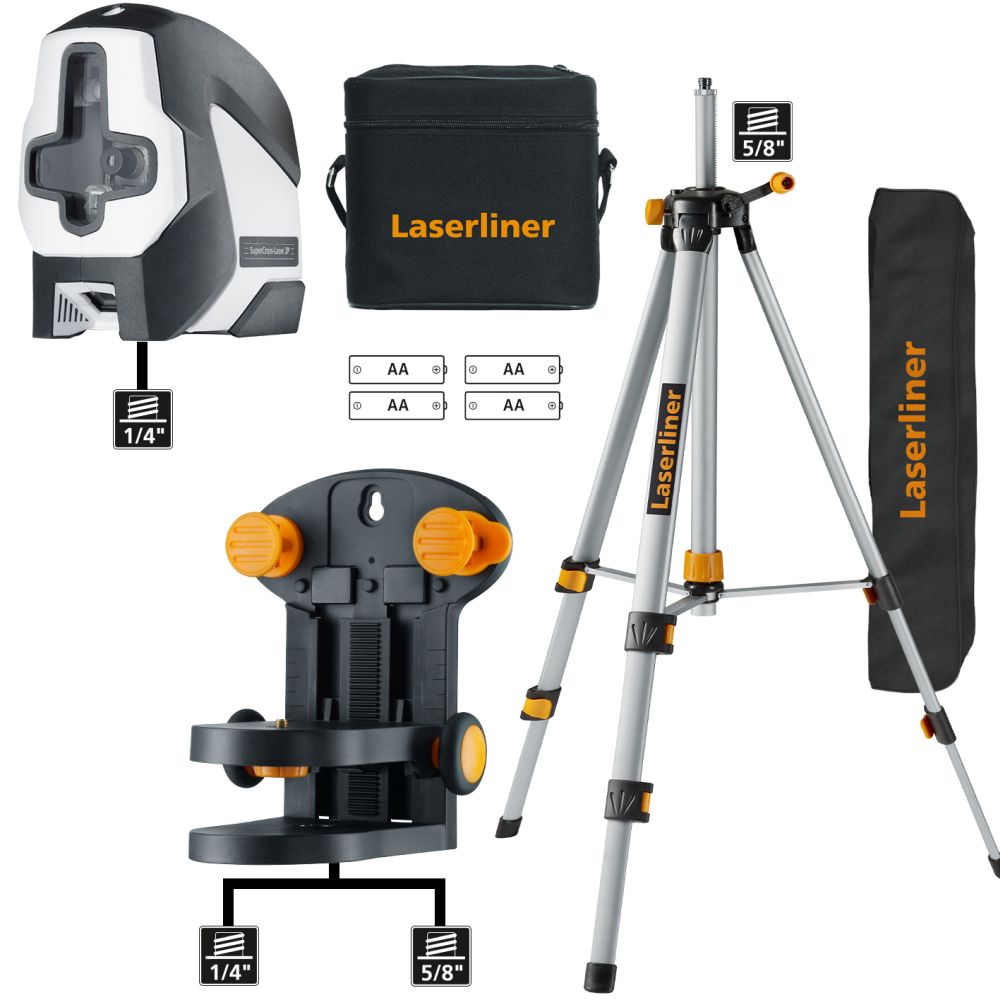

Scope of delivery:
Accessories (optional):
RangeXtender 30(Art.No.: 033.25A) - Laser receiver
RangeXtender 40(Art.No.: 033.40A) - laser receiver
CombiRangeXtender 40(Art.No.: 033.35A) - laser receiver
WallHolder(Art.No.: 036.70) - Wall bracket
TelePod 270 cm(Art.No.: 090.140A) - Telescopic tripod
FlexPod 1/4"(Art.No.: 090.131A) - mini stand
FlexHolder(Art.No.: 090.134A) - wall bracket
LaserSight red(Art.No.: 020.70A) - laser enhancement glasses
Documentation:
Product information sheet not available.
Instructions not available.
Categorie:
Titel:
Automatic cross-line laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
OrangeLine
Art.No.: 081.139A, GTIN (EAN): 4021563714384
