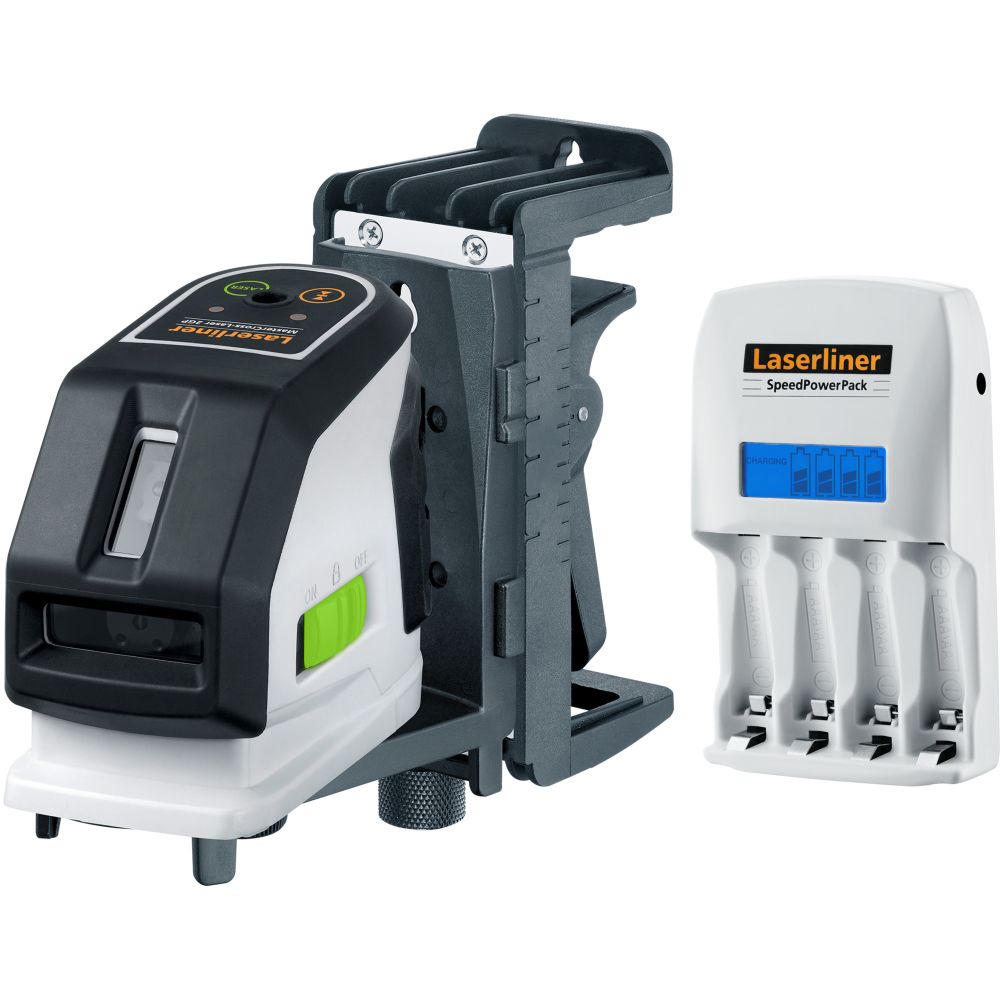

Description: The MasterCross-Laser 2GP allows the exact alignment of horizontals, verticals and slopes. With the additional plumb laser, it is possible to work simultaneously on the floor and the ceiling. The measuring device offers high visibility, time-saving automatic alignment and a variety of mounting options. The SpeedPowerPack, comprising four batteries and a charger is available for battery operation. The refresh function allows batteries to be completely discharged and recharged.
| Hand receiver mode | ✅ |
| Horizontal/vertical levelling | ✅ |
| Manual slope function | ✅ |
| Replaceable battery system | ✅ |
| Battery operation | ✅ |
| Self-Levelling Range | ± 3° |
| Accuracy | ±0.2 mm/m |
| Levelling | automatic |
| Visibility (Typical)* | 55 m |
| Laser Wavelength | 515 nm |
| Laser Class | 2 / < 1 mW |
| Power Supply | 4 x 1.5V LR6 (AA) |
| Operating Time | approx. 4 hours |
| Operating Conditions | 0°C … 50°C, max. humidity 85% rH, no condensation, max. working altitude 4000 m above sea level |
| Storage Conditions | -10°C … 70°C, max. humidity 85% rH |
| Dimensions (W x H x D) | 66 mm x 100 mm x 125 mm |
| Weight | 570 g (incl. batteries) |

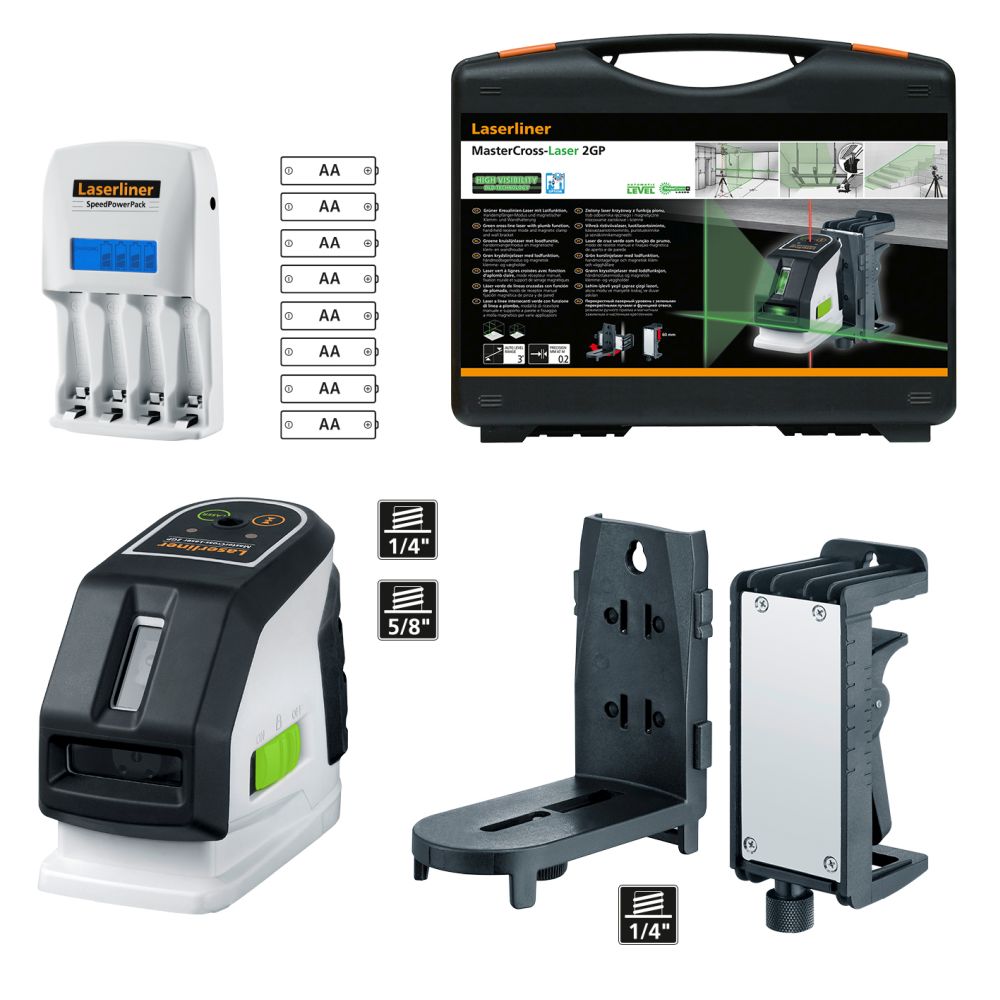

Scope of delivery:
Accessories (optional):
RangeXtender G 60(Art.No.: 033.55A) - laser receiver
RangeXtender M 50(Art.No.: 033.70A) - Laser receiver
CombiRangeXtender 40(Art.No.: 033.35A) - laser receiver
Lightweight Tripod 165 cm(Art.No.: 080.02) - tripod
Crank Tripod P 175 cm(Art.No.: 080.26) - crank tripod
Crank Tripod 260 cm(Art.No.: 080.35) - Crank tripod
Crank Tripod 300 cm(Art.No.: 080.39) - Crank tripod
LaserSight green(Art.No.: 020.71A) - Laser enhancement glasses
Documentation:
Product information sheetInstructions not available.
Categorie:
Titel:
Green cross-line laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 031.390-1, GTIN (EAN): 4021563714629
