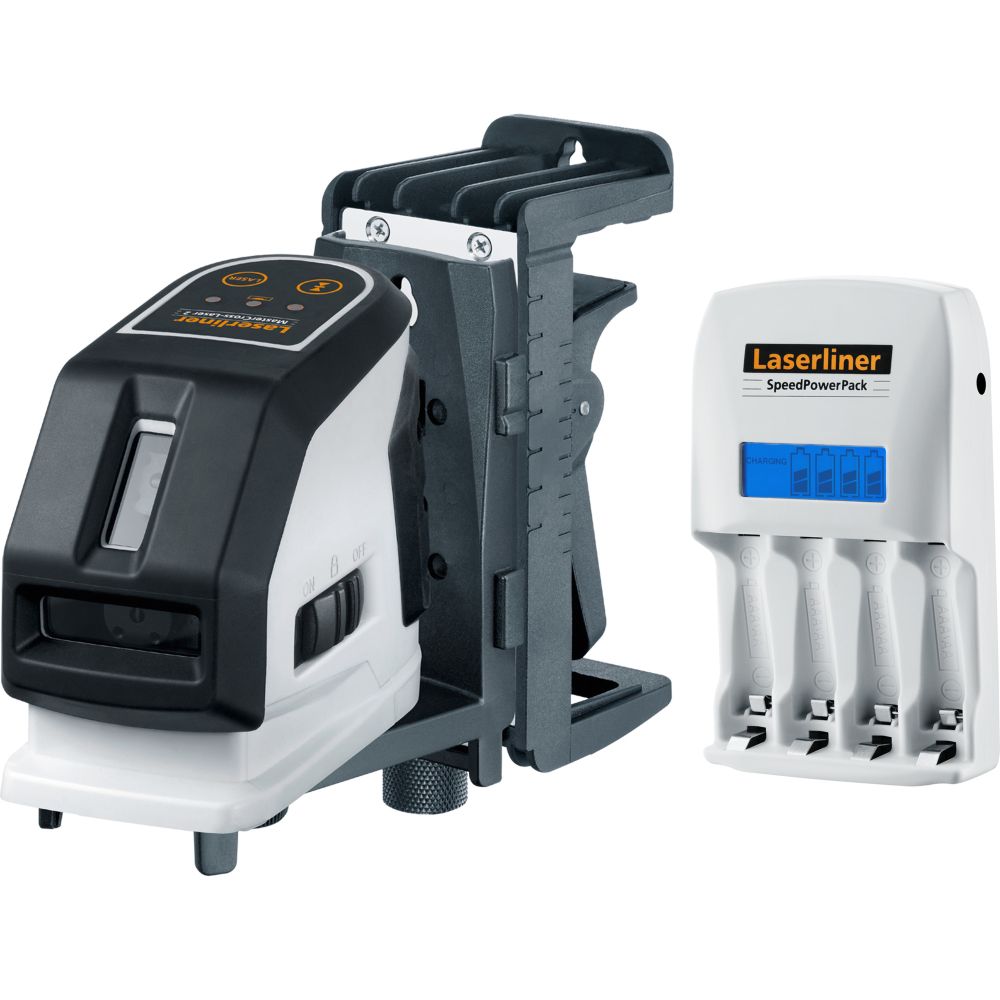

Description: The cross line laser produces two clearly visible laser lines which can be individually switched. The tool is suitable for aligning horizontals, verticals and slopes. The magnetic clamp and wall bracket allows it to be used in many different scenarios. The integrated hand-held receiver mode and optional laser receiver are ideal for outdoor applications. This high-performance battery set ensures a long operating life for laser measuring devices.
| Hand receiver mode | ✅ |
| Horizontal/vertical levelling | ✅ |
| Manual slope function | ✅ |
| Battery operation | ✅ |
| Self-Levelling Range | ± 3° |
| Accuracy | ±0.2 mm/m |
| Levelling | automatic |
| Visibility (Typical)* | 20 m |
| Laser Wavelength | 635 nm |
| Laser Class | 2 / < 1 mW |
| Power Supply | 4 x 1.5V LR6 (AA) 4 x 1.2V HR6 (AA) NiMH |
| Operating Time | approx. 4 hours |
| Operating Conditions | 0°C … 50°C, max. humidity 85% rH, no condensation, max. working altitude 4000 m above sea level |
| Storage Conditions | -10°C … 70°C, max. humidity 85% rH |
| Dimensions (W x H x D) | 66 mm x 100 mm x 125 mm |
| Weight | 570 g (incl. batteries) |

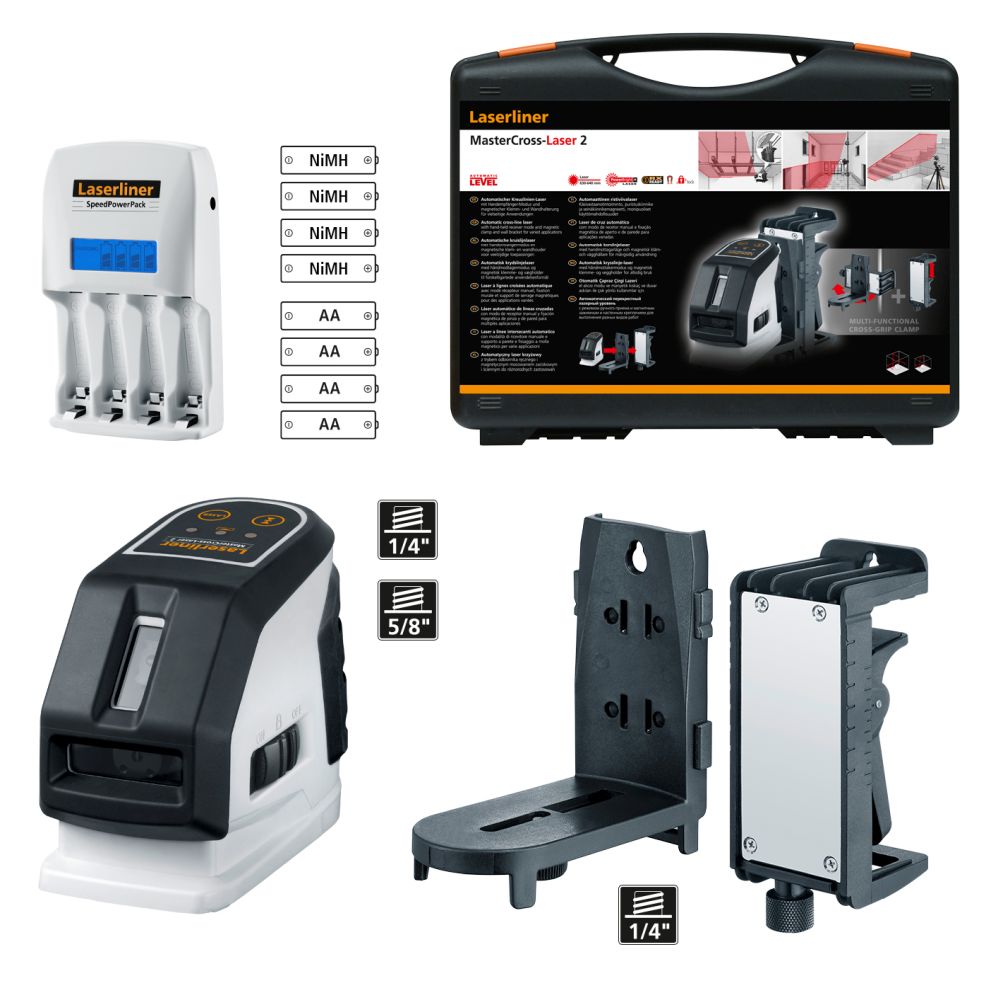

Scope of delivery:
Accessories (optional):
RangeXtender 30(Art.No.: 033.25A) - Laser receiver
RangeXtender 40(Art.No.: 033.40A) - laser receiver
VarioStand L 300 cm(Art.No.: 080.24A) - tripod
Lightweight Tripod 165 cm(Art.No.: 080.02) - tripod
LaserSight red(Art.No.: 020.70A) - laser enhancement glasses
Documentation:
Product information sheetInstructions not available.
Categorie:
Titel:
Cross-line laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 031.350-1, GTIN (EAN): 4021563714667
