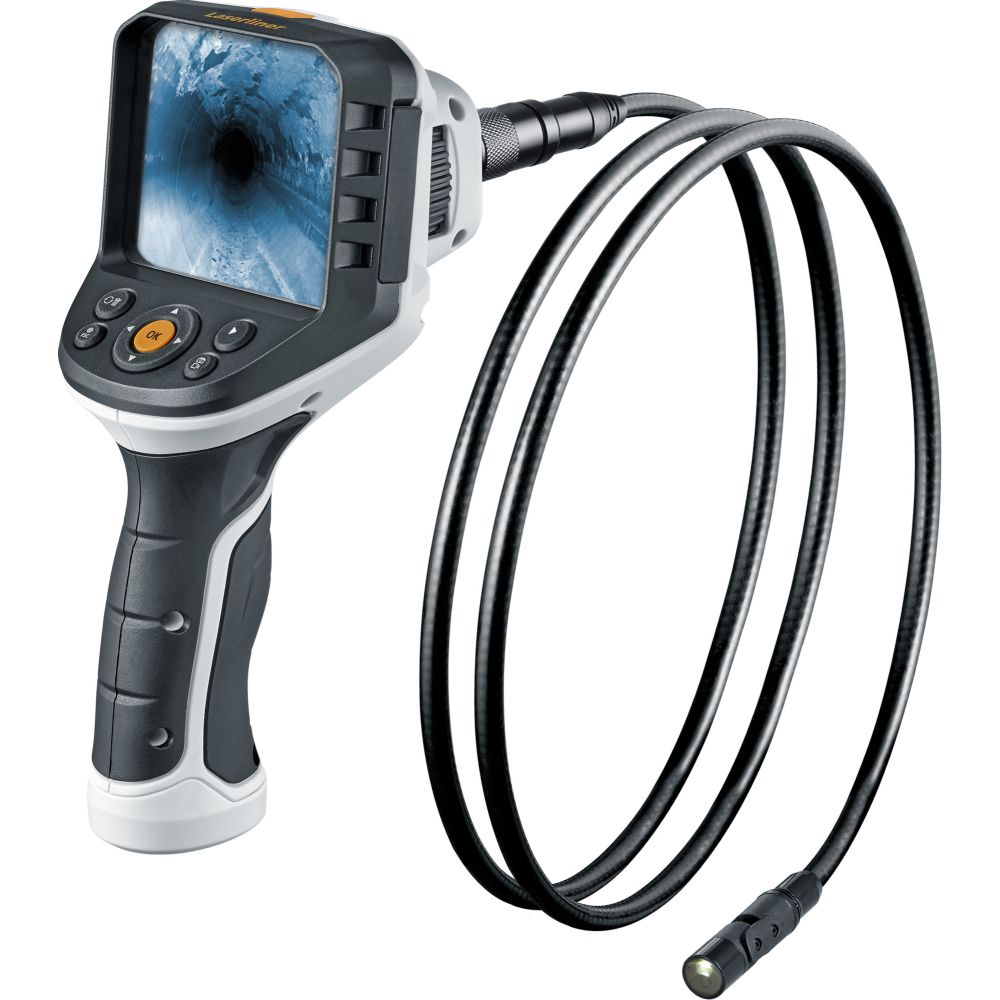

VideoFlex G4 Vario

Professional video inspection system stepwise adjustable swivel range

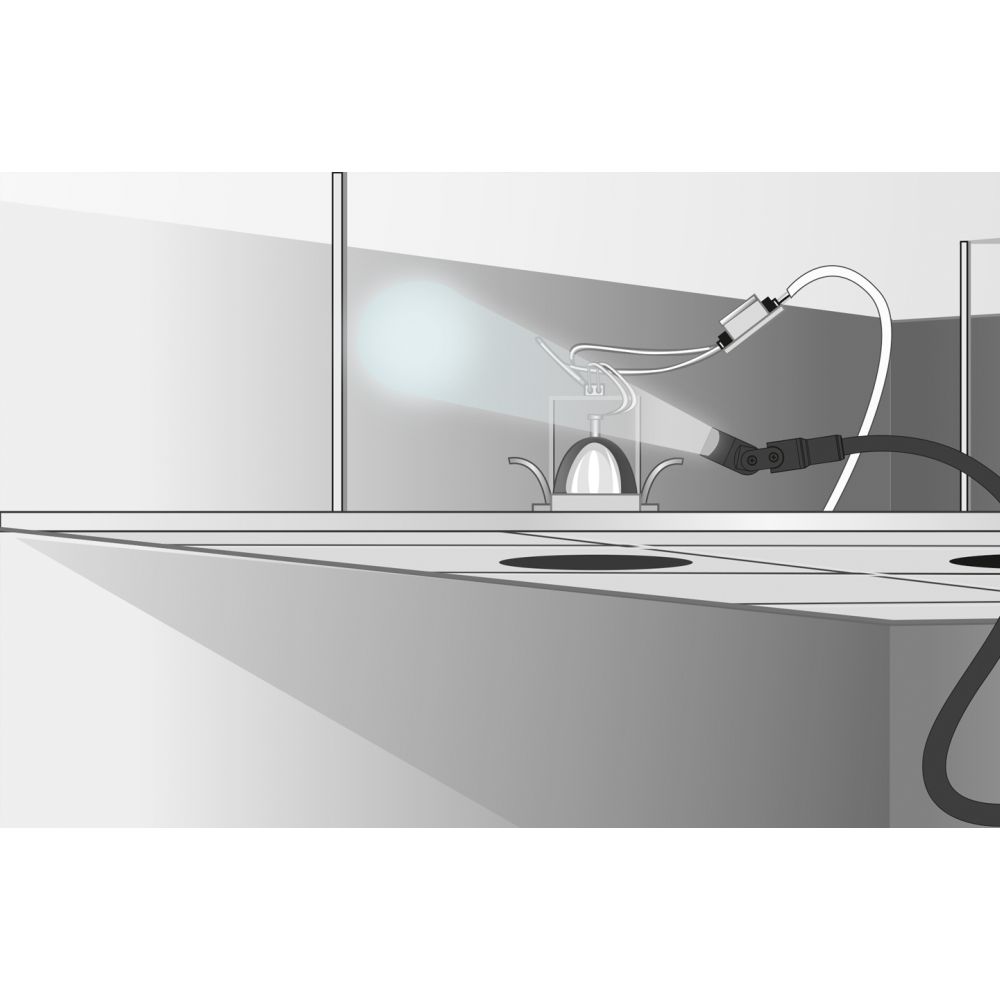

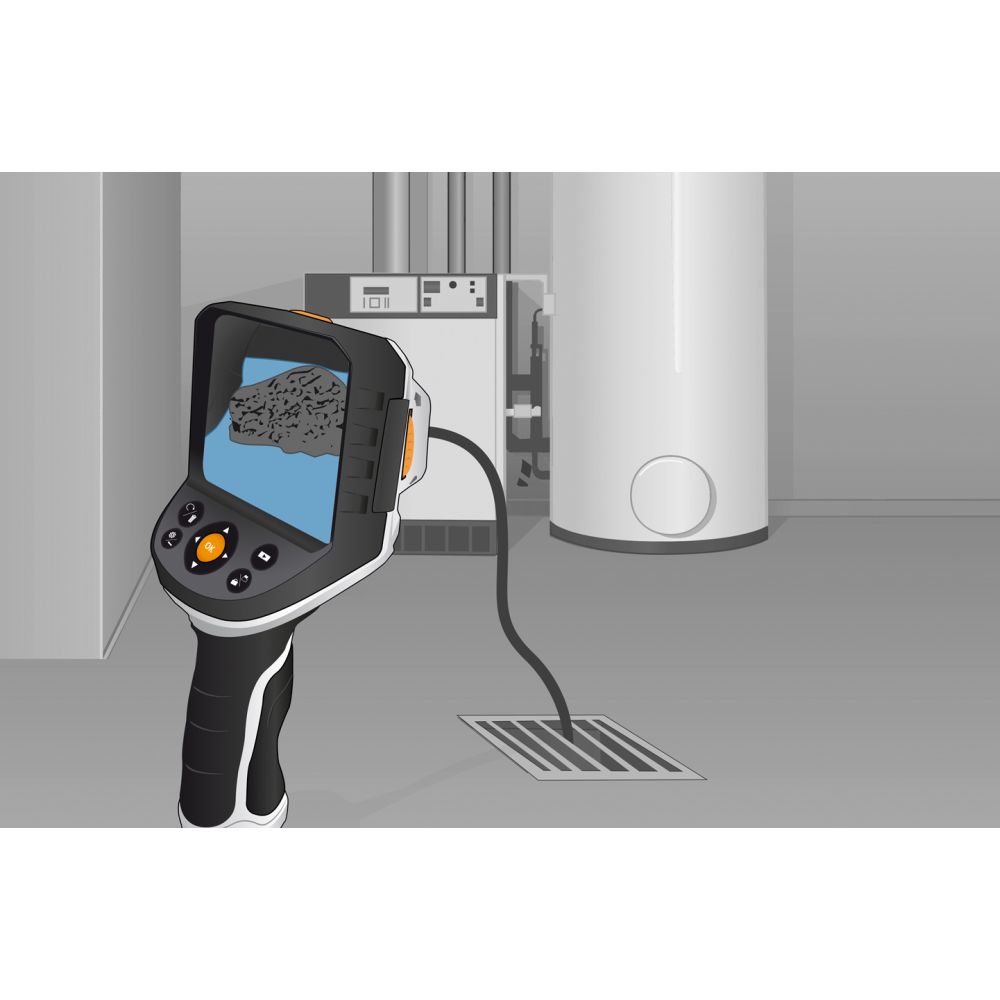

Description: This professional video inspection system allows hard-to-reach places, such as in pipes, wall cavities and motor vehicles to be visually inspected. Intuitive rotation of the base unit provides the user with easy spatial orientation. The efficient LED object lighting ensures reliable image capture, even in poor conditions. The camera head with a stepwise adjustable swivel range of 180° allows optimum adaptation to the location where it is to be used. The true colour reproduction provides an extremely realistic image and details can be clearly captured using the zoom function. The ergonomically designed device fits well in the hand and is also comfortable to use, even after extended periods of work. With eight languages and an exchangeable camera unit, this device can be used in many different application areas. Images and videos can be saved on an SD memory card and analysed via the USB-C interface.

  • Effective problem localisation behind or in objects, walls, pipes, cavities

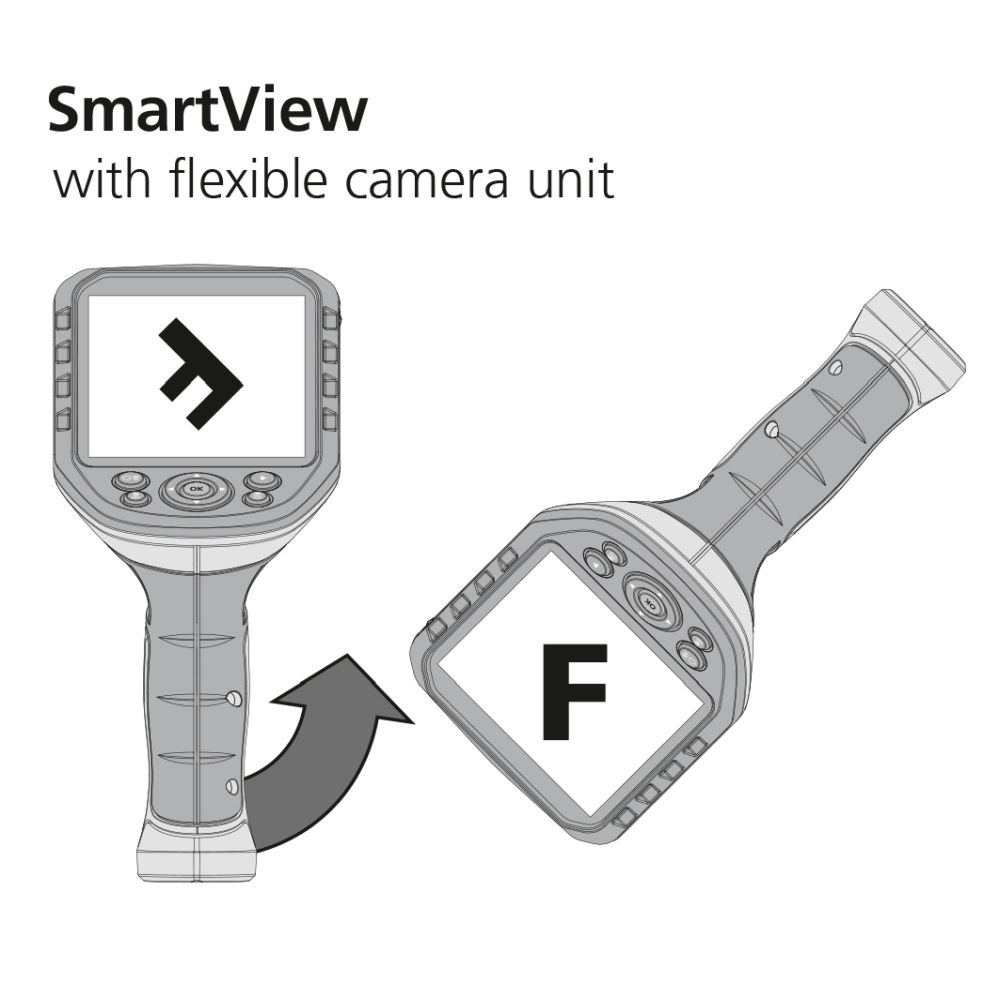

  • SmartView: Intuitive rotation of the base unit for easy spatial orientation

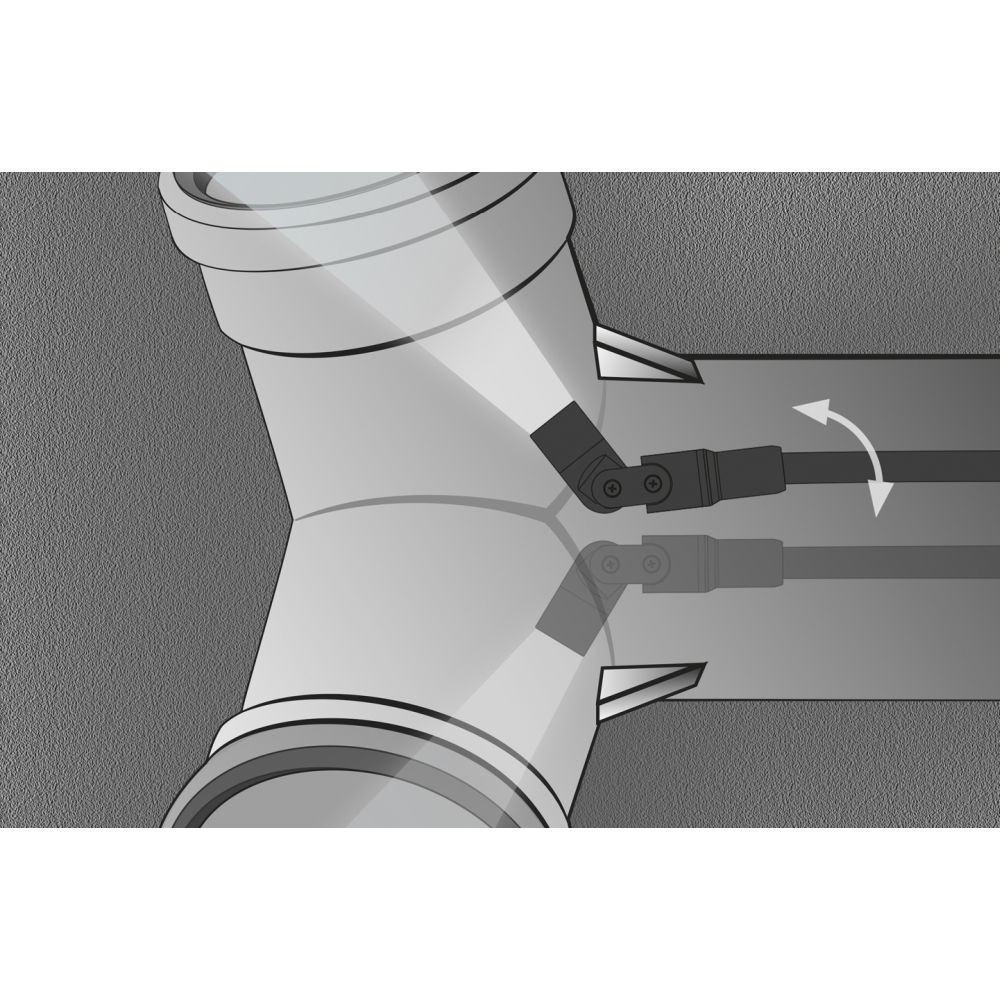

  • The camera head can be adapted ideally to the location where it is to be used thanks to a stepwise adjustable swivel range of 180°
  • Good object lighting due to high-performance LED

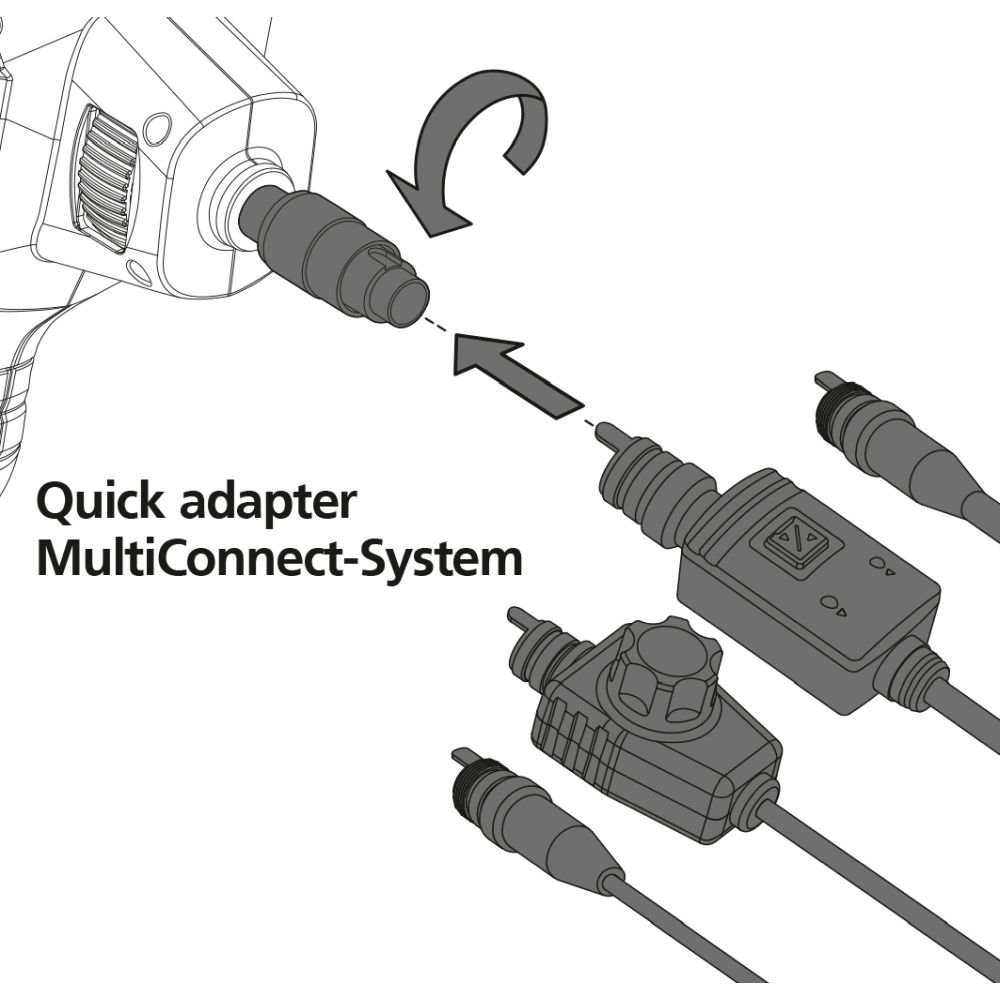

  • Range of installation options due to exchangeable camera unit
  • True colours for highly realistic image
  • Resistant to petrol and diesel
  • Device fits well in the hand due to ergonomic design
  • Suitable image available on the monitor through rotation and mirroring
  • The images can be stored for analysis and documentation
  • USB-C interface for analysis on PC
  • Easy-to-read display
  • 8 available languages

  • Live display
    Image/video recording
    Image/video playback
    Digital zoom
    Object illumination
    Time stamp
    Image alignment
    External image/video output
    Data transfer
    SmartView
    Diameter Camera Head17 mm
    Camera Resolution640 x 480 pixels
    Field of View (FOV)73°

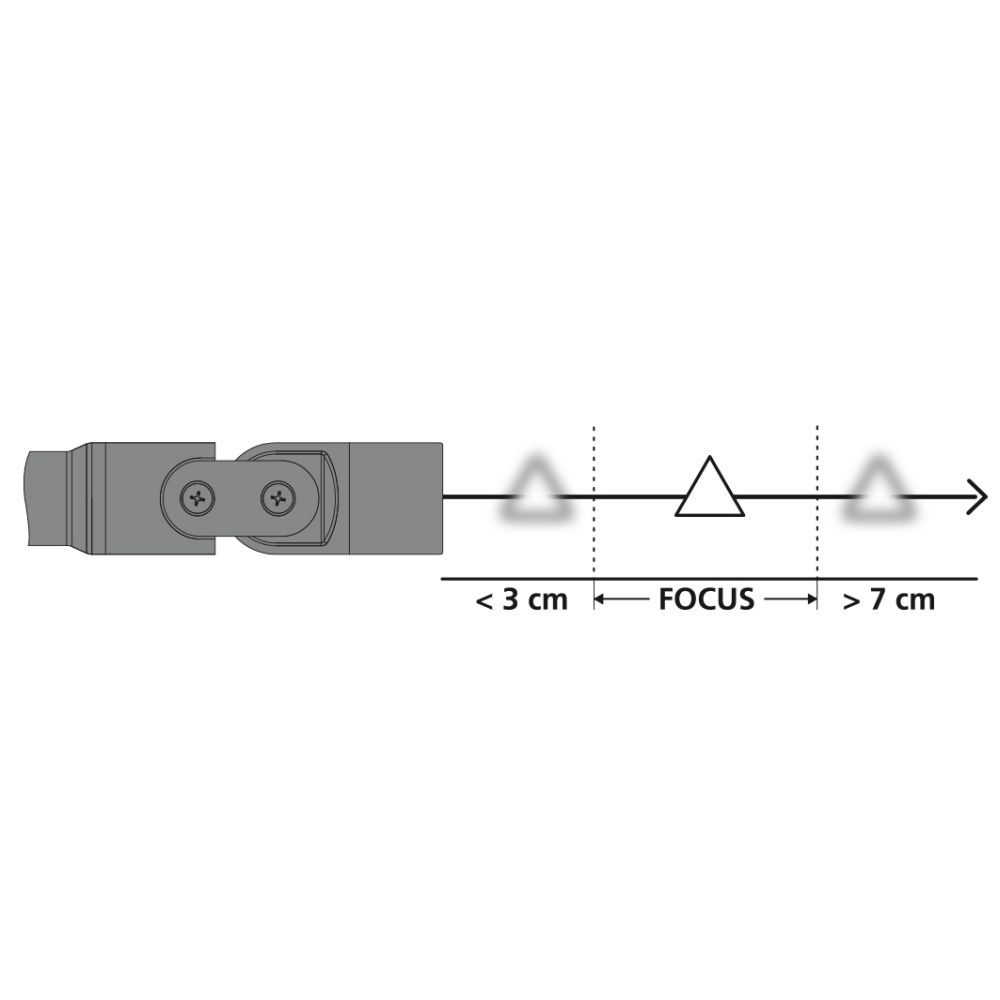

    Depth of Focus (DOF)3 … 7 cm
    Screen Type3,5" Colour TFT
    Display Resolution320 x 240 pixels
    Image FormatJPEG
    Length of Probe1.5 m
    Illumination5 brightness levels
    Digital Zoom2x digital zoom in 20% increments
    MemoryMicro-SD memory card up to 16 GB
    PortUSB

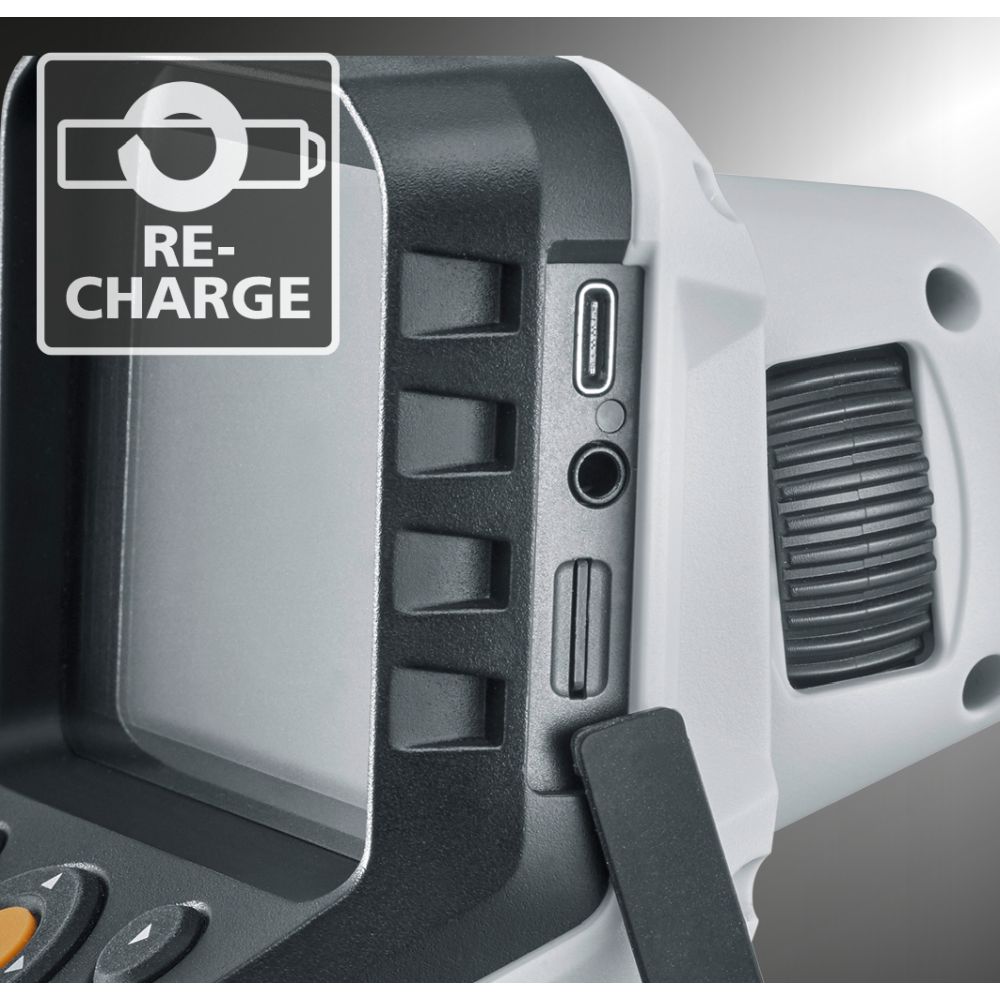

    PortsUSB type C
    RCA video output
    Power SupplyUSB type C 5V / 2A
    Li-ion battery pack 3.7V / 2.8Ah
    Dimensions (W x H x D)181 mm x 207 mm x 96 mm
    Weight342 g (inkl. Akkupack)

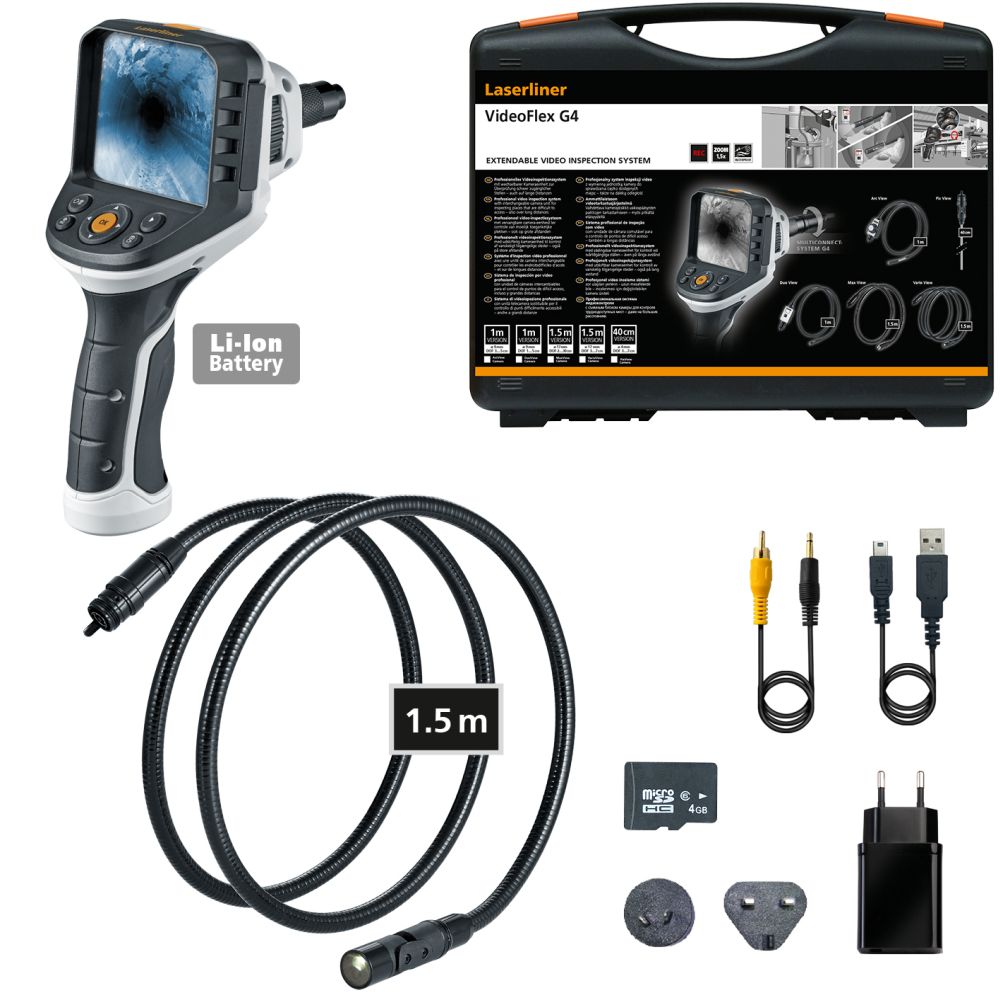

    Scope of delivery:
  • VideoFlex G4
  • VarioView Camera 1,5 m
  • Li-ion battery pack
  • network/charging device incl. international adapter
  • USB cable
  • 4 GB micro SD card
  • video cable
  • carrying case


  • Documentation:

    Titel:
    Professional video inspection system

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 082.247A, GTIN (EAN): 4021563716012
