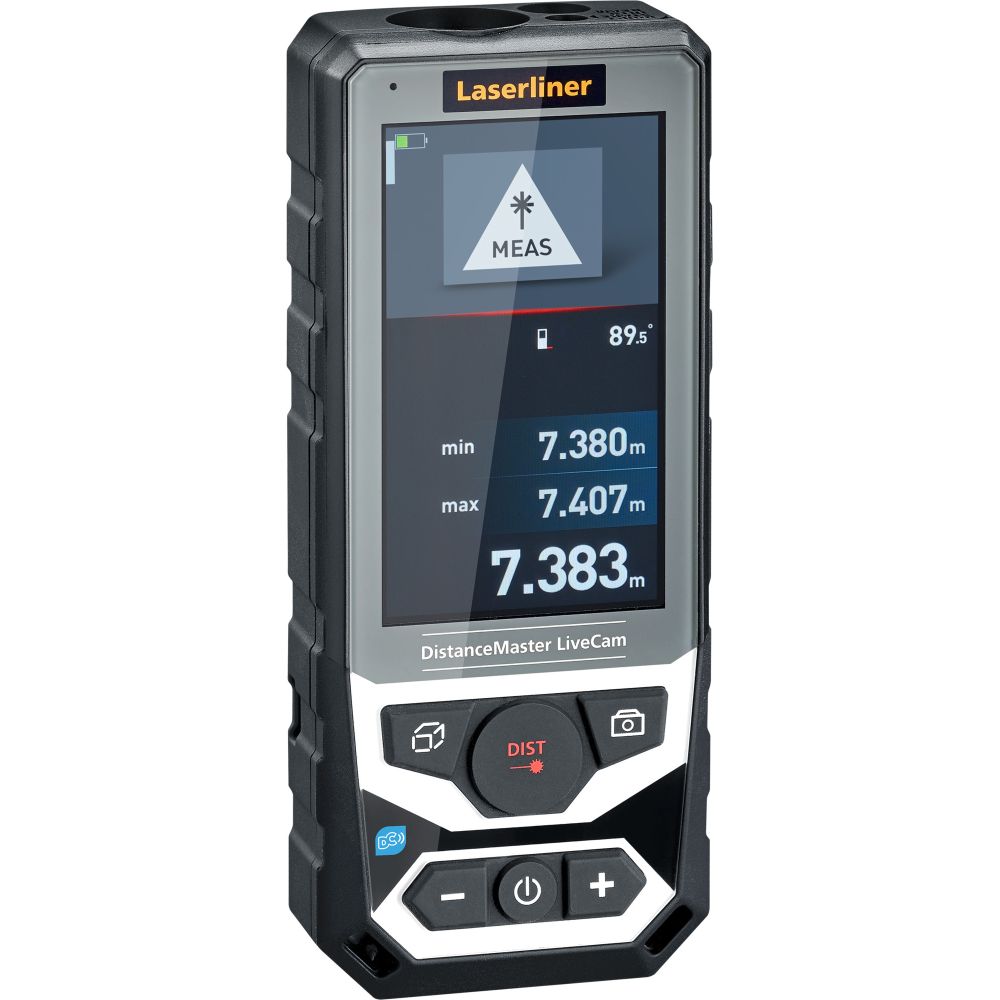

DistanceMaster LiveCam

Multi-functional laser distance measuring device with HD camera spotter, automatic 4x zoom and digital connection


Description: Perpendicular areas, circular areas, circular volumes, triangular areas and trapezoidal areas can be determined using this multi-functional laser distance measuring device. It can also determine indirect heights and take point-to-point measurements. An HD camera with 4x zoom acts as an effective spotter during the measurement process if the laser dot is difficult to see at a long distance or in unfavourable lighting conditions. Due to its long measuring range of up to 150 m, this device is ideal for long distances and can also be used outdoors. Protection to IP 65 ensures the device is both dust- and splash-proof. Housing reference point options, front, back or tripod. Easy to use due to short measuring time, timer function for automatic triggering, and easy-to-read display. 30 memory locations are available to record results. The measurement data can be quickly transferred to mobile devices via the digital connection using the free MeasureNote app. Energy-saving Auto Off function when not in use.

  • Simple measurement, addition and subtraction of lengths, areas and volumes

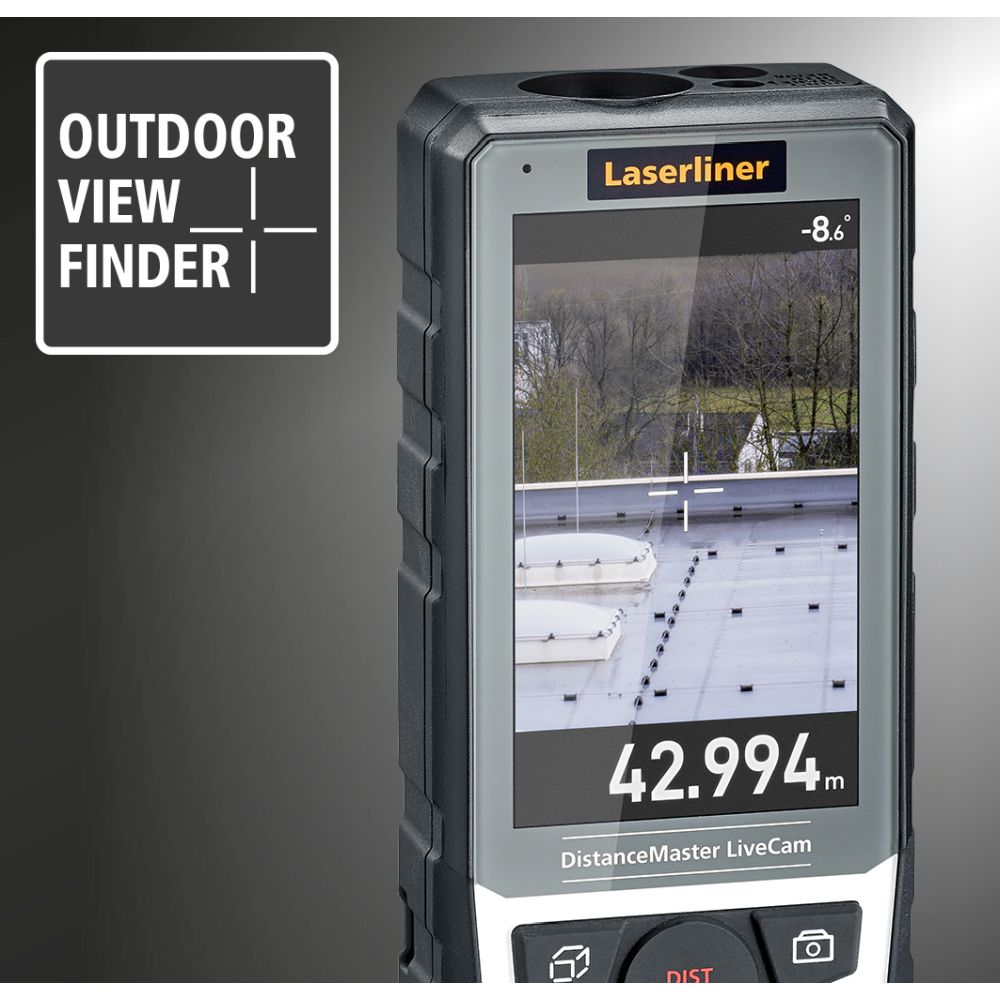

  • HD camera with automatic 4x zoom for accurate targeting of the measurement point
  • Precise determination of circular areas and volumes
  • Precise measurement of triangular and trapezoidal areas
  • Extremely long measuring range of 150 m
  • Continuous measurement with min/max display
  • Indirect determination of height in hard-to-reach locations using Pythagoras function

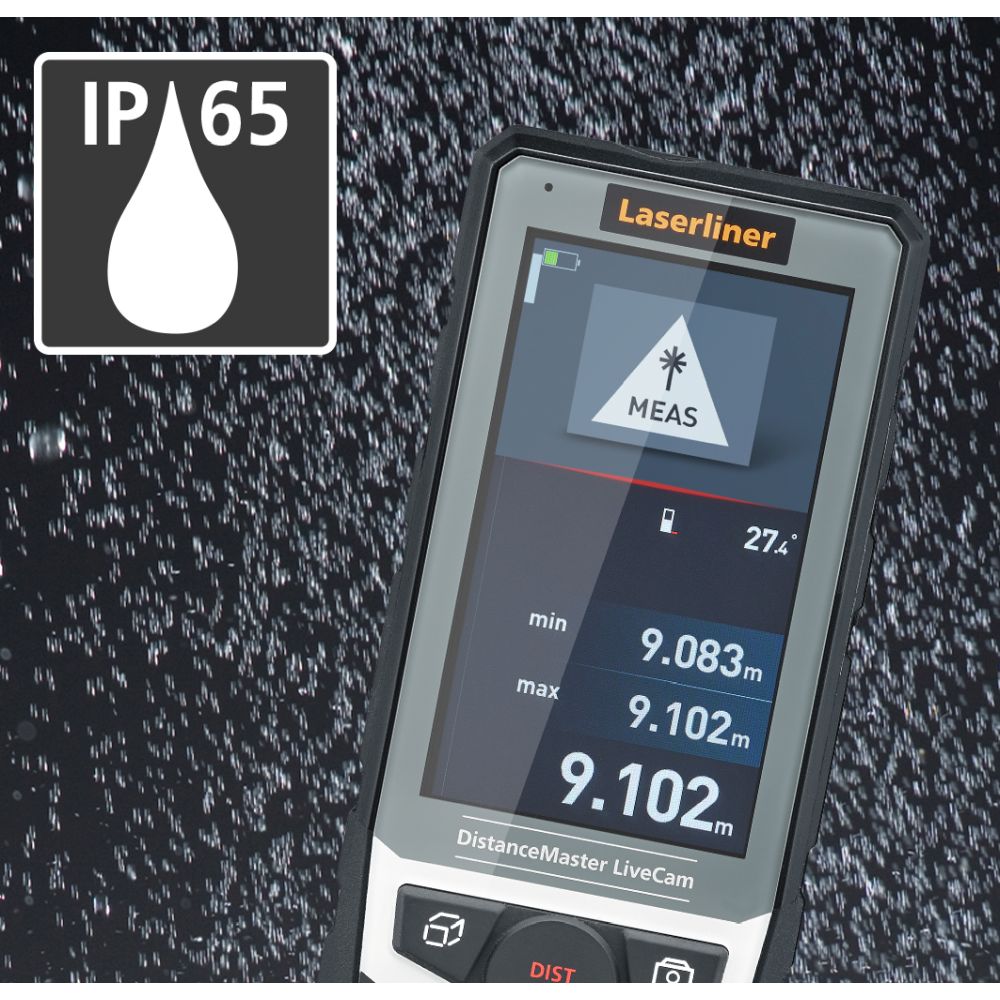

  • Robust, dustproof and waterproof

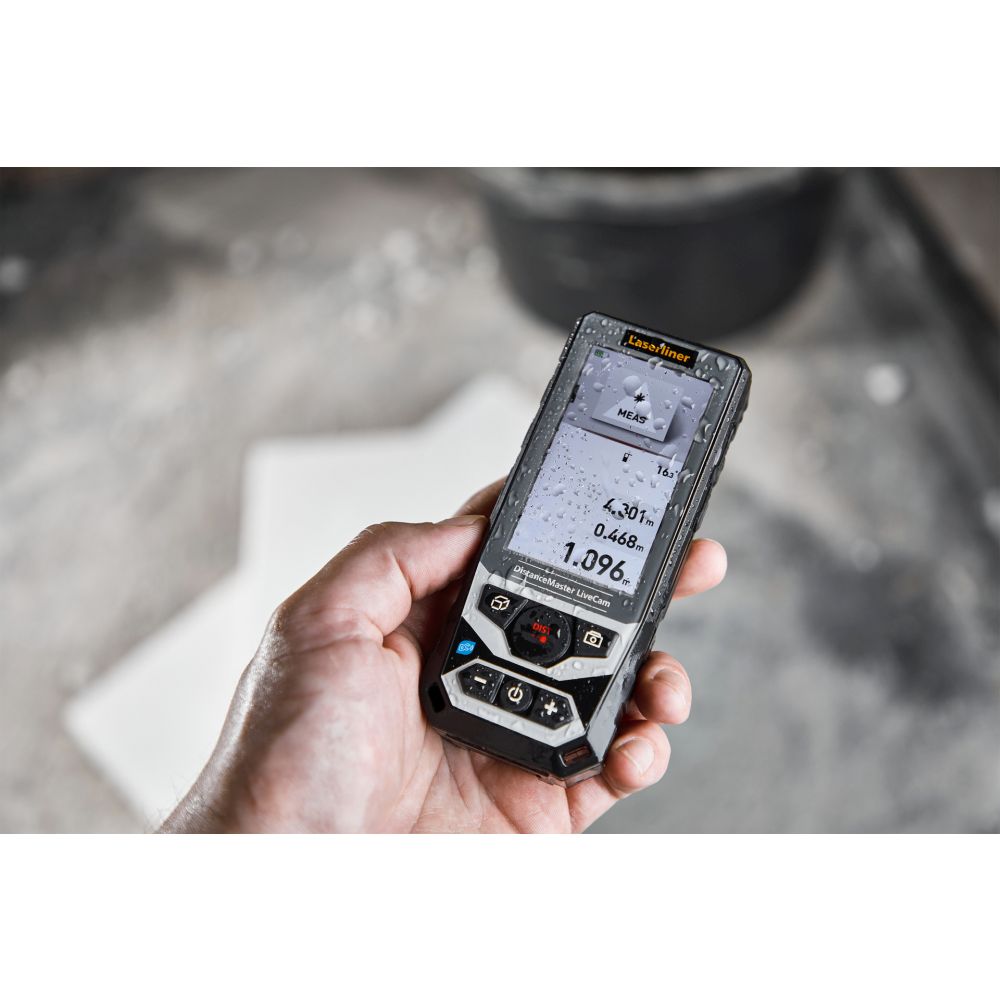

  • Perfect for use outdoors and in bright environments
  • Easy transfer of measurement data to mobile devices via the digital connection
  • Front, back or tripod housing reference point options
  • Timer function to automatically trigger the measuring process

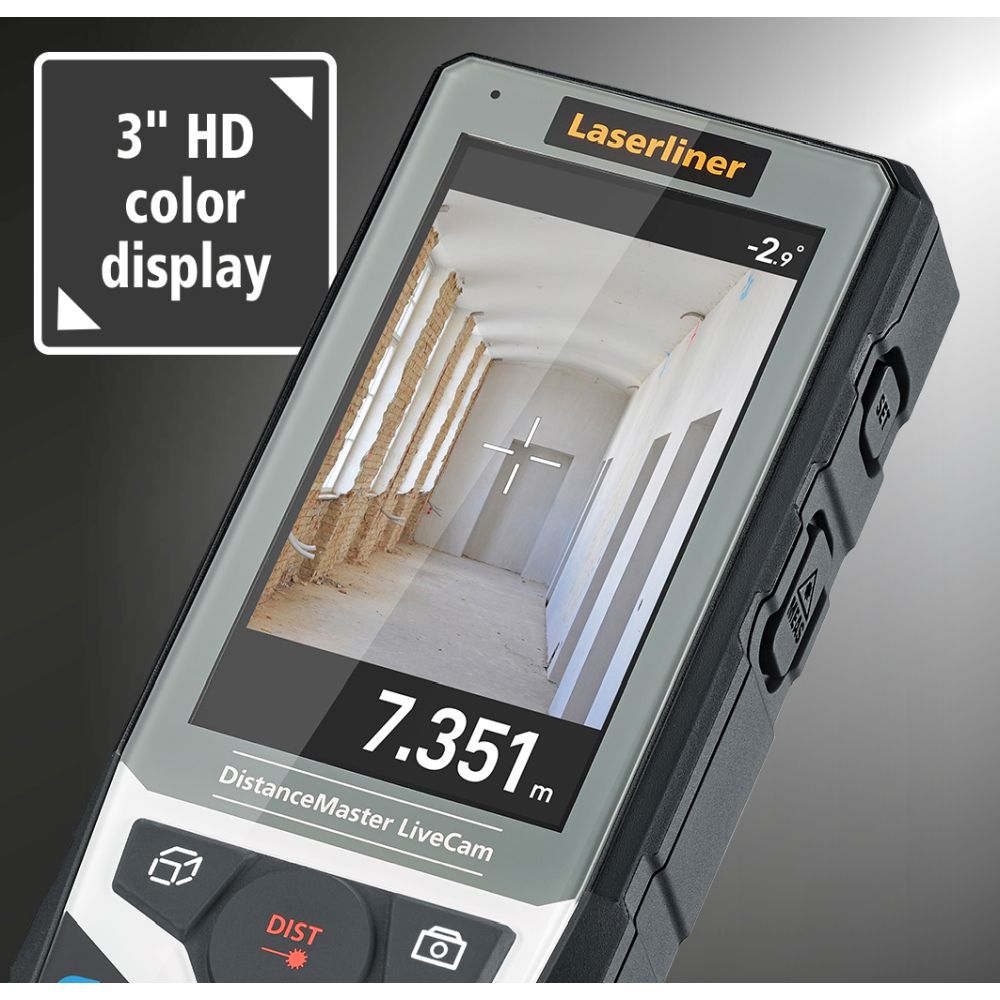

  • Easy-to-read colour display with screen rotation
  • Effective saving of measured values through memory function with 50 memory locations
  • Energy-saving Auto Off function when not in use

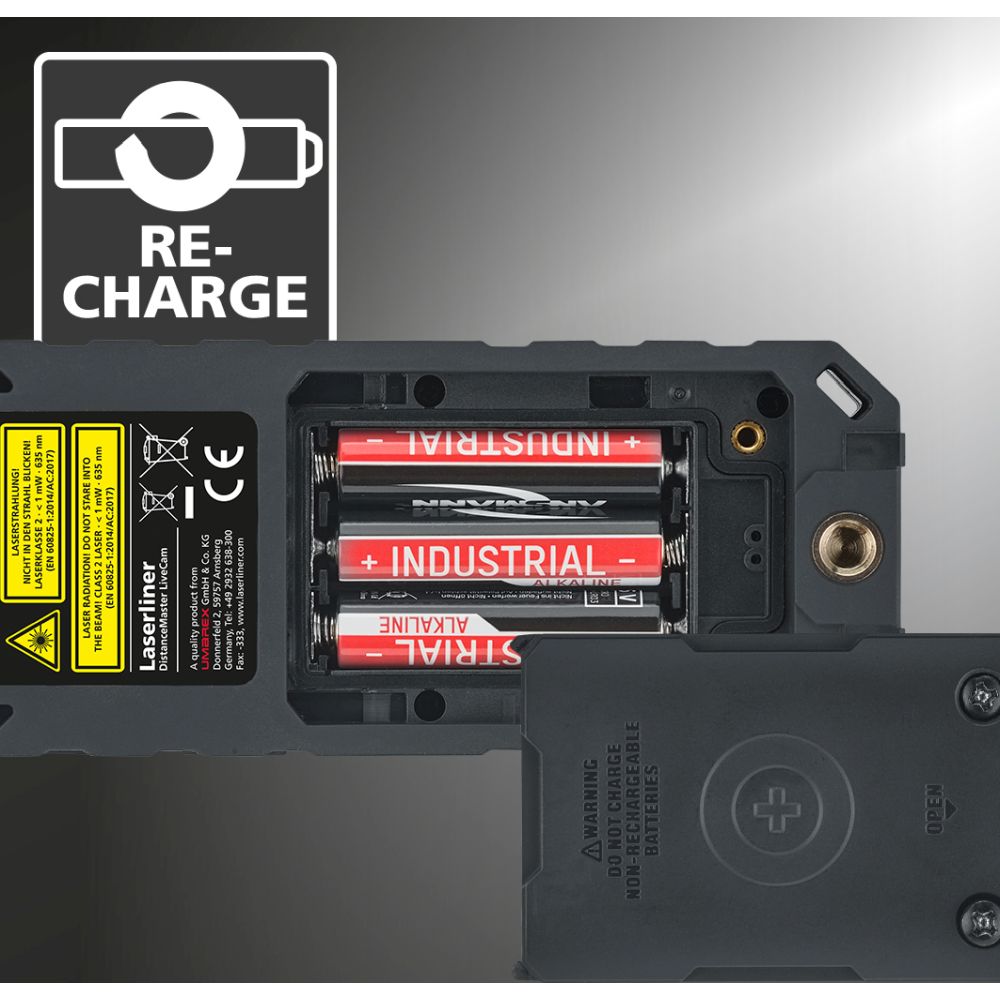

  • Rechargeable via USB-C cable

  • Length/area/volume
    Min/Max
    Continuous measurement
    Indirect determination of height (Pythagoras)
    Slope display
    Selectable housing reference point
    Addition/subtraction
    Camera spotter
    Stake out lengths
    Trapezium 1 + 2
    Triangular surface
    Circular area
    Circular volume
    Data transfer
    Timer
    Precision (Typical)*± 1.5 mm
    Measurement Range (Inside)**0,2 m - 150 m
    Laser Wavelength635 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Memory50 storage locations
    Unitsm / ft / inch / _' _''
    Power Supply3 x 1.2V HR03 (AAA) NiMH
    Operating Conditions-10°C … 40°C, Luftfeuchtigkeit max. 20 … 85% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
    Dimensions (W x H x D)54 mm x 130 mm x 28 mm
    Weight184 g (inkl. Akkus)
    * measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces.
    ** at max. 15,000 lux

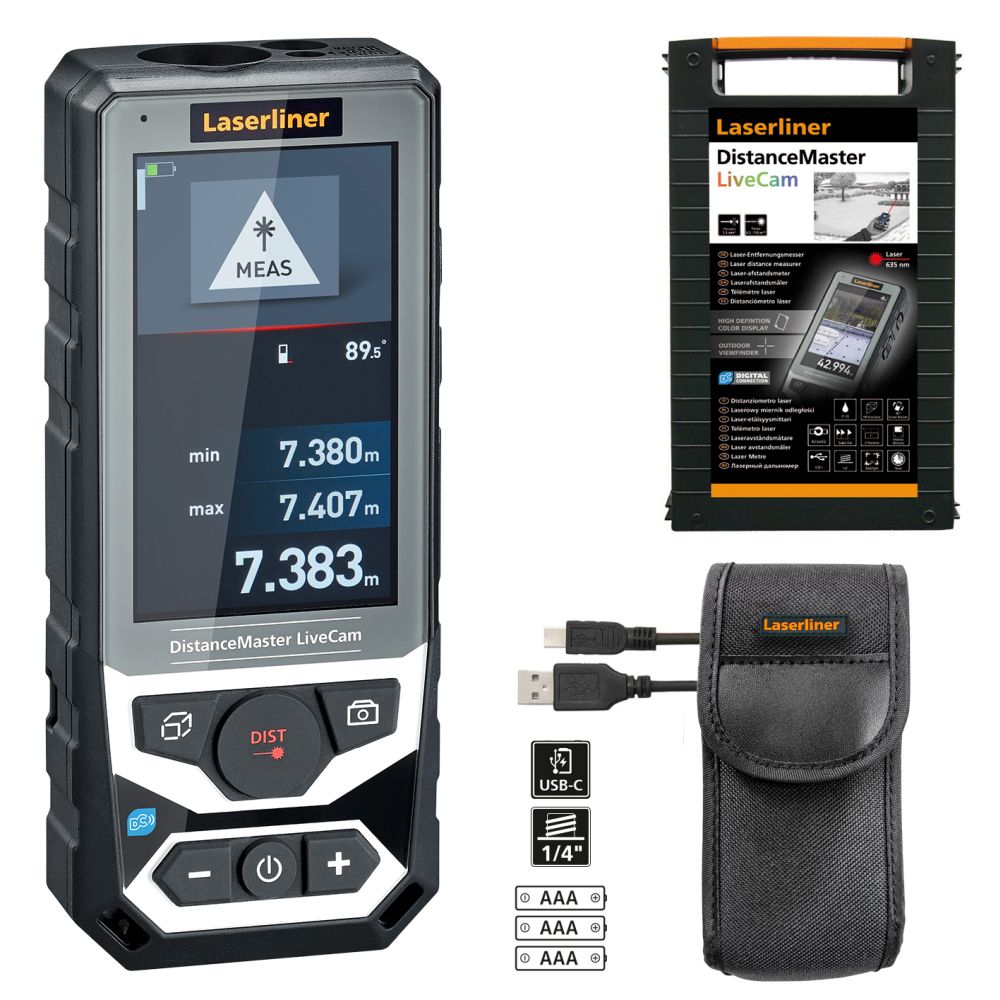

    Scope of delivery:
  • DistanceMaster LiveCam
  • rechargeable batteries
  • USB charging cable
  • softbag
  • carrying case


  • Documentation:

    Titel:
    Laser rangefinder

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 080.985A, GTIN (EAN): 4021563716289
