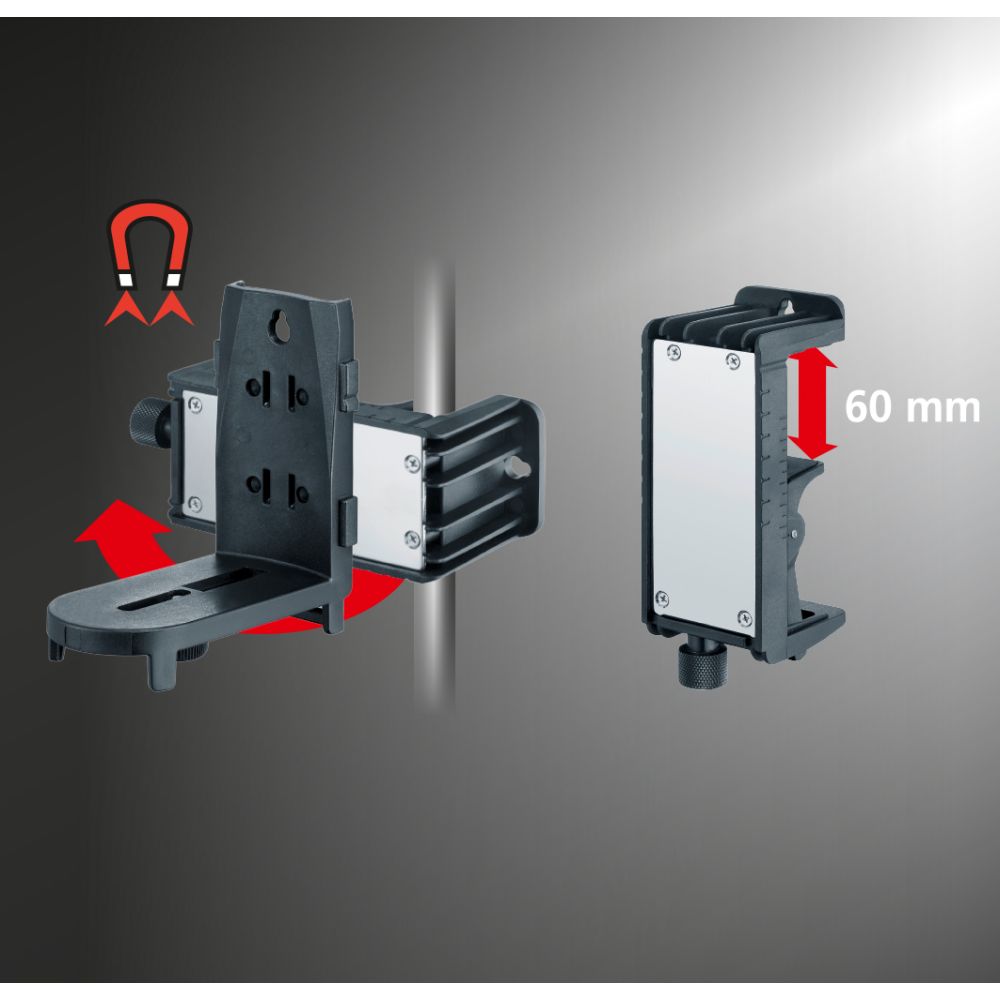

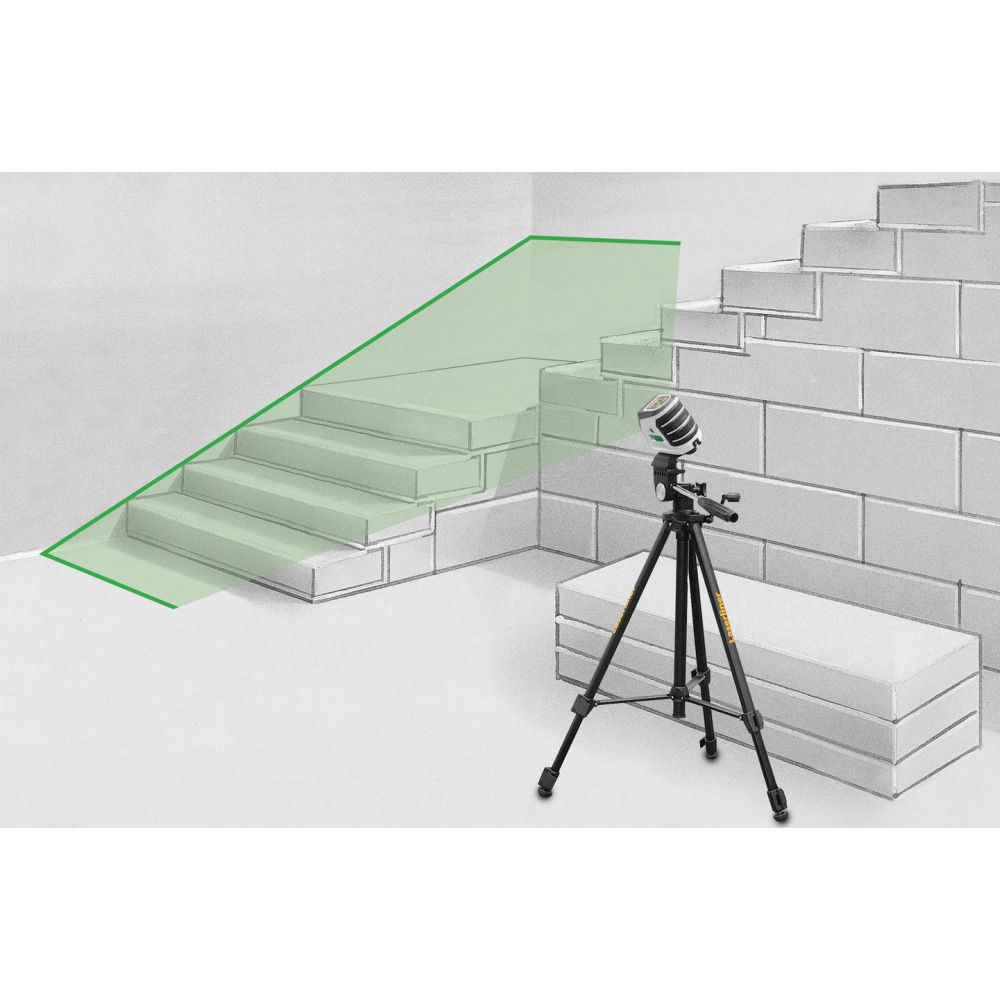

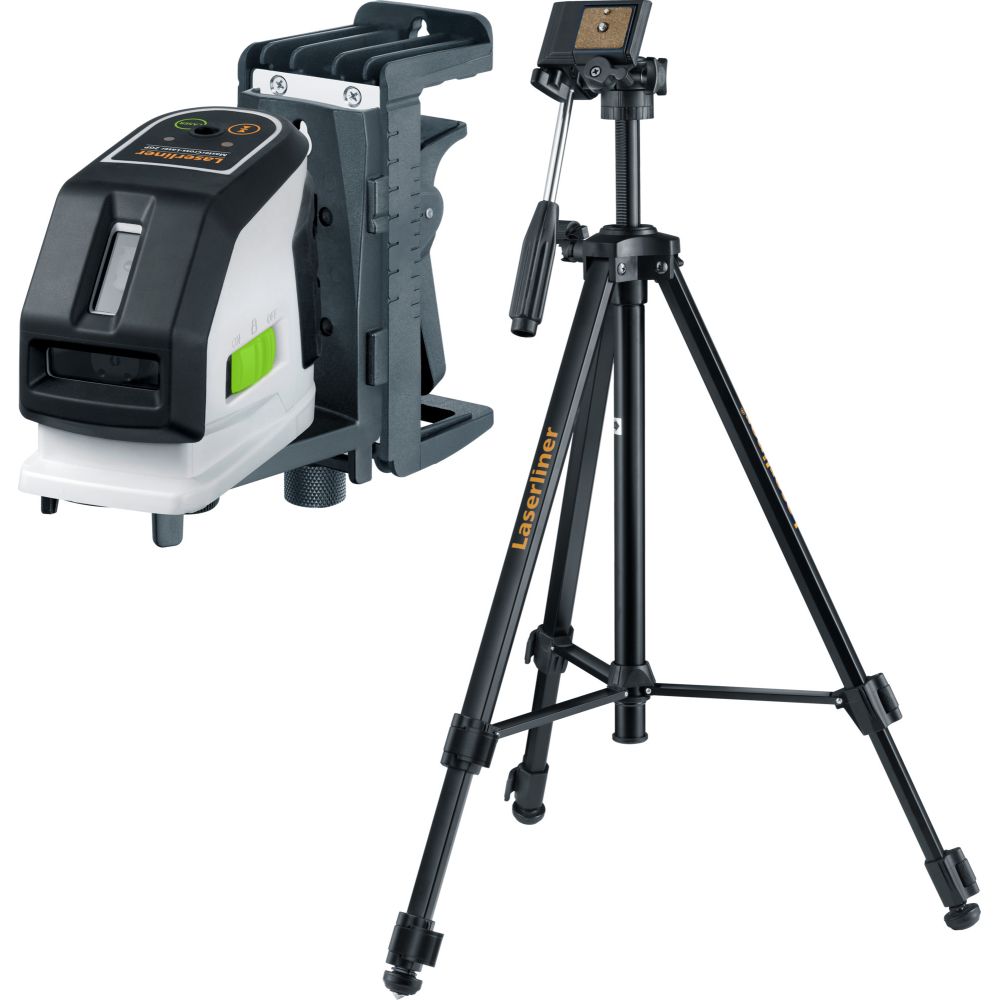

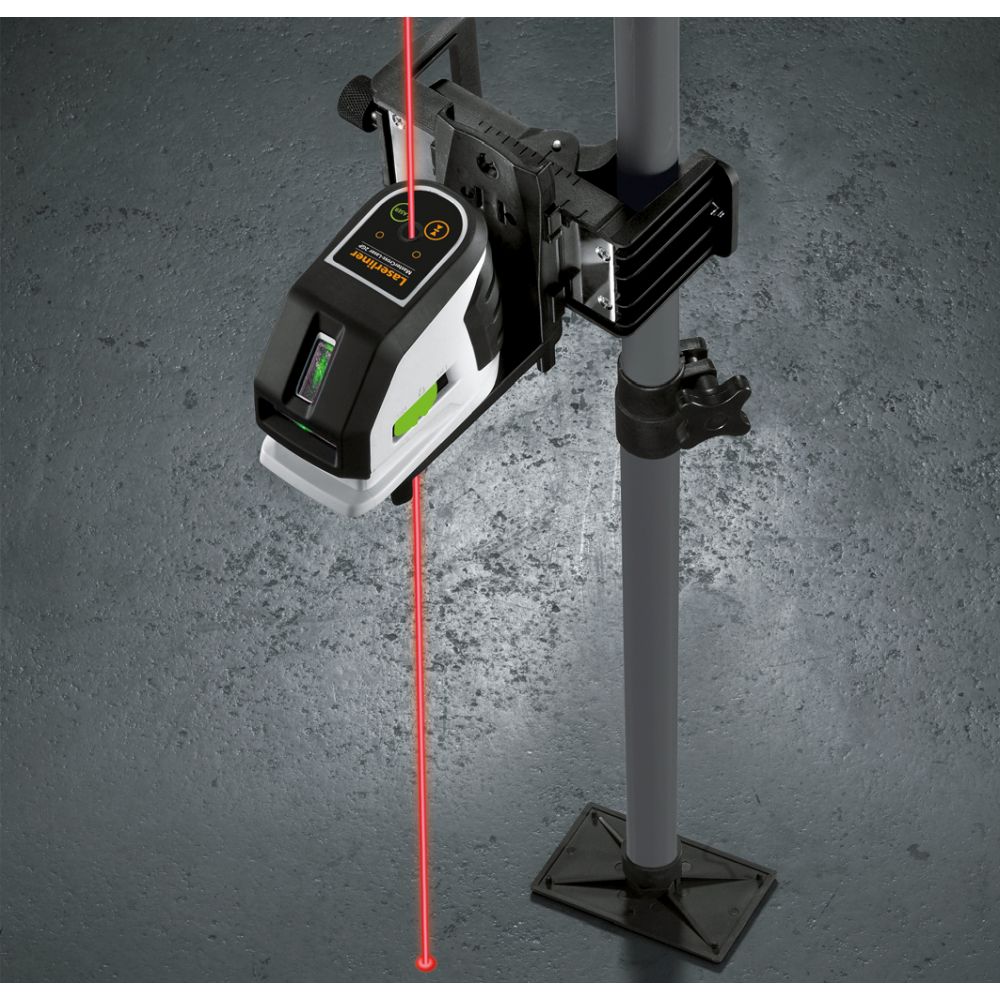

Description: The MasterCross-Laser 2GP allows the exact alignment of horizontals, verticals and slopes. With the additional plumb laser, it is possible to work simultaneously on the floor and the ceiling. It offers high visibility, time-saving automatic alignment and a variety of mounting options. The measuring device can be inclined, rotated or tilted to suit the application using the three-way tripod head. Precise height adjustment by crank lift. The combined rubber/steel tips ensure optimum adjustment to the supporting surface.
| Hand receiver mode | ✅ |
| Horizontal/vertical levelling | ✅ |
| Manual slope function | ✅ |
| Battery operation | ✅ |
| Self-Levelling Range | ± 3° |
| Accuracy | ±0.2 mm/m |
| Levelling | automatic |
| Visibility (Typical)* | 55 m |
| Laser Wavelength | 515 nm |
| Laser Class | 2 / < 1 mW |
| Power Supply | 4 x 1.5V LR6 (AA) |
| Operating Time | approx. 4 hours |
| Operating Conditions | 0°C … 50°C, max. humidity 85% rH, no condensation, max. working altitude 4000 m above sea level |
| Storage Conditions | -10°C … 70°C, max. humidity 85% rH |
| Dimensions (W x H x D) | 66 mm x 100 mm x 125 mm |
| Weight | 570 g (incl. batteries) |

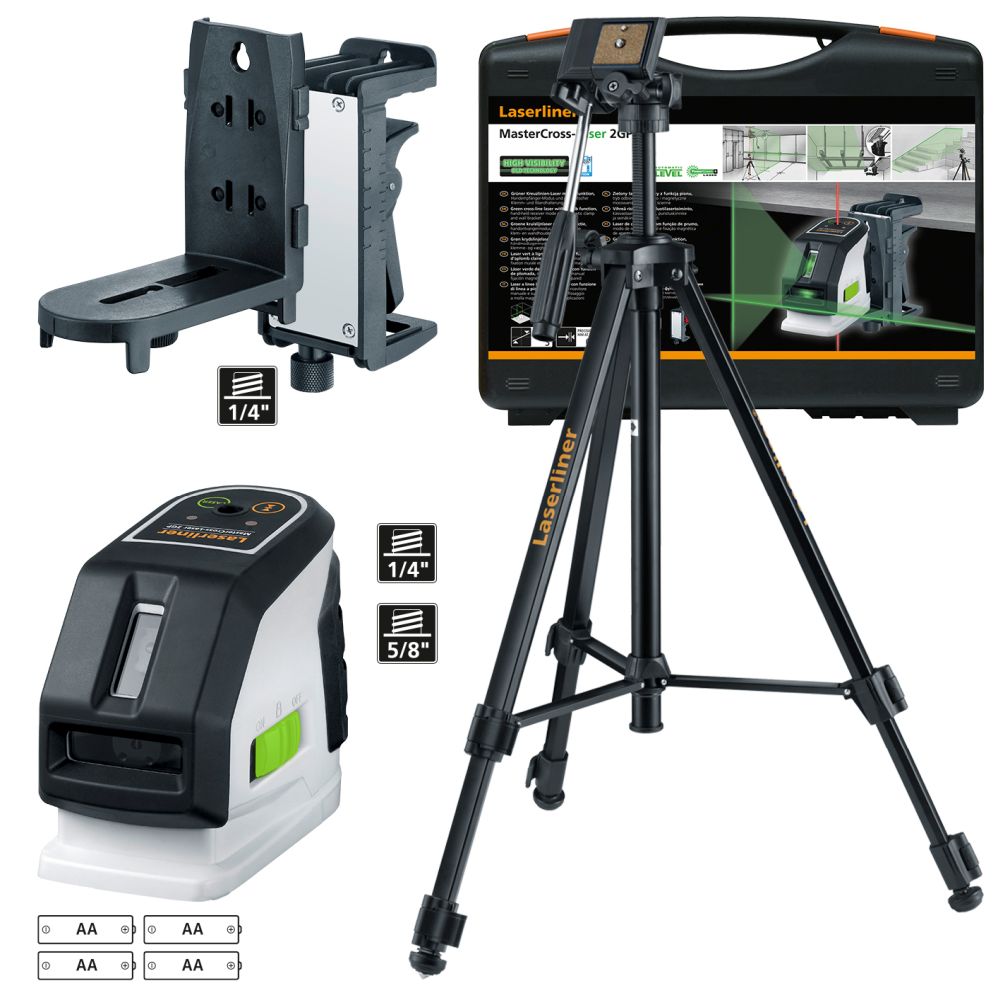

Scope of delivery:
Accessories (optional):
RangeXtender G 60(Art.No.: 033.55A) - laser receiver
RangeXtender M 50(Art.No.: 033.70A) - Laser receiver

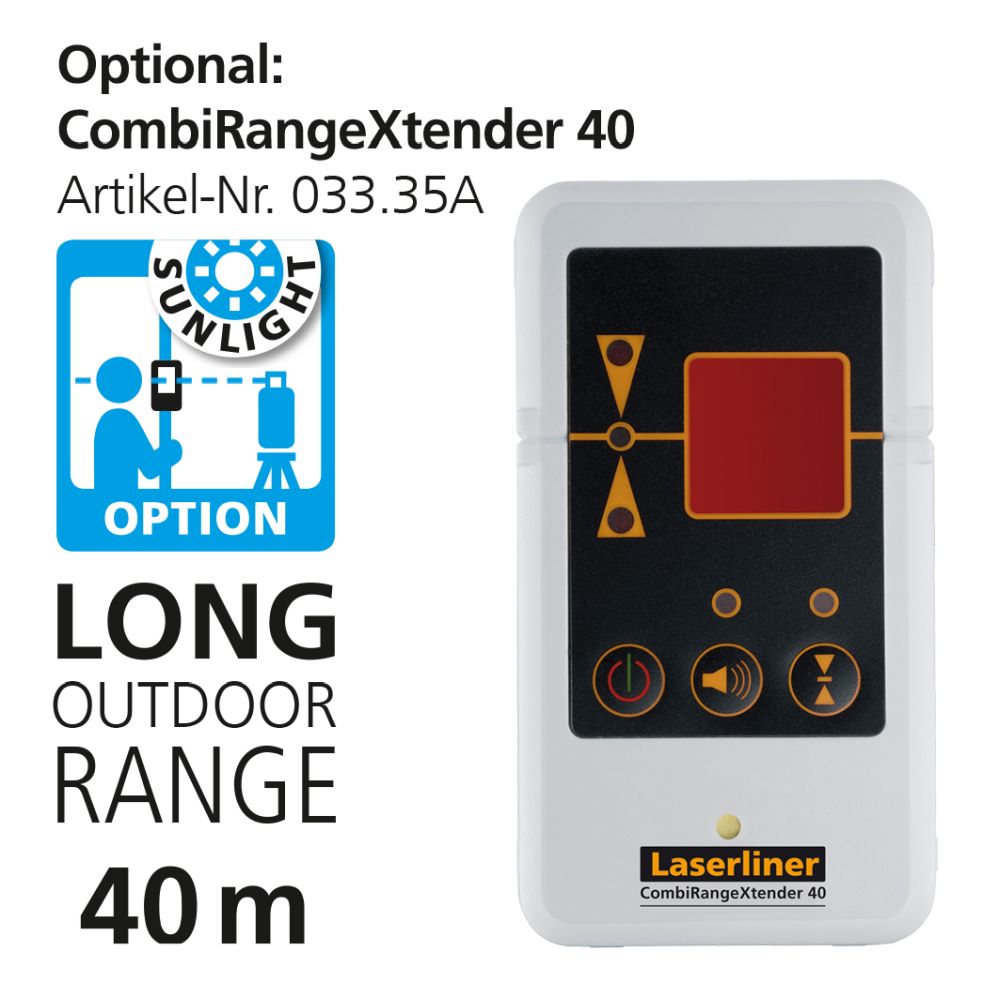

CombiRangeXtender 40(Art.No.: 033.35A) - laser receiver
Lightweight Tripod 165 cm(Art.No.: 080.02) - tripod
Crank Tripod P 175 cm(Art.No.: 080.26) - crank tripod
Crank Tripod 260 cm(Art.No.: 080.35) - Crank tripod
Crank Tripod 300 cm(Art.No.: 080.39) - Crank tripod
LaserSight green(Art.No.: 020.71A) - Laser enhancement glasses
Documentation:
Product information sheetInstructions not available.
Categorie:
Titel:
Green cross-line laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 031.390-2, GTIN (EAN): 4021563716869
