X1-Laser Set 1

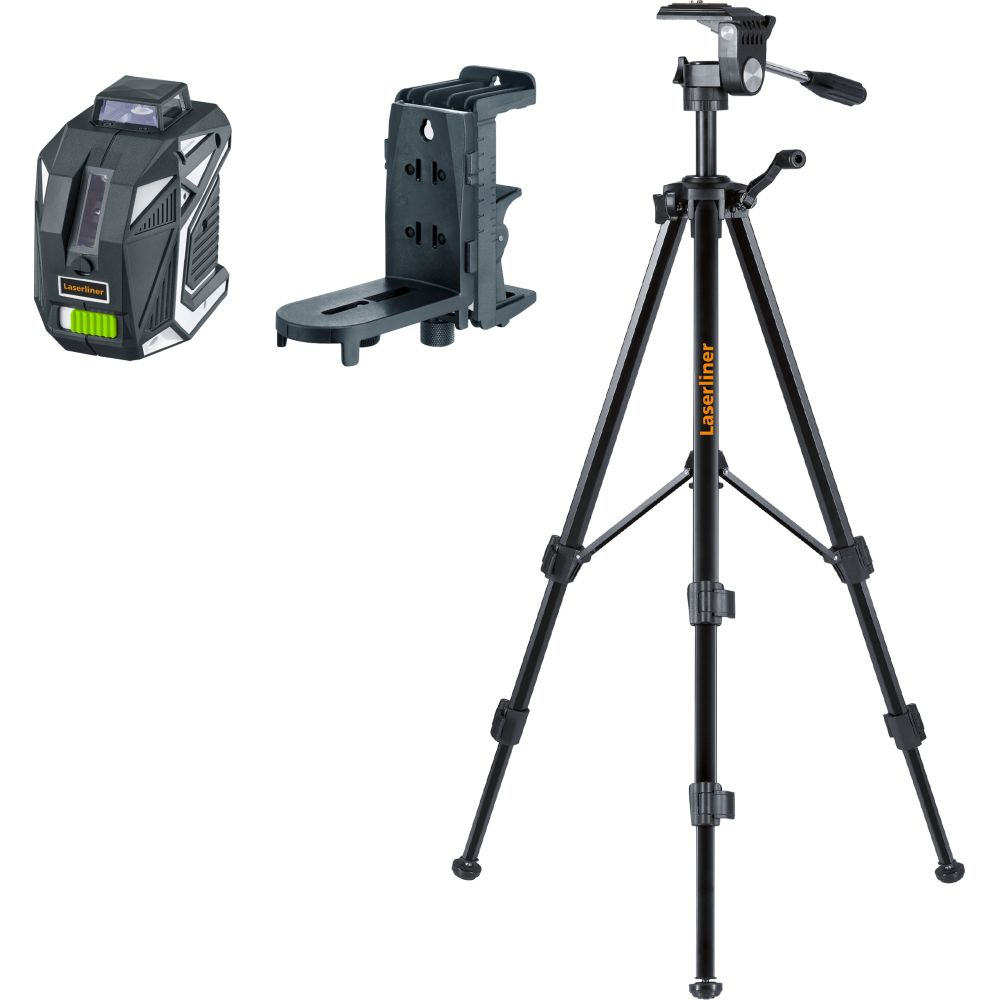

Green 360° line laser with CrossGrip clamp and wall bracket, 155 cm FixPod tripod and spare lithium-ion battery


Description: With the horizontal 360° laser line and the vertical laser line, objects in the entire room can be accurately aligned. Green laser technology guarantees optimum visibility. With the CrossGrip magnetic clamp and wall bracket, the device can be used as a standalone unit and, in a combination, horizontally as well as vertically. Thanks to the integrated handheld receiver mode, the X1 laser can also be used outdoors. The tripod allows the X1 laser to be set up securely.

  • Exact horizontal alignment of objects in the whole room
  • Good visibility through green laser technology
  • Time-saving automatic alignment
  • Easy alignment of slopes
  • Integrated hand-held receiver mode for outdoor applications
  • CrossGrip clamp and wall bracket
  • 3-way tripod head for inclining, lowering and tilting the measuring instrument
  • Easily adaptable to the ground surface thanks to combined rubber and steel tips
  • Crank height adjustment and telescopic tripod legs
  • Extra battery for extended operating time

  • Hand receiver mode✅
    Horizontal/vertical levelling✅
    Manual slope function✅
    Replaceable battery system✅
    Self-Levelling Range± 3°
    Accuracy±0.2 mm/m
    Levellingautomatic
    Visibility (Typical)*60 m
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW
    Power SupplyLi-ion battery pack 3.7V / 5.2Ah / 19.24Wh
    Power adapter 5V / DC / 2A
    Operating Timeapprox. 15 hours
    Operating Conditions0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
    Storage Conditions-10°C … 70°C, max. humidity 80% rH
    Dimensions (W x H x D)122 mm x 121 mm x 75 mm
    Weight638 g (incl. battery pack)

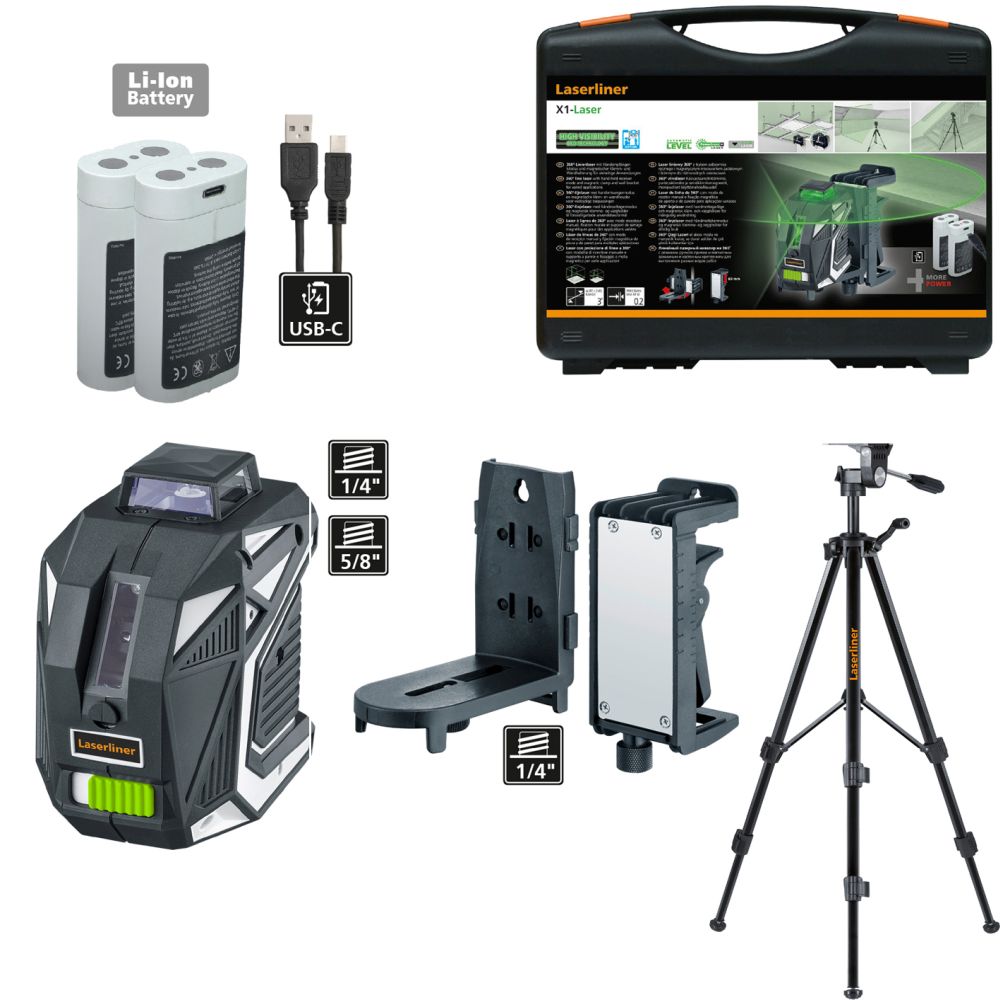

    Scope of delivery:
  • X1-Laser
  • CrossGrip
  • FixPod 155 cm
  • 2 x Li-ion battery pack
  • network/charging device incl. international adapter
  • USB-C-cable
  • carrying case

  • Accessories (optional):


    • RangeXtender G 60
      (Art.No.: 033.55A) - laser receiver


    • RangeXtender M 50
      (Art.No.: 033.70A) - Laser receiver


    • CombiRangeXtender 40
      (Art.No.: 033.35A) - laser receiver


    • VarioStand L 300 cm
      (Art.No.: 080.24A) - tripod


    • Lightweight Tripod 165 cm
      (Art.No.: 080.02) - tripod


    • Crank Tripod P 175 cm
      (Art.No.: 080.26) - crank tripod


    • Crank Tripod 260 cm
      (Art.No.: 080.35) - Crank tripod


    • Crank Tripod 300 cm
      (Art.No.: 080.39) - Crank tripod


    • LaserSight green
      (Art.No.: 020.71A) - Laser enhancement glasses


    • Akku 3,7V 5,2 Ah Lithium
      (Art.No.: 031.50.01) -



    Documentation:

    Product information sheet not available.

    Instructions not available.



    Categorie:

    Titel:
    360° line laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 031.500-1, GTIN (EAN): 4021563716883
