PowerCross-Laser 8G

Precision cross-line laser with 8 laser lines and plumb function - extremely bright due to Powergreen + +


Description: This cross-line laser projects eight extremely bright, green laser lines – perfect for horizontal and vertical alignment throughout the room. The rotatable housing with vernier adjustment mechanism and a horizontal circle allows the laser lines to be precisely positioned. The device features a motorised slope function for creating gradients. The combination of the upper laser cross and a lower plumb laser allows the floor and ceiling to be worked on at the same time. The AntiShake mode allows the device to be set up quickly on vibrating surfaces and when exposed to wind. The integral handheld receiver mode means the PowerCross laser 8G can be used with an optional laser receiver – perfect for working over large distances. Controlling the laser remotely via the Commander app is a particularly practical solution in inaccessible locations. Choose between battery or mains operation.

  • Precise horizontal and vertical alignment throughout the room
  • The pivoted housing with a vernier adjustment mechanism and horizontal circle permits exact positioning of laser lines
  • Ultra bright laser cross with green laser technology
  • Easy alignment of slopes
  • Plumb function for synchronous working on floor and ceiling
  • Digital Connection interface for remote control with smartphones using the Commander app
  • AntiShake provides quick setup on vibrating surfaces and when exposed to wind

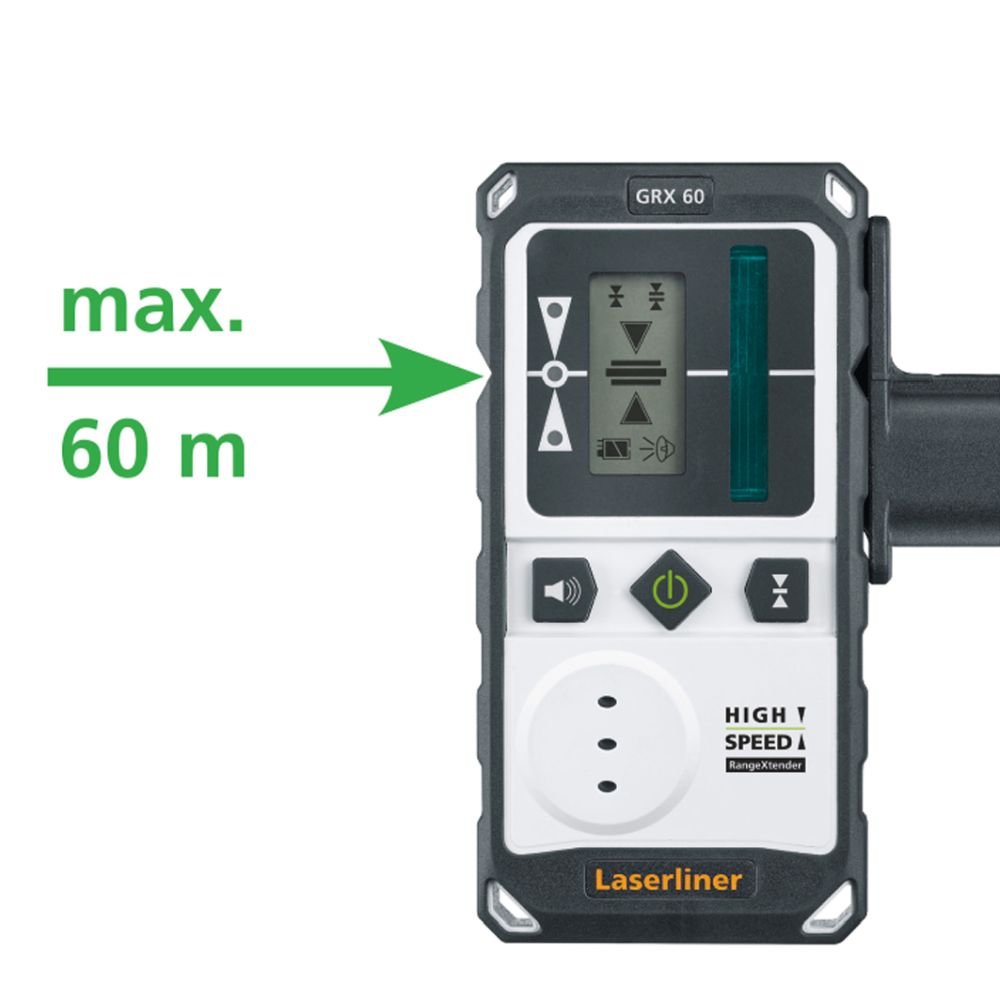

  • Integrated handheld receiver mode for outdoor applications and long ranges

  • Horizontal/vertical levelling

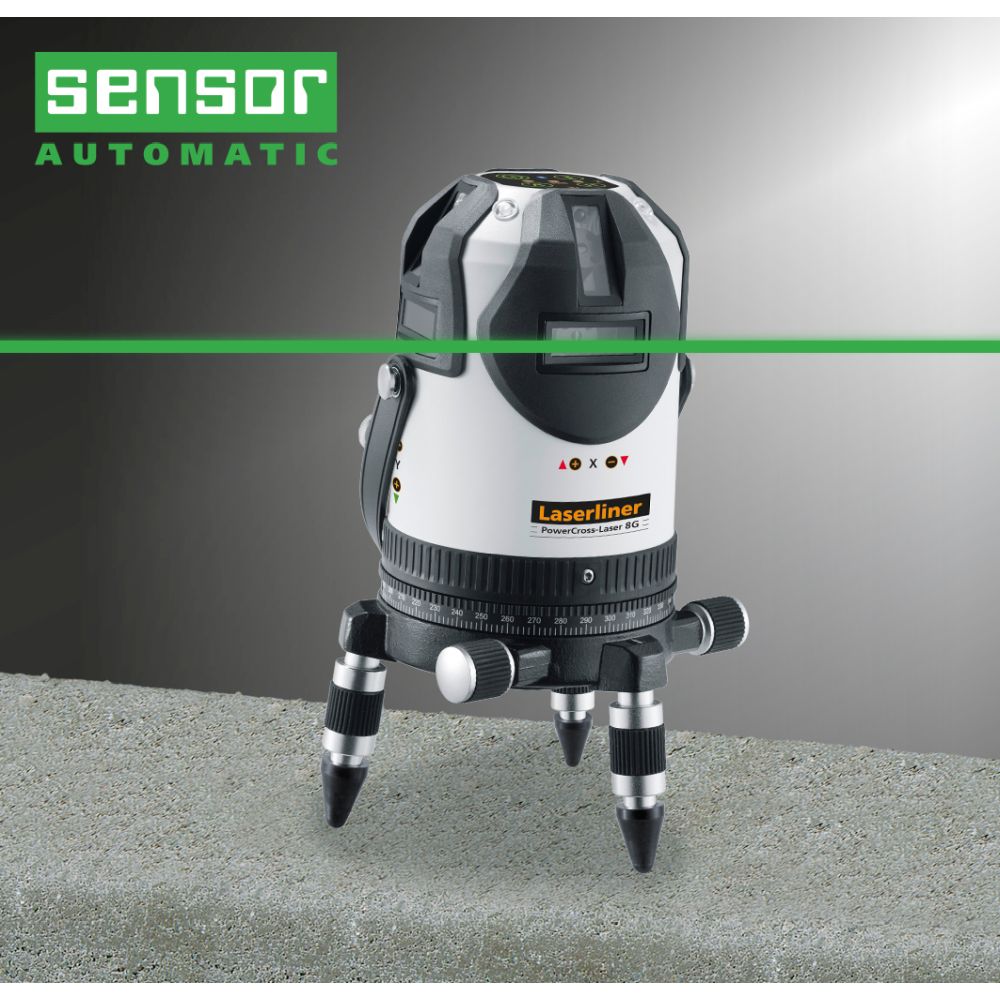

    Precision sensor levelling
    Motorised slope function
    Plumb laser down

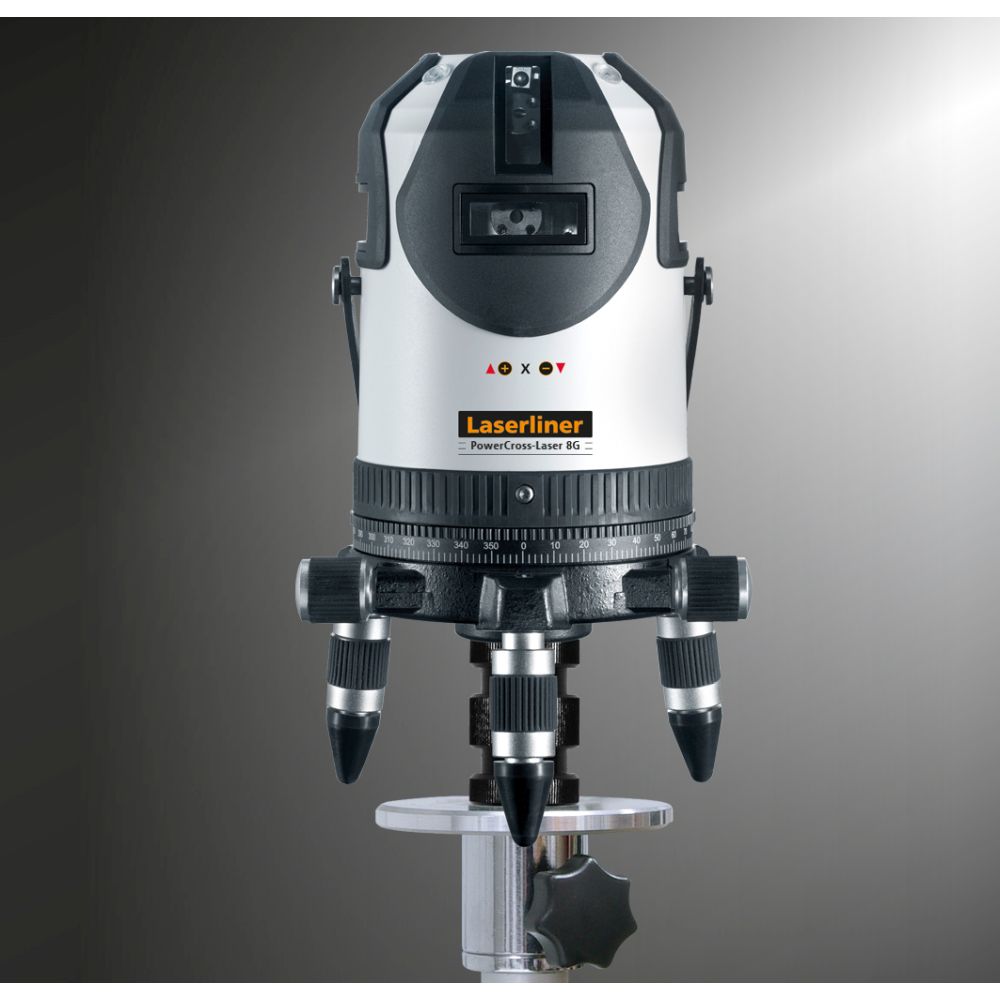

    Rotatable housing with vernier adjustment mechanism
    Anti-shake mode
    Hand receiver mode

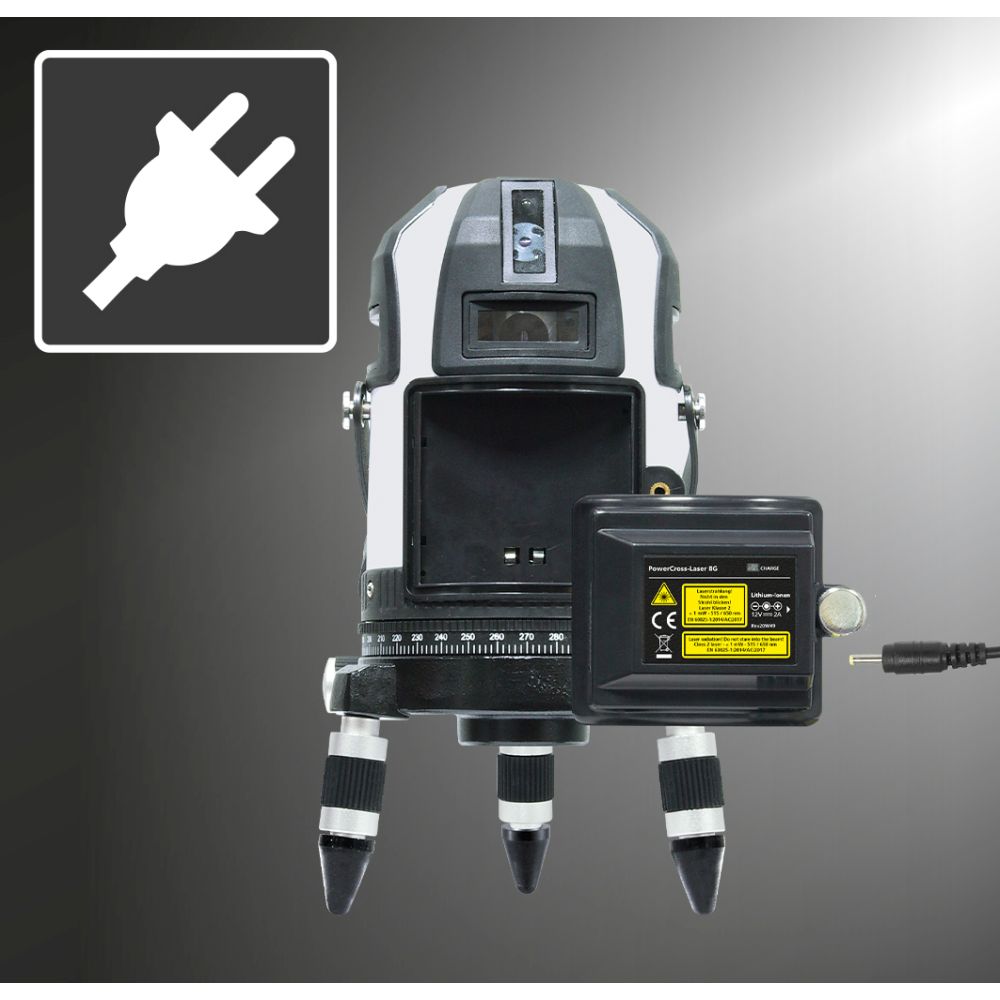

    Battery and mains operation
    Replaceable battery system
    Self-Levelling Range± 3°
    Accuracy± 0.1 mm / m
    Levellingautomatic horizontal / vertical levelling with electronic levels and motors
    Visibility (Typical)*55 m
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Power SupplyPower adapter 5V/DC / 1A
    Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
    Operating Timeapprox. 4 hours
    Operating Conditions0°C … 50°C, Luftfeuchtigkeit max. 85% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
    Storage Conditions-10°C … 70°C, Luftfeuchtigkeit max. 85% rH
    Dimensions (W x H x D)130 mm x 225 mm x 130 mm x (inkl. Akkupack)
    Weight1506 g (inkl. Akkupack)

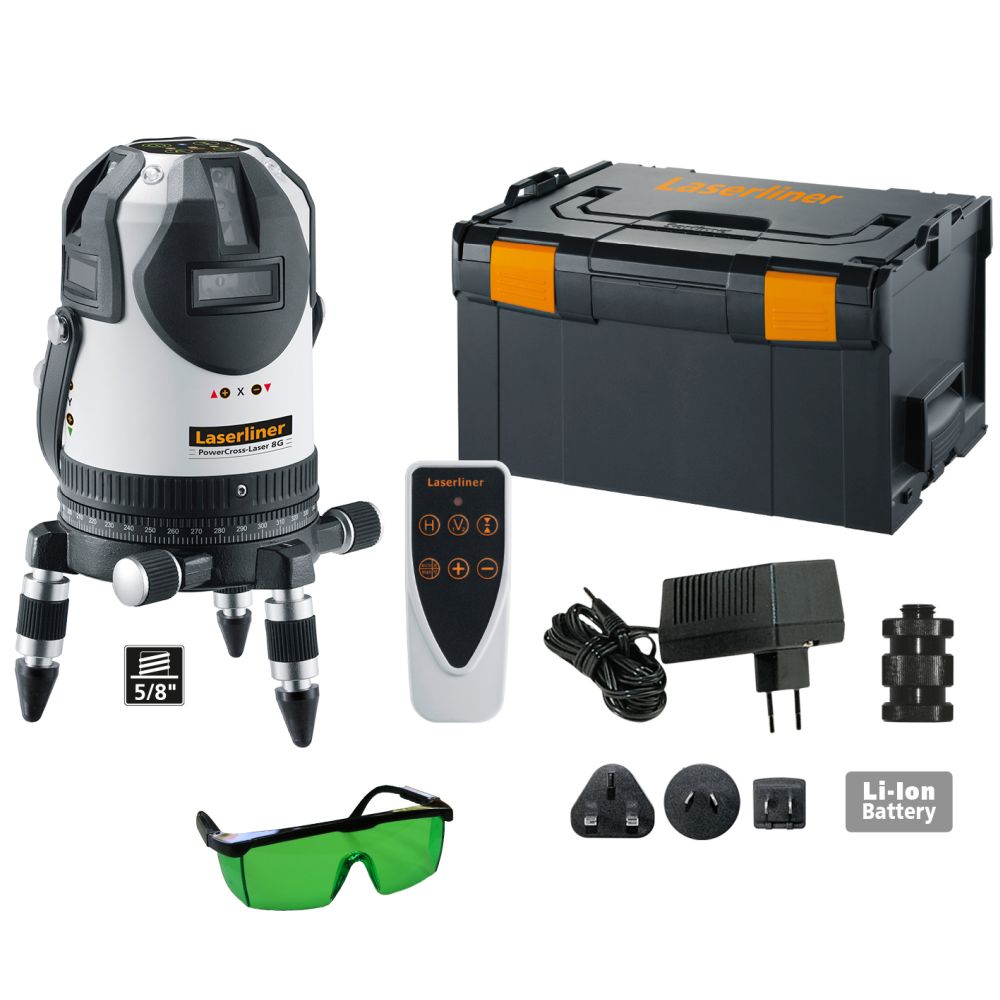

    Scope of delivery:
  • PowerCross-Laser 8G
  • laser enhancement glasses
  • network/charging device incl. international adapter
  • remote control
  • tripod adapter for crank tripods
  • rubber caps
  • Li-ion battery
  • complete in the L-BOXX 238


  • Documentation:

    Titel:
    cross-line laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 032.090L, GTIN (EAN): 4021563718122
