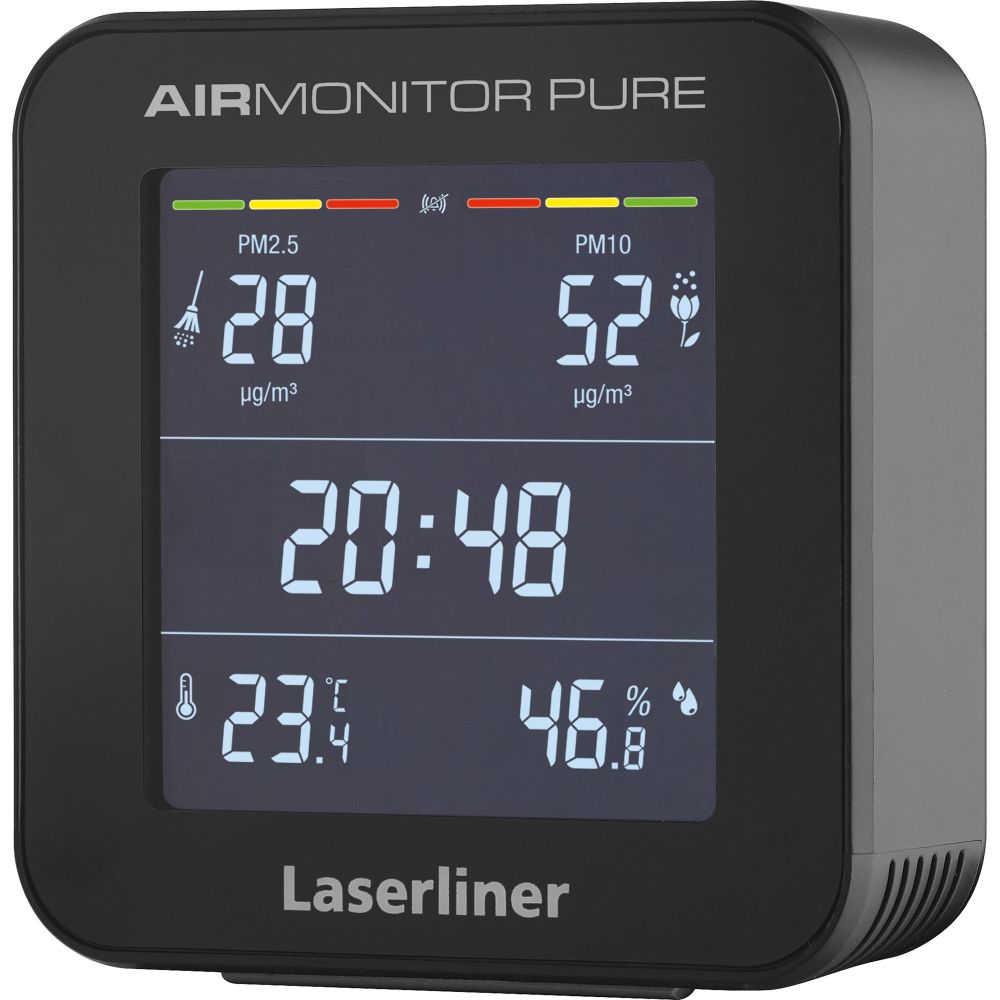

AirMonitor PURE

Measuring device for fine particulate matter with warning of concentrations of fine particulate matter which may be harmful to health – includes time, temperature and humidity display.


Description: This fine particulate matter measuring device has a Sensirion SPS30 Swiss precision sensor. It records and evaluates fine particulate matter concentrations in the PM 2.5 and PM 10 categories in accordance with official requirements of the German Federal Environment Agency. These are some of the most dangerous air-borne pollutants. Fine particulate matter with a diameter of up to 10 microns includes pollen and allergens from plants and flowers. Fine particulate matter with a diameter up to 2.5 microns includes industrial emissions which can penetrate deep into the respiratory tract due to its extremely small size, causing long-term damage to the lungs. The AirMonitor PURE provides a warning via coloured and numerical display as well as a switchable acoustic signal for concentrations of fine particulate matter which may be harmful to health. In addition to this, the display on the device shows the time, temperature and air humidity at all times.

  • Effective measurement and evaluation of the concentration of fine particulate matter in PM 2.5 and PM 10 categories (for example, industrial emissions, pollen, allergens)
  • A valuable tool for ensuring a healthy indoor climate
  • Coloured and numerical display of concentrations of fine particulate matter which may be harmful to health with additional switchable audible warning signal
  • Comprehensive information via the time, temperature and humidity display
  • Can be used in many different areas such as: residential buildings, offices, kindergartens, schools and public buildings, etc.
  • Easy to use
  • Attractive design

  • Fine particulate matter indicator
    Fine particulate matter alarm
    Temperature
    Humidity
    Time
    Measured VariableConcentration of particulate matter PM2.5
    Concentration of particulate matter PM10
    Humidity
    Ambient temperature
    FeaturesFine particulate matter alarm
    Fine particulate matter indicator
    Real-time clock
    Measuring Range Ambient Temperature-9,9°C ... 50°C
    Accuracy Ambient Temperature± 1°C
    Measuring Range Humidity (Relative)1% … 99%
    Accuracy (Absolute) Humidity (Relative)± 3% (30% ... 70%)
    ± 5% (0% … 30%, 70% … 100%)
    Fine Particulate Matter Measuring RangePM2.5: 0 … 999 µg/m³
    PM10: 0 … 999 µg/m³
    Fine particulate matter sensitivity:
    PM2.5: 300 nm … 2.5 µm
    PM10: 300 nm … 10 µm
    Fine Particulate Matter AccuracyPM2.5: 0 … 100 μg/m³ (± 10 μg/m³), 100 … 999 μg/m³ (± 10%)
    PM10: 0 … 100 μg/m³ (± 25 μg/m³), 100 … 999 μg/m³ (± 25%)
    Sensor TypeParticulate Matter

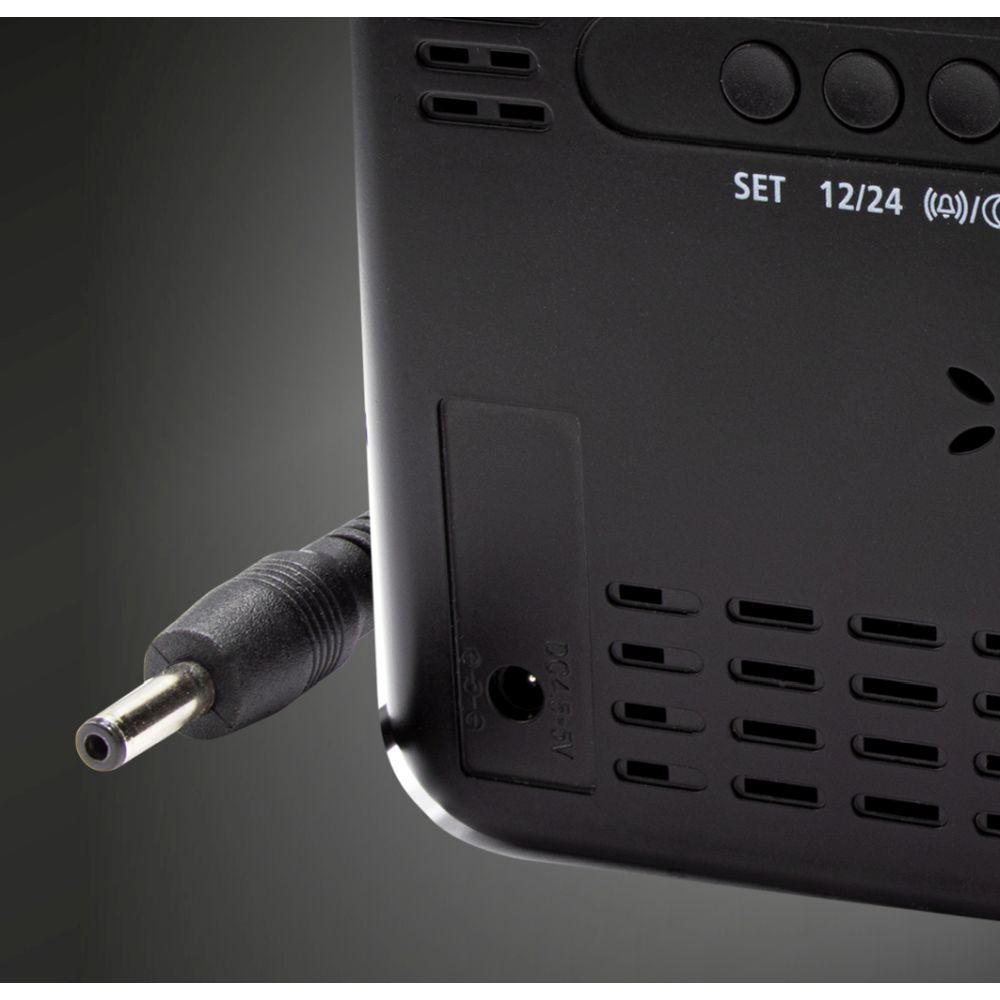

    Power SupplyPower adapter 5V/DC / 1A
    Unit of Measurement% rH (relative humidity)
    °C (Celsius)
    µg/m³
    Dimensions (W x H x D)90 mm x 91 mm x 33 mm
    Weight152 g (ohne Netzteil)

    Scope of delivery:
  • AirMonitor PURE
  • power supply


  • Documentation:

    Titel:
    Fine particulate matter measuring device

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    Health & Home

    Art.No.: 082.431A, GTIN (EAN): 4021563718627
