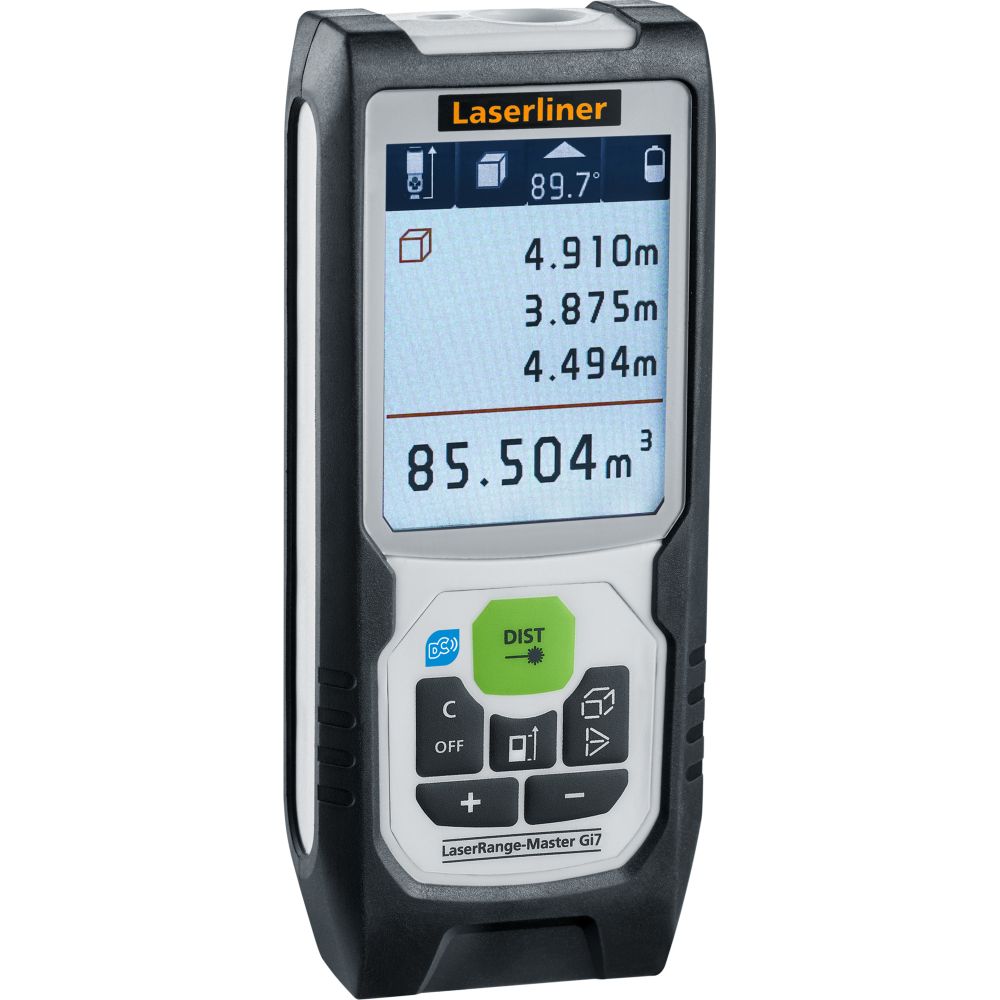

LaserRange-Master Gi7 Pro

Laser distance measuring device with green laser technology, angle function and digital interface


Description: This precision laser distance measuring device is suitable for measuring, adding and subtracting lengths, areas and volumes. Heights and distances can be determined indirectly with the angle function – perfect for taking measurements in inaccessible locations. The green laser technology ensures high visibility and the device also includes a digital vial for precise horizontal alignment. The digital interface allows measured data to be effectively transferred and up to 50 entries can be systematically recorded in the measured value log. The distance measuring device fits well in the hand due to the ergonomically designed housing. Other benefits include the robust rubber casing and the easy-to-read, 4-line, colour LC display. The device automatically switches itself off after a brief period of inactivity to save energy.

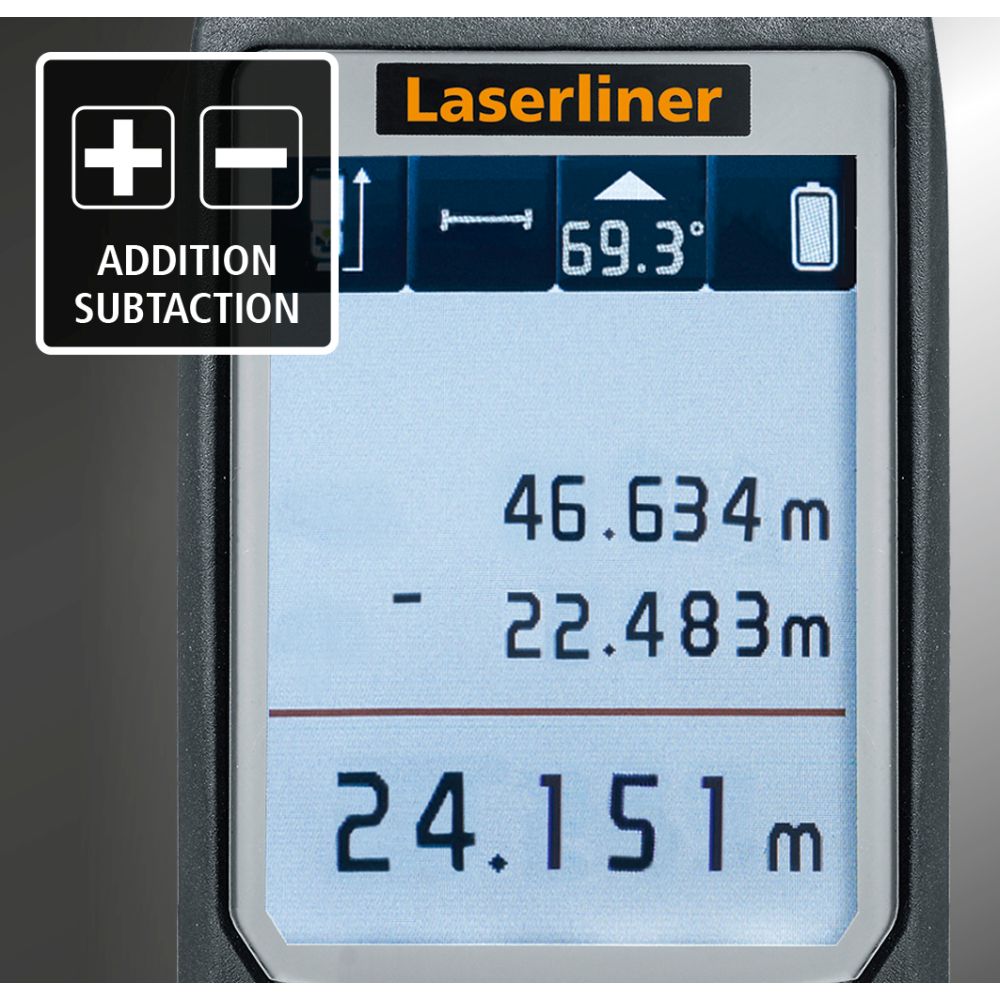

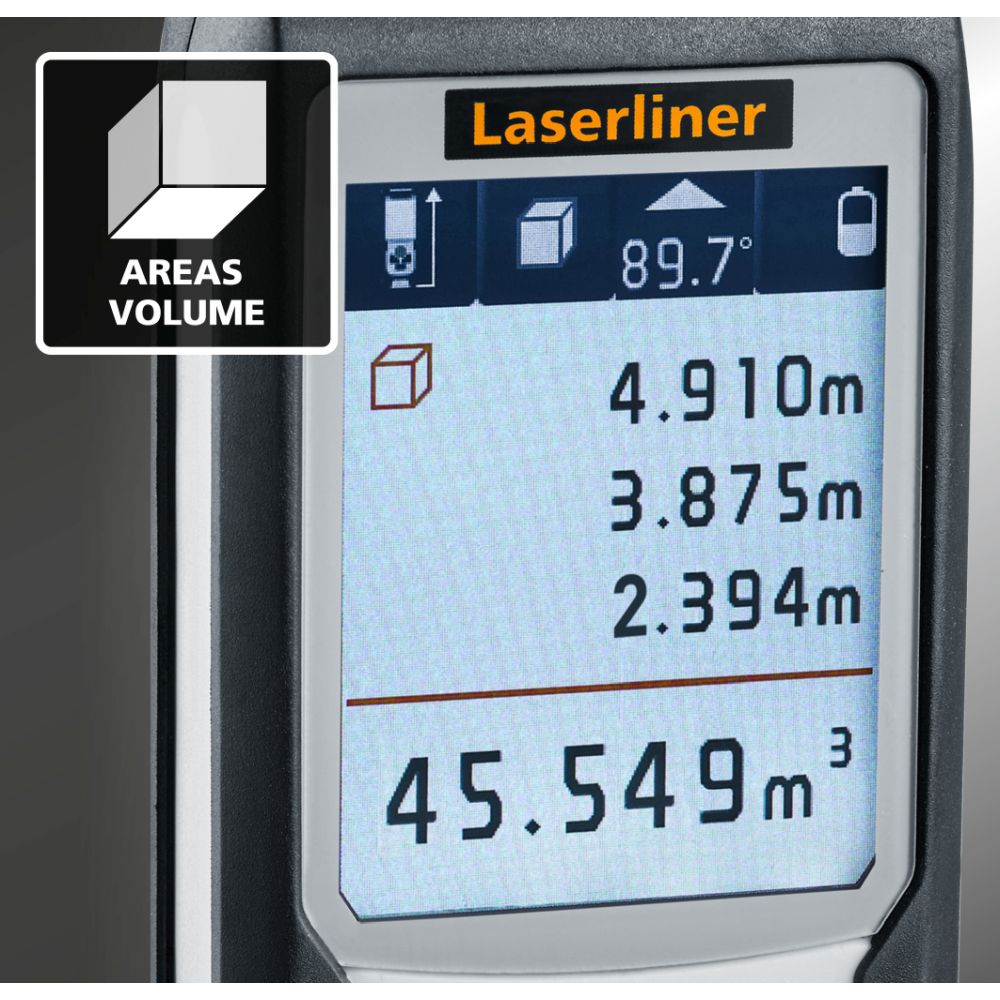

  • Simple measurement, addition and subtraction of lengths, areas and volumes
  • Good visibility through green laser technology

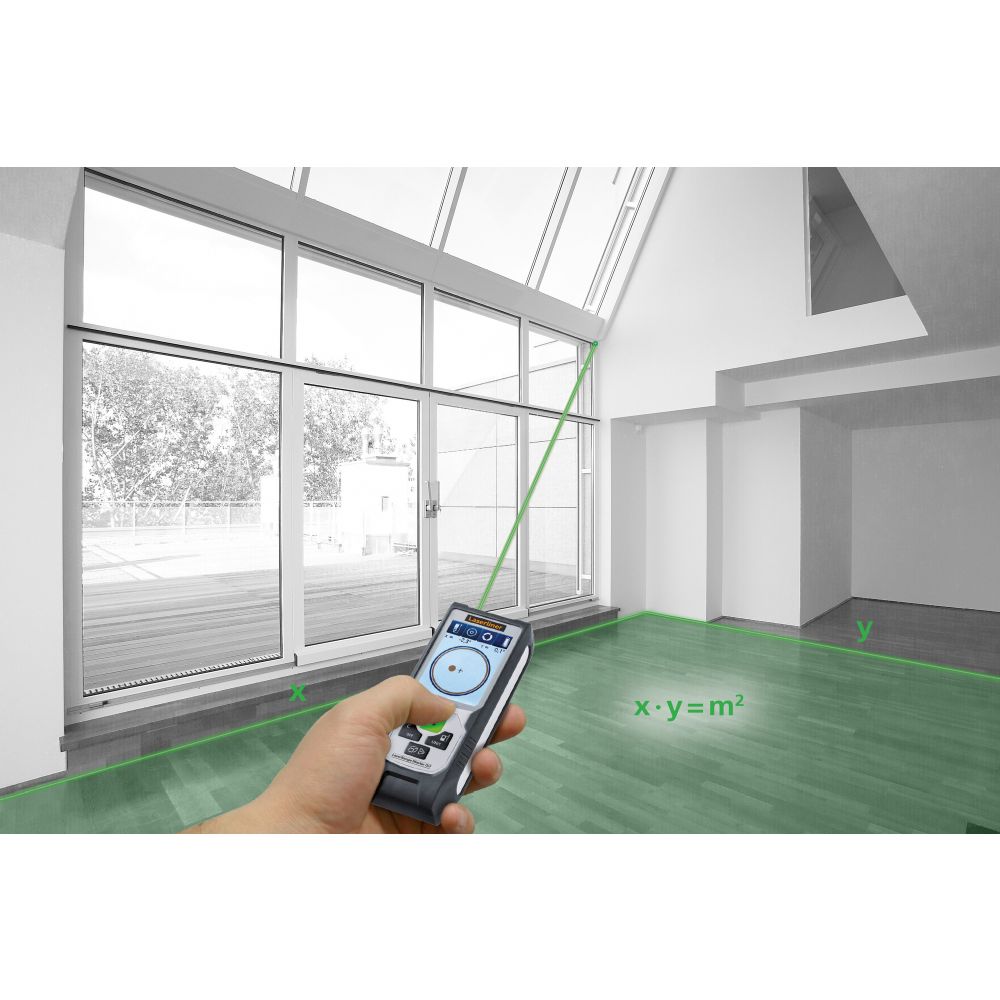

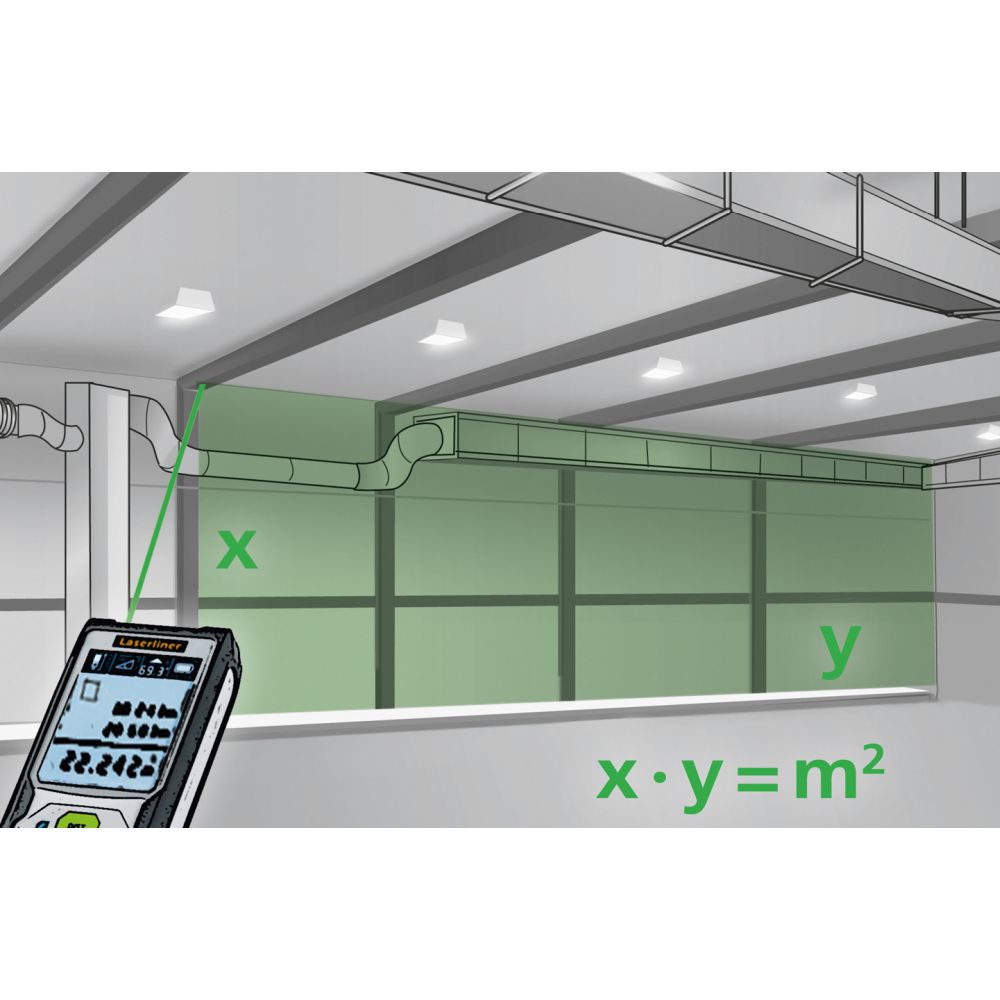

  • Ideal for recording room sizes and calculating material quantities

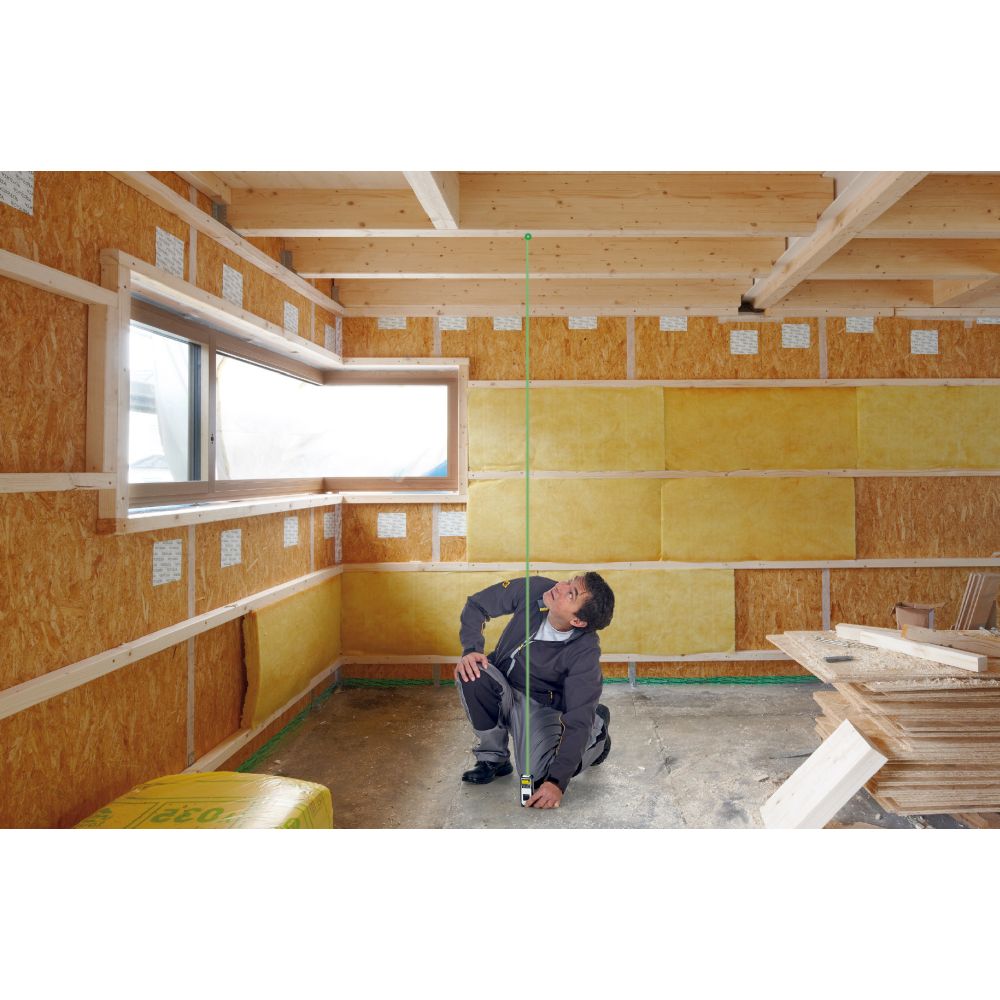

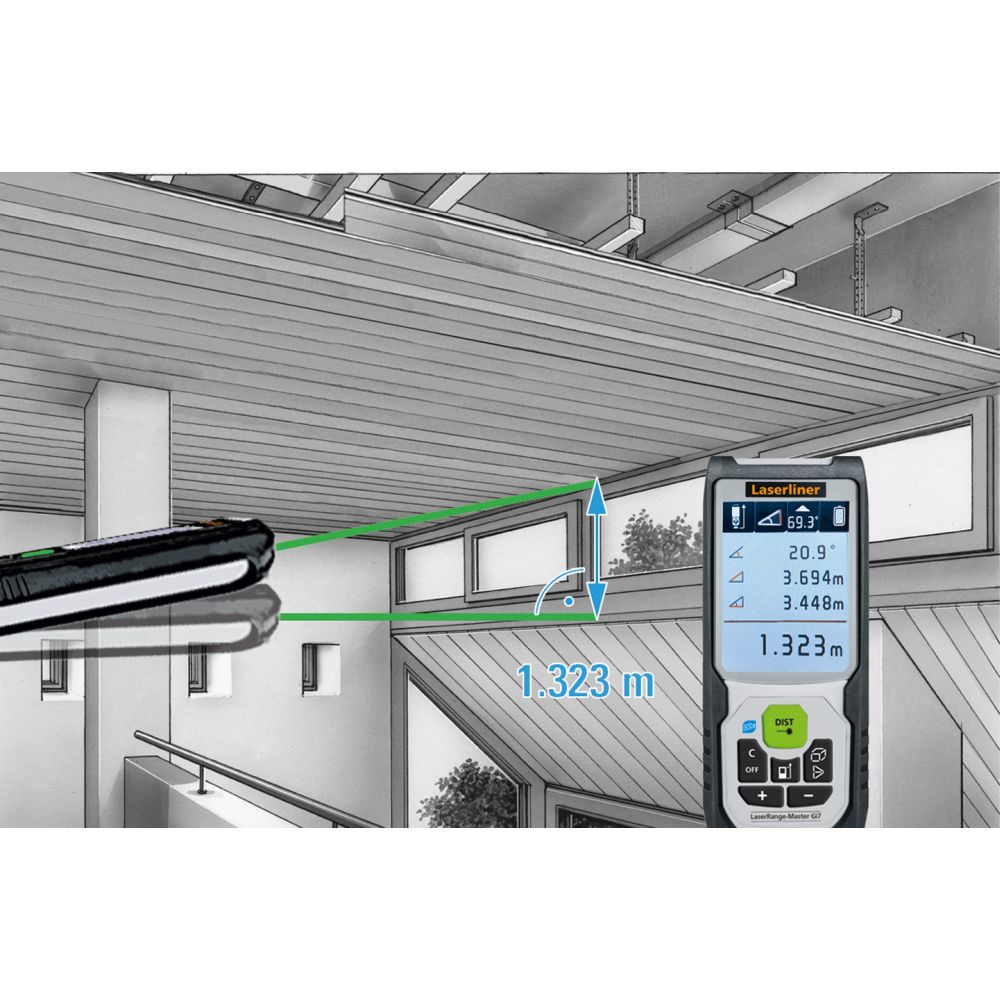

  • Indirect determination of height in hard-to-reach locations using Pythagoras function

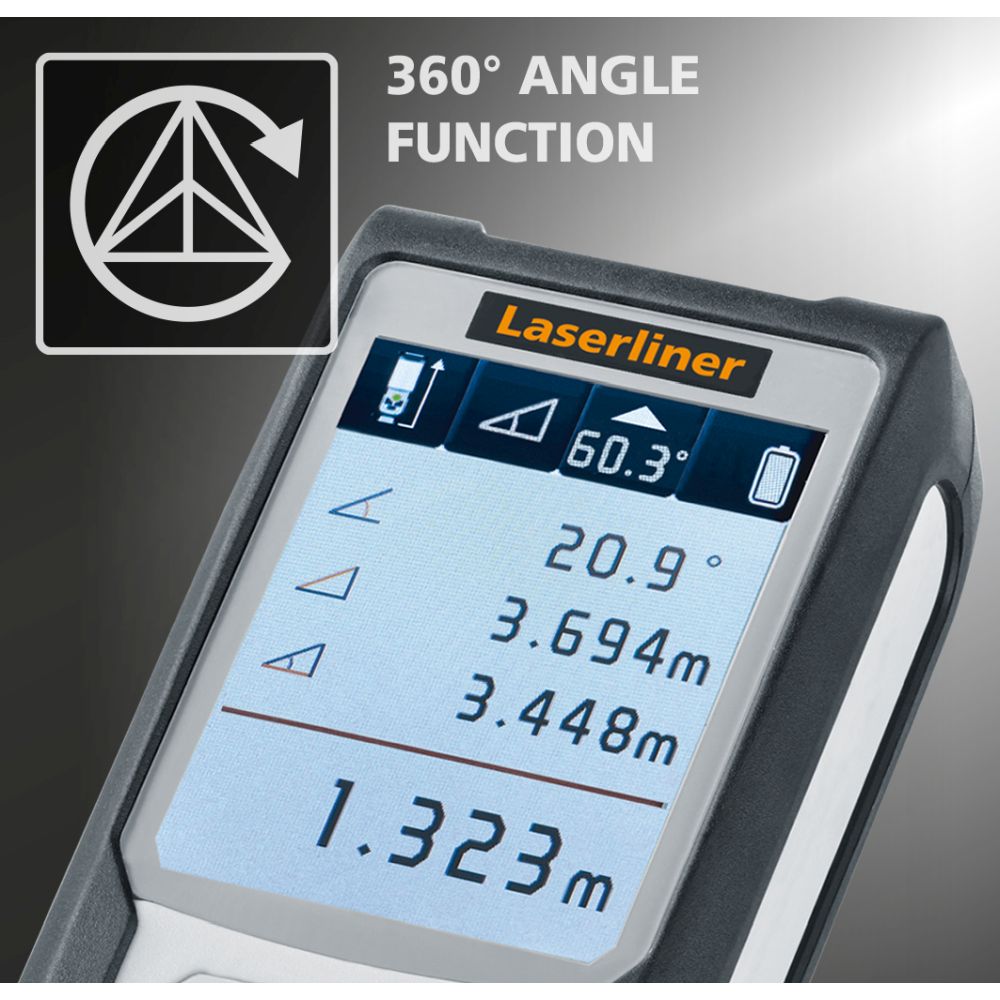

  • Determination of horizontal and vertical distance with 360° slope sensor

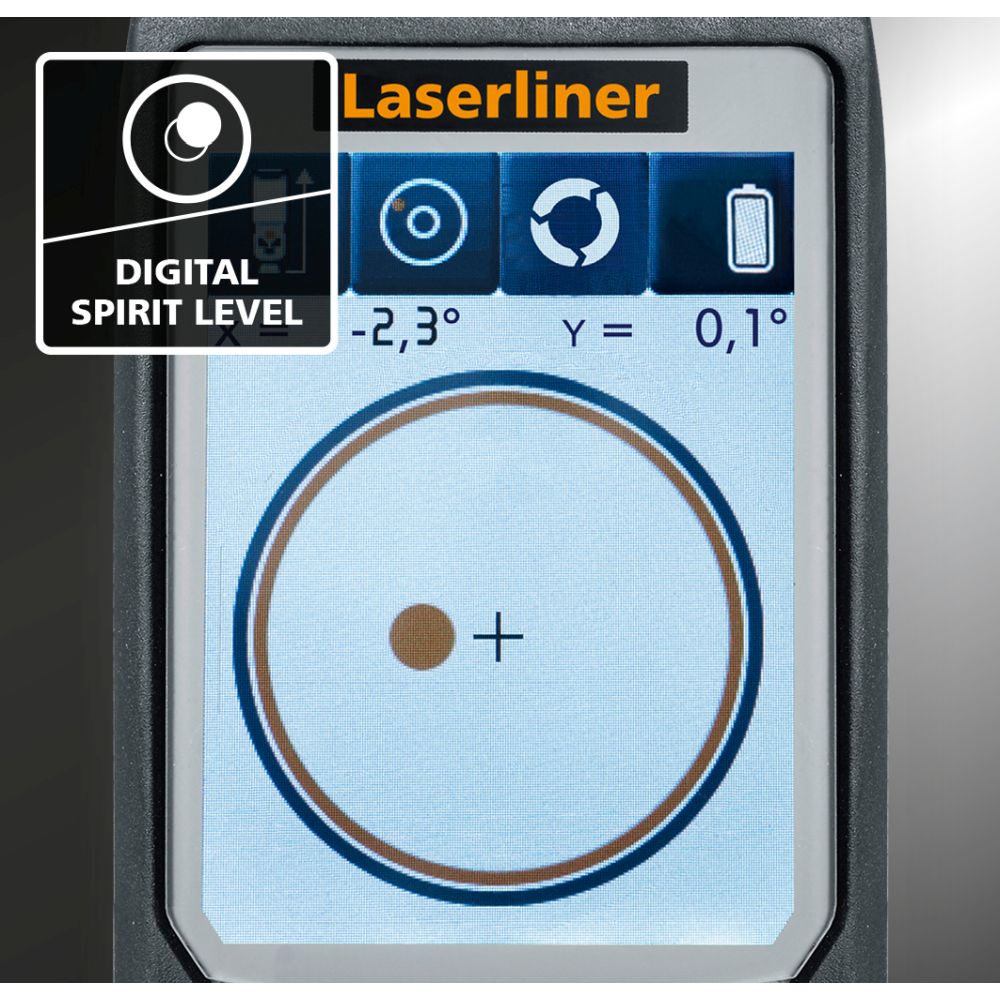

  • Exact alignment of the measuring instrument through digital spirit level
  • Measuring levels with practical switching function: front and rear

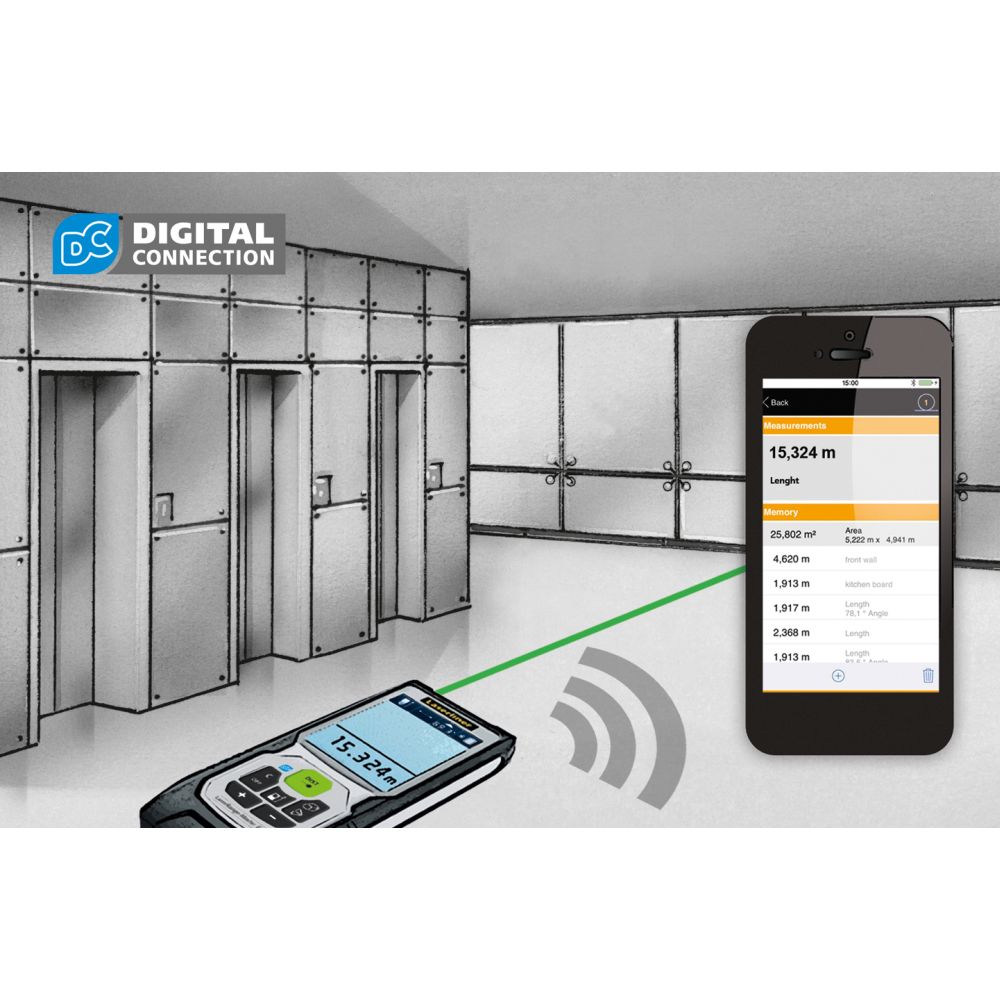

  • Simple transfer of measured data through Digital Connection interface to mobile phone
  • Easy-to-read 4-line colour LC display

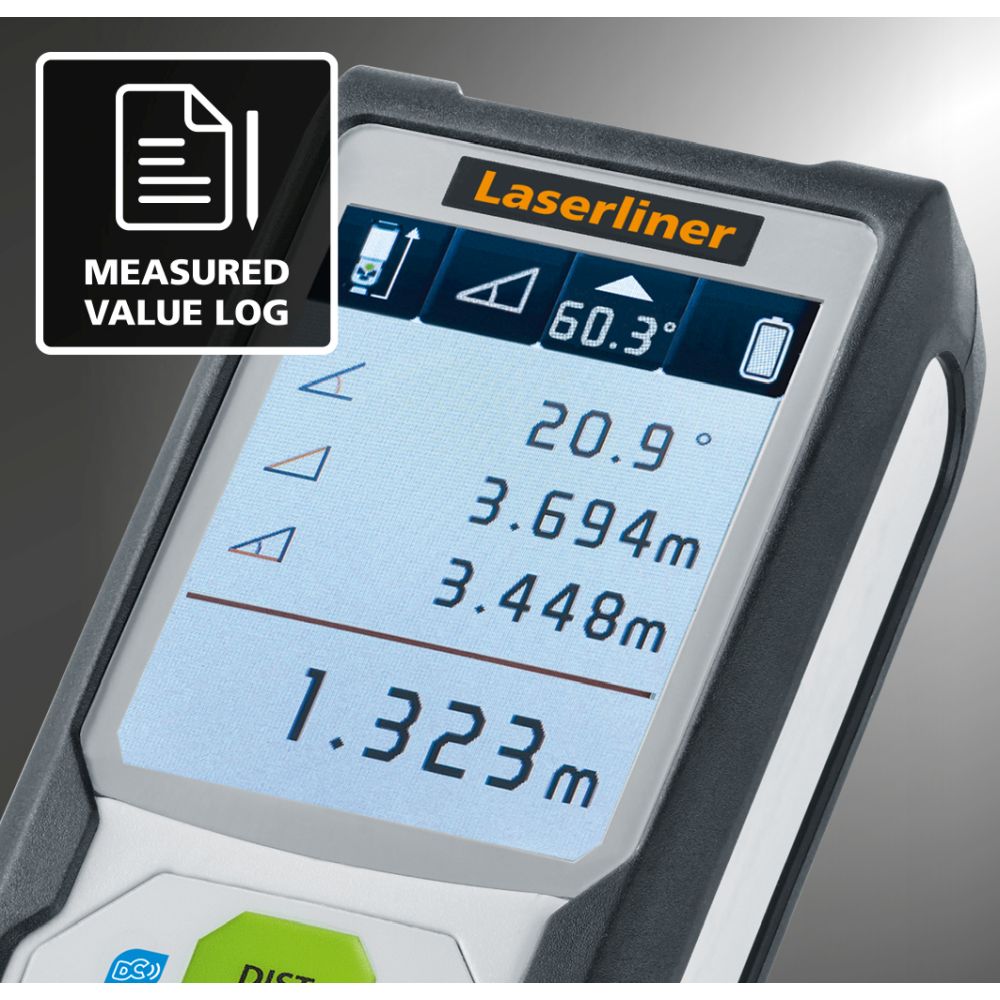

  • Practical measured value log for documentation purposes
  • Sturdy, ergonomically designed, rubberised casing

  • Length/area/volume
    Min/Max
    Continuous measurement
    Addition/subtraction
    Indirect determination of height (Pythagoras)
    Slope display
    Selectable housing reference point
    Data transfer
    Precision (Typical)*± 2 mm
    Measurement Range (Inside)**0,05 m - 70 m
    Accuracy Angle Measurement0,1°
    Measurement Range Angle Measurement± 90°
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Memory50 storage locations
    Unitsm / ft / inch
    Power Supply2 x 1.5V LR6 (AA)
    Operating Conditions-10°C … 40°C, Luftfeuchtigkeit max. 20 … 85% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
    Dimensions (W x H x D)50 mm x 122 mm x 27 mm
    Weight140 g (inkl. Batterien)

    Scope of delivery:
  • LaserRange-Master Gi7 Pro
  • batteries
  • transport box


  • Documentation:

    Instructions


    Categorie:

    Titel:
    Laser rangefinder

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 080.847A, GTIN (EAN): 4021563718870
