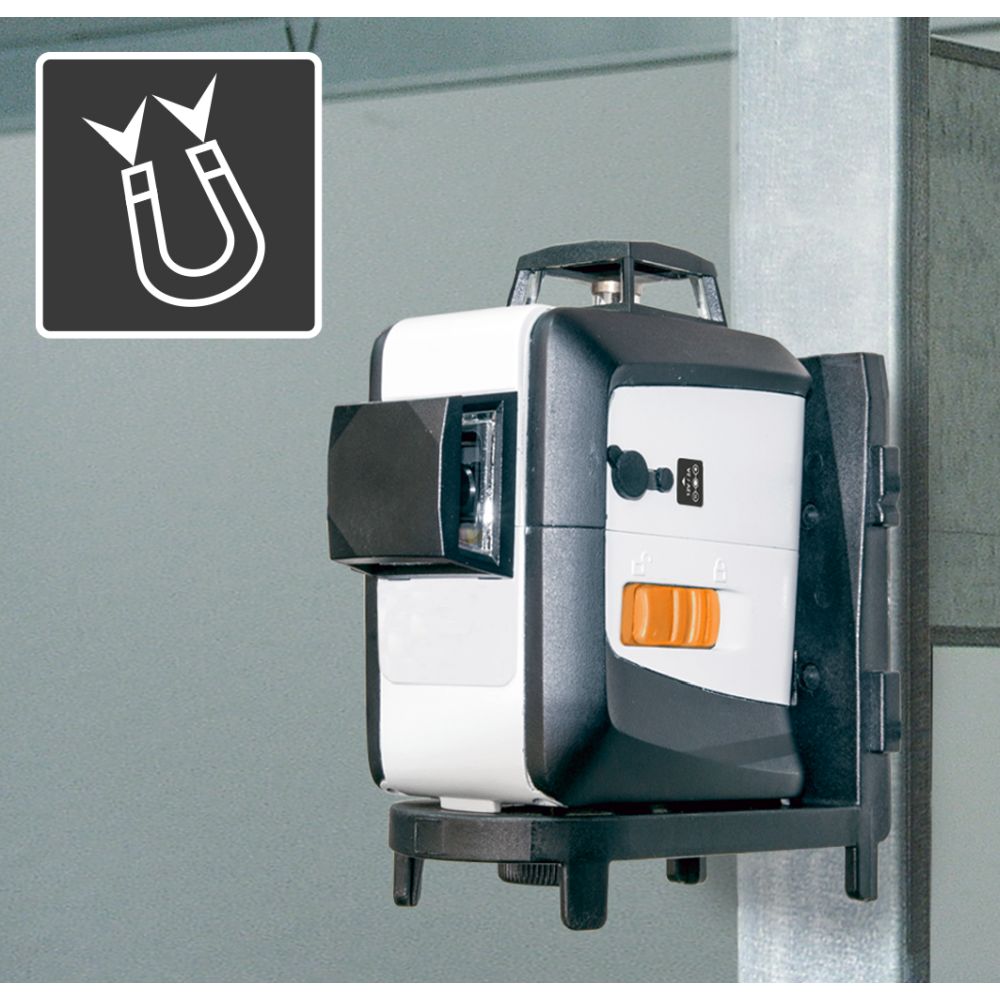

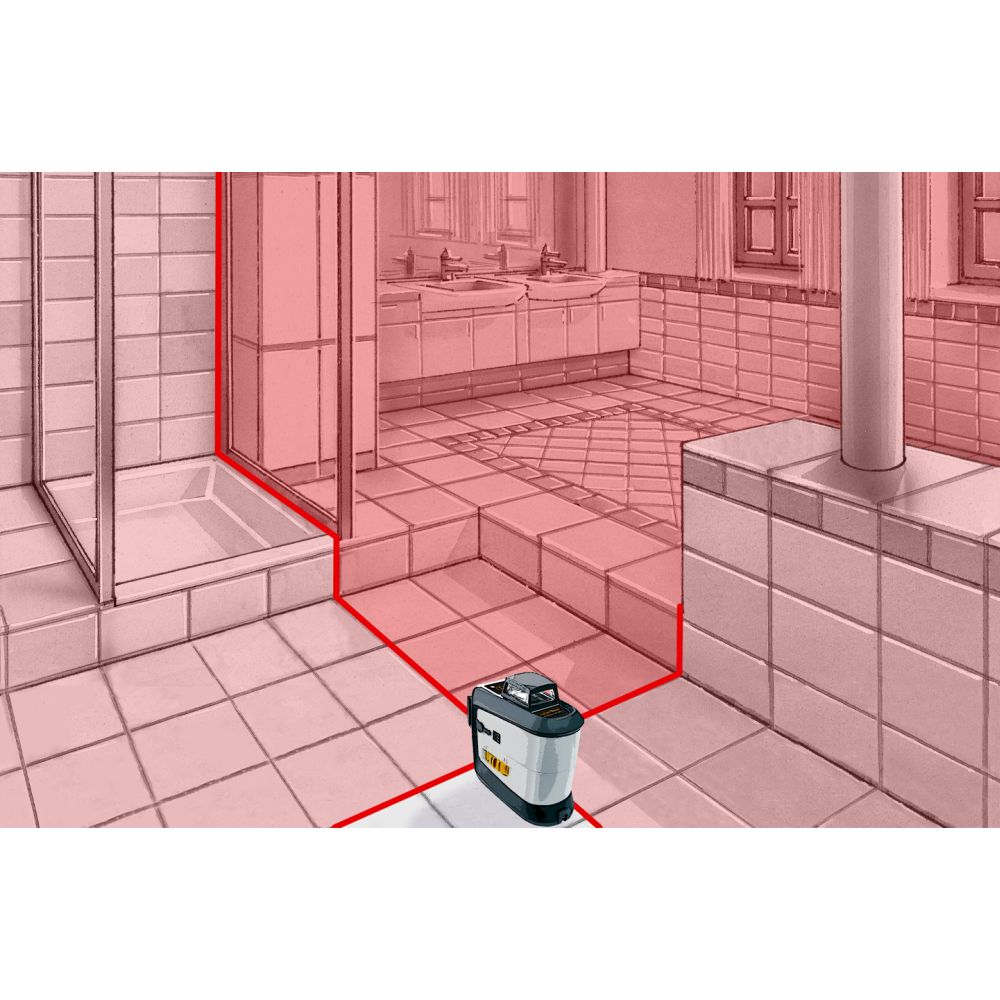

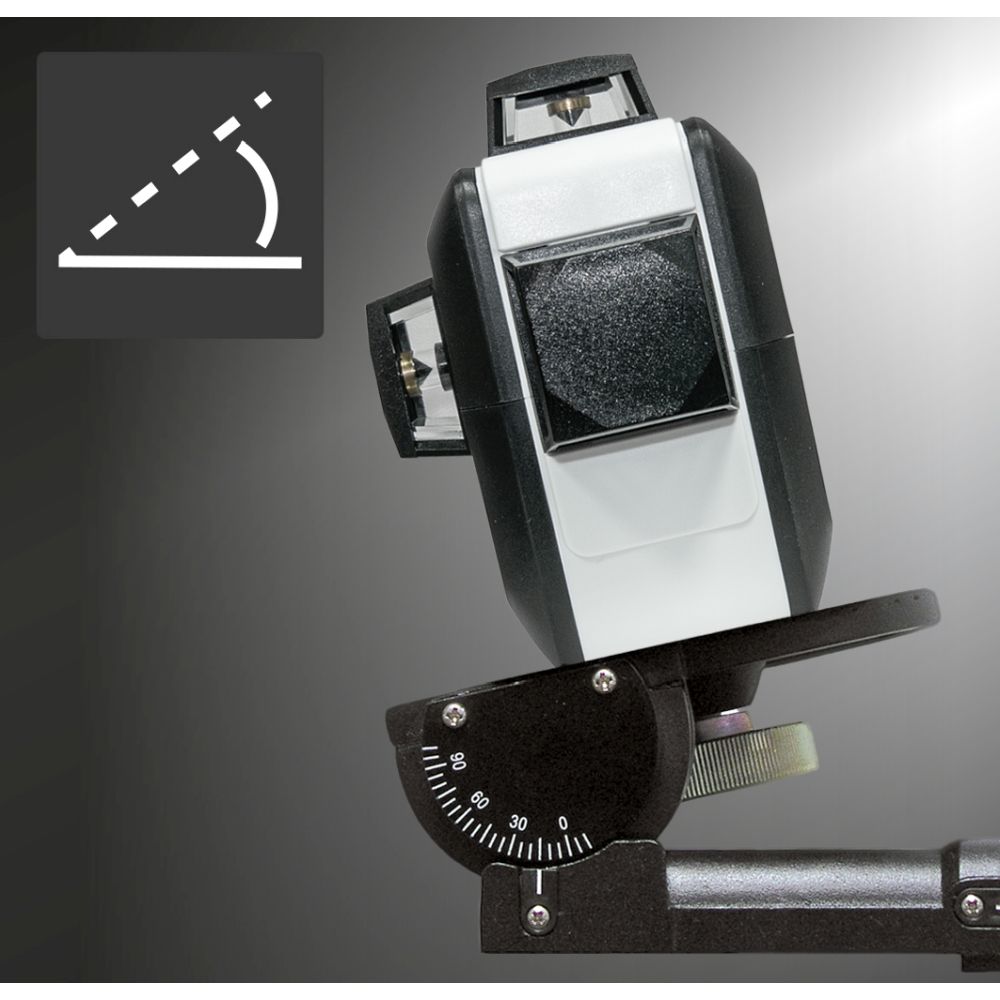

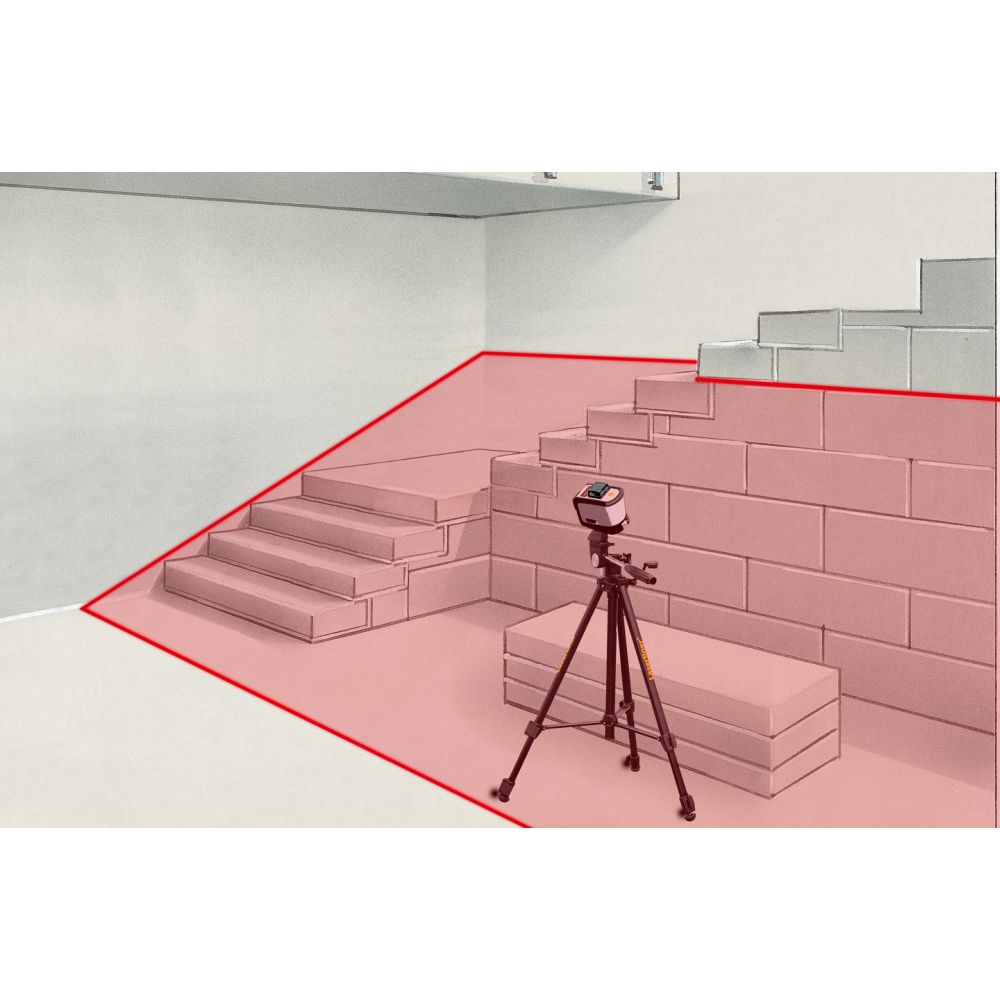

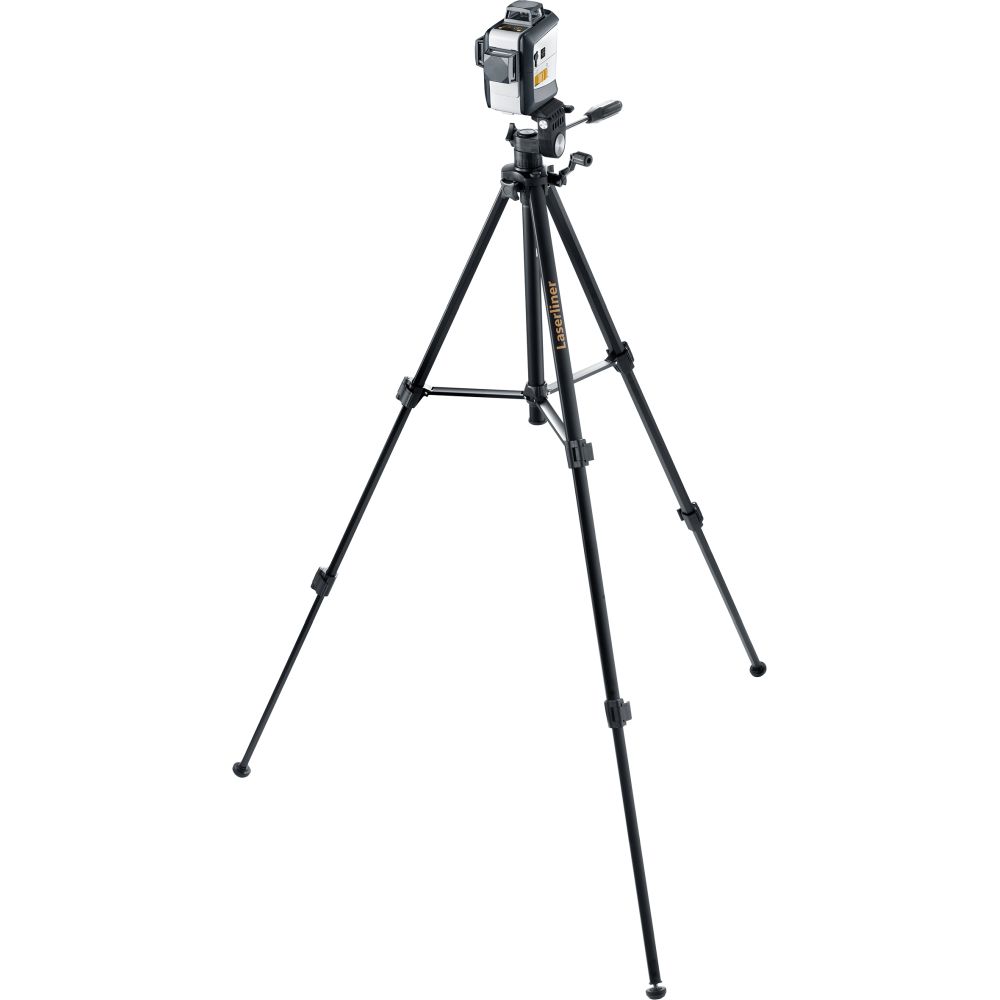

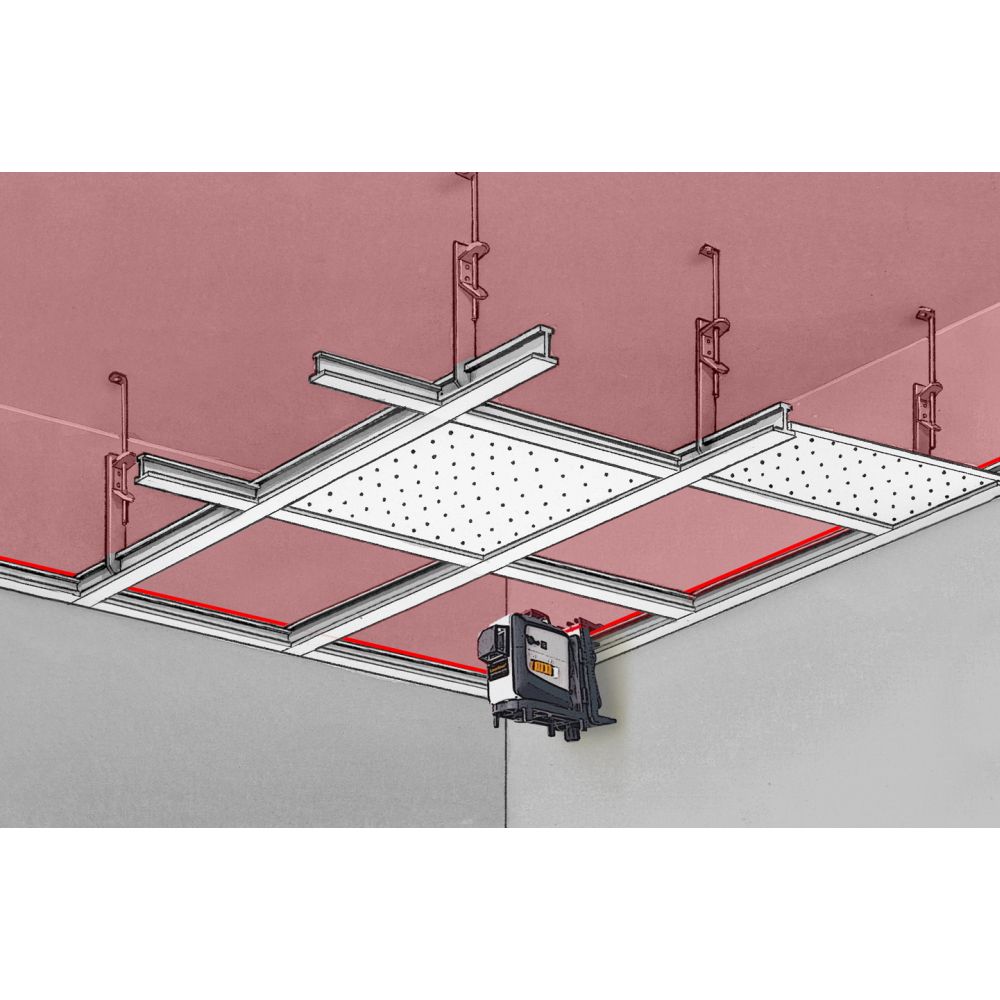

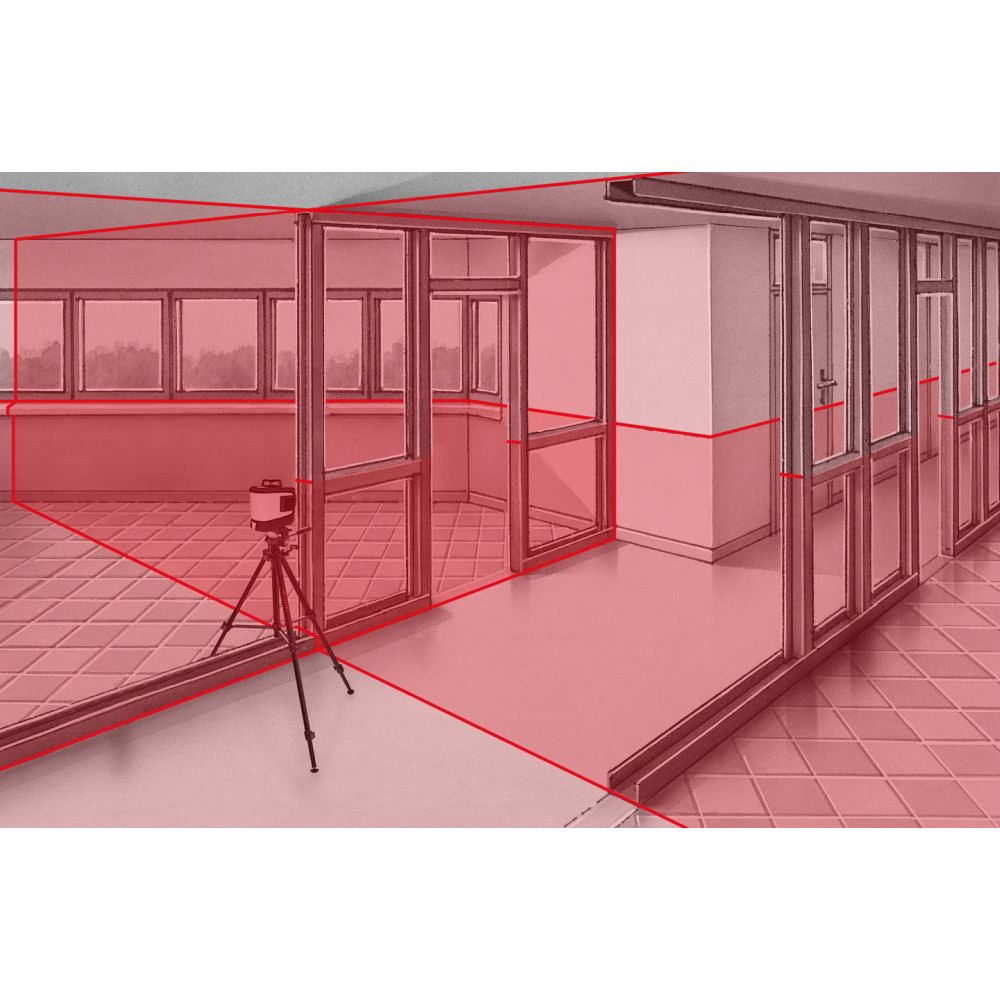

Description: This laser projects three highly visible laser circles and is perfect for precise alignment of horizontal and vertical surfaces and slopes. The magnetic clamping and wall bracket provides easy attachment to drywall construction profiles. Optical signals warn the user when the device is outside its self-levelling range. Other benefits include an option for mains operation, long operating cycle due to the powerful lithium-ion battery, and a pendulum restraint for protection during transportation. The integrated hand receiver mode allows laser lines to be detected with the optional receiver in a radius of up to a 40 m. The tripod enables the laser to be set up safely. The measuring device can be inclined, rotated or tilted to suit the application using the three-way tripod head. Precise height adjustment by crank lift. The combined rubber/steel tips ensure optimum adjustment to the supporting surface.
| Hand receiver mode | ✅ |
| Horizontal/vertical levelling | ✅ |
| Manual slope function | ✅ |
| Replaceable battery system | ✅ |

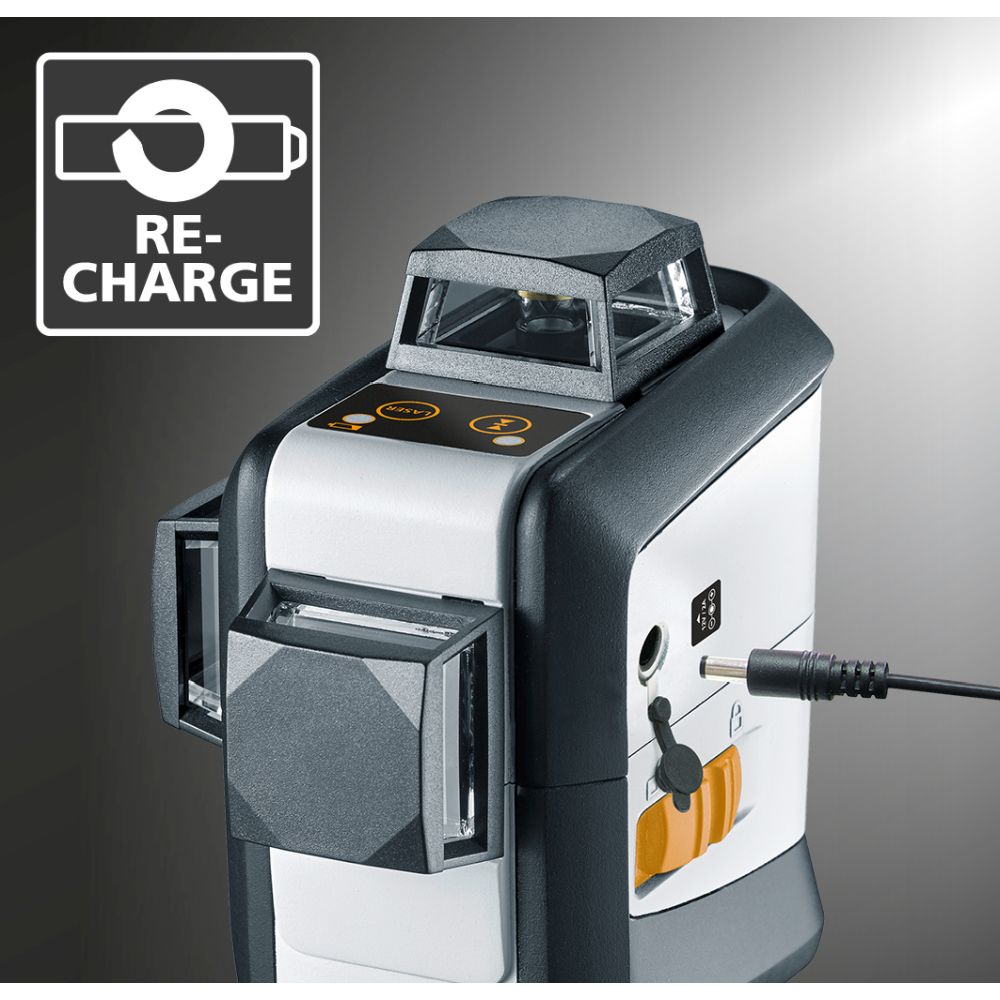

| Battery and mains operation | ✅ |
| Self-Levelling Range | ± 2.5° |
| Accuracy | ±0.2 mm/m |
| Levelling | automatic |
| Visibility (Typical)* | 15 m |
| Operating Range | (depending on room illumination) 15 m |
| Laser Wavelength | 650 nm |
| Laser Class | 2 / < 1 mW |

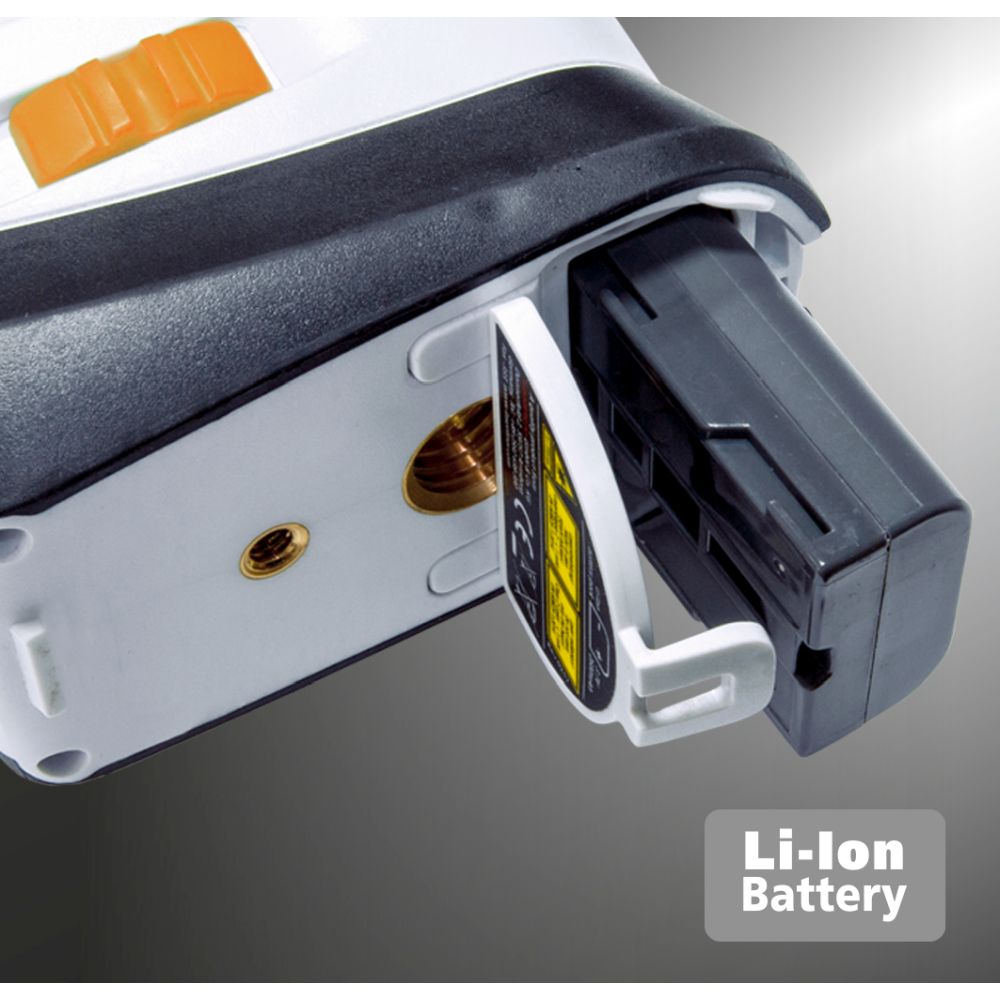

| Power Supply | Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh Power adapter 12V / DC / 2A |
| Operating Time | with 3 laser levels: approx. 9 hours with 2 laser levels: approx. 13 hours with 1 laser level: approx. 26 hours |
| Operating Conditions | 0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level |
| Storage Conditions | -10°C … 70°C, max. humidity 80% rH |
| Dimensions (W x H x D) | 132 mm x 127 mm x 85 mm |
| Weight | 652 g (incl. battery pack) |

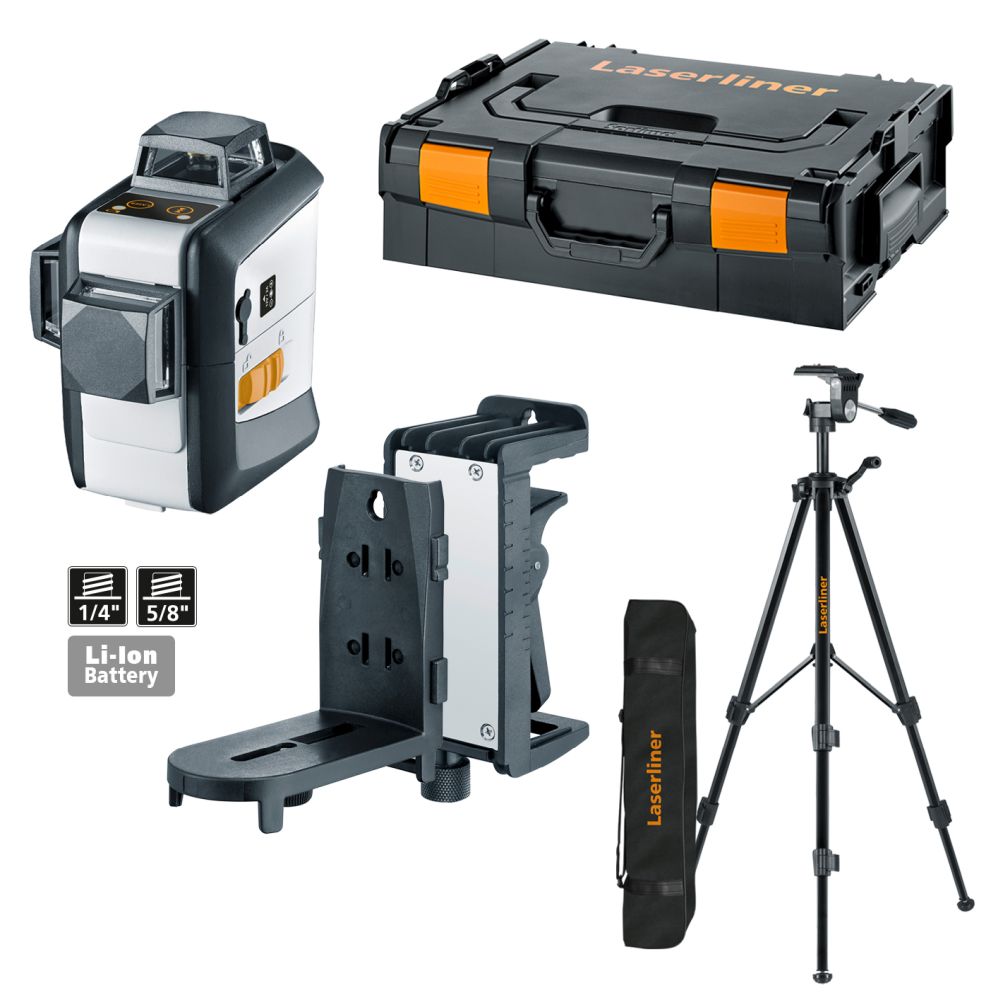

Scope of delivery:
Accessories (optional):
CombiRangeXtender 40(Art.No.: 033.35A) - laser receiver
RangeXtender 40(Art.No.: 033.40A) - laser receiver
RangeXtender 30(Art.No.: 033.25A) - Laser receiver
RangeXtender 60(Art.No.: 033.50A) - Laser receiver
VarioStand L 300 cm(Art.No.: 080.24A) - tripod

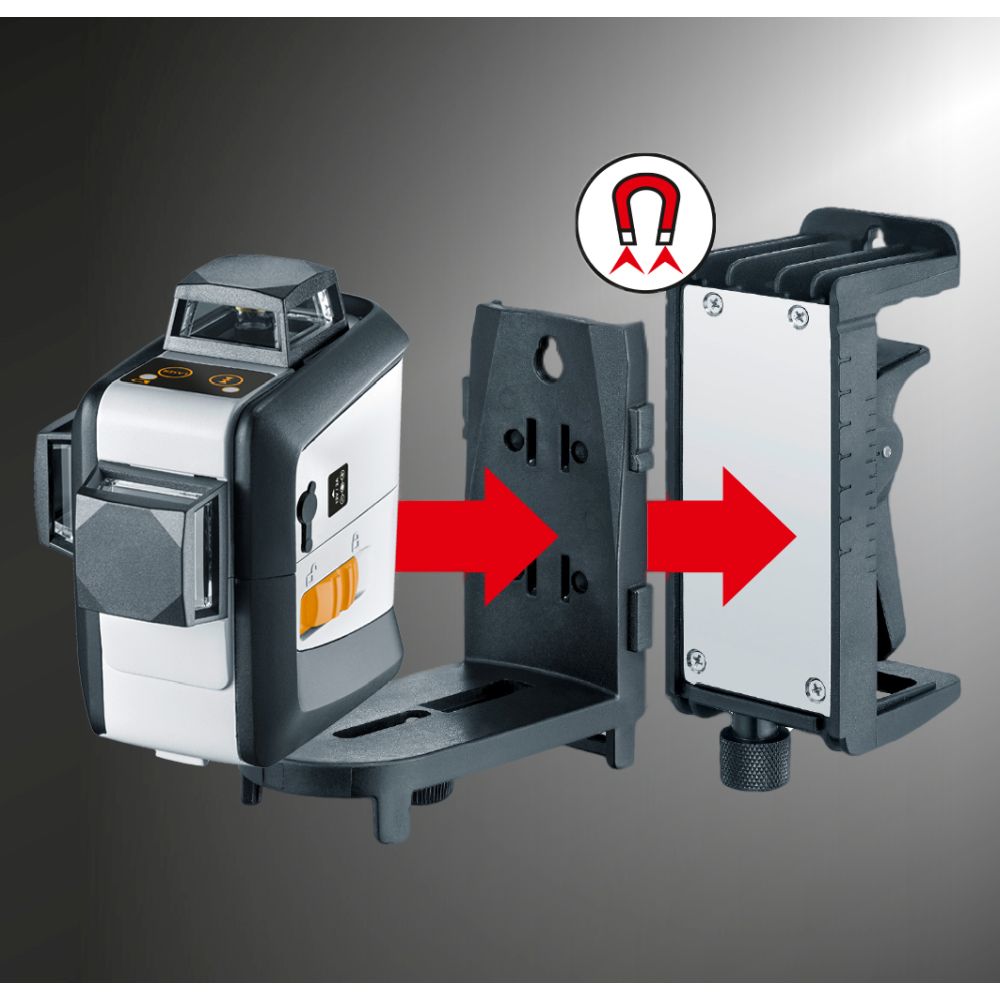

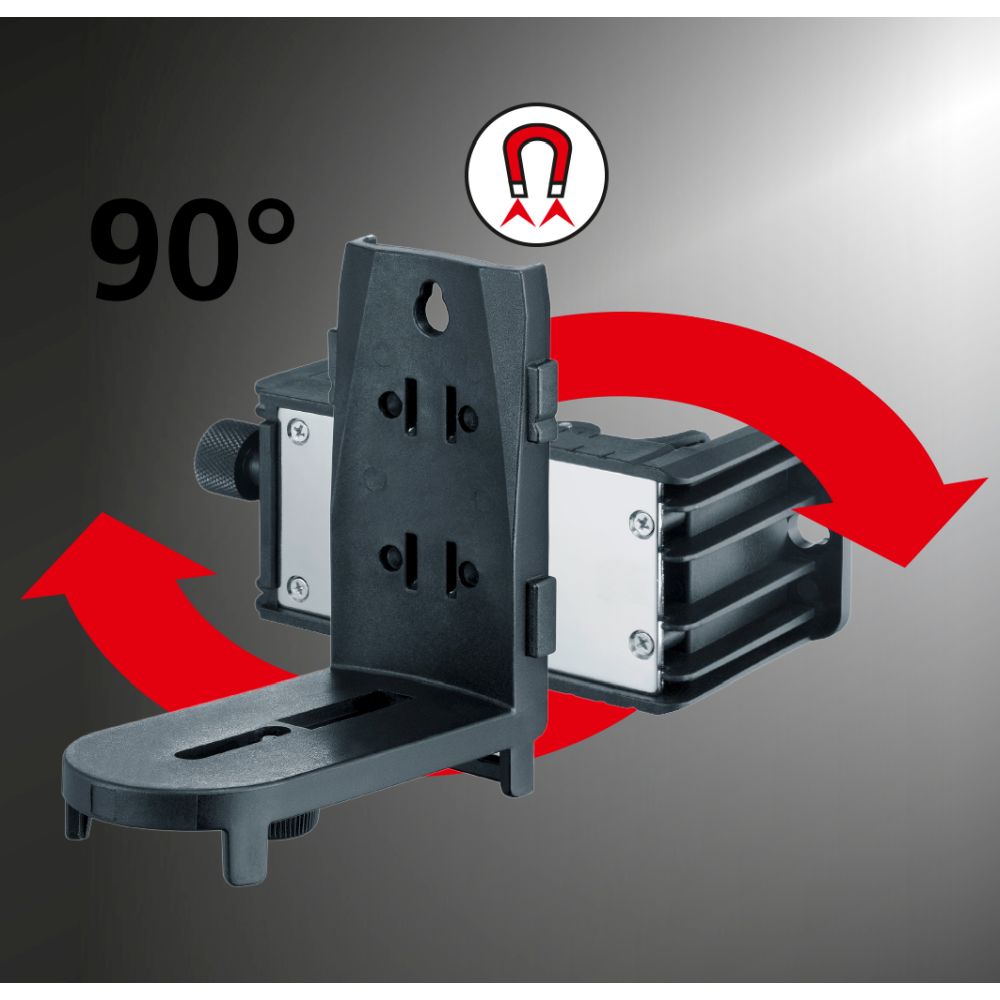

CrossGrip Pro(Art.No.: 036.24) - magnetic clamping and wall bracket
LaserSight red(Art.No.: 020.70A) - laser enhancement glasses
HighCapacityPack m. USB-C Kabel(Art.No.: 036.51A) - Powerful battery pack
Documentation:
Titel:
360° line laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 036.600-1, GTIN (EAN): 4021563723263
