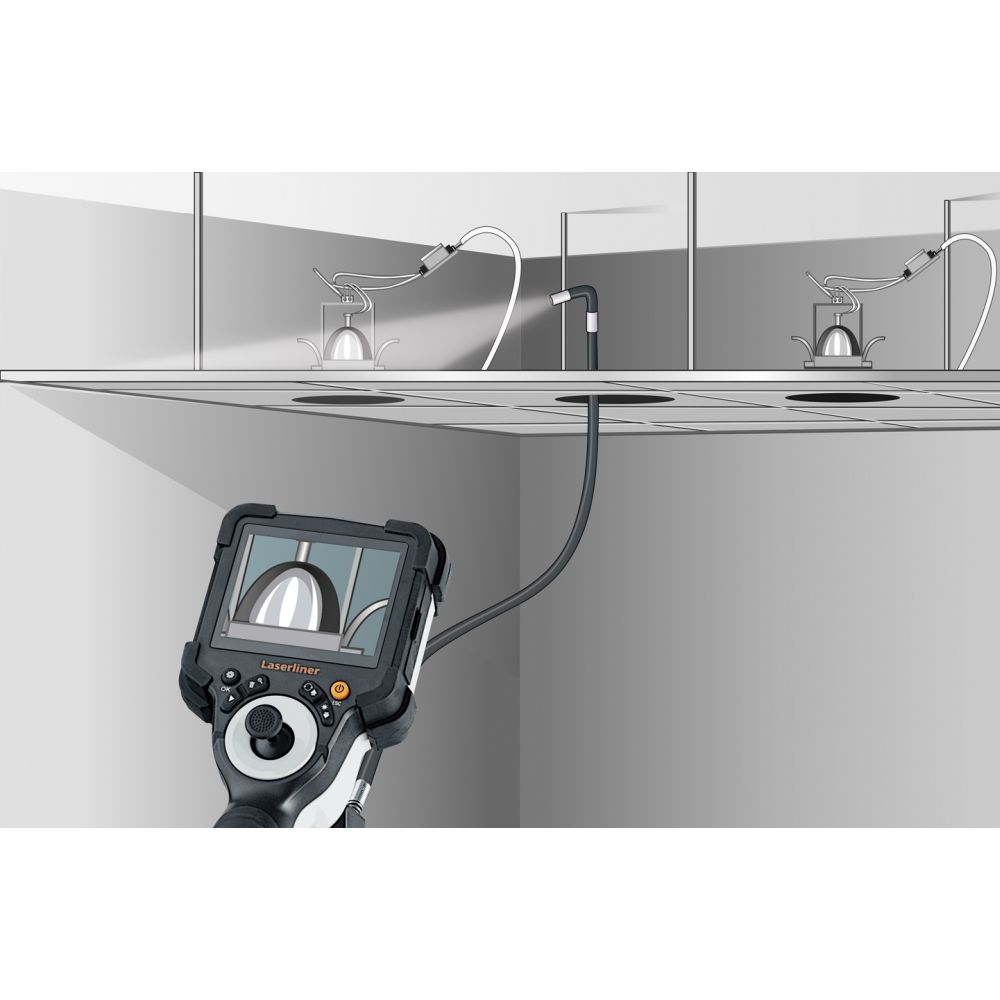

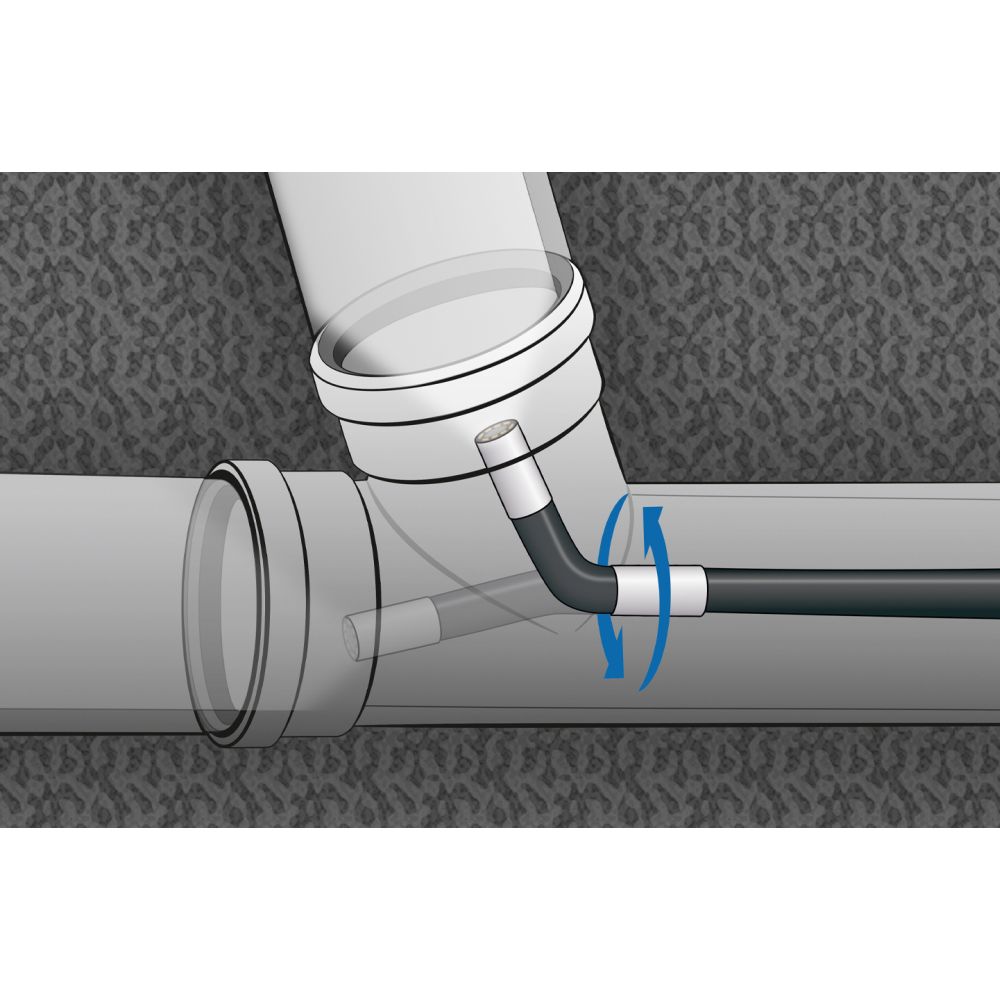

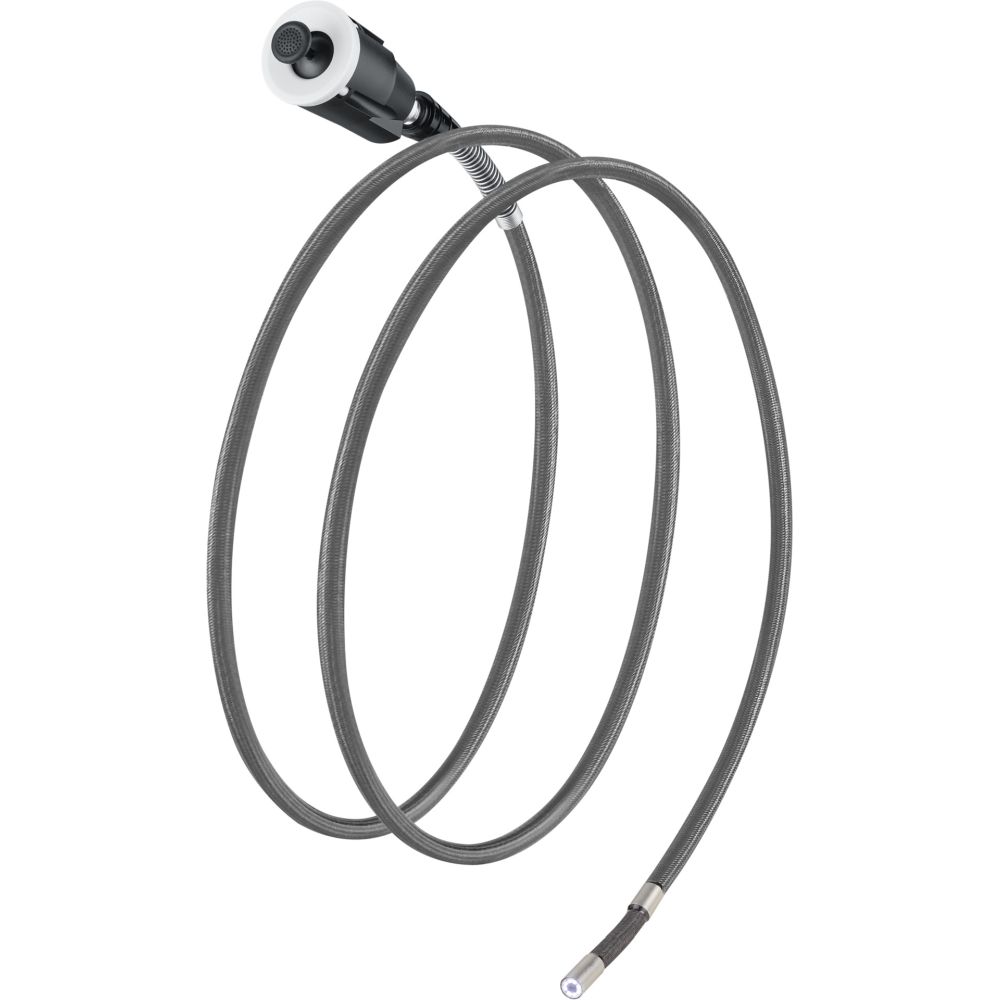

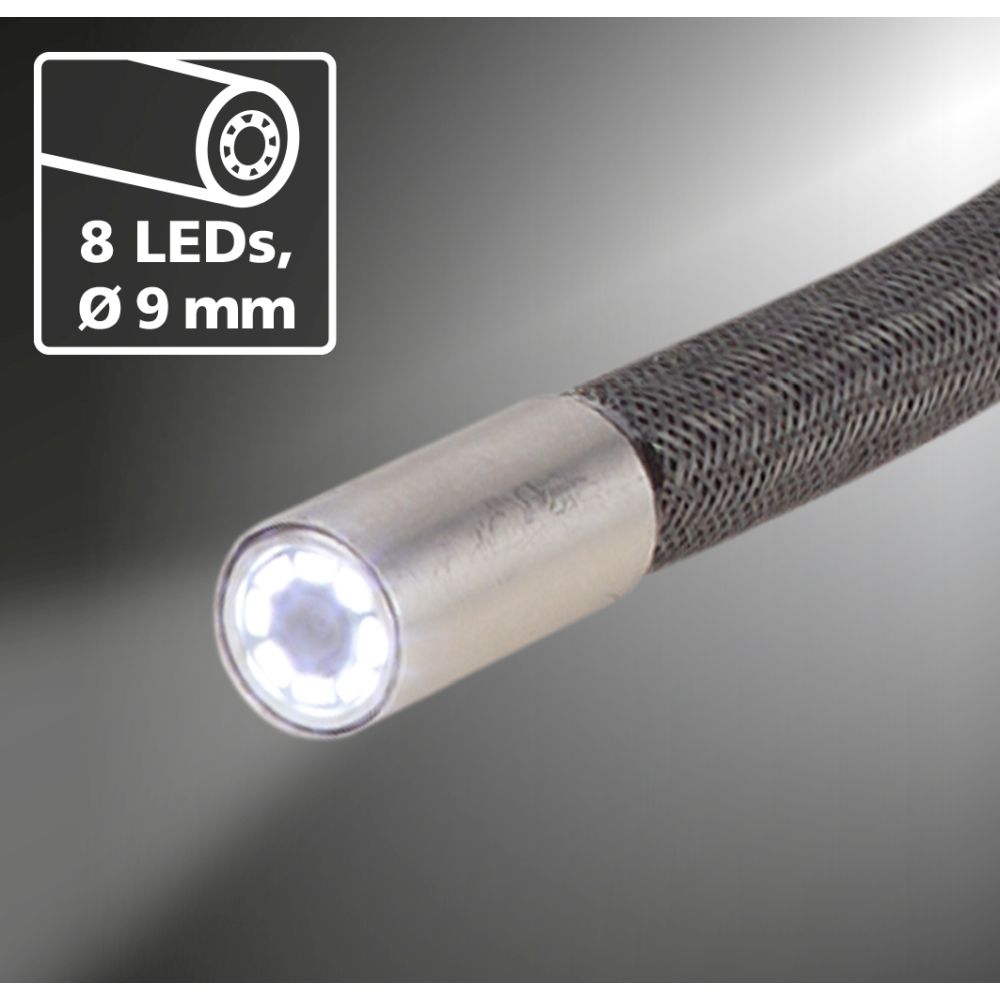

Description: The controllable camera unit has an individually movable camera head that can be quickly adjusted to the optimum perspective using the joystick on the VideoInspector base unit. This makes it possible to inspect hard-to-reach areas that are not visible with fixed camera systems. The inspection is also very reliable, as pipe seals, for example, can be inspected through 360° and damaged areas can be detected with pinpoint accuracy. The camera head and probe are waterproof and resistant to diesel, petrol, engine oil, AdBlue®, ethyl alcohol and salt water, making the device extremely versatile. The 8 high-performance LEDs provide excellent object illumination.
| Controllable camera head | ✅ |
| Object illumination | ✅ |
| Diameter Camera Head | 9 mm |
| Camera Resolution | 1280 x 720 pixels |
| Field of View (FOV) | 90 |

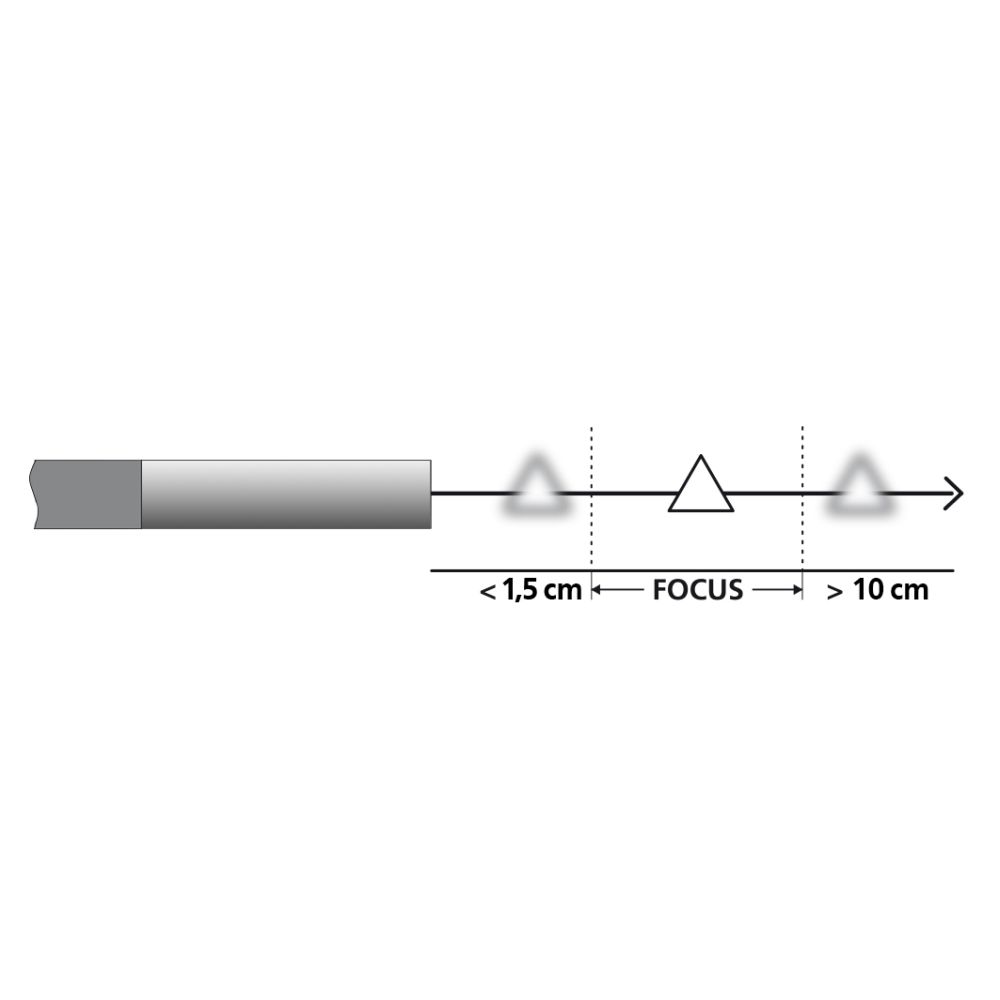

| Depth of Focus (DOF) | 1.5 … 10 cm |
| Screen Type | # |

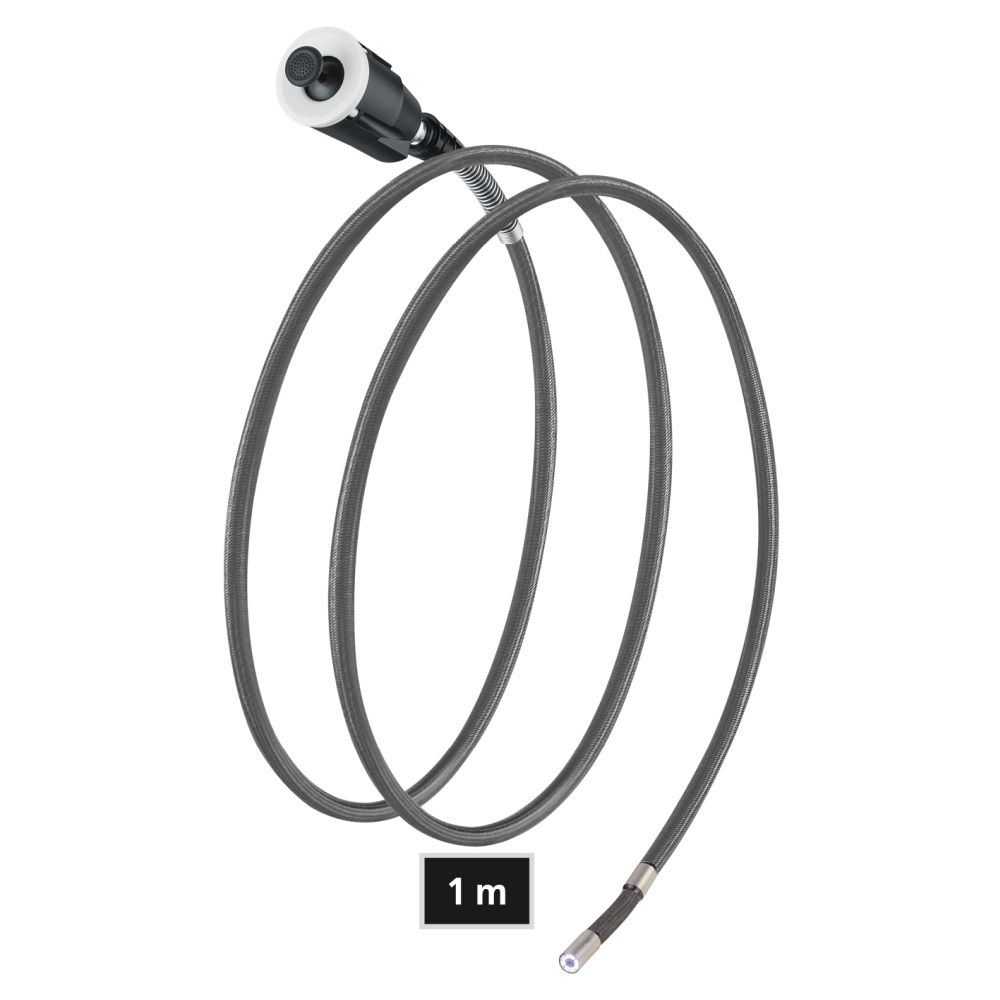

| Length of Probe | 1 m |
| Dimensions (W x H x D) | 1050 mm x 42 mm x 42 mm |
| Weight | 160 g # |
Scope of delivery:
Documentation:
Product information sheetTitel:
Controllable camera unit
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 082.235.1, GTIN (EAN): 4021563723348
