Description: This three-dimensional, practical and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is a particularly useful tool for demanding projects due its the comprehensive range of accessories. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching the laser to walls, metal items and tripods with a 1/4” or 5/8” thread.

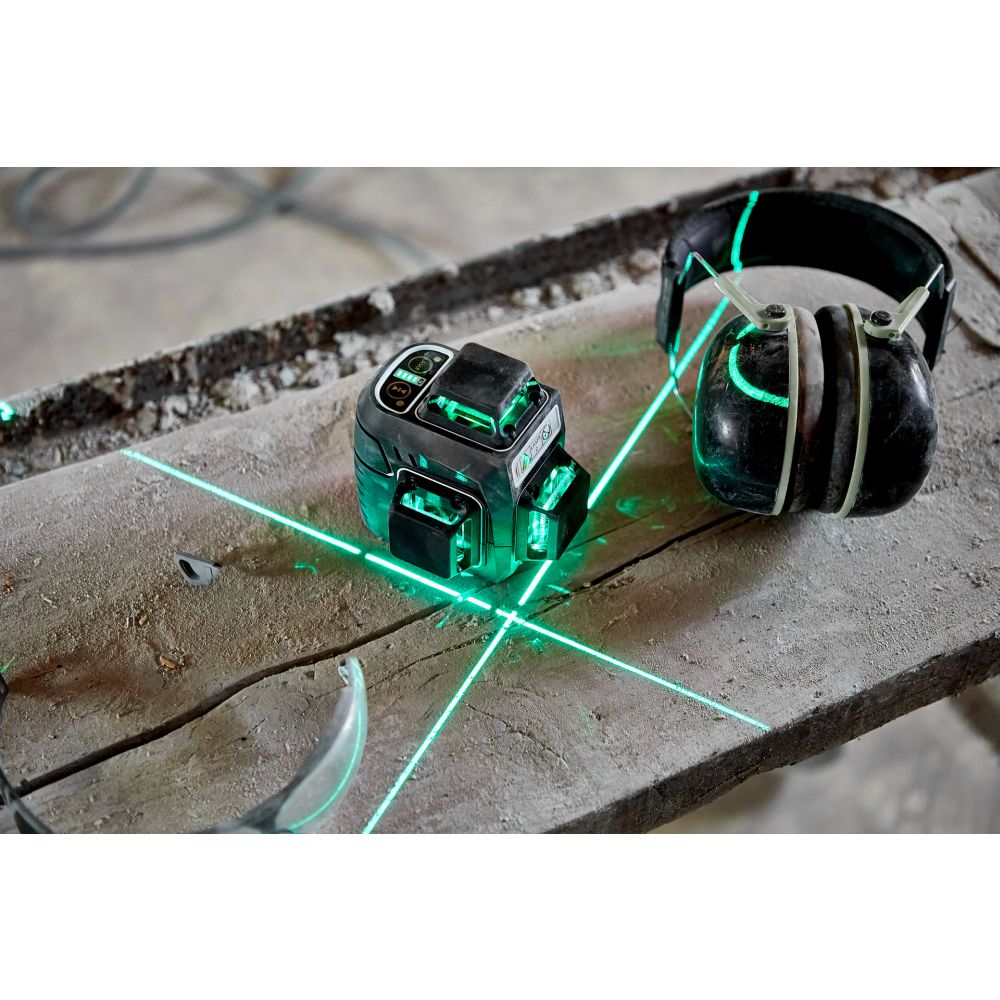

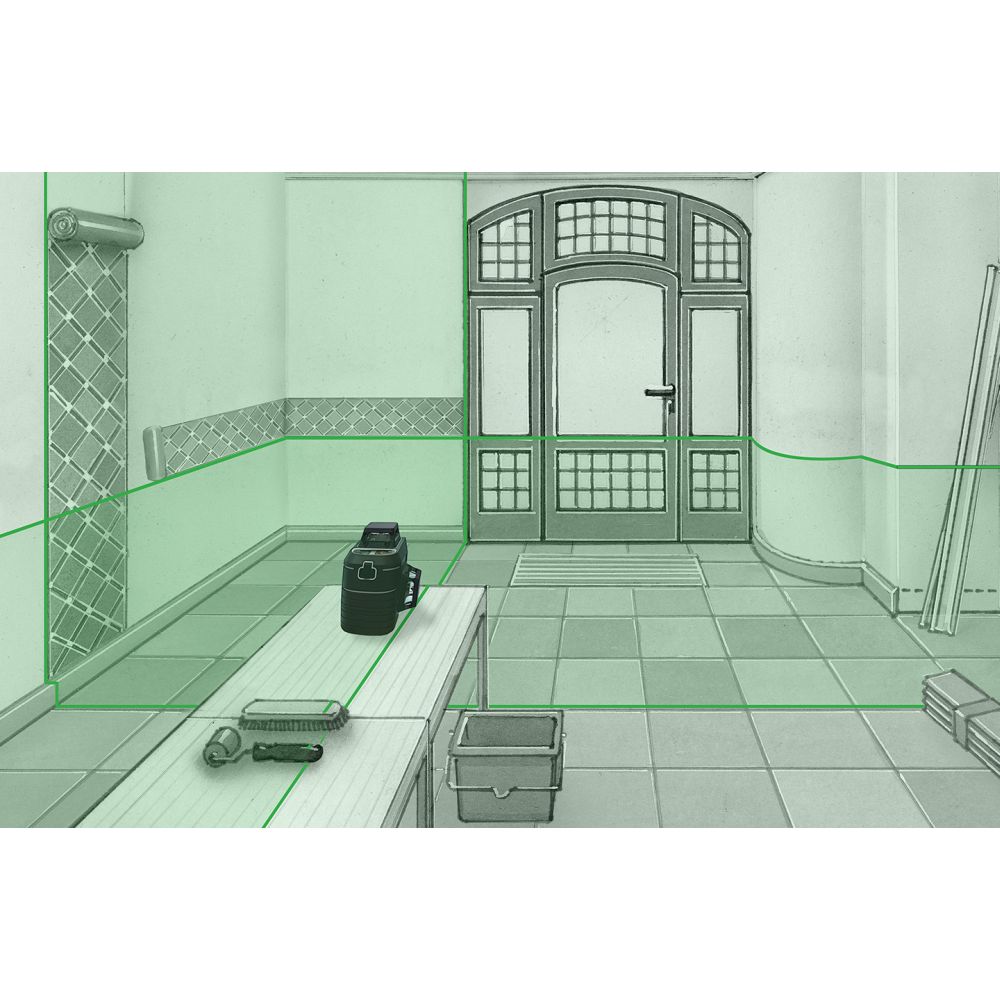

Three-dimensional laser with a horizontal and two vertical 360° laser circles

Accurate horizontal and vertical alignment of objects

Good visibility through green laser technology

Easy alignment of slopes with manual tilt function

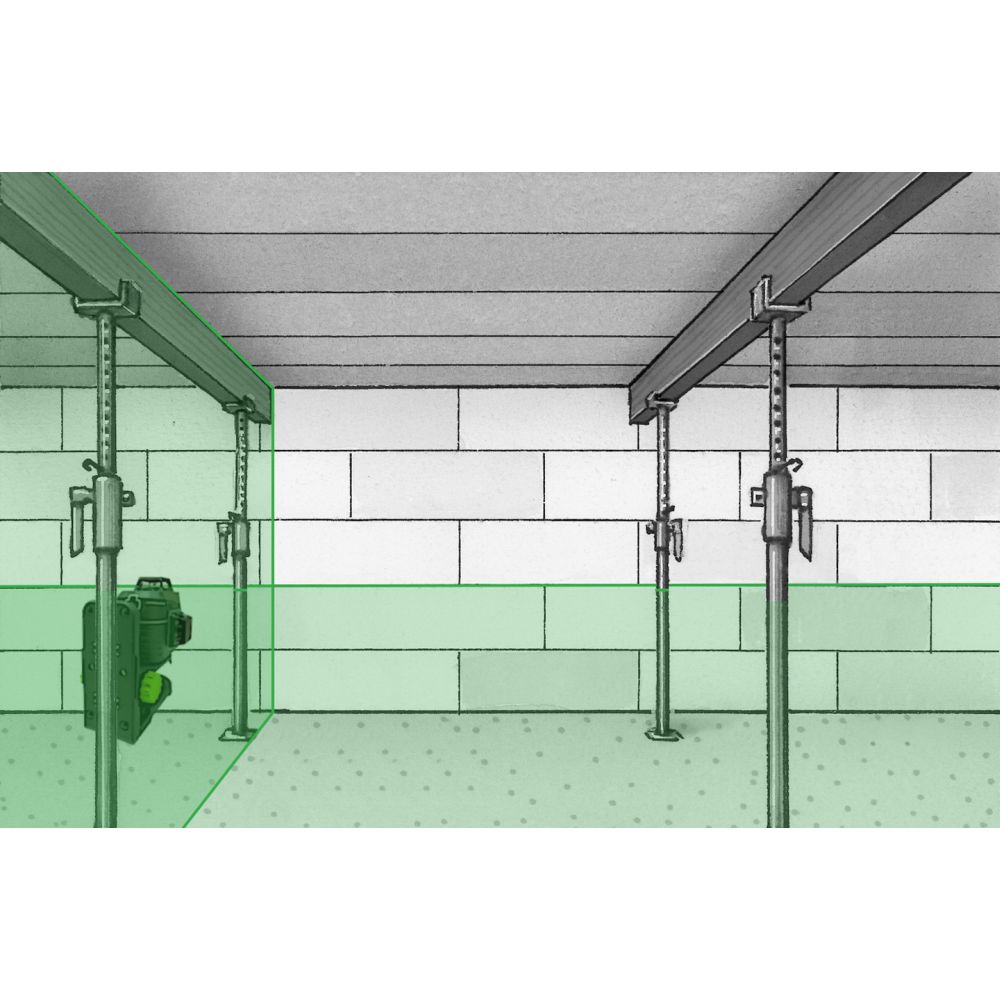

Plumb function for synchronous working on floor and ceiling

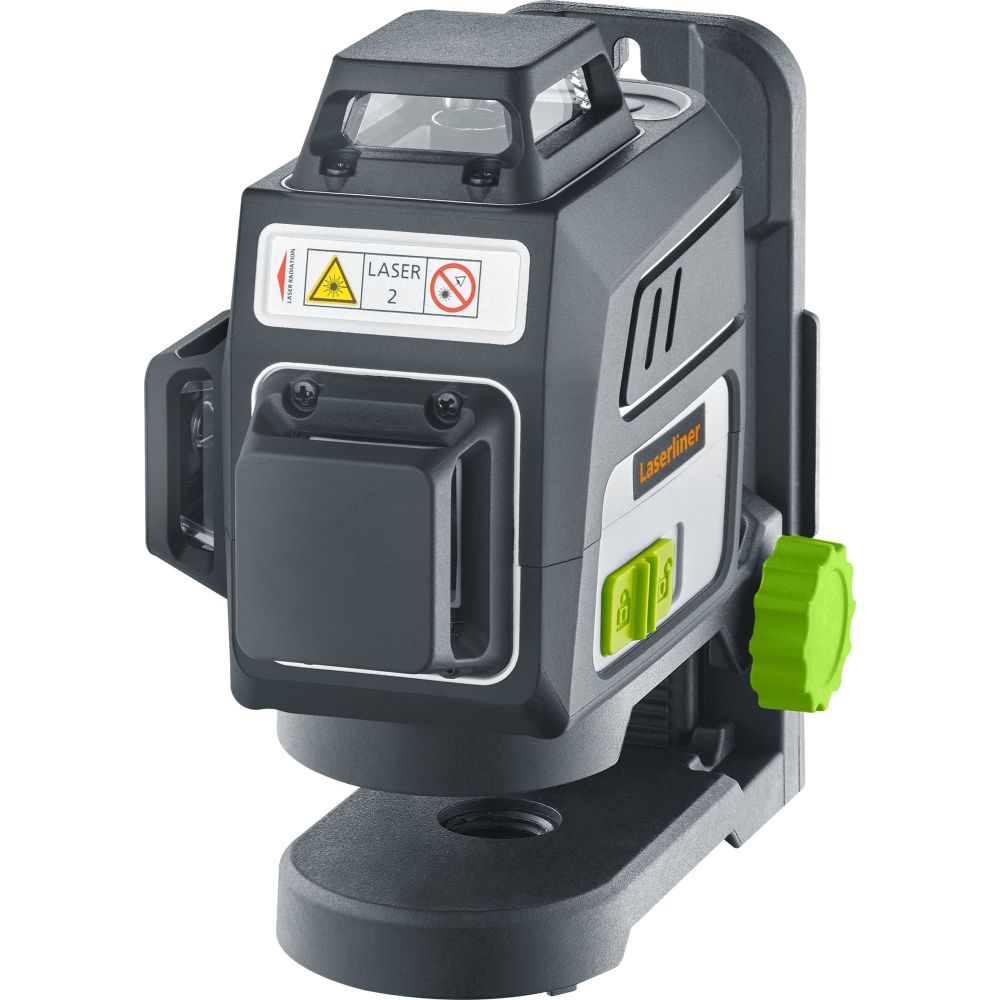

Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods

Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings

Laser enhancement glasses for optimum visibility of laser lines with the human eye

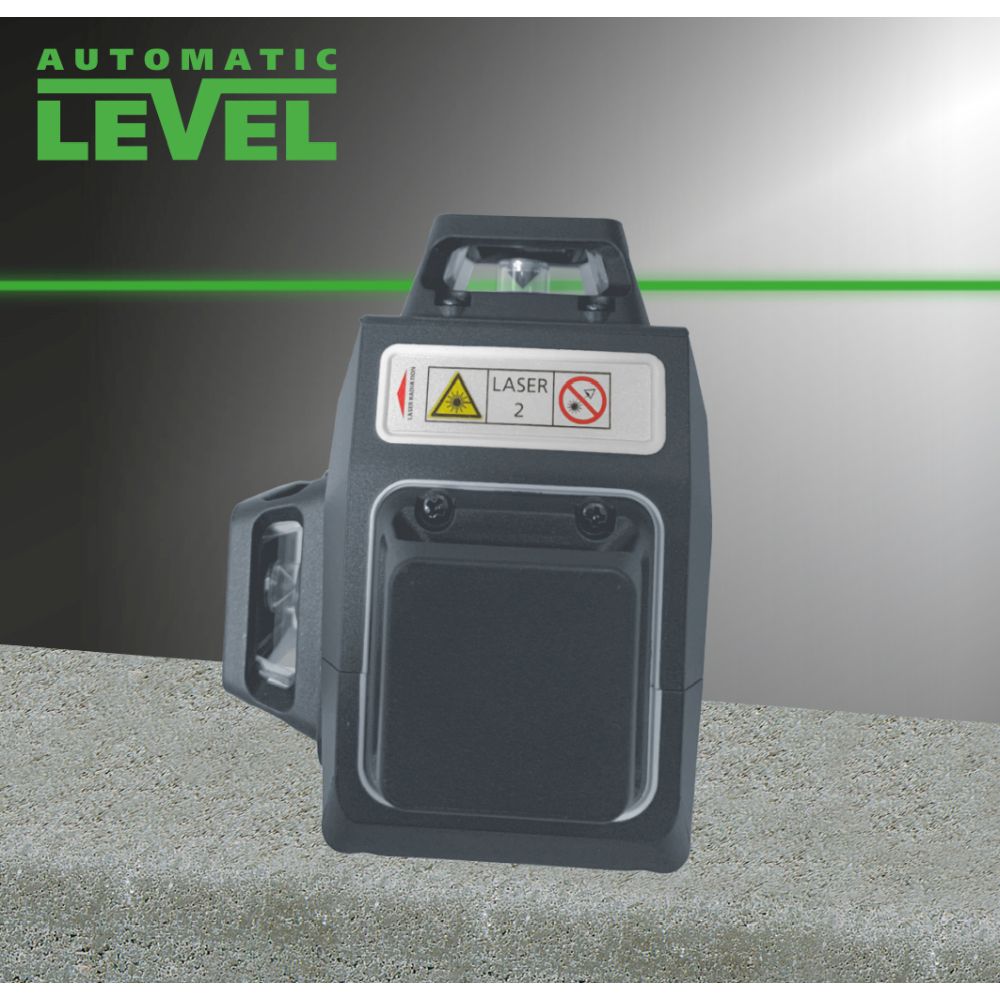

Time-saving automatic alignment

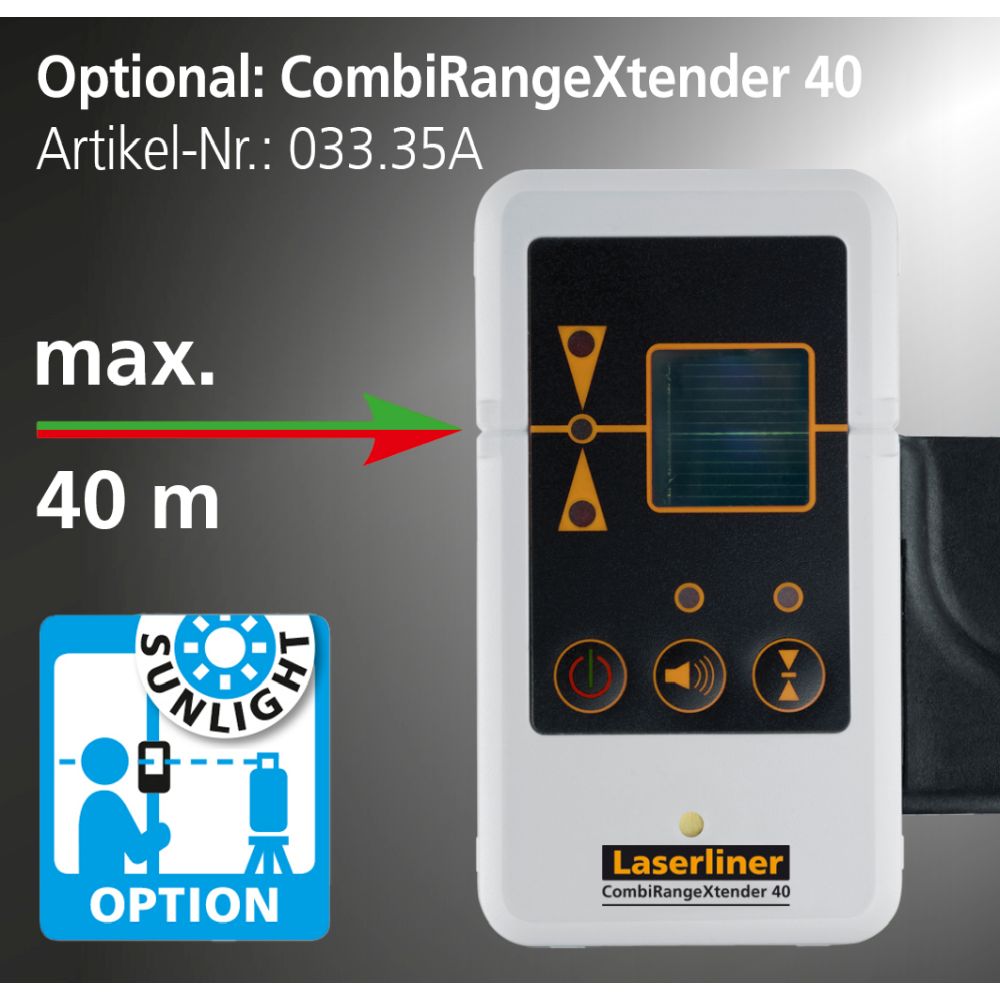

Integrated hand-held receiver mode for outdoor applications

Long battery operating time thanks to powerful lithium-ion rechargeable battery

Work efficiently and charge the battery at the same time

Rechargeable via USB-C cable

Visual signals indicate when the device is outside its self-levelling range

Pendulum restraint for safe transport

Horizontal/vertical levelling	✅
Manual slope function	✅
Battery and mains operation	✅
Hand receiver mode	✅
Self-Levelling Range	± 3.5° (horizontal)
Accuracy	± 0.3 mm / m
Levelling	automatic
Visibility (Typical)*	30 m
Laser Wavelength	515 nm
Laser Class	2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Length of Receiver Unit	0 mm
Power Supply	Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh Power adapter 5V/DC / 2A
Operating Time	with 3 laser levels: approx. 9 hours
Operating Conditions	0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions	-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)	104 mm x 97 mm x 76 mm x #
Weight	388 g (inkl. Akkupack)

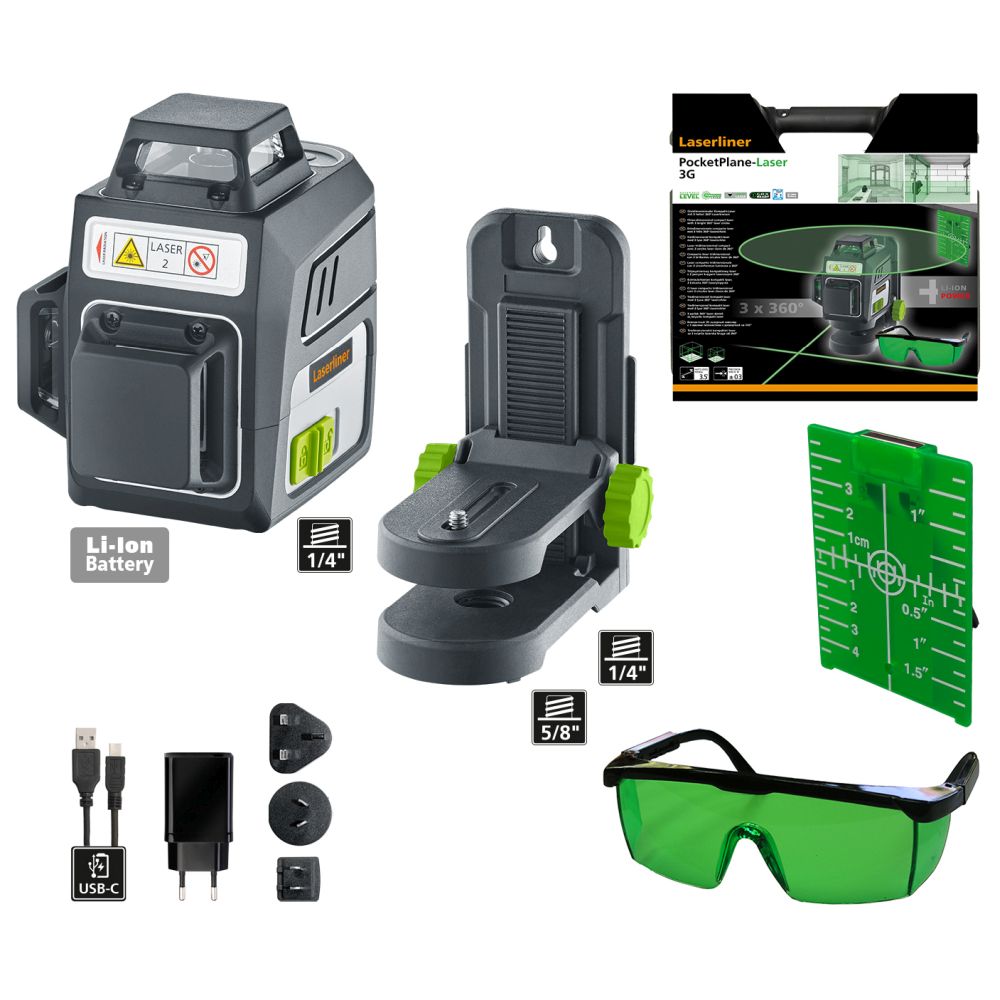

Scope of delivery:

PocketPlane-Laser 3G

PocketWallHolder

magnetic target plate green

laser enhancement glasses

Li-ion battery pack

network/charging device incl. international adapter

USB-C-cable

carrying case

Documentation:

Instructions
Instructions part 2
Instructions part 3
Instructions part 4
