Description: This professional video inspection system comprises two changeable camera units and offers very flexible applications. The XXLCamera with a long flexible hose is ideal for use at a great distance. The FixView Camera is a pivotable microcamera that is ideally suited to the smallest openings due to its compact design. Both cameras are fitted with four high-performance LEDs, as a result of which informative shots are achieved even under poor conditions. Thanks to the true to nature reproduction of colours, a realistic representation is possible, The video inspection system always arrives safely at the place of deployment in the L-BOXX 136. This case system valued by professional craftsmen is characterised by its great sturdiness and practical clicking of the BOXXes.

Effective problem localisation behind or in objects, walls, pipes, cavities

True colours for highly realistic image

Device fits well in the hand due to ergonomic design

Suitable image available on the monitor through rotation and mirroring

4 high-performance LEDs for powerful object lighting at the camera

Range of installation options due to exchangeable camera unit

Use with XXL-Camera:

Long flex cable for use over long distances

SmartView: Intuitive rotation of the base unit for easy spatial orientation

Magnet, mirror and hook mount for fixing on the camera head

Pull/lift difficult to reach objects

Mirror allows objects to be viewed at 90° angle

Guide sleeve – for smooth movement on uneven surfaces

Reduces sticking and contamination of the camera head.

Use with FixView-Camera:

SmartView: Rotatable 4 mm thin microcamera for inspecting extremely small openings

40 cm long stainless steel guide

The images can be stored for analysis and documentation

USB-C interface for analysis on PC

Resistant to petrol and diesel

Easy-to-read display

8 available languages

Live display	✅
Image/video recording	✅
Image/video playback	✅
Digital zoom	✅
Object illumination	✅
Time stamp	✅
Image alignment	✅
External image/video output	✅
Data transfer	✅
SmartView	✅
Diameter Camera Head	XXL: 9 mm / FixView: 4 mm
Camera Resolution	XXL: 640 x 480 pixels / FixView: 320 x 240 pixels
Field of View (FOV)	XXL: 53° / FixView: 63°
Depth of Focus (DOF)	XXL: 1 … 6 cm / FixView: 3 … 7 cm
Screen Type	3,5" TFT-Farbdisplay
Display Resolution	320 x 240 pixels
Image Format	JPEG
Length of Probe	XXL: 5 m / FixView: 400 mm
Illumination	5 brightness levels
Digital Zoom	2x digital zoom in 20% increments
Memory	Micro-SD memory card up to 16 GB
Port	USB
Ports	USB type C RCA video output
Power Supply	USB type C 5V / 2A Li-ion battery pack 3.7V / 2.8Ah / 10.36Wh
Dimensions (W x H x D)	181 mm x 207 mm x 96 mm
Weight	342 g (incl. battery pack)

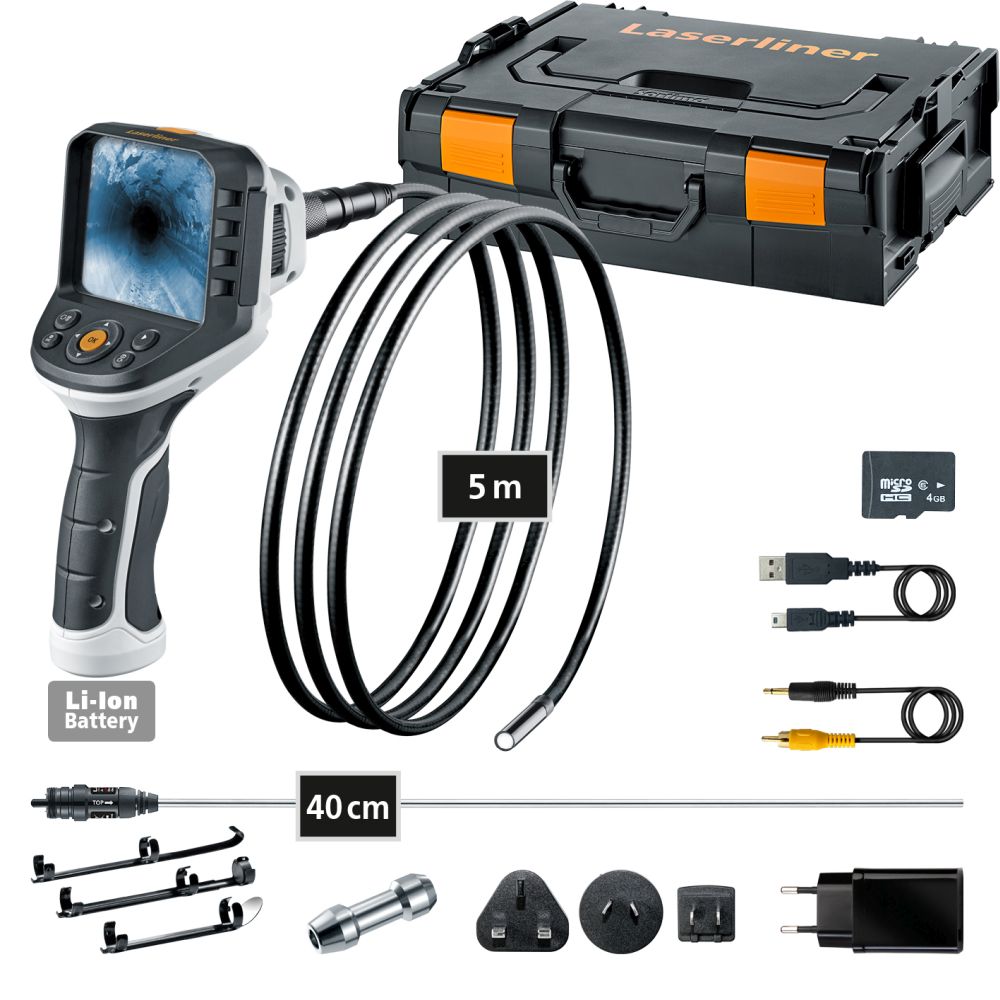

Scope of delivery:

VideoFlex G4

XXLCamera 5 m

FixView Camera 0,4 m

Li-ion battery pack

network/charging device incl. international adapter

USB cable

4 GB micro-SD card

video cable

TopClips

TopGuide

complete in the L-BOXX 136

Accessories (optional):

•
  Ultra Camera
  (Art.No.: 082.220A) - camera unit


•
  DuoView Camera
  (Art.No.: 082.215A) - Camera unit


•
  Micro Camera
  (Art.No.: 082.221A) - camera unit


•
  FlexCamera
  (Art.No.: 082.222A) - camera unit


•
  TopClips Set
  (Art.No.: 082.223A) - magnet, mirror and hook attachments


•
  TopGuide
  (Art.No.: 082.224A) - Guide sleeve


•
  ArcView Camera
  (Art.No.: 082.214A) - Camera unit


•
  MaxView Camera
  (Art.No.: 082.217A) - Camera unit


•
  FixView Camera
  (Art.No.: 082.209A) - Camera unit


•
  VarioView Camera
  (Art.No.: 082.218A) - Camera unit

Documentation:

Instructions
Instructions part 2
Instructions part 3
Instructions part 4
Instructions part 5 Instructions part 6
