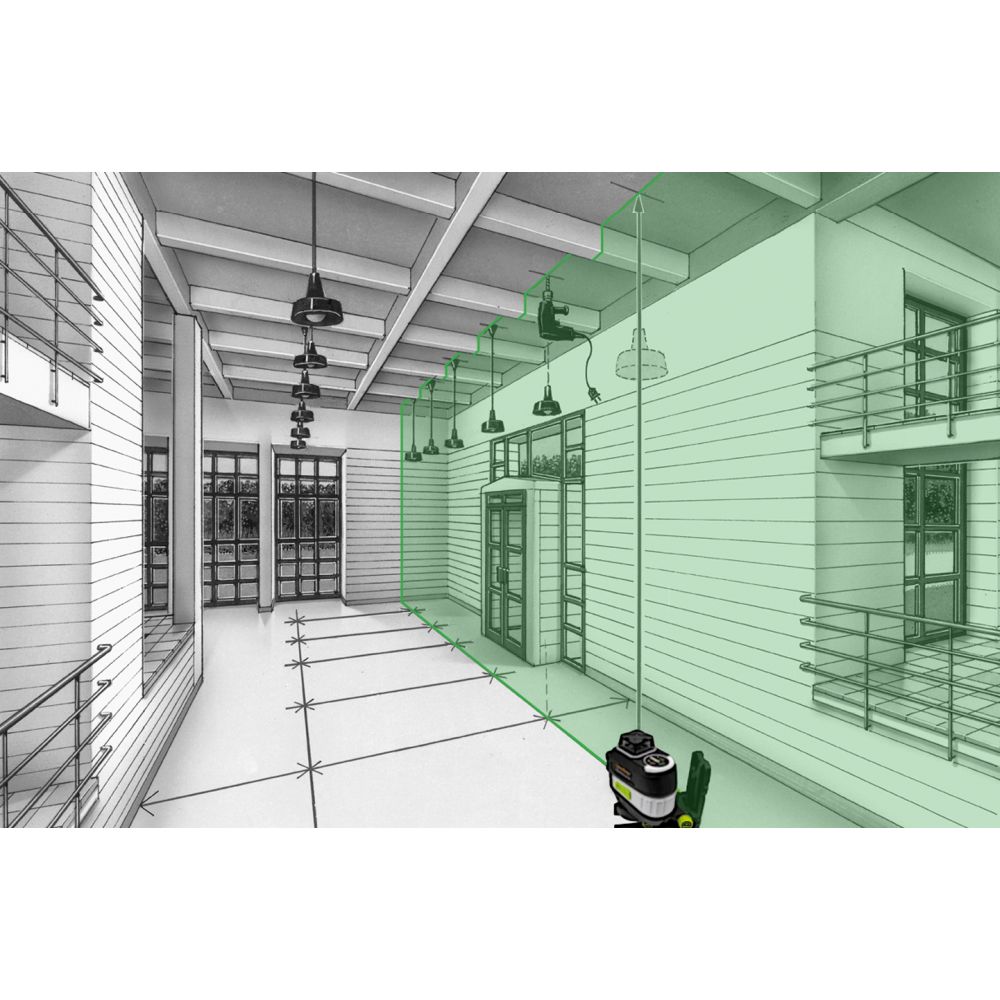

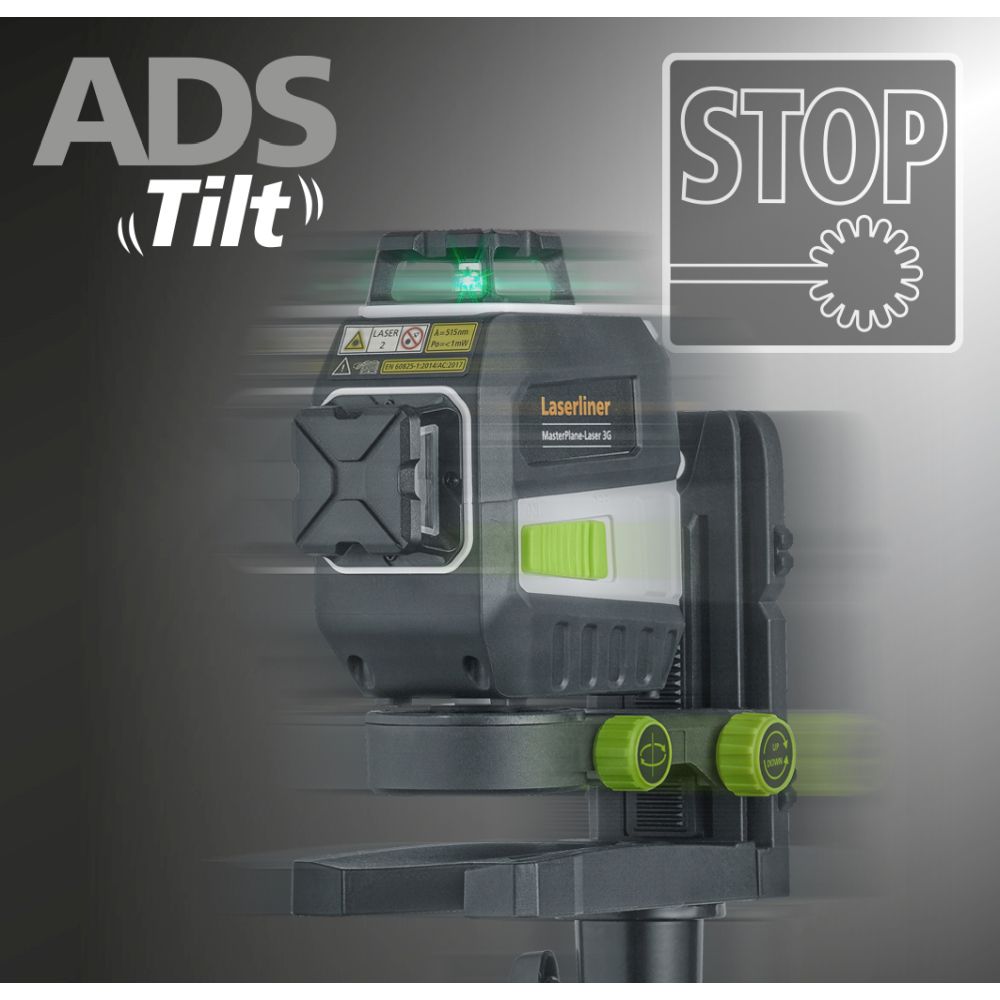

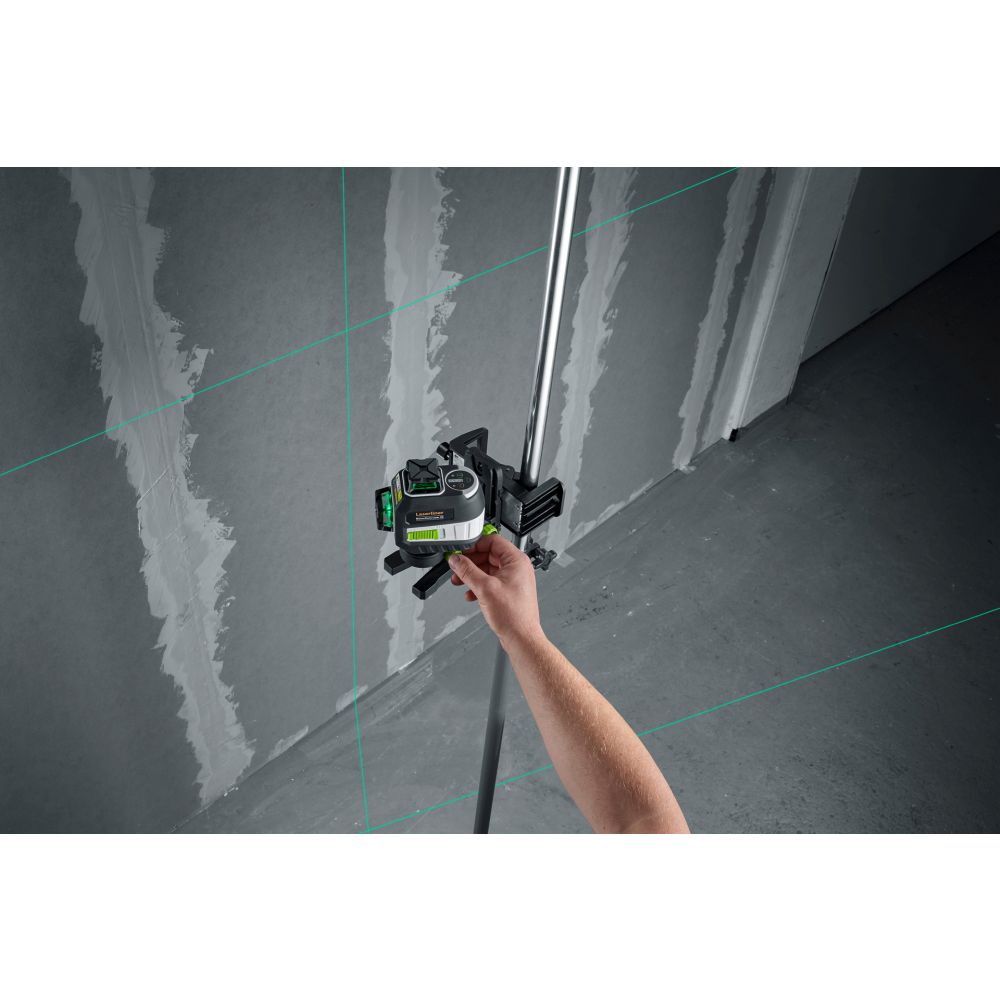

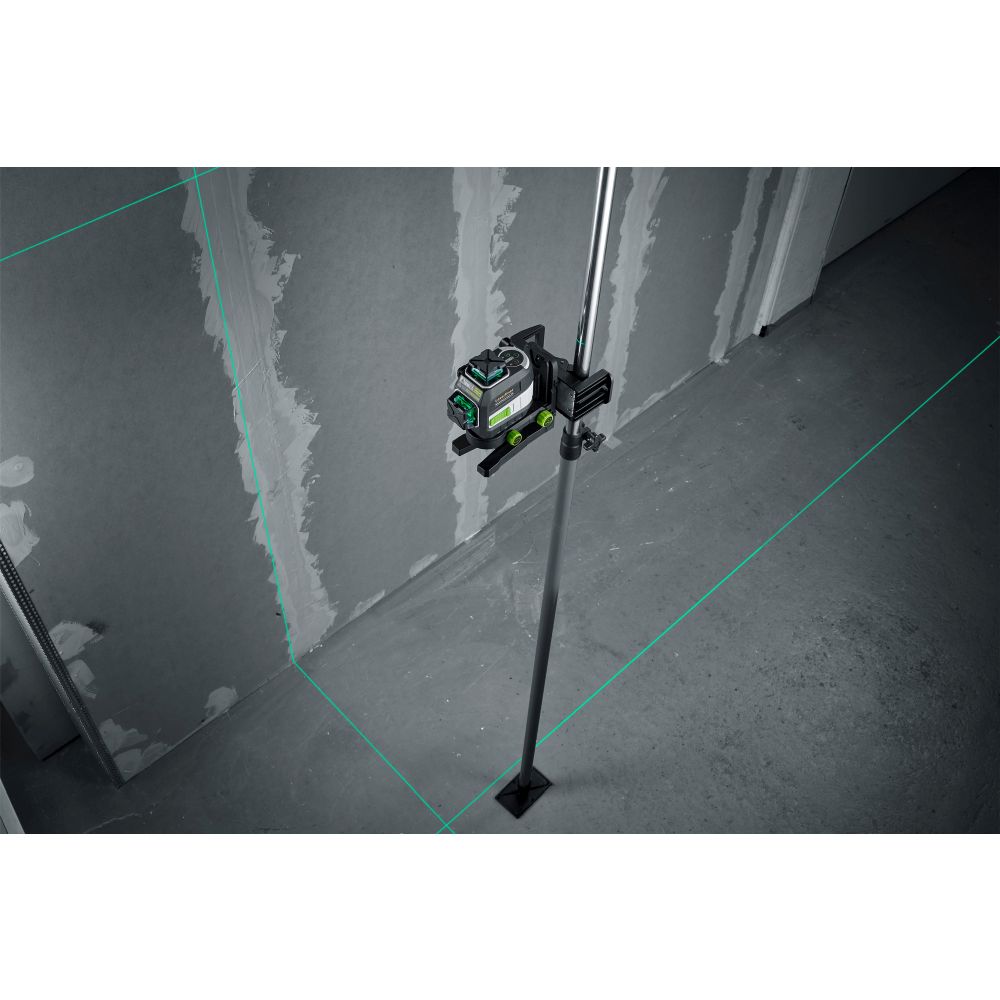

Description: This three-dimensional, highly visible laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working on floors and ceilings at the same time. The laser lines can be switched individually and the Anti-Drift-System (ADS) automatically switches the device off to avoid measurement errors due to external influences. The clamping and wall bracket allows the laser to be hung up or attached to metallic surfaces or ceiling profiles.
Horizontal/vertical levelling | ✅ |
Manual slope function | ✅ |
Replaceable battery system | ✅ |
Hand receiver mode | ✅ |
Tilt warning function | ✅ |
Self-Levelling Range | ± 3.5° (horizontal) |
Accuracy | ± 0.2 mm / m |
Levelling | automatic |
Visibility (Typical)* | 55 m |
Operating Range | (depending on room illumination) 50 m |
Laser Wavelength | 515 nm |
Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
Power Supply | Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh Power adapter 5V / DC / 2A |
Operating Time | with 3 laser levels: approx. 5 hours with 2 laser levels: approx. 10 hours with 1 laser level: approx. 17 hours |
Operating Conditions | 0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull) |
Storage Conditions | -10°C … 70°C, Luftfeuchtigkeit max. 80% rH |
Dimensions (W x H x D) | 140 mm x 130 mm x 85 mm |
Weight | 636 g (inkl. Akkupack) |
Scope of delivery:
Accessories (optional):
RangeXtender G 60(Art.No.: 033.55A) - laser receiver
RangeXtender M 50(Art.No.: 033.70A) - Laser receiver
CombiRangeXtender 40(Art.No.: 033.35A) - laser receiver
RangeXtender G 30(Art.No.: 033.26A) - Laser receiver
VarioStand L 300 cm(Art.No.: 080.24A) - tripod
Lightweight Tripod 165 cm(Art.No.: 080.02) - tripod
Crank Tripod 300 cm(Art.No.: 080.39) - Crank tripod
Crank Tripod 260 cm(Art.No.: 080.35) - Crank tripod
Crank Tripod P 175 cm(Art.No.: 080.26) - crank tripod
CrossGrip Pro(Art.No.: 036.24) - magnetic clamping and wall bracket
LaserSight green(Art.No.: 020.71A) - Laser enhancement glasses
HighCapacityPack m. USB-C Kabel(Art.No.: 036.51A) - Powerful battery pack
SpiderStand 150 cm(Art.No.: 080.21A) - Compact tripod
Documentation:
Titel:
Three-dimensional laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 031.400A, GTIN (EAN): 4021563727179
