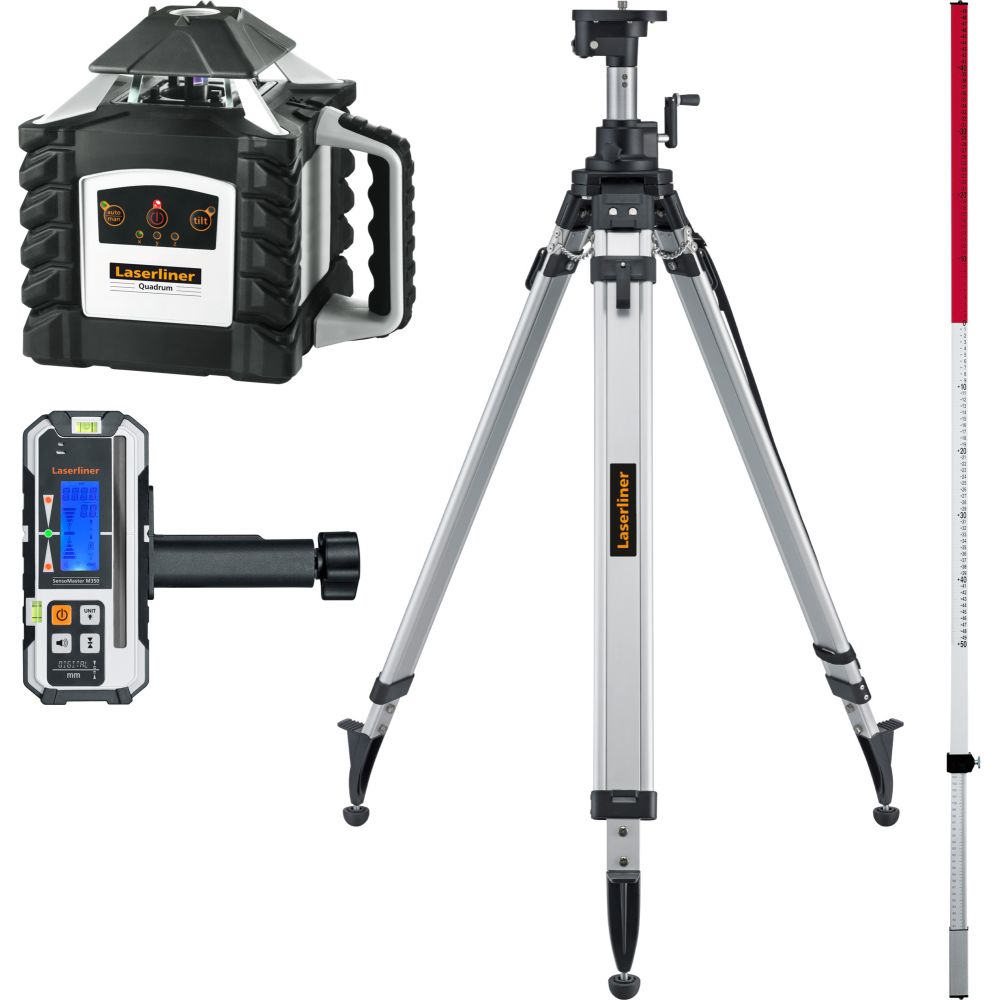

Description: This fully automatic rotary laser is ideal for precise alignment of horizontals, verticals and slopes. With a radius of 350 metres, the laser reception range is extremely large. The functions can be easily controlled from all sides using the remote control up to a maximum distance of 40 metres. The ADS tilt on the device automatically shuts it down in the event of external influences. This robust crank tripod with a 5/8” thread adapter, stable steel feet and steel chains has an extremely long crank stroke (70 cm) which can be adjusted and locked without any play. The Flexi levelling staff Plus for determining floor heights completes the set.

Time-saving fully automatic alignment by means of automatic sensor

The 90° reference beam is provided to plumb and align partition walls

All functions can be controlled with the remote control up to a max. distance of 40 m

Large reception area for a wide range of applications

Easy-to-read LC displays on front and back

Reliable measurement through automatic power off with ADS tilt

Robust waterproof housing

Transport LOCK: The device is protected by a special motor brake during transport

Laser modes: spot, scan, rotary and hand receiver mode

Remote operation controls all functions from all sides up to max. 40 m

Switchable, extremely loud Piezo buzzer sound

Head- and side magnets

Height difference to laser level is displayed graphically and numerically

An extremely long crank stroke allows a large adjustment range

Crank stroke can be fixed and can be set without play

Measurement stick ideal for measuring floor heights

Horizontal/vertical levelling	✅
Hand receiver mode	✅
Scan mode	✅
Spot mode	✅
Motorised slope function	✅
Manual slope function	✅
Precision sensor levelling	✅
Battery and mains operation	✅
Anti-Drift-System (ADS)	✅
Battery operation	✅
Plumb laser up (90° reference beam)	✅
Plumb laser (up/down)	✅
Tilt warning function	✅
Self-Levelling Range	± 5°
Accuracy	±0.1 mm/m
Levelling	automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength	635 nm
Laser Class	2 / < 1 mW
Laser Modes	Hand receiver mode Spot mode Rotary mode Scan mode
Protection Class	IP 66
Power Supply	4 x 1.2V HR14 (C) NiMH 4 x 1.5V LR14 (C)
Operating Time	Rechargeable battery: approx. 35 hours / Batteries: approx. 50 hours
Battery Recharging Time	approx. 7 hours
Operating Conditions	-10°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage Conditions	-10°C … 70°C, max. humidity 80% rH
Dimensions (W x H x D)	215 mm x 205 mm x 165 mm
Weight	2600 g (incl. battery pack)

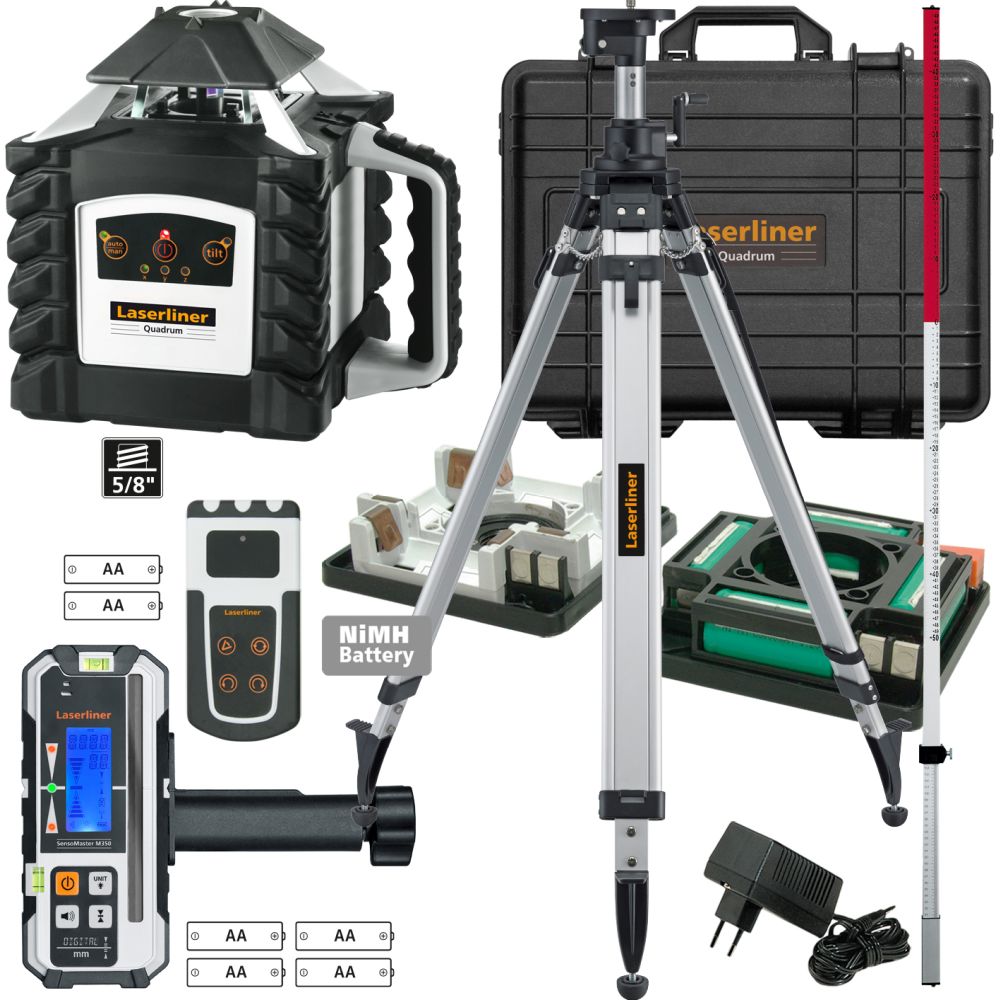

Scope of delivery:

Quadrum

SensoMaster M350

crank tripod P 260 cm

universal mount

Flexi levelling staff plus

remote control

rechargeable battery

battery compartment

power supply / battery charger

batteries

carrying case

Accessories (optional):

•
  SensoLite 310 Set
  (Art.No.: 028.71) - Laser receiver


•
  SensoLite 110 Set
  (Art.No.: 028.65) - Laser receiver


•
  SensoLite 410 Set
  (Art.No.: 028.75) - Laser receiver for rotary lasers


•
  VarioStand L 300 cm
  (Art.No.: 080.24A) - tripod


•
  Crank Tripod P 175 cm
  (Art.No.: 080.26) - crank tripod


•
  Telescopic Levelling Staff LT 4 m
  (Art.No.: 080.42) - Levelling staff


•
  Telescopic Levelling Staff LT 5 m
  (Art.No.: 080.43) - Levelling staff


•
  Angle Bracket 5/8”
  (Art.No.: 080.75) - Angle plate for rotary lasers


•
  Wall Mount Pro
  (Art.No.: 080.71) - Wall bracket


•
  LaserSight red
  (Art.No.: 020.70A) - laser enhancement glasses


•
  Akku 4,8V 4500 mAh
  (Art.No.: 053.10.26) -


•
  Teleskop-Nivellierlatte 4m
  (Art.No.: 052.205.02) - Levelling Staff

Documentation:

Instructions not available.
