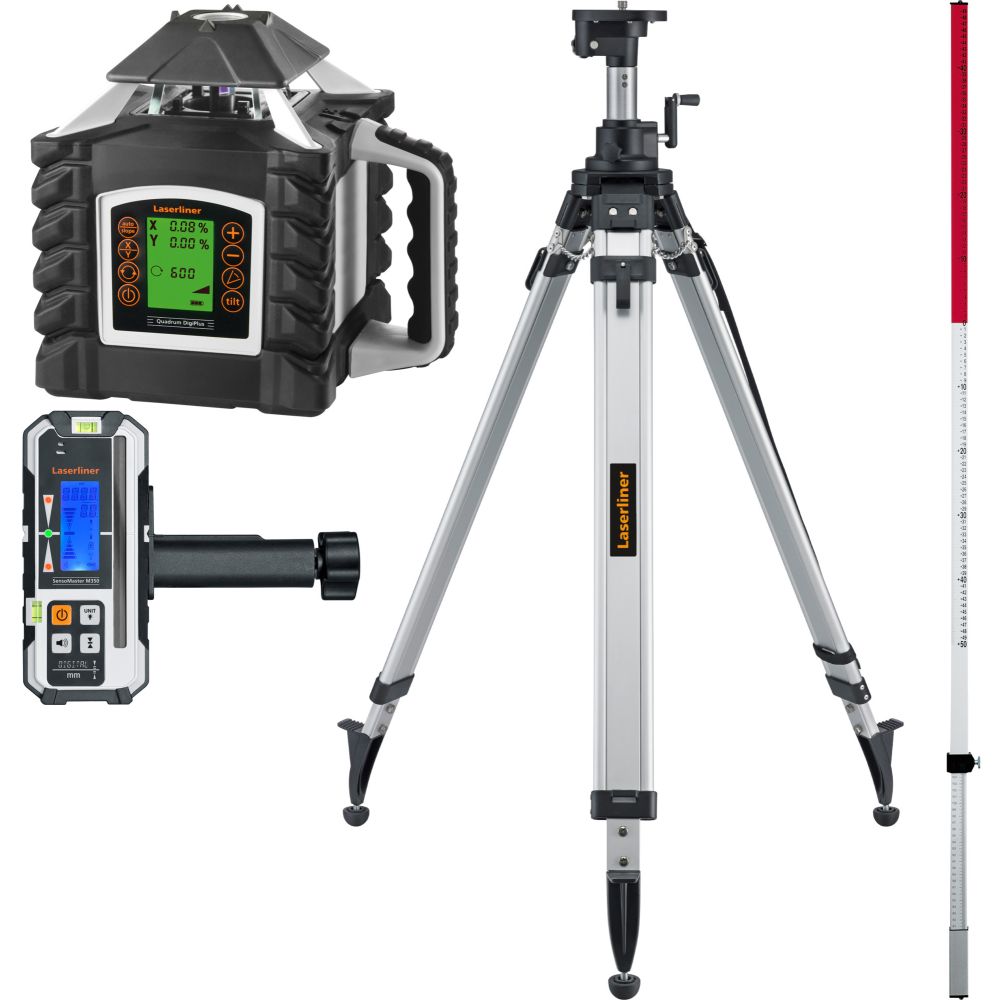

Description: This fully automatic rotary laser is perfect for precise alignment of horizontal and vertical surfaces. The device has a digital slope adjustment and a manual slope mode for precise setting of gradients. Partitions are easily plumb-lined and aligned thanks to an additional reference beam. The laser is completely automatically aligned by electronic positioning motors. The device has spot, scan, rotary and hand-held receiver modes. All functions can be controlled remotely from all sides up to a distance of 40 metres. This robust crank tripod with a 5/8” thread adapter, stable steel feet and steel chains has an extremely long crank stroke (70 cm) which can be adjusted and locked without any play. The Flexi levelling staff Plus for determining floor heights completes the set.

Exact horizontal and vertical alignment of objects

Digital inclination adjustment: The horizontal plane can be inclined in the X- and Y-axis

Easy alignment of slopes with manual tilt function

The 90° reference beam is provided to plumb and align partition walls

Time-saving fully automatic alignment by means of automatic sensor

Laser modes: spot, scan, rotary and hand receiver mode

Large illuminated LC display

All functions can be controlled with the remote control up to a max. distance of 40 m

Reliable measurement through automatic power off with ADS tilt

Robust waterproof housing

Transport LOCK: The device is protected by a special motor brake during transport

Easy-to-read LC displays on front and back

Switchable, extremely loud Piezo buzzer sound

Head- and side magnets

An extremely long crank stroke allows a large adjustment range

Crank stroke can be fixed and can be set without play

Measurement stick ideal for measuring floor heights

Horizontal/vertical levelling	✅
Hand receiver mode	✅
Scan mode	✅
Spot mode	✅
Motorised slope function	✅
Manual slope function	✅
Slope display	✅
Precision sensor levelling	✅
Battery and mains operation	✅
Anti-Drift-System (ADS)	✅
Battery operation	✅
Plumb laser up (90° reference beam)	✅
Plumb laser down	✅
Tilt warning function	✅
Self-Levelling Range	± 6°
Accuracy	±0.075 mm/m
Levelling	automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength	635 nm
Laser Class	2 / < 1 mW
Laser Modes	Hand receiver mode Spot mode Rotary mode Scan mode
Protection Class	IP 66
Power Supply	4 x 1.2V HR14 (C) NiMH 4 x 1.5V LR14 (C)
Operating Time	Rechargeable battery: approx. 35 hours / Batteries: approx. 50 hours
Battery Recharging Time	approx. 7 hours
Operating Conditions	-10°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage Conditions	-10°C … 70°C, max. humidity 80% rH
Dimensions (W x H x D)	215 mm x 205 mm x 165 mm
Weight	2600 g (incl. battery pack)

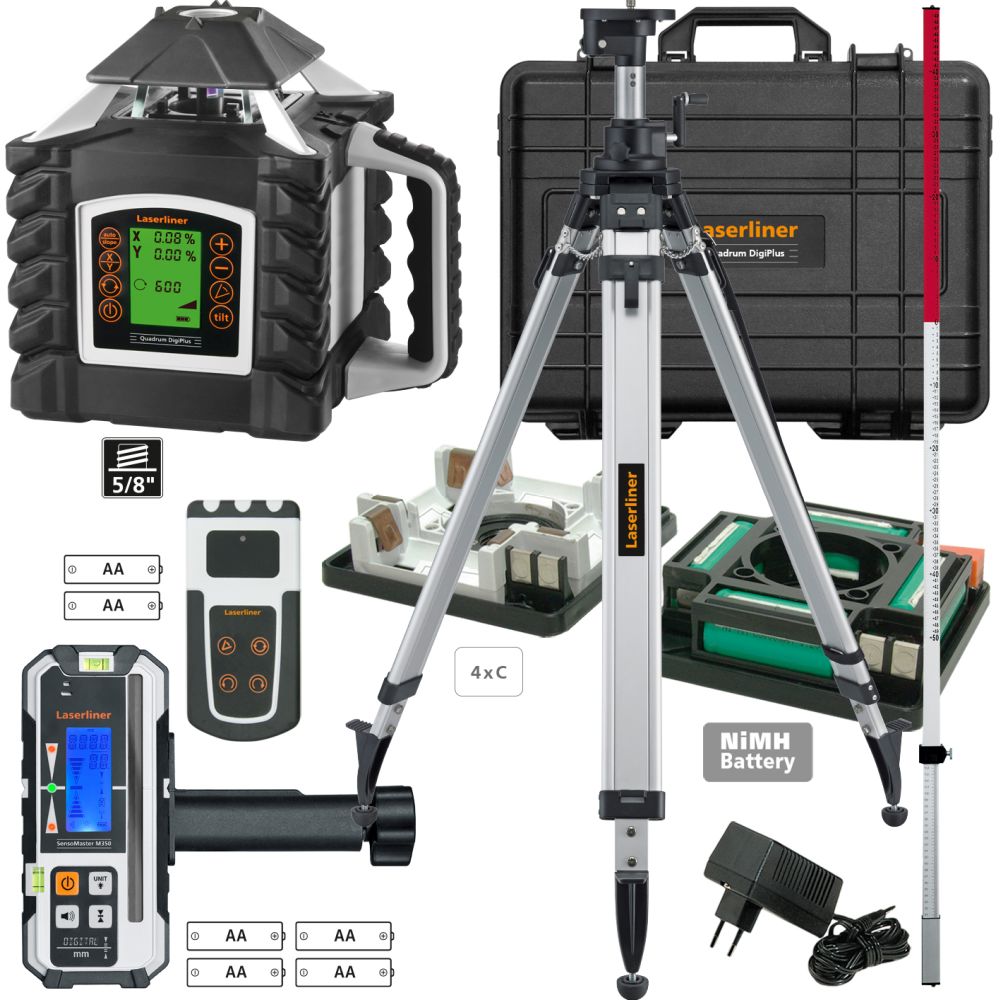

Scope of delivery:

Quadrum DigiPlus

SensoMaster M350

crank tripod P 260 cm

universal mount

Flexi levelling staff plus

remote control

rechargeable battery

battery compartment

power supply / battery charger

carrying case

batteries

Accessories (optional):

•
  SensoLite 310 Set
  (Art.No.: 028.71) - Laser receiver


•
  SensoLite 110 Set
  (Art.No.: 028.65) - Laser receiver


•
  VarioStand L 300 cm
  (Art.No.: 080.24A) - tripod


•
  Crank Tripod P 175 cm
  (Art.No.: 080.26) - crank tripod


•
  Crank Tripod 300 cm
  (Art.No.: 080.39) - Crank tripod


•
  Telescopic Levelling Staff LT 4 m
  (Art.No.: 080.42) - Levelling staff


•
  Telescopic Levelling Staff LT 5 m
  (Art.No.: 080.43) - Levelling staff


•
  Angle Bracket 5/8”
  (Art.No.: 080.75) - Angle plate for rotary lasers


•
  Wall Mount Pro
  (Art.No.: 080.71) - Wall bracket


•
  LaserSight red
  (Art.No.: 020.70A) - laser enhancement glasses


•
  Akku 4,8V 4500 mAh
  (Art.No.: 053.10.26) -
