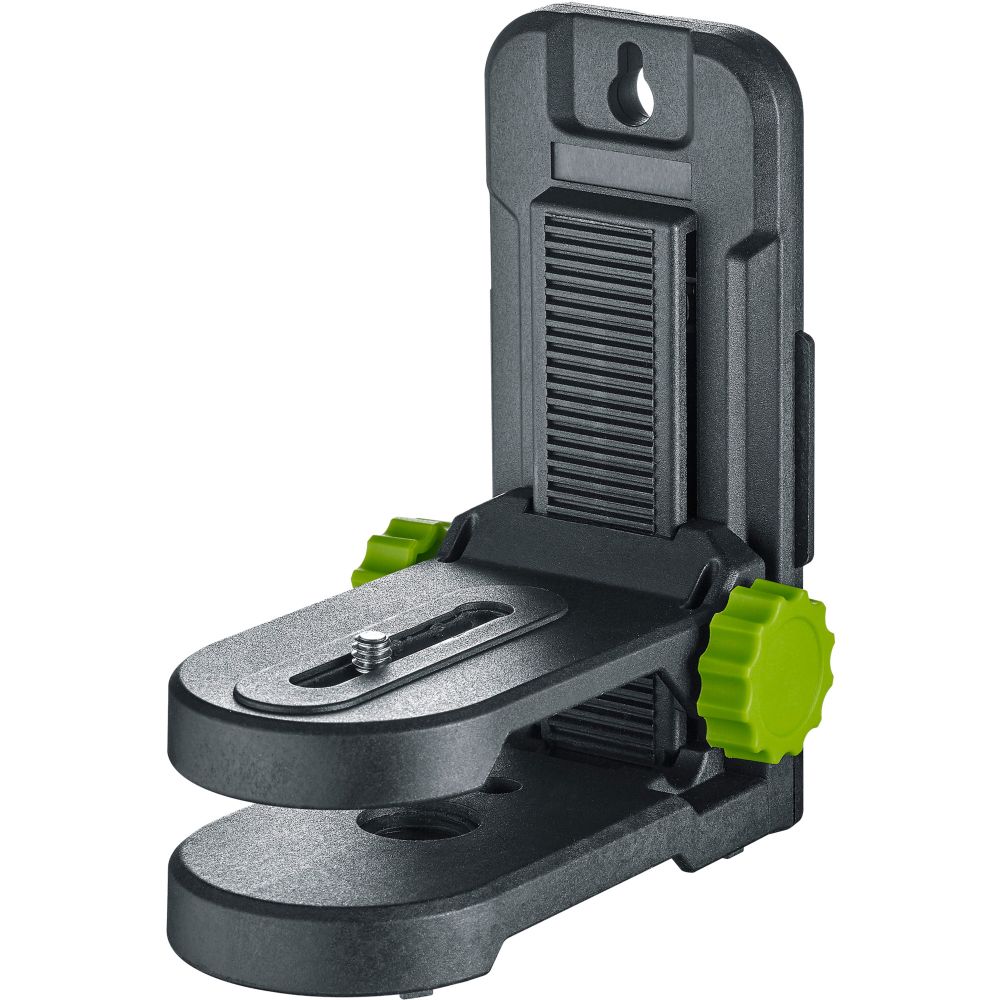

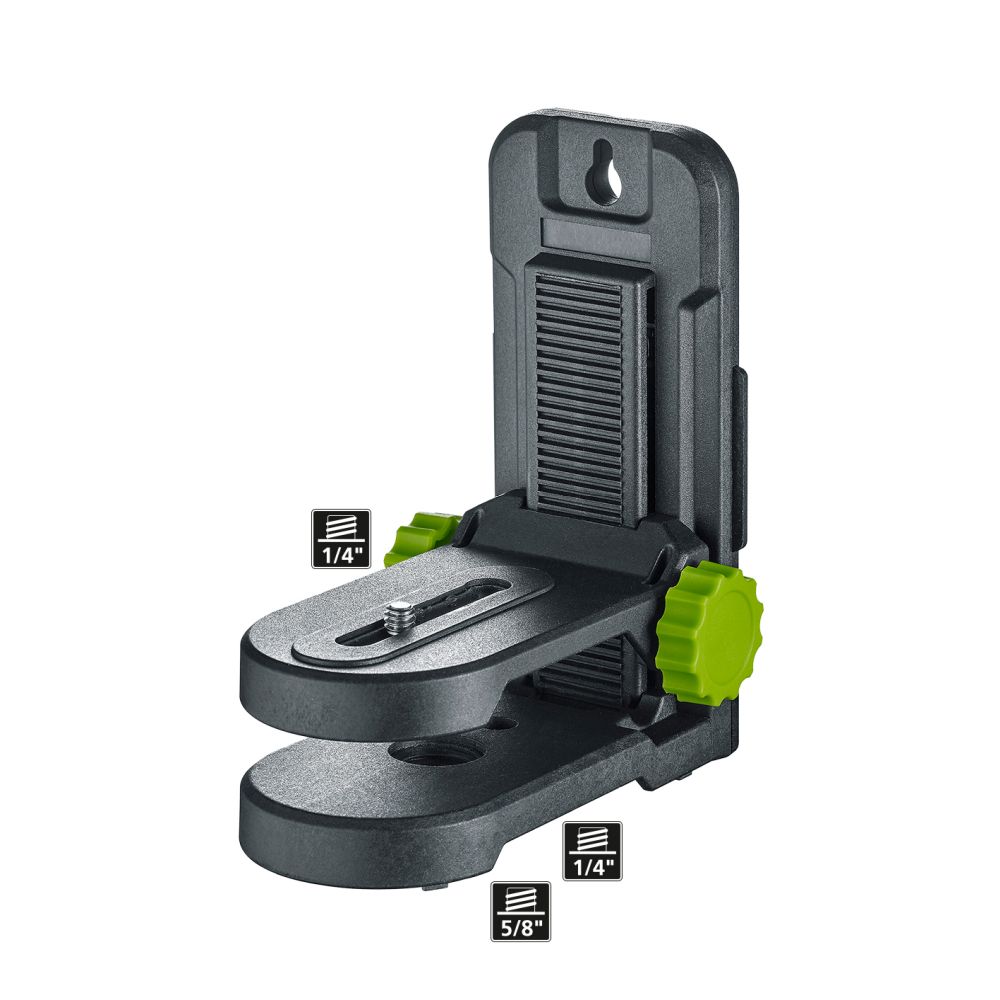

Description: This multifunctional mount is ideal for attaching compact lasers to walls, metal structures, and tripods through 1/4" and 5/8" threads. It is equipped with a hole for screws and nails and four powerful magnets. The horizontal plane can be aligned precisely and in a time-saving manner by adjusting the height.
| Material | ABS |
| Max. Load Capacity | 500 g |
| Max. Height | 85 mm |
| Min. Height | 28 mm |
| Tripod Connection | 1/4" / 5/8" thread |
| Operating Conditions | -10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, # |
| Storage Conditions | -20°C … 70°C, Luftfeuchtigkeit max. 85% rH |
| Dimensions (W x H x D) | 55 mm x 28 mm x 112 mm |
| Weight | 178 g # |
Scope of delivery:
Documentation:
Product information sheetTitel:
Wall bracket
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
OrangeLine
Art.No.: 036.70, GTIN (EAN): 4021563729623
