CenterScanner Compact

Professional drill guide for safely determining the entry and exit points when drilling walls and ceilings

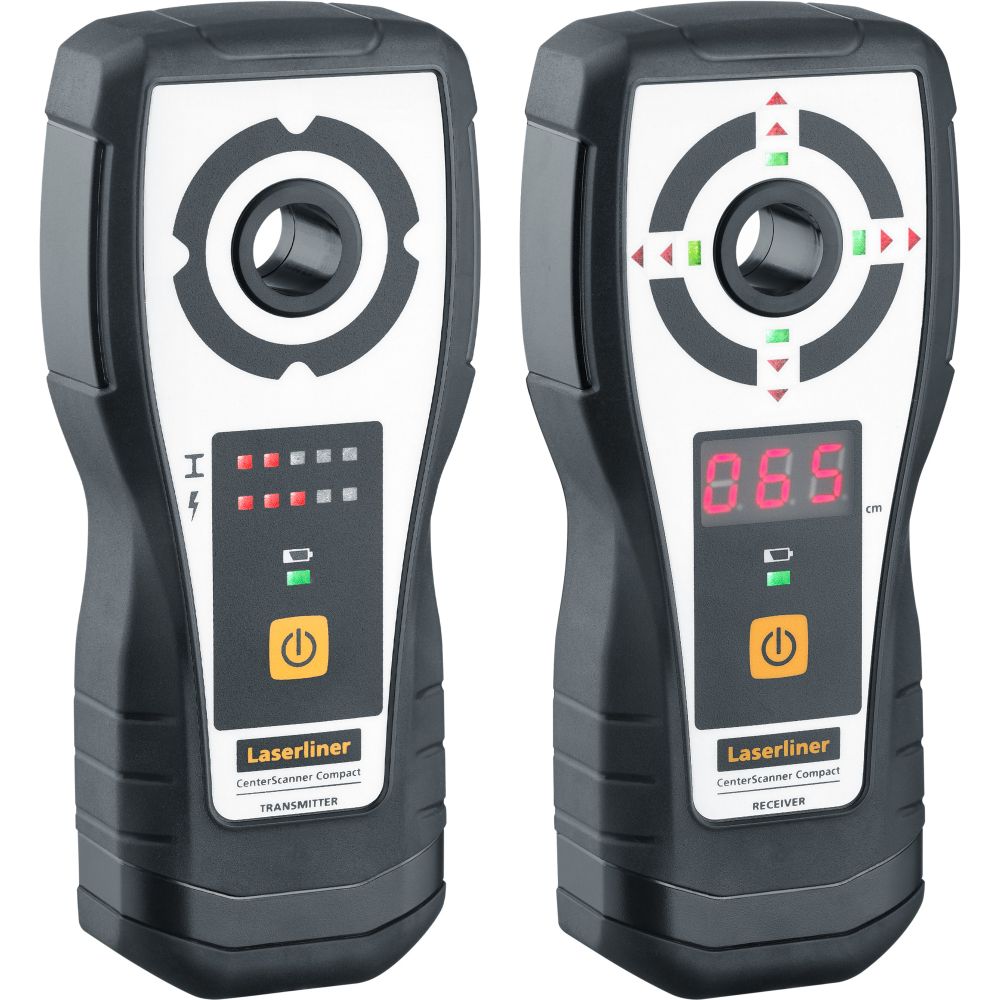

Description: This highly accurate drill guide consists of a transmitter and a receiver and provides safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm. Easily visible LED indicators and acoustic signals that can be switched off provide the location. Highly accessible marking aids in the sender and receiver provide the centring. The required drilling depth can be determined up to 150 cm using the integral LCD display. A visual and acoustic warning is sent when foreign objects are detected. The sender and receiver fit comfortably in the hand thanks to their ergonomic design.

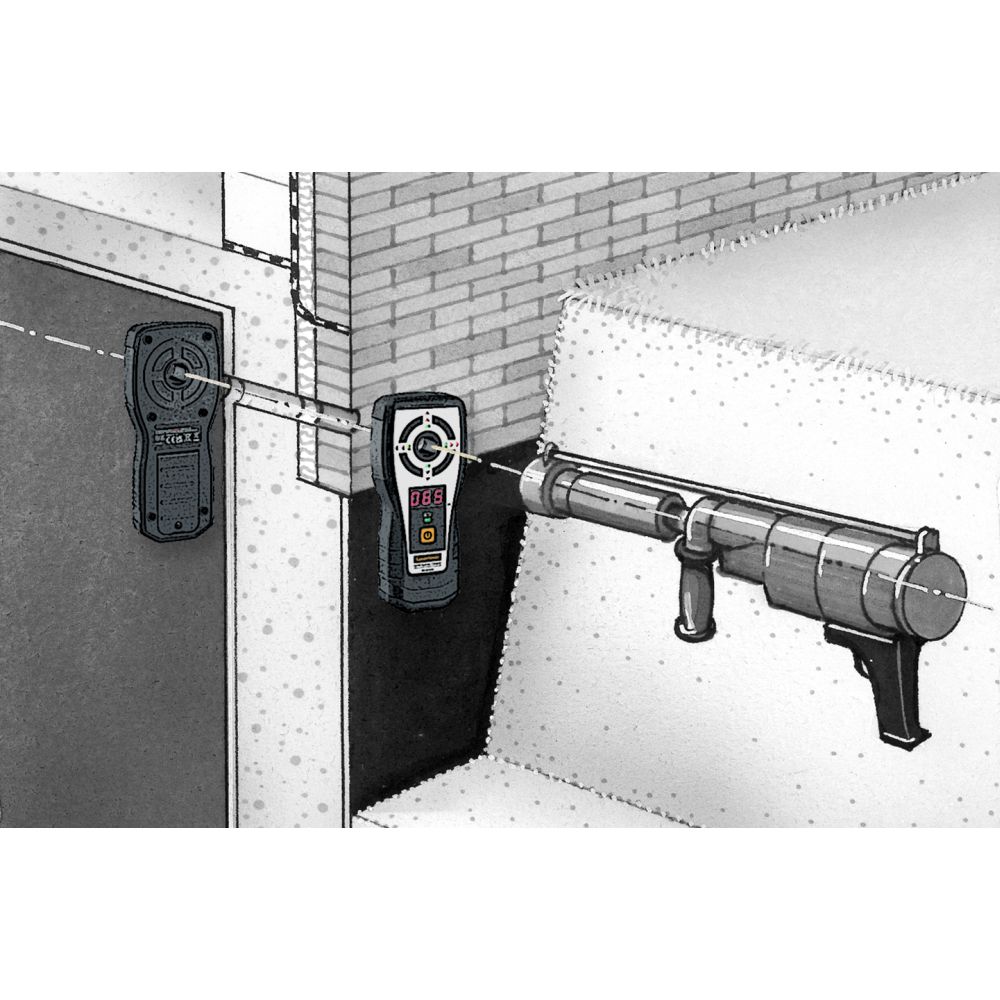

  • Easy and safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm

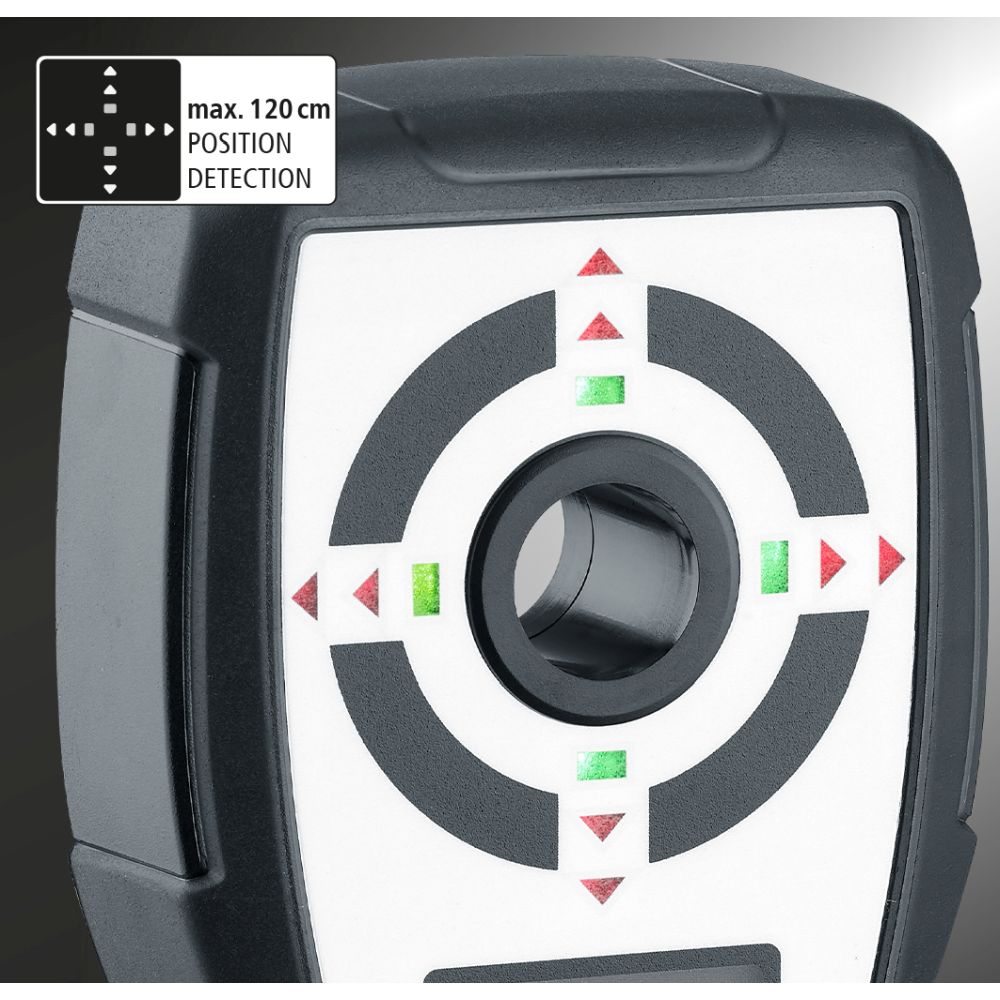

  • Precise location of the entry and exit points using LED indicators
  • Highly accessible marking aids in the sender and receiver provide the centring
  • Determination of the required drilling depth up to 150 cm

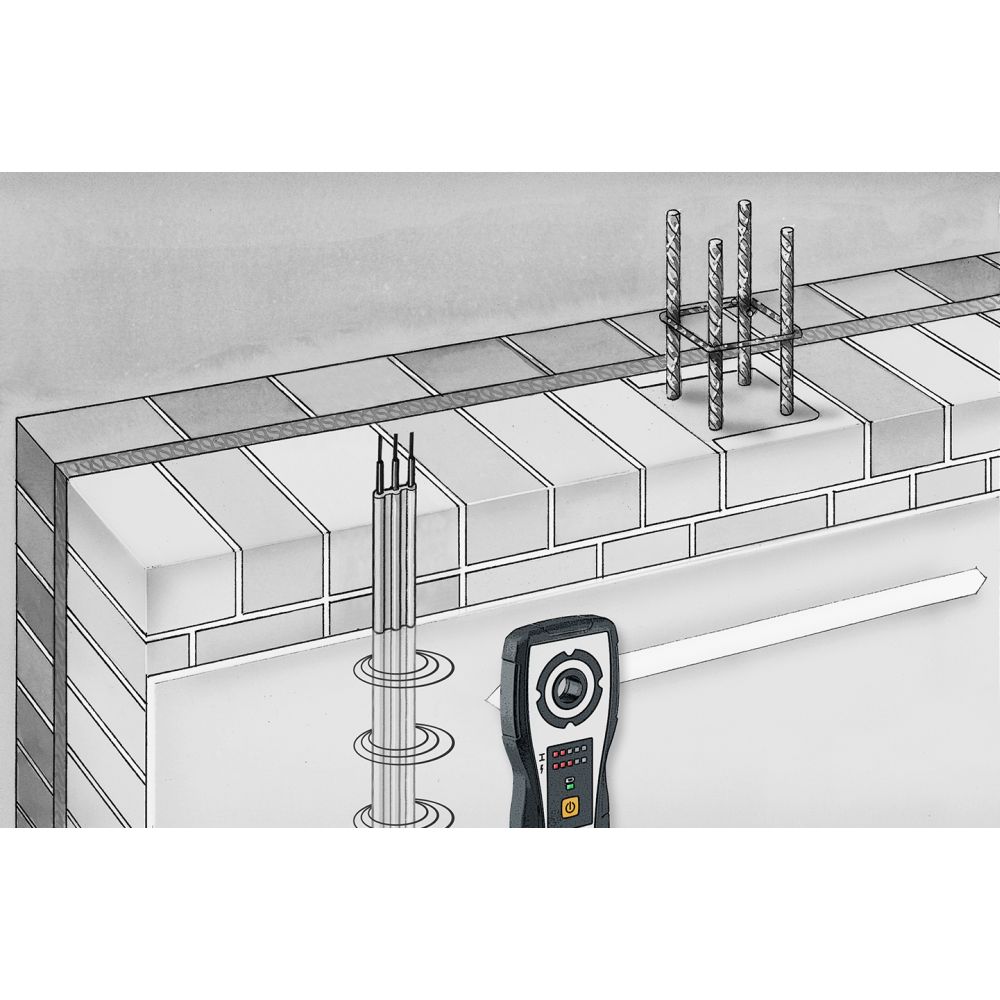

  • Optical and acoustic warning when foreign objects detected
  • The sender and receiver fit comfortably in the hand thanks to their ergonomic design

  • Operating instructions
    Drill channel alignment
    Wall thickness display
    Measuring depth display

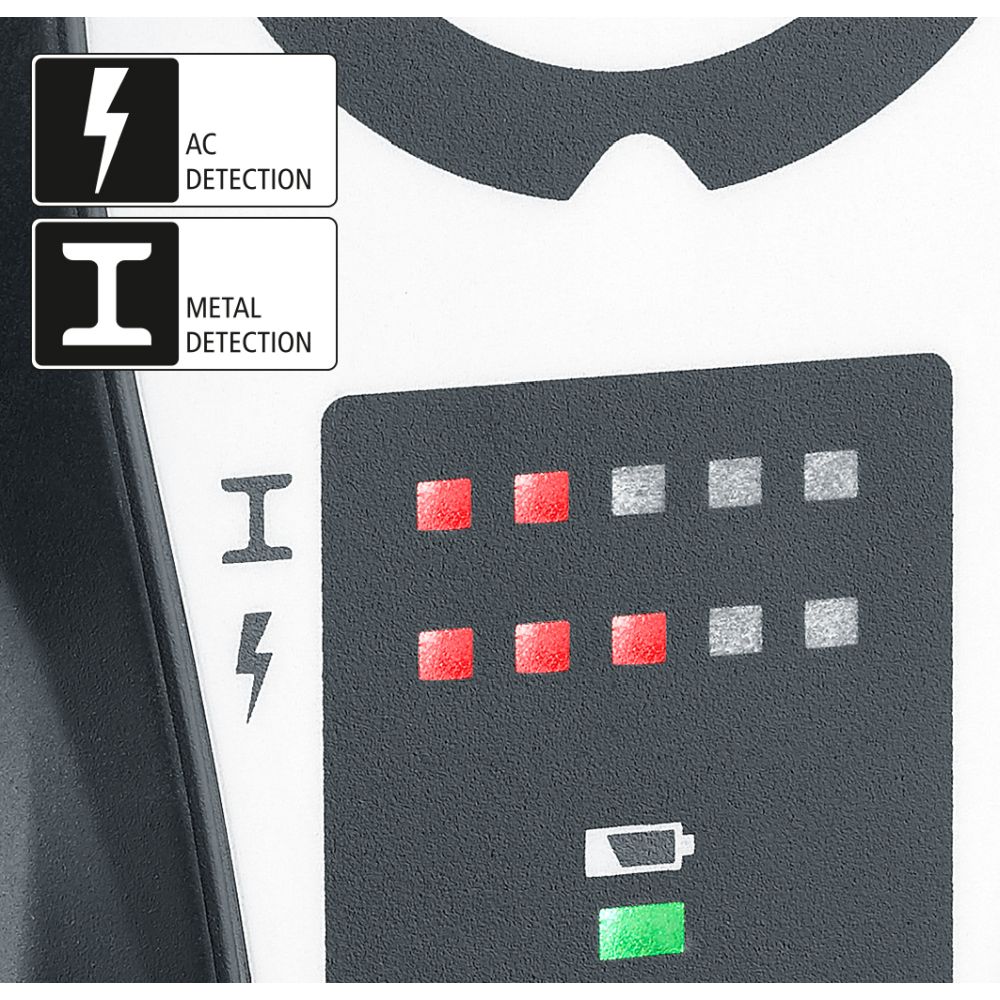

    Warning for 230 V wires
    Metal detection
    Measuring DepthPositioning RECV: 2 - 120 cm wall thickness
    Depth display RECV: 2 - 150 cm drilling depth
    Accuracytypically 3% of measured depth
    Detection Range AC2 cm

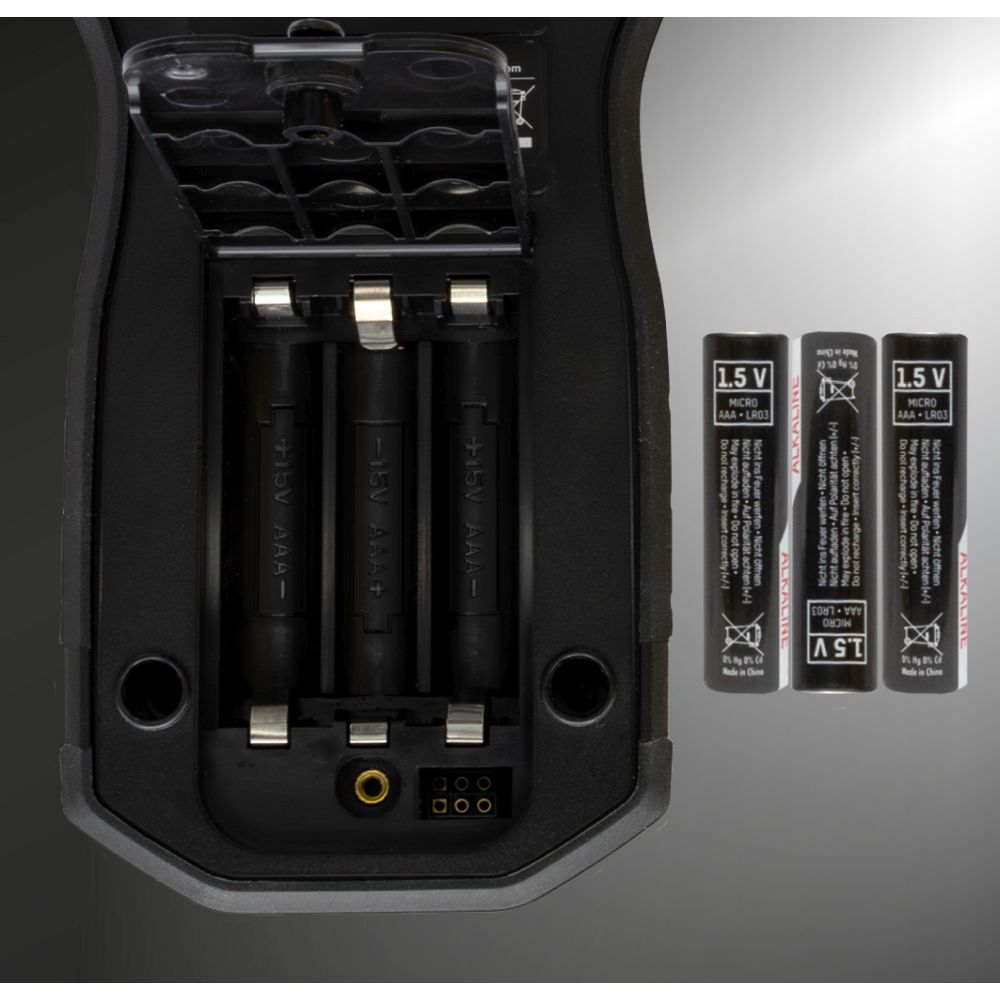

    Power SupplyRECV: 3 x 1.5V LR03 (AAA) / TX: 3 x 1.5V LR03 (AAA)
    Operating TimeRECV: approx. 20 hours / TX: approx. 12 hours
    Operating ConditionsRECV: -30°C … 40°C / TX: -20°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
    Storage Conditions-20°C … 60°C, Luftfeuchtigkeit max. 85% rH, nicht kondensierend
    Dimensions (W x H x D)77 mm x 179 mm x 31 mm
    Weight507 g (RECV und TX inkl. Batterien)

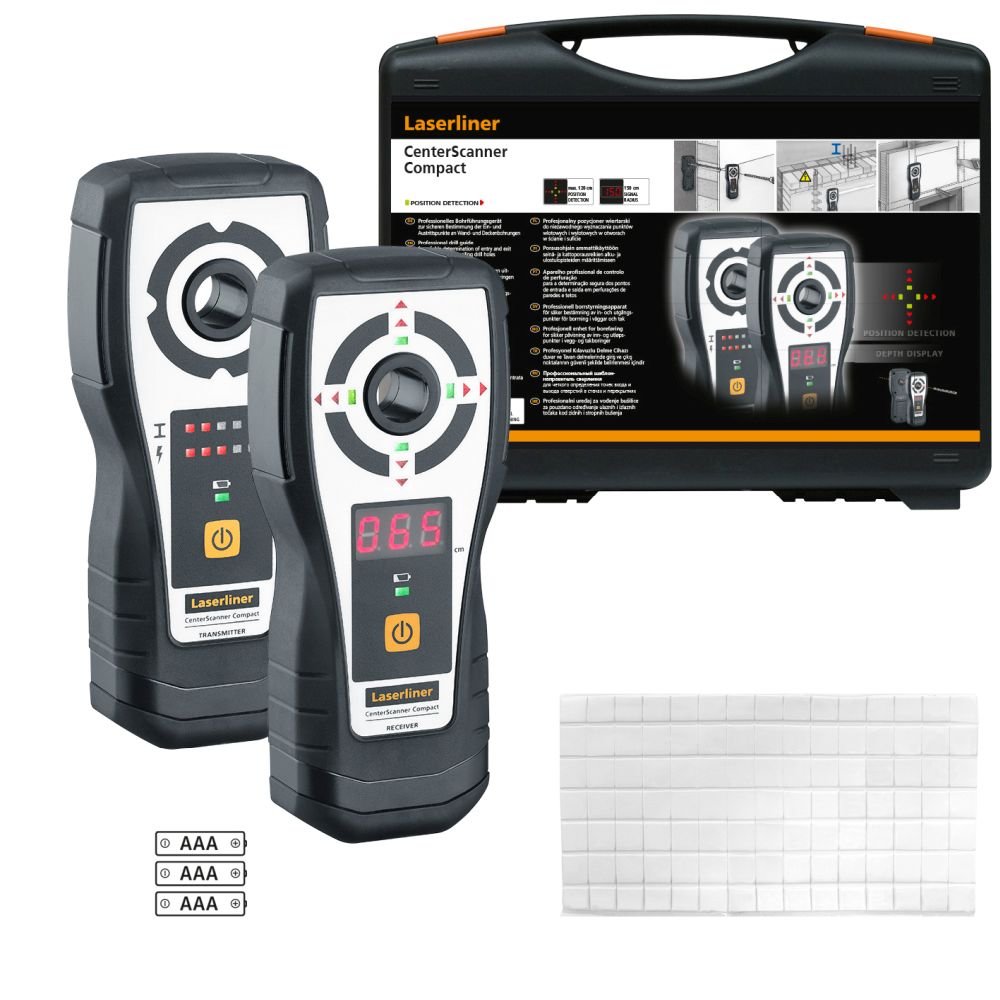

    Scope of delivery:
  • transmitter CenterScanner Compact TX
  • receiver RECV
  • adhesive kit
  • sliding pads (x4)
  • batteries
  • carrying case


  • Documentation:

    Titel:
    Drilling guide device

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 075.400A, GTIN (EAN): 4021563730346
