EasyCross-Laser Work Set

Automatic cross-line laser with green laser technology and practical compact tripod - recycled material is used for sustainability


Description: This automatic cross-line laser-line laser with compact tripod is suitable for precise levelling of horizontal, vertical and inclined surfaces. Ideally suited for aligning tiles, wallpaper, pictures and particularly for applications close to floor level such as fitting sockets. The device device produces a highly visible, bright, green laser cross. Optical signals warn the user when the unit is outside its self-levelling range. The housing of the laser is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability. The pendulum lock ensures safe transportation.

  • Sustainable design: large proportion of the housing is made from recycled plastic
  • Accurate horizontal and vertical alignment of objects
  • Easy alignment of slopes
  • Bright laser cross with green laser technology
  • Time-saving automatic alignment

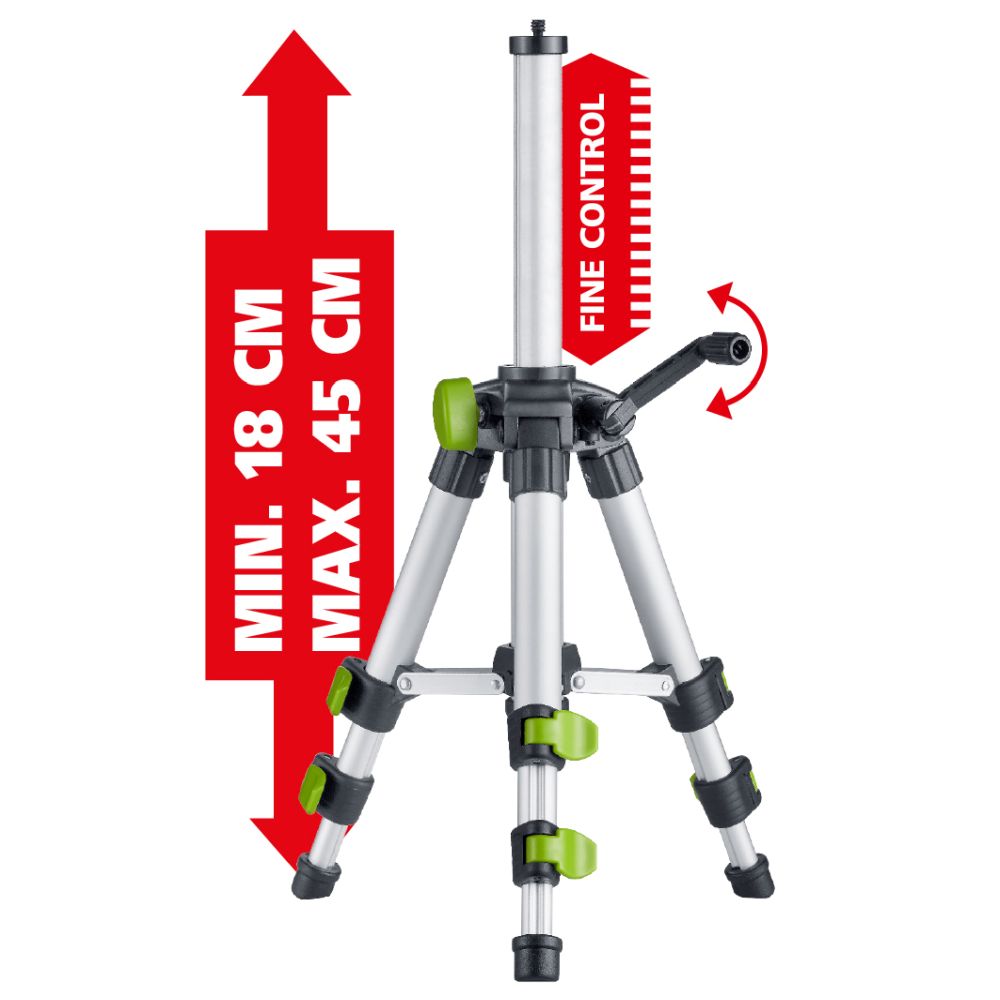

  • Light and robust compact 45 cm tripod, ideal for ground level applications
  • Device issues warning when leaving the levelling range
  • Pendulum restraint for safe transport

  • Horizontal/vertical levelling
    Manual slope function
    Battery operation
    Self-Levelling Range± 3°
    Accuracy± 0.5 mm / m
    Levellingautomatic
    Visibility (Typical)*40 m
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)

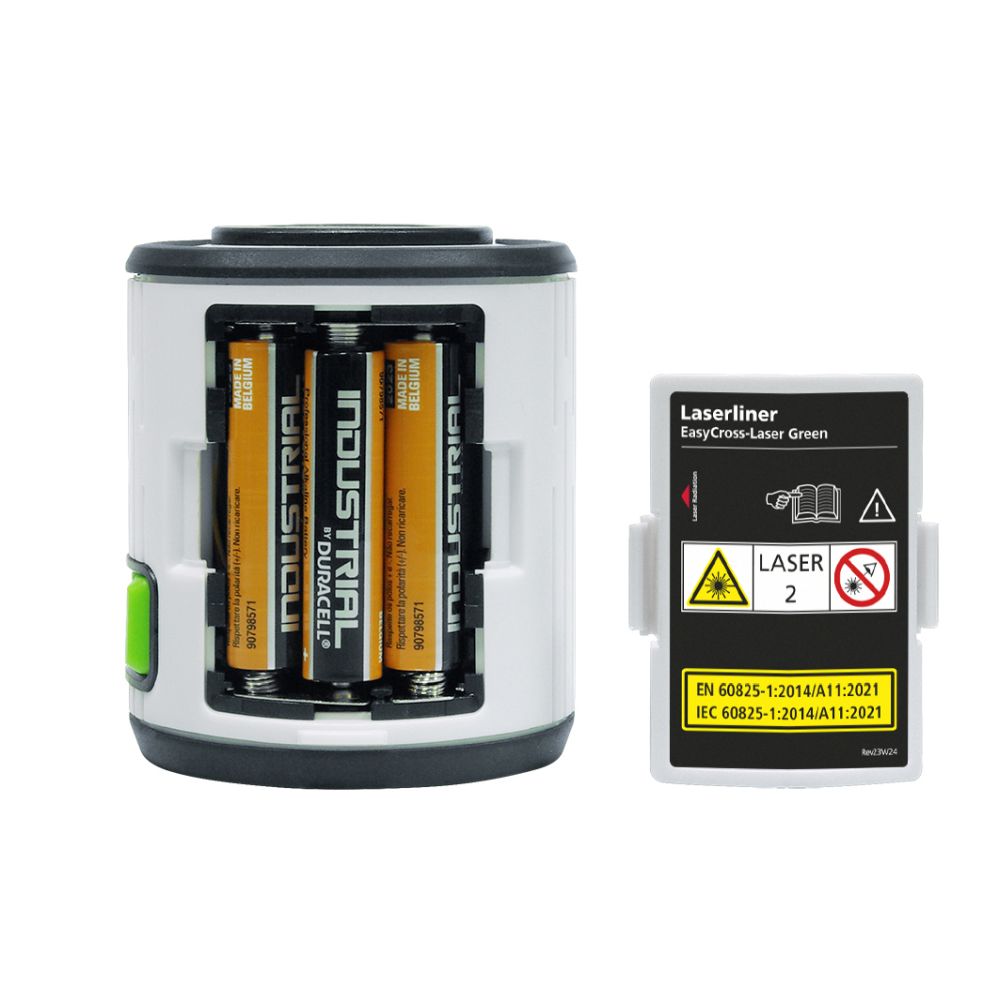

    Power Supply3 x 1.5V LR03 (AAA)
    Operating Timeapprox. 5 hours
    Operating Conditions0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
    Storage Conditions-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
    Dimensions (W x H x D)62 mm x 72 mm x 61 mm
    Weight202 g (inkl. Batterien / ohne Zubehör)

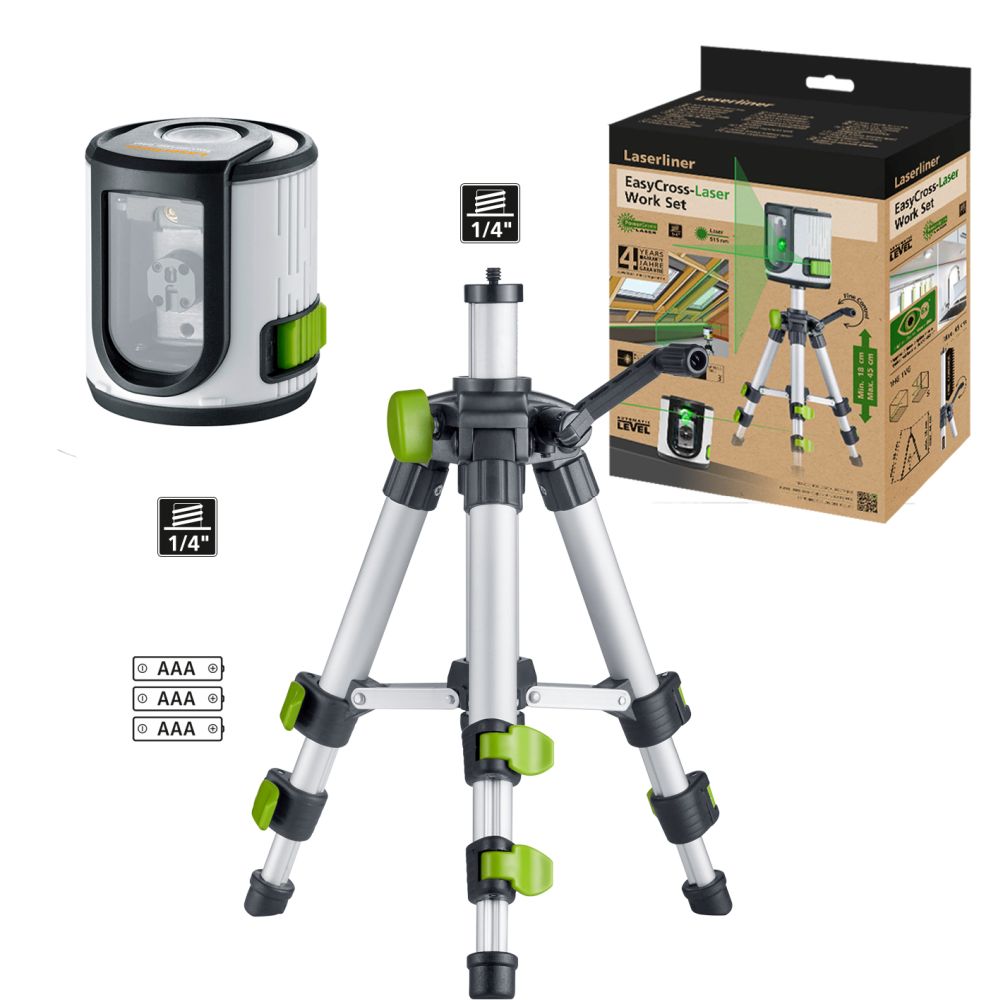

    Scope of delivery:
  • EasyCross-Laser Green
  • compact tripod 45 cm
  • batteries


  • Documentation:

    Titel:
    Cross-line laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    EcoLine

    Art.No.: 081.082E, GTIN (EAN): 4021563730407
