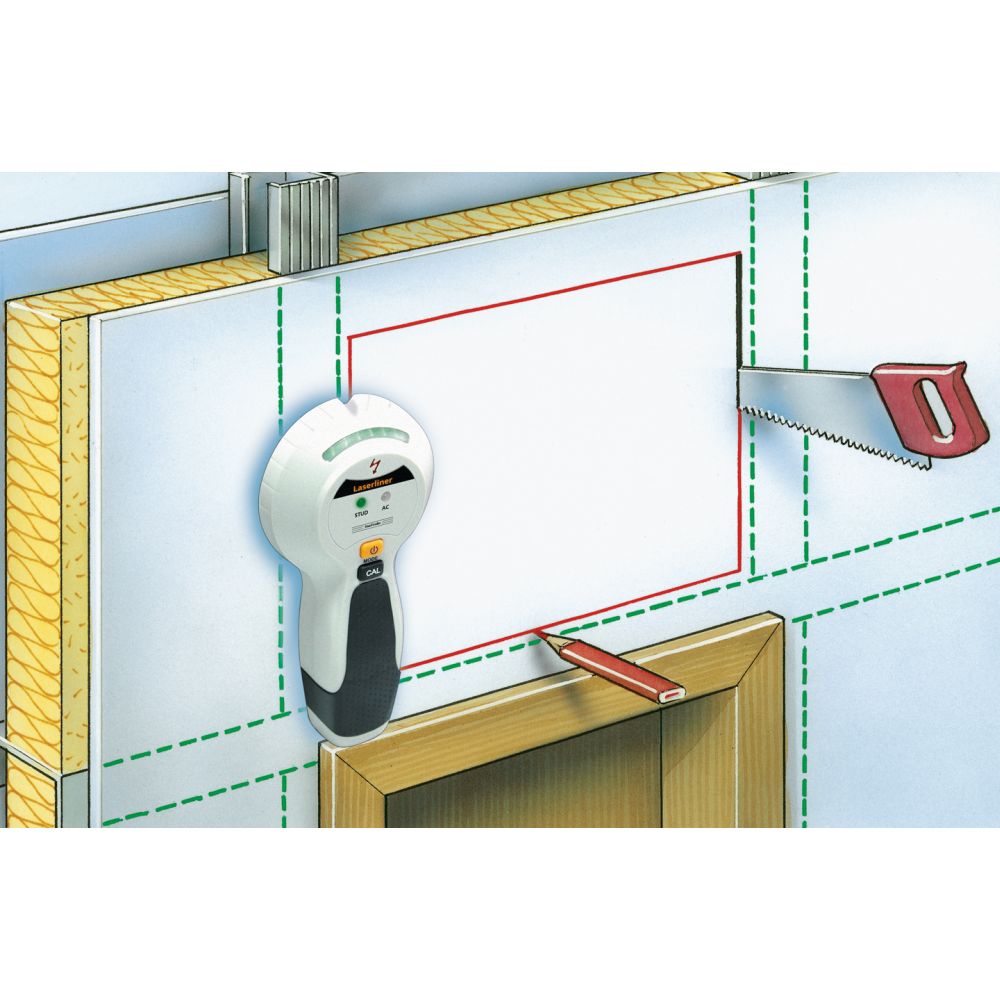

Description: This electronic locating device detects the precise position of live conductors, wall beams and joists. Drilling errors and expensive repairs can thus be avoided. Stable points for hanging items and areas without supporting structures, for example for clear passage, can be identified in drywall constructions The permanent voltage warning protects against unshielded, live conductors when drilling. The housing of the detector is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability.
Operating instructions | ✅ |

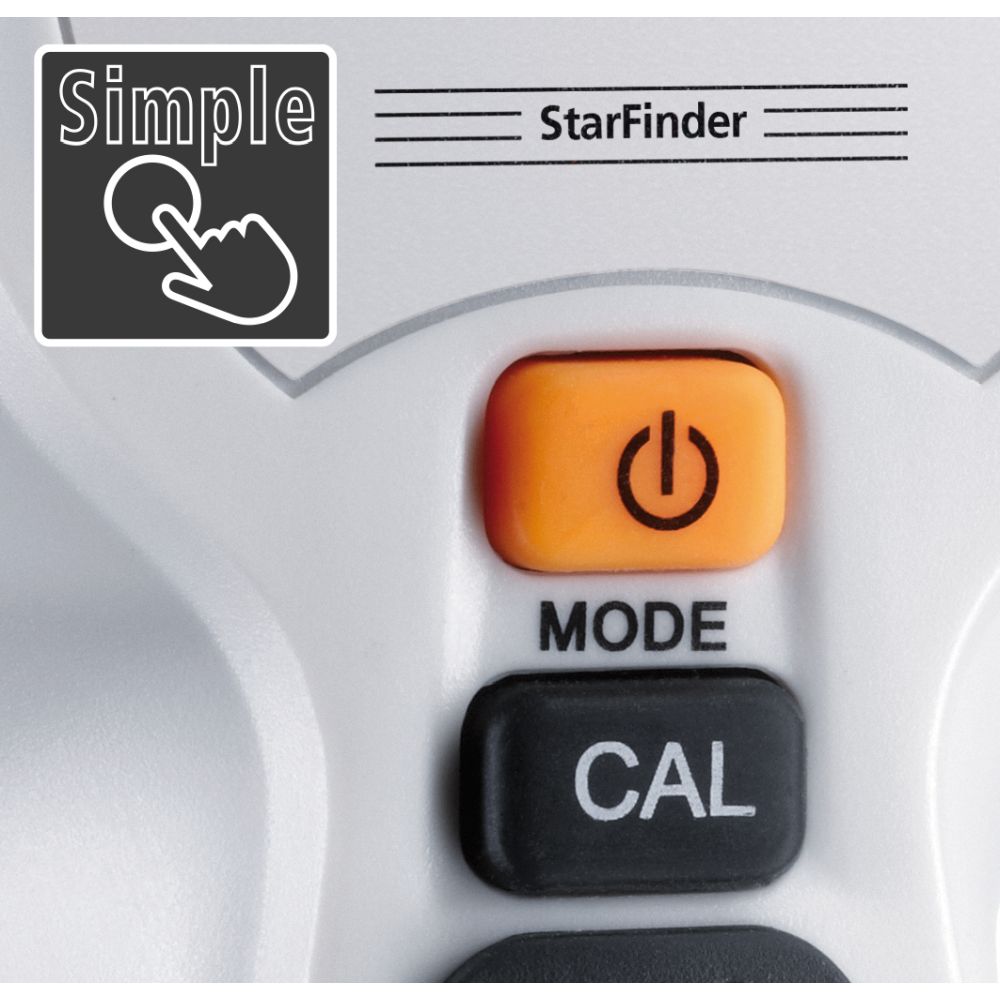

Autocalibration | ✅ |
Identify supporting structures (metal/wood) | ✅ |
Locate live wires | ✅ |

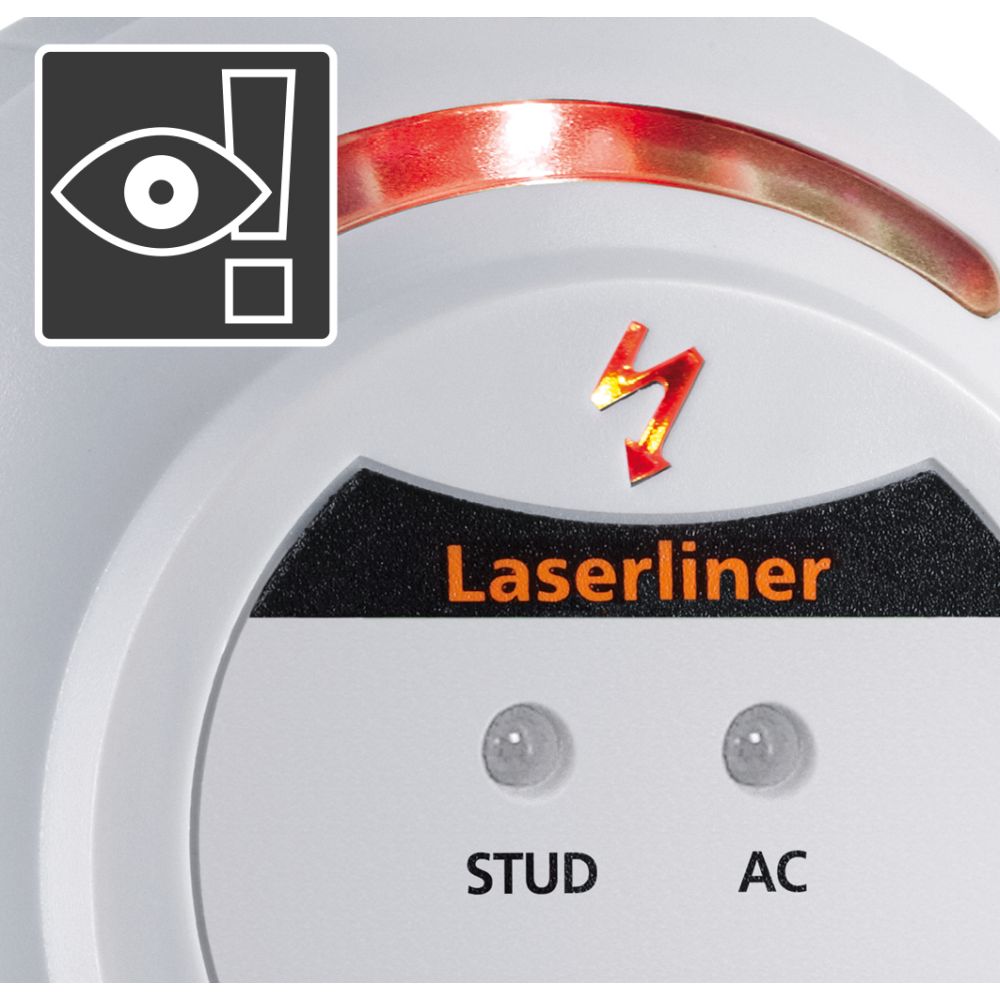

Warning for 230 V wires | ✅ |

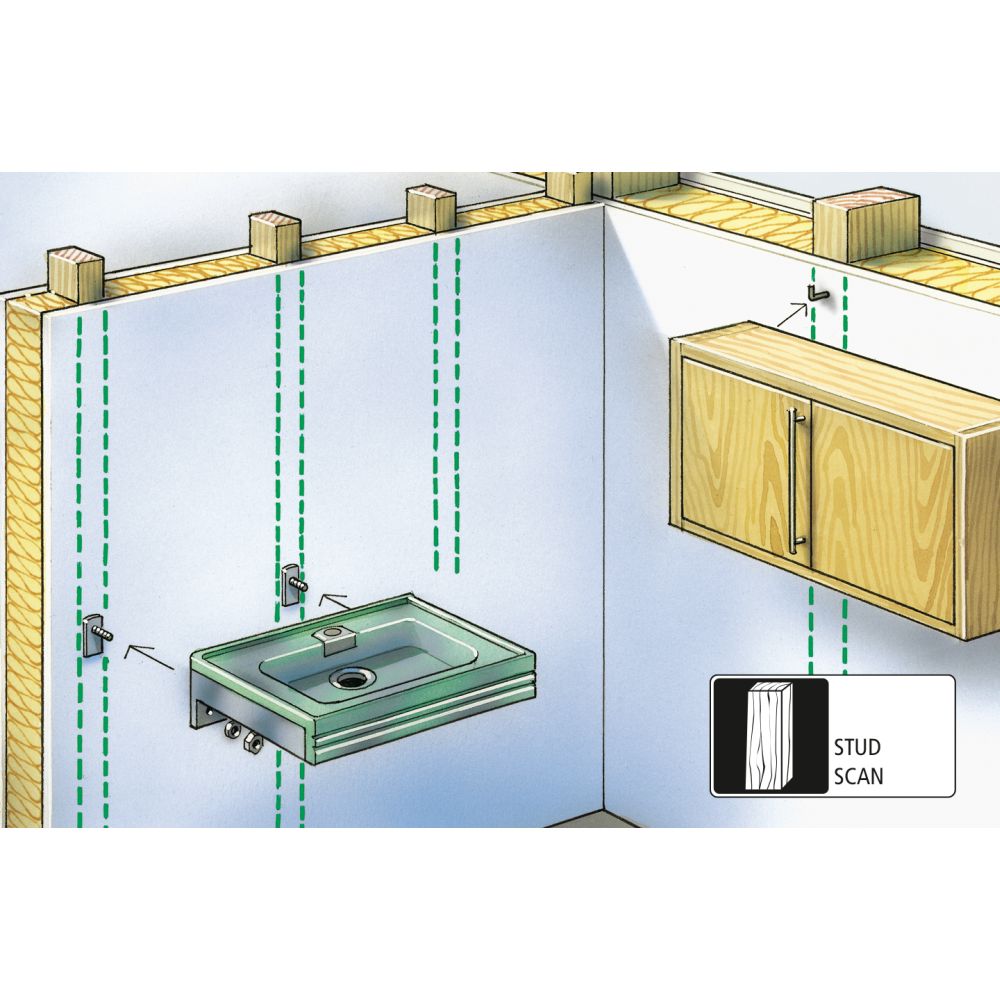

Measuring Depth | Wood / metal beam location (STUD-SCAN): up to 4 cm depth Targeted location of live supply lines (AC-SCAN): up to 4 cm depth |
Detection Range AC | 110 - 230V, 50 - 60 Hz |

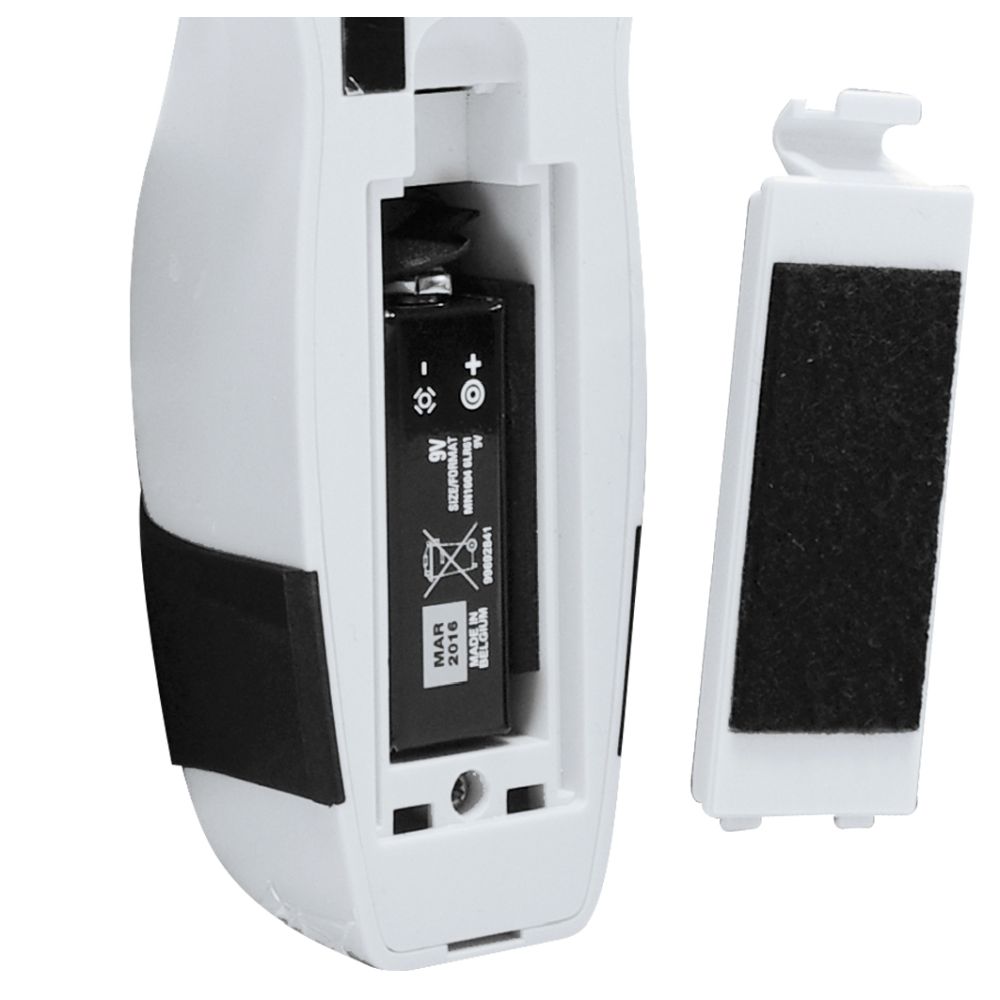

Power Supply | 1 x 9V 6LR61 (9V block) |
Operating Time | approx. 8 hours |
Operating Conditions | 0°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull) |
Storage Conditions | -20°C … 70°C, Luftfeuchtigkeit max. 80% rH |
Dimensions (W x H x D) | 85 mm x 180 mm x 38 mm |
Weight | 163 g (inkl. Batterie) |
Scope of delivery:
Documentation:
Titel:
Electronic locating device
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
EcoLine
Art.No.: 080.969E, GTIN (EAN): 4021563730551
