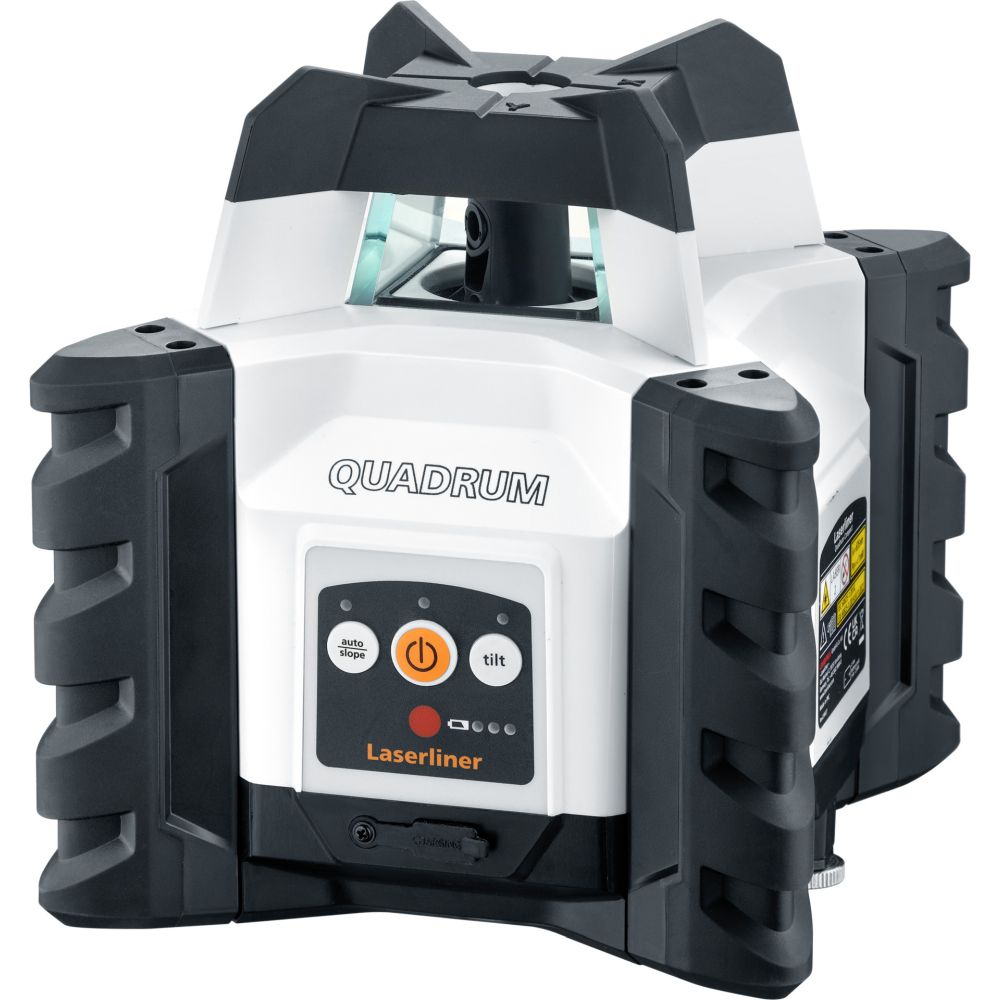

Quadrum Compact 210S

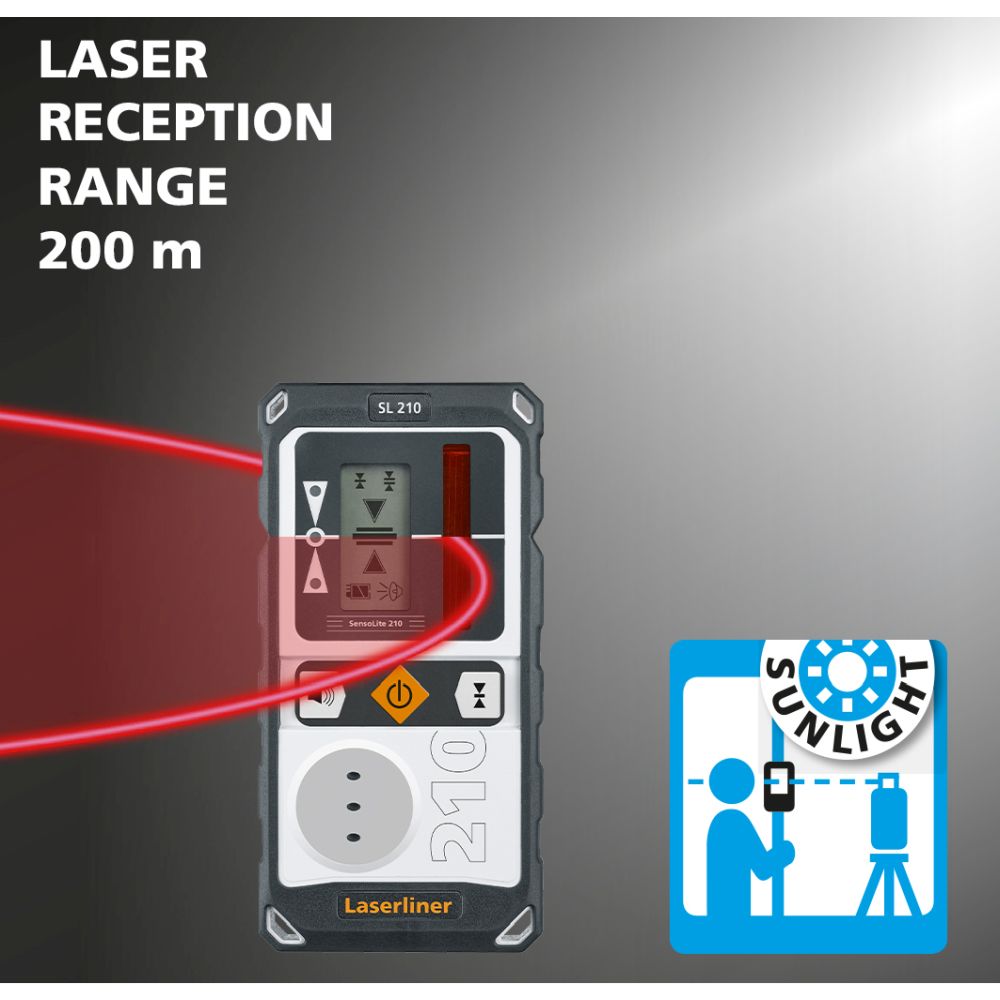

Extremely easy to operate and robust rotary laser with SensoLite 210 laser receiver

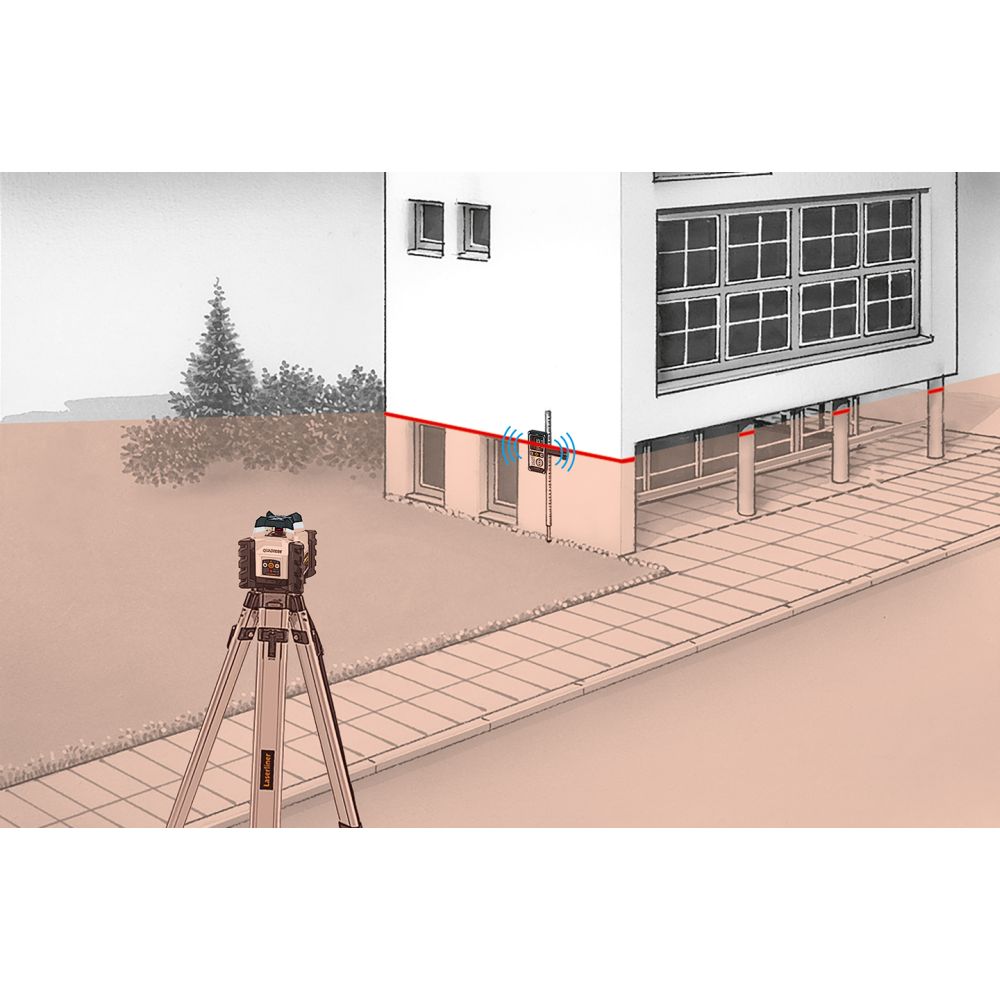

Description: This fully automatic and extremely easy-to-operate rotary laser is ideal for precise alignment work on the horizontal plane. Thanks to the 5/8” thread integrated into the side of the casing for mounting to tripods, the laser can be positioned so that it can also be used for precise vertical alignment. The plumb points projected at the top and bottom act as a reliable reference to ensure the horizontal plane and the plumb of a foundation. All functions can easily be controlled with the remote control up to a maximum distance of 40 metres. The HighCapacityPack with lithium-ion technology can be used and charged at the same time which means users can work without interruption.

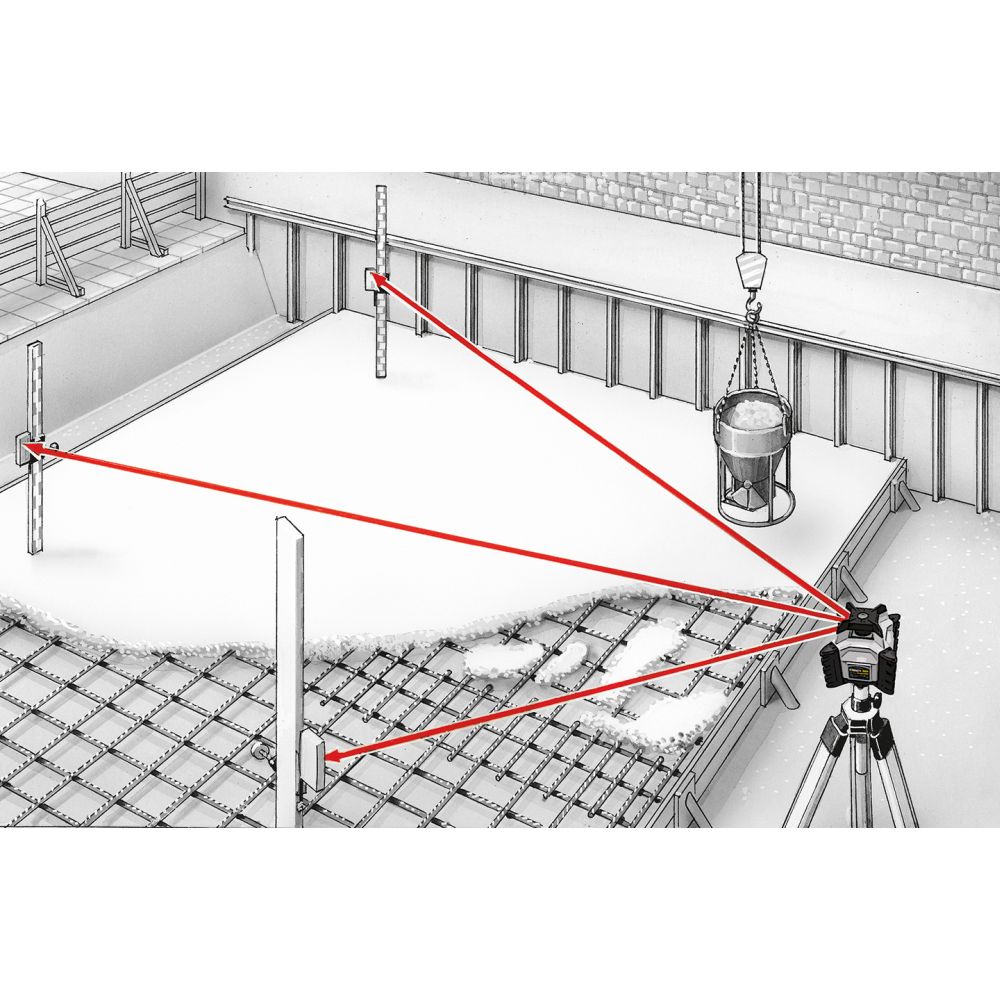

  • Precise alignment of horizontals

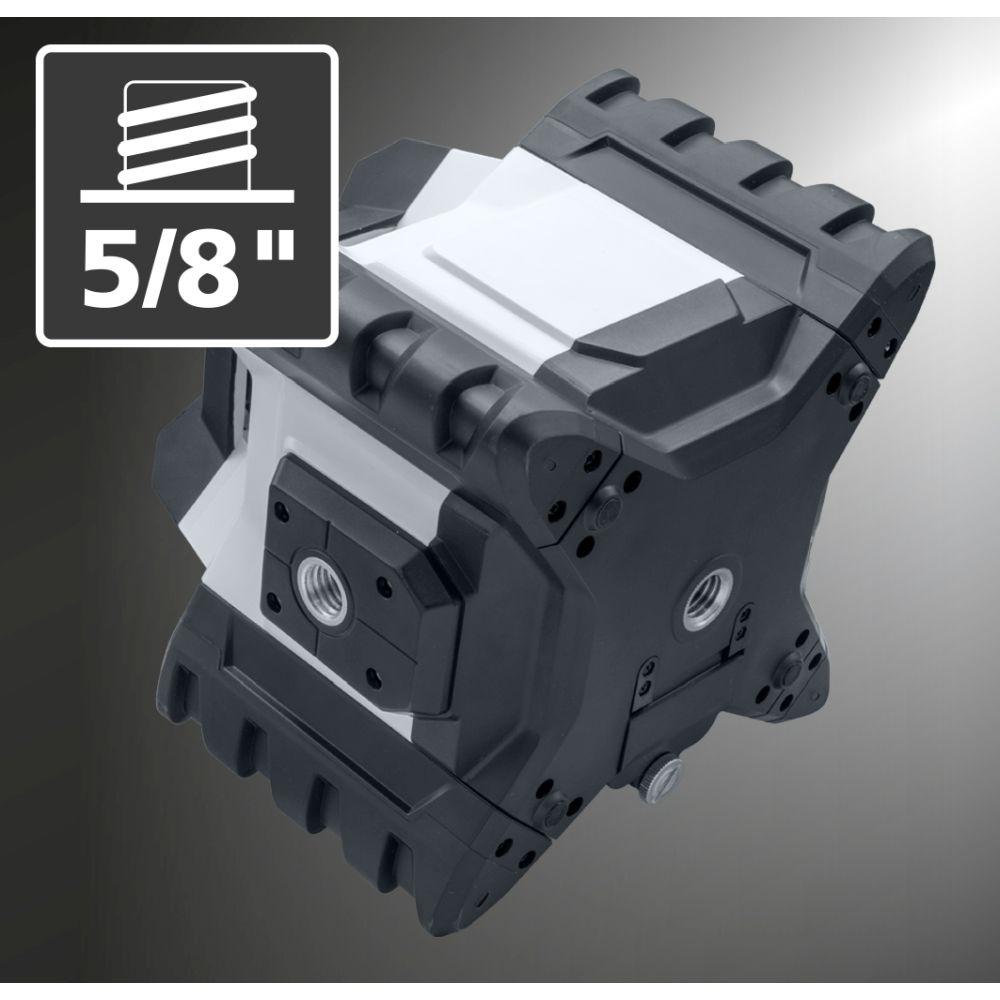

  • Also suitable for precise vertical alignment work due to 5/8” thread
  • Easy alignment of slopes up to 4° with motorised tilt function and over 4° with manual tilt function and optional angle plate
  • Extremely practical, easy to use, one-button operation

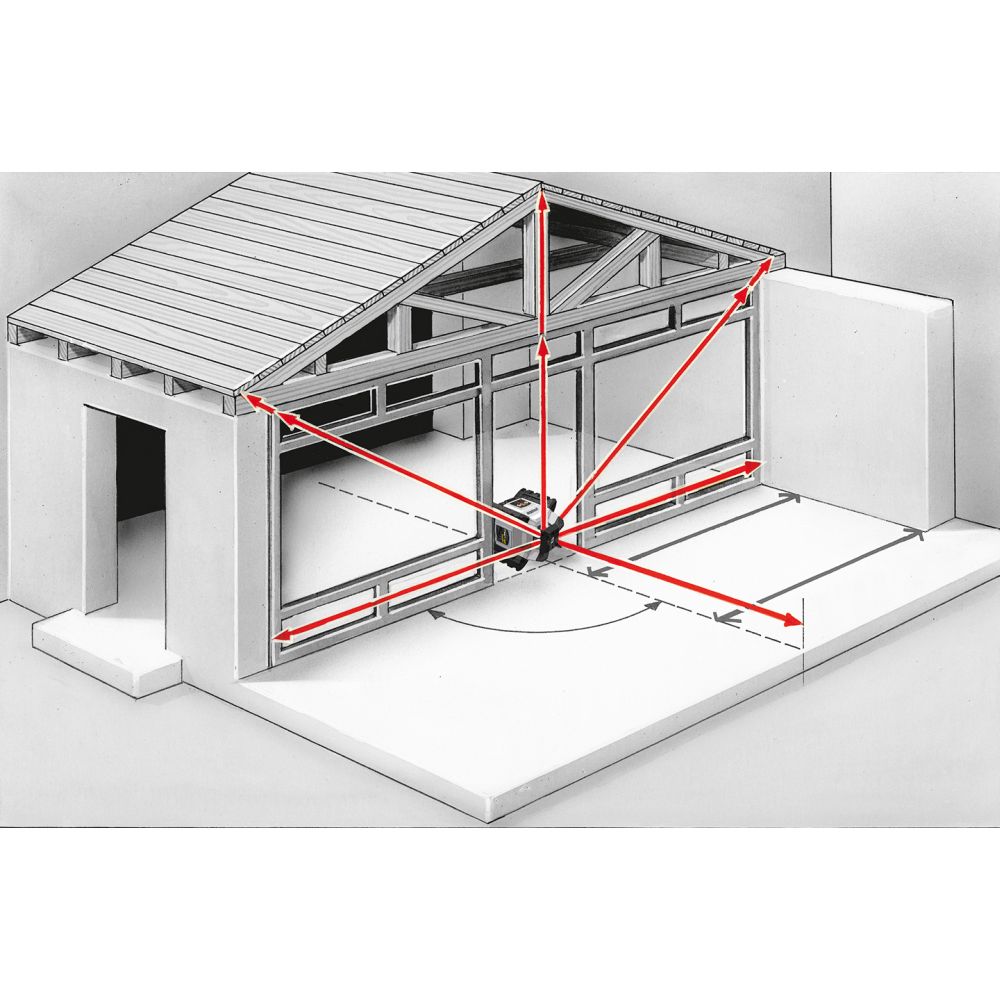

  • Additional plumb laser at top and bottom

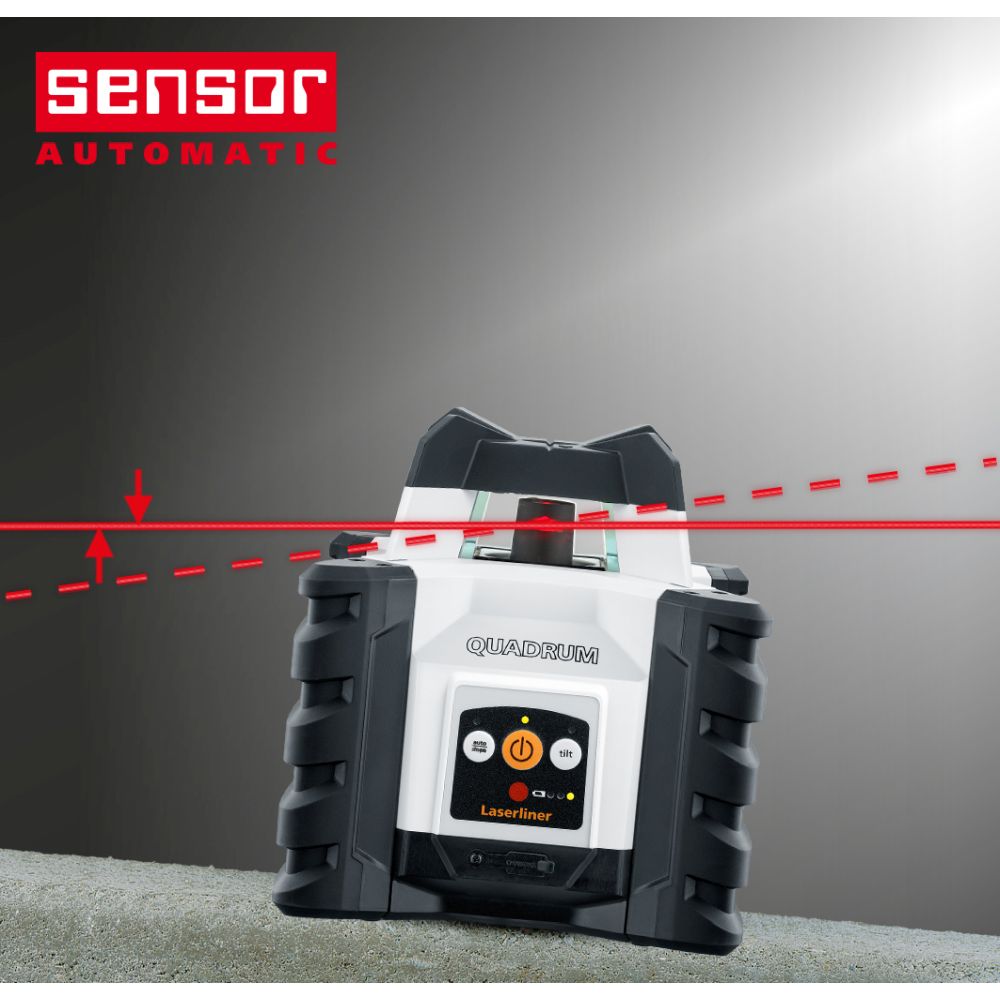

  • Time-saving fully automatic alignment by means of automatic sensor
  • Long operating life due to powerful HighCapacityPack with lithium-ion technology

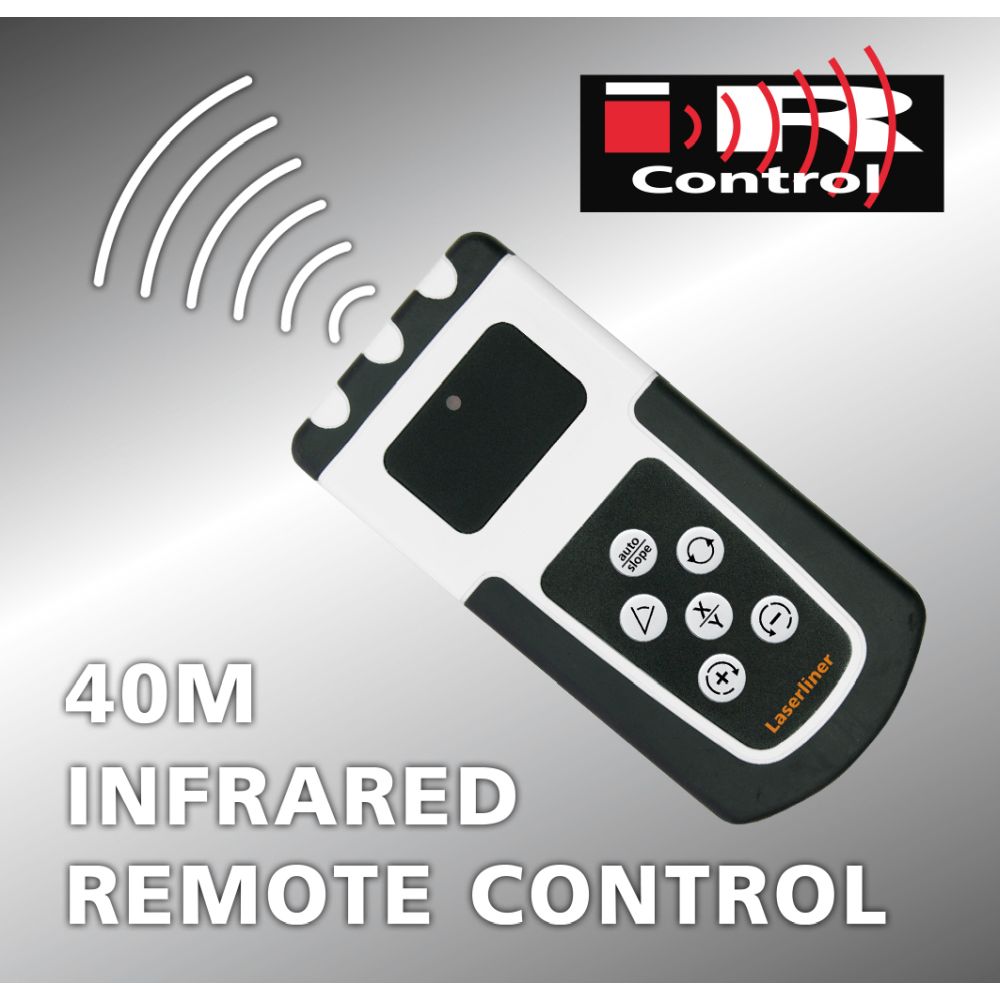

  • All functions can be controlled with the remote control up to a max. distance of 40 m

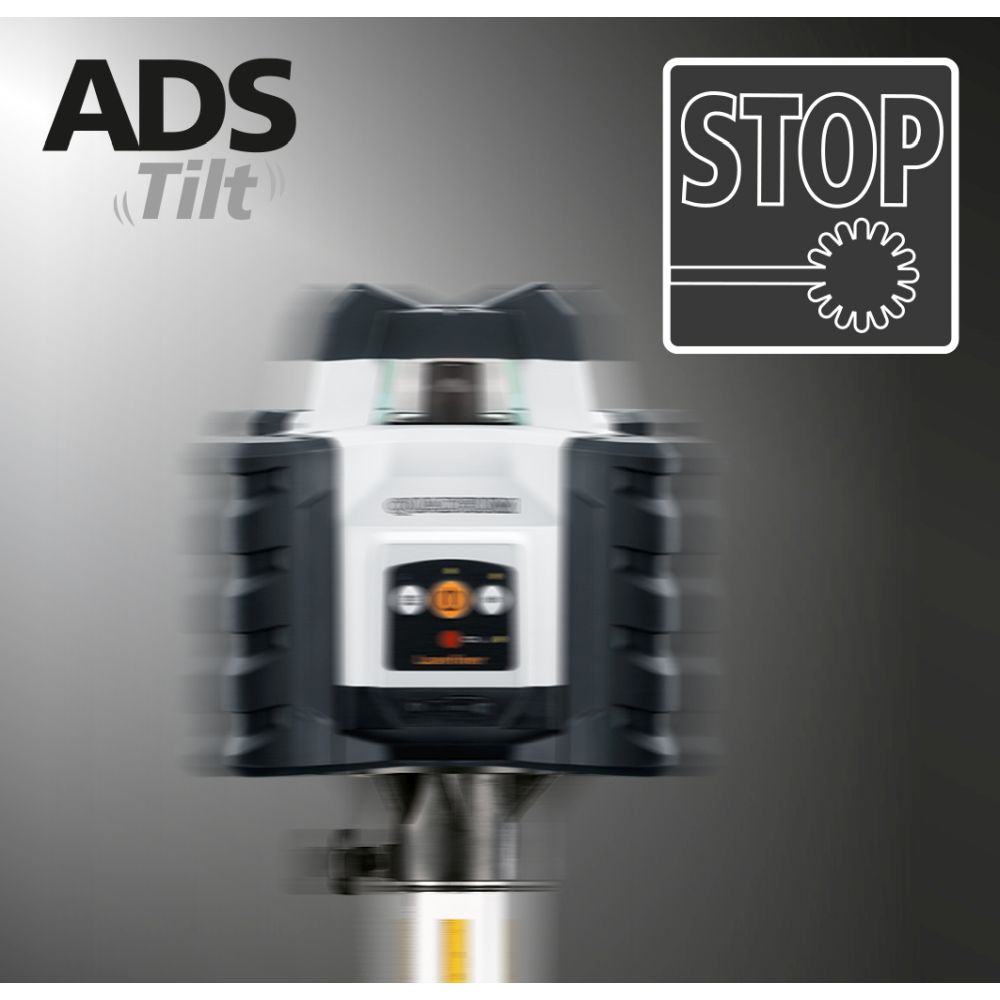

  • Reliable measurement through automatic power off with ADS tilt
  • AntiShake provides quick setup on vibrating surfaces and when exposed to wind
  • Robust, waterproof housing with optimum grip
  • Transport LOCK: The device is protected by a special motor brake during transport
  • Easily fixed to measuring staff with universal holder
  • Switchable, extremely loud Piezo buzzer sound
  • Head magnet allow quick attachment to metallic surfaces

  • Horizontal/vertical levelling
    Hand receiver mode
    Scan mode
    Spot mode
    Motorised slope function
    Manual slope function
    Precision sensor levelling

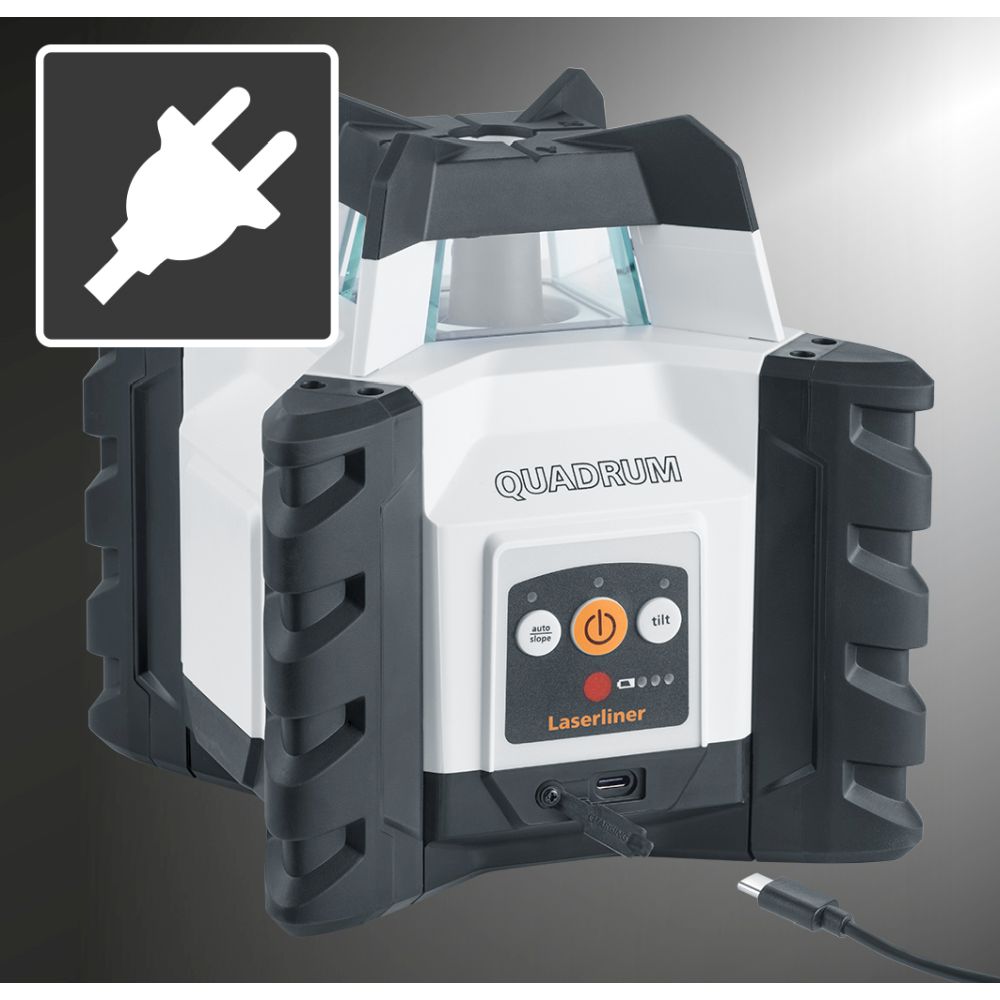

    Battery and mains operation
    Anti-Drift-System (ADS)
    Battery operation
    Plumb laser up (90° reference beam)
    Plumb laser down
    Tilt warning function
    AntiShake
    Self-Levelling Range± 4°
    Accuracy± 0.15 mm / m
    Levellinghorizontal / vertical automatic
    Laser Wavelength635 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Laser ModesHand receiver mode
    Spot mode
    Rotary mode
    Scan mode
    Protection ClassIP 66
    Power SupplyLi-ion battery pack 7.4V / 2.6Ah / 19.24Wh
    Operating Timeapprox. 25 hours
    Battery Recharging Timeapprox. 4 hours
    Operating Conditions-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
    Storage Conditions-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
    Dimensions (W x H x D)170 mm x 188 mm x 170 mm
    Weight1575 g #

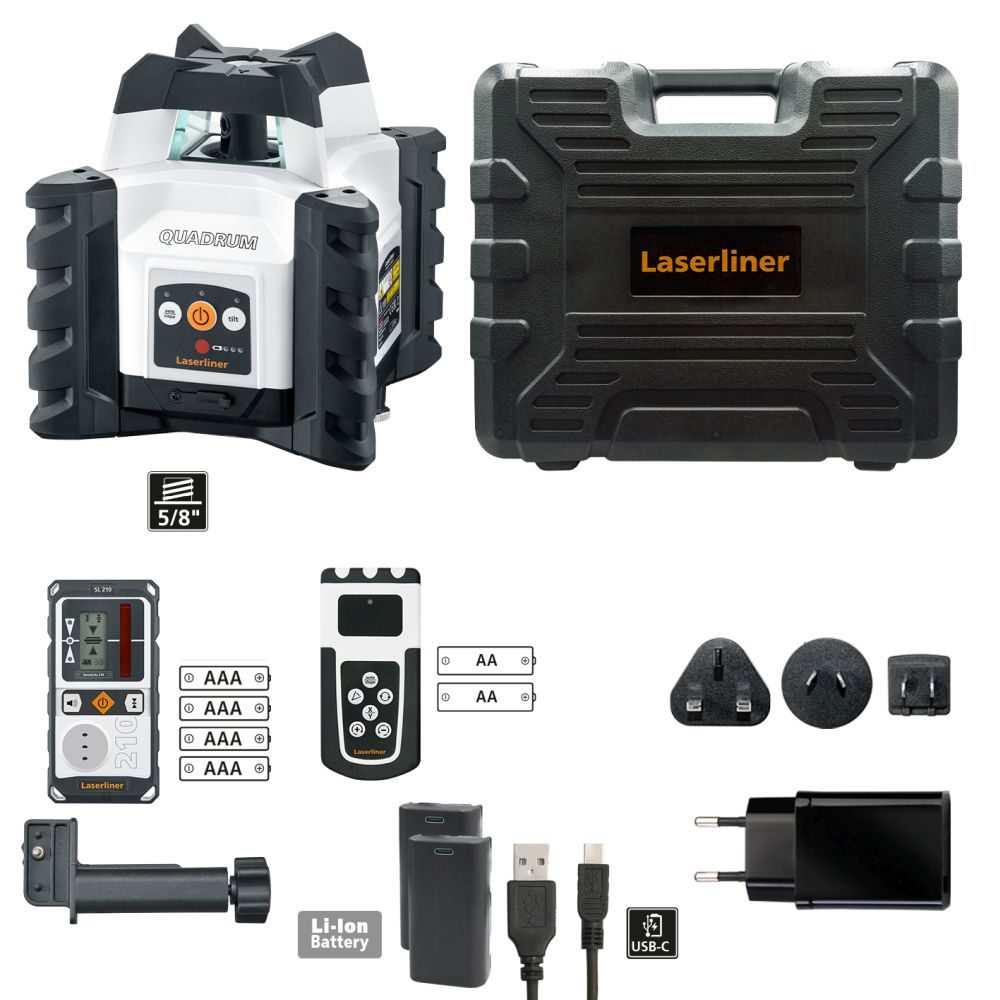

    Scope of delivery:
  • Quadrum Compact
  • SensoLite 210
  • universal mount
  • 2 x HighCapacityPack (Li-Ion)
  • batteries
  • network/charging device incl. international adapter
  • USB-A to USB-C cable
  • carrying case


  • Documentation:

    Titel:
    Rotary laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 053.500A, GTIN (EAN): 4021563731992
