Description: The professional video inspection system is ideal for pinpointing problems behind or in objects, walls, pipes and cavities. The camera head and probe are waterproof and resistant to petrol and diesel. Further advantages are the first-class LED object lighting and the magnetic stand for positioning the base unit. The true-to-life reproduction of colours provides a very realistic image. In addition to the InspectorCamera included in the scope of delivery, the base unit is also compatible with the high-quality InspectorCamera 3DX, 3DL and 3DM camera units. This offers a wide range of possible applications.

Effective problem localisation behind or in objects, walls, pipes, cavities

The camera head and probe are waterproof and resistant to petrol and diesel

6 high-performance LEDs on the camera for powerful object lighting

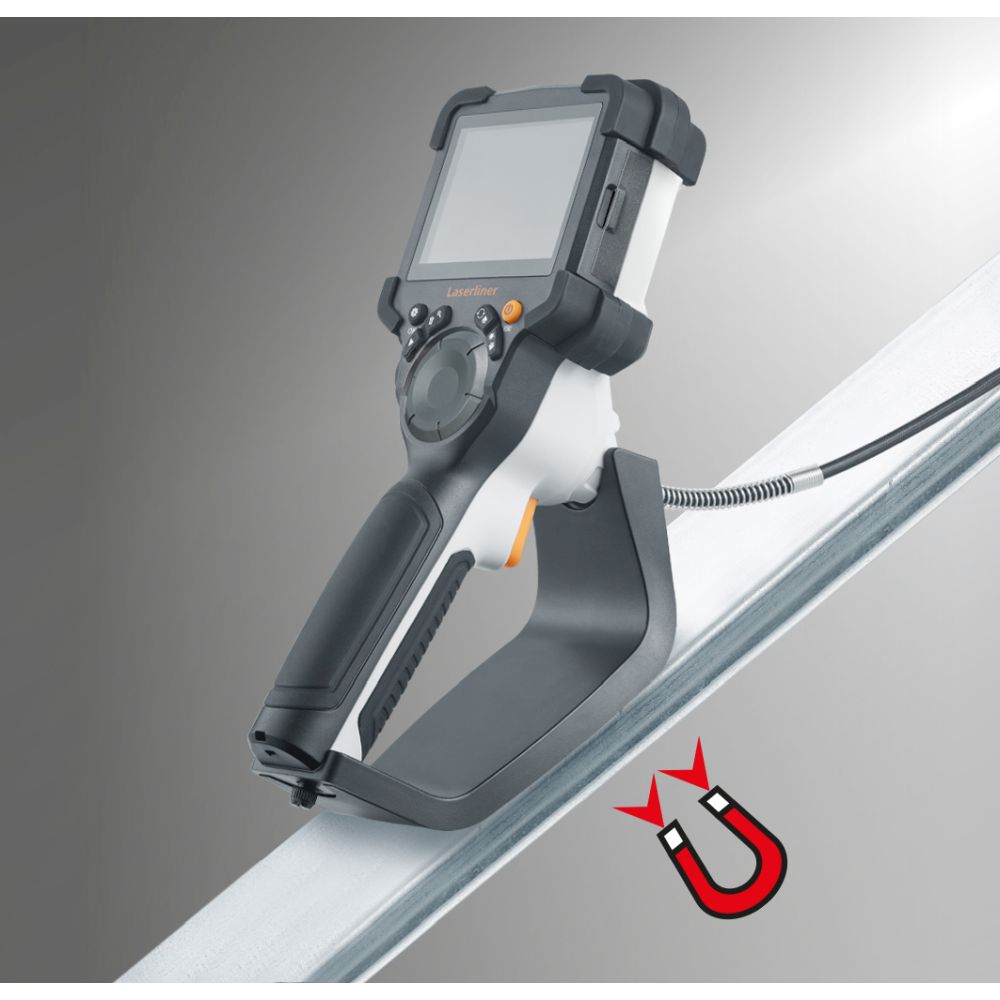

User has both hands free to work thanks to the magnetic stands on the camera unit

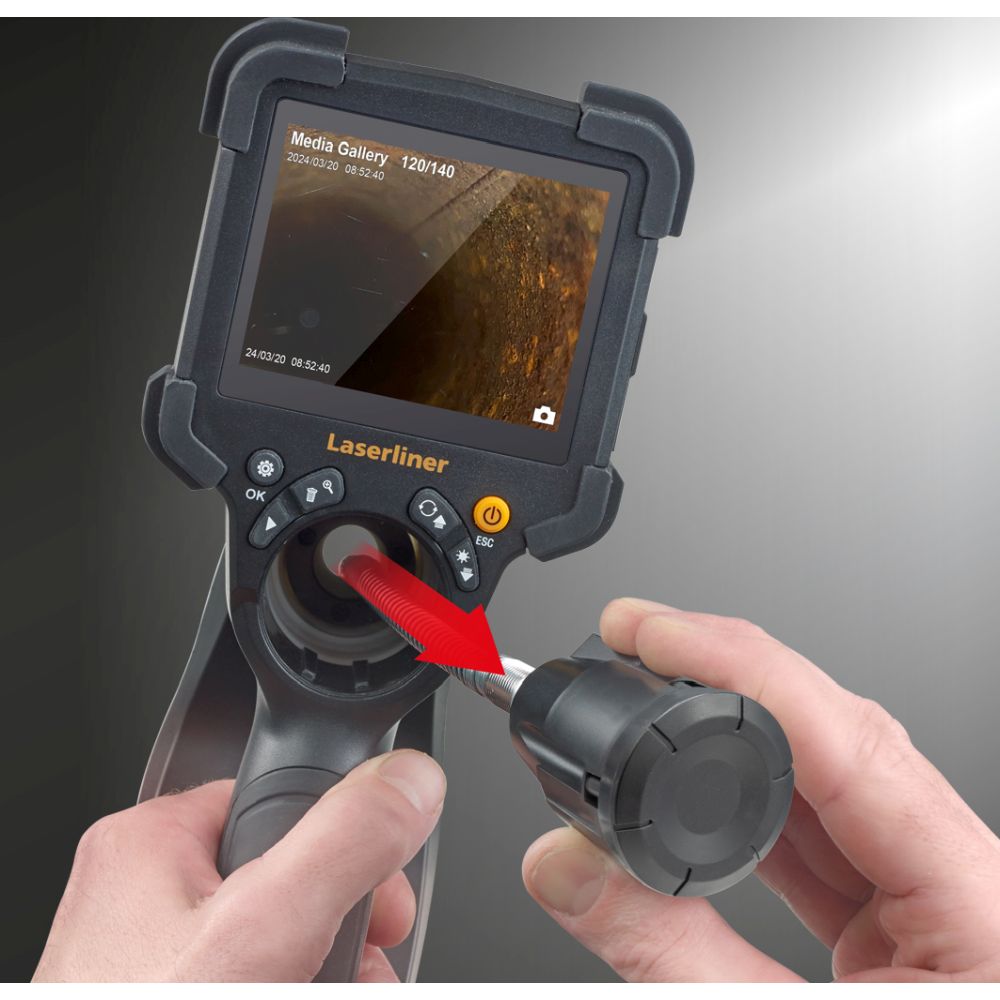

Flexible application options: Compatible with high-quality camera units InspectorCamera 3DX , 3DL and 3DM

Device fits well in the hand due to ergonomic design

Various views available on the monitor through rotation and mirroring

True colours for highly realistic image

Can also run on mains power

Magnet, mirror and hook mount for fixing on the camera head

Evaluation and documentation using micro SD card and USB-C interface

Media gallery with date/time information on the images

Time stamp: Fixed date and time marking on all images

Energy-saving, automatic switch-off after an adjustable set period of time

Live display	✅
Image/video recording	✅
Image/video playback	✅
Digital zoom	✅
Object illumination	✅
Time stamp	✅
Image alignment	✅
Data transfer	✅
Diameter Camera Head	7.9 mm
Camera Resolution	1280 x 720 pixels
Field of View (FOV)	80°

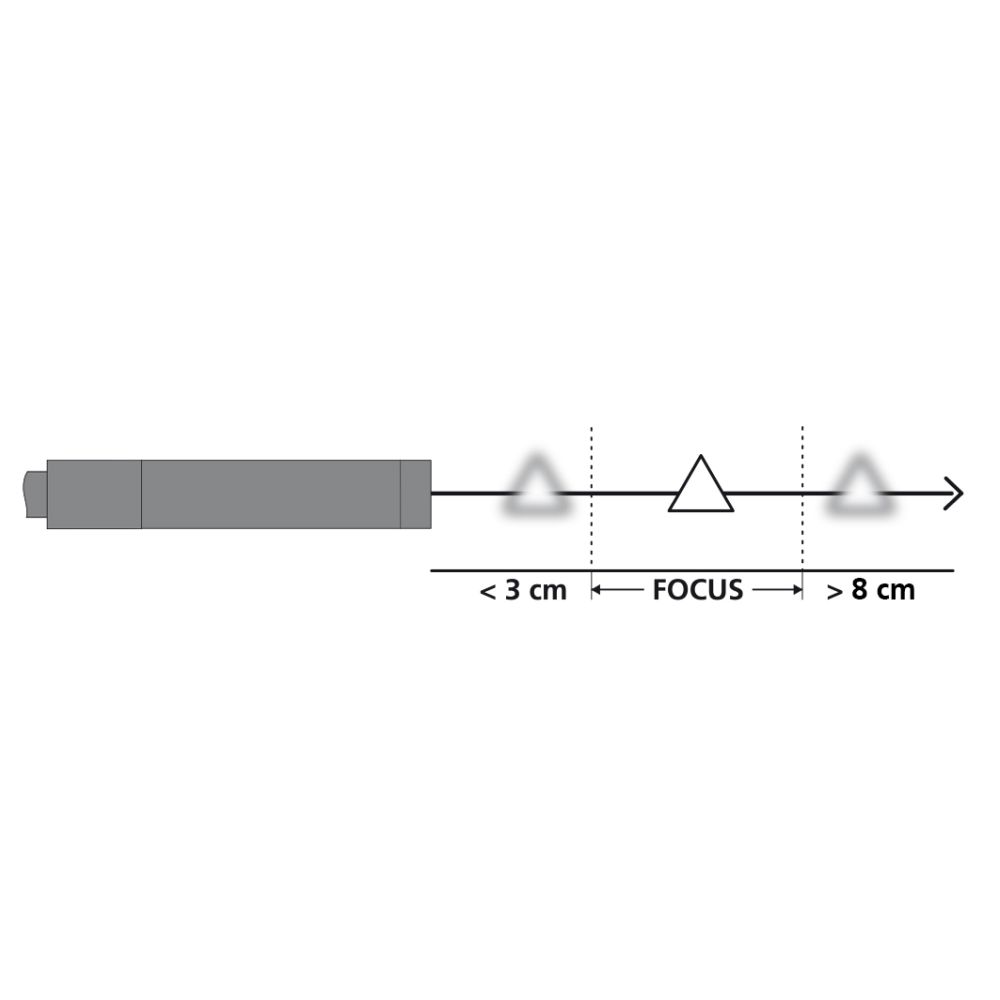

Depth of Focus (DOF)	3 … 8 cm
Screen Type	3,5" TFT display
Display Resolution	640 x 480 pixels
Image Format	JPEG
Length of Probe	1.5 m
Illumination	4 brightness levels
Digital Zoom	2x digital zoom in 10% increments
Memory	Micro-SD memory card up to 32 GB
Port	USB

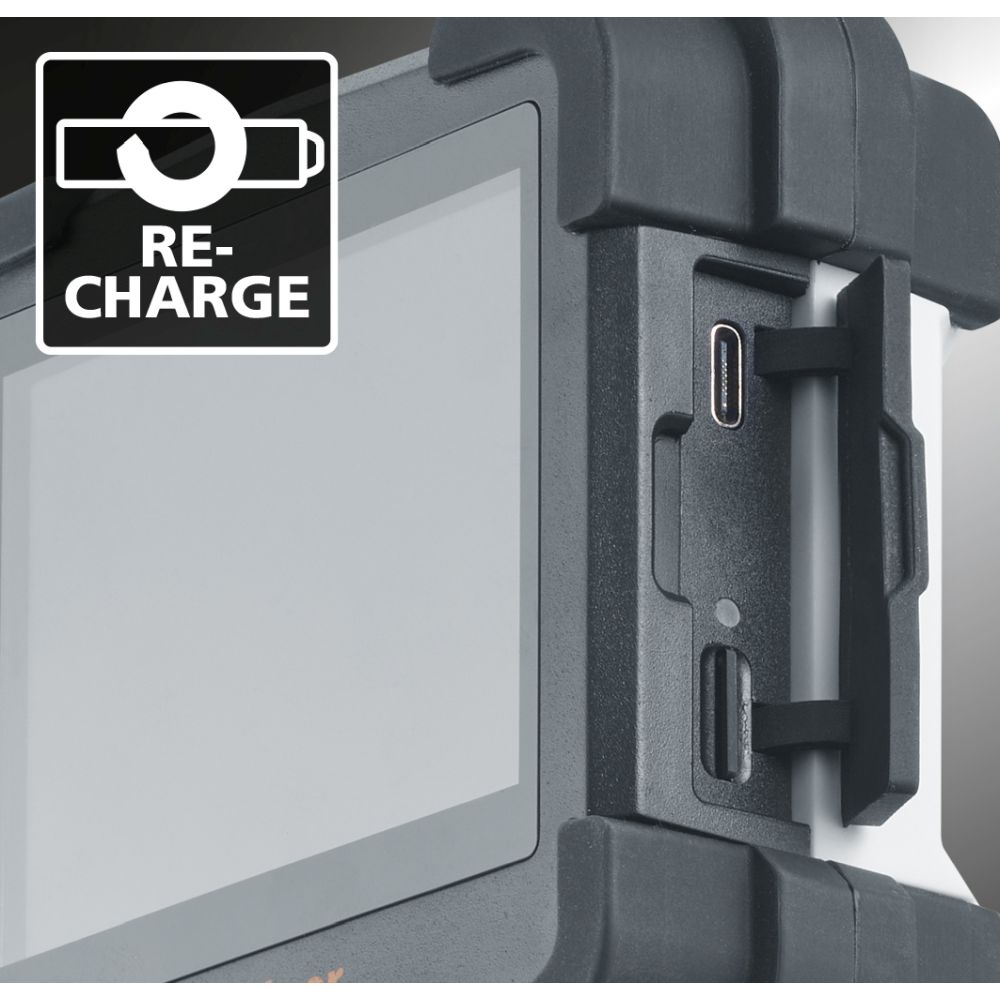

Ports	USB type C
Power Supply	Li-ion battery pack 3.7V / 2.8Ah USB type C 5V / 2A
Dimensions (W x H x D)	108 mm x 260 mm x 110 mm x (inkl. Halterung)
Weight	685 g (inkl. Akkupack)

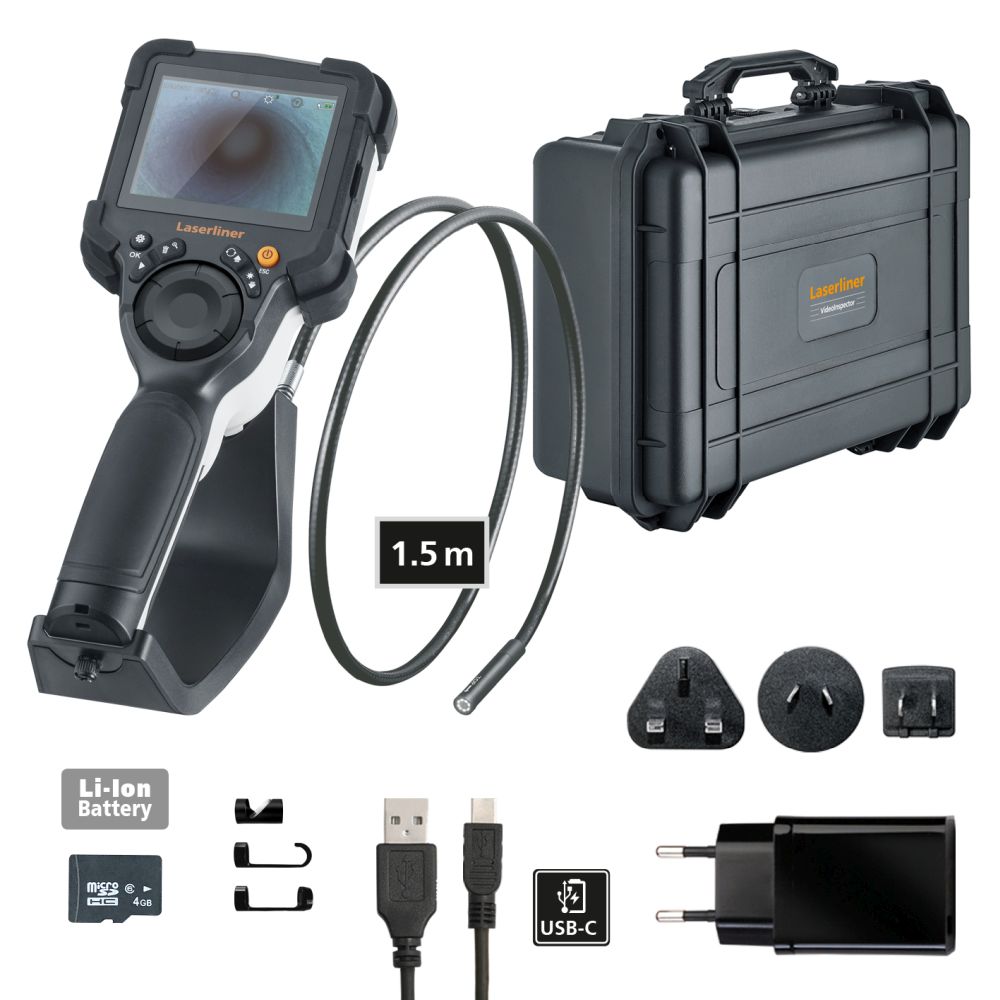

Scope of delivery:

VideoInspector

InspectorCamera 1,5 m

TopClips

Integrated Li-ion battery pack

network/charging device incl. international adapter

USB cable

micro SD card

carrying case

Documentation:

Instructions
Instructions part 2
Instructions part 3
Instructions part 4
