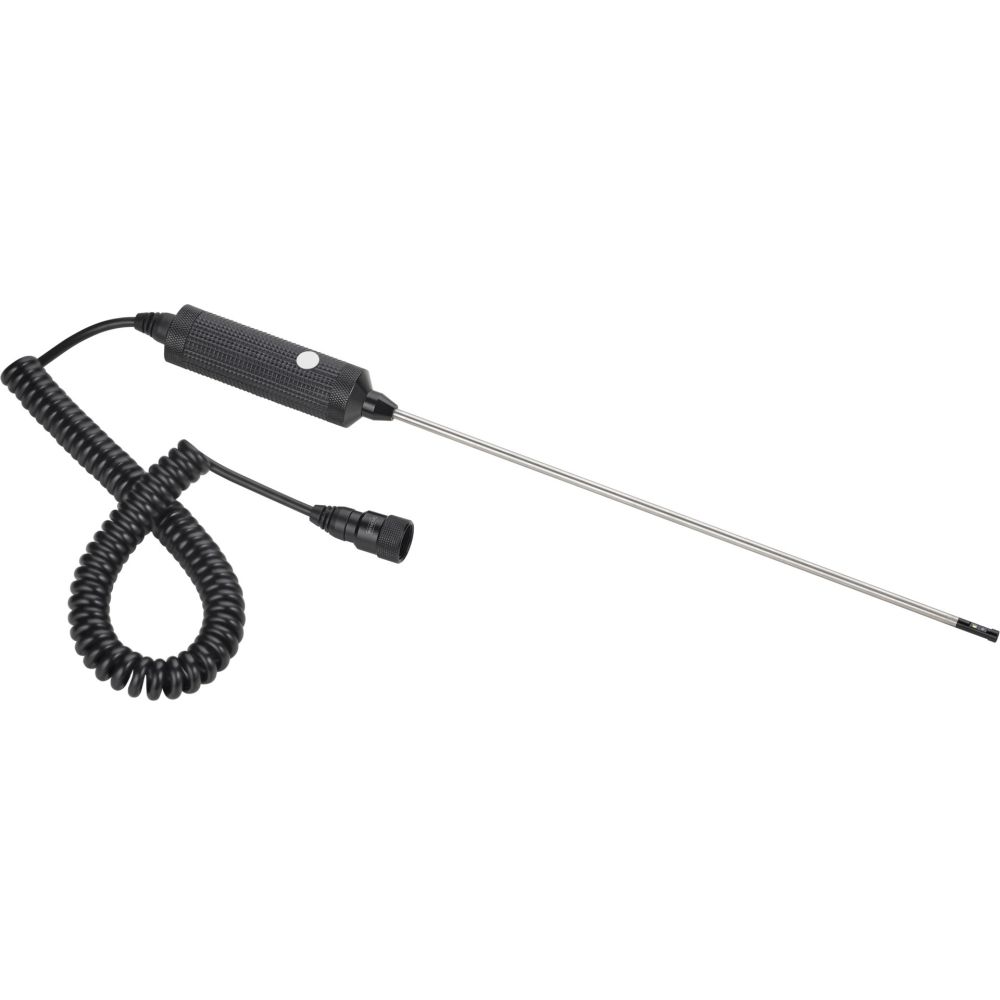

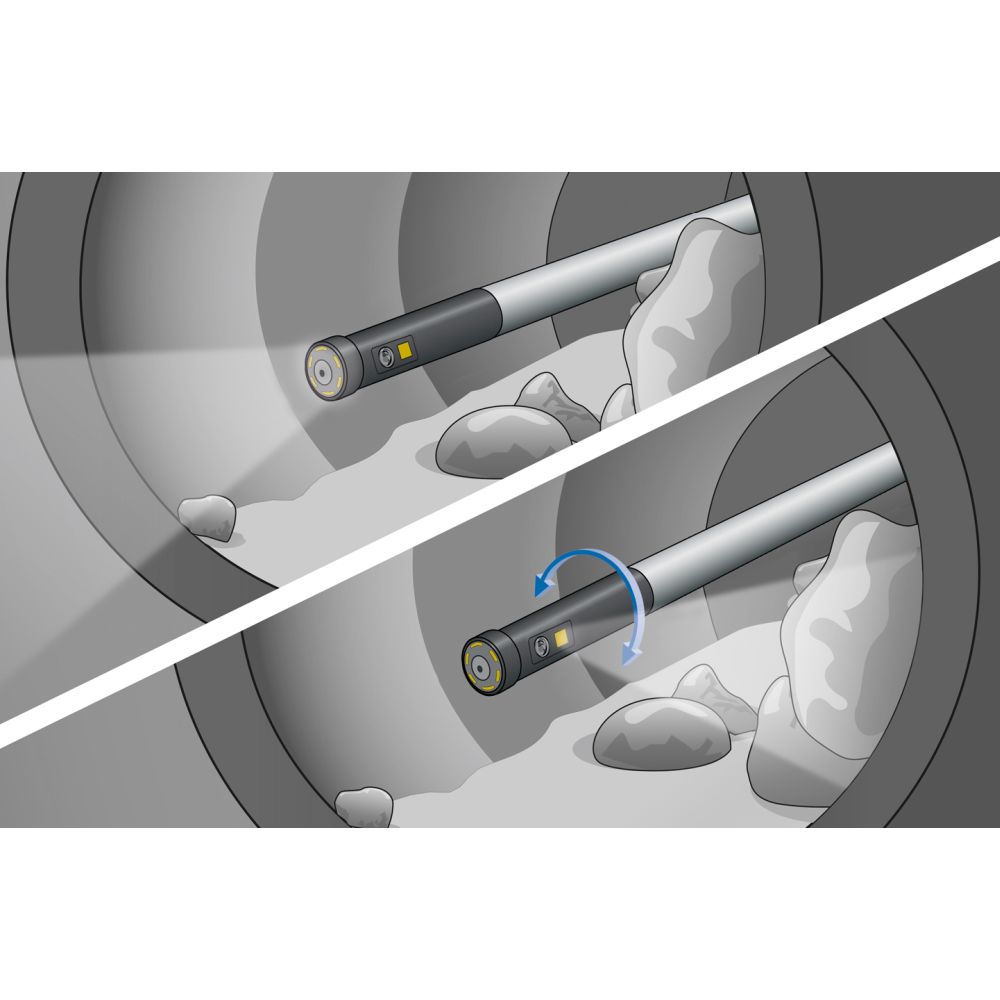

Description: The digital endoscope is perfect for narrow openings thanks to the small diameter camera head. The view can be quickly switched between the front and side camera using the ergonomically positioned switch directly on the thumb. Thanks to the high-resolution camera and the bright object illumination with a total of seven high-performance LEDs, very detailed image and video recordings are possible.
| Object illumination | ✅ |
| Diameter Camera Head | 5 mm |
| Camera Resolution | 1280 x 720 pixels |
| Field of View (FOV) | 80 |

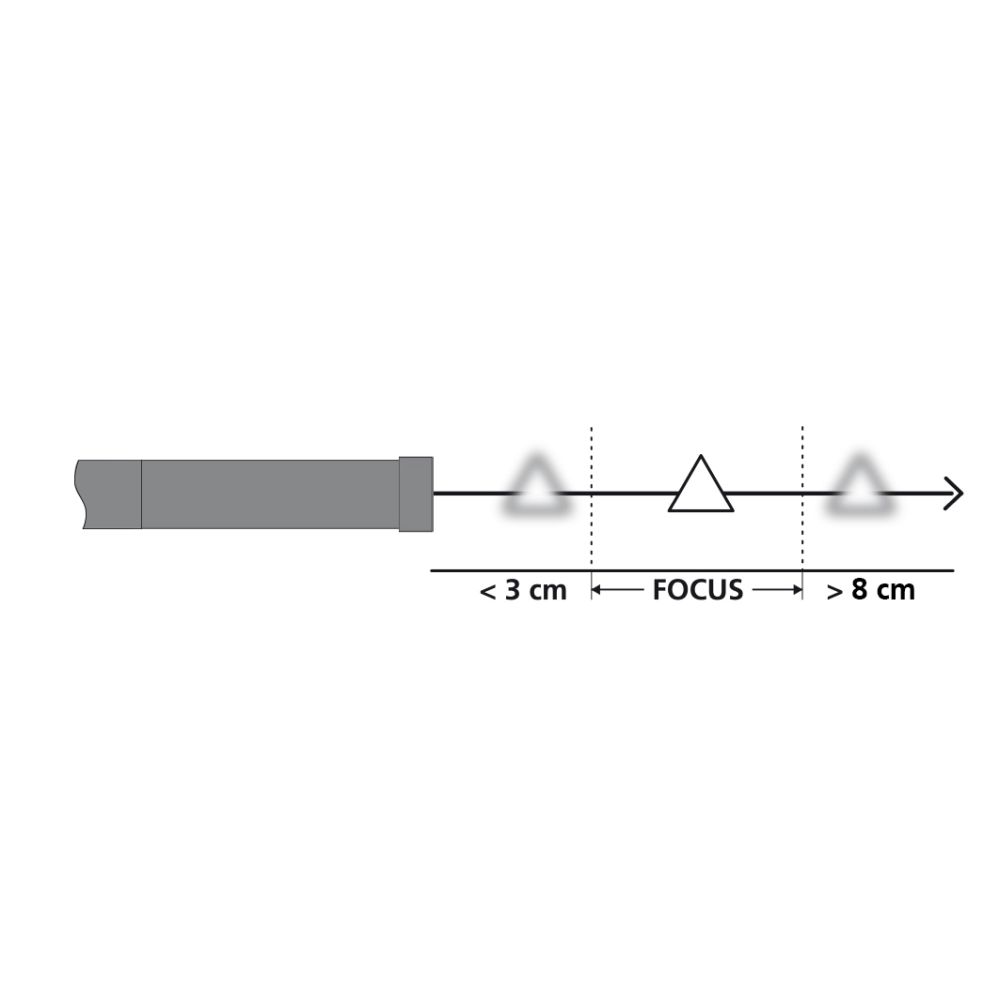

| Depth of Focus (DOF) | Front: 3 … 8 cm / Side: 2 … 5 cm |
| Screen Type | # |
| Length of Probe | 300 mm |
| Ports | Industrial connector for camera |
| Dimensions (W x H x D) | 450 mm x 30 mm x 30 mm |
| Weight | 235 g # |

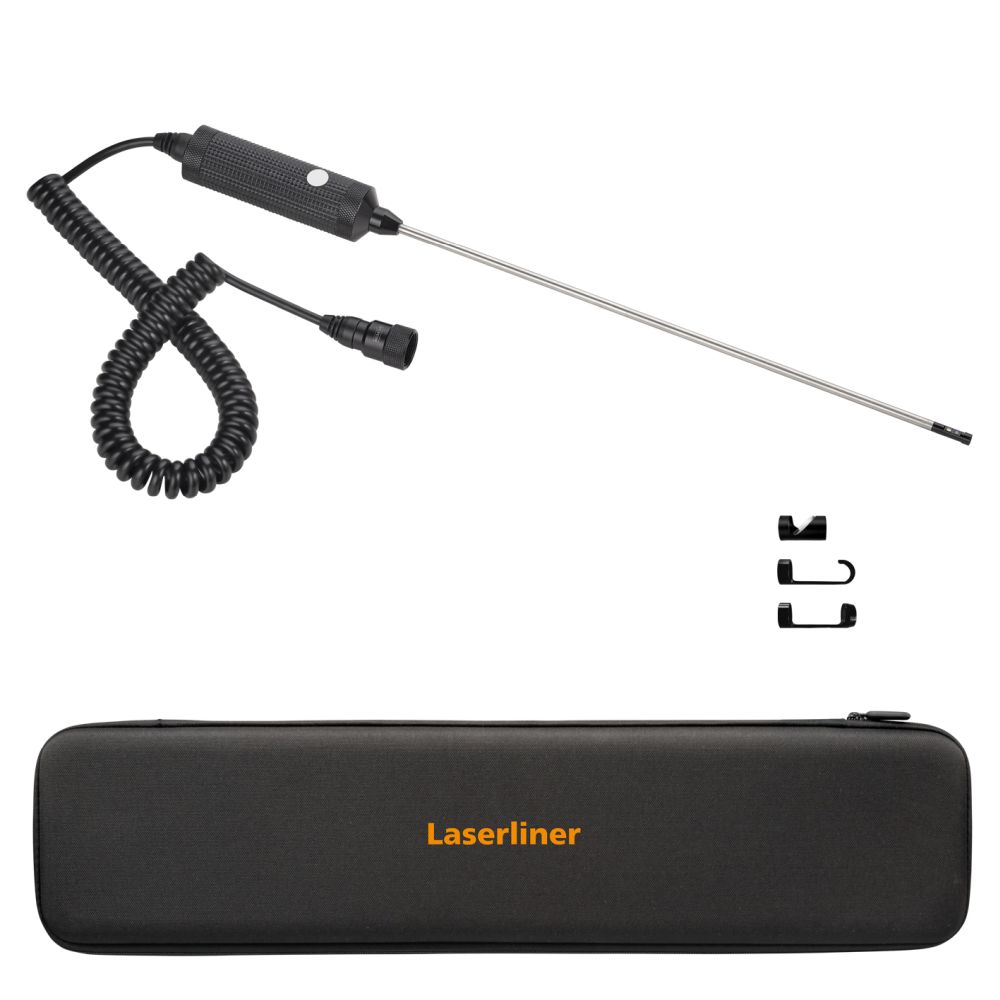

Scope of delivery:
Documentation:
Product information sheetInstructions not available.
Categorie:
Titel:
Digital endoscope
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 082.284A, GTIN (EAN): 4021563732234
