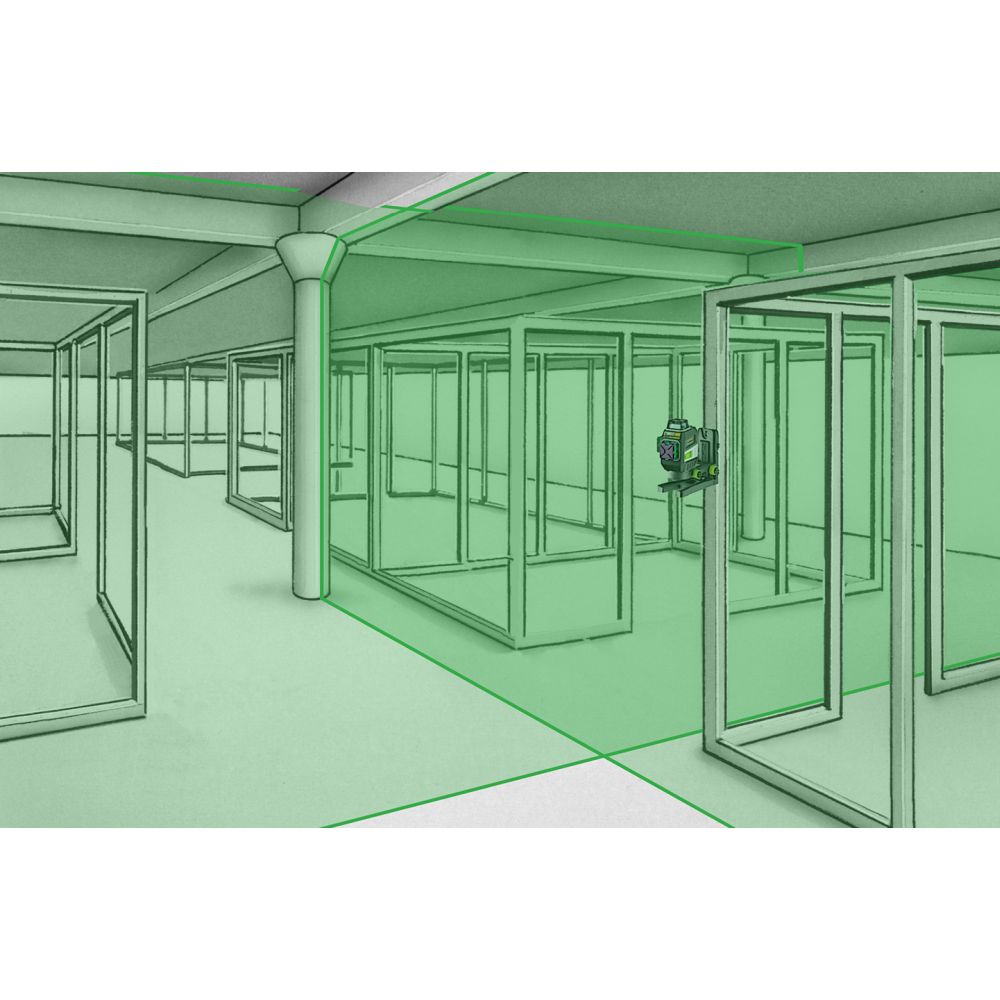

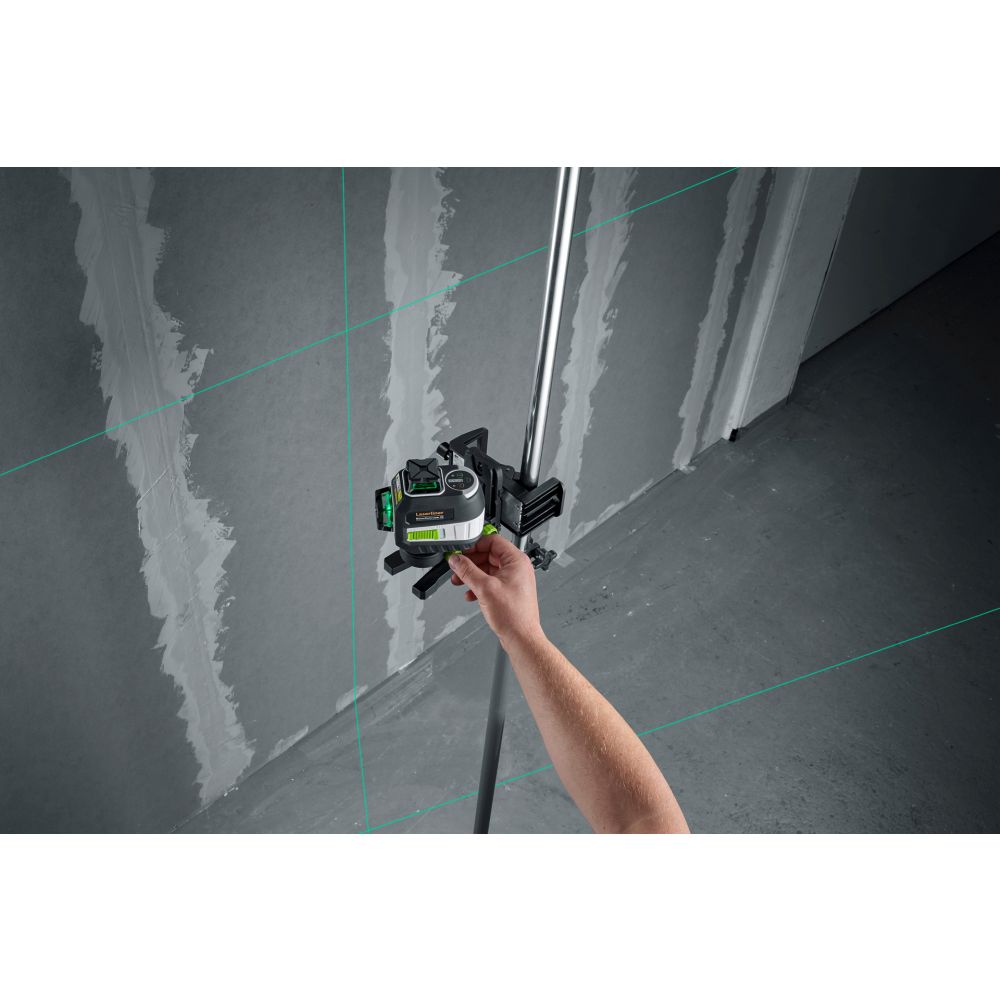

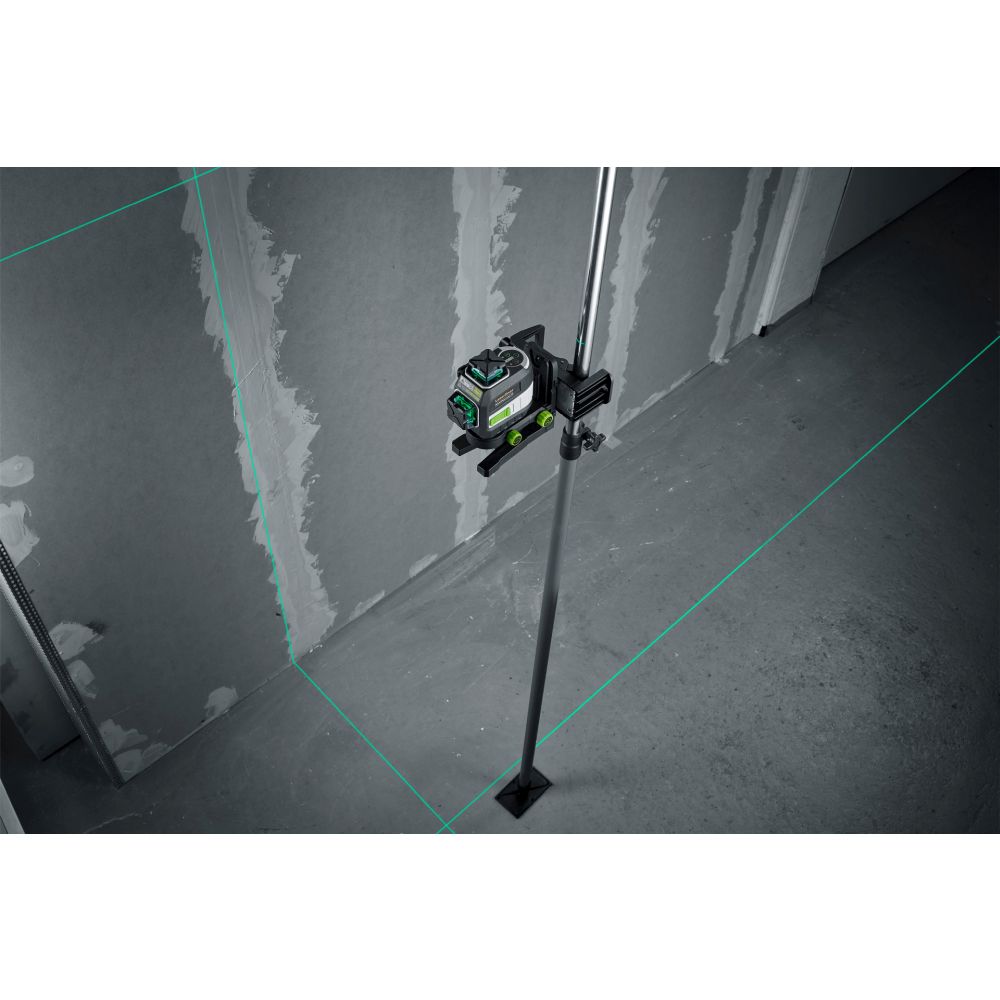

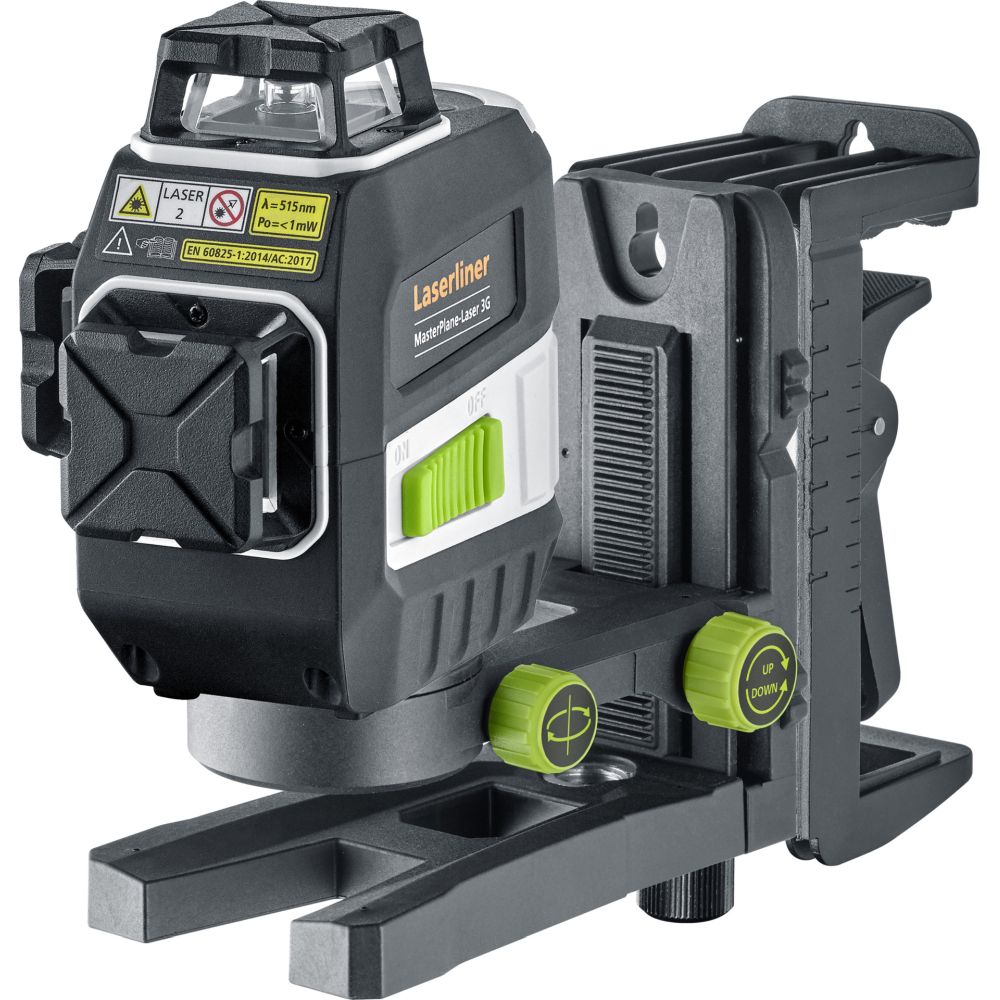

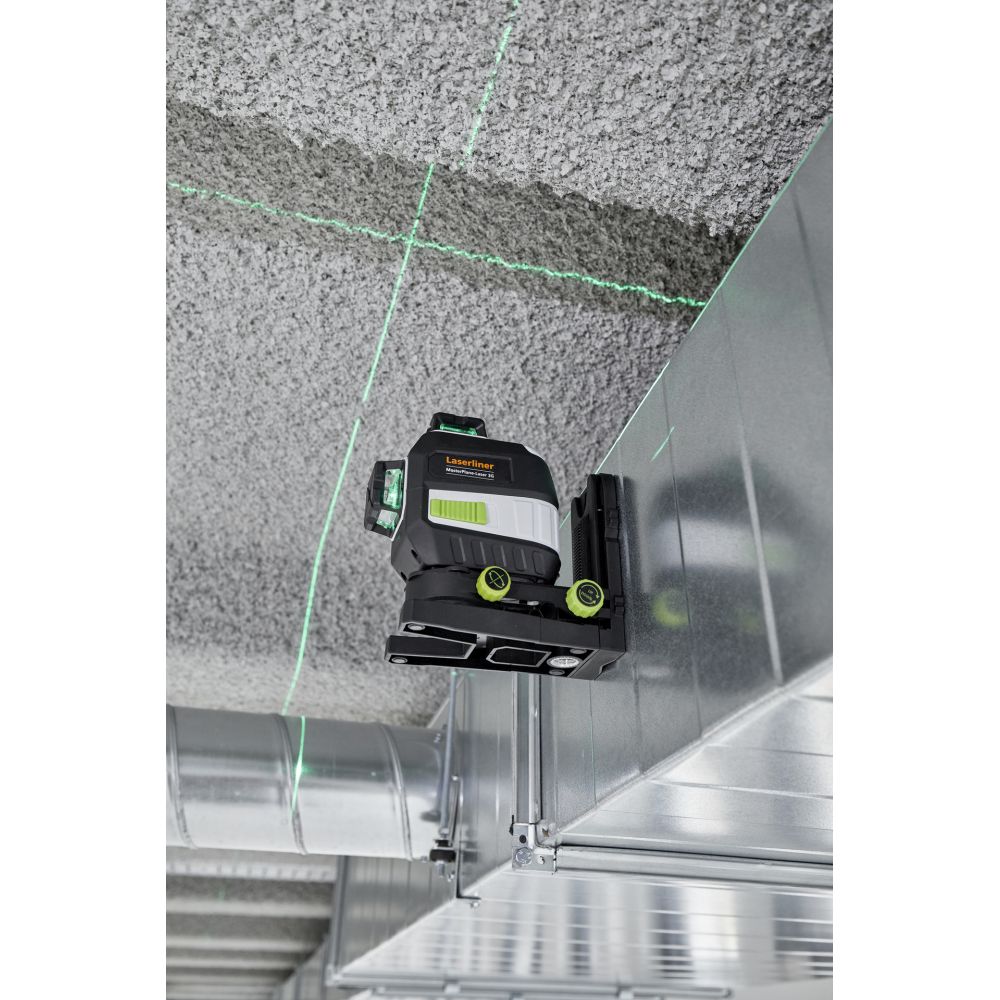

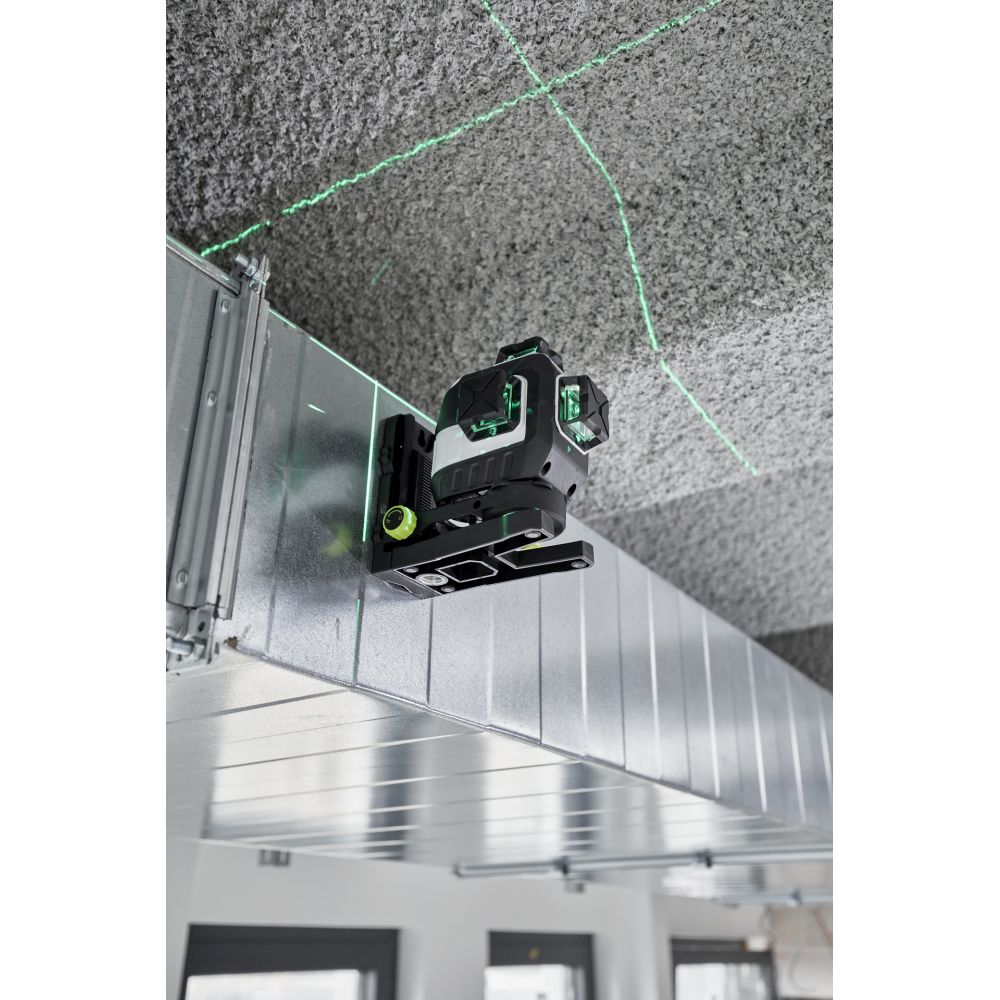

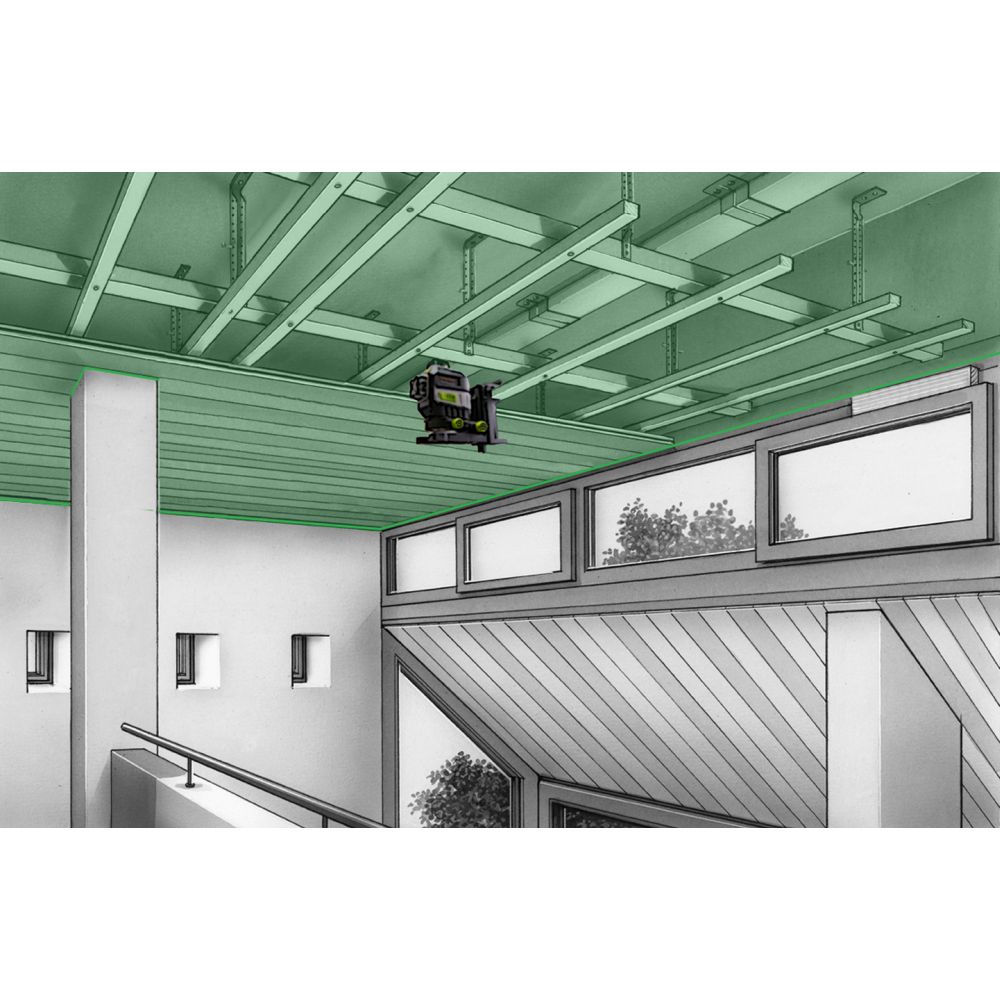

Description: This three-dimensional, highly visible laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working on floors and ceilings at the same time. The laser lines can be switched individually and the Anti-Drift-System (ADS) automatically switches the device off to avoid measurement errors due to external influences. The clamping and wall bracket allows the laser to be hung up or attached to metallic surfaces or ceiling profiles. The powerful HighCapacityPack with lithium-ion technology ensures a long operating cycle which can be double with the additional rechargeable battery.
Horizontal/vertical levelling | ✅ |
Manual slope function | ✅ |
Replaceable battery system | ✅ |

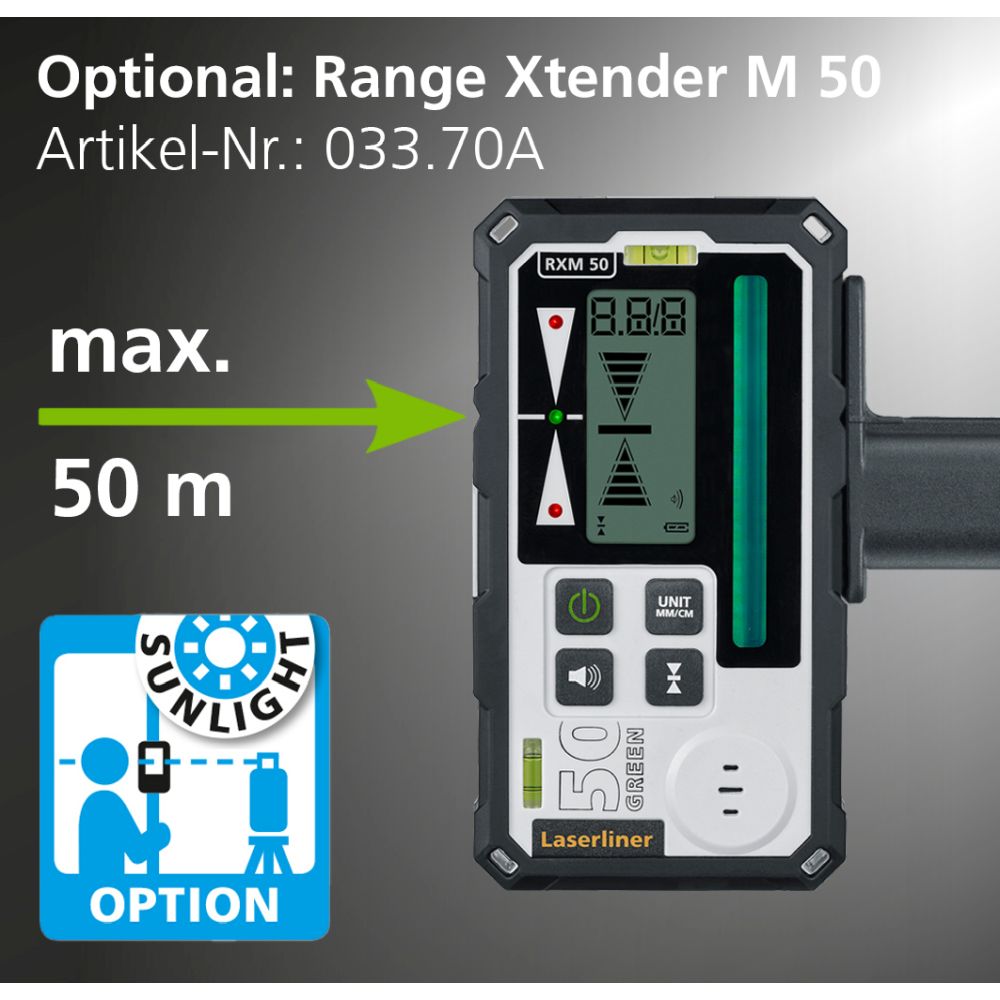

Hand receiver mode | ✅ |

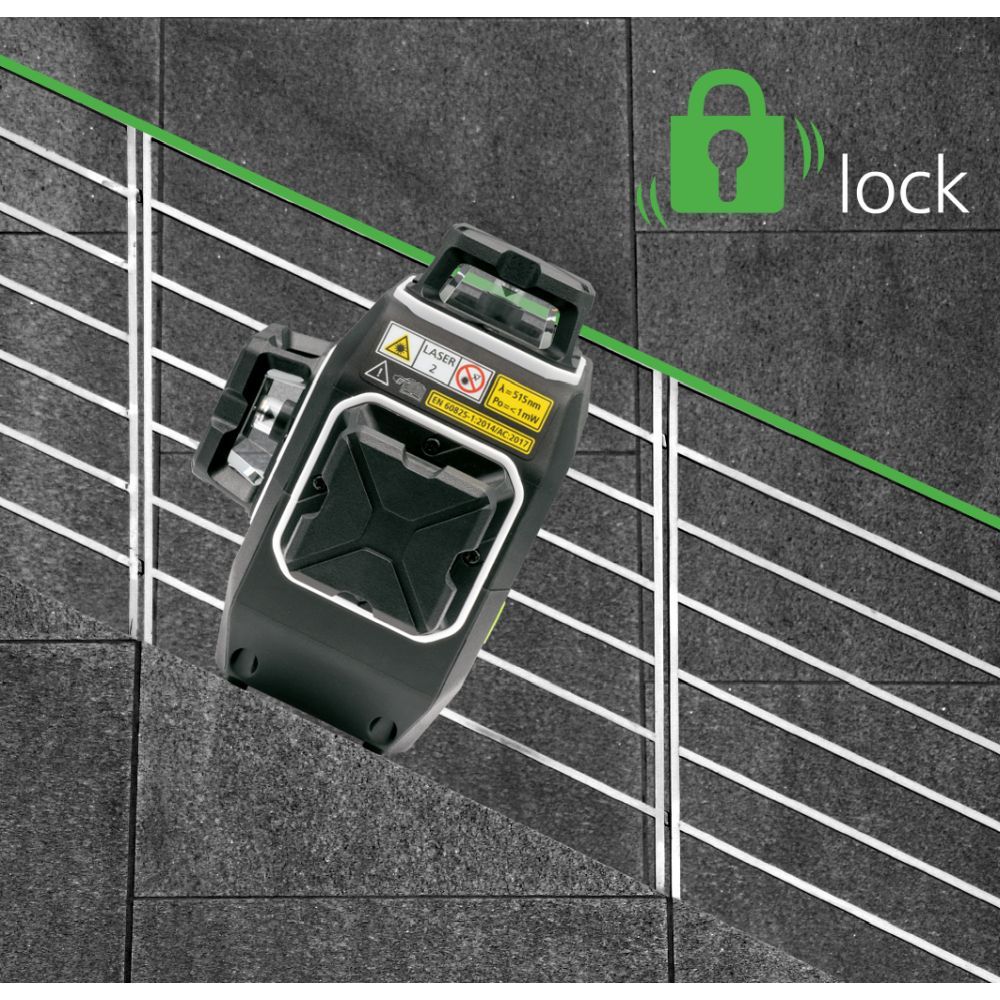

Tilt warning function | ✅ |
Self-Levelling Range | ± 3.5° (horizontal) |
Accuracy | ± 0.2 mm / m |

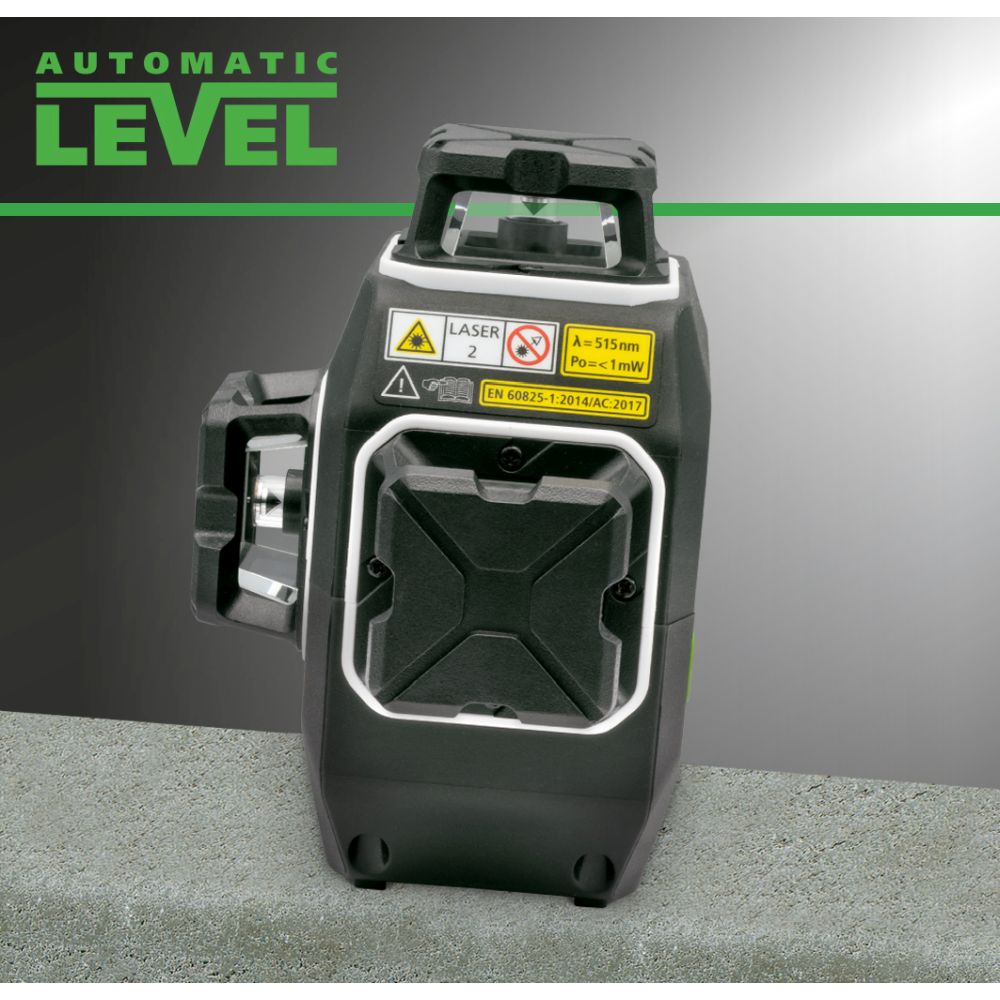

Levelling | automatic |
Visibility (Typical)* | 55 m |
Operating Range | (depending on room illumination) 50 m |
Laser Wavelength | 515 nm |
Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
Length of Receiver Unit | 0 mm |

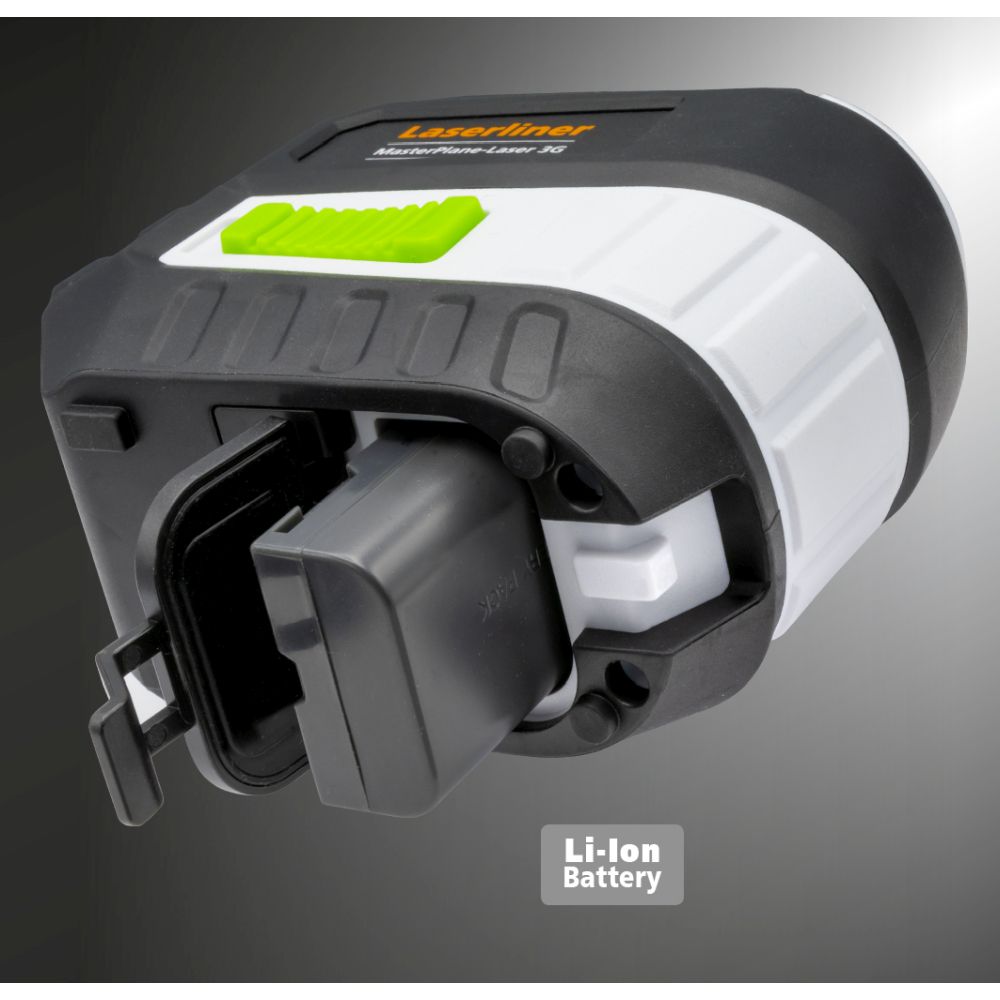

Power Supply | Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh |
Operating Time | with 3 laser levels: approx. 5 hours with 2 laser levels: approx. 10 hours with 1 laser level: approx. 17 hours |
Operating Conditions | 0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull) |
Storage Conditions | -10°C … 70°C, Luftfeuchtigkeit max. 80% rH |
Dimensions (W x H x D) | 140 mm x 130 mm x 85 mm |
Weight | 636 g (inkl. Akkupack) |

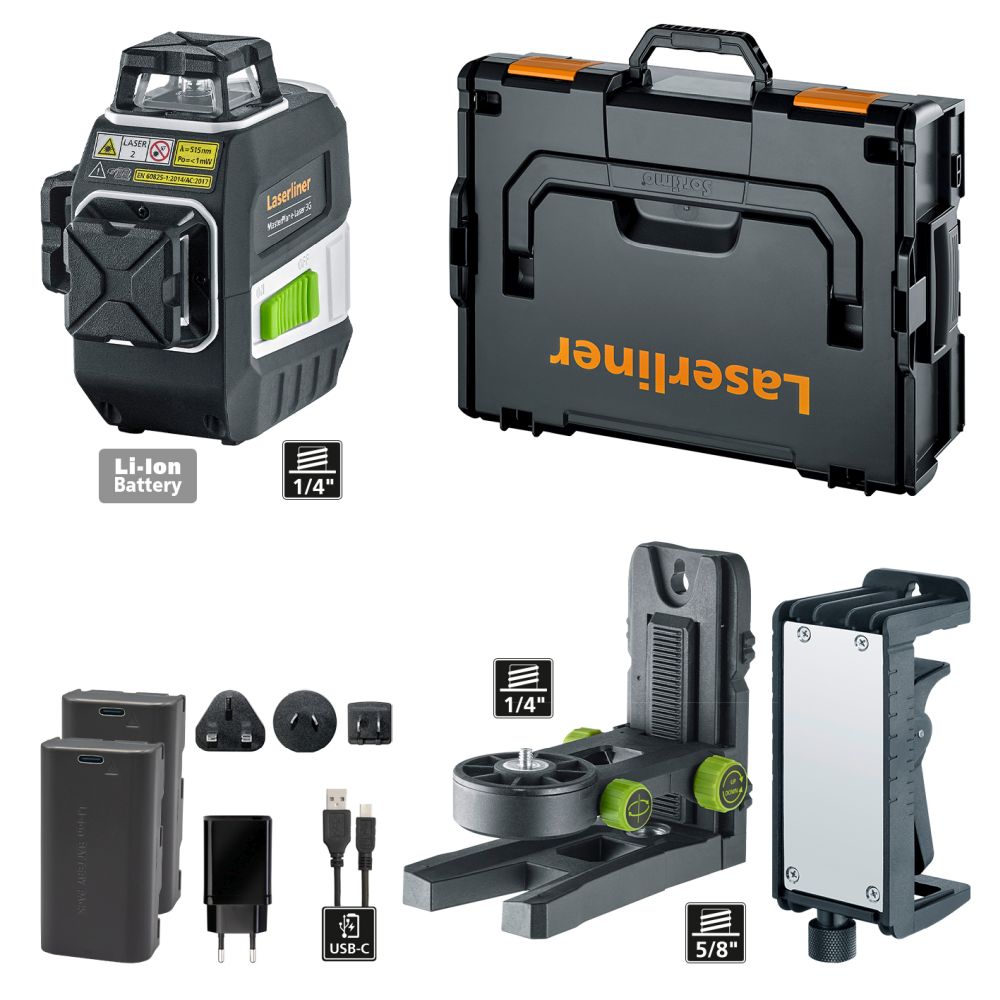

Scope of delivery:
Documentation:
Titel:
Three-dimensional laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 031.410L, GTIN (EAN): 4021563733934
