Description: This compact and user-friendly laser rangefinder has a measuring range of 30 metres, ideal for time-saving measurement of lengths, areas and volumes. The permanent measuring function simplifies work in situations in which continuous distance measurements are needed, for example because the target moves during measurement. The device also has two selectable housing reference points (at the front and back). The measured value memory with a maximum of 50 entries is available to document the project. The housing is largely made of recycled plastic and makes a valuable contribution to sustainability.
Length/area/volume | ✅ |
Min/Max | ✅ |
Continuous measurement | ✅ |
Selectable housing reference point | ✅ |
Precision (Typical)* | ± 2 mm |
Measurement Range (Inside)** | 0,1 m - 30 m |
Laser Wavelength | 635 nm |
Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
Memory | 50 storage locations |
Units | m |
Power Supply | 2 x 1.5V LR03 (AAA) |
Operating Conditions | -10°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull) |
Dimensions (W x H x D) | 40 mm x 121 mm x 28 mm |
Weight | 100 g (inkl. Batterien) |
** at max. 5,000 lux |

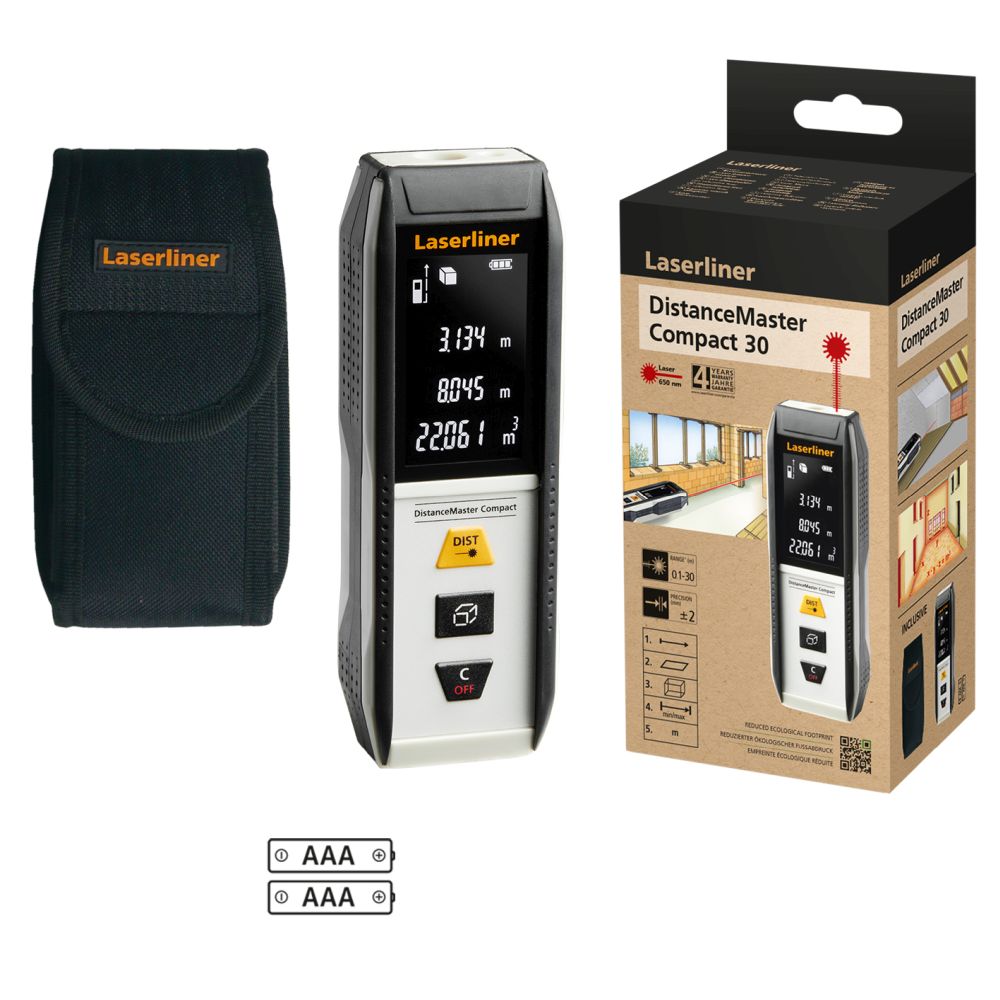

Scope of delivery:
Documentation:
Titel:
Laser rangefinder
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
EcoLine
Art.No.: 080.940E, GTIN (EAN): 4021563735013
