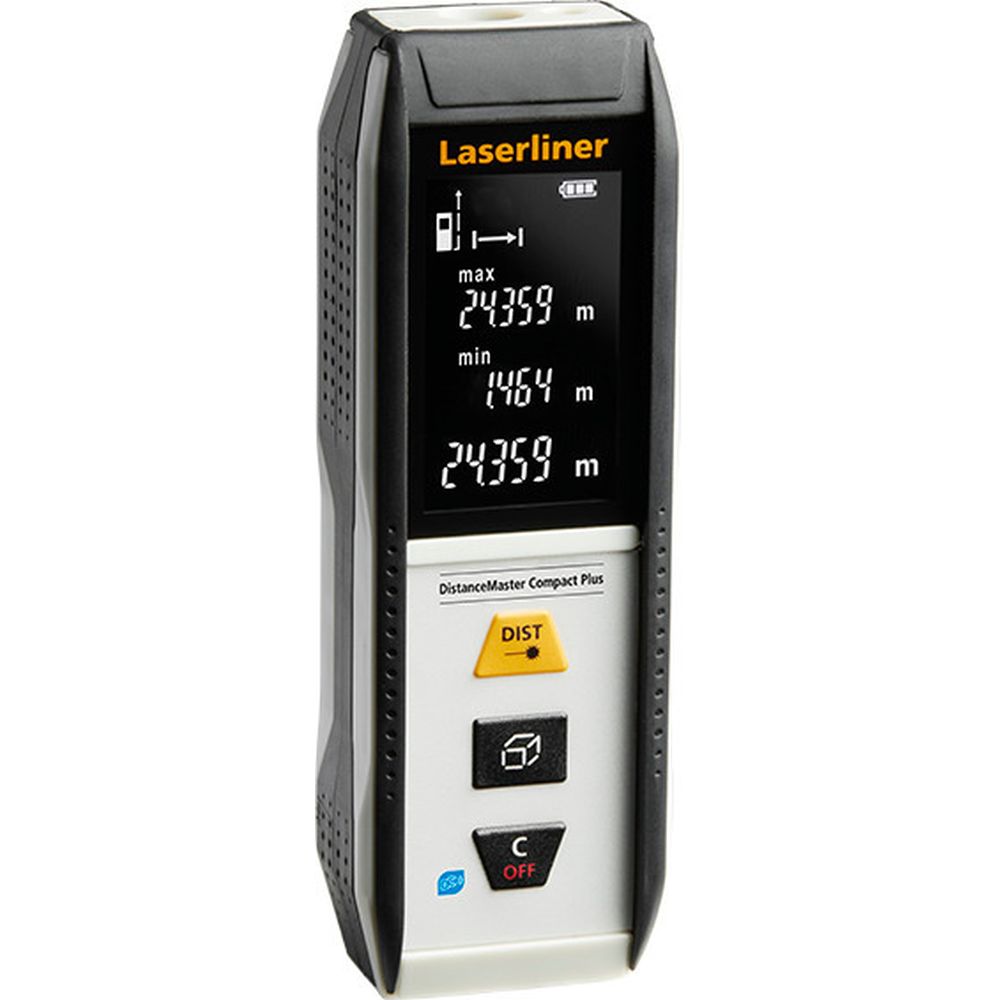

DistanceMaster Compact Plus 50

Handy laser rangefinder that is easy to operate with digital connection - recycled material used for sustainability

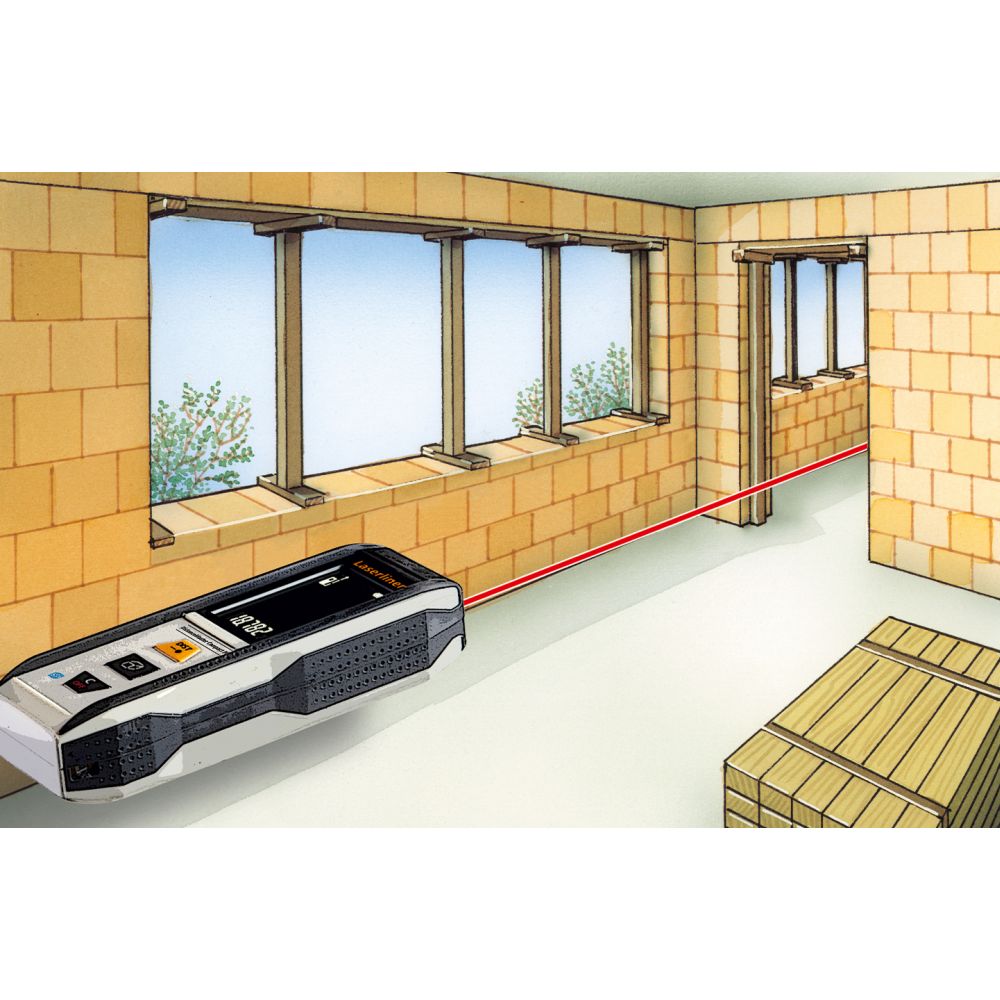

Description: This handy laser rangefinder has a measuring range of 50 metres, ideal for quickly measuring lengths, areas and volumes. The continuous measuring function makes it easier to work in situations where continuous range-finding measurements are required, such as when the target object moves during measurement. The measured value memory with a maximum of 50 entries is available to document the project. The measured data can be simply transferred to mobile devices via the digital connection. The housing is largely made of recycled plastic and makes a valuable contribution to sustainability.

  • Sustainable design: large proportion of the housing is made from recycled plastic
  • Point-precise laser measurement for determining lengths, areas and volumes

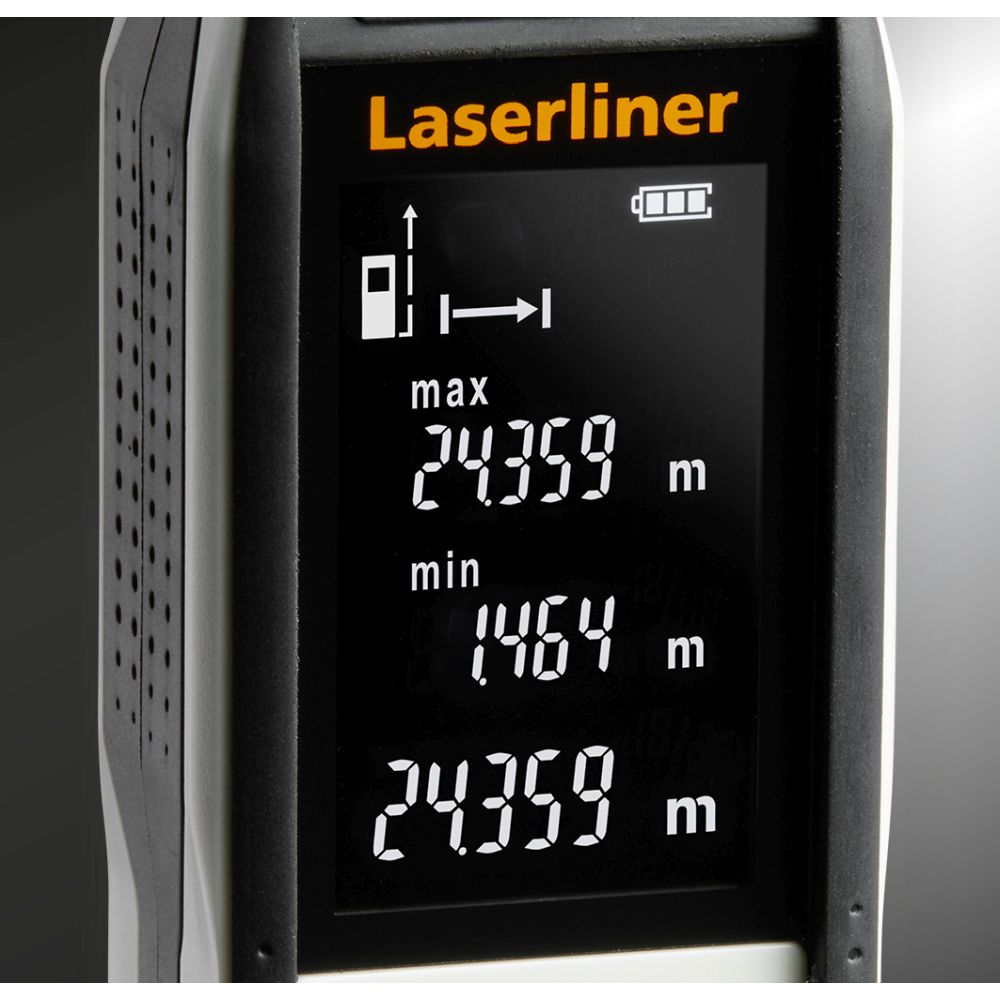

  • Continuous measurement with min/max display
  • Optimum project documentation: Easy transfer of measurement data to mobile devices via the digital connection
  • Measuring points: front and rear
  • Extremely easy to use due to compact design
  • Effective saving of measured values through memory function with 50 memory locations
  • Energy-saving Auto Off function when not in use

  • Length/area/volume
    Min/Max
    Continuous measurement
    Selectable housing reference point
    Data transfer
    Precision (Typical)*± 2 mm
    Measurement Range (Inside)**0,1 m - 50 m
    Laser Wavelength635 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Memory50 storage locations
    Unitsm
    Power Supply2 x 1.5V LR03 (AAA)
    Operating Conditions-10°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
    Dimensions (W x H x D)40 mm x 121 mm x 28 mm
    Weight100 g (inkl. Batterien)

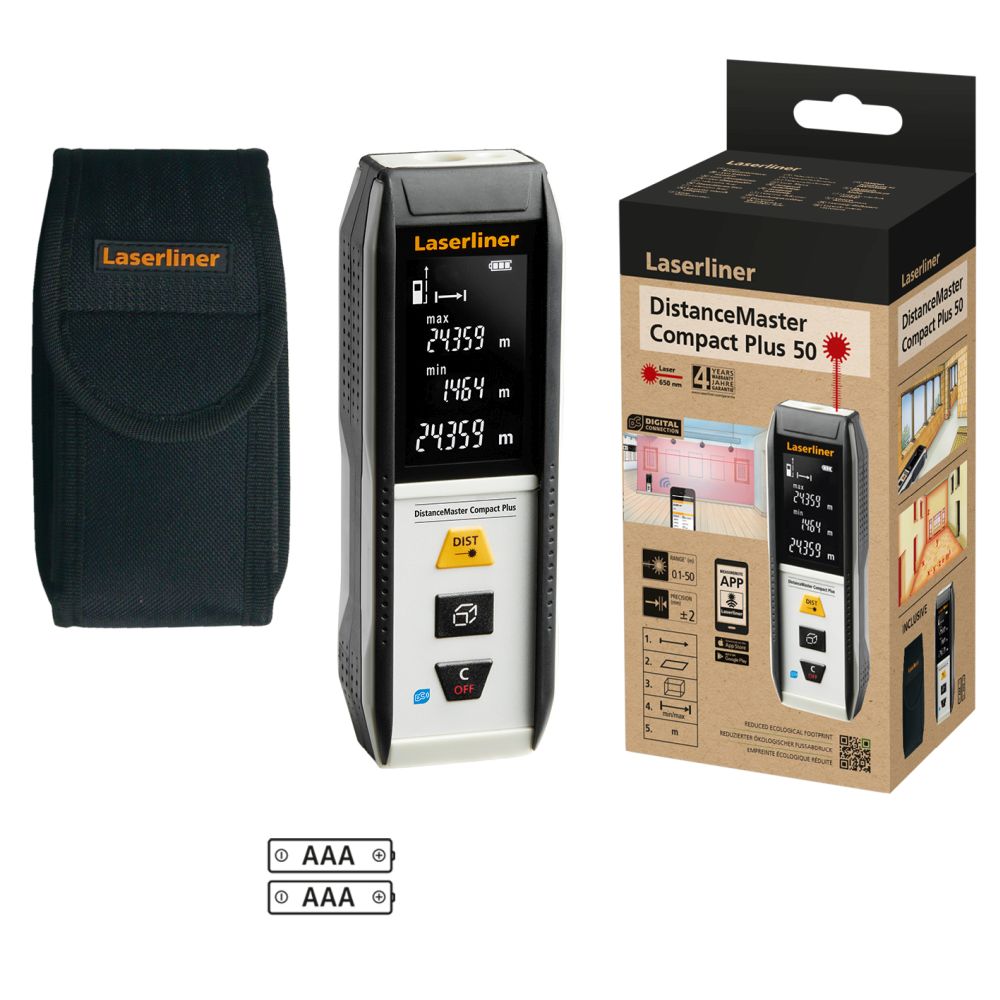

    Scope of delivery:
  • DistanceMaster Compact Plus
  • softbag
  • batteries


  • Documentation:

    Titel:
    Laser rangefinder

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    EcoLine

    Art.No.: 080.942E, GTIN (EAN): 4021563735020
