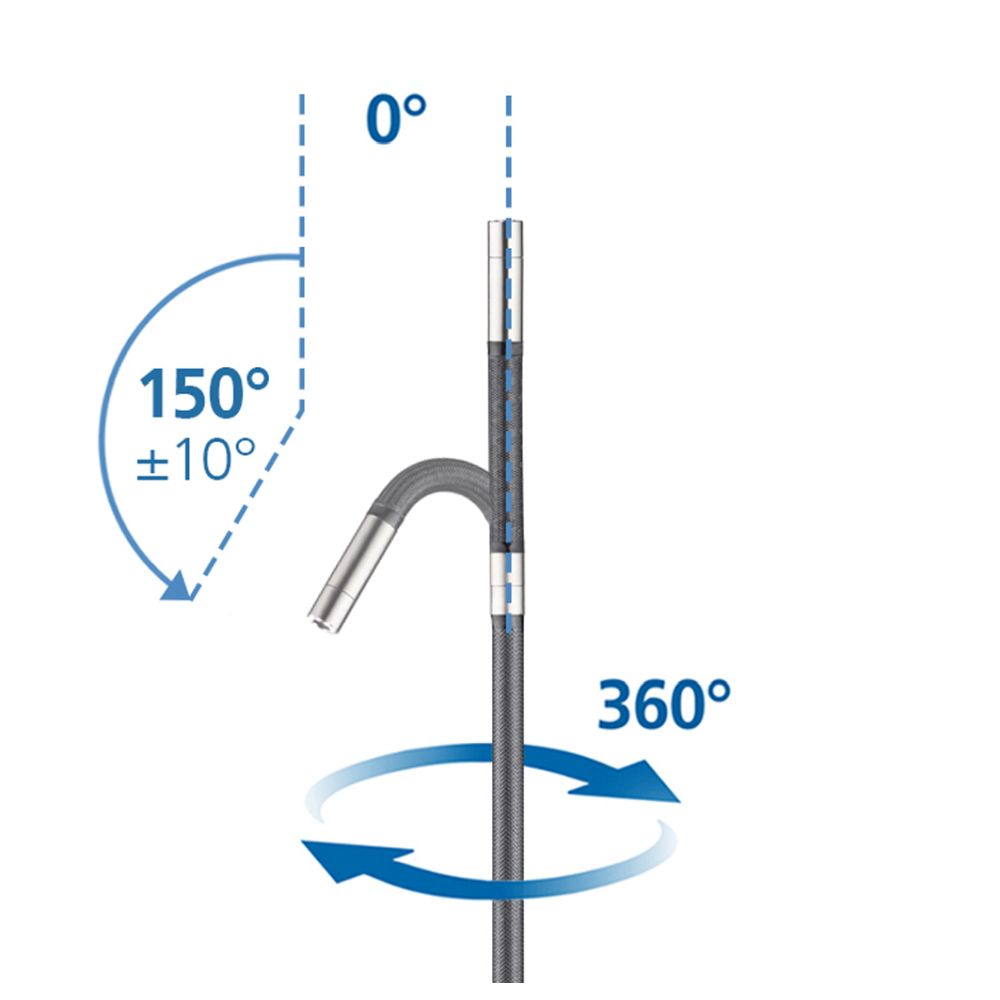

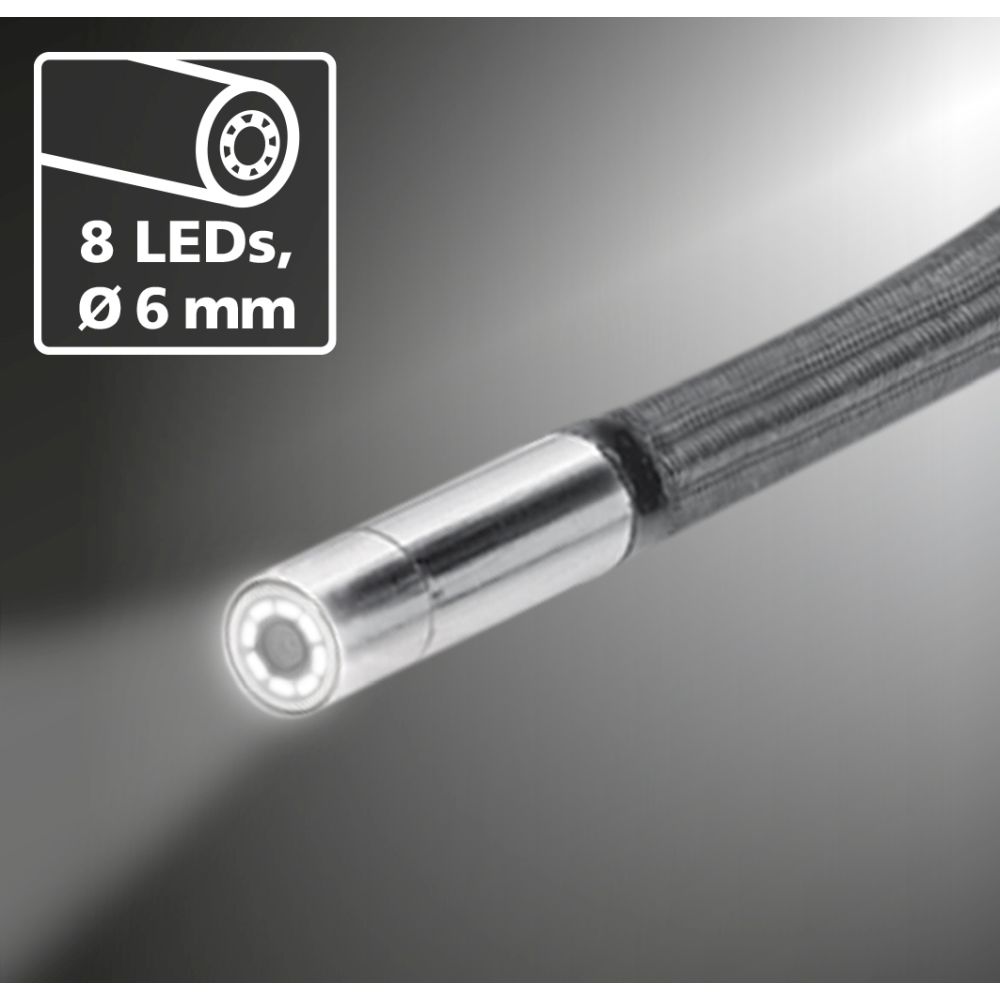

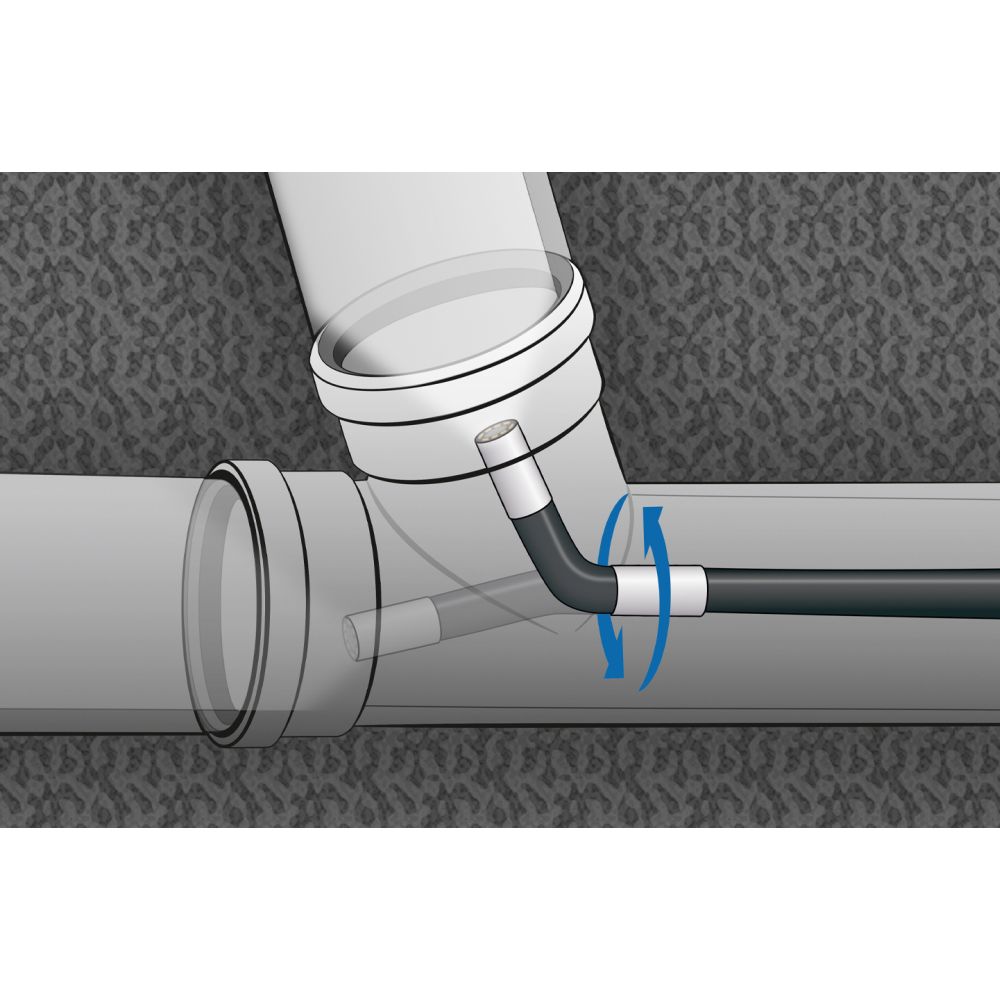

Description: This controllable camera unit features an individually movable camera head that can be quickly adjusted to the optimal perspective using the joystick on the VideoInspector base unit. This allows examination of hard-to-reach areas that are not visible with rigid camera systems. The small diameter of the camera head enables inspection of very narrow openings. The inspection is also highly reliable, allowing 360° checks of items such as pipe seals, with precise detection of damaged areas. The camera head and probe are waterproof and resistant to diesel, gasoline, motor oil, AdBlue®, ethyl alcohol, and saltwater, making the device versatile. Eight high-performance LEDs provide excellent object illumination.
| Controllable camera head | ✅ |
| Object illumination | ✅ |
| Diameter Camera Head | 6 mm |
| Camera Resolution | 1280 x 720 pixels |
| Field of View (FOV) | 78° |

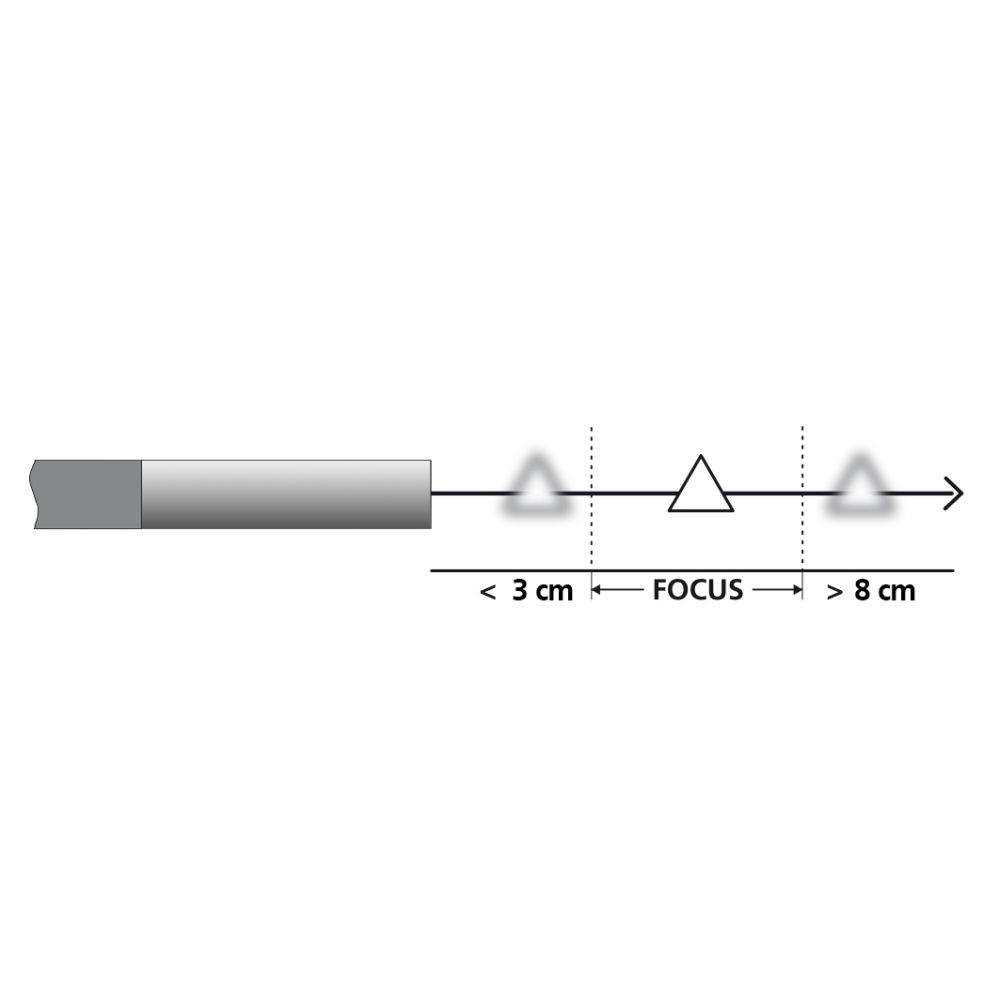

| Depth of Focus (DOF) | 3 … 8 cm |
| Screen Type | # |

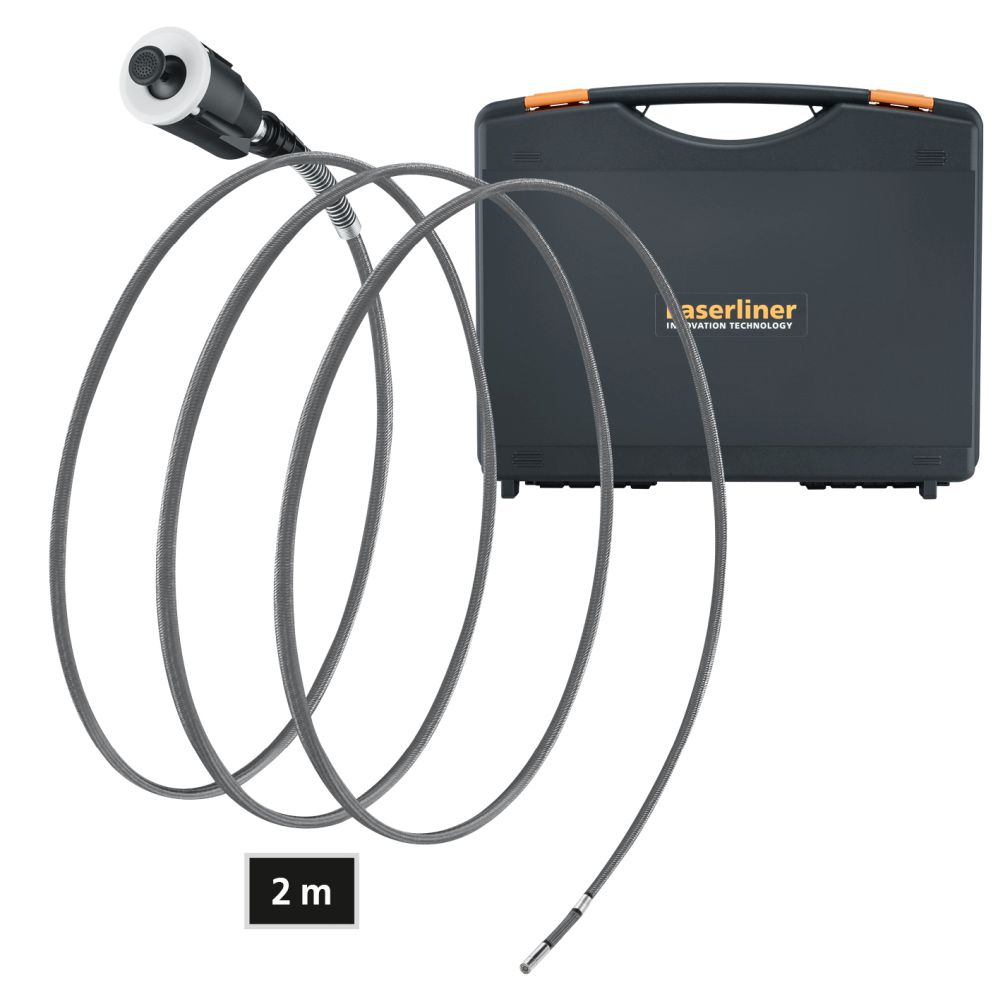

| Length of Probe | 2 m |
| Dimensions (W x H x D) | 2050 mm x 42 mm x 42 mm |
| Weight | 195 g # |
Scope of delivery:
Documentation:
Product information sheetTitel:
Controllable camera unit
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 082.232A, GTIN (EAN): 4021563737109
