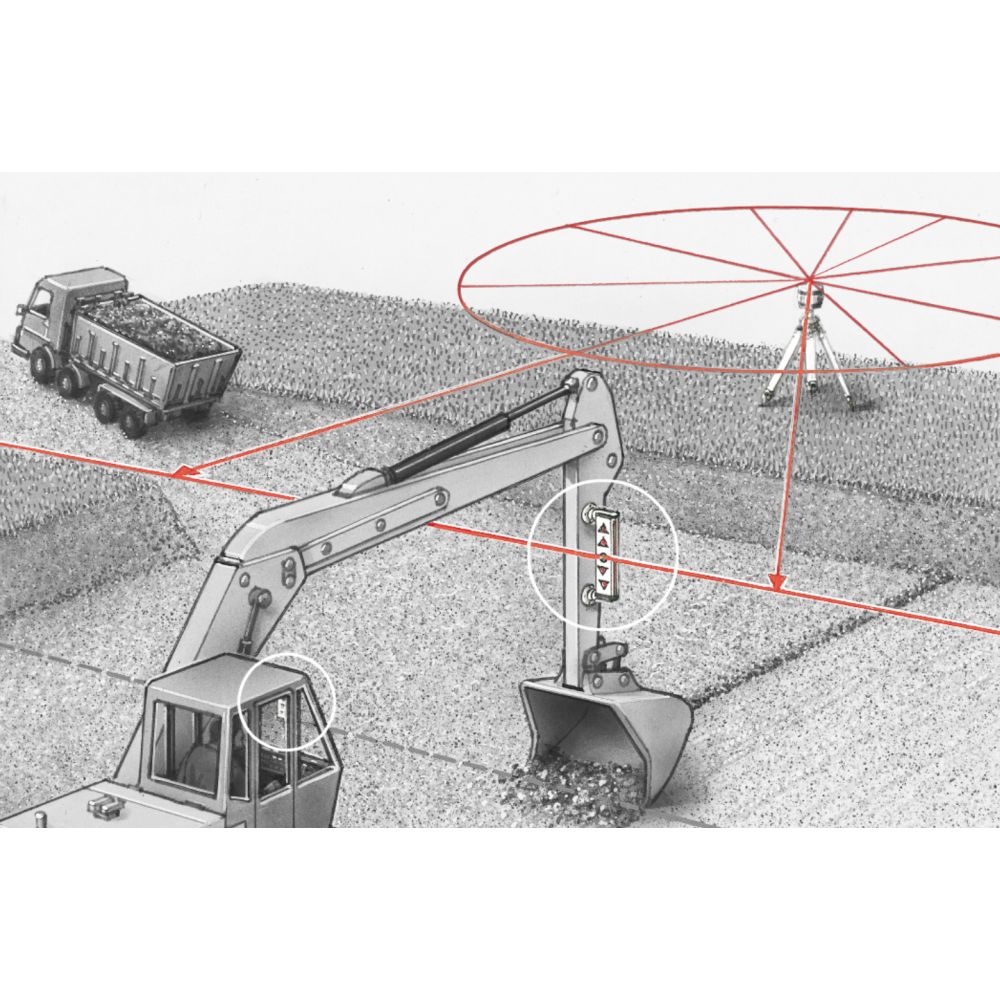

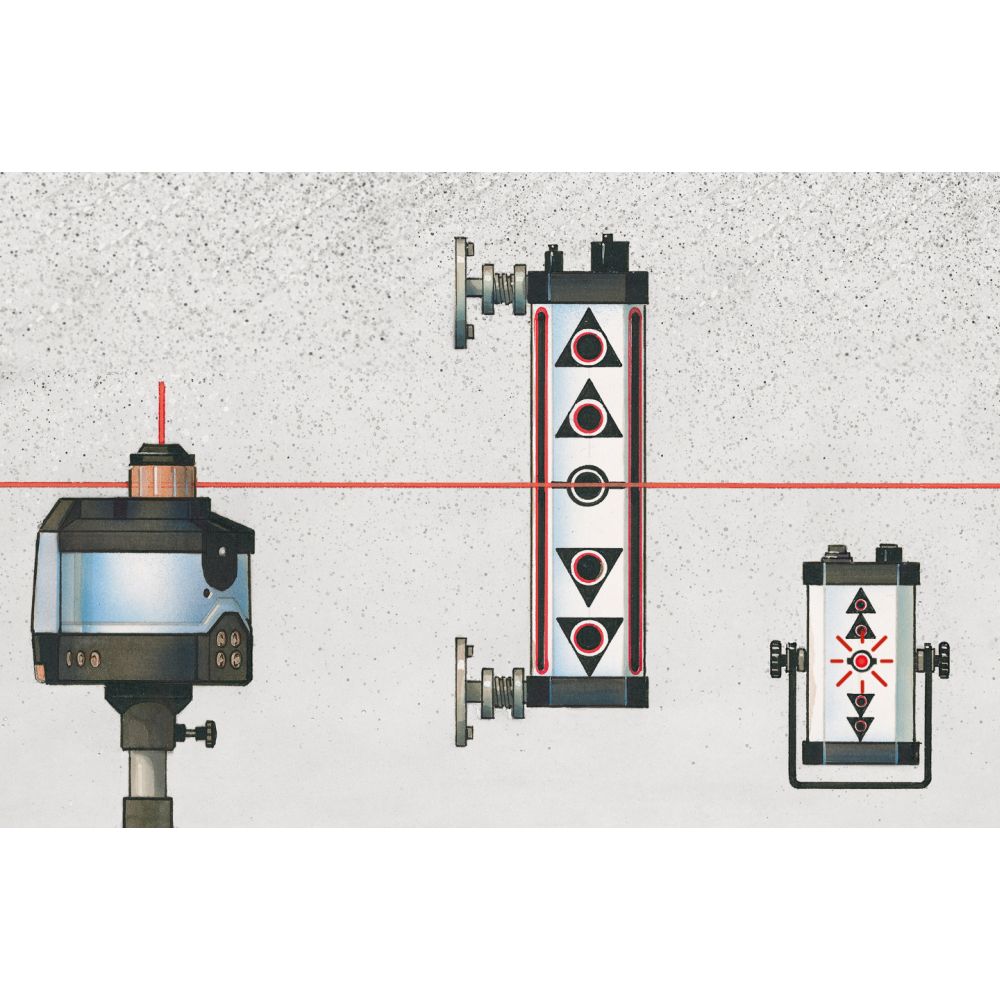

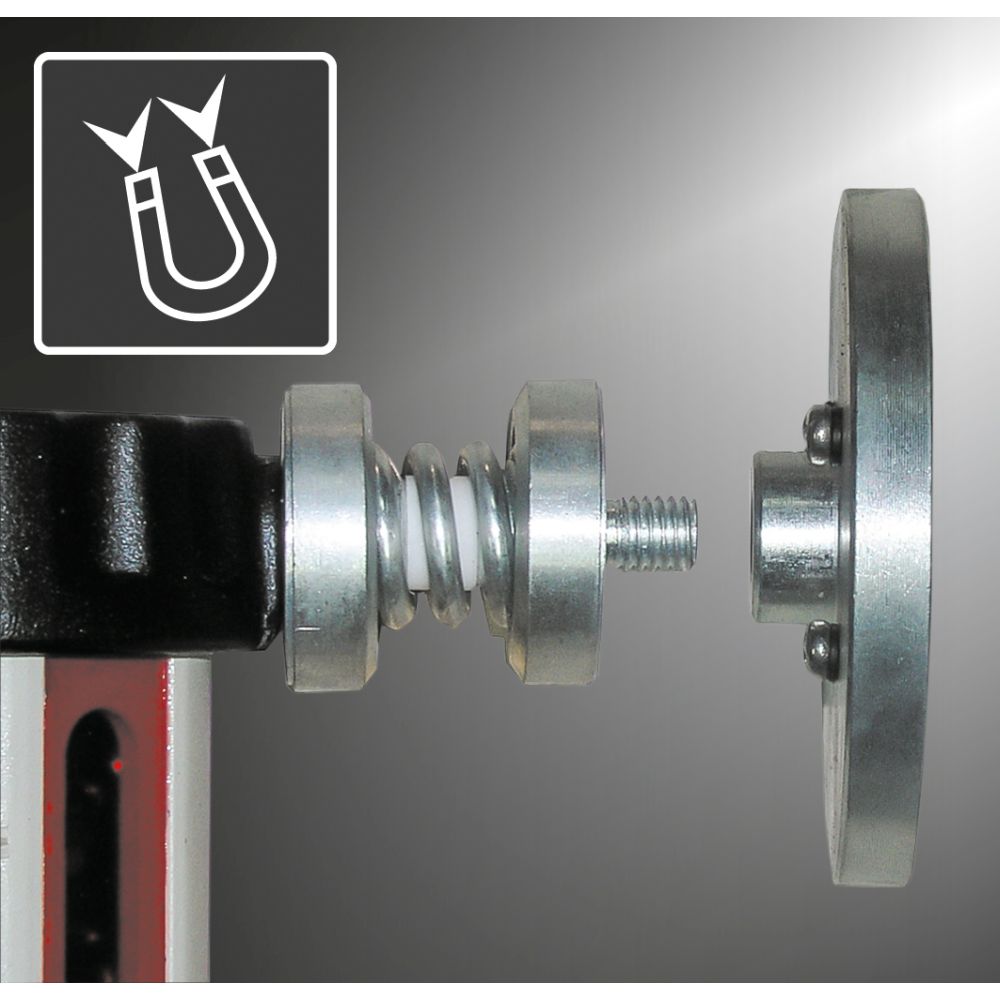

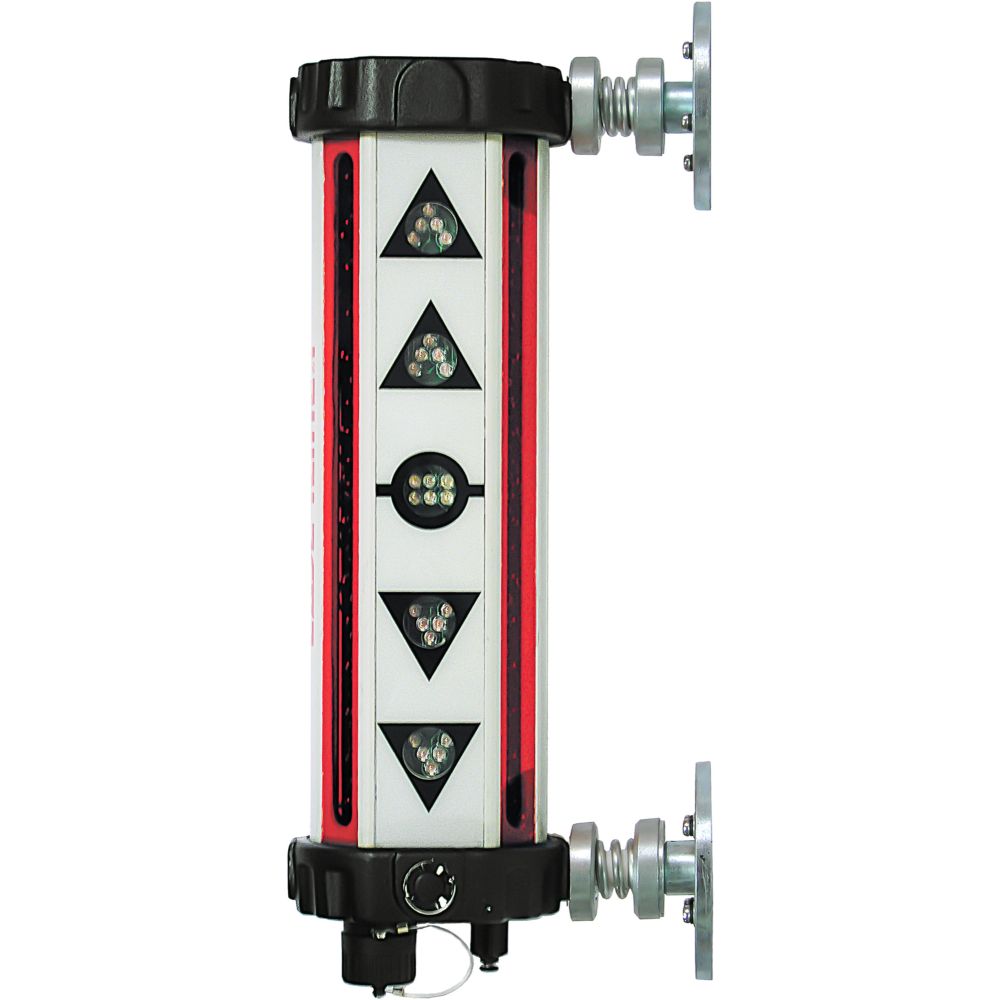

Description: In combination with a red rotating laser, the SensoPilot Pro is used for permanent height control in construction machinery control. Four receiver units allow the laser to be received in a radius of 360° and a range of 200 metres. Large, highly visible LEDs indicate the laser level. The unit has a waterproof and dustproof housing and can be easily attached to the machine with the strong holding magnets.
Technical Data | 035.00A SensoPilot Pro |
---|---|
Title | Laser receiver for rotary lasers |
Necessary Rotation Speed | 200, 400, 600 rpm |
Laser Reception Range | max. 200 m |
Length of Receiver Unit | 255 mm |
Laser Wavelength | 635 nm |
Protection Class | IP 54 |
Power Supply | DC 12V / 2A |
Operating Time | approx. 15 hours |
Temperature (Working Conditions) | -10°C … 50°C |

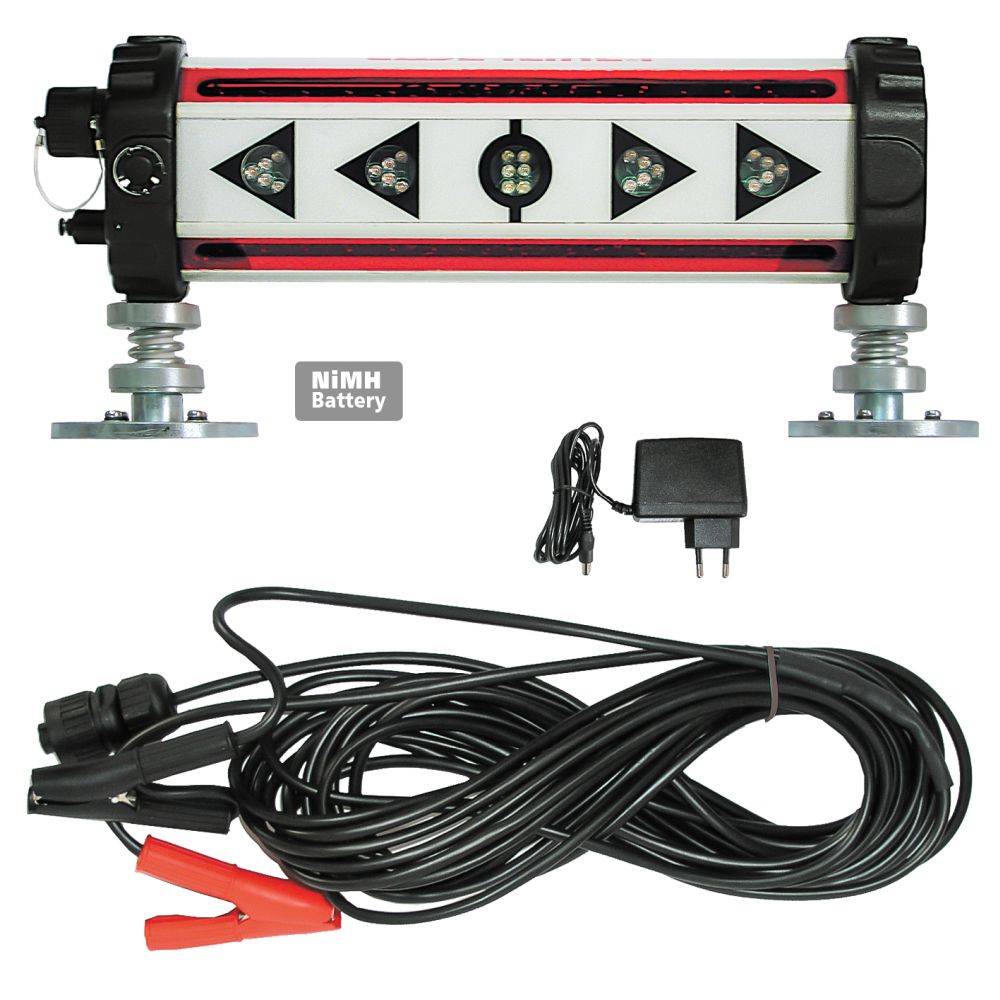

Scope of delivery:
Documentation:
Titel:
Laser receiver for rotary lasers
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
Art.No.: 035.00A, GTIN (EAN): 4021563658787
