PowerCross-Laser 5 Combi

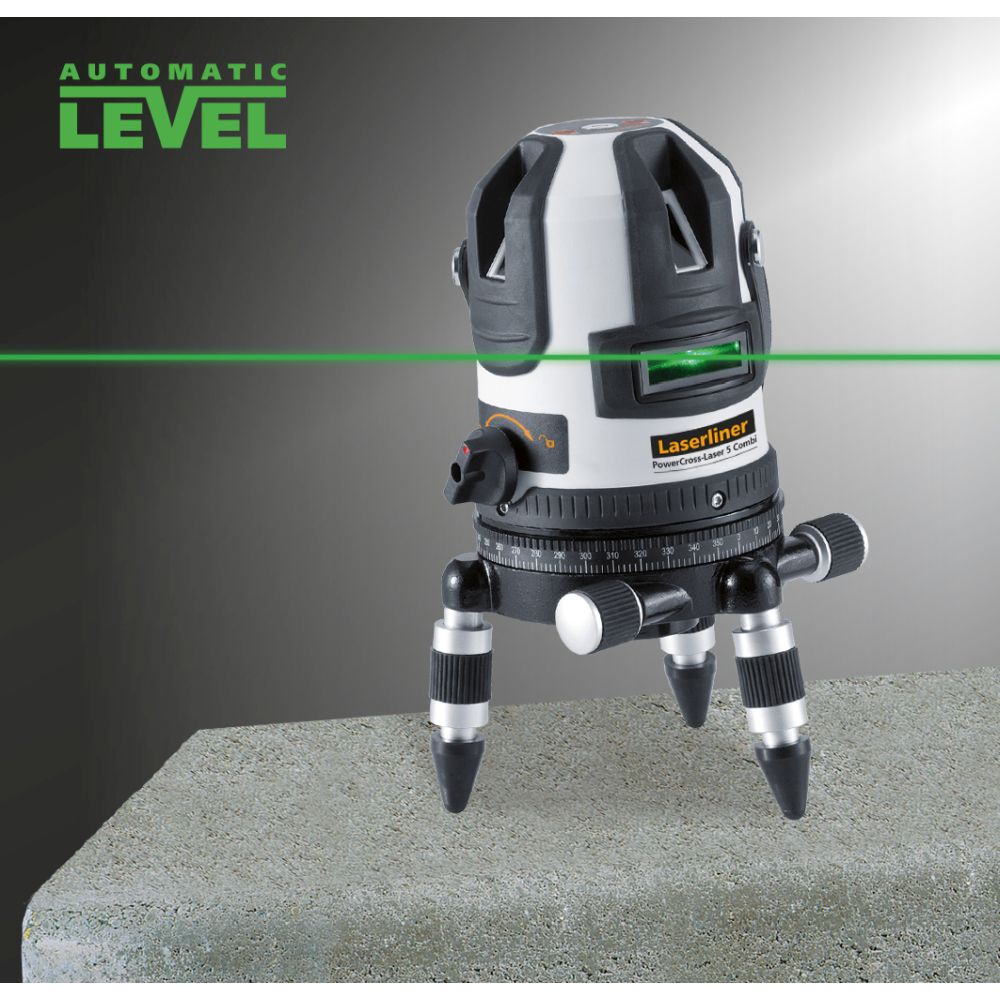

Cross-line laser with green laser cross, three red laser lines and plumb laser


Description:  This cross-line laser has a green laser cross and three red laser lines for precise vertical and horizontal levelling. The upper laser cross and the additional plumb laser allow the floor and ceiling to be worked on at the same time. The device can be easily set up in advance using the vial and the height-adjustable feet. The rotatable housing with vernier adjustment mechanism allows the laser line to be precisely positioned. To prevent incorrect measurements, optical signals warn the user when the device is outside the levelling range. Other positive features include the powerful lithium-ion battery for extended periods of operation and a pendulum locking system for safe transportation. When combined with the optional CombiRangeXtender 40, the integral handheld receiver mode allows the red and green laser lines to be detected over long distances and in unfavourable light conditions.

Technical Data057.300L PowerCross-Laser 5 Combi
Titlecross-line-laser
Hand receiver mode

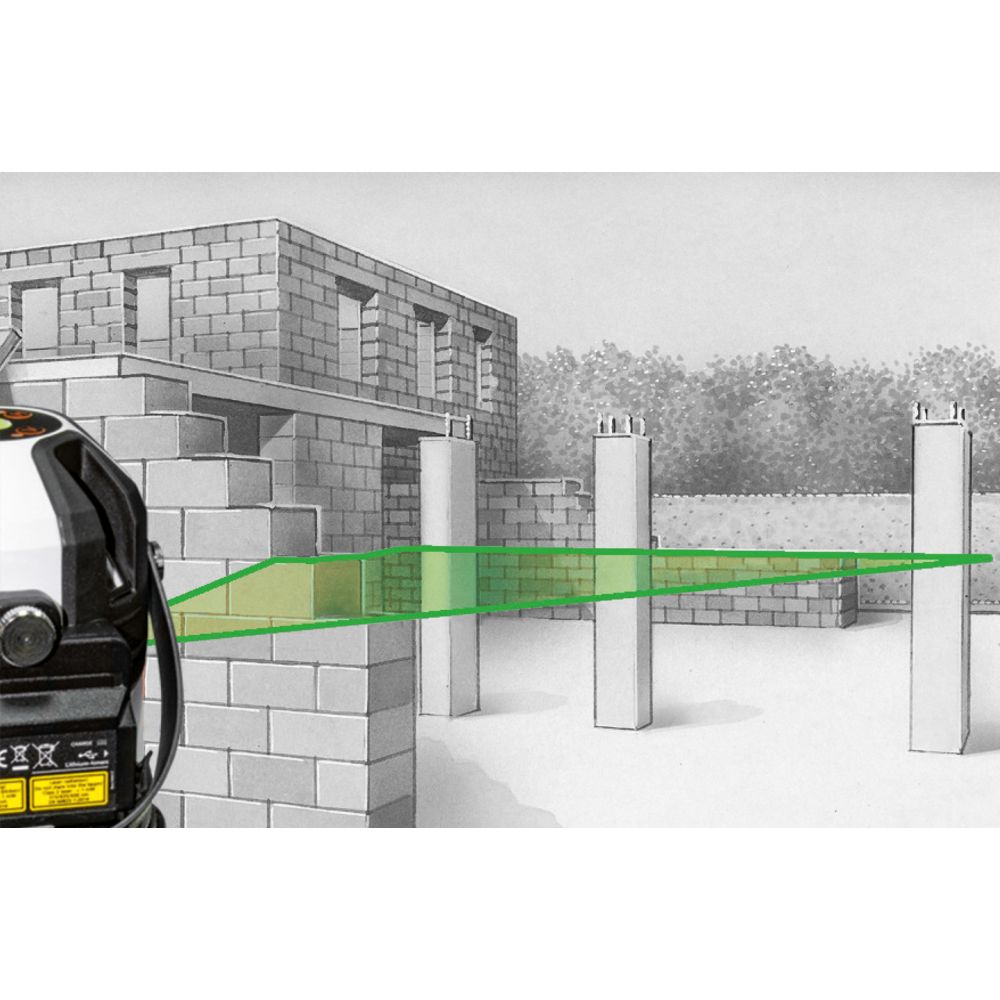

Horizontal/vertical levelling
Manual slope function
Rotatable housing with vernier adjustment mechanism
Plumb laser down
Replaceable battery system
Levellingautomatic
Tripod Connection5/8" thread
Accuracy± 0.15 mm / m
Self-Levelling Range± 2°
Visibility (Typical)*55 m
LaserPlumb laser
Line laser
Laser Wavelength515 / 635 nm
Plumb Laser Wavelength650 nm
Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Protection ClassIP 54

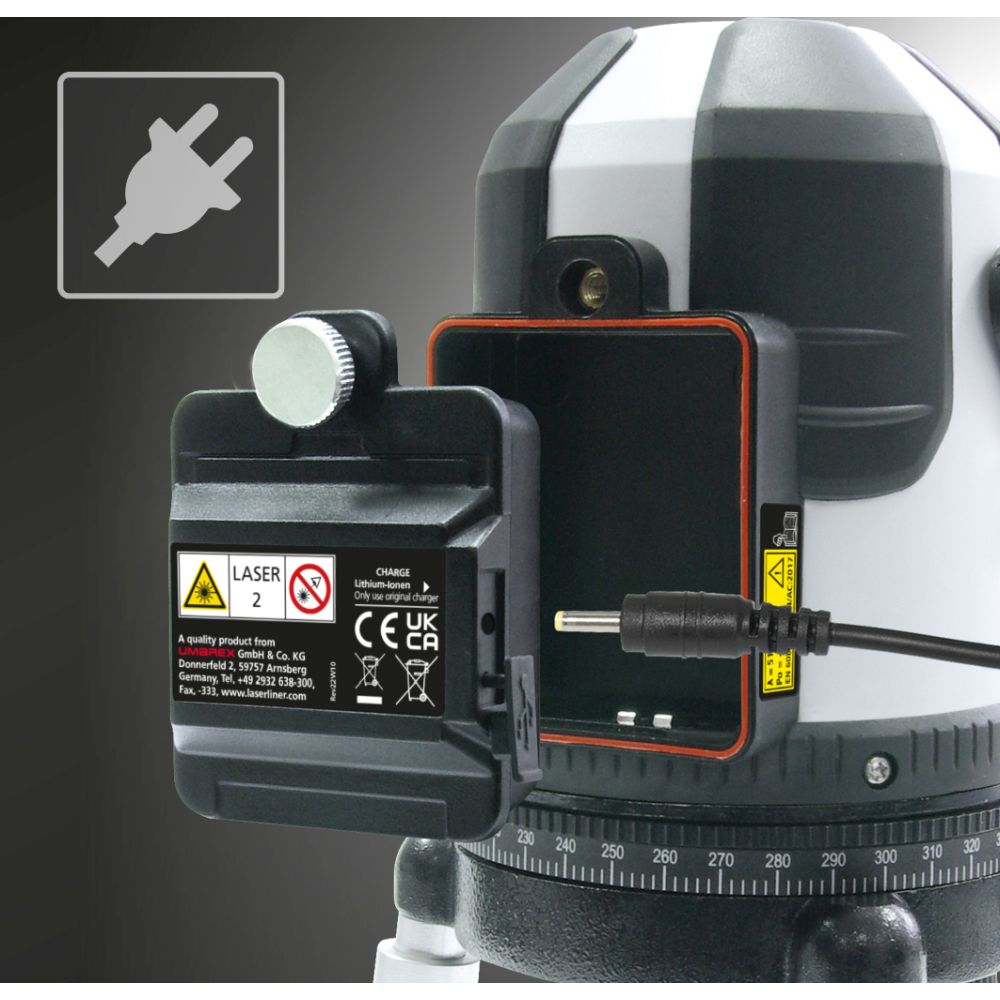

Power SupplyLi-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating Timeapprox. 4 hours
Battery Recharging Timeapprox. 4 hours
Temperature (Working Conditions)0°C … 50°C

Scope of delivery:

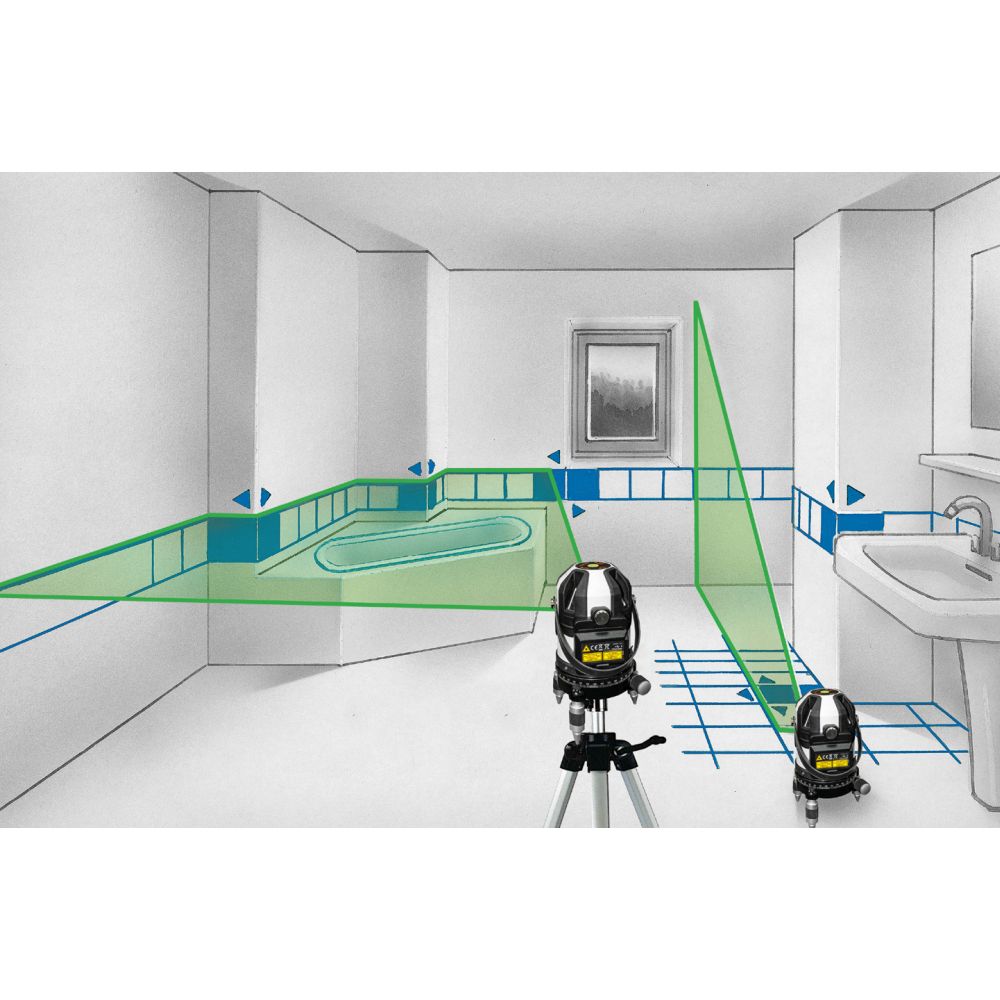

  • Exact horizontal and vertical alignment of objects
  • Straightforward plumb function using upper laser cross and additional plumb laser

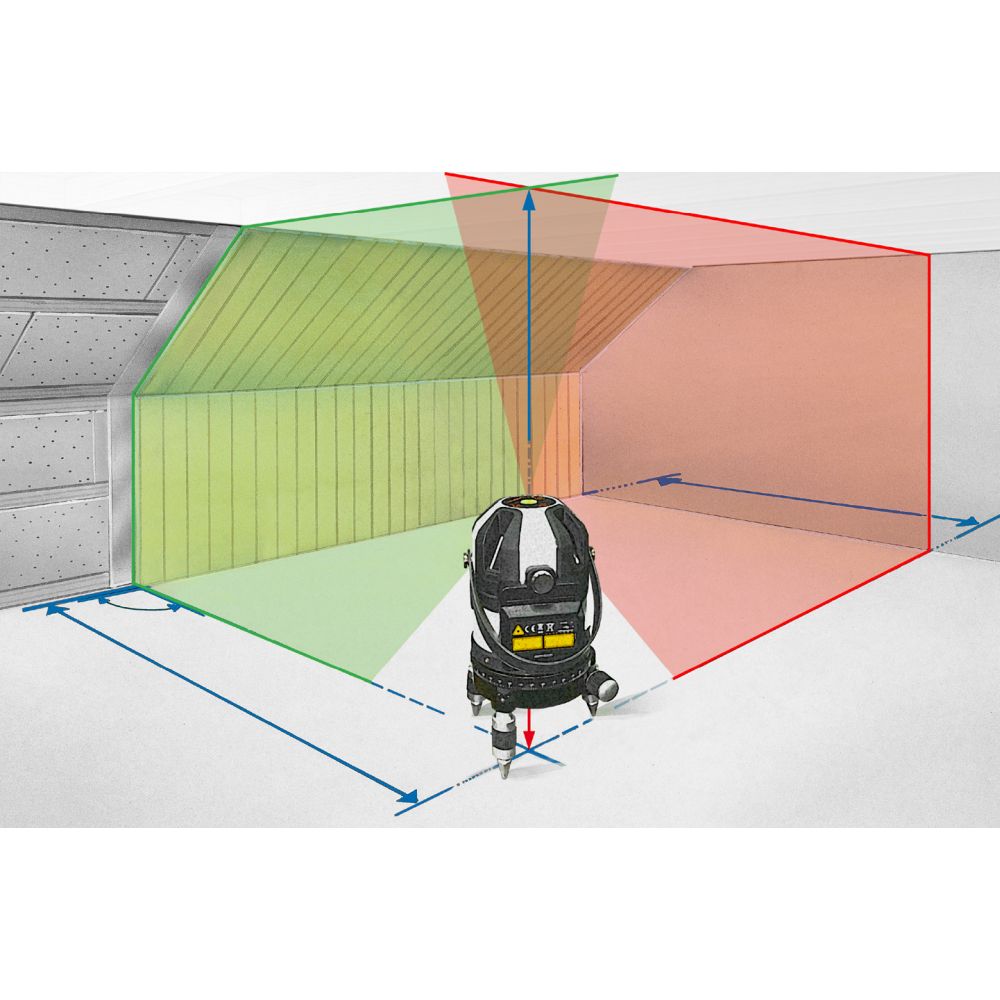

  • The four vertical laser lines thus have a perpendicular alignment with respect to each other
  • Good visibility through green laser technology
  • Vial and height-adjustable feet for pre-adjustment
  • The pivoted housing with a vernier adjustment mechanism and horizontal circle permits exact positioning of laser lines
  • Time-saving automatic alignment
  • Individually switchable laser lines
  • Visual signals indicate when the device is outside its self-levelling range
  • The laser receiver, which is available as an optional extra, can detect laser lines at a range of up to 40 m – ideal for outdoor applications
  • Long battery operating time thanks to powerful lithium-ion rechargeable battery
  • Pendulum restraint for safe transport


  • Documentation:

    Titel:
    cross-line-laser

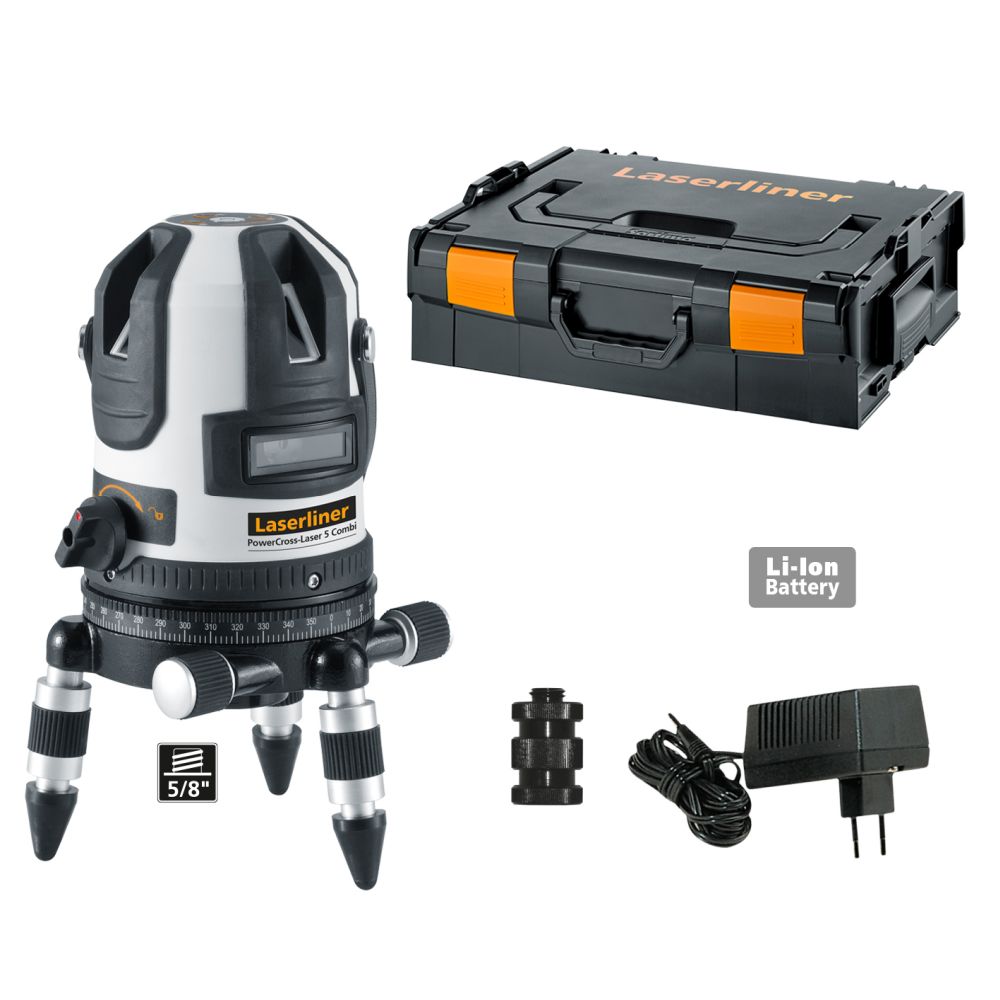

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):

  • PowerCross-Laser 5 Combi
  • tripod adapter
  • power supply / battery charger
  • rubber caps
  • Li-ion battery


  • Art.No.: 057.300L, GTIN (EAN): 4021563707010
