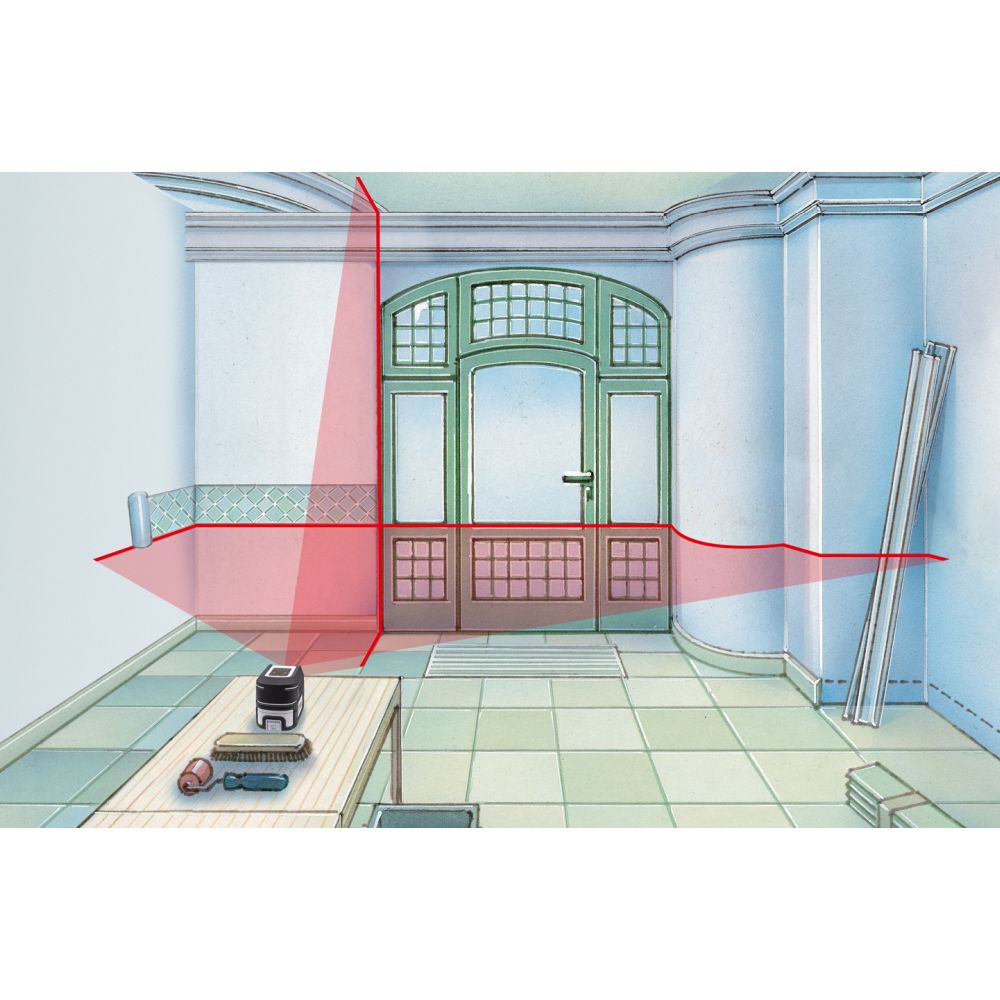

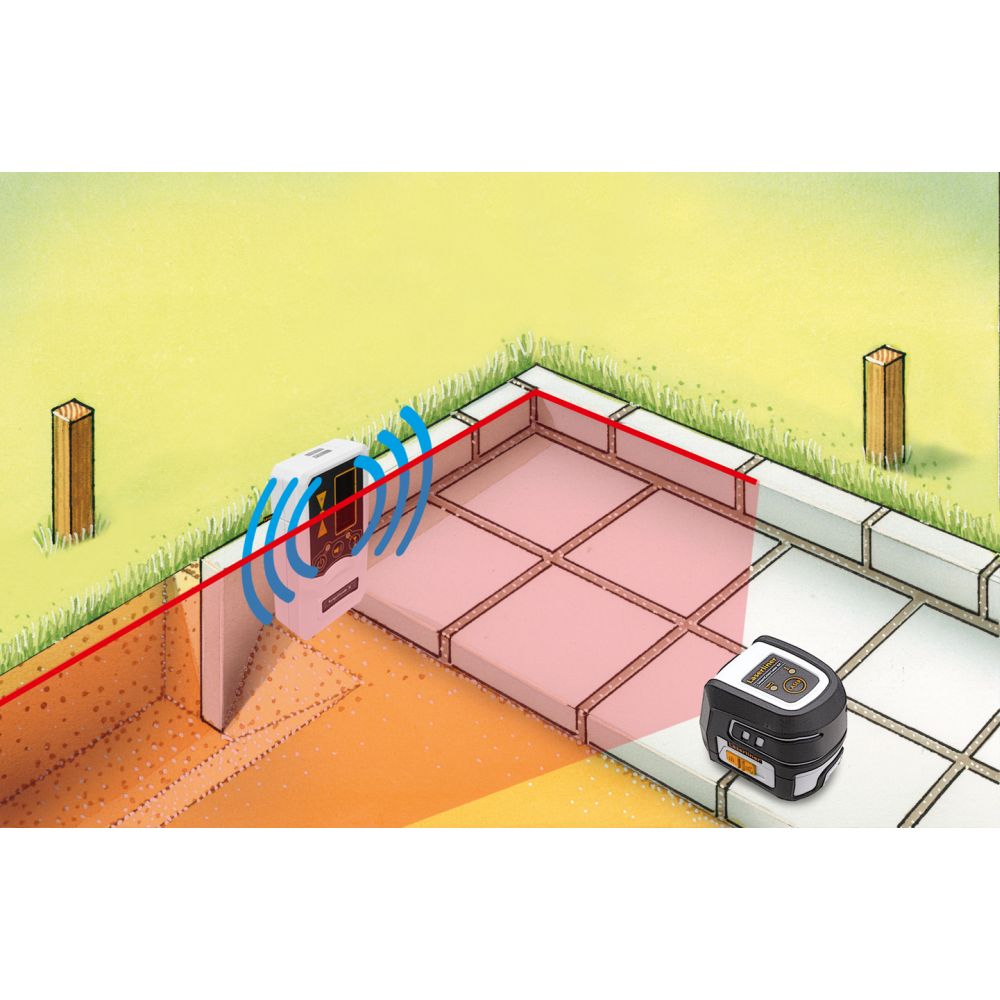

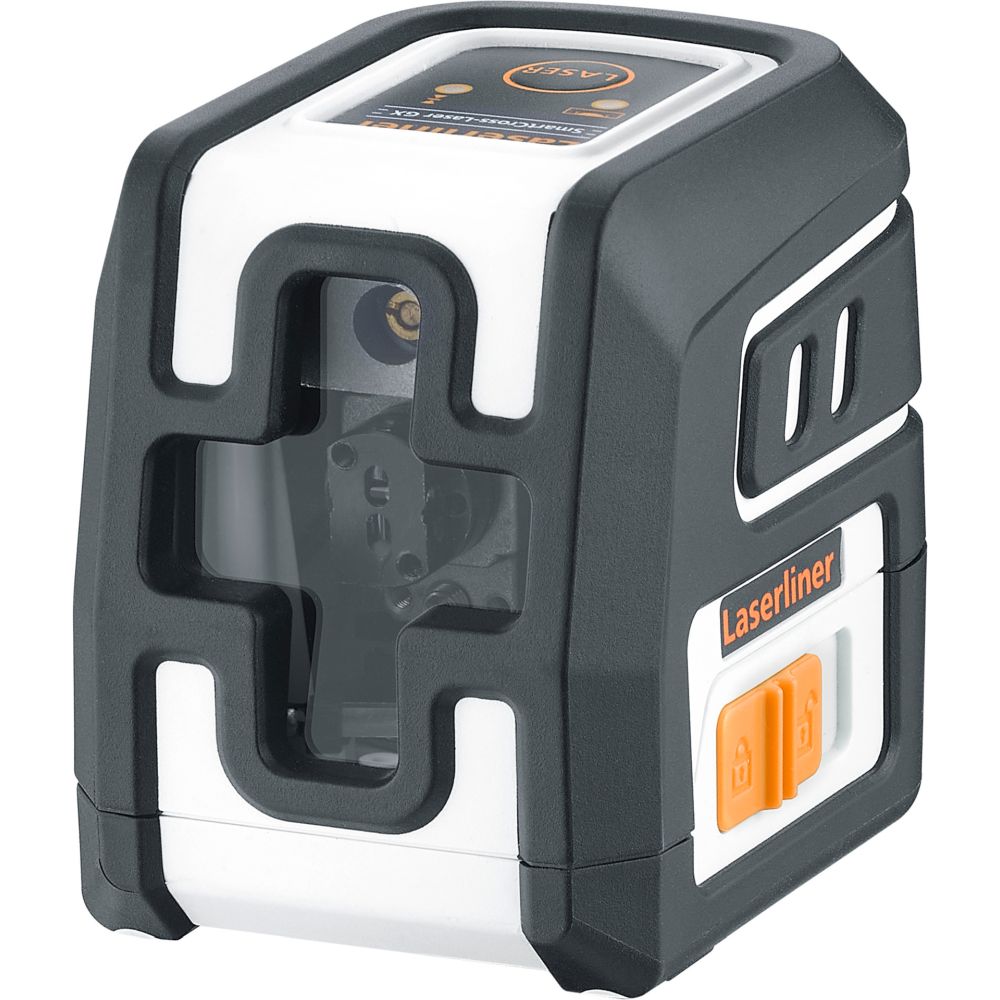

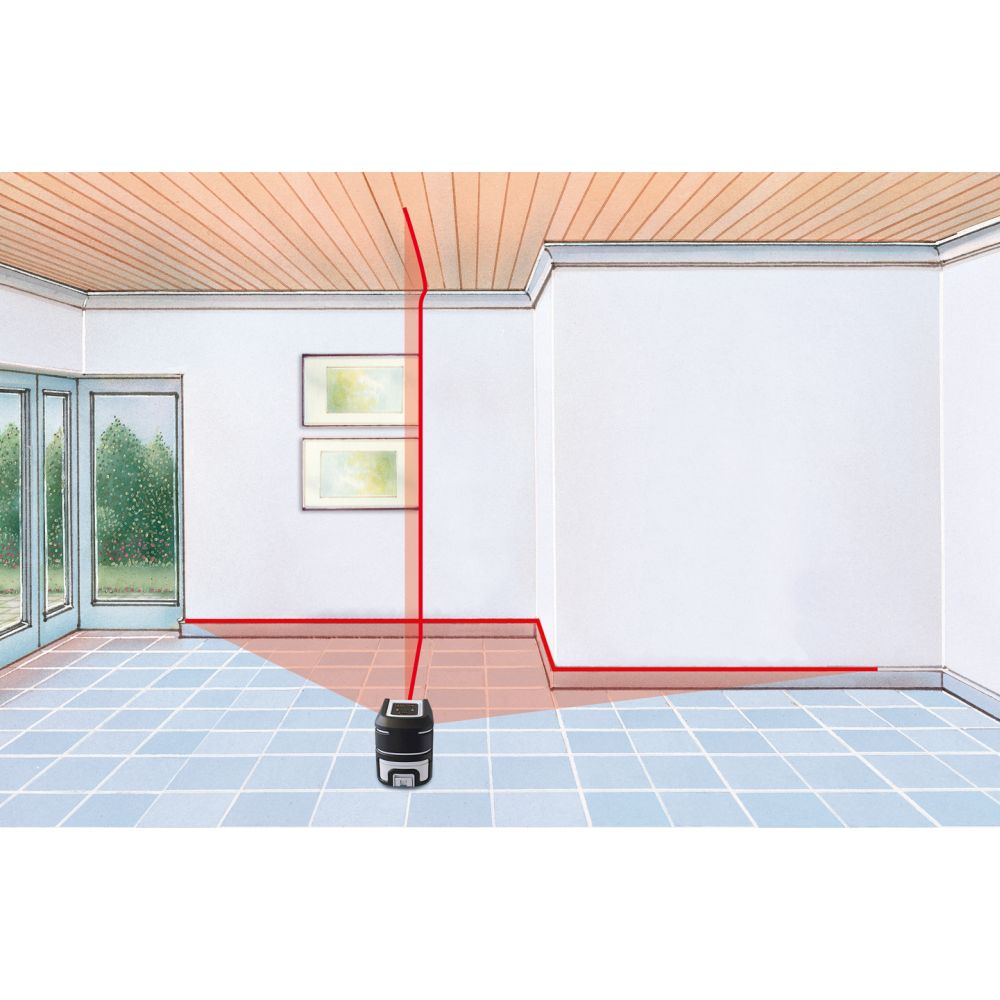

Description: This cross-line laser projects a highly visible laser cross for precise horizontal and vertical alignment of objects. It also offers a manual slope function for easy creation of gradients and a 1/4” thread for mounting on a tripod. The laser can also be used for outdoor applications and alignment work at long distances with the integrated hand-held receiver mode. The housing of the laser is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability.
| Technical Data | 036.735E SmartCross-Laser X |
|---|---|
| Title | Crossline laser |
| Horizontal/vertical levelling | ✅ |
| Manual slope function | ✅ |
| Battery operation | ✅ |

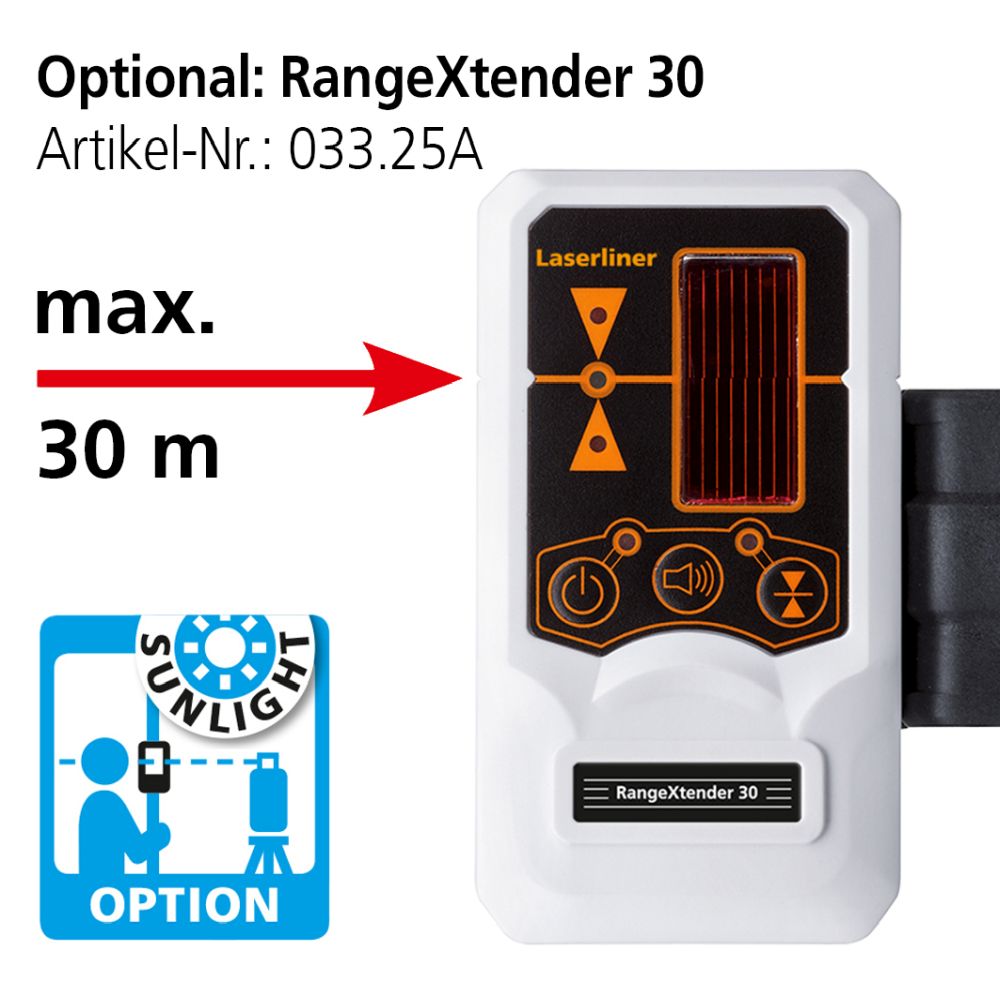

| Hand receiver mode | ✅ |

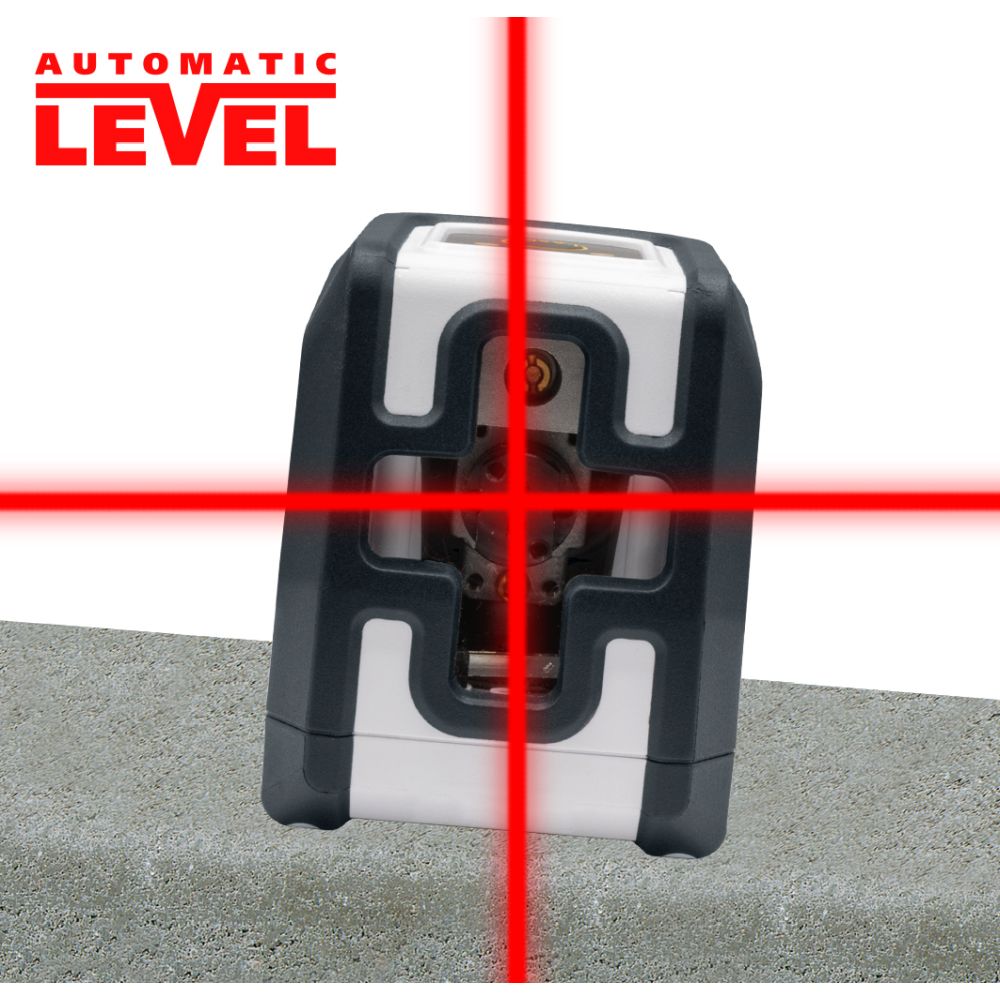

| Levelling | automatic |

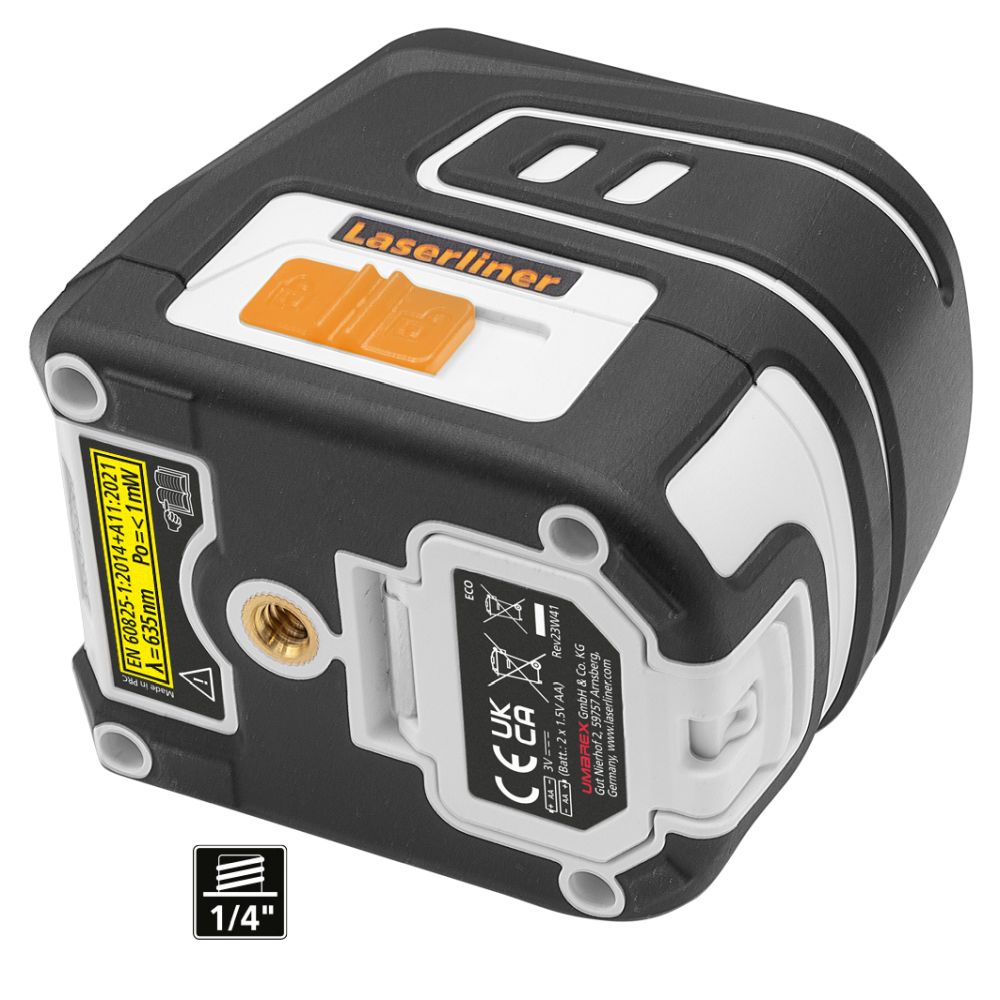

| Ports | 1/4" tripod thread |
| Tripod Connection | 1/4" thread |
| Accuracy | ± 0.3 mm / m |
| Self-Levelling Range | ± 4° |
| Visibility (Typical)* | 10 m |
| Length of Receiver Unit | 0 mm |
| Laser | 1H1V |
| Laser Wavelength | 635 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Protection Class | IP 54 |

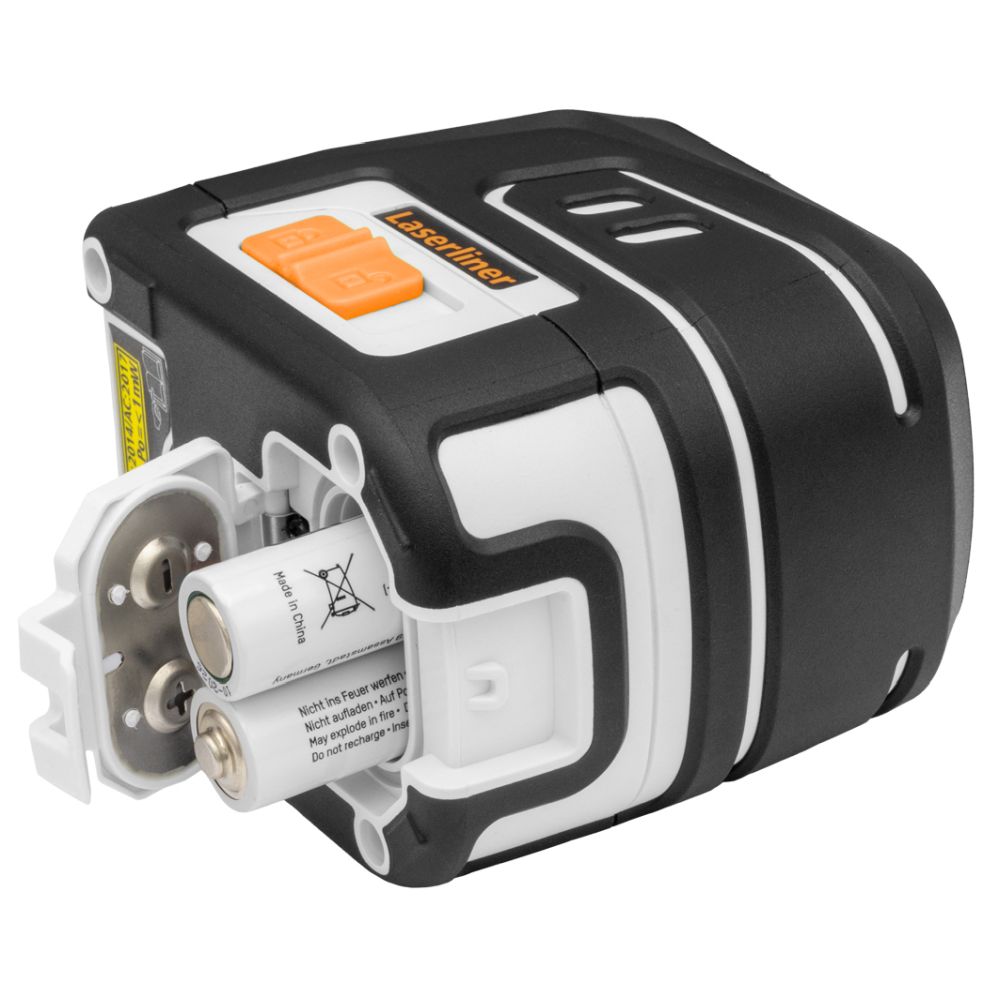

| Power Supply | 2 x 1.5V LR6 (AA) |
| Operating Time | approx. 20 hours |
| Temperature (Working Conditions) | -10°C … 50°C |
Scope of delivery:
Documentation:
Product information sheetTitel:
Crossline laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
Art.No.: 036.735E, GTIN (EAN): 4021563731831
